Product Type	Brushed stainless steel built-in ice bucket (cooler)
Model	FG-SKU3
Brand	Vevor
Dimensions (L x W x H)	595 x 495 x 590 mm
Capacity	78.37 L
Cold retention time	Up to 24 hours
Exterior material	Brushed stainless steel
Insulation	Double layer with high-density polyurethane foam
Lid seal	Adhesive tape for sealing
Anti-condensation coating	XPE sponge on sides and bottom
Included accessories	Cup, sealing gasket (2x), lid, strainer, screw, siphon, key
Recommended use	Bar, terrace, pool, restaurant, parties, barbecues
Ice cube capacity	Approximately 10 kg of ice (equivalent to 23 L of water)
Cleaning	Empty and dry after each use; for long inactivity, keep dry
Precautions	Do not use sharp objects; correct assembly required
Installation	Built-in, follow the manual steps
Certifications	Compliant with CE standards

Frequently Asked Questions - FG-SKU3 Vevor

How to install the FG-SKU3 ice bucket?

Place part #4 into the basin hole, install parts #5/6/7 onto #4, tighten the screw with the key, then place parts #1/2/3 onto #4. Refer to the manual for diagrams.

What is the capacity of the FG-SKU3 ice bucket?

The capacity is 78.37 liters, able to hold approximately 10 kg of ice (equivalent to 23 liters of water).

How long does the ice stay cold?

The cold retention time can reach 24 hours thanks to the double-layer insulation with high-density polyurethane foam and the airtight lid seal.

How to clean the ice bucket?

Empty the water after each use and dry the interior to prevent bacteria. In case of prolonged non-use, keep the reservoir dry.

Does the ice bucket produce condensation?

No, thanks to the XPE sponge that wraps the sides and bottom, preventing condensation and water droplets.

What accessories are included with the FG-SKU3?

Accessories include: a cup, two sealing gaskets, a lid, a strainer, a screw, a siphon, and a key.

Is the ice bucket easy to install?

Yes, installation is simple. Handle the appliance with care and follow the steps in the manual for proper assembly.

What types of drinks can I refrigerate?

You can place wines, beers, cocktails, juices, and other cold drinks. Ideal for parties, barbecues, or professional use.

Are there any safety precautions?

Keep small parts out of reach of children (choking hazard). Keep work area clean and well-lit. Use only as intended.

Where is the Vevor ice bucket manufactured?

Manufactured in China. The CE representative is SHUNSHUN GmbH in Germany and the UK representative is Pooledas Group Ltd.

USER MANUAL FG-SKU3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS

INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4

FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8

FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12

FG-SKU13

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

DROP IN ICE CHEST

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or

damage to valuable property.

WARNING!

This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep the work area clean and lighted, and keep spectators and children out of the work area.
2. Assemble only according to the ice chest parameters. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades, and other items, so as not to scratch the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the final purchased product.
2. Please follow the installation steps to mount this drop-in ice chest.

Wrong installation steps may cause some damage. 3. Installation is easy. Please handle it gently.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a

adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.

1. The ice bucket with lid is a versatile and essential accessory that can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties, or barbecues.
2. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents the side and bottom from condensation, which leads to the problem of dripping water on the surface.

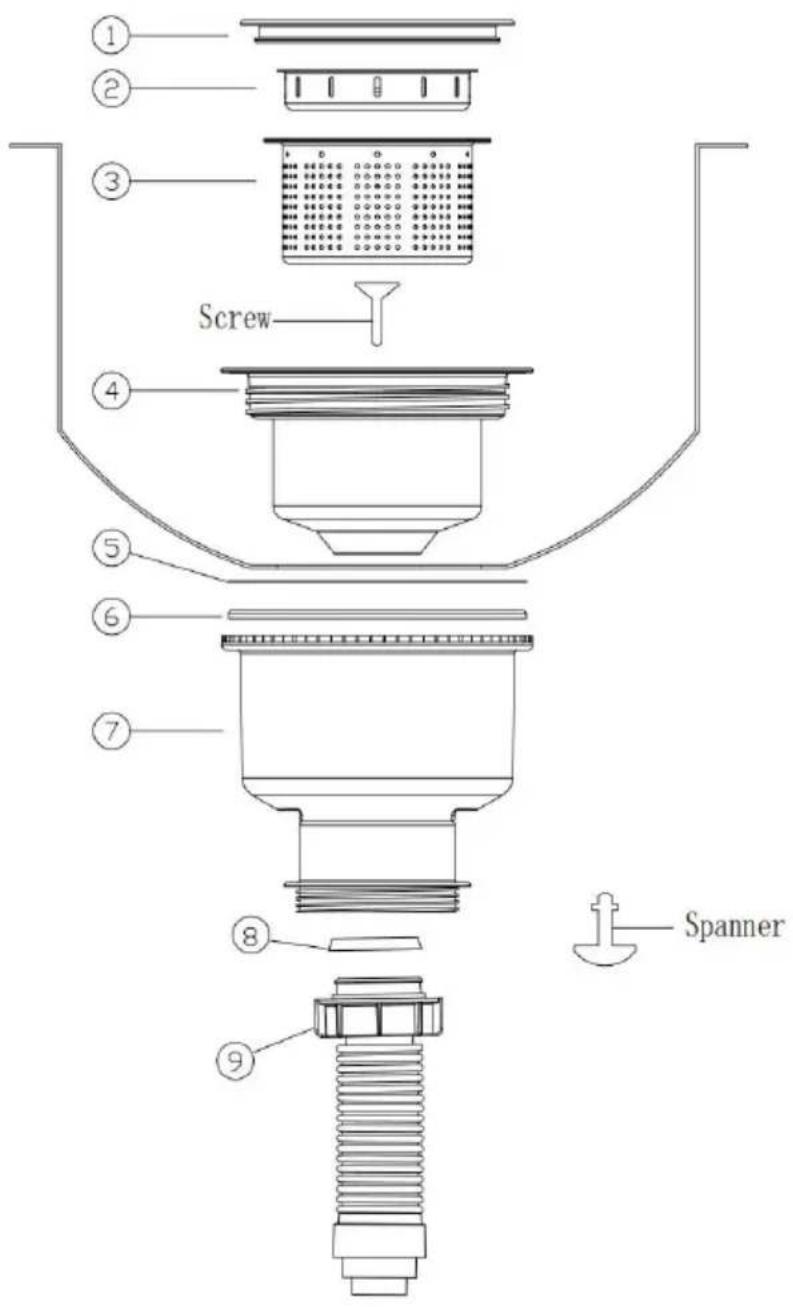

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalent siphon	1		Spanner	1

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on part No. 4. 2: Tighten the screw with the key, and tighten parts No. 8/9 on part No. 4. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7
FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66
FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation. 3. The product capacity data in the table is calculated based on the density of water, and there will be some errors in practice, which is a normal phenomenon.
3. Because the volume and density of ice are different from those of water, the capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water to fill the ice bucket.

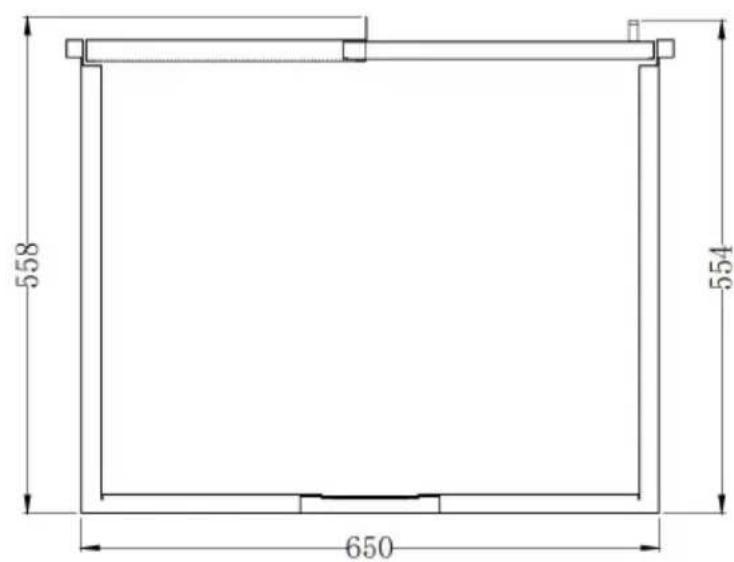

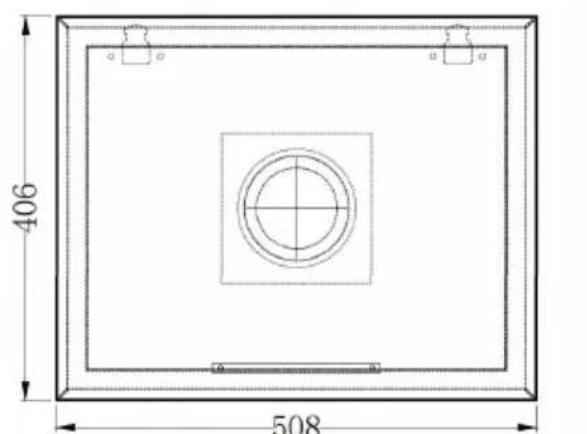

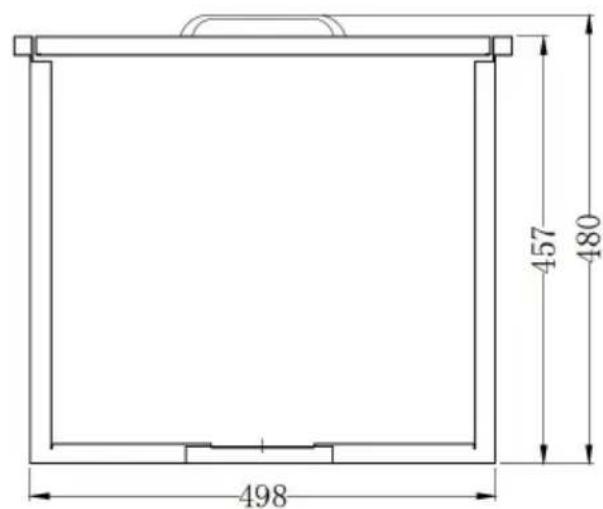

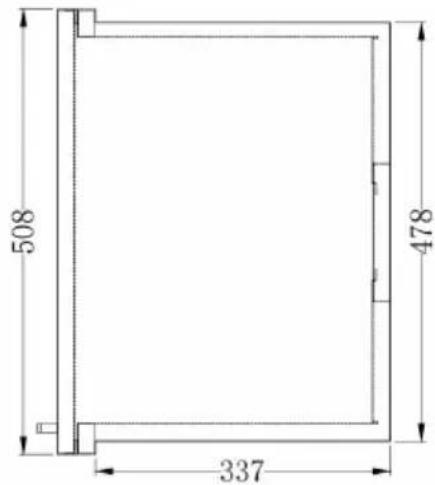

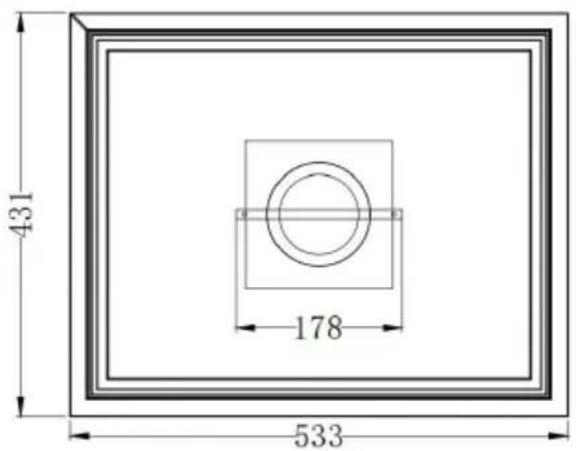

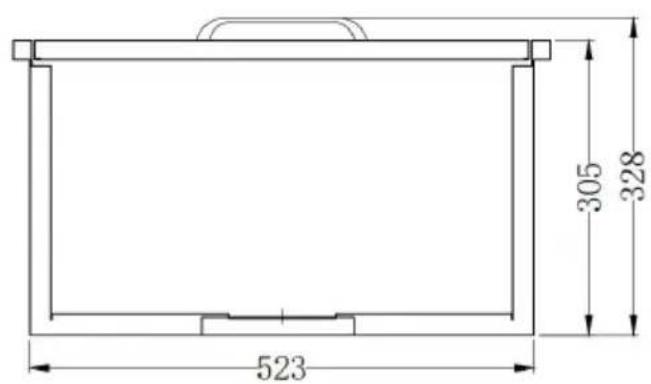

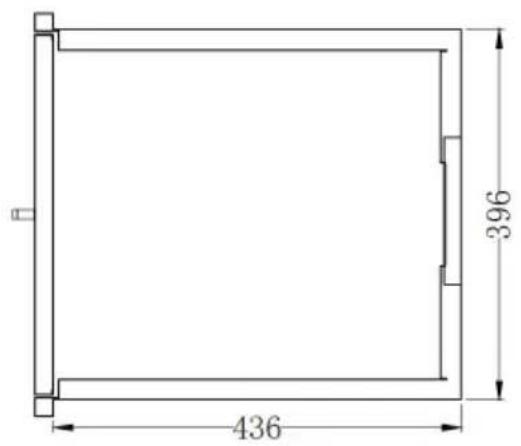

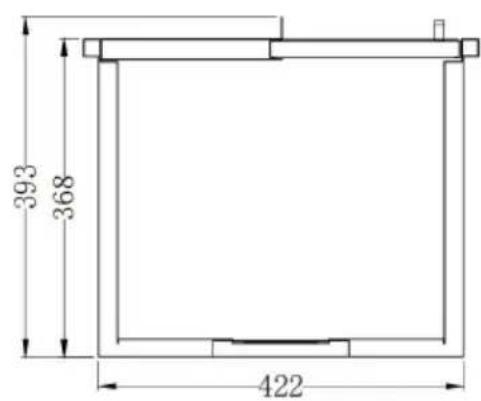

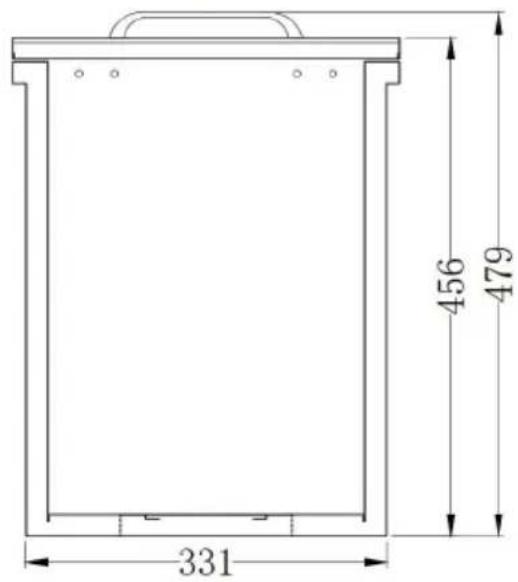

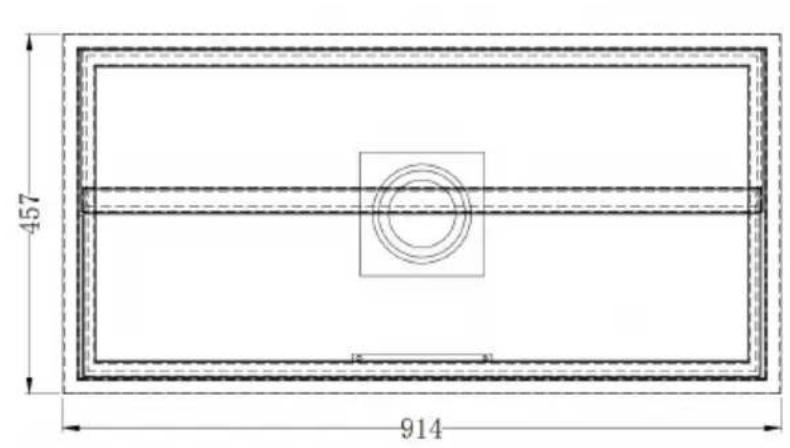

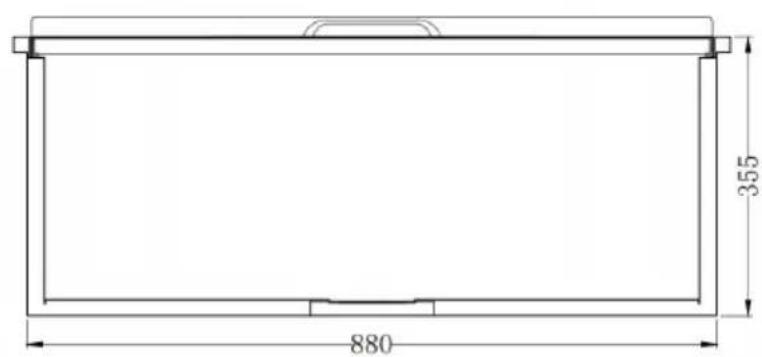

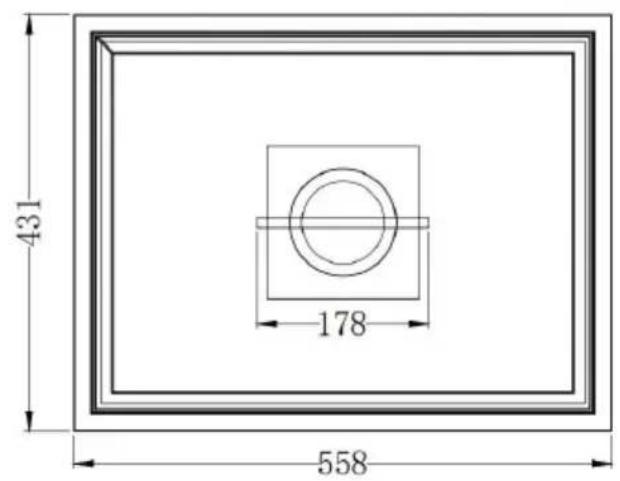

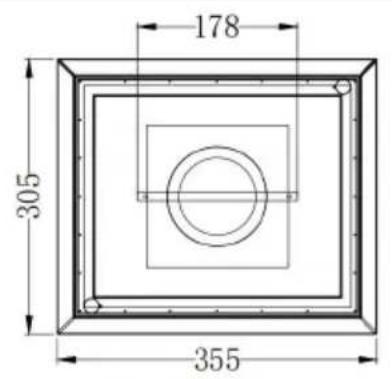

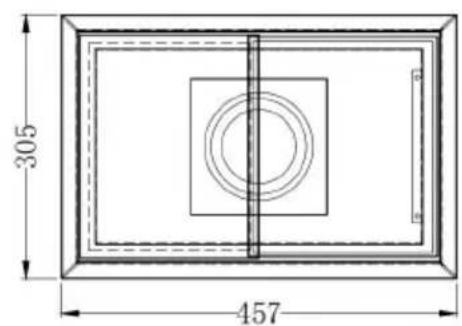

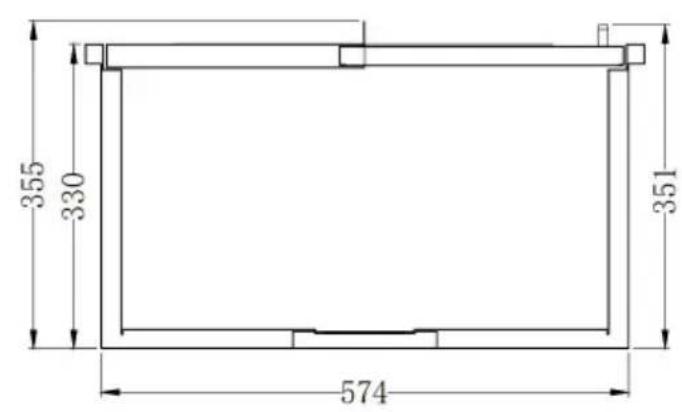

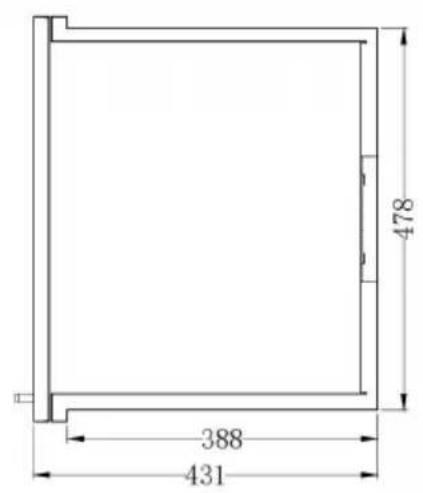

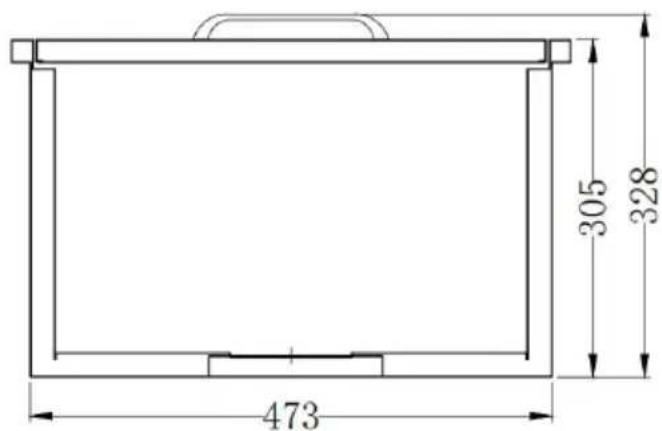

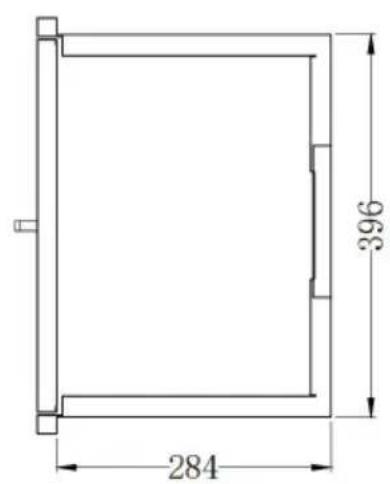

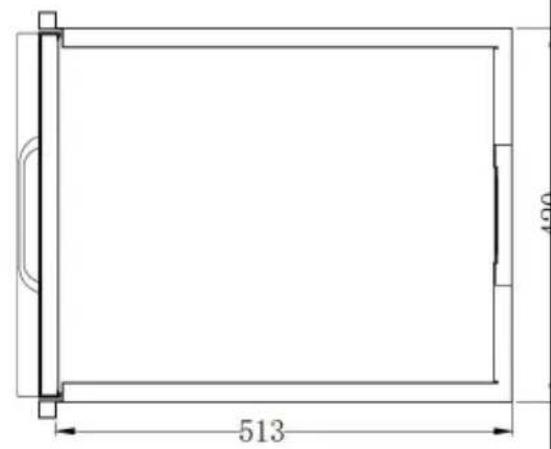

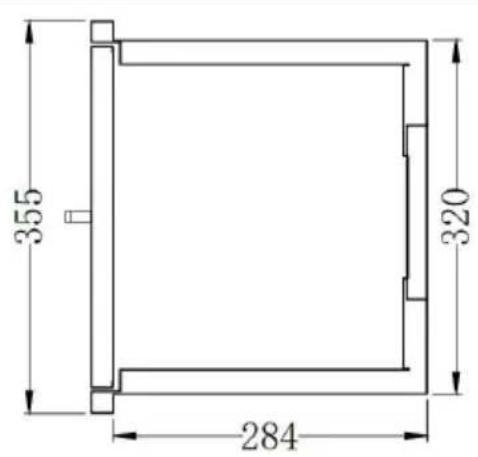

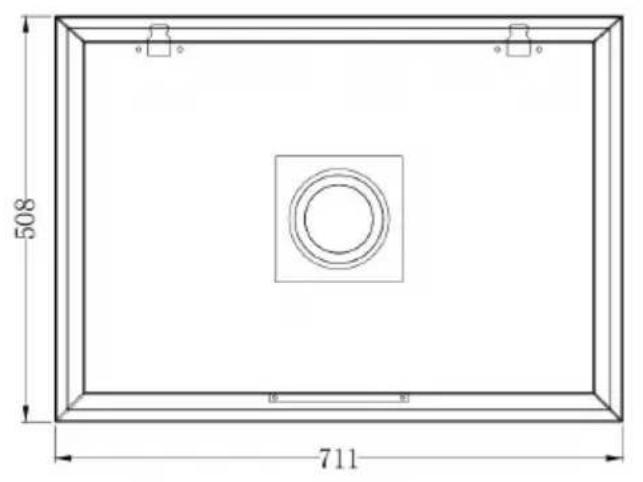

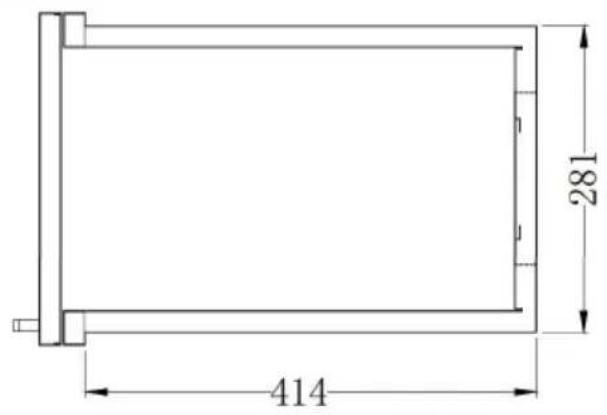

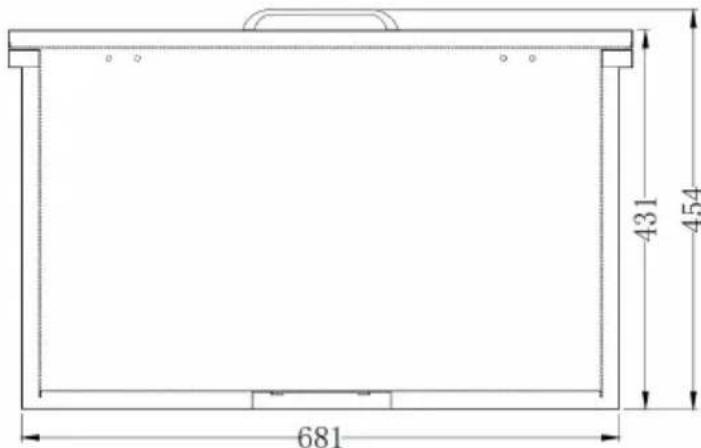

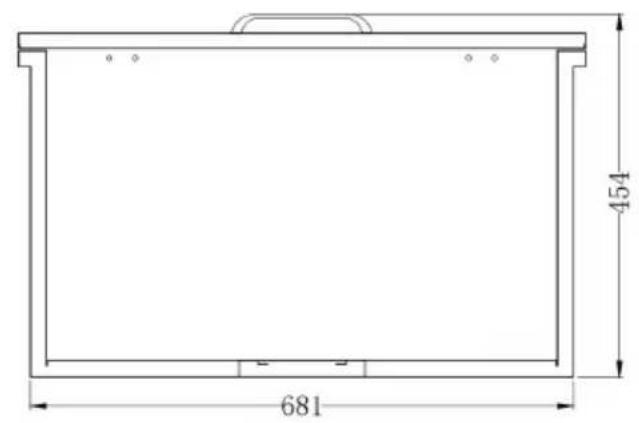

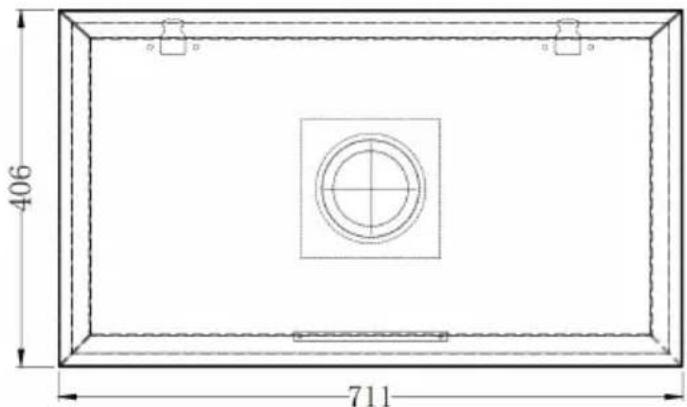

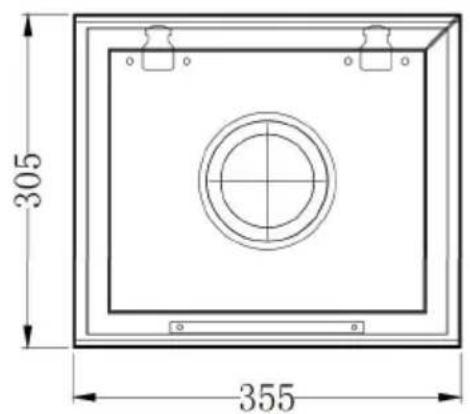

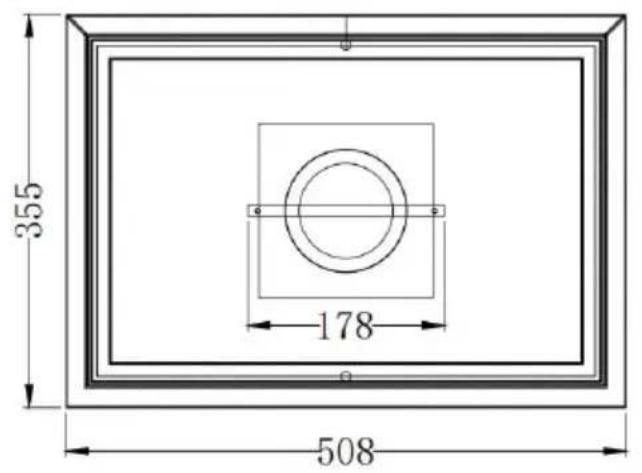

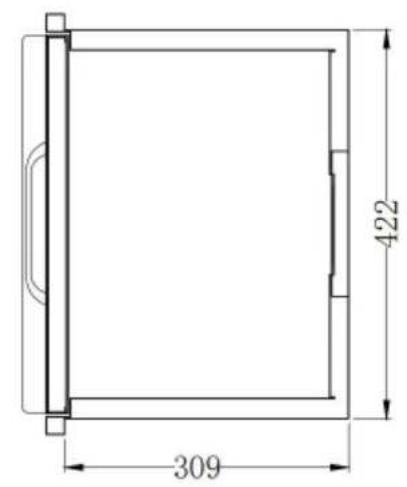

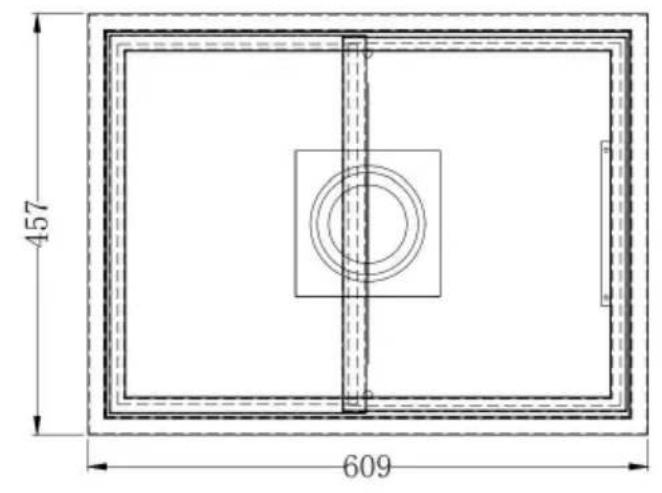

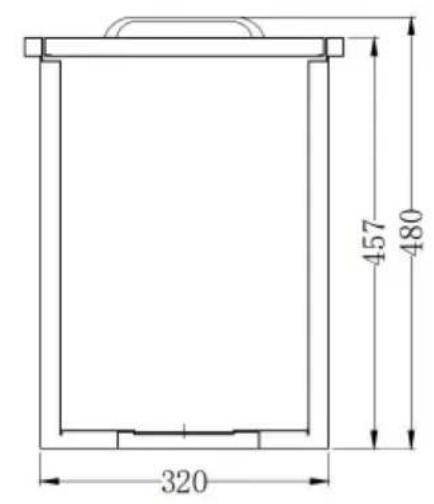

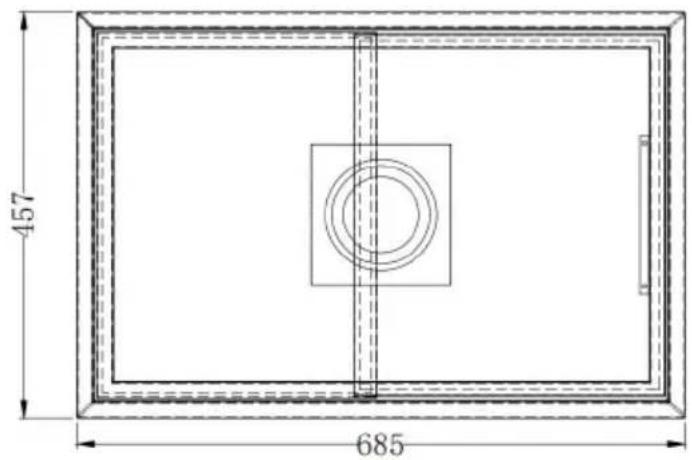

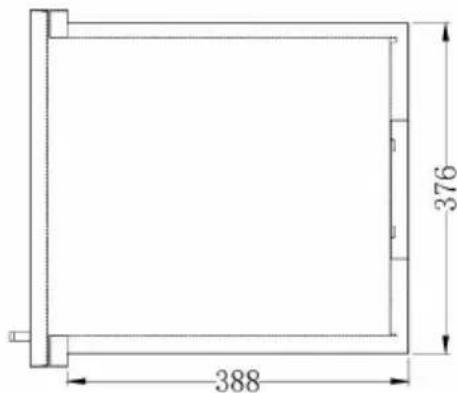

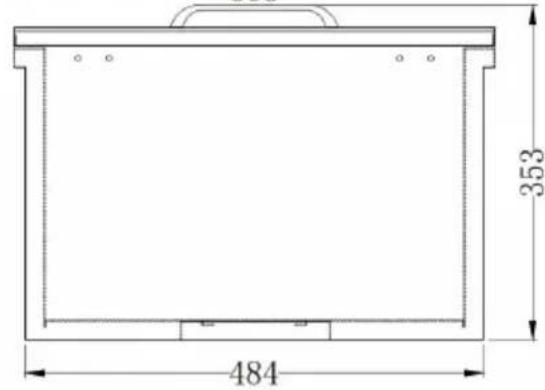

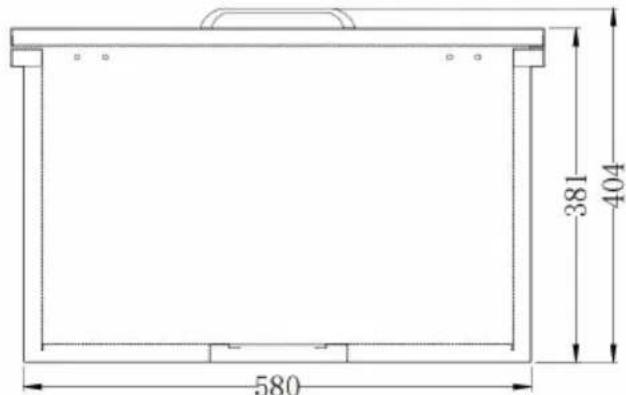

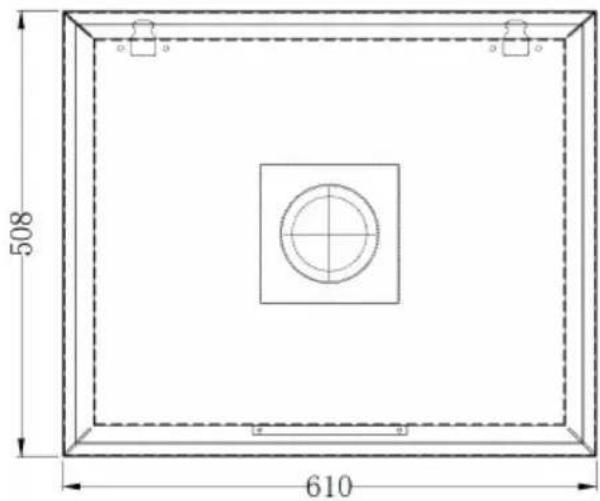

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU11)

(FG-SKU12)

(FG-SKU13)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank. 2. If it is not used for a long time, please empty the water inside and keep it dry to avoid odor or bacteria.
2. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Made In China
