FG-SKU5 - Cooler Vevor - Free user manual and instructions

Product Type	Built-in ice bucket
Brand	Vevor
Model	FG-SKU5
Main Material	Brushed Stainless Steel
Insulation	Double layer with high-density polyurethane
Anti-Condensation	XPE foam on sides and bottom
Capacity	107.8 L
Cutout Size (L x W x H)	695 x 493 x 640 mm
Cold Retention Time	Up to 24 hours
Included Accessories	Cup, lid, strainer, O-rings (2), siphon, screw, key
Recommended Use	Wines, beers, cocktails, juices – for patios, yards, pools, restaurants, parties
Maintenance	Drain water after use, clean and dry interior to prevent bacteria
Long-term Storage	Empty, clean and keep dry
Safety	Contains small parts – choking hazard. Keep out of reach of children.
Assembly	Follow the installation steps provided in the manual
Country of Origin	China (imported by Vevor)

Frequently Asked Questions - FG-SKU5 Vevor

What is the capacity of the Vevor FG-SKU5?

The capacity is 107.8 liters, calculated based on the density of water. The actual capacity for ice is lower due to different density.

What are the dimensions of the FG-SKU5 ice bucket?

The recommended cutout size is 695 mm long, 493 mm wide, and 640 mm high. Consult the actual installation environment for adjustments.

How long does the ice stay cold?

The insulation can keep the ice cold for up to 24 hours under normal conditions.

How to install the Vevor FG-SKU5 ice bucket?

Place part #4 into the hole, install parts 5/6/7 on top, tighten the screw with the key, then place parts 1/2/3 on part #4. Follow the provided installation diagram.

What material is the Vevor FG-SKU5 made of?

The exterior is brushed stainless steel and the interior is insulated with high-density polyurethane. The sides and bottom are covered with anti-condensation XPE foam.

Can I use this ice bucket for drinks other than ice?

Yes, it is suitable for keeping wines, beers, cocktails, and juices cold. Ideal for bars, patios, pools, and parties.

How to clean and maintain the ice bucket?

After each use, drain the melted water and clean the interior to prevent bacteria. For long-term storage, empty, clean, and dry completely.

What accessories are included with the FG-SKU5?

The accessories include: a cup, a lid, a strainer, two O-rings, a siphon, a screw, and a key.

Does this ice bucket prevent condensation?

Yes, thanks to the XPE foam on the sides and bottom, condensation is reduced, preventing water droplets on surfaces.

What safety precautions should be taken?

Keep small parts out of reach of children (choking hazard). Assemble on a clean and well-lit surface, and use only as intended. Avoid sharp objects to prevent scratching the surface.

USER MANUAL FG-SKU5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN ICE CHESTS INSTRUCTIONS

MODEL: FG-SKU1 / FG-SKU2 / FG-SKU3 / FG-SKU4 FG-SKU5 / FG-SKU6 / FG-SKU7 / FG-SKU8 FG-SKU9 / FG-SKU10 / FG-SKU11 / FG-SKU12 FG-SKU13

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

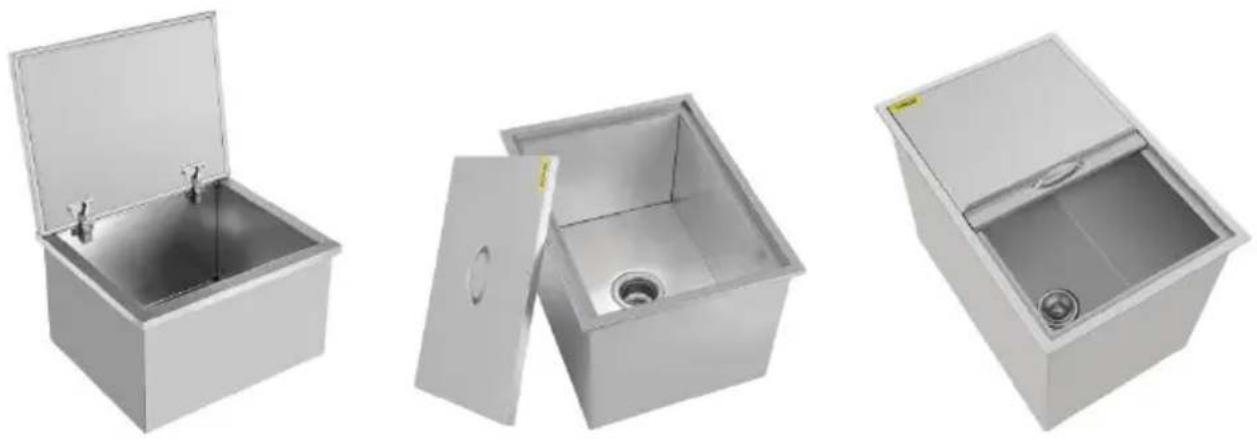

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children when assembling!

WARNING!

1. While assembling and using this product, keep the work area clean and well-lit, and keep spectators and children out of the work area.
2. Assemble only according to the ice chest parameters. Improper assembly can create hazards.
3. Use as intended only.
4. Keep away from sharp points, blades, and other items to avoid scratching the product.

NOTE:

1. The illustration shown is for reference only. It may not represent the actual product purchased.
2. Please follow the installation steps to mount this drop-in ice chest. Incorrect installation steps may cause damage or trouble.
3. Installation is easy. Please handle it gently.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. The double-layer design achieves better insulation. The interior is insulated with high-density polyurethane, and the lid is sealed with an

adhesive strip to prevent heat loss and ensure your ice stays cool for a long time.

1. The ice bucket with lid is a versatile and essential accessory. It can keep wines, beers, cocktails, and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside, and restaurants, perfect for any casual occasion such as dinner, sports parties, or barbecues.
2. The side and bottom of the product are wrapped with XPE sponge, which not only increases the thermal insulation effect but also prevents condensation on the sides and bottom, which could lead to water dripping on the surface.

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

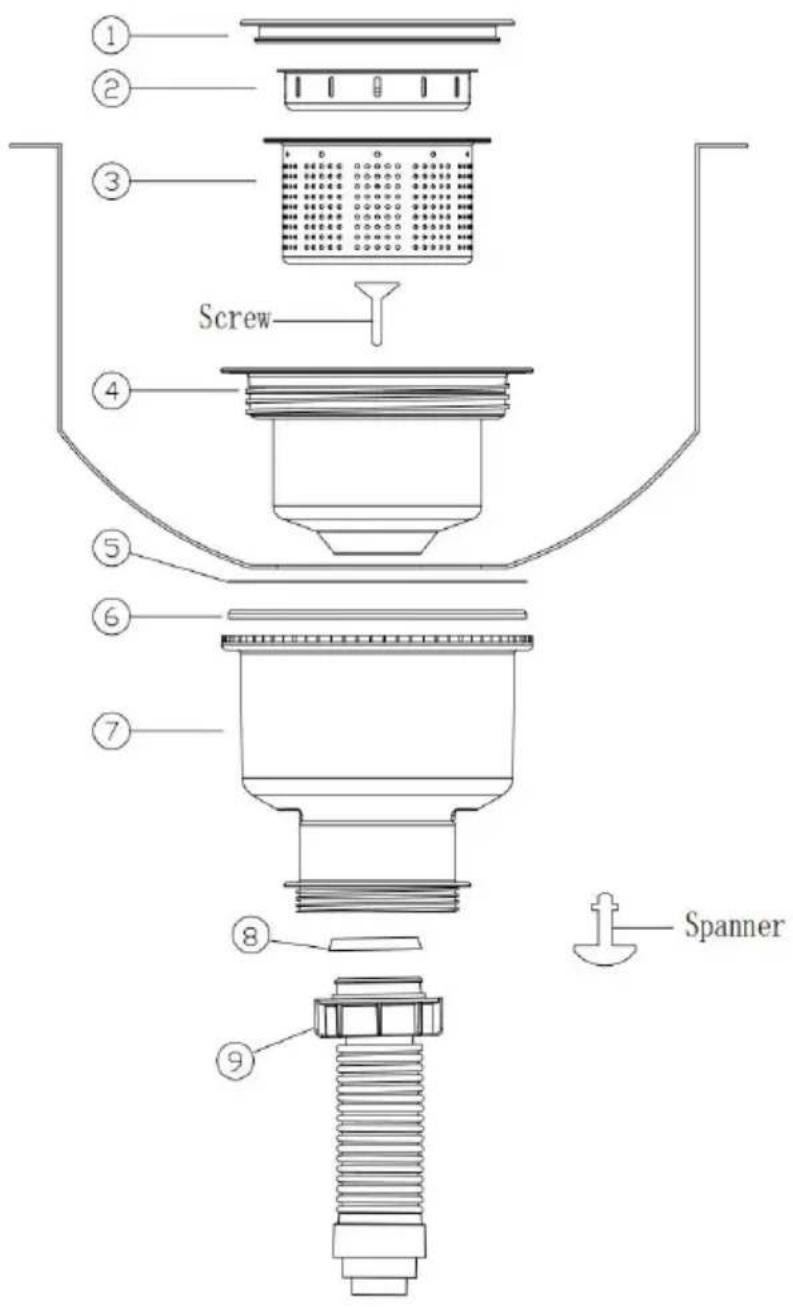

Installation steps:

1: Place part No. 4 in the basin hole, and install parts No. 5/6/7 on it. 2: Tighten the screw with the key, and tighten parts No. 8/9 on it. 3: Place parts No. 1/2/3 in part No. 4 to complete the installation.

Dimensions and specifications

Model	Cut-out size (L*W*H mm)	Product capacity (L)	Holding time
FG-SKU1	345*295*660	28.52	Can provide 24H insulation effect.
FG-SKU2	495*400*540	44.24
FG-SKU3	595*495*590	78.37
FG-SKU4	695*390*640	82.6
FG-SKU5	695*493*640	107.8
FG-SKU6	333*283*690	25.3
FG-SKU7	485*335*535	30.25
FG-SKU8	535*410*530	43.5
FG-SKU9	515*410*690	77.9
FG-SKU10	435*283*590	26.7
FG-SKU11	587*435*570	55.23
FG-SKU12	895*435*580	95.66
FG-SKU13	665*435*760	109.48

NOTE:

1. "Cut-out size" is the recommended size. For details, see the actual installation environment.
2. "Cut-out size" The height dimension in the dimensions is the height reserved for installation.
3. The product capacity data in the table is calculated by the density of water, and there will be some errors in practice, which is a normal phenomenon.
4. Because the volume and density of ice is different from that of water, the loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water to fill the ice bucket.

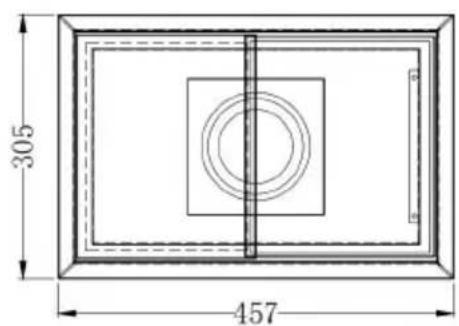

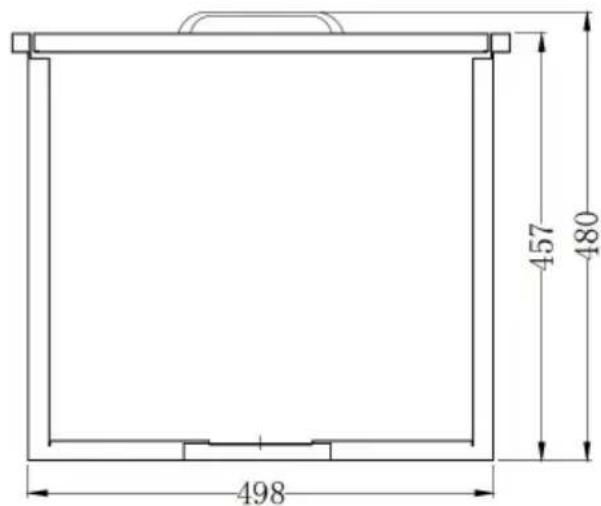

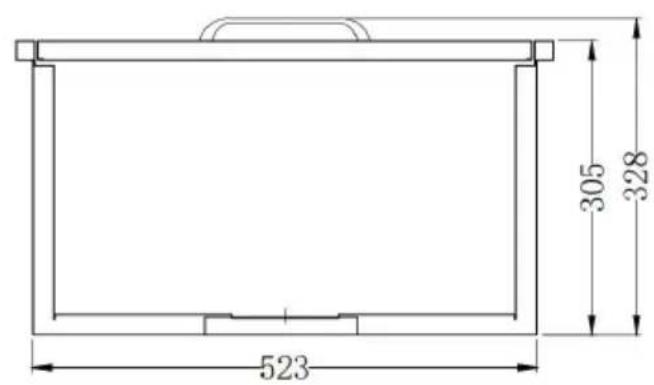

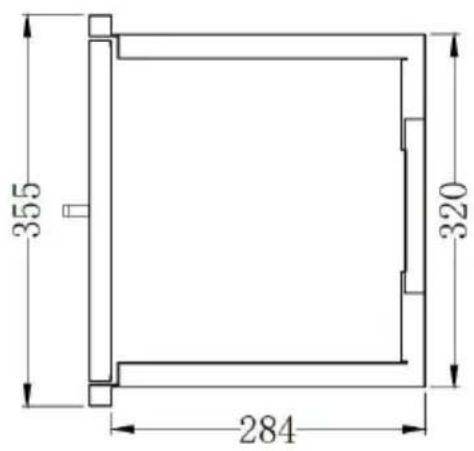

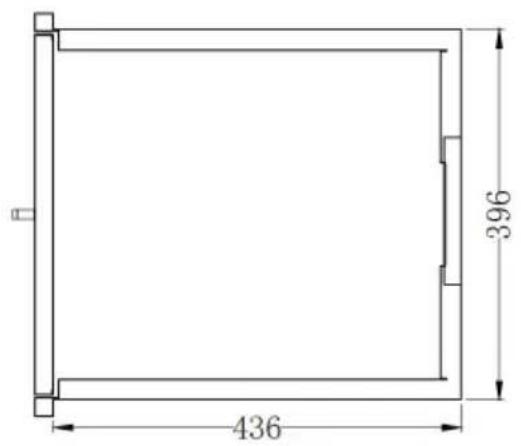

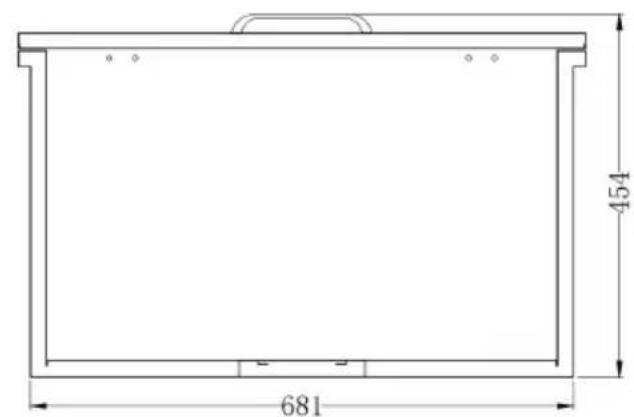

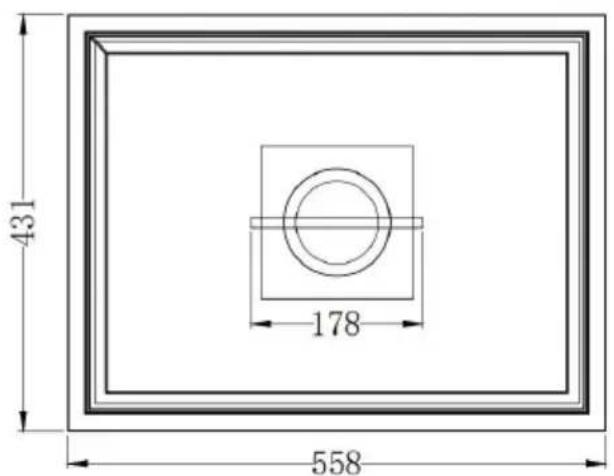

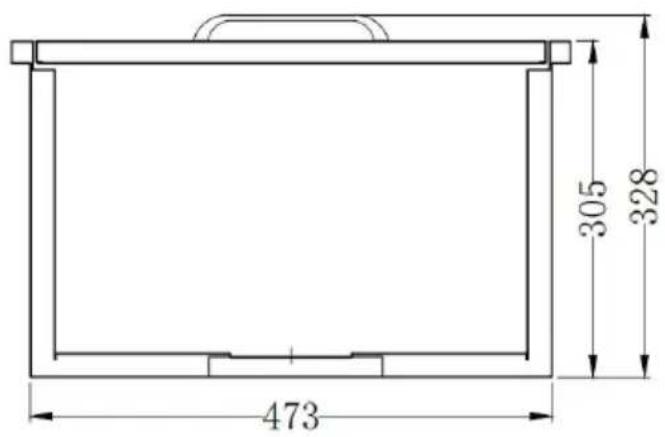

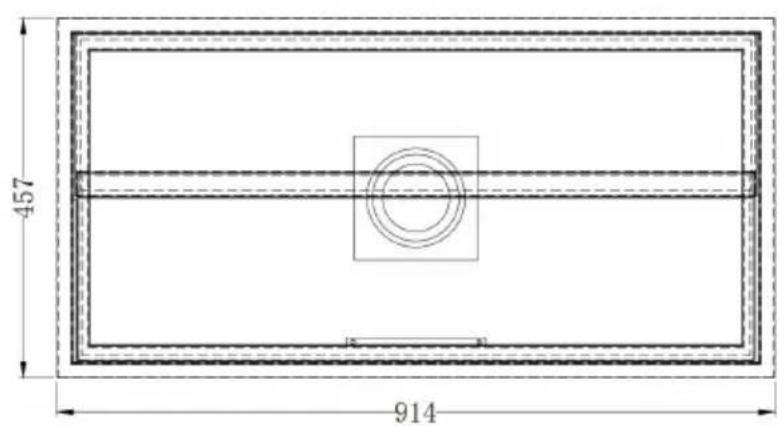

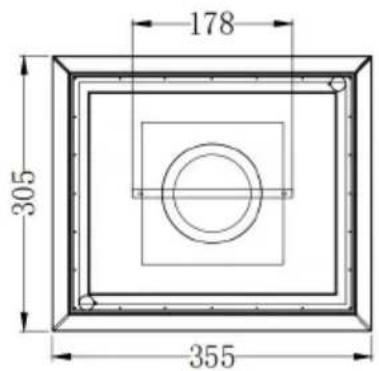

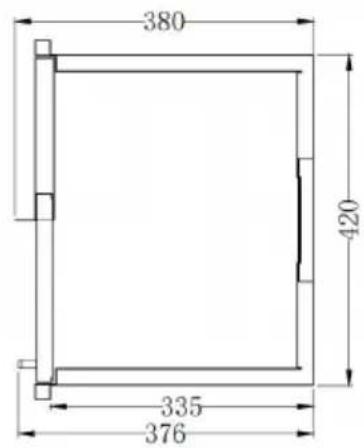

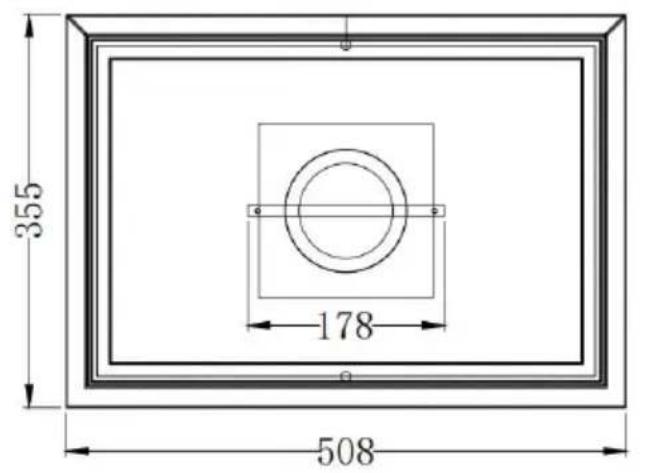

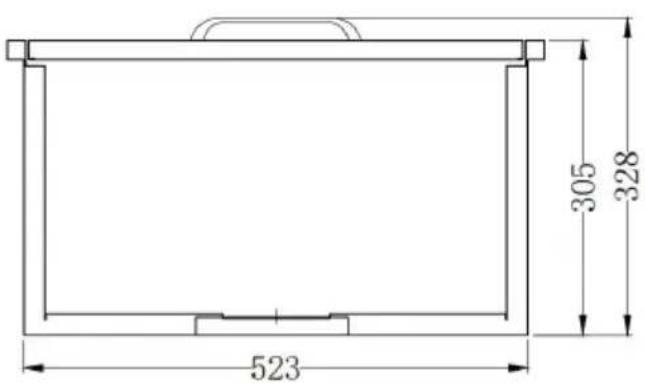

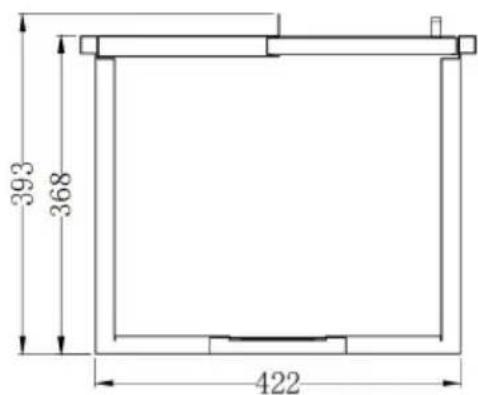

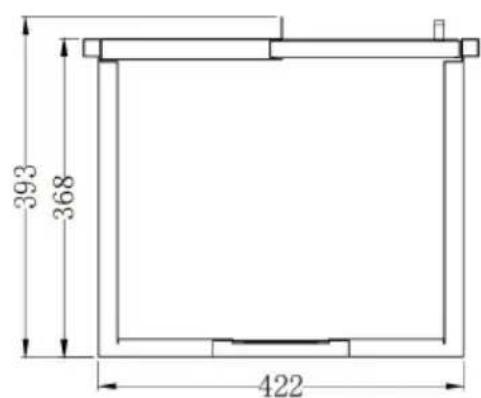

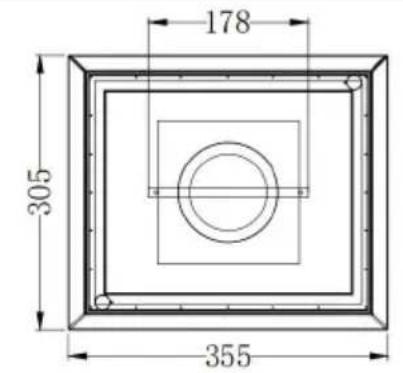

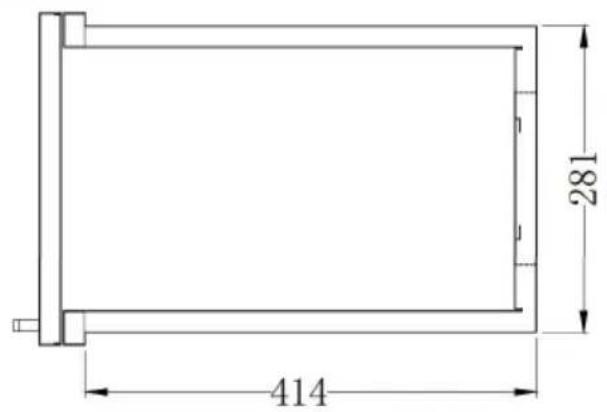

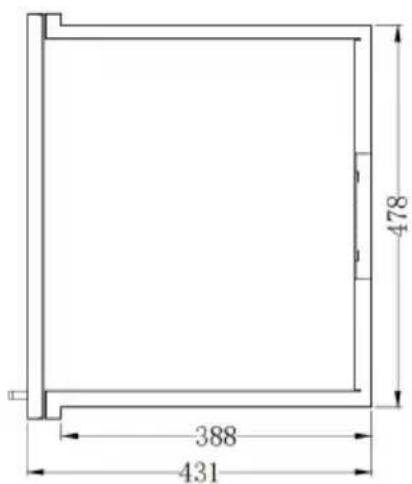

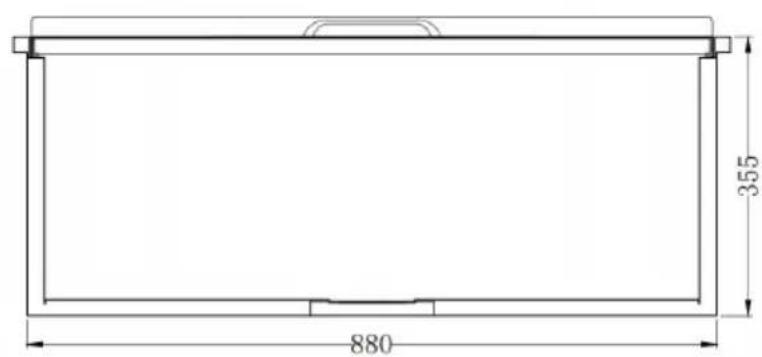

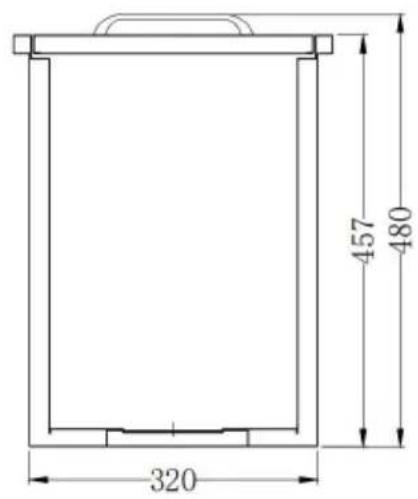

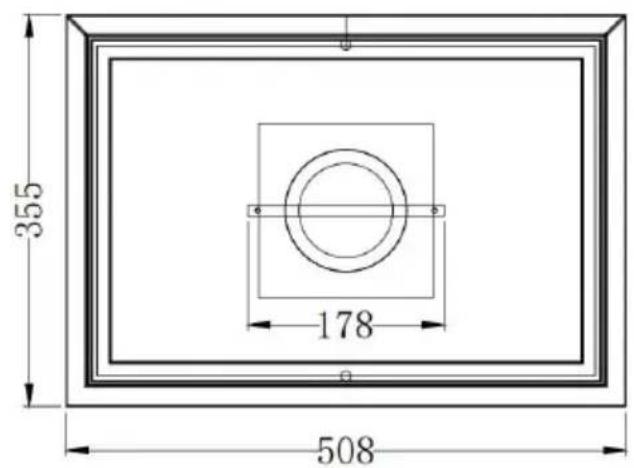

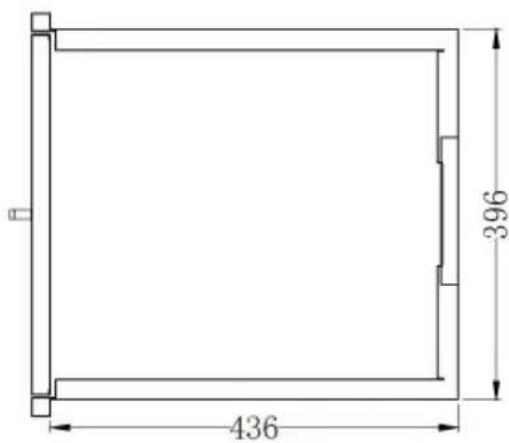

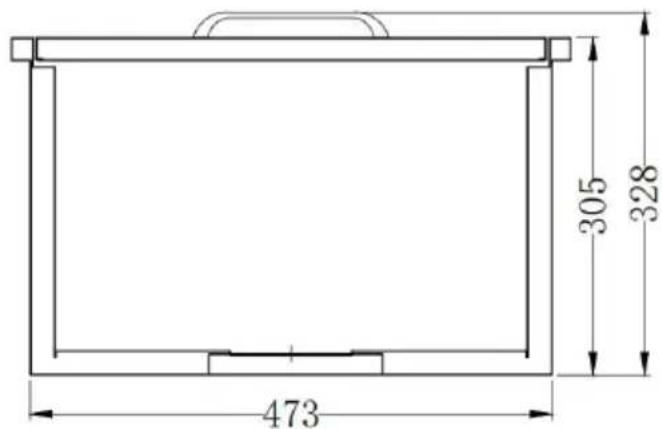

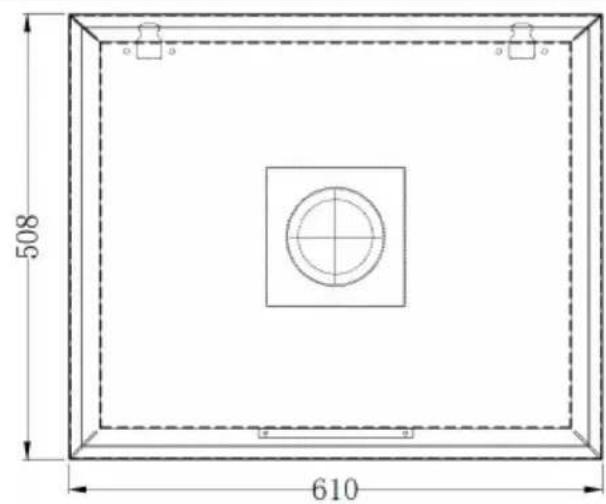

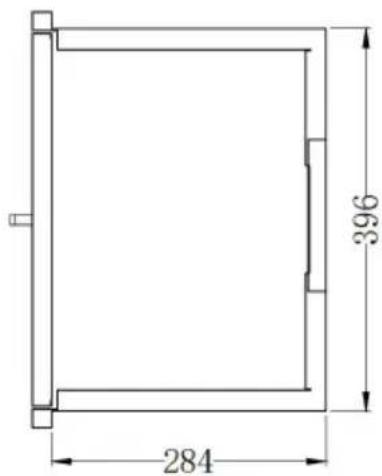

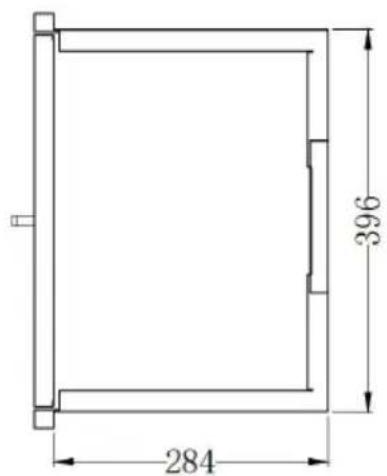

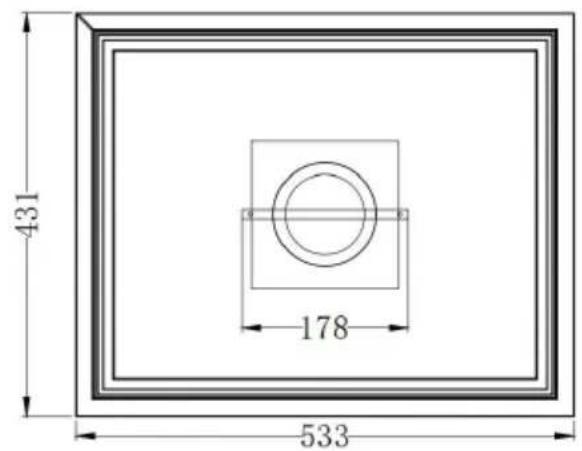

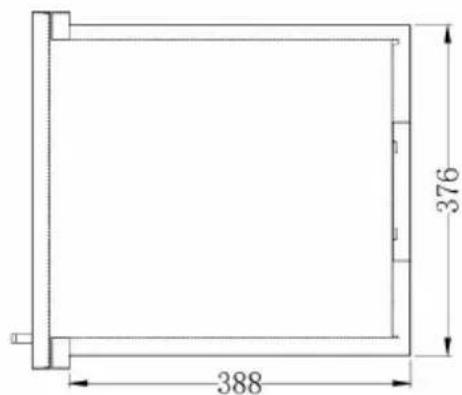

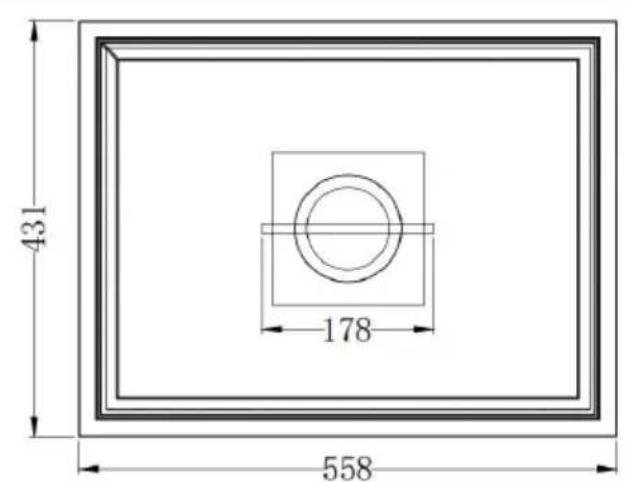

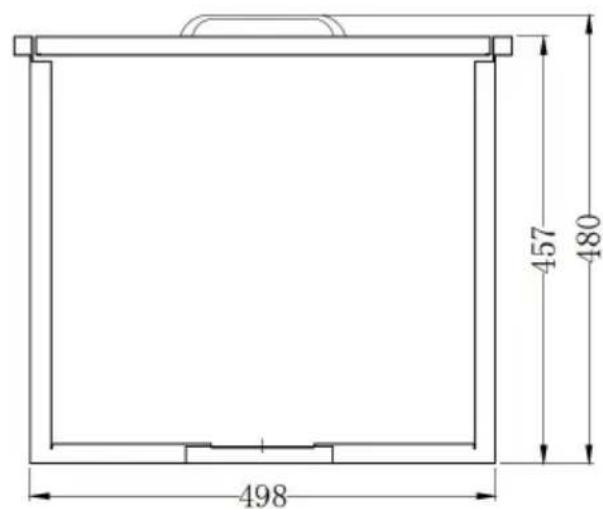

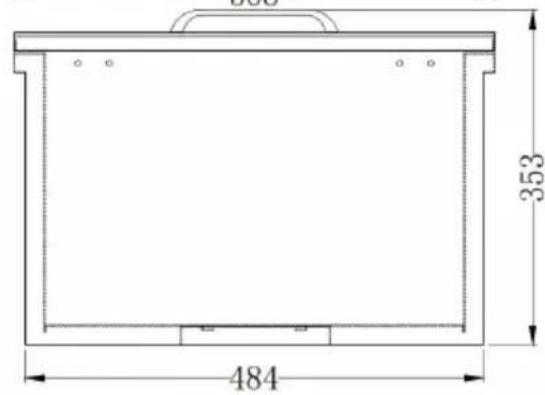

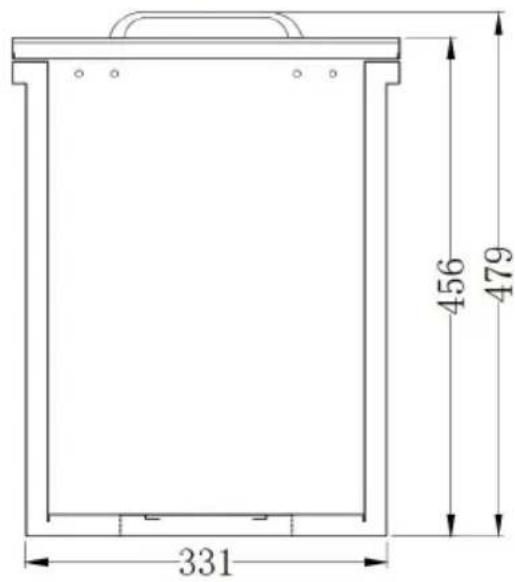

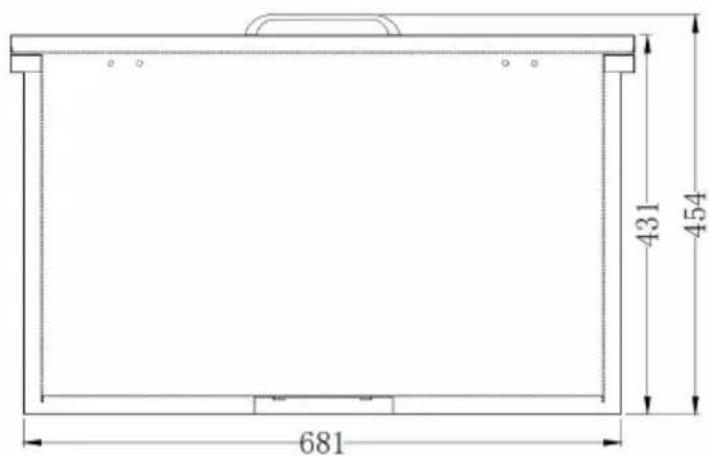

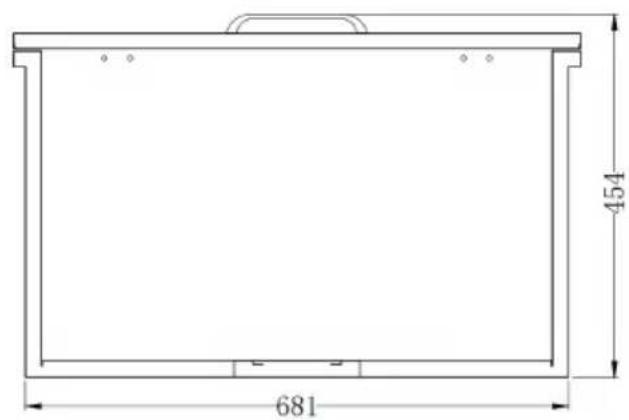

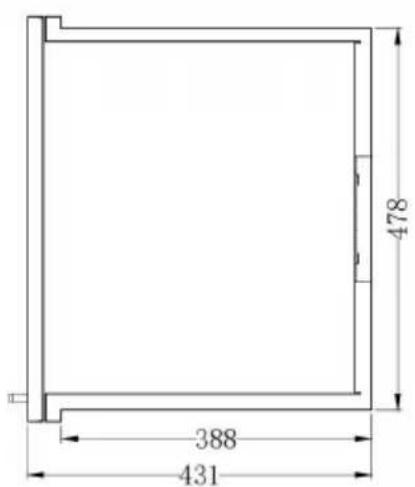

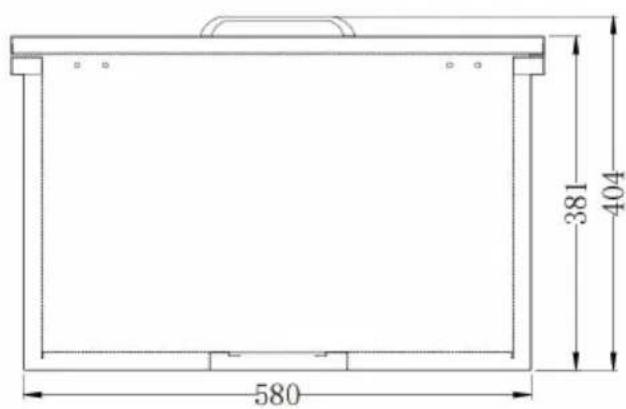

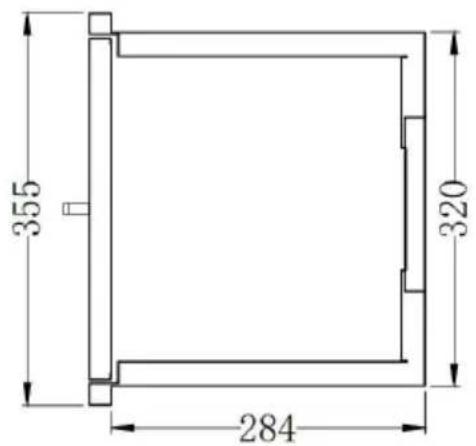

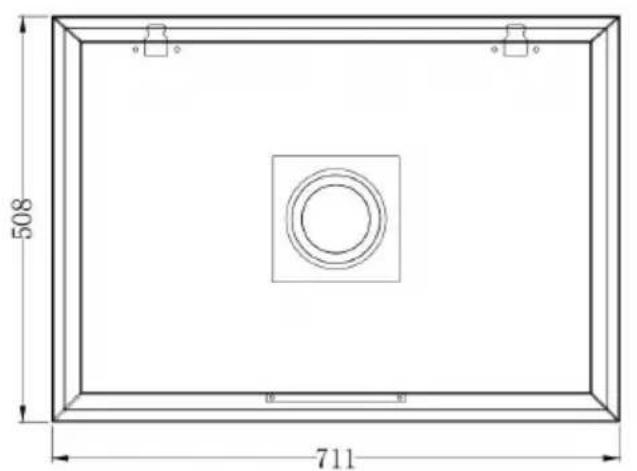

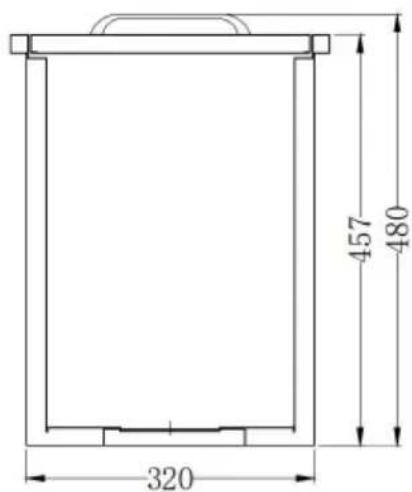

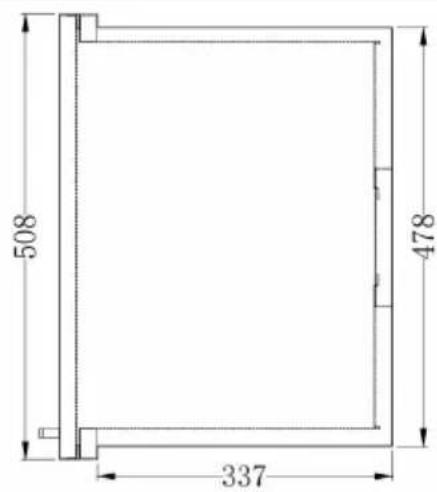

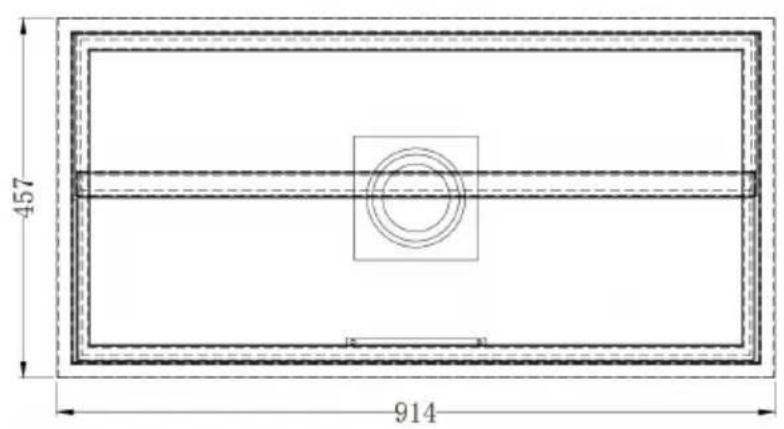

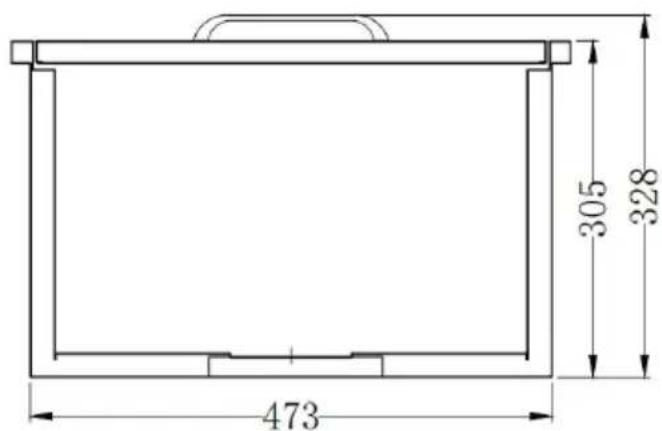

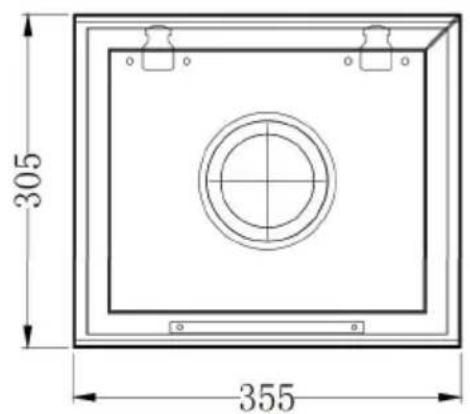

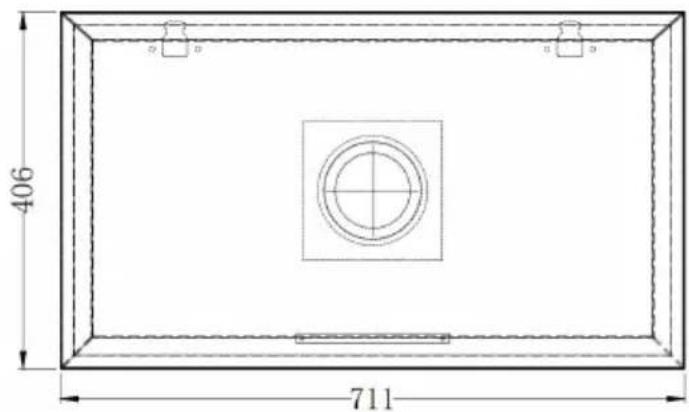

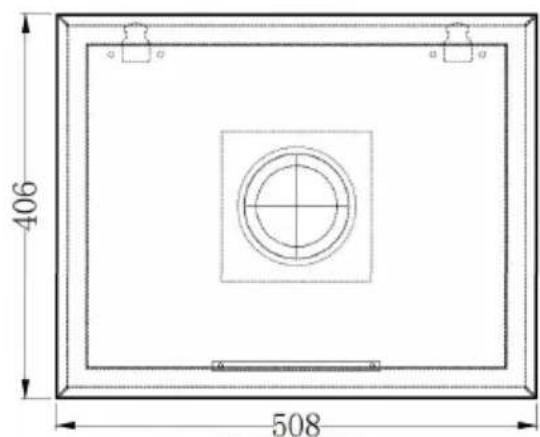

(FG-SKU1)

(FG-SKU2)

(FG-SKU3)

(FG-SKU4)

(FG-SKU5)

(FG-SKU6)

(FG-SKU7)

(FG-SKU8)

(FG-SKU9)

(FG-SKU10)

(FG-SKU12)

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
