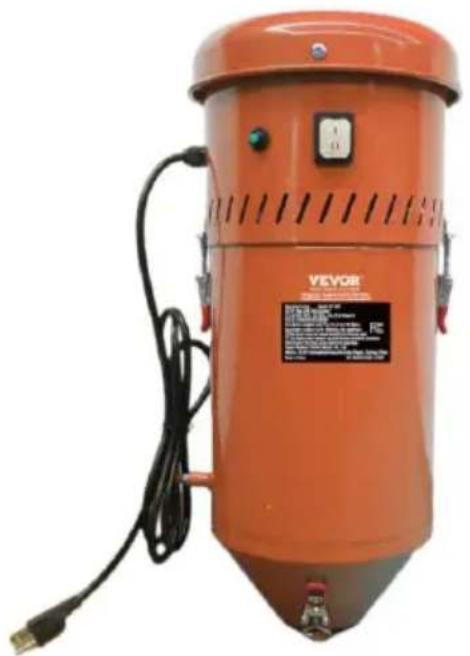

MODEL:DC15

Orange VEVOR industrial vacuum cleaner with attached wiring and control panel (no visible text or symbols on body)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

INSTRUCTIONS

This Blast Cabinet dust Reclaimer Kit is for industrial sandblaster cabi only. It is small, easy use and efficient. It can be greatly helpful to working sandblaster cabinet clean.

Specifications:

Model:	DC15	DC15
Electrical Rating	120V/60Hz	220-240V 50Hz
Motor Rate	1300W	1300W
Product Compatibility	For use with Industrial Blast Cabinet
Capacity	Approximately2 Gallon

Read all safety warnings and instructions. Failure to follow the warning and instructions may result in electric shock, fire and/or serious injury. All warnings and instructions for future reference.

DUST RECLAIMER SAFETY WARNINGS

1. Do not use with any openings blocked. Keep openings clear of anything 1 may limit air flow or hinder motor operation.
2. Do not use the Reclaimer without its filter in place. Before each use, ma the filter is not clogged.
3. This product is designed only to pick up dry debris. Do not use the Dus Reclaimer to pick up water (or any other liquid) from the floor or containers sinks, tubs, barrels, etc.
4. Do not use for abrasives containing crystalline silica. Silica containing abras

have been linked to severe respiratory disease such as silicosis. Use proper abrasives such as aluminum oxide, glass bead, or walnut shell.

1. DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED.

2. The use of accessories or attachments not recommended by the manufacture may result in a risk of injury to persons.

3. When servicing use only identical replacement parts.

4. Avoid unintentional starting. Prepare to begin work before turning on the to

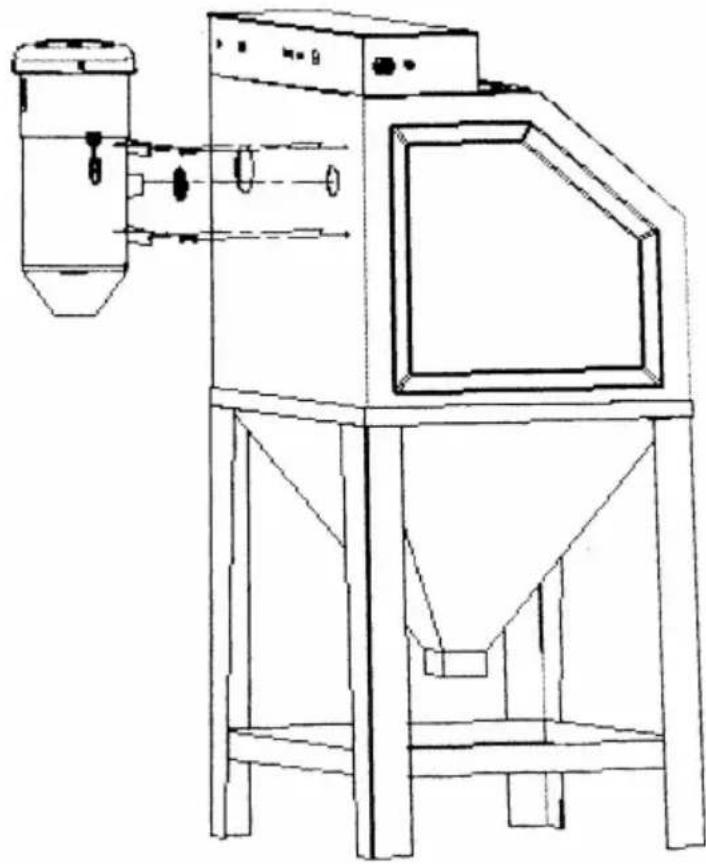

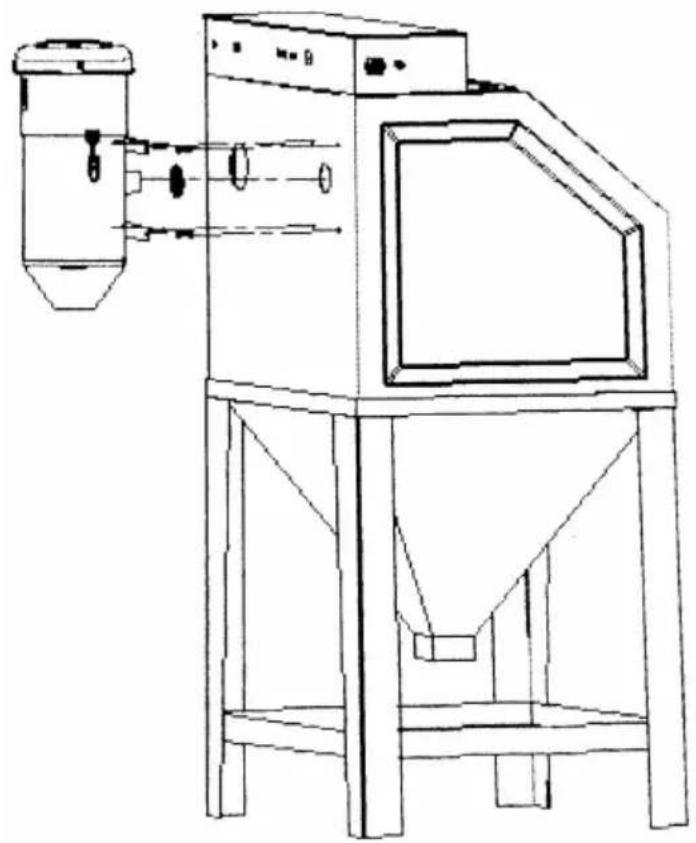

HOW TO INSTALL THE DUST RECLAIMER A BLAST CABINET

1. This dust reclaimer Kit is already assembled in the factory. But please check carefully about the situation of parts connection and screws.

2. Assemble the rubber sealing ring Din the proper hole of sandblaster cabin the dust reclaimer Kit well with matched screws.

Technical line drawing of a mechanical device with no visible text or symbols

1. Connect with power. Press the switch the kit will start to work.

Note: The dust will be heaped up much in the fabric filter after some time u that will cause the low efficiency of cleaning. Please pull the dust -off rod to flick dust from filter. If this operation does not work, the dust container? may be full, please empty it.

1. Open the lock in the bottom to empty the dust. If it is needed to clean open the two locks in the middle to separate the dust container.

2. There is one metal spare plate for extra usage. This dust reclaimer Kit c used in other sandblaster cabinets too. Making the holes with spare plate in machine, assemble the rubber sealing ring and kit into the air outlet. Fix the and spare plate with screws. If combine with original cabinet, this spare plate no necessary.

3. To prevent accidents, turn off the tool and disconnect its power supply af

Technical line drawing of a mechanical device with no visible text or symbols

TROUBLESHOOTING

Problem	Possible Solutions
Dust reclaimer does not turn on.	1. Make sure the Power Switch on is in its "ON" p2. Make sure the Power Cord Plug of the dust recl properly connected to a working volt, grounded, elect outlet.3. Have a qualified service technician check out the reclaimer and Blast Cabinet.
Poor visibility within the Blast Cabinet.	1. Check to make sure dust reclaimer is on.2. Dust reclaimer is filled. Empty and clean out Dus reclaimer.3. Filter in dust reclaimer needs to be cleaned or r4. Have a qualified service technician check out the reclaimer and Blast Cabinet.

PLEASE READ THE FOLLOWING CAREFULLY

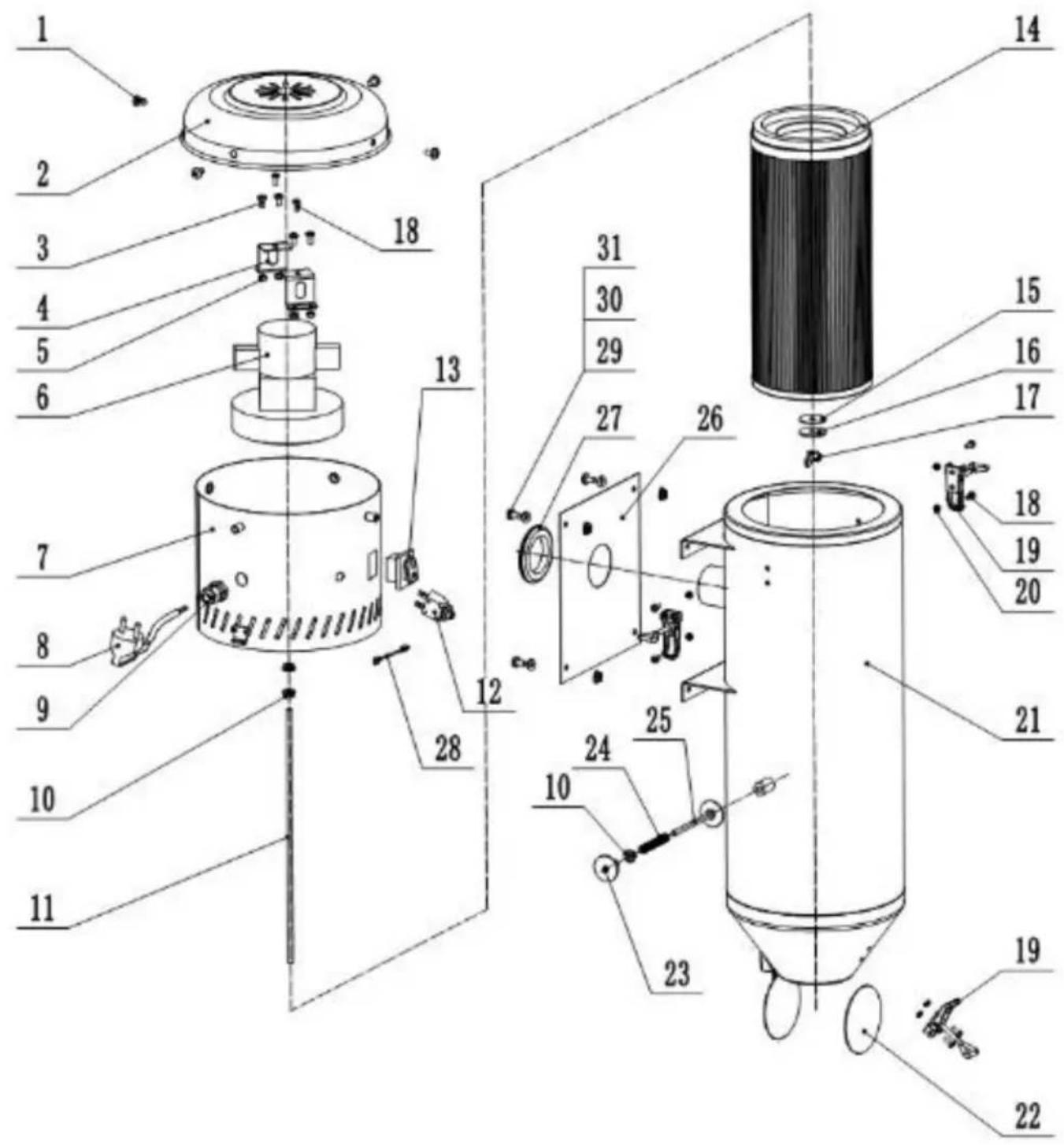

The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as reference only. Neither the manufacturer or distributor makes any representation or warranty of any kind to the buyer that he or is qualified to make any repairs to the product, or that he or she is qualified any parts of the product. In fact, the manufacturer and/or distributor expressly states that all repairs and parts replacements should be undertaken by certified and licensed technicians, rather than by the buyer. The buyer assumes all risk liability arising out of his or her repairs to the original product or replace pa thereto, or arising out of his or her installation of replacement parts thereto.

PARTS LIST

NO.	Parts	QTY	NO.	Parts	QTY
1	Srcews M6*12	4	17	butterfly nut M6	1
2	Top cover	1	18	Srcews M4*10	8
3	Srcews M5*10	4	19	Lock	3
4	Motor setting plate	2	20	Nuts M4	6
5	Nuts M5	4	21	Dust container	1
6	Motor	1	22	Gum cotton	1
7	Motor Barrel	1	23	Bakelite handle	1
8	Power cord	1	24	Spring	1
9	Wire sleeve	1	25	Pull rod	1
10	Nuts M6	7	26	Guide plate	1
11	Screws arbor M6*310	1	27	Rubber seal ring	1
12	Thermal protector	1	28	Connection line	1
13	Switch	1	29	Srcews M6*12	4
14	Filter stand	1	30	Nuts M6
15	Gum cotton	1	31	Steel washer M6	4
16	Washer ∅6	4

Exploded view diagram of a mechanical device with numbered components for identification

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection poir recycling electrical and electronic devices.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
