USER MANUAL DHB-55-KT-10 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

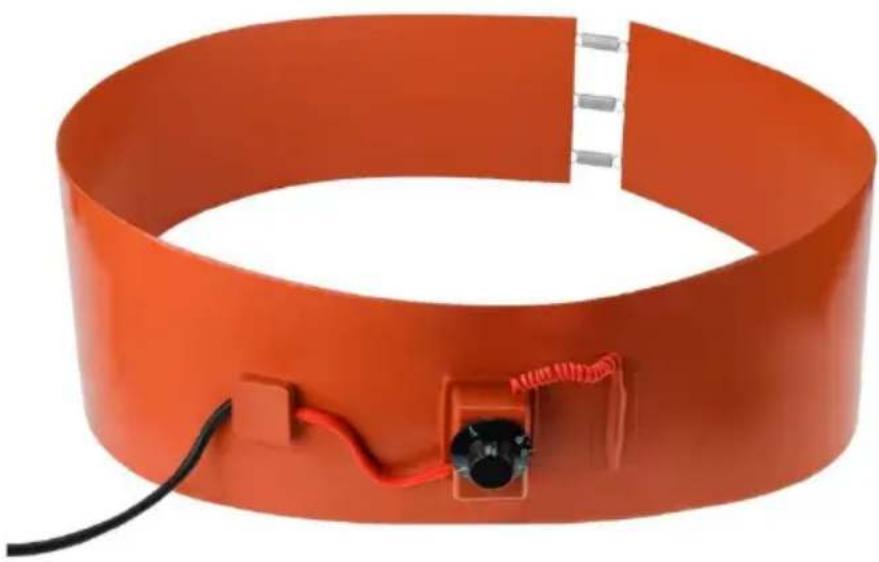

Drum Hearer

MODEL:DHB-55-KT-10

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DHB-55-KT-10

Orange cylindrical electronic device with a black contactor and red wires, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Precautions for the use of heaters:

1. Heater power supply and socket must be matched, can not be over-voltage use.
2. Heaters cannot be used overlapping.
3. Prevent sharp objects scratch the heater.

Model	Power (W)	Voltage (V)	Frequency (Hz)	Plug Type
DHB-55-KT-10	1200	AC 230	50	European Standard
	1200	AC 120	60	American Standard

Suitable for gas cylinder specifications	55 Gal
Use ambient temperature rang	-30°C ~ 150°C
Heating temperature adjustment range	86-302°F / 30~150°C

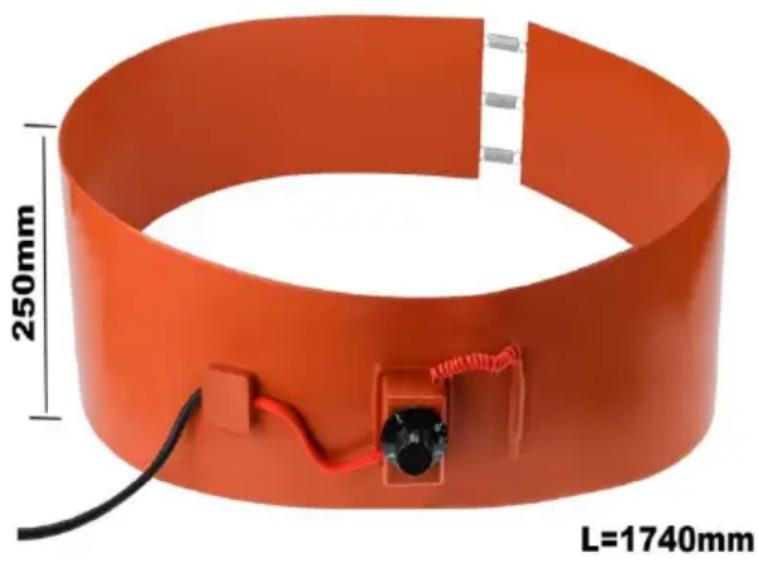

Product Size

Orange cylindrical electronic device with attached wires and a black connector, labeled with dimensions (250mm width, L=1740mm) and a red wire symbol.

Installation Instructions

Step1:

Blue cylindrical container with orange band and black cable, no visible text or symbols

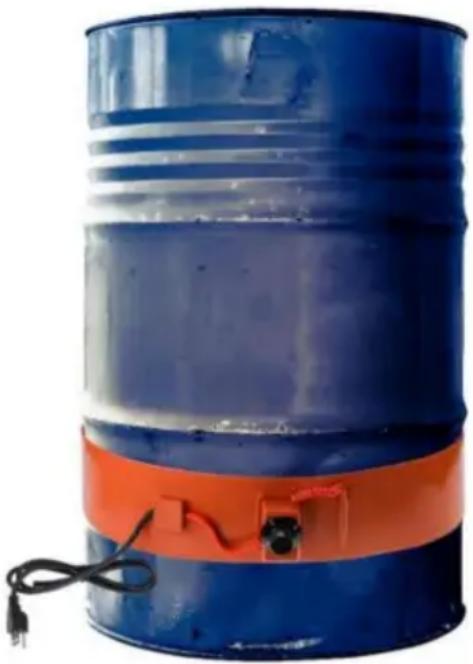

Open the package, check the plug of the heater, the voltage is matched with the current voltage power outlet. After the inspection, wrap the heat around the bucket.

Step2:

Pure diagram of two red rectangular blocks connected by three gray rectangular elements, no text or symbols present.

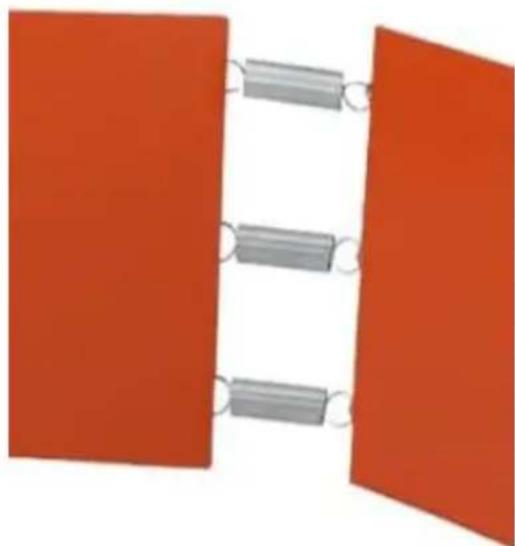

Buckle spring.Plug the heater into the power outlet.

Step3:

Hand holding a small orange electrical switch with a red cord, mounted on a wall (no visible text or symbols)

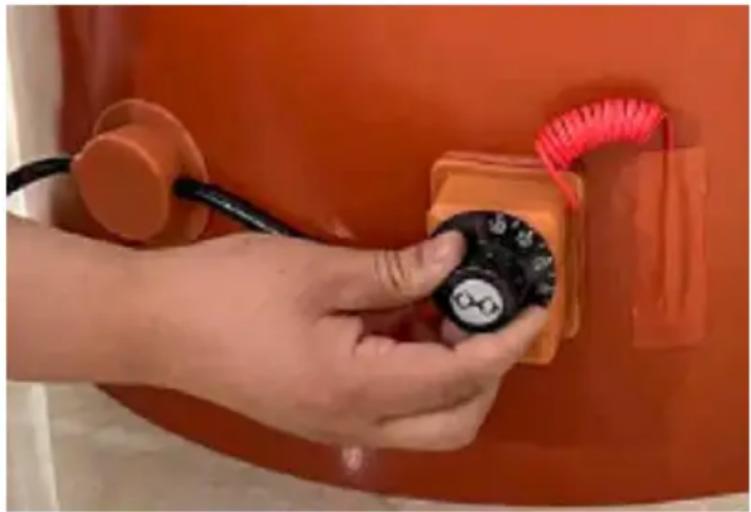

Adjust knob to desired temperature, the heater stops heating when it reaches the heater thermostat temperature, and the heater automatically returns to heating when it is lower than the set temperature.

NOTE: When the heater is not in use, to clean up the surface dirt, p a dry ventilated place.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
