USER MANUAL BLC9038 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-function Tool Stool

MODEL:BLC9037/BLC9038

We continue to be committed to provide you tools with competitive price. "S: "Half Price" or any other similar expressions used by us only represents an savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MULTI-FUNCTION TOOL STOOL

Line drawing of a four-wheel office chair with wheels and a stand (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drug medication.
6. Product capabilities apply to properly and completely assembled product only
7. Assemble on a flat, level, hard and smooth surface capable of safely sup a fully loaded seat.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this
3. Do not exceed weight capacities, evenly distributed from bottom up. Be av dynamic loading! Sudden load movement may briefly create excess load causi product failure.
4. Use only on a flat, level, hard and smooth surface capable of safely sup fully loaded seat.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THESE INSTRUCTIONS

TECHNICAL PARAMETERS

Model	BLC9037	BLC9038
Rated Load (lbs)	300	300
Product weight (kg/lbs)	9.6/21.1	9.3/20.5
Product size (mm)	525*525*685-805mm	525*525*680-800mm

TECHNICAL PARAMETERS

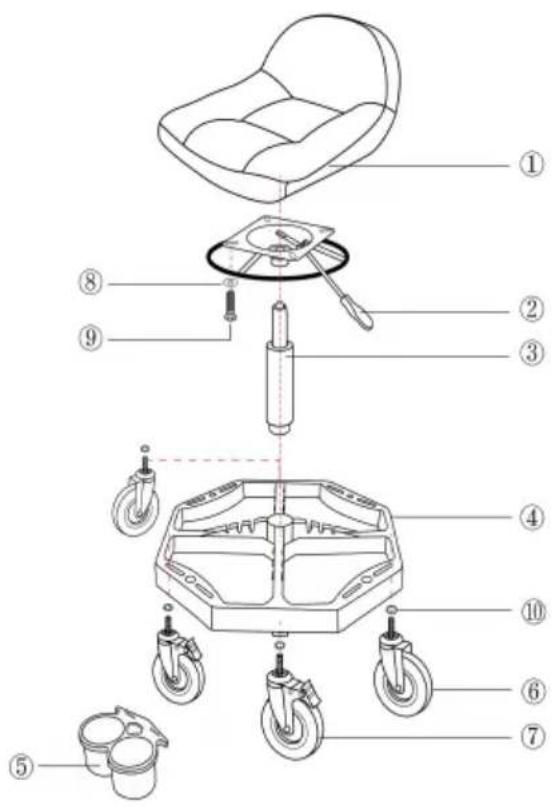

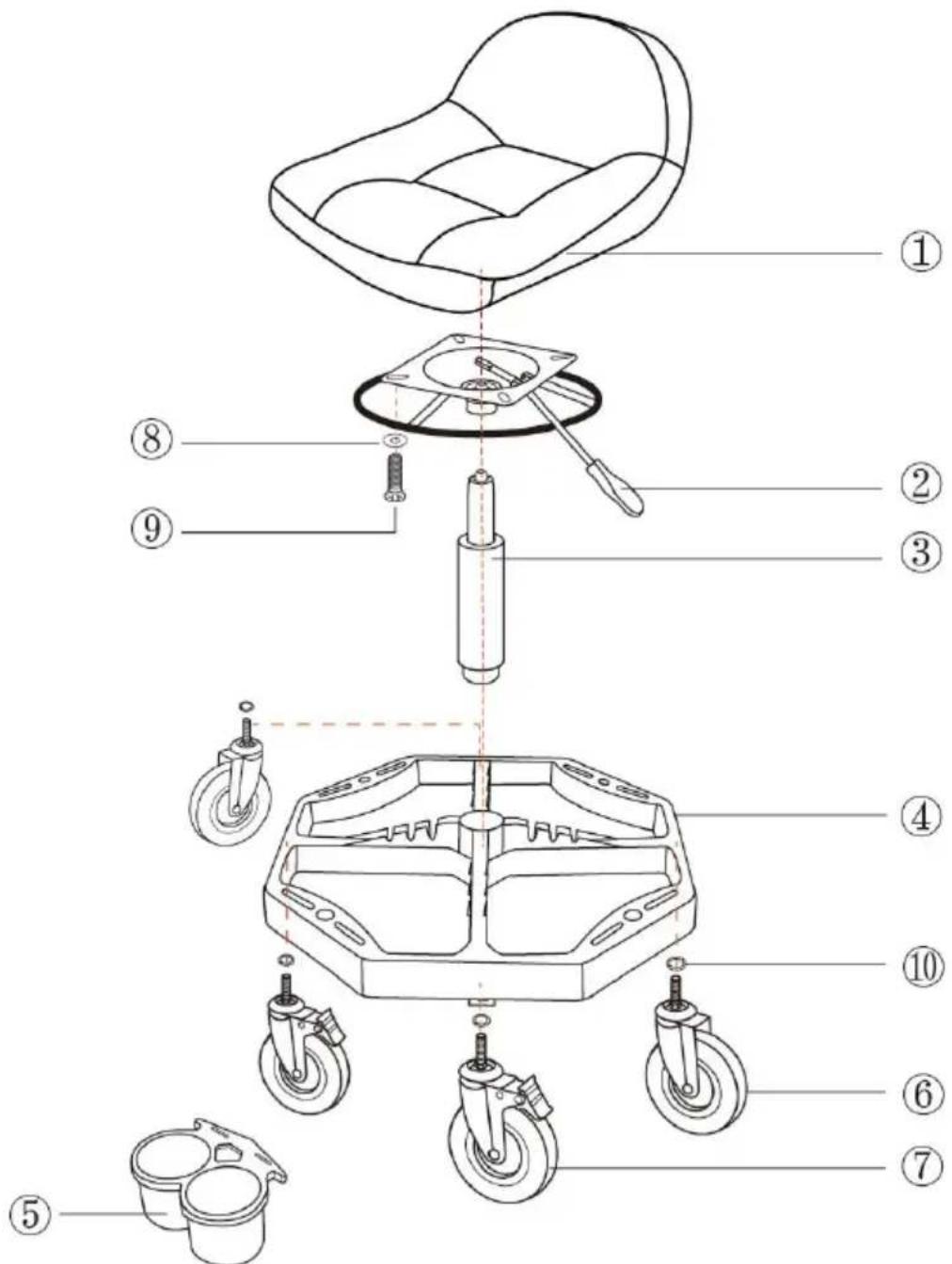

Exploded view diagram of a car seat assembly with numbered parts for identification

Part	Description	Qty	Part	Description	Qty
1	Seat	1	7	Lock wheel	2
2	Base plate	1	8	M6 Washer	4
3	Air rod	1	9	M6 Screw	4
4	Plate	1	10	M10 Washer	4
5	Basket	2	11	spanner	1
6	Wheel	2	12	hexagonal wrench	1

Essential tools for auto beauty and mechanical repair

1. The multi-function tool stool is equipped with a slidable chassis storage rack and two bottle racks for all of your car cleaning supplies, allowing you to eat clean the wheels without having to bend frequently to add pressure to the board and knees.
2. Suitable for DIY work items in garages, workshops or homes-the multi-function tool stool is equipped with durable casters and rubber wheels to allow you to easily and quickly in the garage or driveway.
3. Match the perfect height of the car's side decoration or wheel cleaning-sit to complete the low-altitude work of car quick beauty, polishing, waxing, cerar coating, mechanical maintenance, wheel cleaning, tire and rubber. cleaning, plastic repair, etc. without standing or Bend over to reduce pressure on your or knees.
4. Convenient storage space-there is a storage drawer and two side storage under the seat to easily store car cleaning tools such as spray bottles, seal microfiber towels, sponges, applicators, etc., SO that you can carry it with you when you work. effectiveness.

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat 5. Basket 9. M6 Screw

2. Base plate 6. Wheel 10. Washer

3. Air rod 7. lock wheel

4. Plate 8. M6 Washer

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-wheel industrial lift with adjustable seat and wheels (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a four-wheel motor with adjustable seat and wheels (no text or symbols)

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Technical line drawing of a mechanical assembly with four circular components mounted on a hexagonal frame (no text or symbols)

Line drawing of a four-wheel modular vehicle (no text or symbols)

Labeled diagram of a car seat assembly with numbered parts for identification

Line drawing of a small boat or saucer with a handle and base, no text or symbols present

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Ort, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-wheel industrial lift with adjustable seat and wheels (no text or symbols)

www.vevor.com/support

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Technical line drawing of a mechanical assembly with four circular components mounted on a hexagonal frame (no text or symbols)

Line drawing of a four-wheel modular vehicle (no text or symbols)

Labeled diagram of a car seat assembly with numbered parts for identification

Line drawing of a small boat or saucer with a handle and base, no text or symbols present

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147,

Casa del centurione, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-wheel industrial lift with wheels and seat (no text or symbols)

www.vevor.com/support

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Technical line drawing of a mechanical assembly with four circular components mounted on a hexagonal frame (no text or symbols)

Line drawing of a four-wheel modular vehicle (no text or symbols)

Labeled diagram of a car seat assembly with numbered parts for identification

Line drawing of a small boat or saucer with a handle and base, no text or symbols present

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Importado a Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Casa Centurión, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a four-wheel motor with a side-mounted platform (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Technical line drawing of a mechanical assembly with four circular components mounted on a hexagonal frame (no text or symbols)

Line drawing of a four-wheel modular vehicle (no text or symbols)

Labeled diagram of a car seat assembly with numbered parts for identification

Line drawing of a small boat or saucer with a handle and base, no text or symbols present

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Biuro 147,

Dom Centuriona, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-wheel industrial lift with adjustable seat and wheels (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147,

Centurionhuis, Londenweg,

Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a four-wheel motor with adjustable seat and wheels (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Exploded view diagram of a car seat assembly with numbered parts for identification

Labeled diagram of a car seat assembly with numbered parts for identification

Included Hardware List

1. Seat
2. Base plate
3. Air rod

4. Plate

5. Basket

6. Wheel
7. lock wheel

8. M6 Washer

9. M6 Screw

10.Washer

Technical line drawing of a mechanical assembly with four circular components mounted on a hexagonal frame (no text or symbols)

Line drawing of a four-wheel modular vehicle (no text or symbols)

Labeled diagram of a car seat assembly with numbered parts for identification

Line drawing of a small boat or saucer with a handle and base, no text or symbols present

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
