DD15P - Pressure washer Vevor - Free user manual and instructions

Product Type	High Pressure Rotating Surface Cleaner
Model	DD15P
Brand	Vevor
Maximum Pressure	4 000 PSI / 276 BAR
Minimum Pressure	1 500 PSI / 104 BAR
Maximum Flow Rate	2.9 GPM / 10.94 L/min
Maximum Water Temperature	140 °F / 60 °C
Nozzle Diameter	15 inches (38 cm)
Recommended Use	Concrete, asphalt, pavers, driveways, pool decks
Connection Type	Quick connect for pressure washer
Nozzle Maintenance	Clean with needle, replace if clogged
Skirt Replacement	Necessary when worn to avoid scratches
Safety Feature	Trigger lock after use
Package Contents	1 x 15 inch rotating surface cleaner
Warranty	Electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - DD15P Vevor

How do I connect the surface cleaner to my pressure washer?

Insert the surface cleaner tip into the quick connect until you hear a click. Then pull on the cleaner to ensure it is locked before starting the machine.

What is the maximum pressure supported by the DD15P?

The DD15P supports a maximum pressure of 4 000 PSI (276 BAR) and a minimum pressure of 1 500 PSI (104 BAR).

What should I do if scratches or swirls appear during cleaning?

Slow down your pace. If the problem persists, the skirt bristles may be worn and need replacement. Check the skirt condition and replace if necessary.

How do I clean a clogged nozzle?

Remove the nozzle, clean it with a needle and rinse with clean water. If severely clogged, replace with a properly sized nozzle using a wrench to remove it.

Can I use the surface cleaner on windows?

No, never use the surface cleaner on windows. It is designed for hard outdoor surfaces like concrete, asphalt, or pavers.

How can I avoid damaging the surface being cleaned?

Never work in the same area for more than 2 seconds to avoid marking the surface. Move slowly and steadily.

What should I do after each use of the cleaner?

Squeeze the trigger to release any residual pressure, then lock the trigger before storing the unit.

Is the DD15P suitable for scrubbing?

No, the surface cleaner is not designed for scrubbing or brushing. It is only for rotating high-pressure cleaning.

Can I use a water filter with this cleaner?

Yes, it is recommended to use an in-line water filter to prevent debris (sand, etc.) from clogging the nozzle.

Where can I find replacement parts like the skirt or nozzle?

Contact technical support via www.vevor.com/support to obtain replacement parts. The site also offers an electronic warranty certificate.

USER MANUAL DD15P Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PRESSURE WASHER SURFACE CLEANER

MODEL: DD15P

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRESSURE WASHER

SURFACE CLEANER

MODEL: DD15P

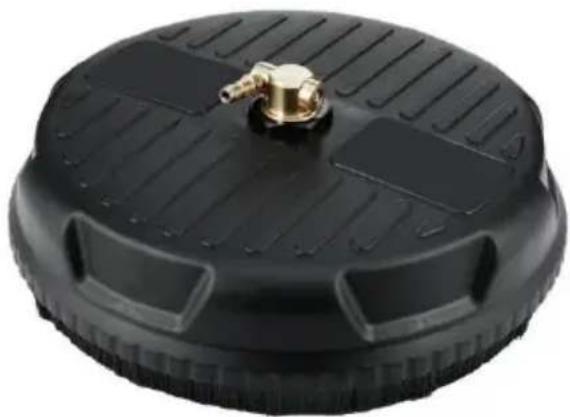

Close-up of a black circular mechanical component with a brass fitting and ventilation slots (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

Congratulations on the purchase of your new Rotary Surface Cleaner! can be assured this Cleaner was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the high level of acceptance.

This surface cleaner is designed for high-pressure cleaning of a variety of outdoor surfaces such as concrete, asphalt, paving stone walkways pool decks etc. Simply connect the rotary surface cleaner to your pressure washer, pull the trigger and walk behind for fast and efficient cleaning

SPECIFICATIONS
Max. Pressure(PSI/BAR)	4,000/276
Min. Pressure(PSI/BAR)	1,500/104
Max. Flow Rate(GPM/LPM)	2.9/10.94
Max. Temperature(°F/C)	140/60

Package Lists: 1 x 15" Surface Cleaner

Operation (Figure 2.)

1. Connect hose to the pressure washer and start pressure washer.
2. Walk slowly behind the cleaning forward.

NOTE: It striping or swirl

Person cleaning a floor scrubber with a power tool, labeled as Figure 2 (no text on the diagram itself)

occurs, slow your pace. If striping or swirling continues, the surface of skirt bristles may be worn and in need of replacement.

NOTE: Always squeeze the gun's trigger to release any residual presimmediately after use. Engage the trigger lock when not in use.

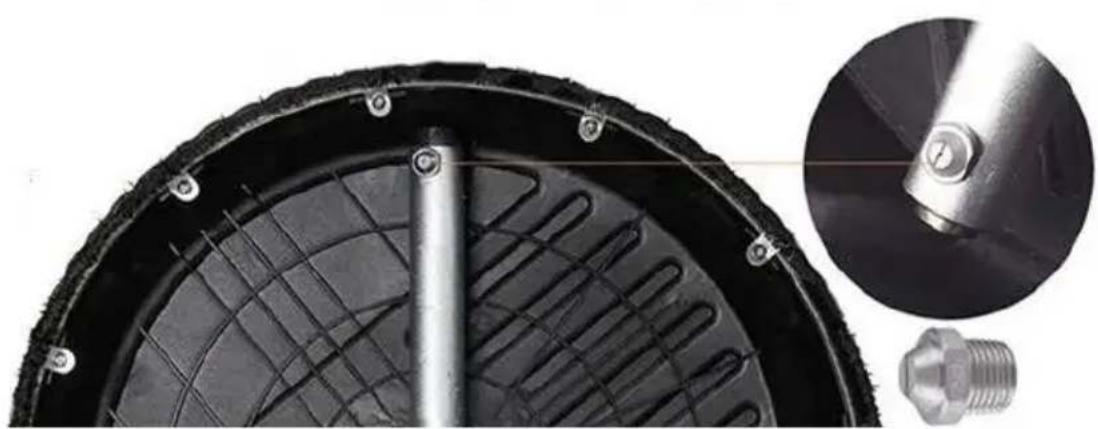

How to Replace Nozzle for Surface Cleaner

1. Use a water inline filter to avoid a nozzle blocked by sand or ot debris.
2. If blocked, remove the nozzle. clean with needle and rinse with fr water.

If the nozzle is severely blocked and not work, using an appropriately wrench remove the nozzle from the spray bar. Align the nozzle open reinstall the new nozzle to the spray bar. Tighten it securely.

Close-up of a car tire with mesh pattern and bolted joint, alongside a close-up inset showing a mechanical component (no text or symbols visible)

CAUTION

1. High pressure in surface cleaner area. Risk of injury caused by improperly locked surface cleaner. Ensure you hear the "click" when inserting the surface cleaner tip into the quick connection.
2. Pull the surface cleaner to make sure it is seated properly before operating your unit.
3. Striking any raised obstacle while using the surface cleaner will da the unit. If contact does occur and causes vibration when operating the pressure washer, stop use immediately. Continuing to operate the unit could result in serious injury.
4. Do not use on windows. Do not run over freestanding corners.
5. Never operate in the same area for more than 2 seconds, or dar may occur.
6. The surface cleaner is not suited to scouring or scrubbing.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a black circular mechanical component with a brass fitting and ridged surface (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Person in protective suit using a power tool on a circular platform, labeled 'Figure 2.' (no text or symbols on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

PRUDENCE

Close-up of a black circular mechanical component with a brass fitting and ridged surface (no text or symbols visible)

Person in protective suit using a power tool on a circular platform, labeled 'Figure 2.' (no text or symbols on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

VORSICHT

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a black circular mechanical component with a brass fitting and ventilation slots (no text or symbols visible)

Person cleaning a floor scrubber with a tool, labeled as Figure 2 (no text on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

ATTENZIONE

Close-up of a black circular mechanical component with a brass fitting and ridged surface (no text or symbols visible)

Person in protective suit using a power tool on a circular platform, labeled 'Figure 2.' (no text or symbols on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

PRECAUCIÓN

Close-up of a black circular mechanical component with a brass fitting and ventilation slots (no text or symbols visible)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Person in protective suit using a power tool on a circular platform, labeled 'Figure 2.' (no text or symbols on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

OSTROŻNOŚĆ

Close-up of a black circular mechanical component with a brass fitting on top (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Person in protective suit using a power tool on a circular platform, labeled 'Figure 2.' (no text or symbols on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

VOORZICHTIGHEID

Close-up of a black circular mechanical component with a brass fitting and ridged surface (no text or symbols visible)

BEHÖVER HJÄLP? KONTAKTA OSS!

Person cleaning a circular water heater with a tool, labeled Figure 2 (no text on the diagram itself)

Close-up of a car tire with mesh grille and metal rod, alongside a close-up inset showing a mechanical component (no text or symbols visible)

FÖRSIKTIGHET

www.vevor.com/support
