CB09 - Cleaning brush Vevor - Free user manual and instructions

Brand	Vevor
Model	CB09
Product Type	Chimney cleaning brush
Total length	9 m (30 feet)
Length per rod	1 m
Rod diameter	12 mm
Weight	2.3 kg
Number of rods supplied	9
Rod material	Steel
Power supply	Electric drill (24 V DC/AC, 500 W recommended)
Recommended rotation speed	350 to 2000 rpm
Usage	Cleaning chimneys and flues
Delivery contents	9 rods, 1 brush head, 1 pair of safety goggles, 1 pair of leather gloves, 1 storage bag, 1 sponge, 1 dust sheet, 1 ash brush, 1 chuck connector, 1 hex key
Maintenance	Store in a cool, dry place after use
Cleaning	Clean the brush after each use
Safety	Use a drill with auxiliary handle; do not overtighten the rods; do not let it run without movement
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxian Gongsi
EU Importer	E-CrossStu GmbH, Mainzer Landstr.69, 60329 Frankfurt
UK Importer	YH CONSULTING LTD.
Technical support	www.vevor.com/support

Frequently Asked Questions - CB09 Vevor

How to use the Vevor CB09 chimney brush?

Connect the rods one by one, attach the brush head, place the brush in the flue, then attach the drill to the rod. Rotate gradually and evenly while moving up and down.

What type of drill is recommended?

Use a professional drill with auxiliary handle, with a power of at least 500 W, 24 V DC or AC, with a speed range of 350 to 2000 rpm.

What are the important safety precautions?

Always wear safety goggles and gloves. Do not overtighten the rods. Do not let the rods rotate without moving them to avoid overheating and breakage. Ensure the stove and chimney are cold before cleaning.

How to assemble the rods?

Screw the rods together keeping them as straight as possible. Use the supplied hex key to tighten them moderately.

Is this brush suitable for all types of chimneys?

Yes, it is suitable for flues of different shapes and sizes, and can effectively clean soot and creosote.

How to clean the tool after use?

Use the supplied sponge to clean the brush and rods. Store everything in the storage bag in a cool, dry place.

What to do if the rods get stuck in the chimney?

Stop the drill immediately. Unscrew the rods slowly while pulling gently. If necessary, seek professional help.

Where to find spare parts?

Contact Vevor support at www.vevor.com/support to obtain spare parts such as rods or brushes.

What is the warranty?

An electronic warranty certificate is available at www.vevor.com/support. Keep your proof of purchase.

What does the box contain?

The box contains: 9 rods, 1 brush head, 1 pair of goggles, 1 pair of gloves, 1 storage bag, 1 sponge, 1 dust sheet, 1 ash brush, 1 chuck connector and 1 hex key.

USER MANUAL CB09 Vevor

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

MODEL: CB07 / CB08 / CB09 / CB10 / CB12

The picture is for reference only. The number of accessories for each model is slightly different, subject to the actual product.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

PARAMETER LIST

model	CB07	CB08	CB09	CB10	CB12
length	23ft/7m	26ft/8m	30ft/9m	33ft/10m	39ft/12m
Single rod length/rod diameter	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm	The length of the single rod is 1 meter, and the diameter of the rod is 12mm
net weight(kg)	1.9	2.1	2.3	2.5	2.8

PART LIST

model	picture	CB07	CB08	CB09	CB10	CB12
Fireplace brush - Pole		7	8	9	10	12

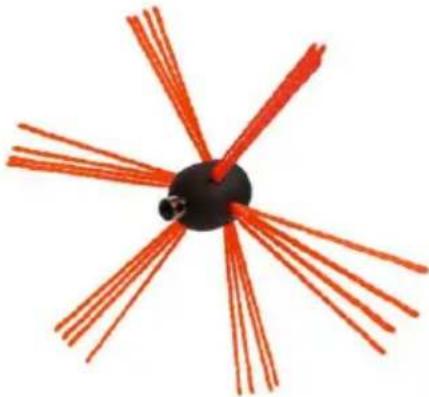

Fireplace brush - Brush head		1	1	1	1	1
Dust goggles		1	1	1	1	1
leather working gloves		1	1	1	1	1
storage bag		1	1	1	1	1
scrub sponge		1	1	1	1	1
Dustproof plastic sheet		1	1	1	1	1
Ash brush		1	1	1	1	1
Chuck connector		1	1	1	1	1
hex wrench		1	1	1	1	1

SECURITY & WARNINGS

In this section, you will find all the important information you need to be aware of before engaging in using your chimney brush. Safety should be your top priority while using this product.

Please read this information carefully, as improper use could damage the chimney brush.

- Use professional drills for power sweeping with a safety auxiliary handle that will stop the drill immediately when necessary.

- Use drills with a speed range from 350rpm to 2000rpm, 24V or at DC powered drill, or 500W and AC powered drill.

- Use your drill to rotate the chimney brush gradually and evenly, and avoid sudden trigger presses, which will cause sudden high torque force to damage the rods and chimney.

- Never grip the rods too tightly; this could pull your gloves off.

- When connecting the rods, keep them as straight as possible.

- Never keep the rods spinning in the chimney if you are not moving

the rods up or down, as friction can cause the rods to heat up and break.

- Do the sweeping only when the stove and chimney have cooled down already;

OPERATION

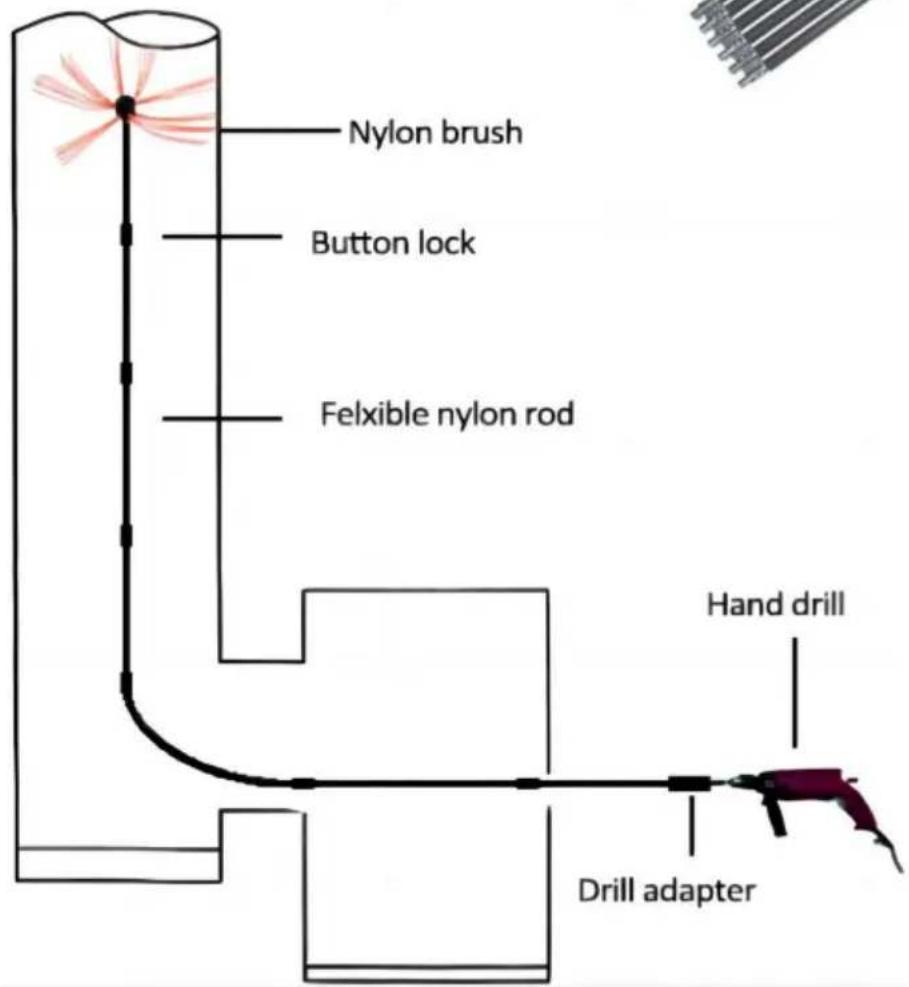

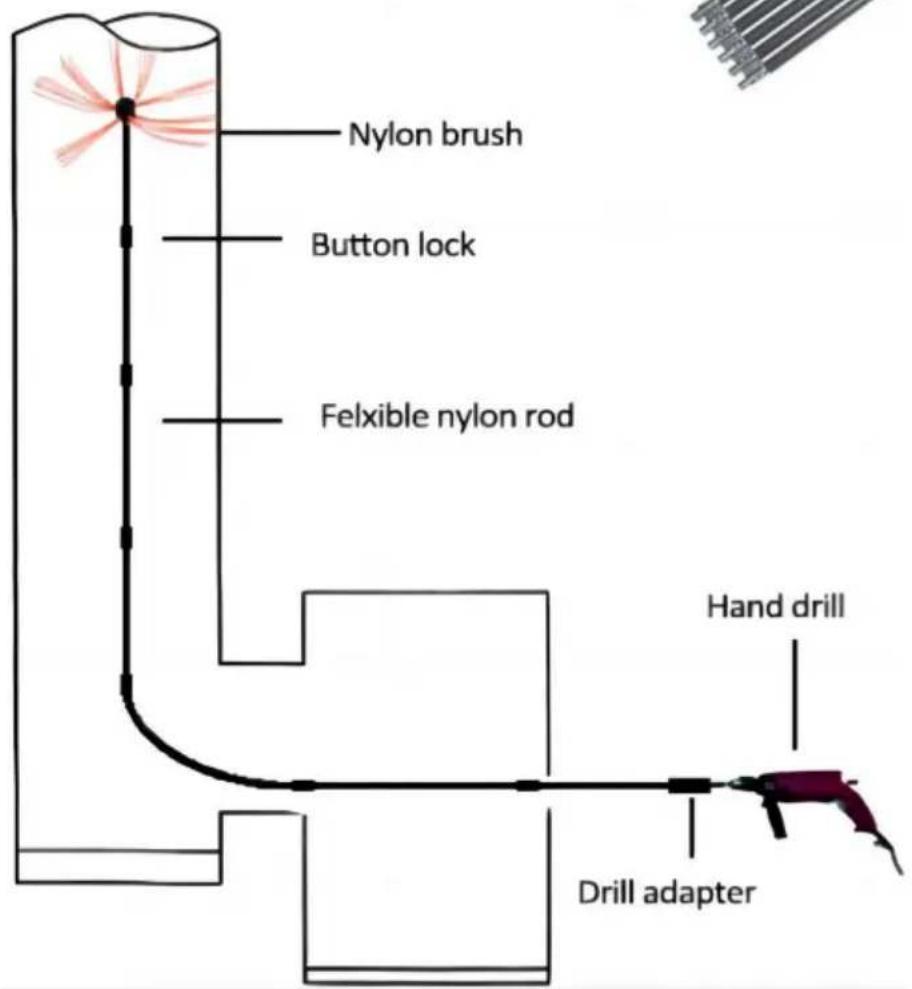

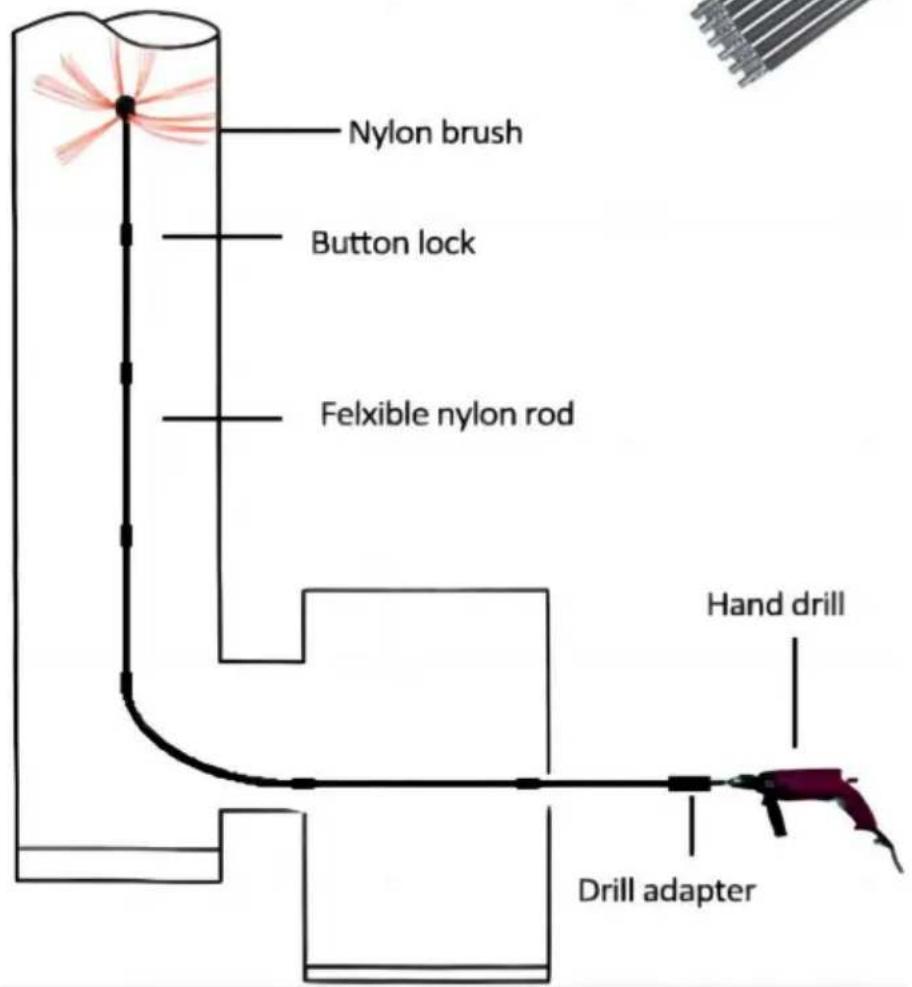

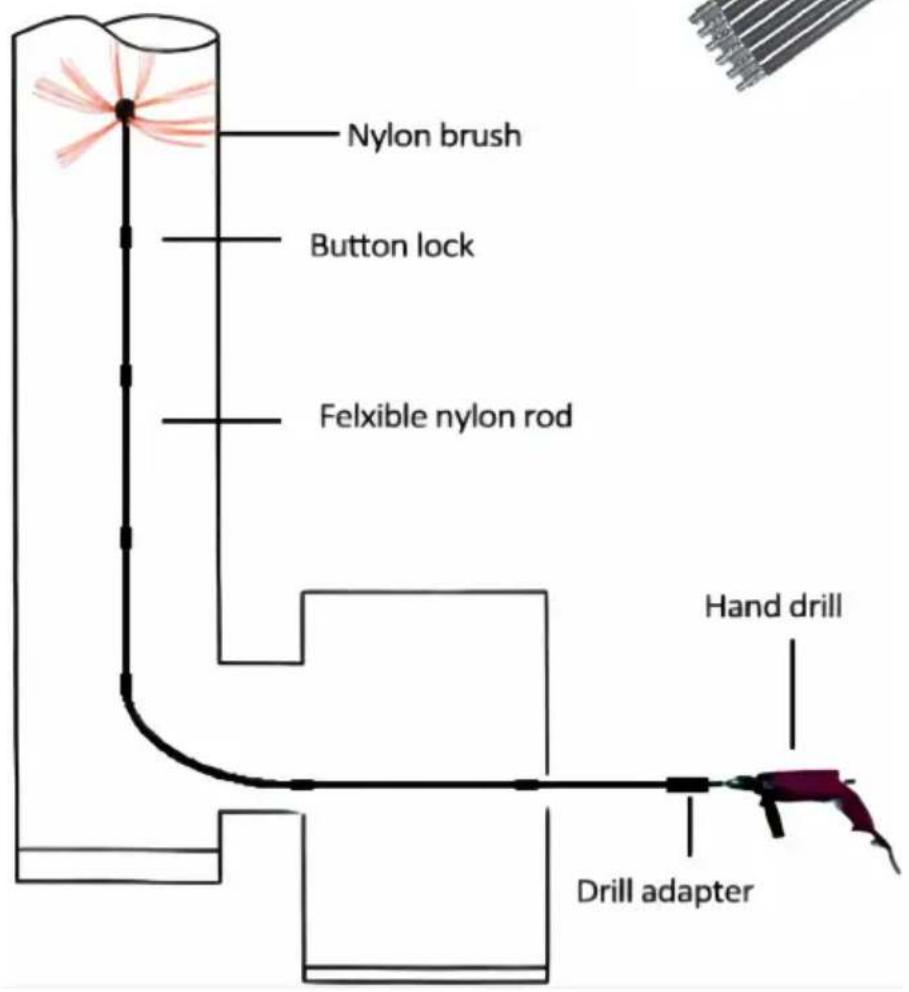

How to use:

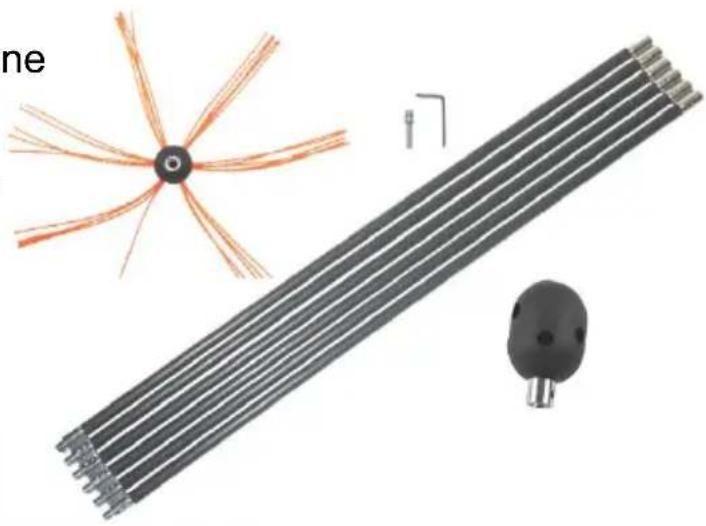

1. Connect the rods one by one. 2. Attach the bristle with rods.
2. Put the brush into the flue. 4. Slide the rod into the flue. 5. Attach the drill with rod. 6. Start cleaning the chimney.

STORAGE

Store the chimney brush in a cool, dry place.

APPLICATION

This chimney cleaning tool can effectively sweep away soot and creosote buildup inside the chimney or on the roof to help prevent flue fires.

• The chimney brush is suitable for flues of various shapes and sizes, and can clean other difficult-to-reach areas quickly and easily.
• When the chimney is cleaned, the air enters the chimney more smoothly, which can help burn more completely in the fireplace and make it warmer in winter.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to Australia: SIHAO PTY LTD. 1 Rokeva Street, Eastwood NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.
