Product Type	Manual Vegetable Slicer (Mandoline)
Brand	Vevor
Model	AY490-1
Number of Blades Supplied	9 blade plates: 1"2, 1"4, thin, thick, fine, coarse, pattern, grinding, tandem
Blade Material	Stainless Steel
Body Material	Stainless Steel
Power Source	Manual (Non-electric)
Dimensions (approx.)	30 x 15 x 10 cm (estimated)
Weight (approx.)	1.5 kg (estimated)
Non-slip Suction Cups	4 suction cups for fixing on smooth work surfaces
Hand Guard	Included for safety during cutting
Collecting Container	Included
Cutting Board	Included
Blade Storage Box	Yes, included
Main Functions	Slicing, grating, chopping, dicing (depending on blade)
Maintenance	Hand wash with water; do not put in dishwasher
Safety	Blades are very sharp, use the hand guard and cut-resistant gloves; suction cups for stability
Spare Parts	Replacement blades available; technical support via www.vevor.com/support
Warranty	Electronic warranty certificate (see Vevor website)
General Information	Manufactured by Shanghai Muxin Muye Co., Ltd; imported by Sanven Technology Ltd. (USA); CE certified

Frequently Asked Questions - AY490-1 Vevor

How to install the blades on the AY490-1 mandoline?

Align the blade holes with the columns of the bottom plate, ensuring the blade is facing upward. Press firmly. To remove a blade, place your hand on the diagonal edge of the column and lift upward horizontally.

Which blades are included with the AY490-1 model?

The AY490-1 model includes 9 blade plates: 1"2, 1"4, thin, thick, fine, coarse, pattern, grinding, and tandem. This allows slicing, grating, chopping, and dicing.

How to fix the mandoline on the work surface?

Install the 4 suction cups under the machine's feet. Place it on a smooth, clean, and flat surface (like a marble countertop). Press firmly to create suction. For better adhesion, lightly moisten the suction cups.

Can I wash the mandoline in the dishwasher?

No, it is not recommended to put the vegetable chopper in the dishwasher. Hand wash it with a brush and included scraper. Dry it thoroughly in a ventilated and shaded place to prevent rust.

How to quickly change a blade?

Remove the bottom pressure plate. Grasp the diagonal of the blade by hand and lift it parallelly. To install a new blade, simply align it with the slot and press. Wear cut-resistant gloves to avoid injury.

Is the mandoline suitable for cutting frozen foods?

No, do not use this machine for frozen foods, nor for foods with bones or pits. It is designed only for fresh vegetables, fruits, and other soft foods.

What to do if the suction cups do not adhere?

Ensure the surface is smooth, clean, and dry. Clean the suction cups with a damp cloth, then press firmly. If the problem persists, check that the suction cups are not damaged. Replace them if necessary.

How to clean the blade storage box?

Remove all blades. Wash the box with warm soapy water, rinse, and dry completely before storing the blades. Do not put the box in the dishwasher.

Where can I get replacement blades for the AY490-1?

Contact Vevor technical support via www.vevor.com/support. The blades must exactly match the model. Check the parts list in the manual to order the correct references.

What safety precautions should I take?

Read and understand the entire manual before use. Always keep your fingers away from the blade. Use the provided hand guard. Wear cut-resistant gloves when changing blades. Keep children at a distance and never leave the appliance unattended.

USER MANUAL AY490-1 Vevor

Affordable. Reliable. Home Improvement.

FOOD CHOPPER

Model: AY490-1/ AY490-2

Technical Support and E-Warranty Certificate

www.vevor.com/support

Model: AY490-1/ AY490-2

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

GENERAL SAFETY RULES

READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS

PRIOR TO USING THIS UNIT. YOUR SAFETY IS MOST

IMPORTANT!

FAILURE TO COMPLY WITH PROCEDURES AND SAFEGUARDS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. REMEMBER: YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!

1. KEEP FINGERS ALWAYS CLEAR of the Cutting Blade. NEVER hold a product with your hands in line of the Cutting Blade. Failure to keep hands away from the Cutting Blade may result in personal injury.
2. Keep the child away. Never leave the vegetable chopper unattended.
3. Check for damaged parts. Before using the shredder, please check components are working properly and performing the expected function. Check the alignment of moving parts, binding of moving parts, installation, and any other conditions that may affect operation.
4. When handling the Cutting Plate, it is HIGHLY RECOMMENDED to wear cut-resistant Kevlar gloves.
5. The Manufacturer declines any responsibility in the case of improper use of this machine.
6. Ensure that the vegetable chopper remains stable during use. Please install all parts correctly. The suction cup should be placed on a smooth and flat surface, and the machine should not move during the cutting process.
7. Do not use this machine for freezing food, removing bones, fish, or anything other than food.
8. The cutting machine should not be installed on uneven surfaces. It can only be installed on sturdy and smooth surfaces, such as a marble countertop.
9. Do not use the vegetable chopper under the influence of drugs or alcohol.

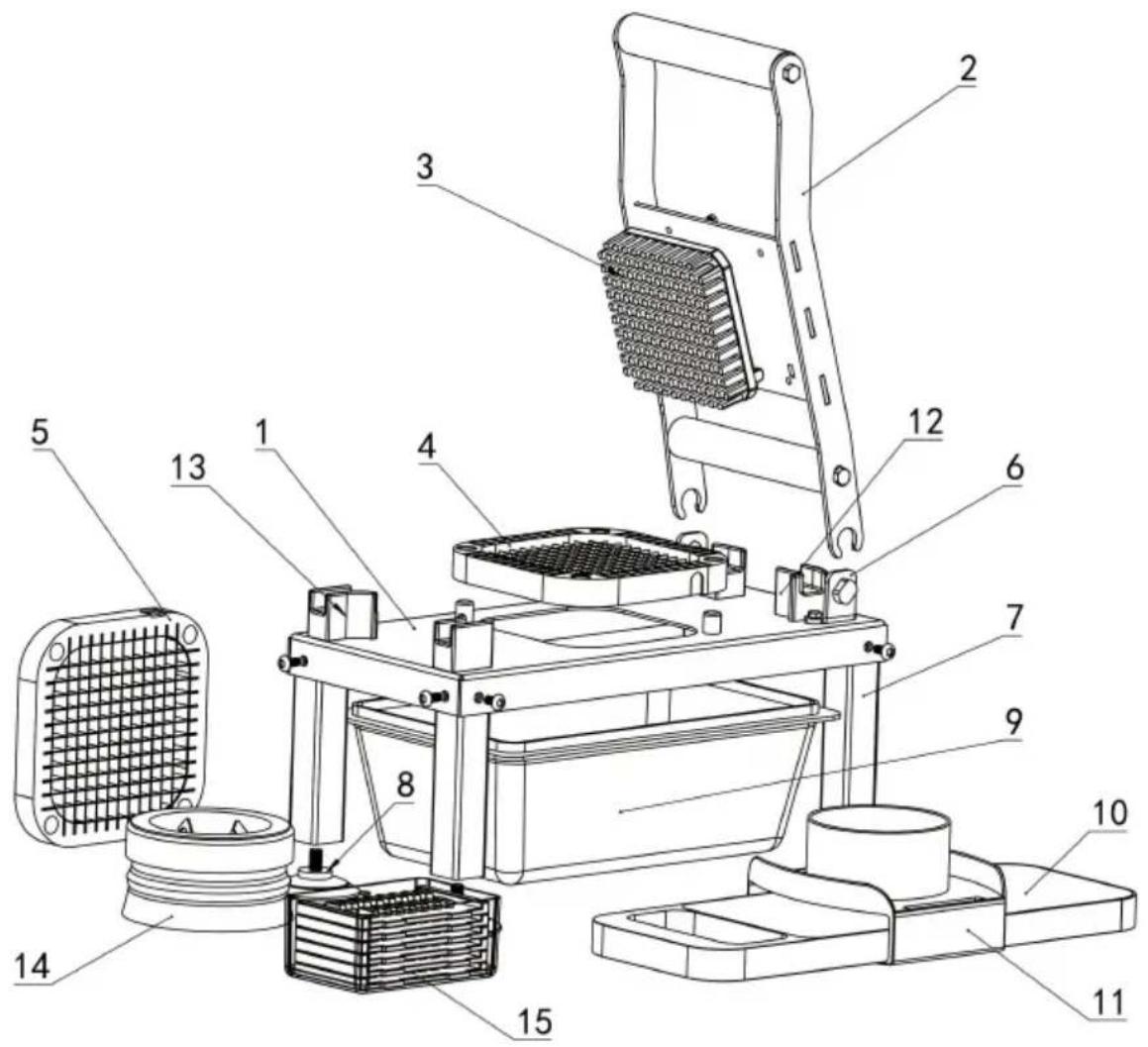

COMPONENT LIST

DIAGRAM NUMBER	PART DISCRIPTION	PART QUANTITY
		AY490-1	AY490-2
1	Chopper body	1	1
2	sucker	4	4
3	Blade storage box (include blades: Thin/Thick/Fine/Coarse/ Pattern/Grinding/)	1	1
4	1 "2 blade	1	1
5	1" 4 blade	1	1
6	Tandem Knife Plate	1	0
7	container	1	1
8	cutting board	1	1
9	Hand guard	1	1
10	Clean fork	1	1
11	Manual	1	1

INSTRUCTIONS

(WTSD)

CAUTION! Use extreme care when handling the Cutting Plates and the Blades!The Blades are extremely SHARP! It is suggested that wear cut-resistant Gloves when handling the Cutting Pla

1. Remove the vegetable chopper from the packaging and confirm receipt of all components.
2. Installation of the lower pressure plate: Insert the slots on both sides

of the lower pressure plate into the protruding rotating shafts on the rotating brackets on both sides of the base (pay attention to the angle). Check that it can move normally and if there is any stagnation (as shown in Figure 1).

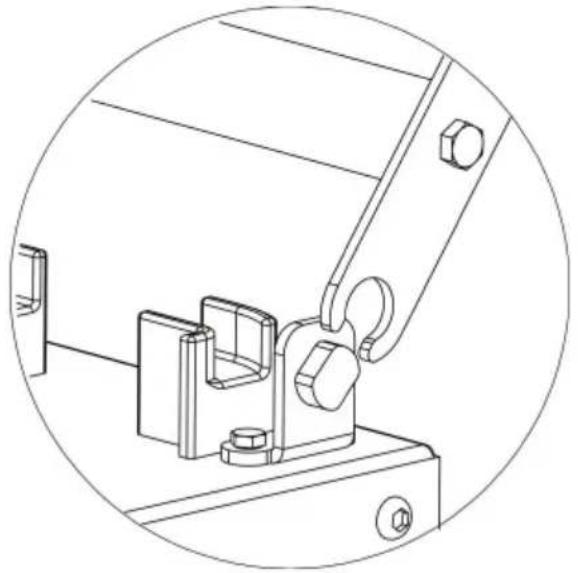

Figure 1

1. Install the push head: Align the two protruding blocks on both sides of the push head with the two slots on the lower pressure plate, and fix the four holes around them with screws.

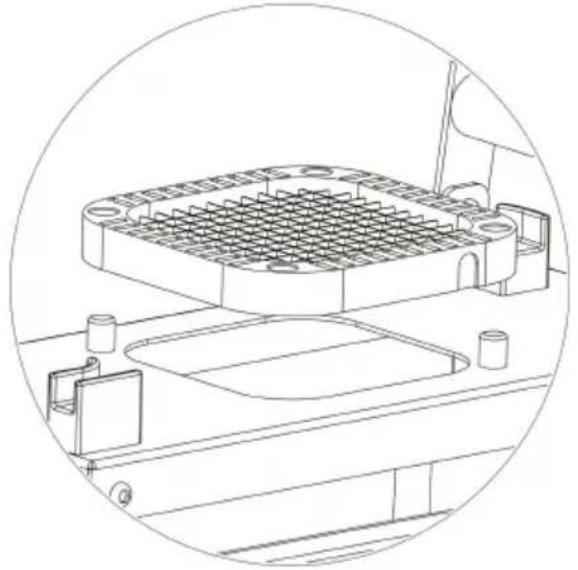

2. Installation of blade components: Install the holes on the blade components into the columns on the bottom plate, making sure the blade faces upwards. (When replacing blade components, place your hand on the diagonal edge of the column and lift it horizontally upwards for disassembly.) (as shown in Figure 2)

Figure 2

1. Suction cup installation: Install the suction cups into the holes at the bottom of the machine legs.

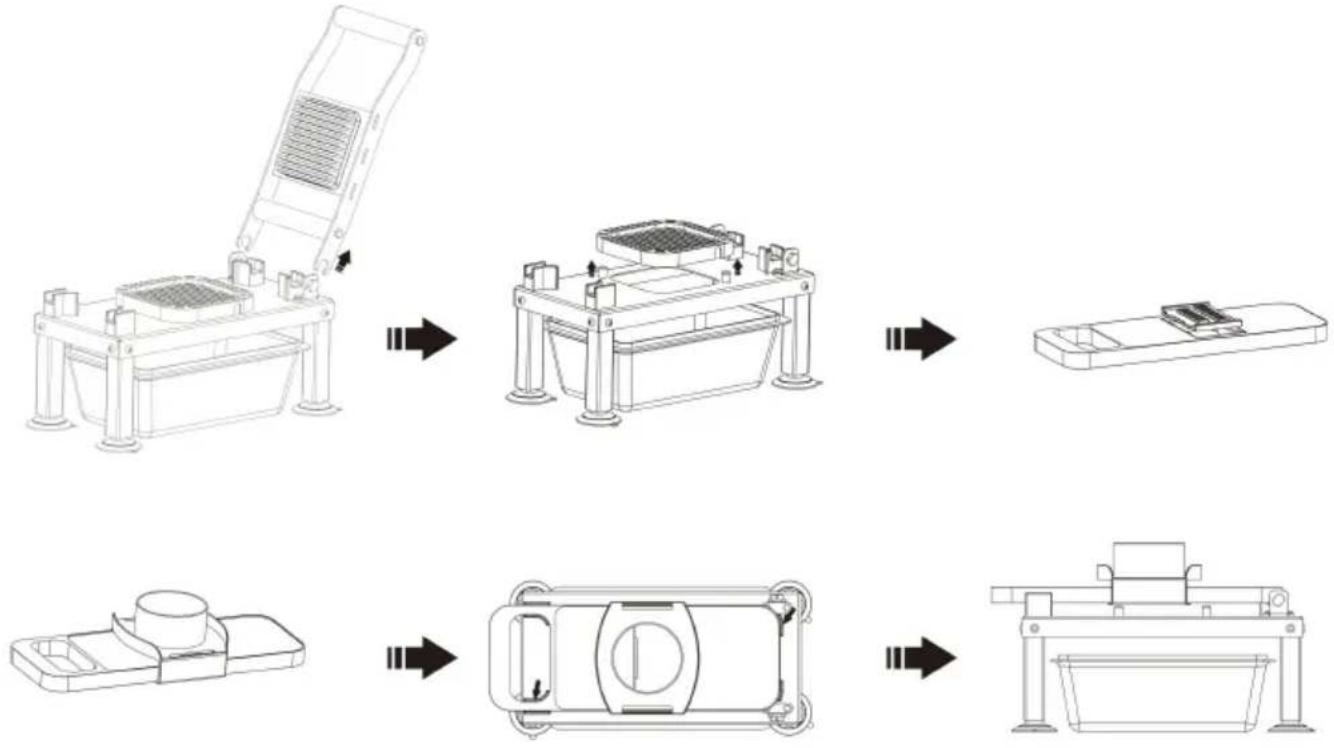

Slicer installation

1. Disassemble the lower pressure plate on the vegetable chopper.
2. Disassemble the blade (grasp the diagonal of the blade by hand and pull it parallel).
3. Install the required blade onto the cutting board (simply align it with the hole and press down).
4. Clamp the protective plate onto the cutting board.
5. Place the cutting board into the bracket on the bottom plate to complete the installation.

About the blade

Multi-functional food chopper: The vegetable chopper is equipped with the following blade specifications: 1/2", 1/4", thin, thick, fine, coarse, wavy blade, grinding blade, and series blade. It can effectively cut various ingredients into uniform cubes or thick strips, such as onions, potatoes, cucumbers, tomatoes, carrots, etc. Say goodbye to onion tears and easily enhance the dining experience of family members. The blades of the vegetable chopper

are made of stainless steel material, which is more sturdy and cuts vegetables faster. When using the blades, pay attention to distinguishing between front and back; Please be cautious as the front of the blade is sharp.

Model	Blade specifications	Number of blade
AY490-1	1 "2/1" 4/Thin/Thick/Fine/Coarse/Pattern/Grinding/Tandem Knife Plat	9 blade plates
AY490-2	1 "2/1" 4/Thin/Thick/Fine/Coarse/Wave/Grinding Blade	8 blade plates

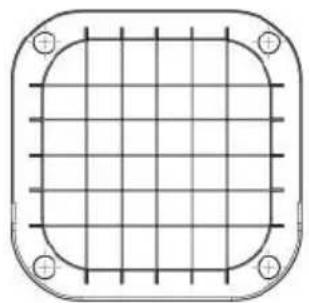

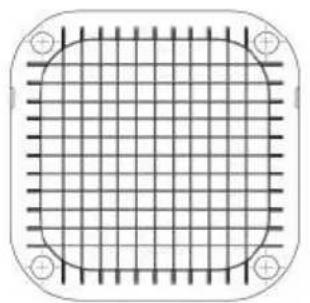

1/4" blade set

1/2" blade set

Connecting knives

filament

crin

Flower shaped

thin sheet

thick slice

Grinding knife

SUCTION CUP MOUNTING INSTRUCTIONS

To install the suction cup feet onto the vegetable chopper, place each suction cup into the holes on the machine feet.

Press the vegetable chopper firmly to create suction between the workbench and the French fryer. Be certain to place the chopper on

surface.

on smooth, clean horizontal surfaces. To create more suction, a dry cloth can be swiped across the suction cup prior to adhering.

CLEAN

[Stainless steel blades, easy to clean] Several blades of the vegetable chopper are made of stainless steel material, which is more sturdy and cuts vegetables faster. The cleaning process after using a vegetable chopper is very important as it can affect your next use. Simply use the included cleaning brush and scraper to clean the blades.

Warm tips: 1. Blade sharp, please do not directly grasp the blade and when switching blades! 2. It is not recommended to put the vegetable chopper in the dishwasher for cleaning.

The entire body is made of stainless steel and can be disassembled for comprehensive cleaning, it's easy and reliable for cleanliness. Use the clean fork to clean the corners, remember to put the body and knife in a ventilated and shaded area. Make sure to store it dry, otherwise it will rust easily.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
