USER MANUAL 886 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WEIGHTED DIGITAL PIANO USER MANUAL

MODEL: 886

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us.

are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

Vevor 886 - WEIGHTED DIGITAL PIANO USER MANUAL - 1Correct DisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.
Vevor 886 - WEIGHTED DIGITAL PIANO USER MANUAL - 2FCC Information:CAUTION: Changes or modifications not expressly approved by party responsible for compliance could void the user's authority operate the equipment!This device complies with Part 15 of the FCC Rules. Operati subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expre approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with for a Class B digital device pursuant to Part 15 of the FCC These limits are designed to provide reasonable protection aga harmful interference in a residential installation.This product generates, uses and can radiate radio frequency and if not installed and used in accordance with the instructio cause harmful interference to radio communications. However, it is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to television reception,which can be determined by turning the pro off and on, the user is encouraged to try to correct the inte one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from which the receiver is connected.Consult the dealer or an experienced radio/TV technician for assistance.

VEVOR®

Vevor 886 - VEVOR® - 1

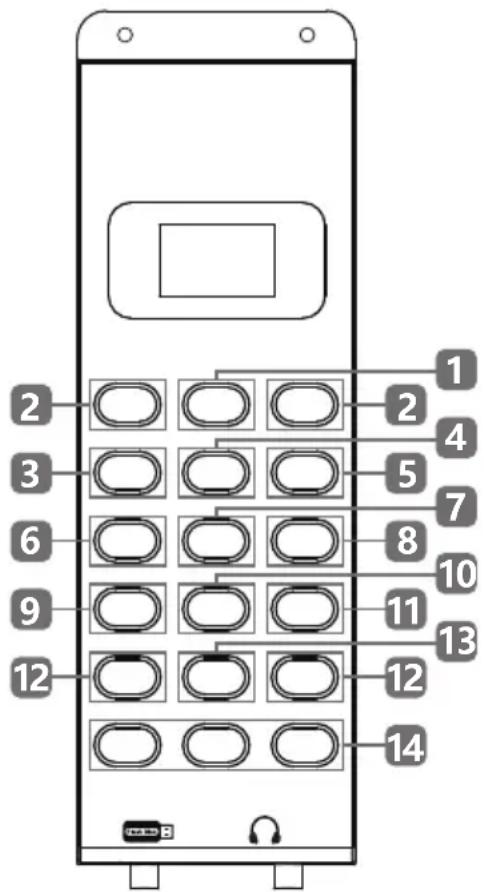

text_image 1 2 3 4 5 6 7 8 9 10 11 12 13 14

1 POWER 8 CHORD
2 Volume+/- 9 RECORD
3 TONE 10 PLAY
4 START/STOP 11 Metronome
5 DEMO 12 CHOOSE+/-
6 RHYTHM 13 MENU
7 FILL-IN/SYNC 14 Bluetooth/MP3 mode

Vevor 886 - VEVOR® - 2

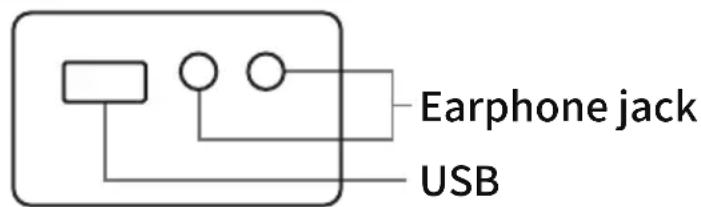

text_image Earphone jack USB

Vevor 886 - VEVOR® - 3

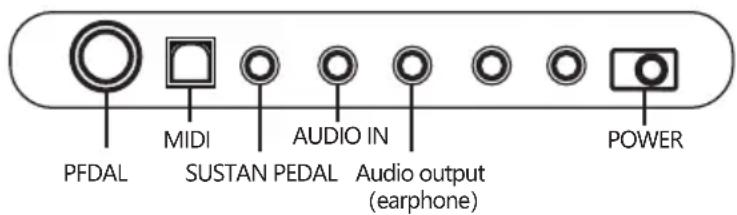

text_image PFDAL MIDI SUSTAN PEDAL AUDIO IN Audio output (earphone) POWER

1. POWER

Turn on the power, you can play the keyboard, into the playing state.

2.Volume+/-

After pressing the 【VOLUME】, the 【+】【-】 key can be used to increase/decrease the volume.

There are 16 volume control segments (ranging from 0 to 16). After the keyboard is powered on, the default value is 13.

3.TONE

After pressing the 【TONE】key, the 【+】【-】key can be used to select the tone.

4. START/STOP

Press the 【START/STOP】 key for the first time to start playing the rhythm. Press the 【START/STOP】 key for the second time to stop playing the rhythm. Exit the mode after entering the recording, playback, metronome function, etc.

5.DEMO

Press the 【DEMO】 key for the first time to enter the demo song mode, playing from the first song until the last song is played, will not repeat the current song. Press the “Demo” button a second time to exit the demo mode. In demo mode, press the 【Selectlect +/-】 key to switch songs.

6.RHYTHM

Press the 【START/STOP】 key to enter rhythm mode. After pressing the rhythm key, you can use the 【+】【-】 key to select rhythm.

7.FILL-IN/SYNC

Press the 【FILL-IN/SYNC】key for the first time to enter insert mode. Function occurs only when the rhythm is played. When the rhythm is playing, press the [insert] key for the rhythm to join the interlude function, in the rhythm play the bar, insert a interlude rhythm. Press the 【FILL-IN/SYNC】key for the second time to enter sync mode. When in sync mode, stop playing the rhythm and press the first 34 keys to automatically play the selected rhythm (chord).

For chord synchronization, please refer to the notes for single-fingered accompaniment or multi-fingered accompaniment.

8.CHORD

Press the 【CHORD】key for the first time to enter chord mode, press the 【CHORD】key for the second time to exit chord mode. chord only function in rhythm and general mode.

When playing the rhythm, press the 【CHORD】 key and press the multi-fingered method within the range of the keys A1\~F4# , then the corresponding chord accompaniment sound can be heard, if it is not pressed the multi-fingered method, a single-fingered chord fingering chord is played.

When the rhythm is not played, press the 【CHORD】 key and press the multi-fingered method within the range of the keys A1\~F4# to hear the corresponding chord tone. If not, the single-fingered chord tone will be played.

9.RECORD

Press the 【RECORD】key for the first time to enter record mode and erase the previous record; press the 【RECORD】key for the second time to exit record mode. In recording mode, the metronome sound will be played, press any key to start recording. The maximum number of recordings is 700, when the full record, it can not continue to record a note; When recording, you can press the 【PLAY】key to play the recorded note or drum sound at any time.

10.PLAY

Press the 【PLAY】key for the first time to play the recorded notes or drums, and press the 【PLAY】key for the second time to stop playing. Press the 【PLAY】key to exit recording mode.

If there is no recorded value before, press the 【PLAY】key and no action will occur.

11.Metronome

Press the 【Metronome】 key action function for the beat sound 1/4 beat \~ 7/4 beat → stop → beat sound 1/4 beat... ... with a speed default of 120. The metronome sound has seven variations, ranging from 1/4 to 7/4. When recording, press the 【Metronome】 key to switch on and off the sound of the Metronome.

12. CHOOSE-/+

There are 【+】【-】key for sequential selection, a total of 2 keys. Can be used to quickly select tone, rhythm, song, volume, accompaniment volume, speed, shift. If the number pressed exceeds the maximum number of the song, tone or rhythm, the original value is maintained.

13. MENU

Press the 【MENU】key for the first time to enter the velocity setting mode, LED screen show "1", You can ON/OFF the velocity by using the Choose +/- key.

Press the 【MENU】key for the second time to enter the dual-keyboard setting mode, LED screen show "2", You can Open/Close dual-keyboard by using the Choose +/- key. When the dual keyboard function is activated, the scales of the left keys

A1\~B4 will be played as A2\~B5, and the right keys C5\~C9 will be played as C4\~C8.

Press the 【MENU】key for the third time to enter the dual-tone setting mode, LED screen show "3", You can Open/Close dual-tone by using the Choose +/- key.

Press the 【MENU】key for the fourth time to enter the volume of rhythm setting mode, LED screen displays "4". You can set the volume of rhythm value by using the Choose +/- key. The accompaniment volume control has 15 segments (0 \~ 15), The accompaniment volume key controls the volume of rhythm, chords, and drum.

Press the 【MENU】 key for the fifth time to enter the speed of rhythm setting mode. LED screen displays "5". You can set the speed of rhythm values by using the Choose +/- key. The speed control has 270 sections (30 \~ 240).

Press the 【MENU】key for the sixth time to enter the shift setting mode, LED screen displays "6", you can set the shift values by using the Choose +/- key. There are 25 (-12 \~ 12) of the shift control. Hold on Choose +/- key for more than 1 second to continuously increase/decrease shift. The chord tone also changes with the shift values change.

* Press the 【MENU】key for the seventh time to enter the keyboard light mode, LED display ON/OFF, you can use the Choose +/- key to set it, the keyboard light default is ON. (this feature is available only with the keyboard light version)

14. Bluetooth/MP3 mode

  1. BT/MP3 On/Off:

Connect the Bluetooth of phone and then enter Bluetooth audio mode. Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【IK/■】 key to play or stop the song of BT/MP3 song.

Press the 【IK/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/▶】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/▶】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00PIANO GRD55ORCH HIT110FIDDLE
01PIANO BRITE56TRUMPT111SHANAI
02PIANO ELEC57TROMBONE112TINKLE BELL
03HONKY-TONK58TUBA113AGOGO
04E PIANO159MUTE TPT114STEEL DRM
05E PIANO260FR HORN115WOODBLK
06HARPSCRD61BRASS SECT116TAIKO DRM
07CLAVI62BRASS SYN 1117MLDY TOM
08CELESTA63BRASS SYN 2118SYNTH DRM
09GLOCKNSPL64SAX SOPRANO119REVRS CYM
10MUSIC BOX65SAX ALTO120GTR NOISE
11VIBRAPHONE66SAX TENOR121BREATH
12MARIMBA67SAX BTONE122SEASHORE
13XYLOPHONE68OBOE123BIRD TWEET
14TUBULR BELLS69ENG HORN124TELEPHONE
15DULCIMER70BASSON125HELICOPTER
16HAMND ORG71CLARINET126APPLAUSE
17PERC ORG72PICCOLO127GUNSHOT
18ROCK ORG73FLUTE128STANDARD DRUM
19CHURCH ORG74RECORDER129CHINESE DRUM
20REED ORG75PAN FLUTE130PIANO GRD
21ACCORDN 176BOTTLE BLOWN131PIANO BRITE
22HARMONICA77SHAKHACHI132PIANO ELEC
23ACCORDN 278WHISTLE133HONKY-TONK
24GTR NYLON79OCARINA134E PIANO1
25GTR STEEL80SQR WAVE135E PIANO2
26GTR JAZZ81SAW TOOTH136HARPSCRD
27GTR CLEAN82CALLIOPE137CLAVI
28GTR MUTED83CHIFF138CELESTA
29GTR OVRDRV84CHARANG139GLOCKNSPL
30GTR DISTRT85VOICE LEAD140MUSIC BOX
31GTR HRMNX865TH LEAD141VIBRAPHONE
32ACOU BASS87BASS LEAD142MARIMBA
33FINGR BASS88NEW AGE143XYLOPHONE
34PICK BASS89WARM PAD144TUBULR BELLS
35FRETLS BASS90POLY SYNTH145DULCIMER
36SLAP BAS 191CHOIR PAD146HAMND ORG
37SLAP BAS 292BOW GLASS147PERC ORG
38SYN BASS 193METAL PAD148ROCK ORG
39SYN BASS 294HALO PAD149CHURCH ORG
40VIOLIN95SWEEP150REED ORG
41VIOLA96RAIN FX151ACCORDN 1
42CELLO97SNDTRK FX152HARMONICA
43CONTRABASS98CRYSTAL FX153ACCORDN 2
44STR TREM99ATMOSPH FX154GTR NYLON
45STR PIZZ100BRIGHT FX155GTR STEEL
46HARP101GOBLIN FX156GTR JAZZ
47TIMPANI102ECHO FX157GTR CLEAN
48STRINGS 1103SCI-FI FX158GTR MUTED
49STRINGS 2104SITAR159GTR OVRDRV
50STR SYN 1105BANJO160GTR DISTRT
51STR SYN 2106SHAMISEN161GTR HRMNX
52CHOIR AAHS107KOTO162ACOU BASS
53VOICE OOHS108KALIMBA163FINGR BASS
54VOICESYN109BAGPIPE164PICKBASS
165FRETLS BASS177TIMPANI189MUTE TPT
166SLAP BAS 1178STRINGS 1190FR HORN
167SLAP BAS 2179STRINGS 2191BRASS SECT
168SYN BASS 1180STR SYN 1192BRASS SYN 1
169SYN BASS 2181STR SYN 2193BRASS SYN 2
170VIOLIN182CHOIR AAHS194SAX SOPRANO
171VIOLA183VOICE OOHS195SAX ALTO
172CELLO184VOICE SYN196SAX TENOR
173CONTRABASS185ORCH HIT197SAX BTONE
174STR TREM186TRUMPT198OBOE
175STR PIZZ187TROMBONE199ENG HORN
176HARP188TUBA
  1. Appendix 2 (Rhythm comparison table)
008 BEAT POP 143SLOW ROCK86WALTZ
018 BEAT POP 244BLUES87MILITARY MARCH
028 BEAT POP 345FAST GOSPEL886/8 MARCH
03ROCK POP466/8 BLUES89MARCH 1
04COUNTRY POP47ROCK & BLUES90MARCH 2
058 BEAT 148BLUES SHUFFLE91FOLKBEAT
068 BEAT 249SOUL BLUES92DANGDUT
078 BEAT 350FOXTROT93CHARLESTON
08SHOW TUNE51RAP94TWIST
0916 BEAT 152SWING 195ENKA
1016 BEAT 253SWING 296SKA
1116 BEAT POP 154JAZZ FUSION97TURKY
1216 BEAT POP 255BEPOP98REGGAE 12
1316 BEAT POP 356DIXIE99SOUL
1416 BEAT POP 457FUNK1008 BEAT POP 1
15REGGAE 1658JAZZ WALTZ1018 BEAT POP 2
16HEAVY METAL59RAGTIME1028 BEAT POP 3
17FOLKROCK60RUMBA 1103ROCK POP
18BALLAD61RUMBA 2104COUNTRY POP
19BIG BALLAD62TANGO 11058 BEAT 1
20PIANO BALLAD63TANGO 21068 BEAT 2
21RK BALLAD64BOMBA1078 BEAT 3
22R&B BALLAD65MAMBO108SHOW TUNE
23EPIC BALLAD66CHA CHA10916 BEAT 1
24POP 167REGGAE11016 BEAT 2
25POP 268WESTERN SHUFFLE11116 BEAT POP 1
26DETROIT POP6916RK&ROLL11216 BEAT POP 2
27DISCO BEAT70HAPPY LOVE11316 BEAT POP 3
28DISCO PARTY71CANTALP11416 BEAT POP 4
29DISCO QUEEN72COUNTRY BALLAD115REGGAE 16
30DISCO FUNK73COUNTRY ROCK116HEAVY METAL
31DISCO SOUL74COUNTRY SHUFFLE117FOLKROCK
32DANCE SHUFFLE75COUNTRY118BALLAD
33EURB76HOUSE119BIG BALLAD
34CASA77TANGO ARGENTINA120PIANO BALLAD
35HIP-HOP78JIVE121RK BALLAD
36ROCK 179DANCE 1122R&B BALLAD
37ROCK 280DANCE 2123EPIC BALLAD
38ROCK CLASSICAL81SLOWFOX124POP 1
39POP ROCK82CHA CHA125POP 2
40ROCKABILLY83VIENNESE WALTZ126DETROIT POP
41HARD ROCK84BAROQUE127DISCO BEAT
426/8 ROCK85SEVILLIANAS128DISCO PARTY
129DISCO QUEEN153SWING 2177TANGO ARGENTINA
130DISCO FUNK154JAZZ FUSION178JIVE
131DISCO SOUL155BEPOP179DANCE 1
132DANCE SHUFFLE156DIXIE180DANCE 2
133EURB157FUNK181SLOWFOX
134CASA158JAZZ WALTZ182CHA CHA
135HIP-HOP159RAGTIME183VIENNESE WALTZ
136ROCK 1160RUMBA 1184BAROQUE
137ROCK 2161RUMBA 2185SEVILLIANAS
138ROCK CLASSICAL162TANGO 1186WALTZ
139POP ROCK163TANGO 2187MILITARY MARCH
140ROCKABILLY164BOMBA1886/8 MARCH
141HARD ROCK165MAMBO189MARCH 1
1426/8 ROCK166CHA CHA190MARCH 2
143SLOW ROCK167REGGAE191FOLKBEAT
144BLUES168WESTERN SHUFFLE192DANGDUT
145FAST GOSPEL16916RK&ROLL193CHARLESTON
1466/8 BLUES170HAPPY LOVE194TWIST
147ROCK & BLUES171CANTALP195ENKA
148BLUES SHUFFLE172COUNTRY BALLAD196SKA
149SOUL BLUES173COUNTRY ROCK197TURKY
150FOXTROT174COUNTRY SHUFFLE198REGGAE 12
151RAP175COUNTRY199SOUL
152SWING 1176HOUSE
  1. Appendix 3 ( Demo Songs list )
00For Alice30horse race60Dance with you
01Croatian Rhapsody31waltz61The death of the swan
02A Starry Sky32Go home often62I am a caged anima
03Symphony No.4033see you again63Lazy bed
04Send me a rose34For Sanetti64Where the flowers are in full bloom
05Your love is a lie35Boat Song
06Butterfly Love36DJ dance music65Blues jazz piano
07For Alice37Starlight dance music66The curved moon
08celebration38Secret courtyard67Autumn leaves
09The Minuet in G major39The Horsemen68Grassland night
10angel40Fatal Fury Special69Alemander dance music
11Pontiac Moon41Pearl of the Orient70Liuyang River
12minuet42I'm nothing71rondo
13Friendship the older43Tomorrow will be better72Blue tango
it grows44White-hat shorts73PATHOS
14Kamen45Trouble74Jubilant
15Culabor sonata46tango75Life in Aragon
16The Spanish girl47desolation76Shusanna
17swan48The girl of Ali Mountain77Trout
18Blue Danube49Tarantera dance music78Mary has a little lamb
19Stylia50ale firkin79Christmas bell
20Xinjiang dance music51The song of the spinning wheel80The Tango by Alberiz
21swallow81Wild bees flying
22Why are the flowers so red52Samba82jasmine flower
23Lover's tears53Hunting83Dvorak jazz music
24What does love have to do with it54Babylon River84American folk songs
55ballade85Clear stream
25Schubert nightly56Eyes are smiling86Happy farmer
26Concerto for Love57Frankly87Prelude in C major
27The Story of a Small Town58Black or White88doraemon
28Polka, Italy59The Memories of Andalusia
29naivete
BXSZCGQ88JBDXPLSHAccessory
Pedal (metal) * 1Music sheet stand * 1
DC adapter & 2M power cord * 1Music sheet clip * 1
Earphones * 1Wipe piano cloth * 1
Piano sticker * 1MIDI cord * 1
BXSZCGQ88JSJ8KKBKAccessoryWipe piano cloth * 1
Pedal *1Metal legs*4
DC adapter & 2M power cord * 1Screws*16
Earphones * 1Phillips screwdriver * 1
Music sheet stand * 1MIDI cord * 1
YTSZCGQ88JXTDCC4JAccessory
Pedal *1Wooden frame * 4
DC adapter & 2M power cord * 1Screws*24
Earphones * 1L-shaped metal parts*4
Music sheet stand * 1Phillips screwdriver * 1
Wipe piano cloth * 1MIDI cord * 1
YTSZCGQ88JXT74IECAccessoryWooden frame * 4
Pedal *1Screws*24
DC adapter & 2M power cord * 1L-shaped metal parts*4
Earphones * 1Twin piano bench * 1
Music sheet stand * 1Phillips screwdriver * 1
Wipe piano cloth * 1MIDI cord * 1

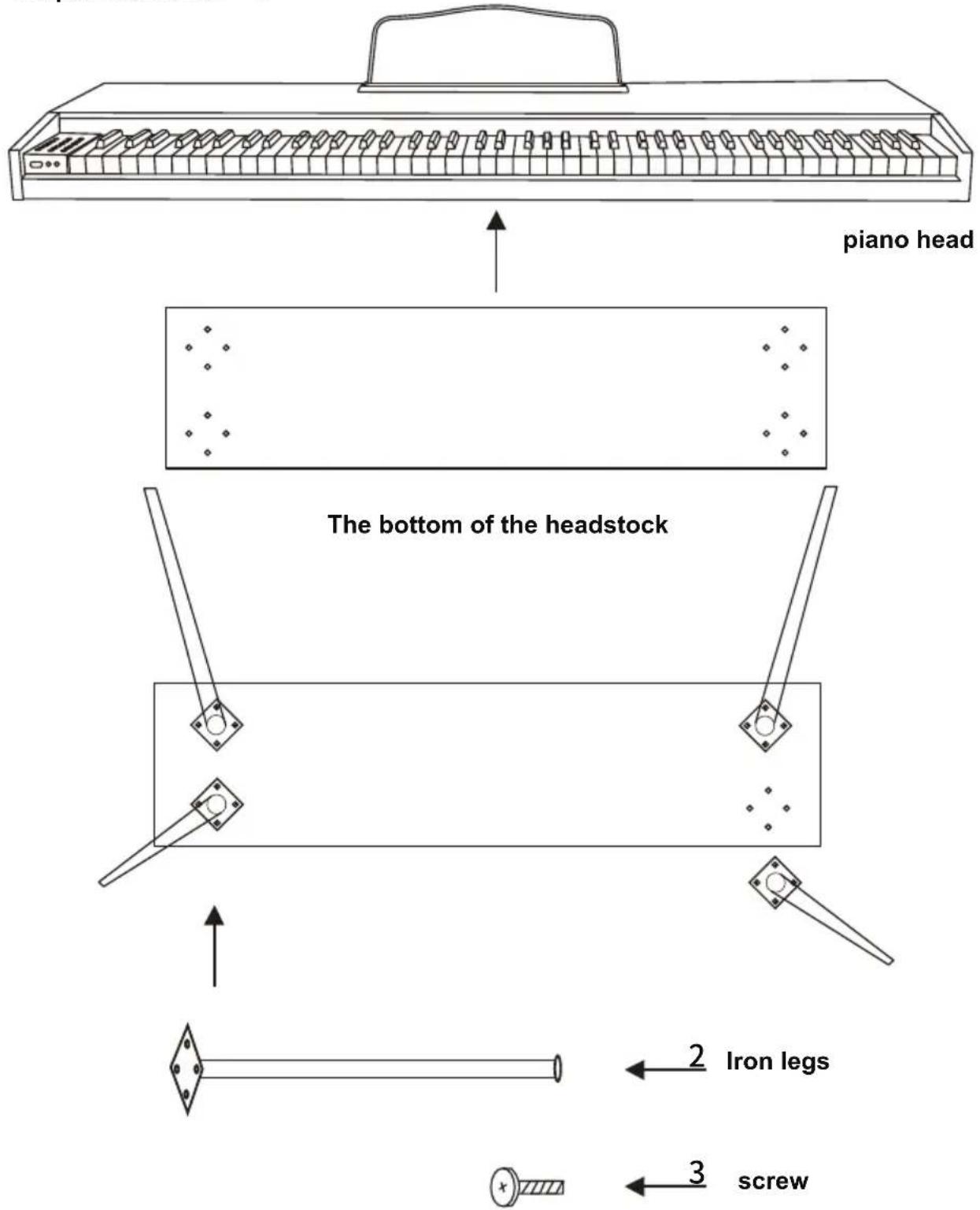

Installation diagram

Open the packaging box and check if the following accessories are available.

  1. piano head
    2.4 iron legs
  2. Screws 5*12mm 16pcs
  3. Phillips screwdriver * 1

Vevor 886 - Open the packaging box and check if the following accessories are available. - 1

text_image piano head The bottom of the headstock 2 Iron legs 3 screw

Installation diagram

Open the packaging box and check if the following accessories are available.

  1. piano head
  2. Left side panel
  3. Right side panel
  4. Back Strip

  5. Wooden frame

  6. 5*20 SCREWS 4pcs

  7. 5*50 SCREWS 4pcs
  8. 5*35 SCREWS 4pcs
  9. 3*12 SCREWS 12pcs
  10. L-shaped metal parts*4pcs
  11. Phillips screwdriver

Vevor 886 - Open the packaging box and check if the following accessories are available. - 1

text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Connect the Bluetooth of phone and then enter Bluetooth audio mode. Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/-】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00 GR.55 COUP D'ORCHE110 VIOLE
01 PIANO BRITE56 LA TROMPE111 SHANAI
02 PIANO ÉLECTRIQUE57 TROMBONS112 tintement de cloche
03 HONKY-TONK58 CHAMBRES113 GRAND-PÈRE
04 E PIANO159 TPT MUET114 DRM EN ACIER
05 E PIANO2CORNE 60 FR115 BOISNOIR
06 HARPSCRD61 SECTE DES LAITON116 TAIKO DRM
07 touches62 LAITON SYN 1117 MLDY TOM
08 CÉLESTA63 LAITON SYN 2118 DRM DE SYNTHÈSE
09 GLOCKNSPL64 SAX SOPRANO119 REVERS ENG
dixBOÎTE À MUSIQUE65 SAX ALTO120 GTR BRUIT
11 VIBRAPHONE66 SAX TÉNOR121 SOUFFLE
12MARIMBA67 BONNES SAX122 BORD DE MER
13XYLOPHONE68 HAUTBOIS123 TWEET D'OISEAU
14 CLOCHES TUBULRES69 ENG COR124 TÉLÉPHONE
quinzeDULCIMER70 BASSON125 HÉLICOPTÈRE
16ORG HAMND71 CLARINETTE126 APPLAUDISSEMENTS
17 MINUTES ORG72 PETIT127 COUP DE FUSIL
18ORGANISATION ROCK73 FLÛTE128 TAMBOUR STANDARD
19 ORGANISATION ÉGLISE74 ENREGISTREUR129 TAMBOUR CHINOIS
vingtORG REED75 FLÛTE DE PAN130 GR.
21 ACCORD 176 BOUTEILLE SOUFFLÉE131 PIANO BRITE
22 HARMONIQUE77 CHAKHACHI132 PIANO ÉLECTRIQUE
23 ACCORD 278 SIFFLET133 HONKY-TONK
24 GTR NYLON79 OCARINA134 E PIANO1
25 GTR ACIERVAGUE 80 SQR135 E PIANO2
26 GTR JAZZ81 DENT DE SCIE136 HARPSCRD
27 GTR PROPRE82 CALLIOPE137 touches
28 GTR en sourdine83 CHEF138 CÉLESTA
29 GTR OVRDRV84 CHARANG139 GLOCKNSPL
30 GTR DISTRIBUTION85 CHEF PRINCIPAL140 BOITE A MUSIQUE
31 GTR HRMNX86 5ÈME TÊTE141 VIBRAPHONE
32 ACOU BASSE87 CÂBLE DE BASSE142 MARIMBA
BASSE À 33 DOIGTS88 NOUVEL ÂGE143 XYLOPHONE
34 médiators basse89 COUSSIN CHAUD144 CLOCHES TUBULRES
BASSE 35 FRETTES90 POLY SYNTHÉ145 DULCIMER
36 SLAP BAS 191 TAMPON DE CHŒUR146 ORG HAMND
37 SLAP BAS 292 VERRE À ARC147 MIN ORG
38 SYN BASSE 193 COUSSIN MÉTALLIQUE148 ORGANISATION ROCK
39 SYN BASSE 294 BONJOUR PAD149 ORGANISATION ÉGLISE
40 VIOLON95 BALAYAGE150 ROSEAU ORG
41 ALTO96 PLUIE FX151 ACCORD 1
42 VIOLONCELLE97 SNDTRK FX152 HARMONIQUE
43 CONTREBASSE98 effets de cristal153 ACCORD 2
44 PAGES TREM99 ATMOSPHE FX154 GTR NYLON
PIZZA 45 STR100 effets lumineux155 GTR ACIER
46 HARPE101 GOBELIN FX156 GTR JAZZ
47 Timbales102 ÉCHO FX157 GTR PROPRE
48 CORDES 1103 Effets de science-fiction158 GTR en sourdine
49 CORDES 2104 SITAR159 GTR OVRDRV
50 FOR SYN 1105 BANJO160 GTR DISTRIBUTION
51 FOR SYN 2106SHAMISEN161 GTR HRMNX
52 CHŒUR AAHS107 KOTO162 ACOU BASSE
53 VOIX OUHS108 CALIBUMBASSE 163 DOIGTS
54 SYNCHRONISATION VOCALE109 CORNEMUSE164 médiators basse

Machine Translated by Google

BASSE 165 FRETTEs177 Timbales
166 SLAP BAS 1178 CORDES 1
167 SLAP BAS 2179 CORDES 2
168 SYN BASSE 1180 FOR SYN 1
169 SYN BASSE 2181 FOR SYN 2
170 VIOLON182 CHŒUR AAHS
171 ALTO183 VOIX OHS
172 VIOLONCELLE184 SYNCHRONISATION VOCALE
173 CONTREBASSE185 COUP D'ORCHE
174 PAGES TREM186 LA TROMPE
PIZZA 175 STR187 TROMBONS
176 HARPE188 CHAMBRES
189 TPT MUET
CORNE 190 FR
191 SECTE DES LAITON
192 LAITON SYN 1
193 LAITON SYN 2
194 SAX SOPRANO
195 SAX ALTO
196 SAX TÉNOR
197 BONNE SAX
198 HAUTBOIS
199 COR ENG
  1. Appendix 2 (Rhythm comparison table)
00 8 BATTRE POP 143 ROCHE LENTE
01 8 BATTRE POP 244 BLEUS
02 8 BATTRE POP 345 ÉVANGILE RAPIDE
03 ROCK-POP46 6/8 BLEUS
04 POP PAYS47 ROCK ET BLEU
05 8 Battement 148 BLEU SHUFFLE
06 8 Battement 249 BLEU D'ÂME
07 8 Battement 350 FOXTROT
08 AFFICHER LA RÉGLAGE51 PAR
09 16 Battement 152 BALANÇOIRE 1
10 16 Battement 253 BALANÇOIRE 2
11 16 BATTRE POP 154 JAZZ-FUSION
12 16 BATTRE POP 255 POPULAIRE
13 16 BATTRE POP 356 DIXIE
14 16 BATTRE POP 457 FUNK
15 REGGAE 1658 VALSE JAZZ
16MÉTAL LOURD59 RAGTIME
17ROCHER FOLKORDIQUE60 RUMBA 1
18 BALLADE61 RUMBA 2
19 GRANDE BALLADE62 EXTRAIT 1
20 BALLADE AU PIANO63 EXTRACTION 2
21 RK BALLADE64 TUYAU
22 BALLADE R&B65 CHoses
23BALLADE ÉPIQUE66 PÈRE
24 POP 167 REGGAE
25POP 268 SHUFFLE OUEST
26 DÉTROIT POP69 16RK&ROLL
27 Battement disco70 AMOUR HEUREUX
28 FÊTE DISCO71 CANTALPE
29REINE DU DISCO72 BALLADE COUNTRY
30 DISCO FUNK73 ROCHE PAYS
31 ÂME DISCO74 PAYS SHUFFLE
32 DANSE SHUFFLE75 PAYS
33 EURB76 MAISON
34 ACCUEIL77 TANGO ARGENTINE
35 HIP-HOP78 JIVE
36 ROCHE 179 DANSE 1
37 ROCHE 280 DANSE 2
38 ROCK CLASSIQUE81 SLOWFOX
39 POP-ROCK82 PÈRE
40ROCKABILLY83 VALSE VIENNOISE
41HARD-ROCHER84 BAROQUE
42 6/8 ROCHE85 SÉVILLIENNES
86VALSE
87MARCHE MILITAIRE
886/8 MARS
891er MARS
902 MARS
91FOLKBEAT
92DANGDUT
93CHARLESTON
94TORSION
95VEUVE
96DEVRAIT
97TURCS
98REGGAE 12
99ÂME
1008 BATTRE POP 1
1018 BATTRE POP 2
1028 BATTRE POP 3
103ROCK-POP
104POP PAYS
1058 Battement 1
1068 Battement 2
1078 Battement 3
108AFFICHER LA SYNTONISATION
10916 Battement 1
11016 Battement 2
11116 BATTRE POP 1
11216 BATTRE POP 2
11316 BATTRE POP 3
11416 BATTRE POP 4
115REGGAE 16
116MÉTAL LOURD
117ROCK FOLKORDIQUE
118BALLADE
119GRANDE BALLADE
120BALLADE AU PIAN
121RK BALLADE
122BALLADE R&B
123BALLADE ÉPIQUE
124POP 1
125POP 2
126DÉTROIT POP
127BATTEMENT DISCO
128FÊTE DISCO

Machine Translated by Google

129 REINE DU DISCO153 BALANÇOIRE 2
130 DISCO FUNK154 JAZZ-FUSION
131 ÂME DISCO155 POPULAIRE
132 DANSE SHUFFLE156 DIXIE
133 euros157 FUNK
134 ACCUEIL158 VALSE JAZZ
135 HIP-HOP159 RAGTIME
136 ROCHE 1160 RUMBA 1
137 ROCHE 2161 RUMBA 2
138 ROCK CLASSIQUE162 EXTRACTION 1
139 POP-ROCK163 EXTRACTION 2
140 ROCKABILLY164 TUYAU
141HARD-ROCHER165 CHoses
142 6/8 ROCHE166 PÈRE
143 ROCHE LENTE167 REGGAE
144 BLEUS168 SHUFFLE OUEST
145 ÉVANGILE RAPIDE169 16RK&ROLL
146 6/8 BLEUS170 AMOUR HEUREUX
147 ROCK ET BLEU171 CANTALPE
148 BLEU SHUFFLE172 BALLADE COUNTRY
149 BLEU D'ÂME173 ROCHE PAYS
150 FOXTROT174 PAYS SHUFFLE
151 PAR175 PAYS
152 BALANÇOIRE 1176 MAISON

177 TANGO ARGENTINE

178 JIVE

179 DANSE 1

180 DANSE 2

181 SLOWFOX

182 PÈRE

183 VALSE VIENNOISE

184 BAROQUE

185 SÉVILLIENNES

186 VALSE

187 MARCHE MILITAIRE

188 6/8 MARS

189 1er MARS

190 2 MARS

191 FOLKBEAT

192 DANGDUT

193 CHARLESTON

194 TORSION

195 VEUVE

196 DEVRAIT

197 TURCS

198 REGGAE 12

199 ÂME

  1. Appendix 3 (Demo Songs list)
text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

GEWICHTETES DIGITALPIANO

BENUTZERHANDBUCH

MODELL: 886

Connect the Bluetooth of phone and then enter Bluetooth audio mode. Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/-】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00 GR. BODEN55 ORCH-HIT110 GEIGE
01 PIANO BRITE56 TROMPETE111 SHANAI
02 KLAVIER ELEKTRISCH57 POSAUNE112 Klingelglocke
03 HONKY-TONK58 ZIMMER113 GROSSVATER
04 E PIANO159 TPT STUMM114 STAHL DRM
05 E PIANO260 FR HORN115 HOLZSCHWARZ
06 HARPSCRD61 MESSINGSEKTE116 TAIKO DRM
07 Schlüssel62 MESSING SYN 1117 MLDY TOM
08 CELESTA63 MESSING SYN 2118 SYNTH DRM
09 GLOCKNSPL64 SOPRAN-SAX119 REVRS ENG
10 SPIELUHR65 Altsaxophon120 GTR-LÄRM
11 VIBRAFON66 SAXOPHON TENOR121 ATEM
12 MARIMBA67 SAXOPHON122 MEERESKÜSTE
13 XYLOPHON68 OBOE123 VOGEL TWEET
14 Röhrenglocken69 Motorhupe124 TELEFON
15 Hackbrett70 FASON125 HUBSCHRAUBER
16 HAMND ORG71 KLARINETTE126 Applaus
17 MINUTEN ORG72 KLEIN127 SCHUSS
18 ROCK ORG73 FLÖTE128 STANDARDTROMMEL
19 KIRCHENORG74 RECORDER129 CHINESISCHE TROMMEL
20 REED ORG75 PANFLÖTE130 GR. BODEN
21 ABKOMMEN 176 FLASCHE GEBLASEN131 PIANO BRITE
22 MUNDHARMONIKA77 SHAKHACHI132 KLAVIER ELEKTRISCH
23 ABKOMMEN 278 PFEIFE133 HONKY-TONK
24 GTR NYLON79 OKARINA134 E PIANO1
25 GTR STAHL80 SQR WELLE135 E PIANO2
26 GTR JAZZ81 SÄGEZAHN136 HARPSCRD
27 GTR SAUBER82 KALLIOPE137 Schlüssel
28 GTR stummgeschaltet83 CHIFF138 CELESTA
29 GTR OVRDRV84 CHARANG139 GLOCKNSPL
30 GTR VERTEIL85 SPRACHFÜHRUNG140 SPIELUHR
31 GTR HRMNX86 5. FÜHRUNG141 VIBRAPHON
32 ACOU BASS87 BASS-LEAD142 MARIMBA
33 FINGER BASS88 NEUES ALTER143 XYLOPHON
34 PICK BASS89 WARMPAD144 RÖHRENGLOCKEN
35 BÜNDE BASS90 POLY-SYNTH145 Hackbrett
36 SLAP BAS 191 CHORPOLSTER146 HAMND ORG
37 SCHLAG BAS 292 BOGENGLAS147 MIN ORG
38 SYN BASS 193 METALLPLATTE148 ROCK ORG
39 SYN BASS 294 HALLO PAD149 KIRCHENORG
40 VIOLINE95 SCHWUNG150 REED ORG
41 VIOLA96 REGEN-FX151 ABKOMMEN 1
42 CELLO97 SNDTRK FX152 MUNDHARMONIKA
43 KONTRABASS98 KRISTALL-FX153 ABKOMMEN 2
44 SEITEN TREM99 ATMOSPHÄRE FX154 GTR NYLON
45 STR PIZZ100 HELLE FX155 GTR STAHL
46 HARFE101 KOBOLD-FX156 GTR JAZZ
47 PAUKE102 ECHO FX157 GTR SAUBER
48 SAITEN 1103 SCI-FI-Effekte158 GTR GEDÄMPFT
49 SAITEN 2104 SITAR159 GTR OVRDRV
50 STR SYN 1105 BANJO160 GTR DISTRT
51 STR SYN 2106 SHAMISEN161 GTR HRMNX
52 CHOR AAHS107 KOTO162 ACOU BASS
53 STIMMEN-OOHS108 KALIBUM163 FINGER BASS
54 SPRACHSYNCHRONISATION109 DUDELSACK164 PICK BASS

54 SPRACHSYNCHRONISATION

Machine Translated by Google

165 BÜNDE BASS177 PAUKE189 TPT STUMM
166 SCHLAG BAS 1178 SAITEN 1190 FR HORN
167 SCHLAG BAS 2179 SAITEN 2191 MESSINGSEKTE
168 SYN BASS 1180 STR SYN 1192 MESSING SYN 1
169 SYN BASS 2181 STR SYN 2193 MESSING SYN 2
170 VIOLINE182 CHOR AAHS194 SOPRAN-SAX
171 VIOLA183 STIMME OOHS195 Altsaxophon
172 CELLO184 SPRACHSYNCHRONISATION196 SAXOPHON TENOR
173 KONTRABASS185 ORCH-HIT197 SAXOPHON
174 SEITEN TREM186 TROMPETE198 OBOE
175 STR PIZZ187 POSAUNE199 Motorhupe
176 HARFE188 ZIMMER
  1. Appendix 2 (Rhythm comparison table)
00 8 BEAT POP 143 LANGSAMER ROCK86 WALZER
01 8 BEAT POP 244 BLUES87 Militärmarsch
02 8 BEAT POP 345 SCHNELLES EVANGELIUM88 6./8. MÄRZ
03 ROCK POP46 6/8 BLUES89 1. MÄRZ
04 COUNTRY-POP47 ROCK & BLUES90 2. MÄRZ
05 8 SCHLAG 148 BLUES SHUFFLE91 FOLKBEAT
06 8 Schlag 249 SOUL BLUES92 DANGDUT
07 8 SCHLAG 350 FOXTROTT93 CHARLESTON
08 MELODIE ZUR SHOW51 RAP94 DREHUNG
09 16 Schlag 152 SCHWUNG 195 WITWE
10 16 SCHLAG 253 SCHWUNG 296 SOLLTE
11 16 BEAT POP 154 JAZZ FUSION97 TÜRKEN
12 16 BEAT POP 255 BELIEBT98 REGGAE 12
13 16 BEAT POP 356 DIXIE99 SEELE
14 16 BEAT POP 457 FUNK100 8 BEAT POP 1
15 REGGAE 1658 JAZZ-WALZER101 8 BEAT POP 2
16 SCHWERMETALL59 RAGTIME102 8 BEAT POP 3
17 FOLK ROCK60 RUMBA 1103 ROCK POP
18 BALLADE61 RUMBA 2104 COUNTRY-POP
19 GROSSE BALLADE62 AUSZUG 1105 8 SCHLAG 1
20 Klavierballade63 EXTRAKTION 2106 8 Schlag 2
21 RK-BALLADE64 ROHR107 8 Schlag 3
22 R&B-BALLADE65 DINGE108 Melodie anzeigen
23 EPISCHE BALLADE66 VATER109 16 Schlag 1
24 POP 167 REGGAE110 16 SCHLAG 2
25 POP 268 WESTERN SHUFFLE111 16 BEAT POP 1
26 DETROIT POP69 16RK&ROLL112 16 BEAT POP 2
27 DISCO-BEAT70 GLÜCKLICHE LIEBE113 16 BEAT POP 3
28 DISCOPARTY71 KANALP114 16 BEAT POP 4
29 DISCO-KÖNIGIN72 COUNTRY-BALLADE115 REGGAE 16
30 DISCO-FUNK73 COUNTRY-ROCK116 SCHWERMETALL
31 DISCO-SEELE74 LAND-SHUFFLE117 FOLK ROCK
32 TANZ-SHUFFLE75 LAND118 BALLADE
33 EURB76 HAUS119 GROSSE BALLADE
34 ZUHAUSE77 TANGO ARGENTINIEN120 KLAVIERBALLADE
35 HIP-HOP78 JIVE121 RK BALLADE
36 FELSEN 179 TANZ 1122 R&B-BALLADE
37 FELSEN 280 TANZ 2123 EPISCHE BALLADE
38 ROCK KLASSIK81 LANGSAMFUCHS124 POP 1
39 POP ROCK82 VATER125 POP 2
40 ROCKABILLY83 WIENER WALZER126 DETROIT POP
41 HARD ROCK84 BAROCK127 DISCO-BEAT
42 6/8 ROCK85 SEVILLIANER128 DISCOPARTY

Machine Translated by Google

129 DISCO-KÖNIGIN153 SCHWUNG 2
130 DISCO FUNK154 JAZZ FUSION
131 DISCO-SEELE155 BELIEBT
132 TANZ-SHUFFLE156 DIXIE
133 EURB157 FUNK
134 ZUHAUSE158 JAZZ-WALZER
135 HIP-HOP159 RAGTIME
136 FELSEN 1160 RUMBA 1
137 FELSEN 2161 RUMBA 2
138 ROCK KLASSIK162 EXTRAKTION 1
139 POP ROCK163 EXTRAKTION 2
140 ROCKABILLY164 ROHR
141 HARD ROCK165 DINGE
142 6/8 ROCK166 VATER
143 LANGSAMER ROCK167 REGGAE
144 BLUES168 WESTERN SHUFFLE
145 SCHNELLES EVANGELIUM169 16RK&ROLL
146 6/8 BLUES170 GLÜCKLICHE LIEBE
147 ROCK & BLUES171 KANNAL
148 BLUES SHUFFLE172 COUNTRY-BALLADE
149 SOUL BLUES173 COUNTRY-ROCK
150 FOXTROTT174 LAND-SHUFFLE
151 RAP175 LAND
152 SCHWUNG 1176 HAUS

177 TANGO ARGENTINIEN

178 JIVE

179 TANZ 1

180 TANZ 2

181 LANGSAMFUCHS

182 VATER

183 WIENER WALZER

184 BAROCK

185 SEVILLIANER

186 WALZER

187 Militärmarsch

188 6./8. MÄRZ

189 1. MÄRZ

190 2. MÄRZ

191 FOLKBEAT

192 DANGDUT

193 CHARLESTON

194 DREHUNG

195 WITWE

196 SOLLTE

197 TÜRKEN

198 REGGAE 12

199 SEELE

  1. Appendix 3 (Demo Songs list)
text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

PIANOFORTE DIGITALE PESATO

MANUALE D'USO

MODELLO: 886

Connect the Bluetooth of phone and then enter Bluetooth audio mode. Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/-】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00PIANO GRD55COLPO D'ORCA110VIOLO
01PIANO BRITE56TROMBA111SHANAI
02PIANO ELETT57TROMBONE112tintinnano la campana
03HONKY-TONK58CAMERE113NONNO
04MI PIANO159MUTE TPT114DRM IN ACCIAIO
05MI PIANO260FR CORNO115LEGNOBLK
06ARPSCRD61OTTONE SEZ116TAIKO DRM
07chiavi62OTTONE SINCRONIZZATO 1117MLDY TOM
08CELESTA63OTTONE SYN 2118SINT.DRM
09GLOCKNSPL64SAX SOPRANO119REV ENG
10CAROLELLO MUSICALE65SAX ALTO120GTR RUMORE
11VIBRAFONO66SAX TENORE121RESPIRO
12MARIMBA67SAX TONO122MARE
13XILOFONO68OBOE123TWEET DEGLI UCCELLI
14CAMPANE TUBOLARI69ITA AVVISATORE ACUSTICOTELEFONO 124
15DULCIMER70FAGON125ELICOTTERO
16HAMND ORG71CLARINETTO126APPLAUSI
17MINUTI ORGANIZZATIVI72PICCOLO127COLPO DI PISTOLA
18ORGANIZZAZIONE ROCK73FLAUTO128TAMBURO STANDARD
19ORG. DELLA CHIESA74REGISTRATORE129TAMBURO CINESE
20REED ORG75FLAUTO DI PAN130PIANO GRD
21ACCORDO 176BOTTIGLIA SOFFIATA131PIANO BRITE
22ARMONICA77SHAKHACHI132PIANO ELETT
23ACCORDO 278FISCHIO133HONKY-TONK
NYLON 24GTR79OCARINA134MI PIANO1
ACCIAIO 25GTRONDA QUADRATA 80135MI PIANO 2
26GTRJAZZ81DENTE DI SEGA136ARPSCRD
27GTR PULITO82CALLIOPE137chiavi
28GTR IN SILENZIATO83CHIFF138CELESTA
29GTR OVRDRV84CARANG139GLOCKNSPL
30GTR DISTR85GUIDA VOCALE140CAROLELLO MUSICALE
31GTR HRMNX865° VIA141VIBRAFONO
32ACOU BASSO87BASSO LEADER142MARIMBA
33DITA BASSO88NUOVA ERA143XILOFONO
34SCEGLI I BASSI89IMBOTTITURA CALDA144CAMPANE TUBULR
35FRETLS BASSO90POLI SINTETICO145DULCIMER
36SLAP BAS 191PAD DEL CORO146HAMND ORG
37SLAP BAS 292VETRO DI ARCO147MIN ORG
38BASSI SINTONIZZATI 193TAMPONE IN METALLO148ORGANIZZAZIONE ROCK
39BASSI SINTONIZZATI 294CIAO PAD149ORG. DELLA CHIESA
40VIOLINO95SPAZZARE150CANNA ORG
41VIOLA96EFFETTI DELLA PIOGGIA151ACCORDO 1
42VIOLONCELLO97SNDTRKFX152ARMONICA
43CONTRABASSO98EFFETTI DI CRISTALLO153ACCORDO 2
44PAGINE TREM99EFFETTI ATMOSPH154GTR NYLON
PIZZA 45 STR100EFFETTI LUMINOSI155GTR ACCIAIO
46ARPA101GOBLIN FX156GTRJAZZ
47TIMPANI102ECOFX157GTR PULITO
48CORDE 1103FX SCI-FI158GTR MOTO
49CORDE 2104SITAR159GTR OVRDRV
50STR SIN 1105BANJO160GTR DISTR
51STR SIN 2106SHAMISEN161GTR HRMNX
52CORO AAHS107KOTO162ACOU BASSO
53VOCE OOHS108CALIBIO163DITA BASSO
54SINCRONIZZAZIONE VOCALE109cornamusa164Scegli i bassi

Machine Translated by Google

165 FRETLS BASSO177 TIMPANI189 MUTE TPT
166 SLAP BAS 1178 CORDE 1190 FR CORNO
167 SLAP BAS 2179 CORDE 2191 OTTONE SEZ
168 BASSI SINTONIZZATI 1180 STR SIN 1192 OTTONE SYN 1
169 BASSI SINTONIZZATI 2181 STR SIN 2193 OTTONE SYN 2
170 VIOLINO182 CORO AAHS194 SAX SOPRANO
171 VIOLA183 VOCE OOHS195 SAX ALTO
172 VIOLONCELLO184 SINCRONIZZAZIONE VOCALE196 SAX TENORE
173 CONTRABASSO185 COLPO D'ORCA197 SAX TONO
174 PAGINE TREM186 TROMBA198 OBOE
175 STR PIZZA187 TROMBONE199 ITA AVVISATORE ACUSTICO
176 ARPA188 CAMERE
  1. Appendix 2 (Rhythm comparison table)
008BEAT POP143 ROCK LENTO86 VALZER
018BEAT POP244 BLU87 MARCIA MILITARE
02 8 BEAT POP 345 VANGELO VELOCE88 6/8 MARZO
03 ROCK-POP46 6/8 BLU89 MARZO 1
04 PAESE POP47 ROCK E BLUES90 MARZO 2
05 8 BATTUTA 148 BLUES SHUFFLE91 BATTITO FOLK
06 8 BATTUTA 249 ANIMA BLUES92 DANGDUT
07 8 BATTUTA 350 FOXTROT93 CARLOSTON
08 MOSTRA SINTONIA51 RAP94 TORSIONE
09 16 BATTUTA 152 OSCILLAZIONE 195 VEDOVA
10 16 BATTUTA 253 OSCILLAZIONE 296 DOVREBBE
11 16 BATTIRE POP 154JAZ FUSION97 TURCHI
12 16 BEAT POP 255 POPOLARE98 REGGA 12
13 16 BEAT POP 356 DIXIE99 ANIMA
14 16 BATTIRE POP 457 FUNZIONA100 8 BEAT POP 1
15 REGGA 1658 VALZER JAZZ1018 BEAT POP 2
16 METALLI PESANTI59 RAGTIME1028 BEAT POP 3
17 FOLK ROCK60RUMBA1103 ROCK-POP
18 BALLATA61RUMBA2104 PAESE POP
19 GRANDE BALLATA62 ESTRATTO 1105 8 BATTUTA 1
20 BALLATE PER PIANOFORTE63 ESTRAZIONE 2106 8 BATTUTA 2
21 RK BALLATA64 TUBO107 8 BATTUTA 3
22 BALLATE R&B65 COSE108 MOSTRA SINTONIA
23 BALLATA EPICA66 PADRE109 16 BATTUTA 1
24POP167 REGGAE110 16 BATTUTA 2
25POP268 SHUFFLE OCCIDENTALE111 16 BEAT POP 1
26 DETROIT POP69 16RK&ROLL112 16 BEAT POP 2
27 BATTITO DA DISCOTECA70 FELICE AMORE113 16 BEAT POP 3
28 FESTA IN DISCOTECA71 CANTALPA114 16 BEAT POP 4
29 REGINA DELLA DISCOTECA72 BALLATA COUNTRY115 REGGA 16
30 DISCO FUNK73 ROCK DI CAMPAGNA116 METALLO PESANTE
31 ANIMA DISCOTECA74 PAESE SHUFFLE117 FOLK ROCK
32 DANZA RICAMBIO75 PAESE118 BALLATA
33 euro76 CASA119 GRANDE BALLATA
34 CASA77 TANGO ARGENTINO120 BALLATA PER PIANOFORTE
35 HIP-HOP78 JIVE121 RK BALLATA
36 ROCCIA 179 DANZA 1122 BALLATE R&B
37 ROCCIA 280 DANZA 2123 BALLATA EPICA
38 ROCK CLASSICO81 SLOWFOX124POP1
39 POP ROCK82 PADRE125POP2
40 ROCKABILLY83 VALZER VIENNESE126 DETROIT POP
41 ROCCIA DURA84 BAROCCO127 BATTITO DA DISCOTECA
42 6/8 ROCCIA85 SIVIGLIANE128 FESTA IN DISCOTECA

Machine Translated by Google

129 REGINA DELLA DISCOTECA153 OSCILLAZIONE 2
130 DISCO FUNK154 FUSIONE JAZZ
131 ANIMA DISCOTECA155 POPOLARE
132 DANZA RICAMBIO156 DIXIE
133 euro157 DIVERTIMENTO
134 CASA158 VALZER JAZZ
135 HIP-HOP159 RAGTIME
136 ROCCIA 1160 RUMBA 1
137 ROCCIA 2161RUMBA 2
138 ROCK CLASSICO162 ESTRAZIONE 1
139 POP-ROCK163 ESTRAZIONE 2
140 ROCKABILLY164 TUBO
141 ROCCIA DURA165 COSE
142 6/8 ROCCIA166 PADRE
143 ROCK LENTO167 REGGAE
144 BLU168 SHUFFLE OCCIDENTALE
145 VANGELO VELOCE169 16RK&ROLL
146 6/8 BLU170 FELICE AMORE
147 ROCK E BLUES171 CANTALPA
148 BLUES CASCALE172 BALLATA COUNTRY
149 ANIMA BLUES173 ROCK DI PAESE
150 FOXTROT174 PAESE SHUFFLE
151 RAP175 PAESE
152 OSCILLAZIONE 1176 CASA

177 TANGO ARGENTINO

178 JIVE

179 DANZA 1

180 DANZA 2

181 SLOWFOX

182 PADRE

183 VALZER VIENNESE

184 BAROCCO

185 SIVIGLIANE

186 VALZER

187 MARCIA MILITARE

188 6/8 MARZO

189 MARZO 1

190 2 MARZO

191 BATTITO FOLK

192 DANGDUT

193 CARLOSTON

194 TORSIONE

195 VEDOVA

196 DOVREBBE

197 TURCHI

198 REGGA 12

199 ANIMA

  1. Appendix 3 (Demo Songs list)
text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

Connect the Bluetooth of phone and then enter Bluetooth audio mode.

Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/▶】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/▶】 key for more than 1 second to increase the volume of BT/MP3·

15. Appendix 1 (Tone comparison table)

00 GR.PISO

01 PIANO BRITE

02 PIANO ELEC

03 HONKY-TONK

04 MI PIANO1

05 MI PIANO2

06 HARPSCRD

07 llaves

08 CELESTA

09 GLOCKNSPL

10 CAJA DE MÚSICA

11 VIBRÁFONO

12 MARIMBA

13 XILÓFONO

14 CAMPANAS DE TUBULOS

15 DULCIMER

Machine Translated by Google

BAJO 165 TRATES177 TIMBANOS
166 BOFETA BAJO 1178 CUERDAS 1
167 BOFETA BAJO 2179 CUERDAS 2
168 SINC BAJO 1180 STR SYN 1
169 SINC BAJO 2181 STR SINC 2
170 VIOLÍN182 CORO AAHS
171 VIOLA183 VOZ ¡OHS!
172 violonchelo184 SINCRONIZACIÓN DE VOZ
173 CONTRABAJO185 GOLPE DE ORCHA
174 PAGINAS TREM186 TRUMPTA
PIZZA 175 STR187 TROMBÓN
176 ARPA188 HABITACIONES

189 SILENCIO TPT

BOCINA 190 FR

191 SECTA DE LATÓN

Machine Translated by Google

129 REINA DE LA DISCOTECA153 GIRO 2
130 DISCO FUNK154 JAZZ FUSIÓN
131 ALMA DE DISCO155 POPULARES
132 BAILE BARATO156 DIXIE
133 euros157 FUNK
134 INICIO158 VALS DE JAZZ
135 HIP-HOP159 RAGTIME
136 ROCA 1160 RUMBA1
137 ROCA 2161 RUMBA 2
138 ROCK CLÁSICO162 EXTRACCIÓN 1
139 POP ROCK163 EXTRACCIÓN 2
140 ROCKABILLY164 TUBO
141 ROCA DURA165 COSAS
142 6/8 ROCA166 PADRE
143 ROCA LENTA167 REGGAE
144 AZULES168 BARAJADA OCCIDENTAL
145 EVANGELIO RÁPIDO169 16RK&ROLLAR
146 6/8 AZULES170 AMOR FELIZ
147 ROCA Y AZULES171 CANTALP
148 AZULES BARAJADOS172 BALADA PAÍS
149 AZULES DEL ALMA173 ROCA DEL PAÍS
150 FOXTROT174 PAÍS BARATO
151 RAP175 PAÍS
152 GIRO 1176 CASA

177 TANGO ARGENTINA

178 JIVE

179 BAILE 1

180 BAILE 2

181 Zorro Lento

182 PADRE

183 VALS VIENÉS

184 BARROCO

185 SEVILLANAS

186 VALS

187 MARCHA MILITAR

188 8/6 MARZO

189 1 DE MARZO

190 2 DE MARZO

191 FOLKBEAT

192 DANGDUT

193 CARLESTON

194 GIRO

195 VIUDA

196 DEBE

197 TURCOS

198 REGGAE 12

199 ALMA

17. Appendix 3 (Demo Songs list)

00 para Alicia

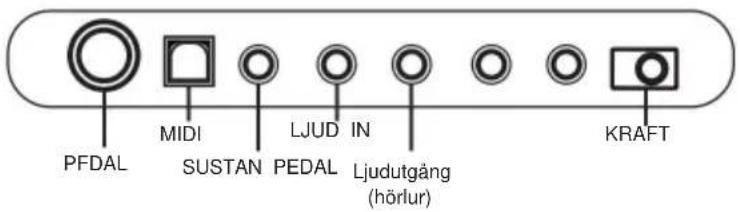

piano 2. Panel lateral

text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

Machine Translated by Google

7.WYPEŁNIJ/SYNCHRONIZACJA

Connect the Bluetooth of phone and then enter Bluetooth audio mode. Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【IK/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/▶】 key for more than 1 second to increase the volume of BT/MP3·

15. Appendix 1 (Tone comparison table)

00 GR. PODŁOGA

01 FORTEPIAN BRITE

02 FORTEPIAN ELEK

03 HONKY-TONK

04 E FORTEPIAN1

05 E FORTEPIAN2

06 HARPSKRD

07 kluczy

08 CELESTA

09 GLOCKNSPL

10 Pozytywka

11 WIBRAFON

12 MARIMBA

13 KSYLOFON

14 DZWONEK RUROWYCH

15 CYMLERY

16 HAMND ORG

17 MINUT ORG

18 ROCKOWA ORG

19 ORGANIZACJA KOŚCIOŁA

20 REED ORG

21 POGODA 1

22 HARMONIKA

23 POGODA 2

24GTR NYLON

STAL 25 GTR

26 GTR JAZZU

27 GTR CZYSTY

28 GTR WYCISZONY

29 GTR OVRDRV

30 GTR OKREŚL

31 GTR HRMNX

32 ACOU BASÓW

33 PALCOWY BAS

34 WYBIERZ BAS

35 PROGÓW BASOWYCH

36 SLAP BAS 1

37 SLAP BAS 2

38 SYN BAS 1

39 SYN BAS 2

40 SKRZYPCE

41 VIOLA

42 wiolonczela

43 KONTRABAS

44 STR TREM

PIZZA 45 STR

46 HARFA

47 TIMPANI

48 STRUNÓW 1

49 STRUNÓW 2

50 SIE SYN 1

51 SIŁA SYN 2

52 AHA CHÓ RU

53 GŁOS OCH

54 SYN. GŁOSU

55 UDERZENIE ORKI

56 TRUMP

57 PUZON

58 POKOJÓW

59 WYCISZ TPT

60 FR RÓŻ

61 SEKCJA MOSIĘŻNA

62 MOSIĘŻNY SYN 1

63 MOSIĘŻNY SYN 2

64 SAKS SOPRANOWY

65 SAX ALTOWY

66 SAX TENOR

67 BON SAX

68 Obój

69 RÓG ANGIELSKI

70 BASON

71 KLARNET

72 MAŁY

73 FLET

74 REJESTRATOR

75 FLET PAN

76 WYPALONA BUTELKA

77 SZACHACZI

78 GWIZDK

79 OKARYNA

FALA 80 SQR

81 ZAB PIŁY

82 KALIOPA

83 CHIF

84 CHARANG

85 GŁOSÓW GŁOSOWYCH

86 5. PROWADZENIE

87 GŁÓWKA BASOWA

88 NOWY WIEK

89 CIEPŁA PODKŁADKA

90 POLI SYNTETYK

91 PODKŁAD CHÓ RU

92 SZKŁO ŁUKOWE

93 METALOWA PODKŁADKA

94 WITAJ PAD

95 PRZEMIATANIE

96 efektów deszczu

97 SNDTRK FX

98 KRYSZTAŁOWYCH FX

99 efektów ATMOSPH

100 JASNYCH FX

101 GOBLIN FX

102 ECHO FX

103 Efekty SCI-FI

104 SITAR

105 BANJO

106 SZAMISEN

107 KOTO

108 KALIBUM

109 DUDY

110 Skrzypce

111 SZANAI

112 DZWONEK

113 DZIADEK

114 STAL DRM

115 DREWNOBLK

116 TAIKO DRM

117 MLDY TOM

118 SYNTETYCZNY DRM

119 OBROTÓW ENG

HAŁAS 120 GTR

121 ODDYCH

122 BRZEG MORZA

123 PTAKI TWEET

124 TELEFON

125 HELIKOPTERA

126 BRAWA

127 STRZAŁ

128 STANDARDOWY BĘBEN

129 CHIŃSKI BĘBEN

130 gr

131 BRITE FORTEPIAN

132 FORTEPIAN ELEK

133 HONKY-TONK

134 E FORTEPIAN1

135E FORTEPIAN2

136 HARPSKRD

137 kluczy

138 CELESTA

139 GLOCKNSPL

140 Pozytywka

141 WIBRAFON

142 MARIMBA

143 KSYLOFON

144 DZWONKI RUROWE

145 CYMLERY

146 HAMND ORG

147 MIN ORG

148 ROCKOWA ORG

149 ORG KOŚCIÓŁ

150 REED ORG

151 POGODA 1

152 HARMONIKA

153 POGODA 2

154 GTR NYLON

STAL 155 GTR

156 GTR JAZZU

157 GTR CZYSTY

158 GTR WYCISZONY

159 GTR OVRDRV

160 GTR DYSTR

161 GTR HRMNX

162 ACOU BASÓW

163 PALCOWY BAS

164 WYBIERZ BAS

Machine Translated by Google

165 PROGÓW BASOWYCH177 TIMPANI189 WYCISZ TPT
166 SLAP BAS 1178 STRINGÓW 1Klakson 190 FR
167 KLAP BAS 2179 STRUNÓW 2191 MOSIĘŻNA SEKTA
168 SYN BAS 1180 SIŁ SYN 1192 MOSIĄDZ SYN 1
169 SYN BAS 2181 SIŁA SYN 2193 MOSIĄDZ SYN 2
170 SKRZYPCE182 CHÓR AAHS194 SAKS SOPRANOWY
171 VIOLA183 GŁOS OCH195 SAX ALTOWY
172 wiolonczela184 SYNCH. GŁOSU196 SAX TENOR
173 KONTRABAS185 UDERZENIE ORKI197 BON SAX
174 STR TREM186 TRUMPT198 Obój
PIZZA 175 STR187 PUZON199 RÓG ANGIELSKI
176 HARFA188 POKOJÓW
  1. Appendix 2 (Rhythm comparison table)
00 8 BEAT POP 143 WOLNY ROK86 WALC
01 8 POKONAJ POP 244 BLUESÓW87 MARSZ WOJSKOWY
02 8 POKONAJ POP 345 SZYBKA EWANGELIA88 6/8 MARCA
03 ROCK POP46 6/8 BLUESÓW89 1 marca
04 KRAJOWY POP47 ROCK & BLUES90 2 marca
05 8 UDERZENIE 148 SHUFFLE BLUESOWEGO91 FOLKBEAT
06 8 UDERZENIE 249 DUSZOWY BLUES92 DANGDUT
07 8 BIT 350 FOXTROTA93 CHARLESTON
08 POKAZ TON51 RAP94 SKRETY
09 16 BIT 152 HANDEL 195 WDOWA
10 16 UDERZENIE 253 HANDEL 296 POWINIEN
11 16 BEAT POP 154 FUZJA JAZZOWA97 TURCÓW
12 16 BEAT POP 255 POPULARNE98 REGGAE 12
13 16 BEAT POP 356 DIXIE99 DUSZY
14 16 BEAT POP 457 FUNKCJA100 8 BEAT POP 1
15 REGGAE 1658 WALC JAZZOWY101 8 POKONAJ POP 2
16 CIĘŻKI METAL59 RAGTIME102 8 BEAT POP 3
17 FOLKOWY ROCK60 RUMBY 1103 ROCK POP
18 BALLADA61 RUMBA 2104 POP KRAJOWY
19 WIELKA BALLADA62 WYCIĄG 1105 8 UDERZENIE 1
20 BALLADA FORTEPIANOWA63 EKSTRAKCJA 2106 8 UDERZENIE 2
21 RK BALLADA64 RURA107 8 UDERZENIE 3
22 BALLADA R&B65 RZECZY108 POKAZ TON
23 EPICKA BALLADA66 OJCIEC109 16 UDERZENIE 1
24 POP 167 REGGAE110 16 UDERZENIE 2
25 POP 268 PRZESUNIĘCIE ZACHODNIE111 16 BEAT POP 1
26 DETROIT POP69 16RK&ROLKA112 16 BEAT POP 2
27 BEAT DYSKOWSKI70 SZCZEŚLIWA MIŁOŚĆ113 16 BEAT POP 3
28 DISKO71 KANTALP114 16 BEAT POP 4
29 KRÓ LOWA DYSKU72 BALLADA KRAJOWA115 REGGAE 16
30 DYSKO FUNKCJA73 KRAJOWY SKAŁ116 CIĘŻKI METAL
31 DUSZA DYSKOWSKA74 PRZEMIANA KRAJÓW117 FOLKOWY ROCK
32 TANIEC SHUFFLE75 KRAJ118 BALLADA
33 EURB76 DOM119 WIELKA BALLADA
34 DOM77 TANGO ARGENTYNA120 BALLADA FORTEPIANOWA
35 HIP-HOP78 JIVE121 RK BALLADA
36 SKAŁA 179 TANIEC 1122 Ballada R&B
37 SKAŁA 280 TANIEC 2123 EPICKA BALLADA
38 ROCK KLASYCZNY81 SLOWFOX124 POP 1
39 POP-ROCK82 OJCIEC125 POP 2
40 ROCKABILLY83 WALC WIEDEŃSKI126 DETROIT POP
41 TWARDY ROK84 BAROK127 BEAT DYSKOWSKI
42 6/8 SKAŁA85 SEWILLIAN128 DISKO

Machine Translated by Google

129 KRÓ LOWA DYSKU153 HANDEL 2177 TANGO ARGENTYNA
130 FUNKCJI DYSKOWSKIEJ154 FUZJA JAZZOWA178 JIVE
131 DUSZA DYSKOWSKA155 POPULARNE179 TANIEC 1
132 TANIEC SHUFFLE156 DIXIE180 TANIEC 2
133 EURB157 FUNKCJA181 SLOWFOX
134 DOM158 WALC JAZZOWY182 OJCIEC
135 HIP-HOP159 RAGTIME183 WALC WIEDEŃSKI
136 SKAŁA 1160 RUMBY 1184 BAROK
137 SKAŁA 2161 RUMBA 2185 SEWILLIAN
138 ROCK KLASYCZNY162 WYCIĄGNIĘCIE 1186 WALC
139 POP-ROCK163 WYCIĄGNIĘCIE 2187 MARSZ WOJSKOWY
140 ROCKABILLY164 RURA188 6/8 MARCA
141 TWARDY ROK165 RZECZY189 1 marca
142 6/8 SKAŁA166 OJCIEC190 2 MARCA
143 WOLNY ROK167 REGGAE191 FOLKBEAT
144 BLUESÓW168 PRZESUNIĘCIE ZACHODNIE192 DANGDUT
145 SZYBKA EWANGELIA169 16RK&ROLKA193 CHARLESTON
146 6/8 BLUESÓW170 SZCZEŚLIWEJ MIŁOŚCI194 SKRĘTY
147 ROCK & BLUES171 KANTALP195 WDOWA
148 SHUFFLE BLUESOWEGO172 BALLADA KRAJOWA196 POWINIEN
149 DUSZOWY BLUES173 KRAJOWY SKAŁ197 TURCY
150 FOXTROTA174 PRZEMIANA KRAJÓW198 REGGAE 12
151 RAP175 KRAJ199 DUSZA
152 SWING 1176 DOM

17. Appendix 3 (Demo Songs list)

00 Dla Alicji

01 Chorwacka rapsodia 02

text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

GEWICHT DIGITALE PIANO HANDLEIDING

MODEL: 886

Machine Translated by Google

7. INVULLEN/SYNC

Connect the Bluetooth of phone and then enter Bluetooth audio mode.

Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/-】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00 GR55 ORK HIT110 FIDDEL
01 PIANOBRITE56 TROEF111 SHANAI
02 PIANO-ELEC57 TROMBONE112 TINKELBEL
03 HONKY-TONK58 KAMERS113 GROOTVADER
04E PIANO159 DEMPEN TPT114 STAALDRM
05E PIANO260 FR HOORN115 HOUTBLK
06 HARPSCRD61 MESSING SECT116 TAIKO-DRM
07 sleutels62 MESSING SYN 1117 MLDY TOM
08 CELESTA63 MESSING SYN 2118 SYNTH DRM
09 GLOCKNSPL64 SOPRANOSAX119 REVRS DUT
10 MUZIEKDOOS65 ALTO SAX120 GTR GELUID
11 VIBRAFOON66 SAX-TENOR121 ADEM
12 MARIMBA67 SAX BTOON122 KUST
13 XYLOFOON68 HOBO123 VOGELTWEET
14 TUBULR-KLOKKEN69 DUT HOORN124 TELEFOON
15 DULCIMER70 BASSON125 HELIKOPTER
16 HAMND ORG71 KLARINET126 APPLAUS
17 MINUTEN ORG72 KLEIN127 GEweerschot
18 ROCKORG73 FLUIT128 STANDAARD TROMMEL
19 KERKORG74 RECORDER129 CHINESE TROMMEL
20 RIETORG75 PANFLUIT130 GR
21 OVEREENKOMST 176 FLES GEBLAZEN131 PIANOBRITE
22 HARMONICA77 SCHEACHI132 PIANO-ELEC
23 OVEREENKOMST 278 FLUIT133 HONKY-TONK
24 GTR-NYLON79 OCARINA134E PIANO1
25 GTR STAAL80 SQR-GOLF135E PIANO2
26 GTR JAZZ81 ZAAGTAND136 HARPKRD
27 GTR SCHOON82 CALLIOPE137 sleutels
28 GTR gedempt83 CHIFF138 CELESTA
29 GTR OVRDRV84 CHARANG139 GLOCKNSPL
30 GTR DISTRT85 STEMLEIDING140 MUZIEKDOOS
31 GTR HRMNX86 5E LEIDING141 VIBRAFOON
32 ACOU BAS87 BASS-LEID142 MARIMBA
33 FINGR BAS88 NIEUWE LEEFTIJD143 XYLOFOON
34 KIES BAS89 WARME PAD144 TUBULR-KLOKKEN
35 FRETLS BAS90 POLYSYNTH145 DULCIMER
36 SLAP BAS 191 KOORPAD146 HAMND ORG
37 SLAP BAS 292 BOOGGLAS147 MIN.ORG
38 SYN BASS 193 METALEN PAD148 ROCKORG
39 SYN BASS 294 Hallo PAD149 KERKORG
40 VIOOL95 VEGEN150 RIET ORG
41 VIOL96 REGENFX151 OVEREENKOMST 1
42 CELLO97 SNDTRK FX152 HARMONICA
43 CONTRABAS98 KRISTALFX153 OVEREENKOMST 2
44 PAGINA'S TREM99 ATMOSPH-FX154 GTR NYLON
45 STR PIZZ100 HELDERE FX155 GTR STAAL
46 HARP101 GOBLINFX156 GTR JAZZ
47 PAUKIJNEN102 ECHOFX157 GTR SCHOOLON
48 SNAREN 1103 SCI-FI-FX158 GTR gedempt
49 SNAREN 2104 SITAAR159 GTR OVRDRV
50 STR SYN 1105 BANJO160 GTR DISTRT
51 STR SYN 2106 SHAMISEN161 GTR HRMNX
52 KOOR AAHS107 KOTO162 ACOU BAS
53 STEM OOHS108 KALIBRUM163 FINGR BAS
54 STEMSYN109 Doedelzak164 KIES BAS

Machine Translated by Google

165 FRETLS BAS177 PAUKIJNEN
166 SLAP BAS 1178 SNAREN 1
167 SLAP BAS 2179 SNAREN 2
168SYN BAS 1180 STR SYN 1
169SYN BASS 2181 STR SYN 2
170 VIOOL182 KOOR AAHS
171 Altviool183 STEM OOHS
172 CELLO184 STEMSYN
173 CONTRABAS185 ORK HIT
174 PAGINA'S TREM186 TROEF
175 STR PIZZ187 TROMBONE
176 HARP188 KAMERS

189 DEMPEN TPT

190 FR HOORN

191 MESSING SECT

192 MESSING SYN 1

193 MESSING SYN 2

194 SOPRANOSAX

195 ALTO SAX

196 SAX-TENOR

197 SAX BTOON

198 HOBO

199 DUT HOORN

  1. Appendix 2 (Rhythm comparison table)
00 8 BEAT-POP 143 LANGZAME ROCK86 WALT
01 8 BEAT-POP 244 BLAUW87 MILITAIRE MAART
02 8 BEAT-POP 345 SNEL EVANGELIE88 6/8 MAART
03 ROCKPOP46 6/8 BLAUW89 1 MAART
04 LAND POP47 ROCK & BLUES90 MAART 2
05 8 SLAAT 148 BLUES-SHUFFLE91 VOLKSBEAT
06 8 SLAAT 249 ZIELBLUES92 DANGDUT
07 8 SLAAT 350 FOXTROT93 CHARLESTON
08 SHOW TUNE51 RAP94 DRAAI
09 16 SLAAT 152 SWING 195 WEDUWE
10 16 SLAG 253 SWING 296 MOET
11 16 BEAT-POP 154 JAZZFUSIE97 TURKEN
12 16 BEAT-POP 255 POPULAIR98 REGGAE 12
13 16 BEAT-POP 356 DIXIE99 ZIEL
14 16 BEAT-POP 457 FUNK100 8 BEAT-POP 1
15 REGGAE 1658 JAZZWALTZ101 8 BEAT-POP 2
16 ZWAAR METAAL59 RAGTIJD102 8 BEAT-POP 3
17 FOLKROCK60 RUMBA 1103 ROCKPOP
18 BALLADE61 RUMBA2104 LANDENPOP
19 GROTE BALLADE62 UITTREKSEL 1105 8 SLAG 1
20 PIANOBALLADE63 EXTRACTIE 2106 8 SLAG 2
21 RK BALLADE64 PIJP107 8 SLAG 3
22 R&B-BALLADE65 DINGEN108 TOON TUNE
23 EPISCHE BALLADE66 VADER109 16 SLAG 1
24 POP167 REGGAE110 16 SLAG 2
25 POP268 WESTERSE SHUFFLE111 16 BEAT-POP 1
26 DETROIT POP69 16RK&ROLL112 16 BEAT-POP 2
27 DISCOBEAT70 GELUKKIGE LIEFDE113 16 BEAT-POP 3
28 DISCOFEEST71 KANTALP114 16 BEAT-POP 4
29 DISCO-KONINGIN72 LANDBALLADE115 REGGAE 16
30 DISCOFUNK73 LANDROCK116 ZWAAR METAAL
31 DISCOZIEL74 LAND SHUFFLE117 FOLKROCK
32 DANS SHUFFLE75 LAND118 BALLADE
33 euro76 HUIS119 GROTE BALLADE
34 THUIS77 TANGO ARGENTINIË120 PIANOBALLADE
35 HIPHOP78 JIVE121 RK BALLADE
36 ROTS 179 DANS 1122 R&B-BALLADE
37 ROTS 280 DANS 2123 EPISCHE BALLADE
38 ROCK KLASSIEK81 SLOWFOX124 POP1
39 POP-ROCK82 VADER125 POP2
40 ROCKABILLY83 WEENSE WALTS126 DETROIT POP
41 HARDE ROTS84 BAROK127 DISCOBEAT
42 6/8 ROTS85 SEVILLIANAS128 DISCOFEEST

Machine Translated by Google

129 DISCO-KONINGIN153 SWING 2177 TANGO ARGENTINIË
130 DISCOFUNK154 JAZZFUSIE178 JIVE
131 DISCOZIEL155 POPULAIR179 DANS 1
132 DANS SHUFFLE156 DIXIE180 DANS 2
133 euro157 FUNK181 SLOWFOX
134 THUIS158 JAZZWALTZ182 VADER
135 HIPHOP159 RAGTIJD183 WEENSE WALTS
136 ROTS 1160 RUMBA 1184 BAROK
137 ROTS 2161 RUMBA2185 SEVILLIANAS
138 ROCK KLASSIEK162 EXTRACTIE 1186 WALT
139 POP-ROCK163 EXTRACTIE 2187 MILITAIRE MARS
140 ROCKABILLY164 PIJP188 6/8 MAART
141 HARDE ROTS165 DINGEN189 1 MAART
142 6/8 ROTS166 VADER190 2 MAART
143 LANGZAME ROTS167 REGGAE191 VOLKSBEAT
144 BLAUW168 WESTERSE SHUFFLE192 DANGDUT
145 SNEL EVANGELIE169 16RK&ROL193 CHARLESTON
146 6/8 BLAUW170 GELUKKIGE LIEFDE194 DRAAI
147 ROCK & BLUES171 KANTALP195 WEDUWE
148 BLUES-SHUFFLE172 LANDBALLADE196 MOET
149 ZIELBLUES173 LANDROCK197 TURKEN
150 FOXTROT174 LANDSCHUIF198 REGGAE 12
151 RAP175 LAND199 ZIEL
152 SWING 1176 HUIS

17. Appendix 3 (Demo Songs list)

00 Voor Alice

01 Kroatische rapsodie 02

Een sterrenhemel 03

text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VIKTIGT DIGITALPIANO

ANVÄNDARMANUAL

MODELL: 886

text_image Hörlursuttag USB

Vevor 886 - ANVÄNDARMANUAL - 1

Connect the Bluetooth of phone and then enter Bluetooth audio mode.

Insert U disk to enter the MP3 mode directly.

2.BT/MP3 Play/Pause

Press the 【|◄/■】 key to play or stop the song of BT/MP3 song.

Press the 【|k/■】 key for more than 1 second to select BT or MP3 mode.

3.BT/MP3 Song Select

Press the 【◀/□】 key within 1 second to select the previous BT/MP3 song.

Press the 【+/-】 key within 1 second to select the next BT/MP3 song.

4.BT/MP3 Volume Control

Press the 【◀/□】 key for more than 1 second to lower the BT/MP3 Volume.

Press the 【+/-】 key for more than 1 second to increase the volume of BT/MP3·

  1. Appendix 1 (Tone comparison table)
00 GR GOLV55 ORCH HIT110 FIEL
01 PIANO BRITE56 TRUMPT111 SHANAI
02 PIANO ELEC57 TROMBON112 TINKLE BELL
03 HONKY-TONK58 RUM113 MORFAR
04 E PIANO159 MUTE TPT114 STÅL DRM
05 E PIANO260 FR HORN115 WOODBLK
06 HARPSCRD61 MÄSSINGSSEKT116 TAIKO DRM
07 nycklar62 MÄSSING SYN 1117 MLDY TOM
08 CELESTA63 MÄSSING SYN 2118 SYNTH DRM
09 GLOCKNSPL64 SOPRANSAX119 REVRS ENG
10 MUSIKBOX65 ALTO SAX120 GTR BULLER
11 VIBRAFON66 SAX TENOR121 ANDAS
12 MARIMBA67 SAX BTONE122 SASSTRAND
13 XYLOFON68 OBO123 FÅGEL TWEET
14 TUBULRÖKLAR69 ENG HORN124 TELEFON
15 DULCIMER70 BASSON125 HELIKOPTER
16 HAMND ORG71 KLARINETT126 APPLÅDER
17 MINUTER ORG72 LITEN127 SKUT
18 ROCK ORG73 FLÖT128 STANDARDTRUMMA
19 KYRKA ORG74 INSPELARE129 KINESISK TRUMMA
20 RED ORG75 PANFLÖT130 GR GOLV
21 ENLIGT 176 FLASKA BLÅST131 PIANO BRITE
22 HARMONICA77 SHAHACHI132 PIANO ELEC
23 ENLIGT 278 VISLA133 HONKY-TONK
24 GTR NYLON79 OCARINA134 E PIANO1
25 GTR STÅL80 SQR VÅG135 E PIANO2
26 GTR JAZZ81 SÅGTAND136 HARPSCRD
27 GTR CLEAN82 KALLIOP137 nycklar
28 GTR AVSTÄLLD83 CHIFF138 CELESTA
29 GTR OVRDRV84 CHARANG139 GLOCKNSPL
30 GTR DISTRT85 RÖSTLEDARE140 MUSIKBOX
31 GTR HRMNX86 5:E LEDNING141 VIBRAFON
32 ACOU BASS87 BASSLEDNING142 MARIMBA
33 FINGR BASS88 NY ÅLDER143 XYLOFON
34 PICK BASS89 VARM PAD144 TUBULRÖKLAR
35 FRETLS BASS90 POLYSYNTH145 DULCIMER
36 SLAP BAS 191 KÖRBLAD146 HAMND ORG
37 SLAP BAS 292 BÄGGLAS147 MIN ORG
38 SYN BASS 193 METALLPAD148 ROCK ORG
39 SYN BASS 294 HEJ PAD149 KYRKA ORG
40 VIOLIN95 SOPA150 RED ORG
41 VIOLA96 RAIN FX151 ENLIGT 1
42 CELLO97 SNDTRK FX152 HARMONIKA
43 KONTRABASS98 CRYSTAL FX153 ENLIGT 2
44 SIDOR TREM99 ATMOSPH FX154 GTR NYLON
45 STR PIZZ100 BRIGHT FX155 GTR STÅL
46 HARPA101 GOBLIN FX156 GTR JAZZ
47 TIMPAN102 ECHO FX157 GTR CLEAN
48 STRÄNGAR 1103 SCI-FI FX158 GTR AVSTÄLLD
49 STRÄNGAR 2104 SITAR159 GTR OVRDRV
50 STR SYN 1105 BANJO160 GTR DISTRT
51 STR SYN 2106 SHAMISEN161 GTR HRMNX
52 KÖR AAHS107 KOTO162 ACOU BASS
53 RÖST OOHS108 KALIBUM163 FINGR BASS
54 RÖSTSYN109 SÄCKPIPA164 PICK BASS

Machine Translated by Google

165 FRETLS BASS177 TIMPAN189 MUTE TPT
166 SLAP BAS 1178 STRÄNGAR 1190 FR HORN
167 SLAP BAS 2179 STRÄNGAR 2191 MÄSSINGSSEKT
168 SYN BASS 1180 STR SYN 1192 MÄSSING SYN 1
169 SYN BASS 2181 STR SYN 2193 MÄSSING SYN 2
170 FIOL182 KÖR AAHS194 SOPRANSAX
171 VIOLA183 RÖST OOHS195 ALTO SAX
172 CELLO184 RÖST SYN196 SAX TENOR
173 KONTRABASS185 ORCH HIT197 SAX BTONE
174 SIDOR TREM186 TRUMPT198 OBO
175 STR PIZZ187 TROMBON199 ENG HORN
176 HARPA188 RUM
  1. Appendix 2 (Rhythm comparison table)
00 8 BEAT POP 143 SLOW ROCK86 VALS
01 8 BEAT POP 244 BLUES87 MILITÄR MARS
02 8 BEAT POP 345 SNABBT EVANGELIET88 6/8 MARS
03 ROCK POP46 6/8 BLUES89 1 MARS
04 COUNTRY POP47 ROCK & BLUES90 2 MARS
05 8 BEAT 148 BLUES SHUFFLE91 FOLKBEAT
06 8 BEAT 249 SOUL BLUES92 DANGDUT
07 8 BEAT 350 FOXTROT93 CHARLESTON
08 VISA SNÄLLA51 RAP94 TWIST
09 16 BEAT 152 GUNG 195 ENKA
10 16 BEAT 253 GUNG 296 SKA
11 16 BEAT POP 154 JAZZ FUSION97 TURKER
12 16 BEAT POP 255 POPULÄR98 REGGAE 12
13 16 BEAT POP 356 DIXIE99 SJÄL
14 16 BEAT POP 457 FUNK100 8 BEAT POP 1
15 REGGAE 1658 JAZZ WALTZ101 8 BEAT POP 2
16 HEAVY METALL59 RAGTIME102 8 BEAT POP 3
17 FOLKROCK60 RUMBA 1103 ROCK POP
18 BALLAD61 RUMBA 2104 COUNTRY POP
19 STOR BALLAD62 UTDRAG 1105 8 BEAT 1
20 PIANOBALAD63 EXTRAKTION 2106 8 BEAT 2
21 RK BALLAD64 RÖR107 8 BEAT 3
22 R&B BALLAD65 SAKER108 VISA SNÄLLA
23 EPISK BALLAD66 FAR109 16 BEAT 1
24 POP 167 REGGAE110 16 BEAT 2
25 POP 268 WESTERN SHUFFLE111 16 BEAT POP 1
26 DETROIT POP69 16RK&RULL112 16 BEAT POP 2
27 DISCO BEAT70 GLAD KÄRLEK113 16 BEAT POP 3
28 DISCOFEST71 CANTALP114 16 BEAT POP 4
29 DISCO QUEEN72 LANDSBALLAD115 REGGAE 16
30 DISCO FUNK73 COUNTRY ROCK116 HEAVY METALL
31 DISCO SOUL74 LANDSHUFFLE117 FOLKROCK
32 DANSSHUFFLE75 LAND118 BALLAD
33 EURB76 HUS119 STOR BALLAD
34 HEM77 TANGO ARGENTINA120 PIANOBALAD
35 HIP-HOP78 JIVE121 RK BALLAD
36 ROCK 179 DANS 1122 R&B BALLAD
37 ROCK 280 DANS 2123 EPISK BALLAD
38 ROCK KLASSISK81 SLOWFOX124 POP 1
39 POP ROCK82 FAR125 POP 2
40 ROCKABILLY83 VIENNESISK VALS126 DETROIT POP
41 HÄRDROCK84 BAROCK127 DISCO BEAT
42 6/8 ROCK85 SEVILLIANAS128 DISCOFEST

Machine Translated by Google

129 DISCO QUEEN153 GUNG 2177 TANGO ARGENTINA
130 DISCO FUNK154 JAZZ FUSION178 JIVE
131 DISCO SJÄL155 POPULÄR179 DANS 1
132 DANSSHUFFLE156 DIXIE180 DANS 2
133 EURB157 FUNK181 SLOWFOX
134 HEM158 JAZZ WALTZ182 FAR
135 HIP-HOP159 RAGTIME183 WIENSK VALS
136 ROCK 1160 RUMBA 1184 BAROCK
137 ROCK 2161 RUMBA 2185 SEVILLIANAS
138 ROCKKLASSISK162 EXTRAKTION 1186 VALS
139 POP ROCK163 EXTRAKTION 2187 MILITÄR MARS
140 ROCKABILLY164 RÖR188 6/8 MARS
141 HÄRDROCK165 SAKER189 1 MARS
142 6/8 ROCK166 FAR190 2 MARS
143 SLOW ROCK167 REGGAE191 FOLKBEAT
144 BLUES168 WESTERN SHUFFLE192 DANGDUT
145 SNABBT EVANGELIET169 16RK&RULL193 CHARLESTON
146 6/8 BLUES170 GLAD KÄRLEK194 TWIST
147 ROCK & BLUES171 CANTALP195 ENKA
148 BLUES SHUFFLE172 LANDSBALLAD196 SKA
149 SOUL BLUES173 COUNTRY ROCK197 TURKER
150 FOXTROT174 LANDSHUFFEL198 REGGAE 12
151 RAP175 LAND199 SJÄL
152 GUNG 1176 HUS

17. Appendix 3 (Demo Songs list)

00 för Alice

70 Liuyang River 71 Rondo

72 Blå tango

73 PATHOS

74 Jublande

75 Livet i Aragon

76 Susanna

77 Öring

text_image Technical diagram of a multi-panel electronic device with labeled components and directional arrows indicating assembly or assembly steps.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : 886

Category : Musical instrument
