USER MANUAL 89420003 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SALT WATER CHLORINATION SYSTEM

SALT WATER CHLORINATION SYSTEM

MODEL NO.: 89420001/89420003/89420005

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL NO.: 89420001/89420003/89420005

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Compliance is a CE security certification.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Salt Water Chlorination System.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

1. Note: The total working hours for the salt cell suggest be less than 8 hours total per day.
2. If you are using a variable speed pump 24 hours a day, make sure it adjust the chlorine output to 25-30%.
3. If the pump is only running 10 hours per day, make sure to adjust the chlorine output between 60-80%.
4. You can use this calculation to determine the appropriate chlorine output for your pool, suggesting 6 hours of operation per day. Pump running 24(Hours a day)*25%(Chlorine Output)=6hr (cell run time per day at 25%). Pump running 20(Hours a day)*30%(Chlorine Output)=6hr (cell run time per day at 30%). Pump running 15(Hours a day)*40%(Chlorine Output)=6hr (cell run time per day at 40%). Pump running 12(Hours a day)*50%(Chlorine Output)=6hr (cell run time per day at 50%). Pump running 8(Hours a day)*75%(Chlorine Output)=6hr (cell run time per day at 75%).
5. Start the VS pump on a low speed and kick the speed up until the system works.
6. This product is not a toy. Do not allow children to play with or near item.
7. Use as intended only.
8. Inspect before every use; do not use if parts are loose or damaged.

PACKAGE CONTENTS

Item	Reference Image	Qty.

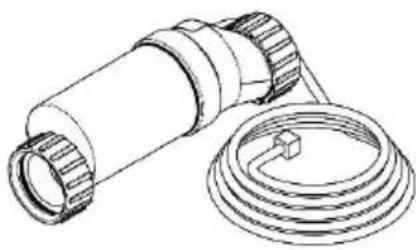

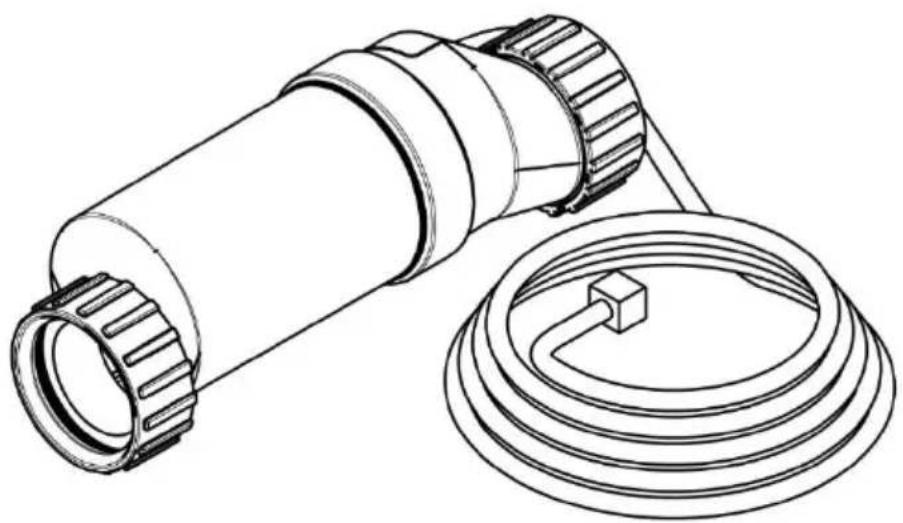

Salt Chlorination Cell		×1
O-ringsP-(Use only two and keep the r as backup)		×4
Cleaning hook		×1

ASSEMBLY STEPS

STEP 1

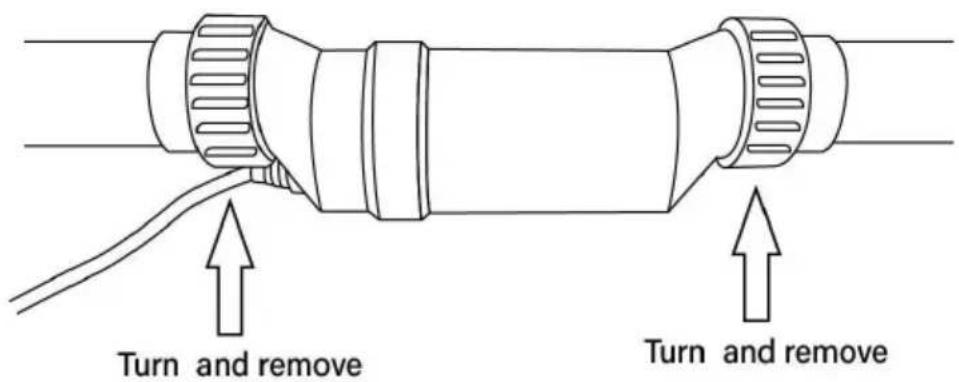

Remove the old Cell from the plumbing by loosening the threaded collars on both ends of the Cell. Disconnect the Cell Cord from the control panel.

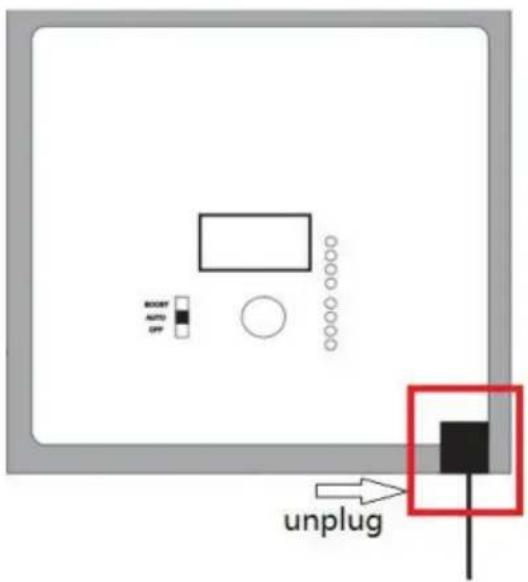

IMPORTANT: ALWAYS MAKE SURE THE INPUT POWER IS COMPLETELY DISCONNECTED AND ALL POOL EQUIPMENT IS SHUT OFF BEFORE ATTEMPTING ANY SERVICE PROCEDURES. ALL SERVICE SHOULD BE PERFORMED BY A QUALIFIED PROFESSIONAL.

STEP 2

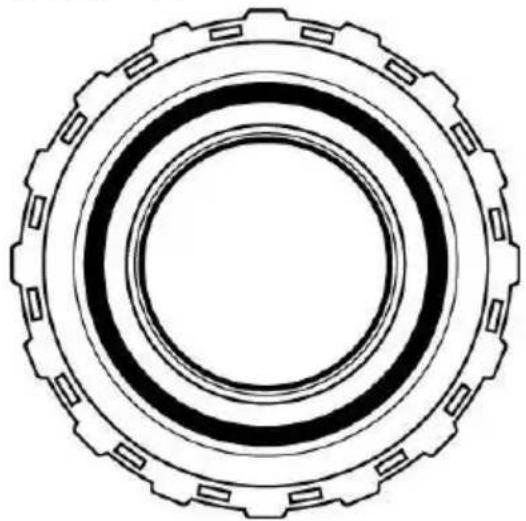

Inspect the O-Rings on the plumbing unions. If damaged or worn, replace before installing the new Cell.

STEP 3

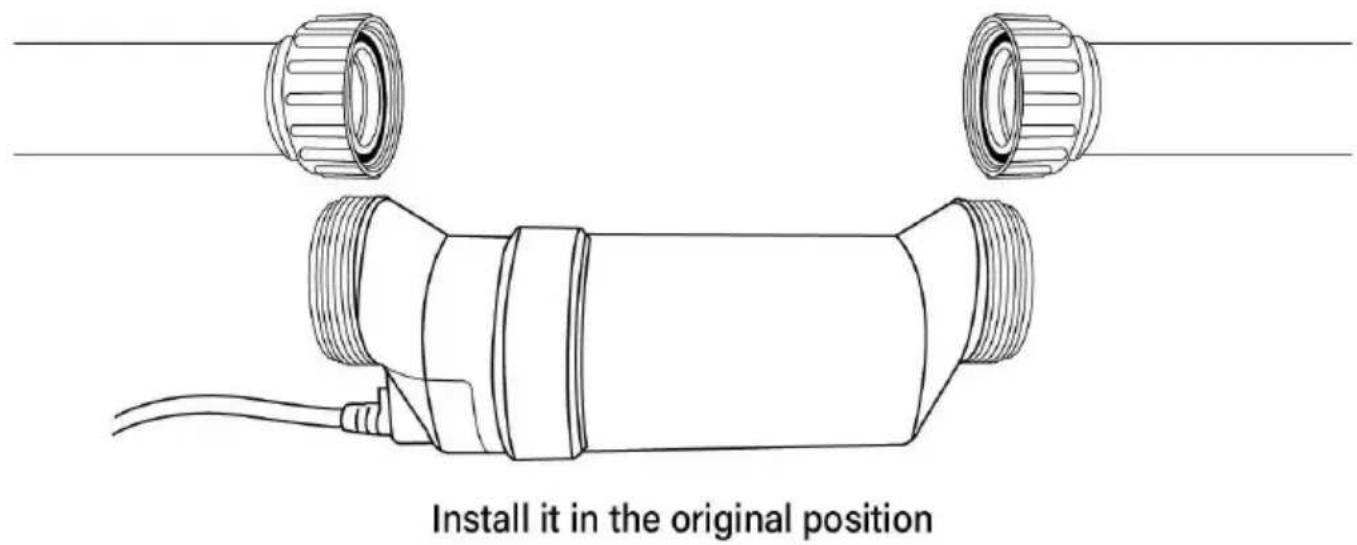

Position the new replacement Cell between the plumbing unions. Tighten the two threaded collars by hand for a water-tight seal, do not over-tighten. Plug the Cell Cord into the control panel.

Once power is restored to the control panel (concurrently with the pump and filter), the system can now be operated as instructed in the original manufacturer's product manual.

CLEANING AND MAINTENANCE

The Cell operates in the same way as your original Cell. As with your system, it may occasionally be necessary to remove the mineral deposits which can form inside. Cleaning frequency is entirely dependent on your pool's water chemistry, which depending on environment and chemicals added, can change to become more or less scale forming.

See below for cleaning procedures:

1. Turn Pump Off & Remove Cell.

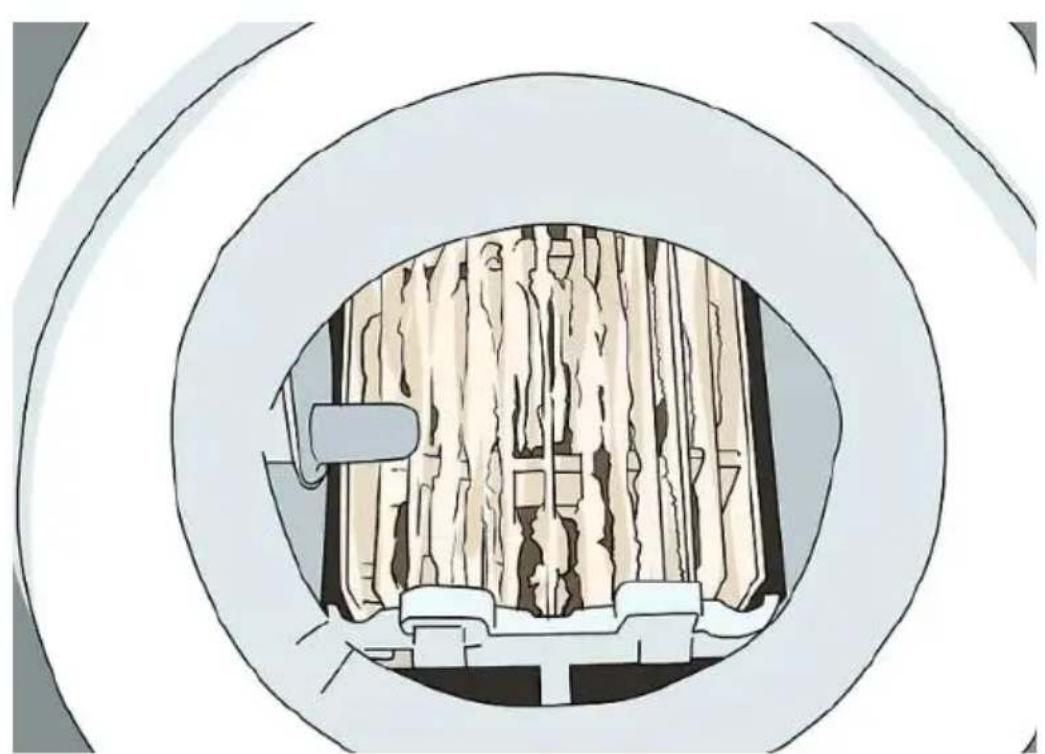

Holding the cell up to a light source, inspect for calcium deposits. Even if the Cell appears clean, it may still require cleaning if salt accuracy is off AND/OR chlorine production has diminished.

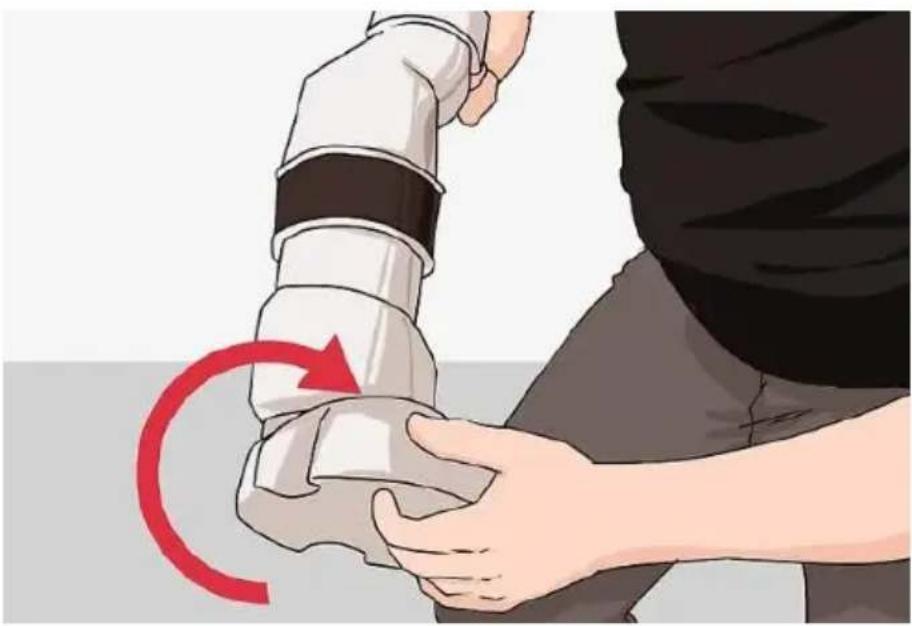

2. Install the clean base.

The cells are mounted on a clean base dedicated to the original manufacturer (the clean base needs to be purchased separately). Place the cells to be cleaned upright.

3. Mix: 4 Parts H2O / 1 Part Muriatic Acid

You use muriatic acid to clean the deposits off the filters in the salt cell. However, you must dilute it because straight muriatic acid is too strong. Pour water in a clean bucket that's easy to pour from. Add muriatic acid to the bucket, starting with 4 parts water to one part acid.

NOTE:

1) NEVER ADD WATER TO ACID. ALWAYS ADD THE ACID TO THE WATER.

2) WHILE OCCASIONAL CLEANING OF A CELL IS ACCEPTABLE, IT'S BEST TO ONLY DO SO WHEN REQUIRED. WHILE THE ACID DOES REMOVE ANY SCALE, IT ALSO DAMAGES THE PLATES INSIDE OF THE CELL ITSELF, THUS REDUCING ITS LIFE.

3) ALWAYS WEAR PROPER EYE PROTECTION AND PROTECTIVE GLOVES.

4) MIX SOLUTION AND CLEAN CELL ONLY IN A WELL-VENTILATED AREA.

5) MURIATIC AND OTHER ACIDS CAN CAUSE SEVERE INJURY, BURNS, AND RESPIRATORY PROBLEMS IF NOT HANDLED PROPERLY.

6) REFER TO THE MANUFACTURER'S DIRECTIONS FOR SAFE HANDLING.

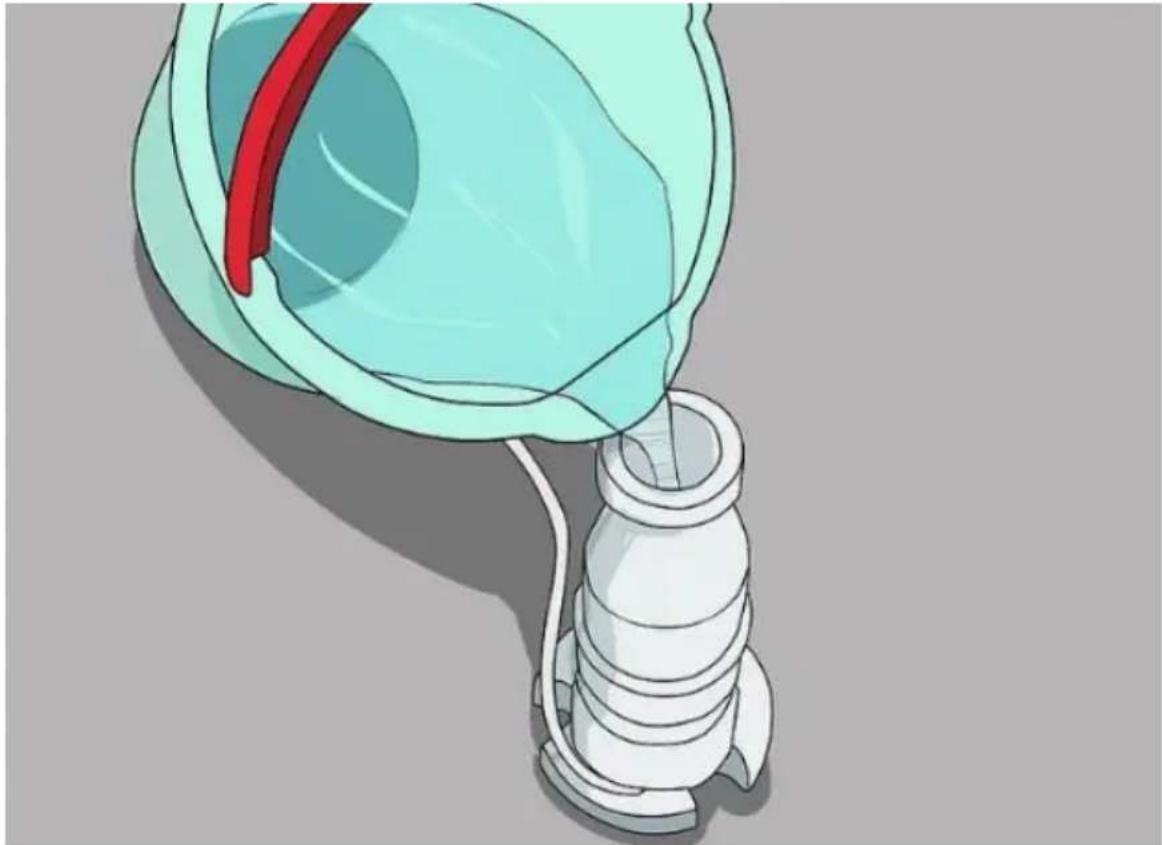

4. Carefully Pour Solution into Cell

Carefully pour the solution into the cell until it reaches the top. The solution should remain in the cell for 15-minute intervals until the reaction is completed. Carefully pour the solution back into an approved container. The cell cleaning solution may be reused a few times. When the solution is depleted, follow the manufacturer's instructions for proper disposal.

NOTE:

1) ALWAYS ADD ACID TO WATER! NEVER ADD WATER TO ACID. 2) ALWAYS STORE MIXED SOLUTIONS IN A SAFE AREA, OUT OF HARM'S WAY.

MODLE	89420001	89420003	89420005
POOL SIZE	40,000 gal.	15,000 gal.	25,000 gal.
COMPATIBLE SYSTEMS	AquaRite, Aqua Rite Pro, SwimPure Plus, OmniLogic, OmniPL, OmniHub
Length of wire	15 ft.
PRODUCTS SIZE	310*117*110mm

*The cell requires software r1.5 or newer to be compatible. These revisions started in 2009. Press the diagnostics button on your control 7 times to see your system's current software revision level.

*Products such as specifications, appearance, and design are subject to modification without prior notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
