1905 - Winch Vevor - Free user manual and instructions

Product Type	Winch for ATV/UTV
Brand	Vevor
Model	1905
Maximum Load	3600 lb (1633 kg)
Receiver Hitch Size	2 x 2 inches (50.8 x 50.8 mm)
Mounting Type	2-inch receiver hitch
Package Contents	Winch bracket, hitch pin, R-clip
Power Supply	12 V (vehicle battery)
Cable Material	Steel
Approximate Dimensions	30 x 20 x 20 cm
Approximate Weight	12 kg
Main Function	Pulling and lifting light loads
Intended Use	Off-road vehicles (ATV/UTV)
Safety Instructions	Wear goggles and gloves, clear area
Maintenance	Regularly clean and lubricate the cable
Included Accessories	Hitch pin, R-clip
Manufacturer	Shanghaixinmuyeyouxianggsi
Country of Origin	China
Warranty	Not specified, contact seller

Frequently Asked Questions - 1905 Vevor

How to install the winch bracket on the hitch?

Place the winch bracket into the 2-inch hitch receiver, then lock with the hitch pin and secure the R-clip.

What type of bolts to use to attach the winch to the bracket?

Bolts are not included. Use bolts suitable for your winch (usually M8 or M10). Make sure they are sturdy.

What is the maximum load of the winch model 1905?

The maximum load is 3600 lb (1633 kg) for correct use and in a straight line.

Does the winch work on any 12V battery?

Yes, it is designed to operate on a 12V vehicle battery. Use cables of appropriate gauge.

Can I use this winch to lift loads vertically?

This winch is mainly designed for horizontal pulling. For vertical lifting, follow safety instructions and do not exceed the rated load.

What to do if the cable frays or breaks?

Immediately replace the cable with a new cable of the same diameter and strength. Wear gloves when handling.

How to maintain the winch?

After each use, clean the cable and lubricate it lightly. Regularly check the fasteners and the proper operation of the motor.

Is the winch delivered with a remote control?

The manual does not mention a remote control included. Model 1905 is likely delivered with a wired control box.

What safety precautions to take when using?

Wear safety goggles and sturdy gloves. Keep bystanders at a distance. Do not exceed the maximum load.

Where to find spare parts for this model?

Contact the manufacturer or Vevor retailer. Parts such as cable, pins, and brackets can be ordered separately.

USER MANUAL 1905 Vevor

Affordable. Reliable. Home Improvement.

WINCH MOUNT

MODEL:1905, 1906

MODEL:1905

MODEL:1906

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage

to valuable property.

1. Assemble only according to these instructions. Improper assembly can create hazards. 2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
2. Keep the assembly area clean and well-lit. 4. Keep bystanders out of the area during assembly. 5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication. 6. Product capabilities apply to properly and completely assembled products only.
3. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts out of children's reach.

SPECIFICATIONS

Model Series	1905	1906
Max load	3600lbs(1633kg)	15000lbs(6803kg)
Hitch receiver size	2in x 2 in (50.8x50.8mm)	2in x 2 in (50.8x50.8mm)

PACKAGE CONTENTS

Part	Description	QTY
1	WINCH MOUNT	1
2	Hitch pin	1
3	R pin	1

INSTALLATION GUIDE:

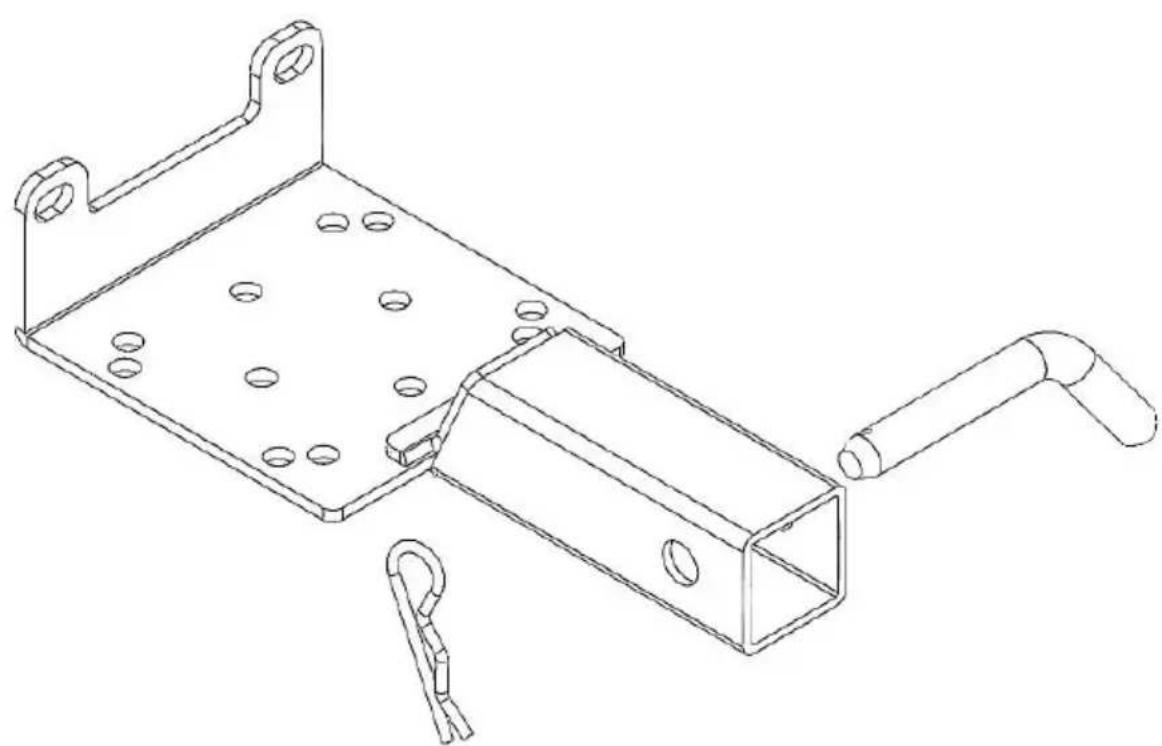

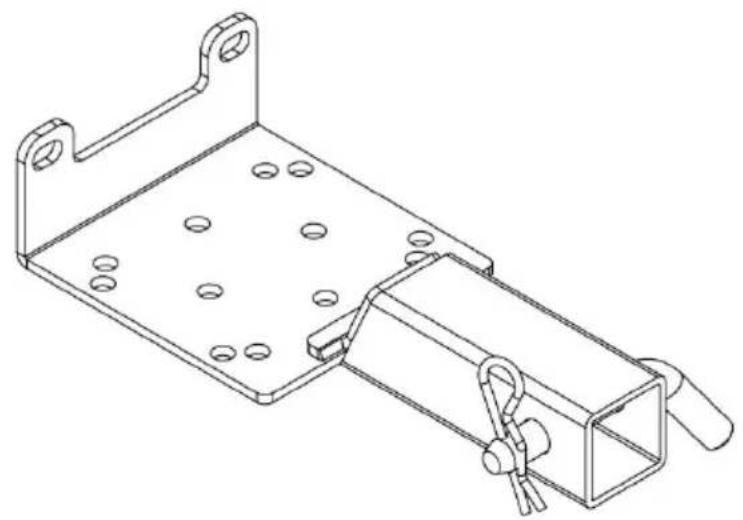

MODEL:1905

Step 1 Put the hitch winch mount into the 2 inch hitch receiver and lock it with the hitch pin, then secure with the R pin.

Step 2 Put the ATV winch onto the winch mount and lock it with bolts (not included). Please make sure it is suitable for your winch first.

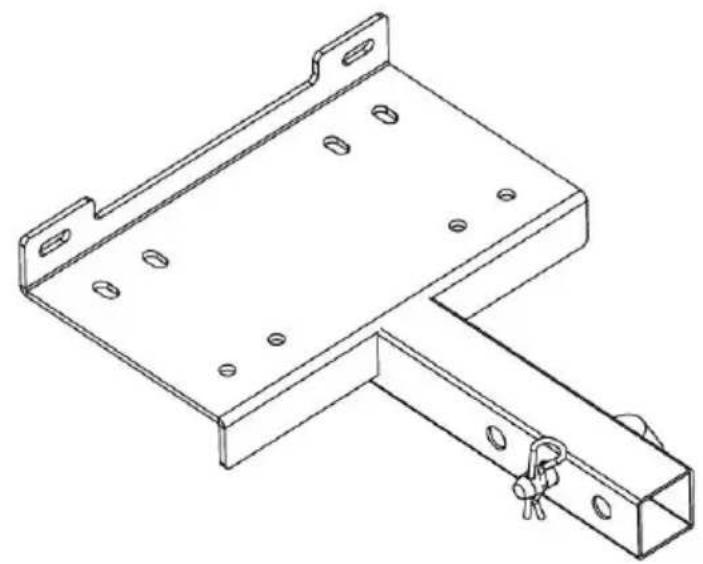

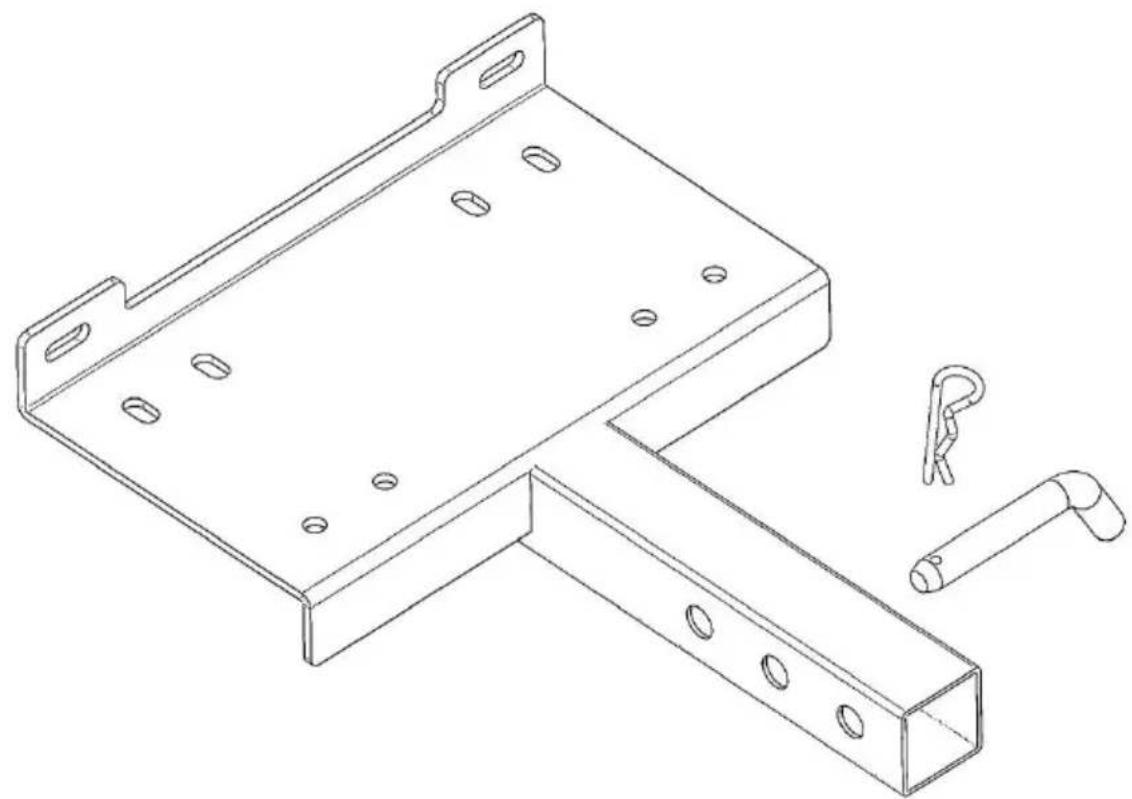

MODEL:1906

Step 1 Put the hitch winch mount into the 2 inch hitch receiver and lock it with the hitch pin, then secure with the R pin.

Step 2 Put the winch onto the winch mount and lock it with bolts (not included). Please make sure the hitch winch mount is suitable for your winch.

Manufacturer: Shanghai Xinmu Industrial Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
