| Brand | Linarie |
| Model | ARZY LJDD206CREAM |
| Product type | Single-door refrigerator with freezer compartment |
| Color | Cream |
| Approximate total capacity | 206 liters (estimated based on model) |
| Approximate dimensions (H x W x D) | 85 x 55 x 58 cm (estimated for a compact model) |
| Approximate net weight | 30 kg |
| Power supply | 220-240 V, 50 Hz, standard grounded plug |
| Climate class | N (ambient temperature 16°C to 32°C) |
| Refrigerant | Cyclopentane (flammable) |
| Defrost type | Refrigerator: automatic; Freezer: manual (when frost reaches 3-4 mm) |
| Temperature setting | Rotary thermostat from 0 to 7 (recommended position 3-4) |
| Number of glass shelves | 3 (removable) |
| Door bins | 3 (one with integrated egg tray) |
| Vegetable drawer | 1 with lid |
| Freezer compartment | 1 star (*) for storing frozen products and making ice cubes |
| Adjustable feet | Yes, for leveling |
| Door gasket | Magnetic, removable for cleaning |
| Required ventilation clearances | 10 cm at rear and sides, 30 cm above |
| Cleaning | Unplug before cleaning; use a soft cloth and mild detergent; do not use solvents |
| Warranty | 2 years (parts and labor) upon presentation of purchase receipt |
| Customer service | Email: contact@linarie.fr, website: www.linarie.fr |
Frequently Asked Questions - ARZY LJDD206CREAM Linarie
User questions about ARZY LJDD206CREAM Linarie
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual ARZY LJDD206CREAM - Linarie and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ARZY LJDD206CREAM by Linarie.
USER MANUAL ARZY LJDD206CREAM Linarie
Operation, Installation & Instruction Manual
CONGRATULATIONS
Congratulations and thank you for choosing Linärie to introduce a new comfort in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.
This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.
In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.
For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.
Record Model & Serial Number Model: ...... Serial Number ...... Register your product www.linarie.com.au
IMPORTANT
Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under Linärie's manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linärie's manufacturer's warranty in the event that your product fault is due to failure to adhere in this manual.
Correct Conditions of Use
- The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
- The appliance is not suitable for outdoor use, non-stationary installation.
- This product is use for storing and keeping your food and drinks safe and fresh.
The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.
TABLE OF CONTENTS
- General Information 03
1.1 Appliance information - General Safety Instructions 03
2.1 General safety information
2.2 Safety instruction - Installation
2.3 Correction use & Operation 04
2.4 Disassembling and Disposal of the Appliance
2.5 Accessories and Spare parts - Structure illustration 05
- Transport and handling 05
-
Installation 06
-
Operation 06
6.1 First use - Cleaning and maintenance 07
- Troubleshooting 07
- Environmental tips 08
9.1 Disposal considerations
9.2 Disposing your old appliance - Warranty and After sales 08
10.1 Warranty
10.2 After sales service
10.3 Replacement of spare parts
Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au
1. GENERAL INFORMATION
1.1 Appliance Information
- A damaged appliance can be dangerous. If you find the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/marks under the manufacturer's warranty. This does not affect your statutory rights. Do not use a damaged appliance.
-
The manufacturer's warranty will be invalidated if the appliance is not repaired by a Linärie approved service technician.
-
Faulty components must only be replaced by genuine Linärie spare parts. The manufacturer can only guarantee the safety of the appliance when Linärie replacement parts are used.
- If the power cord is damaged, it must only be replaced by a Linärie authorized service technician or suitably qualified electrician in order to avoid a hazard.
- Linärie cannot be held liable for no ncompliance with these instructions, resulting from incorrect or improper use or operation.
2. GENERAL SAFETY INSTRUCTIONS
The appliance complies with the stipulated safety requirements in France. The user is responsible for appliance cleaning and maintenance as well as its safe use. Improper use can lead to personal injury and damage to property.
2.1 General Safety Instructions
Children and People with Special Needs
WARNING
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- The appliance is NOT suitable for use by children without supervision.
- Young children should be supervised near the appliance to ensure they do not play with this appliance.
- Children may be able to wrap themselves in packing material or pull it over their heads with the risk of suffocation. Keep children away from any packing material.
Unauthorized Modifications
Unauthorised modifications can cause the appliance to pose risks. Do not conduct any modifications to the appliance.
Cleaning & Maintenance
The device must be cleaned regularly. Dirt can lead to damage or the buildup of odors.
• Always clean the appliance exactly as indicated in the operating instructions.
- Always ensure the appliance is switched off before cleaning or replacing parts.
- Clean the appliance immediately after any food spillage and the filter regularly to keep the appliance working efficiently.
- There is a risk of fire if cleaning is not carried out as described in these operating instructions.
- Make sure no water penetrates inside the device when cleaning. Do not use a steam cleaning appliance to clean this appliance. The steam could reach electrical components and cause a short circuit.
- In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the machine and its surroundings in a clean condition at all times. Any damage which may be caused by cockroaches or other vermin will not be covered by the machine warranty.
2.2 Safety Instructions - Installation
WARNING
The appliance must only be installed and assembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of ventilation systems.
- In order to avoid any potential hazard, the installation instructions must be followed.
- Observe all regional regulations for the installation of ventilation systems.
- During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when:
- the mains circuit breaker is switched off, or
-
it is switched off at the wall socket and the plug is withdrawn from the socket.
-
Do not pull the mains connection cable but the mains plug to disconnect your appliance from the mains electricity supply.
- Do not connect the appliance to the mains electricity supply by a multi-socket unit or an extension lead.
- Extension leads are a fire hazard and do not guarantee the required safety of the appliance.
- Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults.
Under no circumstances should any other parts of the housing be opened.
- THIS APPLIANCE MUST BE PROPERLY EARTHED. It is most important that this basic safety requirement is present and tested regularly and, where there is any doubt, the household wiring system should be inspected
- Due to the special characteristics of the tempered glass, the tempered glass may be exploded at the probability rate of 3‰-5‰ according to the industrial estimate, while this company will strictly control it within 3‰.
2.3 Correct use and Operation
- For safety reasons, this appliance may only be used after it has been built in.
- Reliable and safe operation of this appliance can only be assured if it has been connected to the mains electricity supply.
- Before using the appliance, ensure that all packaging materials are removed from the appliance and make sure that the connection data on the data plate [voltage (V) and frequency (Hz)] indicated on the appliance corresponds to the voltage and frequency of the power supply in your household. Consult a qualified electrician if in doubt.
- DO NOT store or spray flammable materials in the appliance or near this appliance while it is in operation (e.g. aerosols).
- Cracks, fissures or fractures in the glass ceramic panels can damage the underlying electronics. Switch off and disconnect the appliance immediately.
by a qualified electrician. Linärie cannot be held liable for noncompliance with these instructions, resulting from incorrect or improper use or operation.
- Prevent water ingress. Never sprinkle or flush the cooler using water, nor place the cooler in an area exposed to moisture or water sprinkling, let alone filling the cooler with water, so as to avoid impairment of the electric insulativity of the cooler. Furthermore, failing to follow such requirements may lead to electric shock and fire, or other accidents.
- After the cooler is put into operation, never touch its inner icing surface, especially when your hand is wet; otherwise the skin may stick onto the inner surface to get injured.
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
2.4 Disassembling and Disposal of the Appliance
(see the "Environmental Tips" section for best practices on disposing of this appliance).
The device must only be disassembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies.
Work on electrical components must only be conducted by trained electrical personnel.
2.5 Accessories and Spare parts
Incorrect components can lead to personal injury or damage to the appliance. Only use original Linärie spare parts for repairs.
Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.
Please check www.linarie.com.au f or more information.

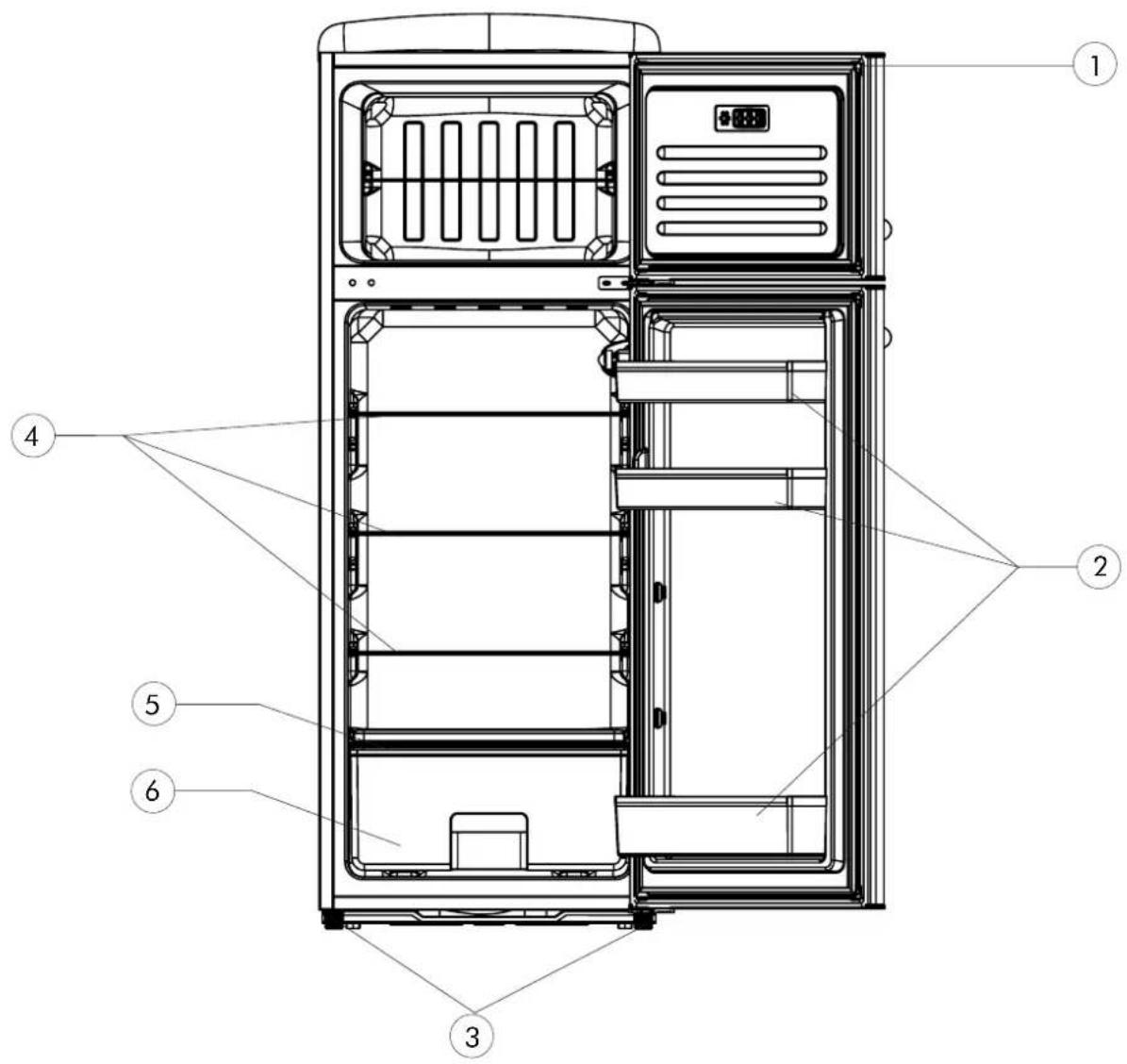

3. STRUCTURE ILLUSTRATION
- Crisper cover
- Door shelves(eggs tray inside the upper shelf)
- Crisper
- Adjustable feet
- Layer framework
Note: the figure is for your reference.
Some characteristics may differ from real article. Pls refer to real article.
4. TRANSPORT AND HANDING
When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree.
Never hold the door handle as support. Never place it upside down nor horizontally.
Push refrigerator on its basis and place it thanks to its roller feet.
5. INSTALLATION
- Do not tilt the refrigerator for more than 45^ from upright when moving it. Do not apply any force to any part such as the condenser, the door and its handle in order to prevent the refrigerator from deforming, or else its preformance will be influenced.
- Ensure that there is enough space around the refrigerator for it to work well.
- It must be checked that the voltage used should be the same as the rated voltage before the refrigerator is used.
- The power plug should have its own separated socket in order to prevent the electric wire from being over heated by other plugs.
- Do not splash water on to the refrigerator. Otherwise it may cause malfunctions of the refrigerator or electric shock.
- Do not store flammable materials such as alcohol, gasoline, LP gas and glue etc, in the refrigerator.
6.1 First use
① When operating the refrigerator for the first time, set the thermostatic dial at 3, connect the electric wire and run it without loading any food. Usually this takes 2 or 3 hours, then set the thermostat dial at the desired setting and place foods on the refrigerator.
③ Do not put too many foods in the refrigerator. Open the door lesser in order to maintain the temperature of the refrigerator and save electric consumption.
④ When making ice cubes, fill the ice-making case with drinkable water. And put it into the freezer. It takes about 2 or 3 hours to make ice cubes. Pieces of ice cube can be removed by twisting it. Do not press it up and down, otherwise, it may be broken.
⑤ Refrigerator can defrost automatically. Defrost the freezer whenever the layer of frost on the surface reaches 3 or 4mm. When defrosting, remove all foods and appendix, set the thermostat at 0 position and open the door. After the frost has melted, discard the water and dry up the interior of the refrigerator. The refrigerator can then be restarted by turning its thermostat to the desired setting.
7. CLEANING AND MAINTENANCE
WARNING
When defrosting, never use any sharp or metallic objects to remove the frost on the surface of the evaporator as this will damage the evaporator.
① When cleaning the refrigerator, disconnect the electric wire. Rub it carefully with a piece of cloth soaked with neutral cleanser, then wipe it clean with fresh water.
Replug the electric power again at an interval of over ten minutes.
② Never use acids, chemical solution, thinner, gasoline or the likes to clean the refrigerator because they may damage the painting cover and plastic parts of it.
① When refrigerator does not operate, ensure that:
- The electric power is supplied and the voltage is normal.
- The fuse is not burned out.
- The power plug is plugged in firmly in the socket.
② When refrigerator is not cool enough, ensure that:
- The thermostat is at the correct setting.
- There are enough space around the refrigerator.
- The doors are not opened too frequently and for too long.
- The refrigerator is not under direct sunlight or placed near a heat source.
- There are not too many foods and hot foods in the refrigerator.
③ When the food in the refrigerator are frozen.
- The thermostat is at the correct setting.
- There are not too much foods in the refrigerator.
④ When the refrigerator operates too noisily.
- The refrigerator is properly leveled.
- The refrigerator is not touching objects around it.
- The containers or solid packages stored inside are not touching each other.
NOTE:
During the period of high relative humidity, moisture may form on the surface of the refrigerator. It is not malfunction, you may just wipe it by yourself. If your refrigerator is still not functioning properly after making the troubleshooting, please contact the maintenance service department.
We promise that refrigerator guarantee in two years, appendix free guarantee in two years (since day of purchase, with accurate invoice).
Purchase invoice is the evidence of guarantee, please keep it. If you have any questions in the course of using the product, you may please contact local technology service center.
9. ENVIRONMENTAL TIPS
Observe all safety and warning information during operation (see the "General Safety Instructions" section).
9.1 Disposal considerations
The transport and protective packaging has been selected from materials which are environmentally friendly for disposal, and can normally be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
9. 2 Disposing of your old appliance
Electrical devices marked with this label may not be disposed of in domestic waste at the end of their service life.
Electrical and electronic appliances often contain valuable materials. They also contain specific materials, compounds and components, which were essential for their correct function and safety. These could be hazardous to human health and to the environment if disposed of with your domestic waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.
Please dispose of those materials by contacting your local authorities and ask for the correct method of disposal. Please ensure that your old appliance poses no risk to children while being stored prior to disposal.
By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.
Observe all safety and warning information during operation (see the "General Safety Instructions" section).
In the event of a fault which you cannot remedy yourself, please contact Linärie.
10.1 Warranty 10.3 Replacement of spare parts
The manufacturer's warranty for this appliance is 2 years.
10.2 After sales service
The contact details for Linärie are given at the beginning and of these instructions.
When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.
Record model & serial number
Model:
Serial Number:......
Register your product www.linarie.com.au
Incorrect components can lead to personal injury or damage to the appliance. Use only genuin e original Linărie spare parts.
Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.
Please check www.linarie.com.au for more information.
LIKE TO KNOW MORE?
For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:
Australia
hello@linarie.com.au
www.linarie.com.au
Follow Us
@Linarie.Appliances
© Linärie
Operating and installation instructions: Original √ Translation
Mart Online Services Pty Ltd. ACN 657 824 050
Linärie Contact hello@linarie.com.au www.linarie.com.au
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.
© Linärie
All rights reserved.
ARZY
Cartoon illustration of a sad, anthropomorphic paper character with arms and legs, holding a stick (no text or symbols)
Two cartoon characters shaped like a cube with different expressions, holding and pointing at a small square (no text or symbols present)
Illustration showing two hands performing a physical maneuver with a smiling face and a mouth (no text or symbols)natural_image
Cartoon illustration of a chef and a smiling square character in a bowl, no text or symbols presenttext_image
Prohibition sign depicting a trash bin crossed out by a diagonal line, indicating no waste or discharge.MISE AU REBUT DE L'APPAREIL
hello@linarie.com.au
www.linarie.com.au
Follow Us
@Linarie.Appliances
© Linärie
Operating and installation instructions:
Original
Translation
Mart Online Services Pty Ltd. ACN 657 824 050
Linärie Contact hello@linarie.com.au www.linarie.com.au
ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI
The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.
These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.
© Linärie
All rights reserved.
