USER MANUAL BOOSTER P2 PRO Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MASSAGE GUN

BOOSTER P2 PRO

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

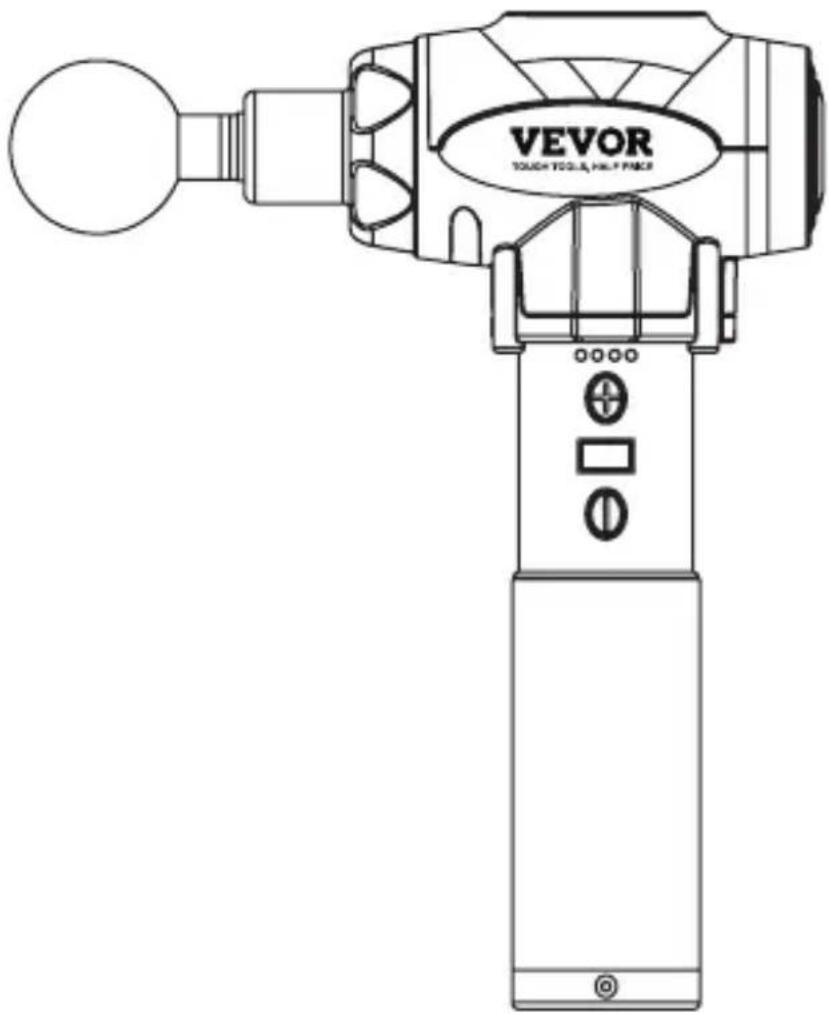

Line drawing of a VEVOR touch tool with handle and control buttons (no text or symbols on the device itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feelfree to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you for choosing our booster massage gun. Before using it, please read this manual carefully to ensure proper operation and keep this manual for future reference.

Main functions:

Relieving muscle soreness, stimulating the circulation of blood, relieving stiffness of cervical vertebra, and improving muscle recovery.

PRECAUTIONS

To avoid harm, fault, electric shock, fire, death and other equipment damage, please read the instructions and warnings carefully.

PROHIBITION

1. Minors are forbidden to use this product. It is not a toy.
2. Forbid to put this product into water. If it falls into water accidentally, please send it for inspection in time.
3. Forbid to put this product near or into the fire.
4. Forbid to use it on head, neck, heart or genital.
5. Forbid to use it on bones. Use it on soft tissues only when not feeling pain or discomfort.
6. Forbid to use non-original charger to charge the product, otherwise it may cause a fire.
7. Forbid to drop the product intentionally.
8. Forbid to remove the screws or try to disassemble the product.
9. The product is not an alternative or complement of medical treatment. If you are feeling pain, undergoing medical treatment or using any other medical devices, please consult your doctor before using this product.
10. Forbid to put fingers, hair or other body parts near to the back of the massage heads in case of the squashing.

Do not touch this part when the machine is running without the massage heads being installed.

Do not touch this part when the machine is running with the massage heads installed.

DISCLAIMER

If you have any of the following situations, or any health-related problems, please consult your doctor before using this product.

1. Pregnancy, diabetes, mental disorder, retinal damage and other complications.
2. Pacemaker usage, recent surgery, epilepsy, migraine, lumbar disc protrusion, and spondylolisthesis.
3. Recent joint replacement surgery, Intrauterine contraceptive device placing surgery, metal parts implantation, or other concerns about your own body.

Ongoing research on the effect of vibration training toward specific medical diseases may reduce the number of contraindications. Practical experience shows that, in many cases, vibration-training-combined treatment is also an effective medical guidance. However, it must be done with doctor advice.

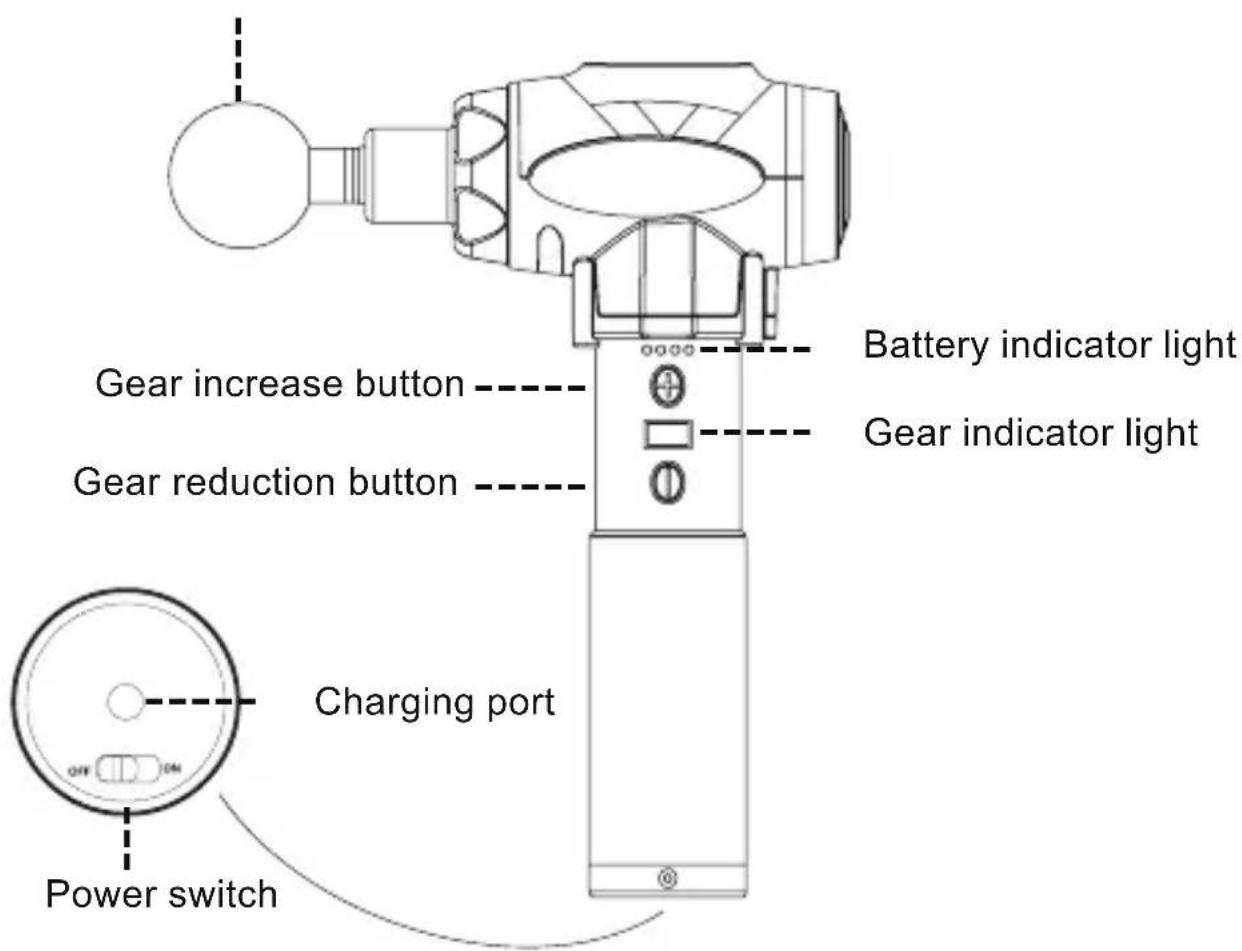

I. PRODUCT INTRODUCTION

Quick release massage head

Gear increase button Gear reduction button Battery indicator light Gear indicator light Charging port Power switch

II. INSTRUCTION FOR USE

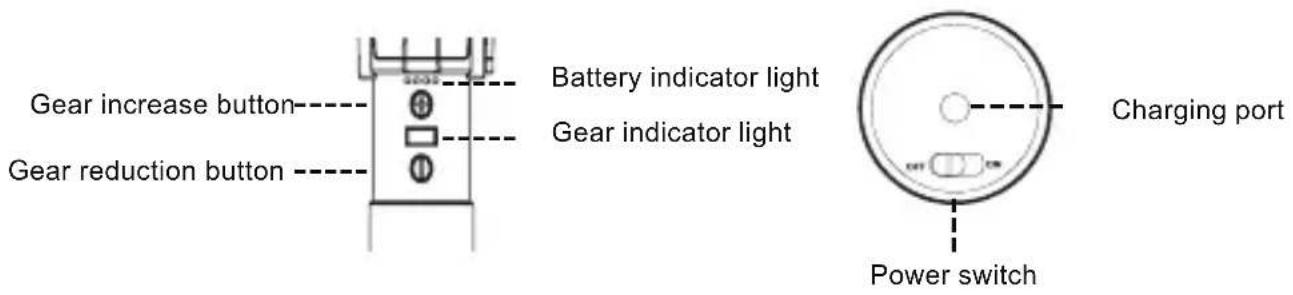

Gear increase button Gear reduction button Battery indicator light Gear indicator light Charging port Power switch

1. Gear indicator light: 1-9 gears.
2. Battery indicator light: When in standby, four indicators show the current battery level.
3. Start/adjust gear:

a. Put the power switch to the "ON" position, and then adjust the gear according to your needs. There are 9 gears to choose from;

b. It has a gear memory function. Switch to a comfortable gear and turn off the power switch. The gear will default to that gear next time you turn it on.

CHARGING

The charging port is located at the bottom of the fascia gun handle.

1. For first time use, please fully charge the battery of the machine.
2. Turn the power switch to OFF.
3. Connect the charger, and the power indicator light starts flashing, indicating that it is charging.
4. When charging is completed, the four lights will light up, indicating that the battery is full.
5. Do not start the machine while charging.

III. SPECIFICATIONS

Product name: Massage Gun	Rated input: DC,24V---1A
Type: BOOSTER P2 PRO	Stroke: 12mm
Rated input: 100-240V~50/60Hz	Battery capacity: 2500mAh

IV. FAQ

UNABLE TO POWER ON

a. Low temperature:

Keeping the massage gun below 0^ C for a long time will reduce the activity of battery and prevent normal functioning. The product cannot work normally while being power on.

Solutions: Lay the product for two hours at temperature above 0^ C, or raise the machine temperature fast with a hair-drier.

b. Low battery:

When the battery is low, or user does not charge it for a long time, the battery will enter the low battery protection mode. The product will not work normally at this time when you start it again.

Solutions: Turn it off with charger connected. Make sure it is fully charged, and it can run normally.

TROUBLESHOOTING
Slight abnormal noise during use	Slight noise is a normal phenomenon in the period of new machine. If the noise gets louder after a period of use, please send it for inspection.
Battery does not charge	Replace the battery please, for the aging or poor contact of battery.

V. MAINTENANCE

a. When you do not use the product for a long time, turn it off and hold electricity while safe-keeping it. Store it in a safe, cool and dry place.
b. Charge the product every half a year if you do not use it for a long time. Holding electricity prevents battery damage due to stains.
c. Please choose neutral detergent and soft cloth for daily maintenance. Do not use engine oil, organic solvents or other chemicals for cleaning.
d. Please turn off the power after using the product, or before cleaning the product.
e. The product should be well fixed during transportation. Avoid violent vibration, collision, rolling and falling.

VI. ENVIRONMENTAL PROTECTION

Do not discard this product with general household waste at the end of its service life. Put this product in the recycle bin designated by the government or send this product back to the manufacturer's after-sales service center. The service center staff will recycle it in an environmental-friendly manner.

a. Name and content of harmful substances in the product

Part name	Poisonous and harmful substances and elements
	Pb	Hg	Cd	Cr(VI)	PBB	PBDE
Shell	○○○○○○
Circuit board	×○○○○○
Metal parts	×○○○○○
Rubber parts	○○○○○○
Adapter	×○○○○○
Connecters	○○○○○○
Handle cover	○○○○○○
This form is based on the rules of SJ/T 11364.O: The content of harmful substances in all parts meet the limited requirements of GB/T 26572.X: The content of harmful substances in at least one part exceeds the limitation of GB/T 26572.

b. Environmental protection use period

The time limit of environmental pollution, serious damage to people and property, or the leakage of toxic and harmful substances, is 10 years in normal use as described in this manual.

This sign indicates that the environmental protection period of this product is 10 years in normal use. Some components may also have environmental protection period signs. The specific period of environmental protection for each component shall be subject to its own sign.

c. Battery Statement

Notice:

1. Before disposing of this product, the battery must be taken out of the machine. When taking out the battery, the power must be cut off, and the battery must be disassembled by a professional.
2. Remove the rechargeable battery only when disposing of this product.
3. To disassemble the battery, use a 400^ C air gun to heat the coupling part of the fuselage for 30 seconds, and then disassemble it by a 600KG hydraulic press. Please do not disassemble it without permission. It can only be disassembled by Pineapple or an authorized service provider of Pineapple.

VII. WARRANTY

The warranty period of this product is 12 months, and the authority is not transferable. From the date of purchase, you enjoy free warranty within the warranty period with valid documents. (Outward appearance is not covered.)

Disclaimer:

1. Accidental damage, improper use or transportation;
2. Improper maintenance;
3. Operation without following the manual instructions;
4. Unable to provide formal purchase certificate;

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

BATTERY DISPOSAL

Li-Ion

To minimize hazards to health and the environment at the end of this product's life, laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this product at a suitable collection facility where it will be sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycling and safe disposal of these in your area.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.
