USER MANUAL AY440-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Tomato Slicer

MODEL:AY440-1/AY440-2/AY440-3/AY440-4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Tomato Slicer

MODEL:AY440-1/AY440-2/AY440-3/AY440-4

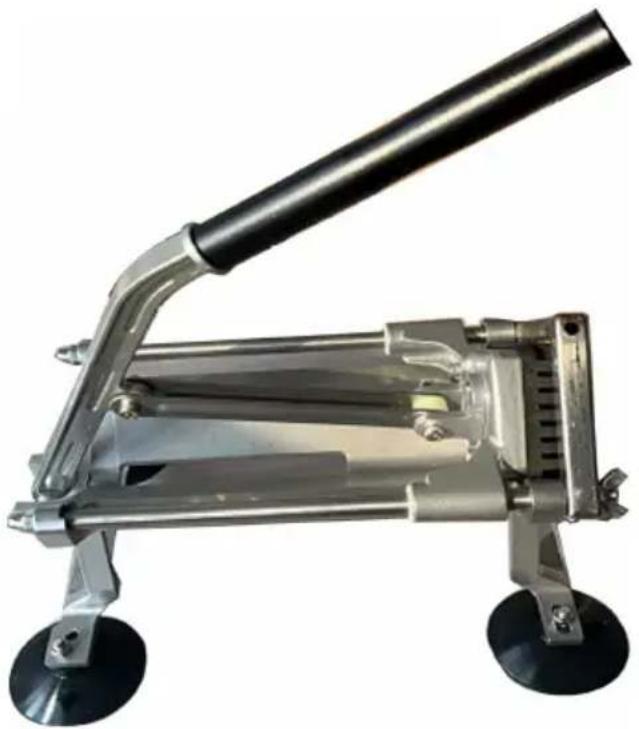

Metallic manual switch device with black handle and two wheels (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Warning- Read and fully understand all instructions and warning statements for using this product. Your safety is the most imp Failure to follow procedures and safeguard measures may resu unsafe injury or property damage. Remember: Your personal safety is responsibility!

1. Keep your fingers away from the cutting blade at all times. Do not your hands on the cutting blade. If fingers and hands are not kept a from the cutting blade, it may cause personal injury.

2. Keep children away and never leave the slicer unattended.

3. Check for damaged parts. Before using the slicer, please check if a components work correctly and perform the expected functions. Check installation and any other conditions that may affect operation.

4. When handling cutting boards, it is strongly recommended to wear a cutting gloves,

5. If used improperly, the manufacturer shall not be held responsible.

6. This slicer must not use Frozen food, bony meat, fish, or anything than food.

7. Do not use this product under the influence of drugs or alcohol. Be careful! Be extra careful when handling cutting boards and blades! blade is very sharp! I suggest that you wear anti cutting gloves when handling cutting boards.

8. Remove the product from the packaging and confirm that you have received all the parts.

9. Remove the protective materials covering the handle, handle tube, air push rod,

10. Thread the handle bolt through the handle base and handle, and secure it with the handle bolt and nut.

11. Thread the push rod bolt through the push rod and handle, and the secure them together with the push rod nut.

12. Tighten the handle tube with the handle.

SAVE THESE INSTRUCTIONS

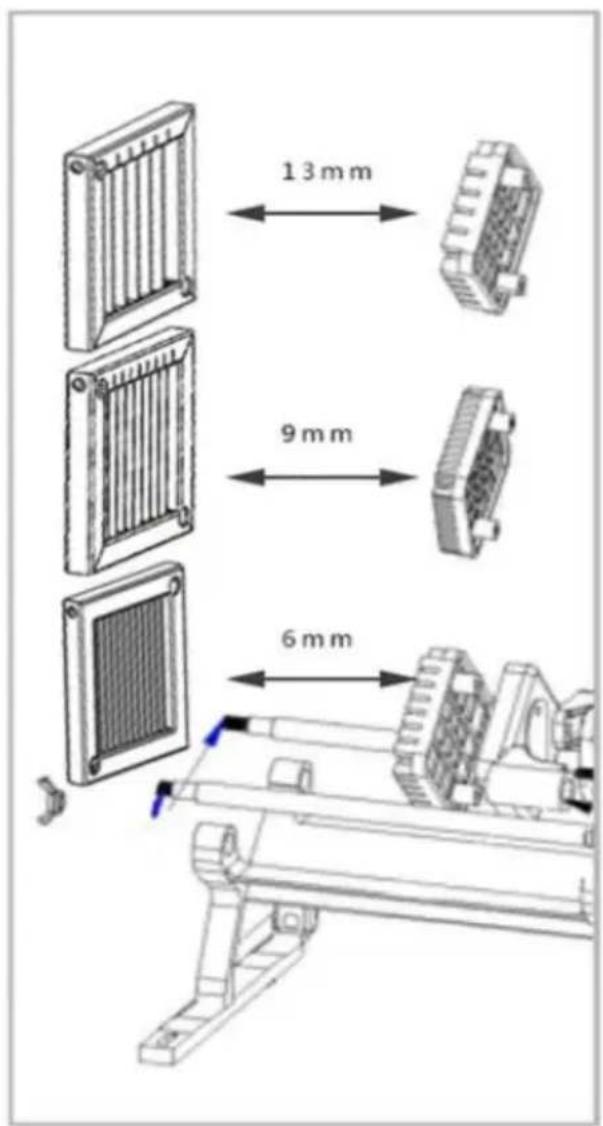

Replacing the blade

1. Remove the locking nut from the cutting on the slicer

2. Replace the cutting blade version

3. The cutting plate should face inward, an tip of the blade should face inward.

4. The cutting blade is stuck on the guide rod and fixed with a lock

5. Replace the push plate and fix it in place (the push plate should the size of the

cutting plate)

1. Replacement of blade board completed.

Attention: Be extra careful when replacing very sharp blades

Technical line drawing of a mechanical bracket with a circular base and a small inset detail (no text or symbols)

13 mm 9 mm 6 mm

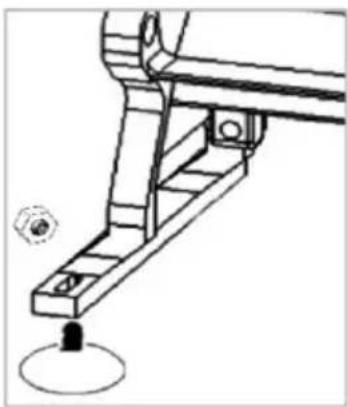

Installation instructions for suction cups

To install the suction cup feet onto the slicer:

1. Place the bolts of each suction cup into the holes on the base of the French fry machine.
2. Tighten it (Figure 3).
3. Press firmly on the slicer to generate suction between the working su and the cup.

The effect is best on a smooth and clean horizontal surface. To generate more suction, you can wet the suction cup. Before use check the stability of the slicer in the workplace.

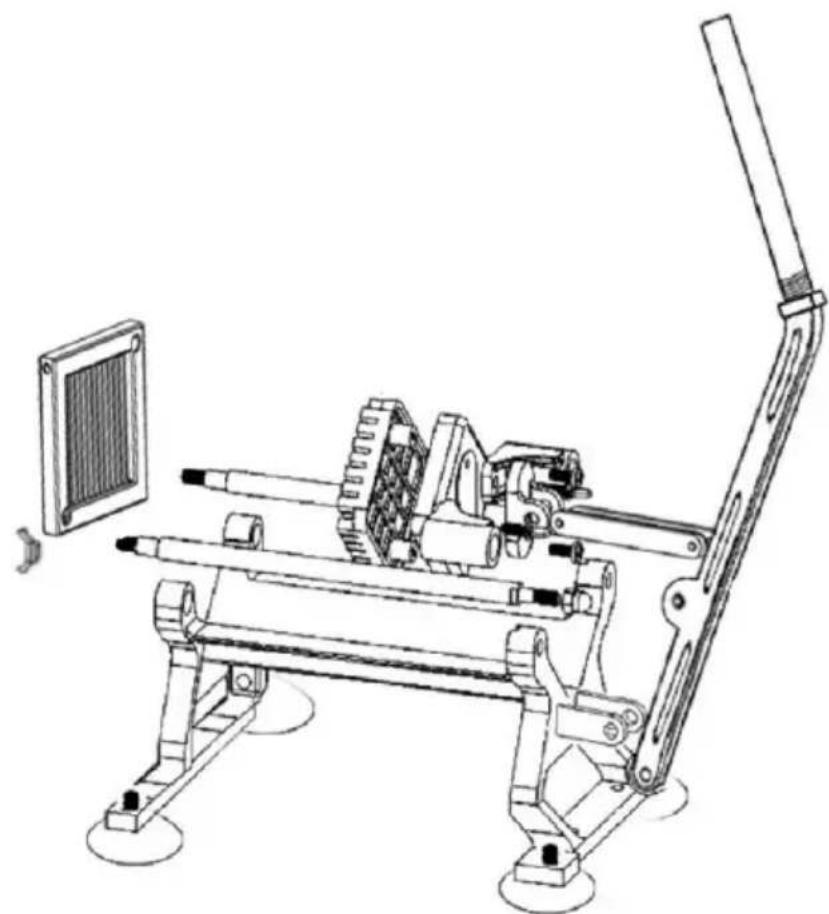

Technical line drawing of a mechanical robotic device with articulated limbs and a control panel (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

EC

REP

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made In China
