USER MANUAL YZQ-6L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRUIT PRESS

MODEL:YZQ-6L SC-W12L SC-W18L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

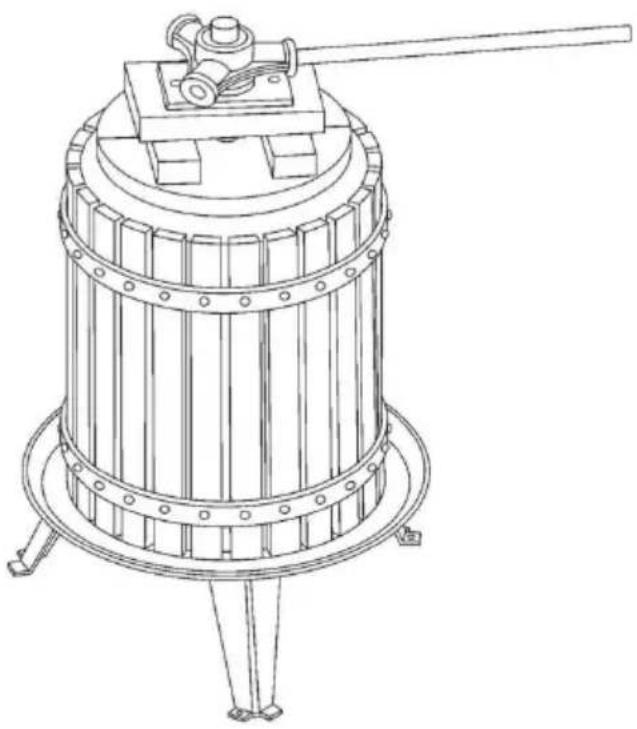

Fruit Press

MODEL:YZQ-6L SC-W12L SC-W18L

Line drawing of a cylindrical industrial reactor with three legs and a central shaft (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

• Presses fruit quickly into juice
• Stable and powerful
• Easy turns on the spindle
• Improving health and quality of life

IMPORTANT SAFEGUARDS

WARNING:

Read and understand all instructions before using this fruit press. The operate must follow basic precautions to reduce the risk of personal injury and/or dar to the equipment.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-lit and of distrac-tions.
2. Always wear gloves that provide protection based on the work materials o reduce the effects of tool vibration.. Keep anyone not wearing the appropriate safety equipment away from the work area.
3. Store the new fruit press properly in a safe and dry location to prevent damage. Lock fruit press away and keep out of the reach of children.
4. Always place the fruit press on a level and firm surface.

PERSONAL PRECAUTIONS

Control the fruit press, personal movement and the work environment to avoid personal injury or damage to fruit press.

1. Do not operate any fruit press when tired or under the influence of drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with a tool's parts. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

1. Use the correct fruit press for the job. This fruit press was designed for function. Do not modify or alter this fruit press or use it for an unintended

2. The fruit press must be stored in a safe and dry place after use.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated use) restrict adherence to the fruit press safety rules. If you use this fruit press ur or incorrectly, you can suffer serious personal injury.

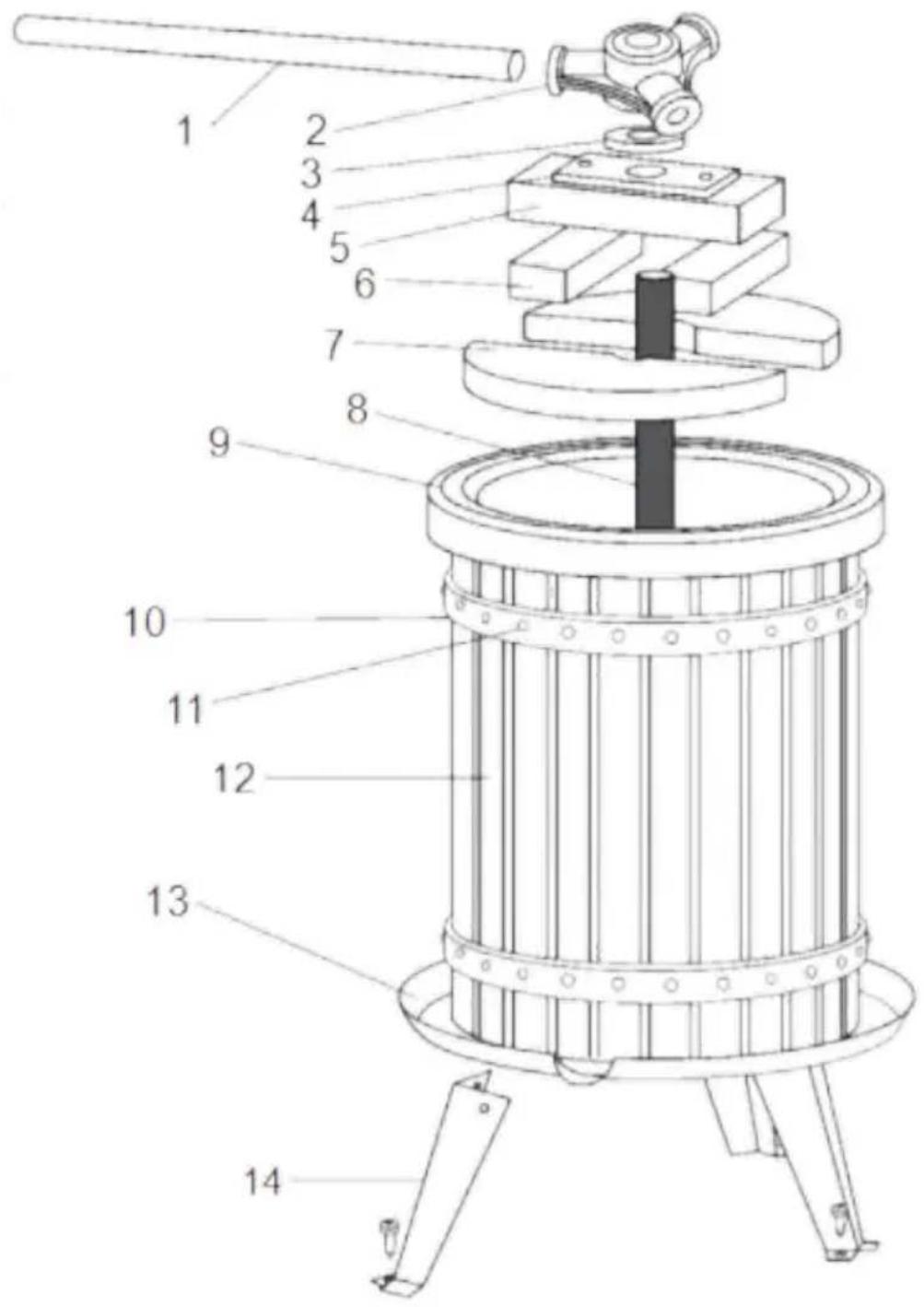

PART LIST

Part No.	Description	QTY
1	Handle	1
2	Trunnion	1
3	Nylon washer	1
4	Metal Pressing Plate	1
5	Wooden Pressing Plate	1
6	Wooden Blocks	See remark
7	Wooden Plate	2
8	Threaded Rod	1
9	Juice Bag	1
10	Metal Ring	See remark
11	Screw	See remark
12	Cage Slat	See remark
13	Base	1
14	Screw,nuts and gaskets	3

Technical diagram of a mechanical device with numbered components for identification

Remark

Model#	Part6	Part10	Part11	Part12	Part12
YZQ-6L	6pcs	2pc	45pcs	20pcs	6pcs
SC-W12L	6pcs	2pc	55pcs	25pcs	6pcs
SC-W18L	8pcs	2pc	55pcs	25pcs	6pcs

* Additional parts that may be needed but are not included: additional

wooden blocks and screws to mount feet of base.

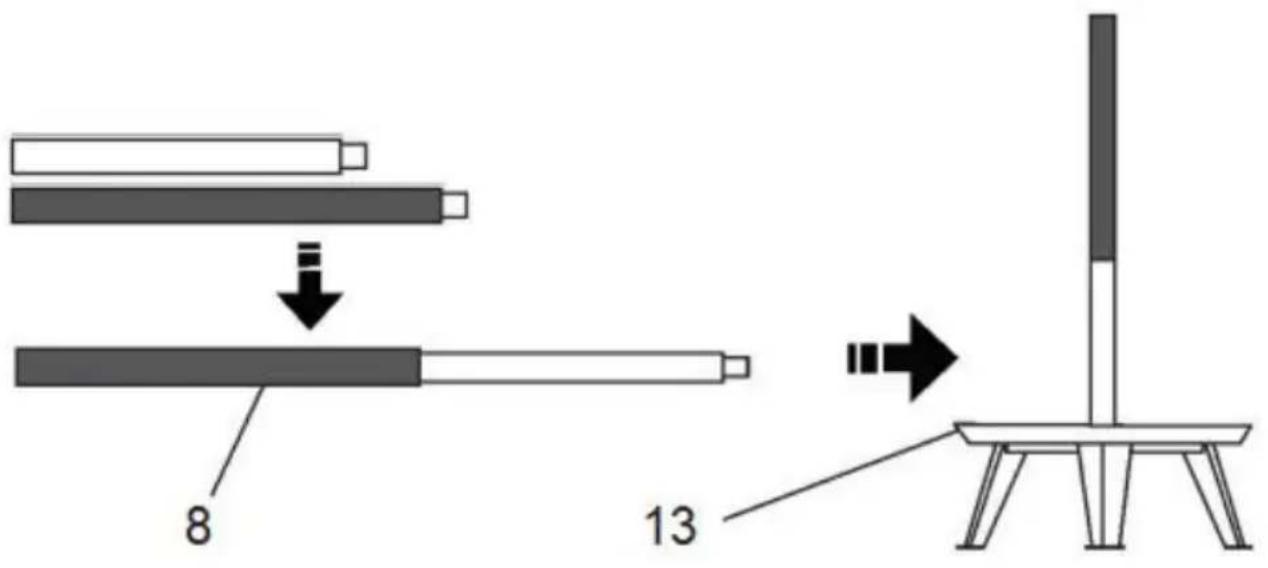

1. Threaded Rod Assembly (8), then mount to the Base (13). NOTE the three rod is with two small pieces, should assemble first.

8 13

1. The base of the press should be screwed to a firm, solid floor or base, holes in the feet. (screw not included)

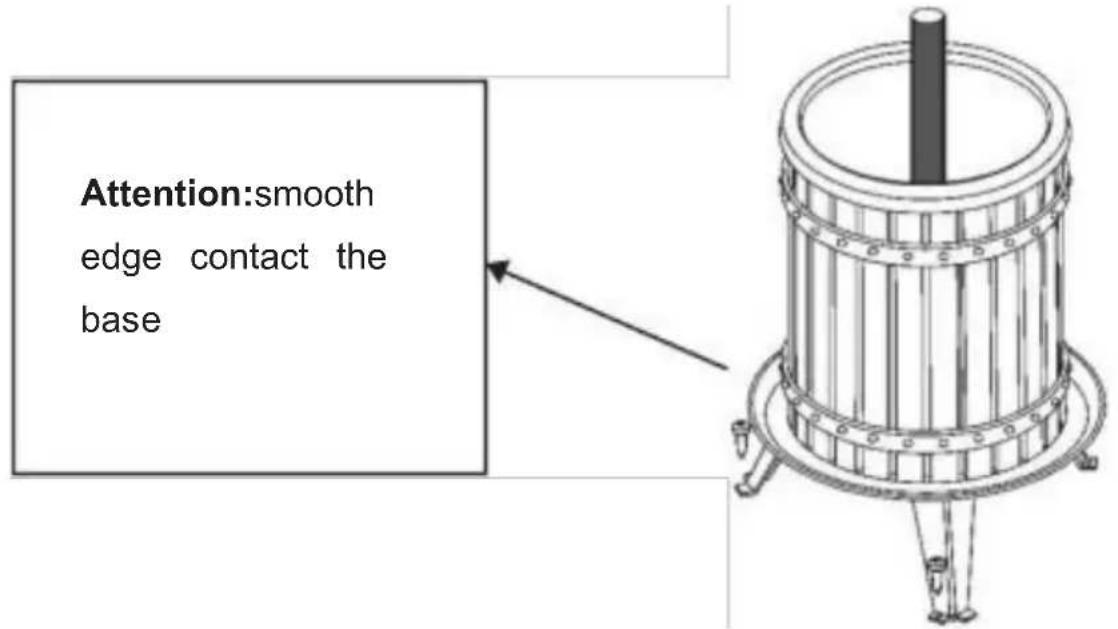

Attention:smooth edge contact the base

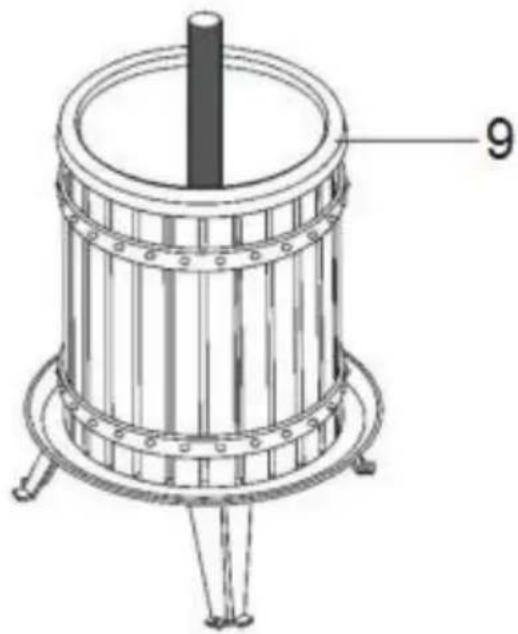

1. Put the Juice Bag (9), containing the chopped fruit, into the wooden barrel and hanging over the sides. Press down the fruit by hand.

Harder fruits-apples, pears, etc., should be cut into small pieces and ideally crushed using a fruit crusher or shredder before placing in the bag.

Technical line drawing of a cylindrical mechanical device with a central shaft and three legs (no text or symbols)

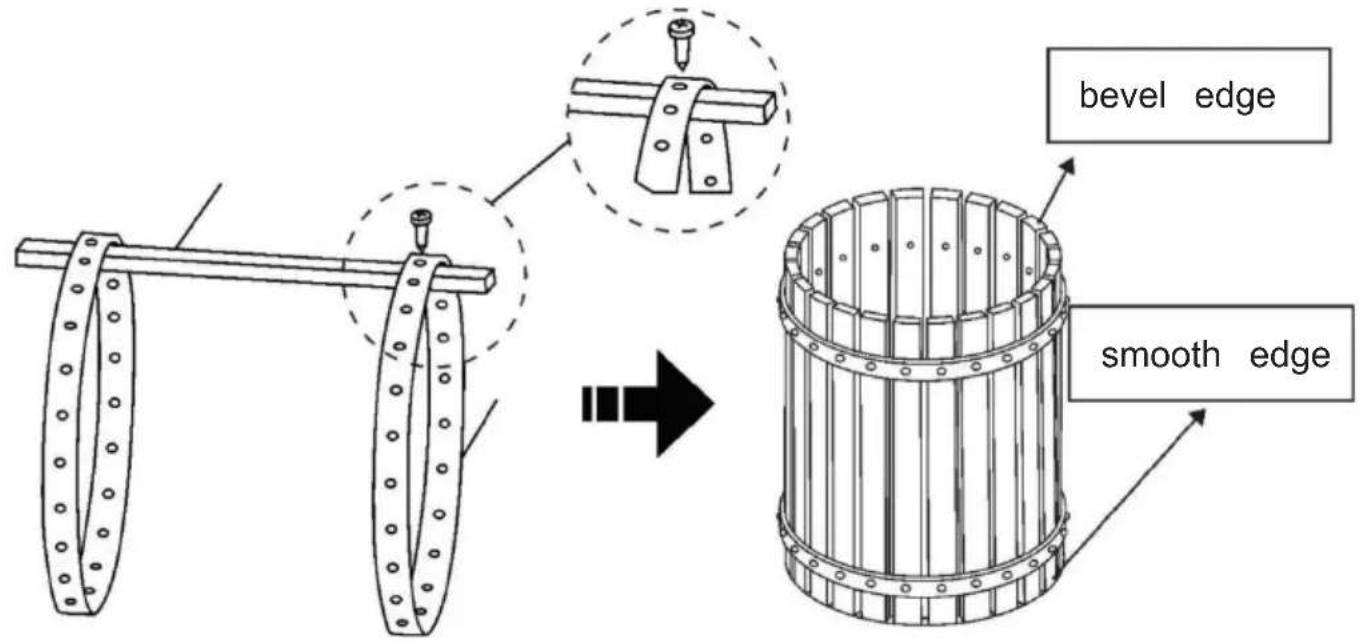

1. Wooden Barrel Assembly--- Assemble Metal Ring (10) and Cage Slat (12), make sure all Cage Slats (12) with bevel edge are in one direction, the opp end with smooth edge in line in the opposite side.

bevel edge smooth edge

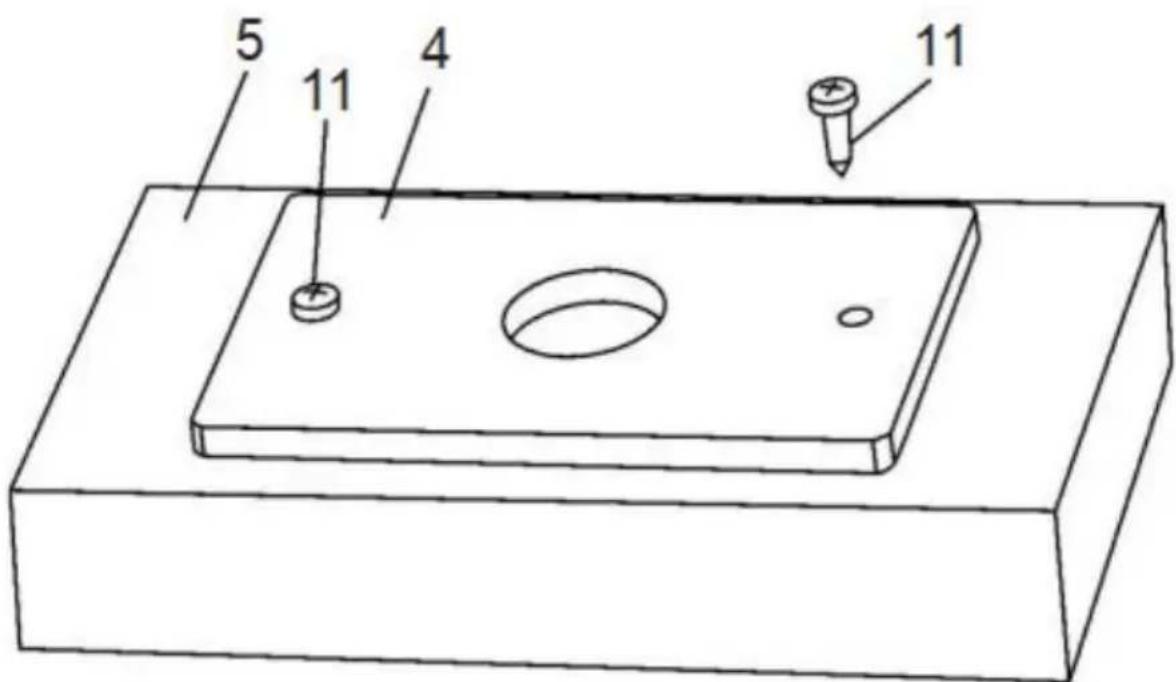

1. Wooden Pressing Plate (5) and Metal Pressing Plate (4) assembly with Sc (11).

5 11 4 11

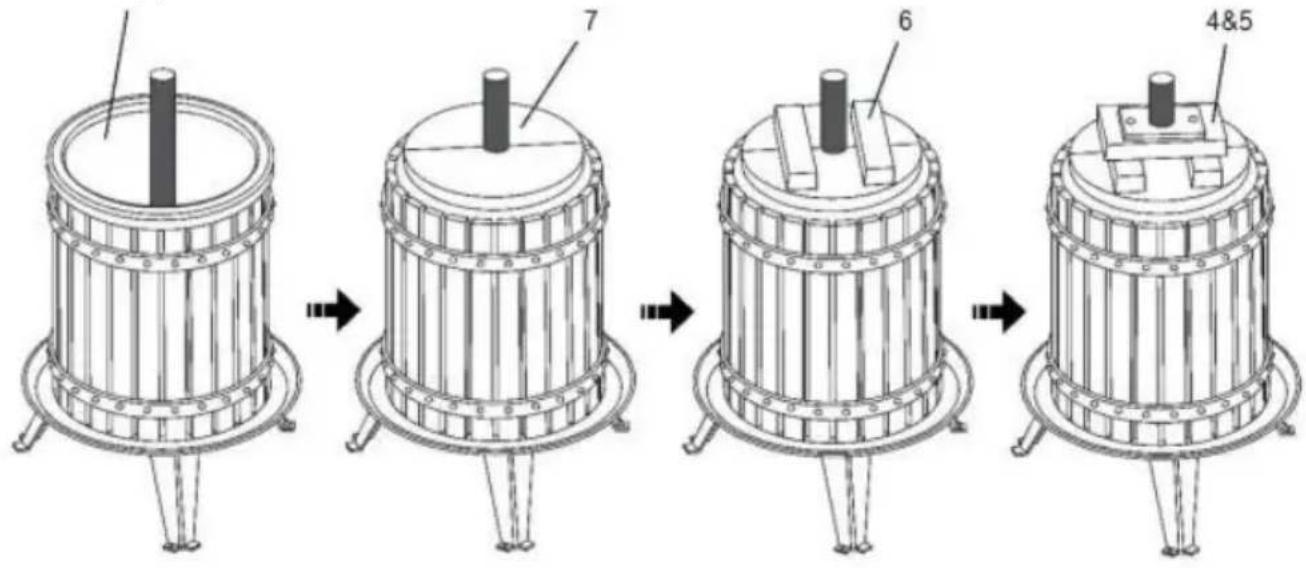

1. Place the Wooden Plate / Semi-Disc (7) on top of the fruit, ensuring they central within the barrel, then add the Wooden Blocks (6), (if there is sufficient room) followed by the Pressing Plate Assembly (4&5) on top of these so it crossing lengthwise over the wooden plates.

Put chopped fruits inside the bucket

Technical diagram showing four stages of a cylindrical device with labeled components, likely for assembly or manufacturing purposes.

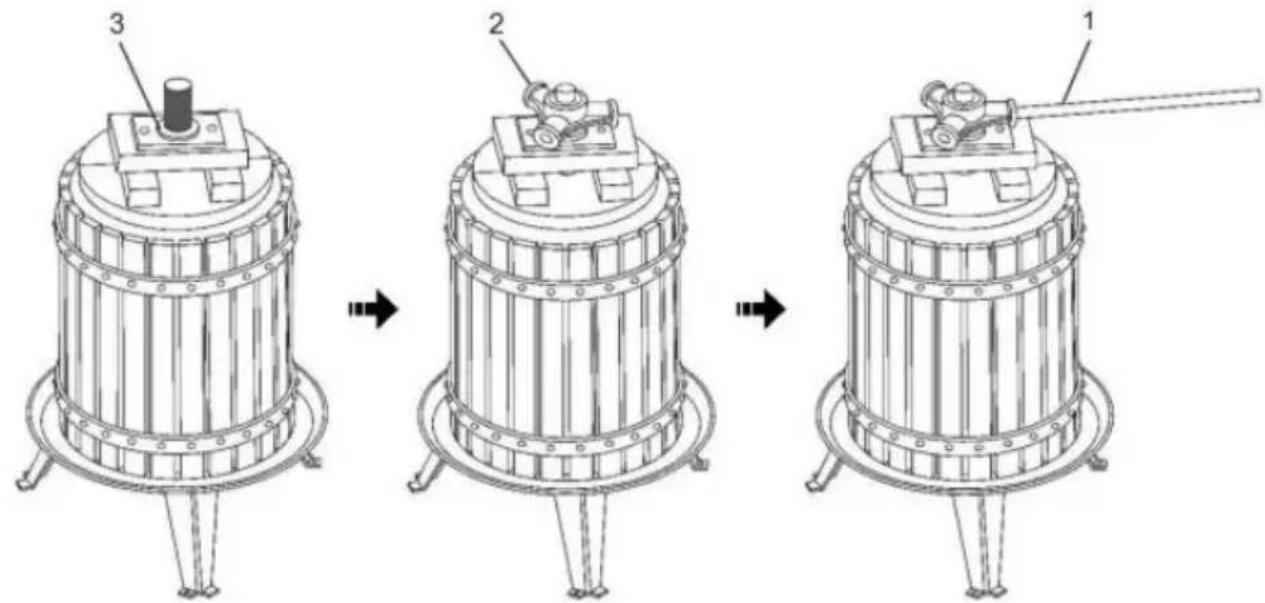

1. Place the nylon washer (3) on top of the Pressure Plate Assembly, as sl the illustration. Screw on the trunnion (2), push the handle into the trunnion,

rotate the handle (1) down to press the fruit into the barrel.

Technical diagram showing three stages of a cylindrical device with labeled components, illustrating mechanical assembly or assembly process.

* Attach the legs of the unit to a flat surface and screw before pressing. T prevent the unit from sliding or tilting over.
* Do not reach into the press with your hands while the press is turning.
* Do not alter the handle by making it longer
* Keep the working area clean.
* Clean up any spills immediately to eliminate the risk of slipping/falling.

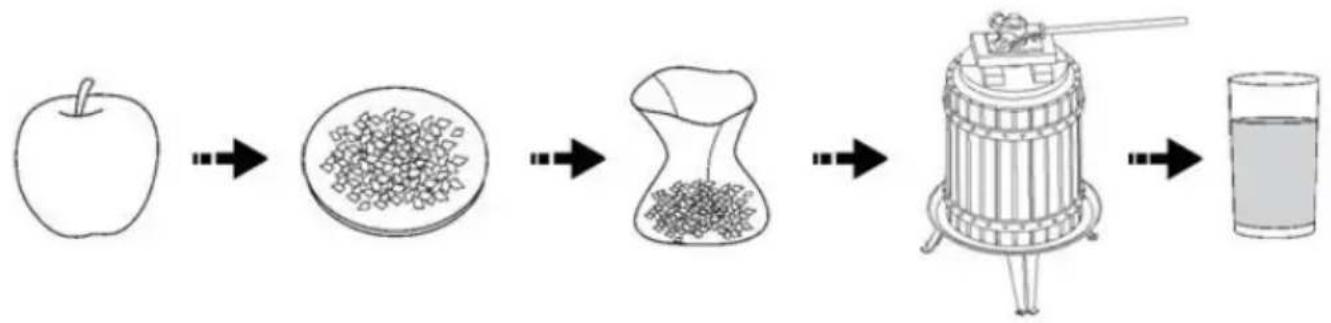

FRUIT PRESS PROCEDURE

Puree the hard and soft fruit, then put it in a nylon bag, finally, put it in t press by turning the handle.

CLEANING AND MAINTENCE

After use, the complete press must be thoroughly washed in a mild detergent, rinsed in clean water and dried.

If left unused for prolonged periods, coat all metal components with a thin film of Vaseline or food oil and store in a clean, dry environment.

Check the press's condition before using it again, and if mould is apparent, thoroughly, rinse, dry, and apply a film of fresh food oil to its metal compor

Do not dispose of this product with general household waste at the end of its life.

Before use, all components must be scrupulously clean and all traces of old oil removed to avoid the possibility of contamination of the produce.

1. Never use an extension bar on the handle. Instead, when space allows, the second pair of blocks provided may be inserted to force the Wooden Plates near the base of the press as possible. If the handle reaches the wooden b assembly and pressure still needs to be increased, release the trunnion and with more fruit or use wooden blocks between the wooden plates and press in plates. (Additional wooden blocks may be needed and can be made by cutting small blocks of wood or purchased). Finally, place a container beneath the o spout in the base (13), ready to collect the juice.

DISASSEMBLY

* Disassemble unit by removing handle from the trunnion.
* Unscrew the trunnion from the threaded bar.
* Remove all wooden blocks and pressing plates.
* Barrel can now be lifted from the base.
* Unscrew the feet of the base flipping/falling.

SAFETY CONSIFERATIONS

When using this press, it is necessary to follow these safety precautions. IMPORTANT: Crushing the fruits, mainly grapes and apples, may be required before pressing. Crushing can be done by running the fruit through your fruit crusher, shredder, or food mill.

SAVE THESE INSTRUCTIONS
