USER MANUAL SL-P01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multifunctional Fruit and Vegetable Slicer

MODEL:SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODEL:SL-P01/SL-02

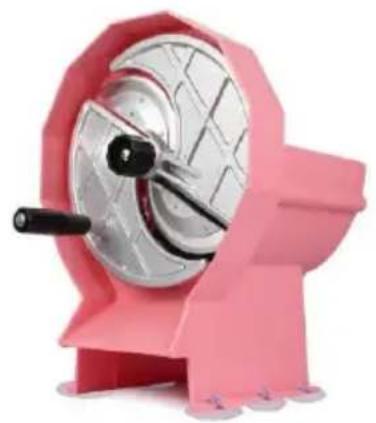

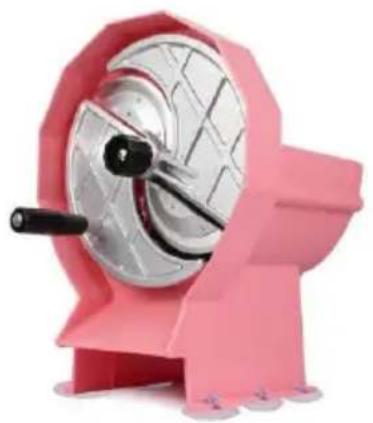

Pink industrial machine with a metallic blade and handle, no visible text or symbols

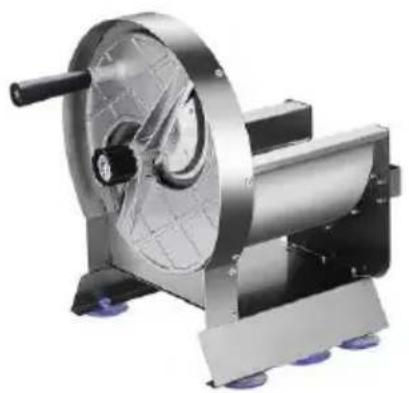

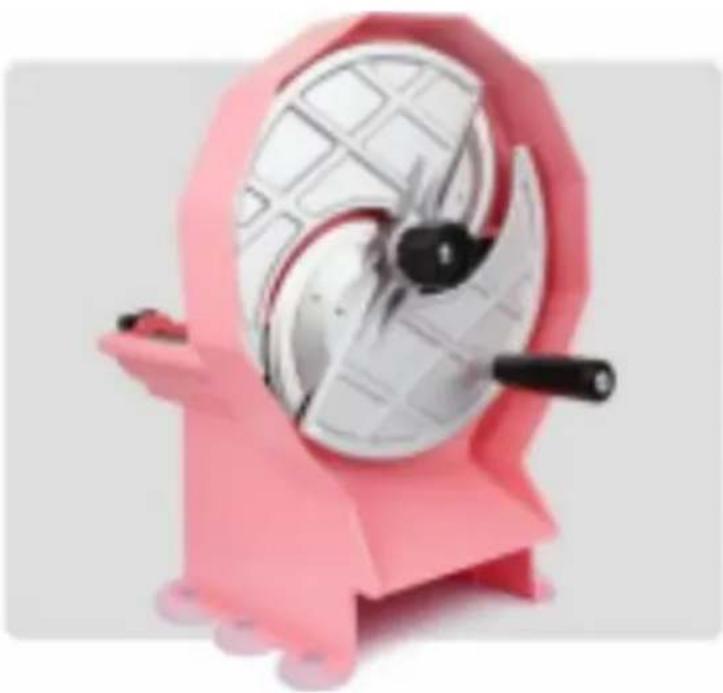

SL-P01 SL-02

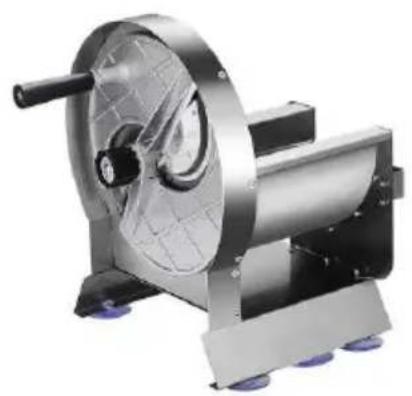

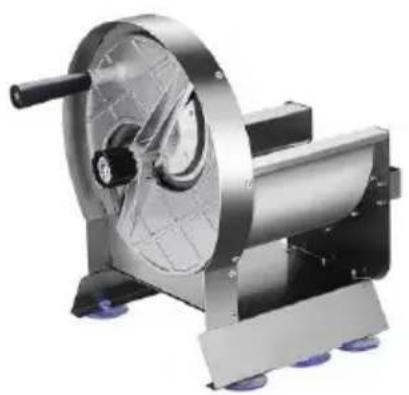

Metallic industrial machine with circular blade and mounting base (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Warning-To reduce the risk of injury, user must read instructic manual carefully. Always follow basic safety precautions when using these devices. These include:

1. The device should not be used with children. There are very sharp blades on the device. Children may encounter injury accidents. Therefore this product should be placed in a position not touched by children.

2. For optimal operation and service life of the device, please follow the instructions.

3. Food acids will make blades dull and corrode the metal. Always cle this food preparation equipment immediately after every use. To maintain the appearance and increase the service life, clean it daily.

4. The machine blades are very sharp, and care should be taken not touch the banging blade or blade directly or to operate with gloves of operation.

5. Do not put these devices in a dishwasher or other automatic cleani device for cleaning.

6. The use of accessories or modifications not provided by the manufacturer may cause hazards.

7. Only use this equipment for cutting fruits and vegetables! This product not suitable for processing foods with a hardness similar to sweet pot

8. Before using this equipment for the first time, please remove all packaging and fixing materials according to the illustration and use the after installation.

9. These devices require regular lubrication. Wipe the guide rod with mineral oil, food-grade lubricant, or a towel when lubrication is needed. not lubricate with cooking oil or another grease. Otherwise, it will be viscous and affect the use.

10. Do not cut food beyond the opening of the plate.

11. To replace blade sets, please ensure that the specifications and m of the blade plate and pressing block are consistent.

WARNING: Sharp Blade Hazard: Blades are sharp and can cause cut

avoid injury from sharp blades, handle with care.

SAVE THESE INSTRUCTIONS

Summarize

This product has a hand-integrated slicer, high efficiency, light structure and easy to disassemble and wash. Applicable to various places such shops, restaurants, stalls, milk tea shops, canteen, households, and other fruit and vegetable slice processing. Slice thickness is adjustable. The pieces are even and easy to see. Green environmental protection, maintain the original flavor, and are welcomed by users.

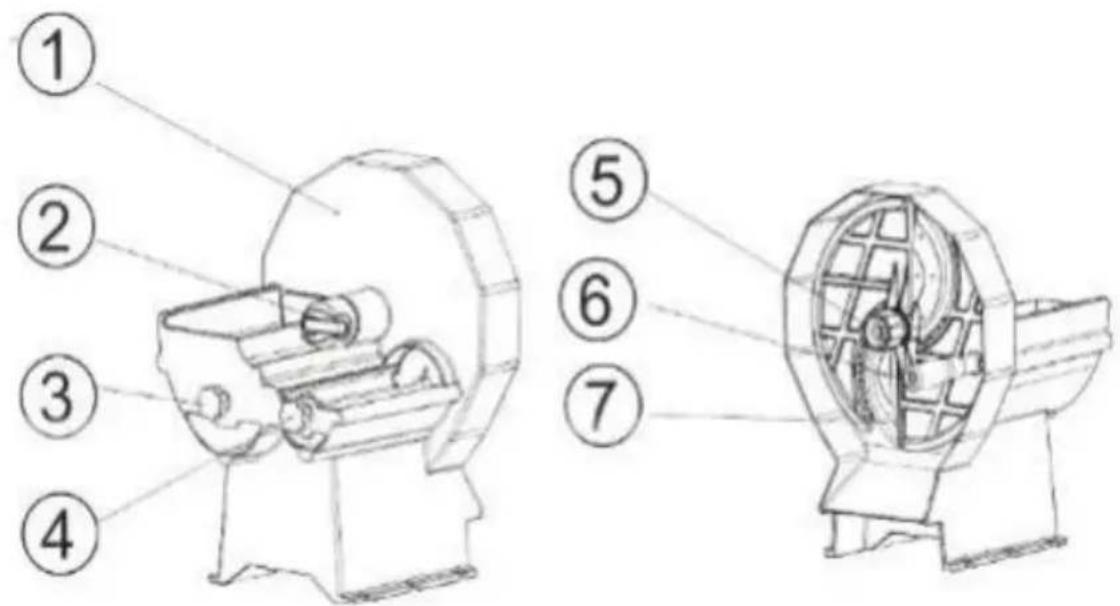

Technical diagram of a mechanical device with numbered parts for identification

1.Main body
2.Elastic buckle(Cutter Head Fixing Clamp)
3. Large Inlet Food Push Rod
4. Small Inlet Food Push Rod(SL-02 NO)
5. Cutting thickness adjusting handle
6.Turning handle of cutter head
7. Cutting Blade

1. Installation operation of the machine

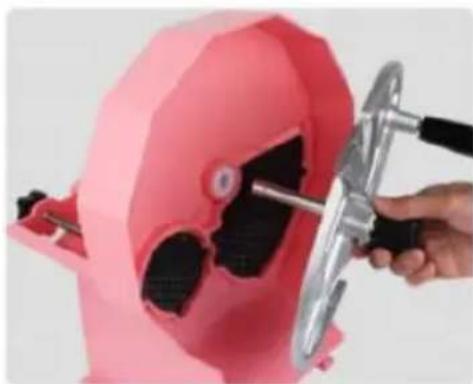

Take out the machine, install the handle on the cutter head with a

screwdriver and fix the nut with an inner Hexagon wrench. Then the machine base is sheathed with suction cup (stainless steel, Marble and other smooth table can be directly with 6 small suction cups; wood and other non-smooth table can be randomly equipped with screws fixed. slicing operation can be carried out after installation.

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small dark circular marks (no text or symbols)

Lock screw firm

Close-up of a black pen and several translucent circular objects with purple markings, no visible text or symbols.

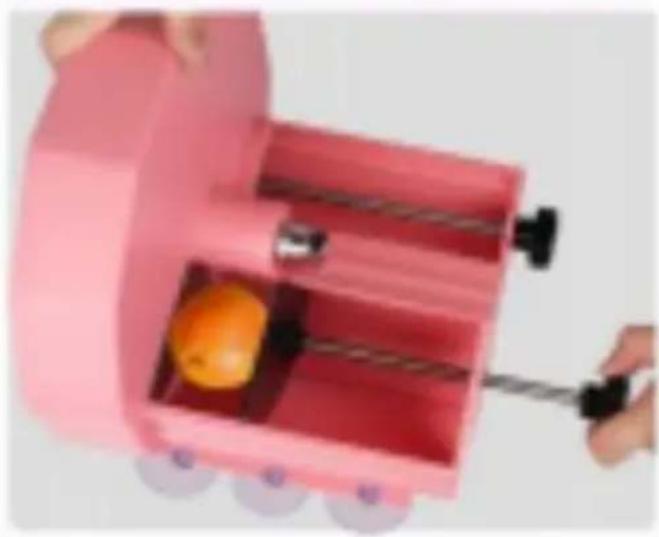

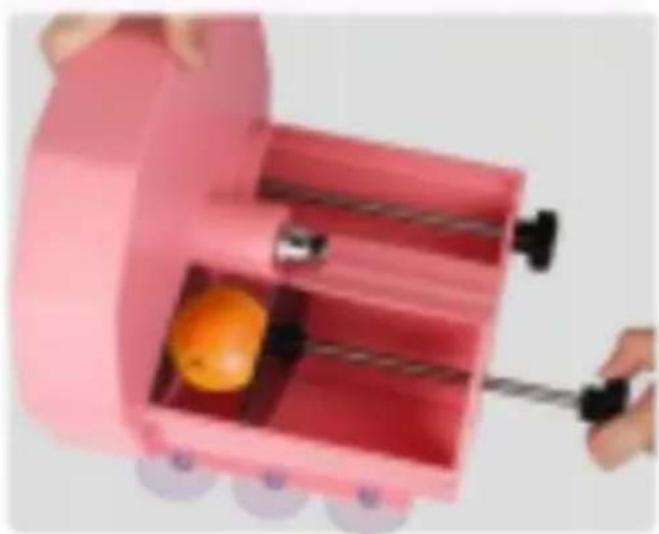

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink toy box with a hand holding a tool, containing an orange fruit inside and wheels (no text or symbols visible)

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

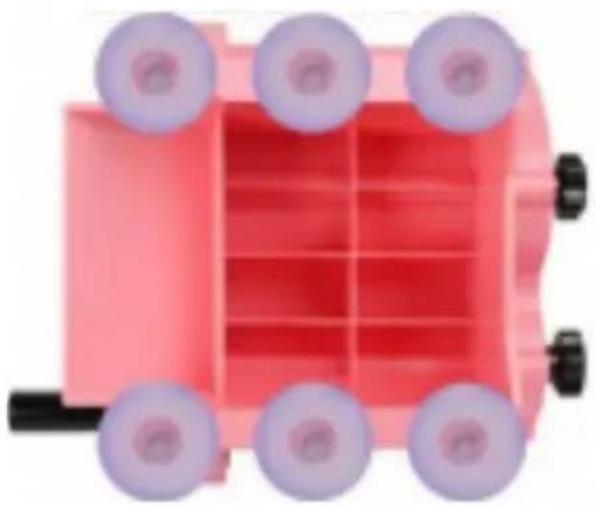

The base is stable and fixed for better operation

Top-down view of a red rectangular object with six wheels, no visible text or symbols

3D rendered pink mechanical device with a circular dial and handle, no visible text or symbols

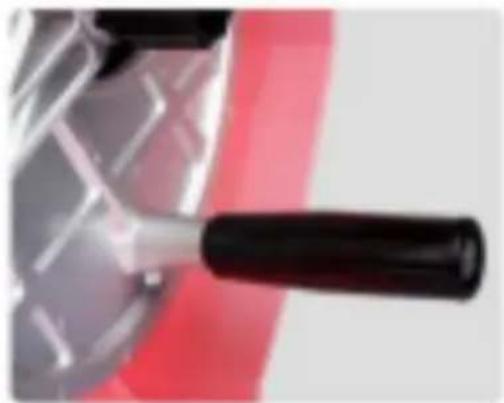

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a fan with a black handle, no visible text or symbols

Easy Slice in three steps

Simple operation, everyone can use

Close-up of a mechanical component with a cylindrical body and flanged shaft, no visible text or symbols.

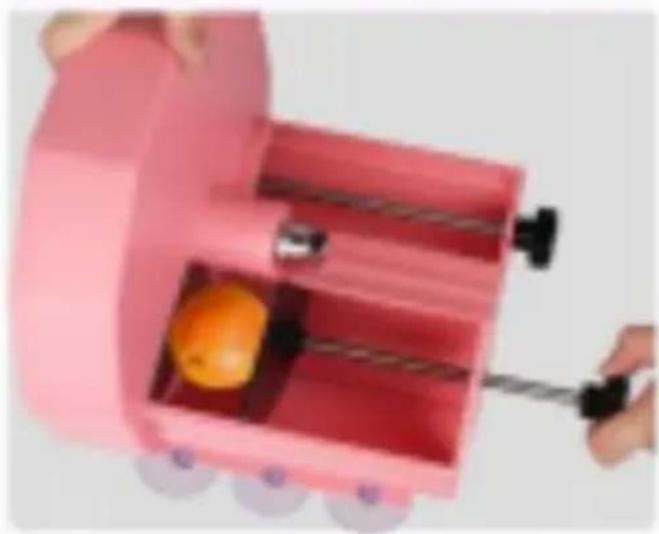

Put in the ingredients and pull the push rod

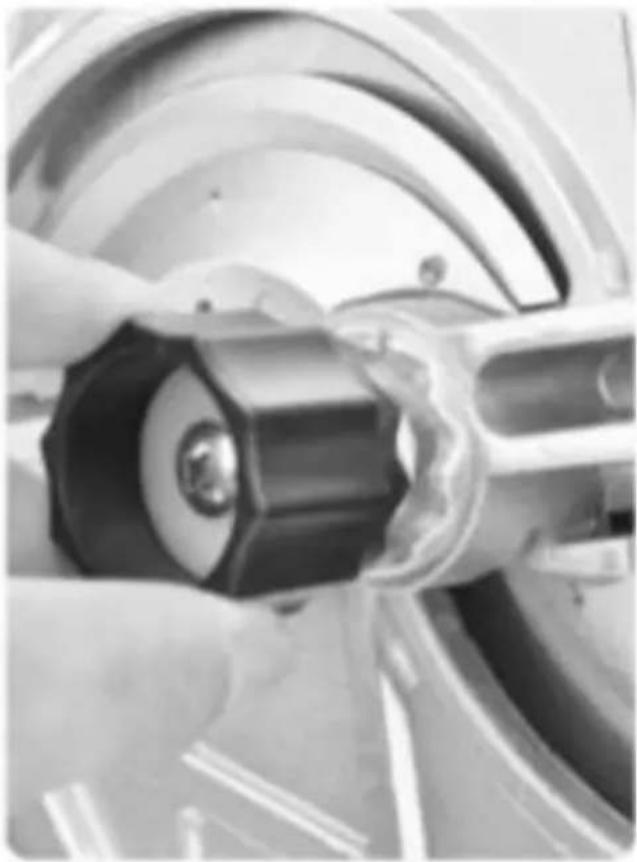

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

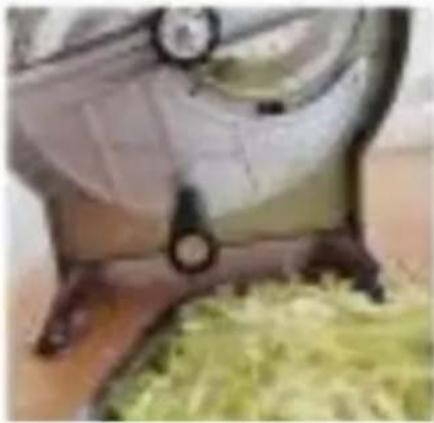

Cut cabbage

Close-up of white circular objects with dark edges, possibly food items or biological samples (no visible text or symbols)

Chop ginger

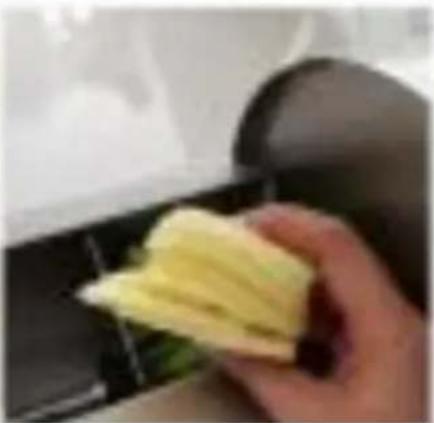

Hand holding a piece of cheese or cheese next to a dark container (no visible text or symbols)

Cut potatoes

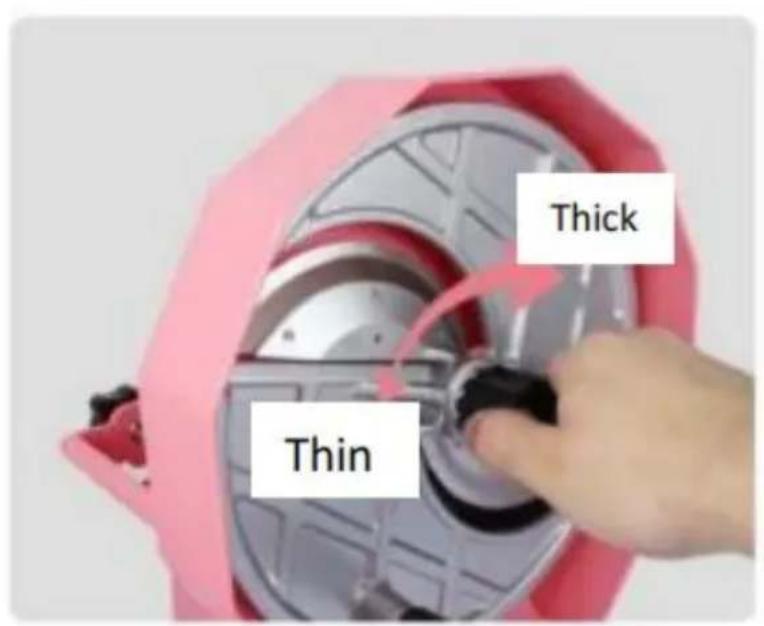

2.Thickness adjustment

Put the food into the groove and try to cut it to see the thickness. suitable, you can adjust the thickness. (1): Pull the outer ring of the adjusting knob out, (2) gently turn the knob to turn left and right, In counter-clockwise direction to adjust the thickness; to the clockwise direction to adjust the thickness, the knob card back to the card slot thickness will not run. Pay attention to the feeling in your hand. If the any resistance to rotation, it means that it has been rotated to the e you'll wear out the adjusting thread.)

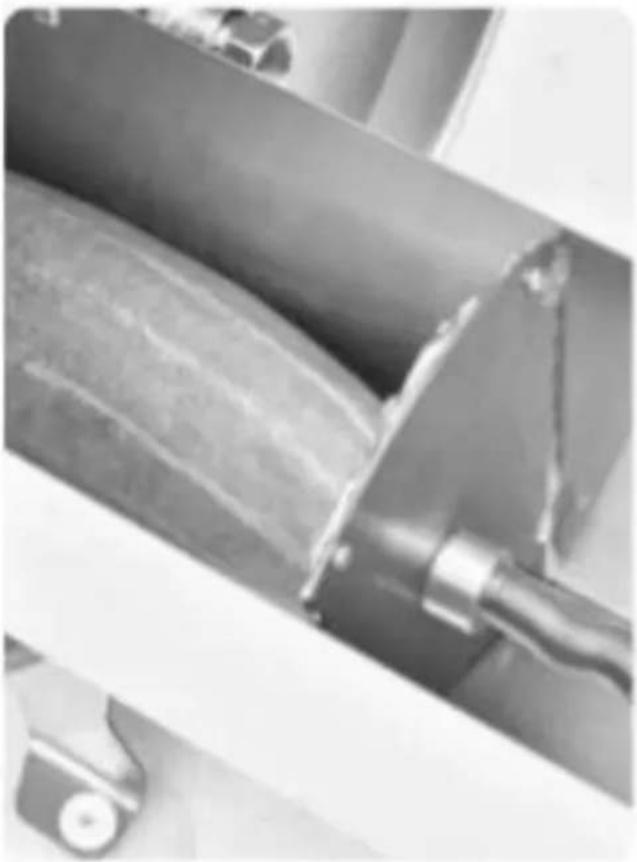

Spring assisted propulsion

The spring drives the material into the knife, saving time and effort to prevent cutting hands

Thin Thick

Thickness adjustable to meet multiple requirements

Pink paper mechanical component with black handles and a rectangular base (no text or symbols visible)

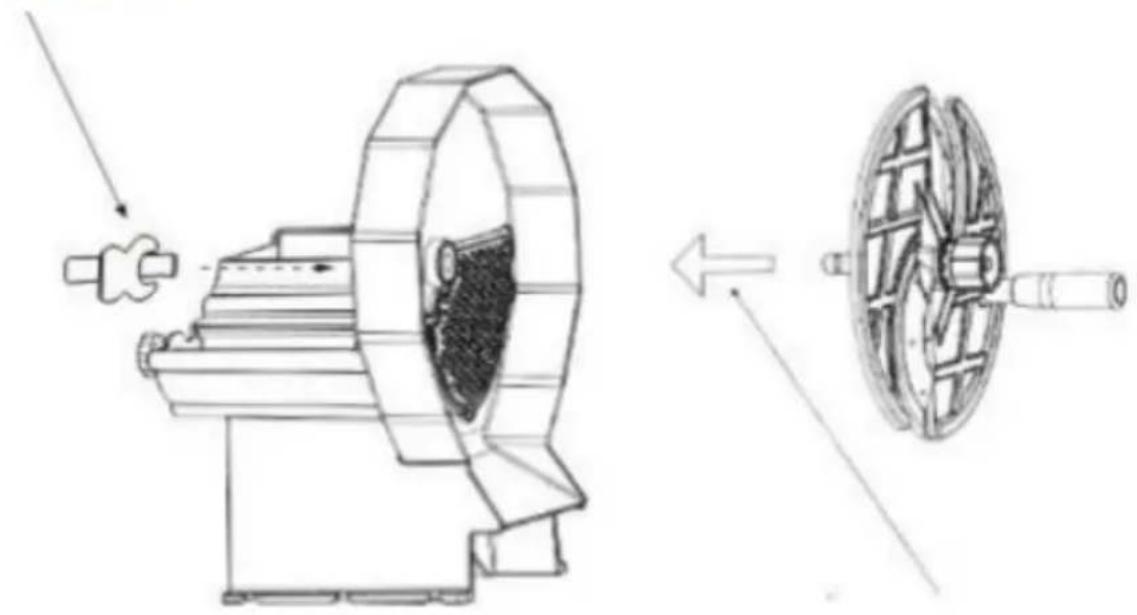

Instructions for installation and disassembly of

machine

2、to fix the

Technical line drawing of a mechanical device showing internal components before and after assembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Hand operating a mechanical device with black components inside a pink plastic housing (no text or symbols visible)

3、Detachable cutter head

Two pink plastic objects: a circular fan with black holes and a circular disc with a metallic ring (no text or symbols visible)

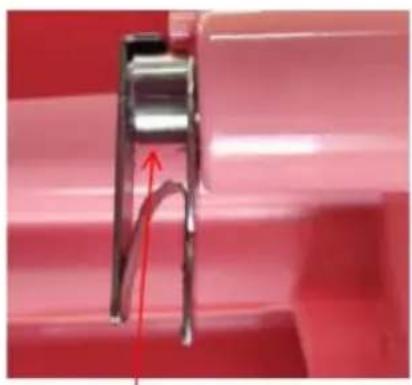

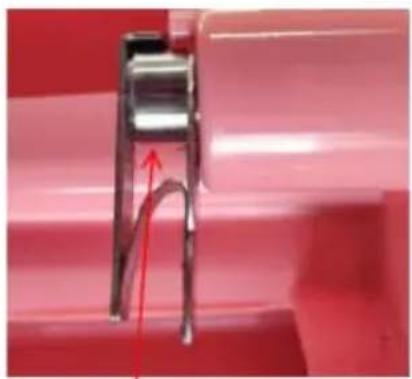

SL-p01Remove the safety buckle by hand to remove the cutter head.

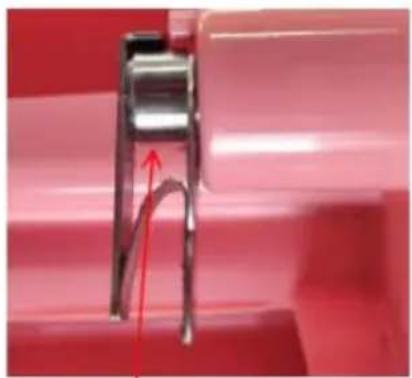

Close-up of a metallic mechanical component with a red arrow indicating a curved feature, against a red background (no text or symbols)

Elastic

Close-up of a hand using a tool to adjust metal components (no visible text or symbols)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white dome-shaped object (no text or symbols visible)

Close-up of a metallic curved surface with small circular holes, no text or symbols visible.

4、Remove blade with screwdriver, Removed blade.

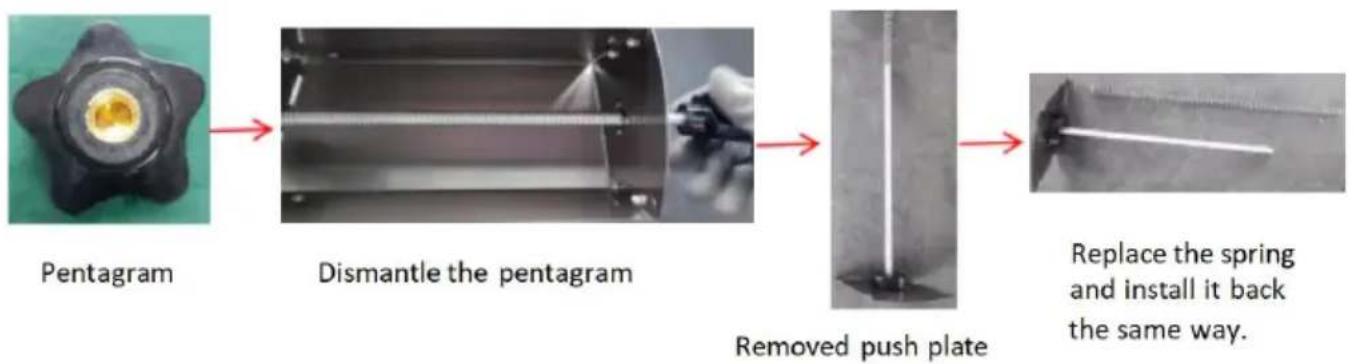

3.Step to replace spring

First, you need to remove the cutter head and then remove the tie pentagram; the push plate can be removed to replace the spring. Re the spring, install the return groove on the push rod, fix it in place pentagram, and install the cutter head. Lock the cutter head with the buckle for normal use.

4. Cleaning

After slicing, the machine should be cleaned, the whole machine should be cleaned, or the cutter head should be cleaned. After cleaning, it is recommended to dry the water stains to keep the fuselage clean and prevent rusting. (Note: Do not use dishwasher to clean cutter head a fuselage)

5.Procedure of removing cutter head

(1) Pull the buckle out and take off the safety buckle.
(2) The cutter head can be washed, or the blade can be replaced by drawing out the cutter head.

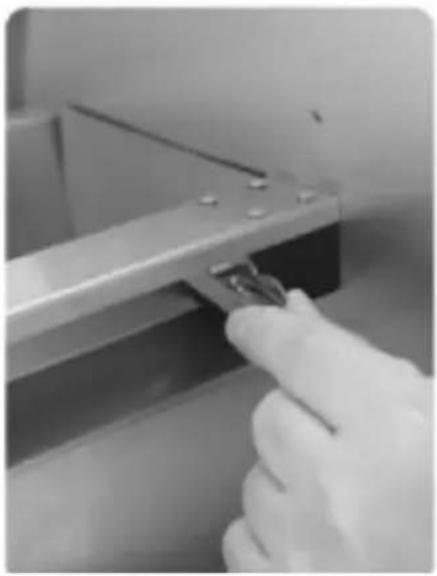

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

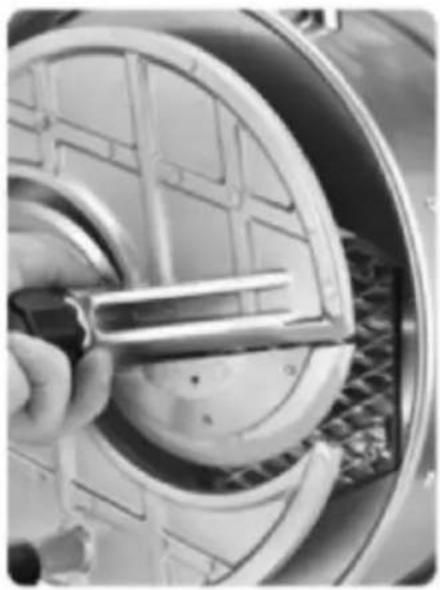

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

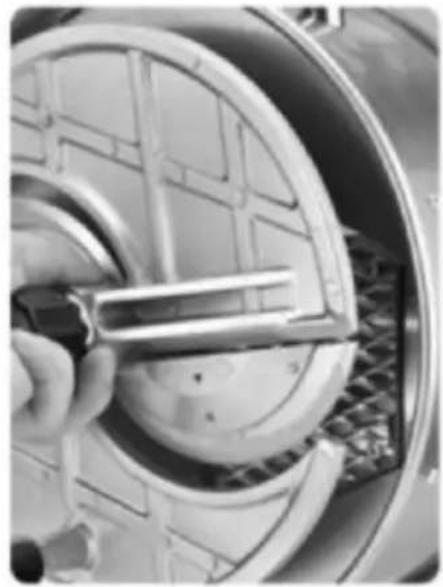

Remove cutter head

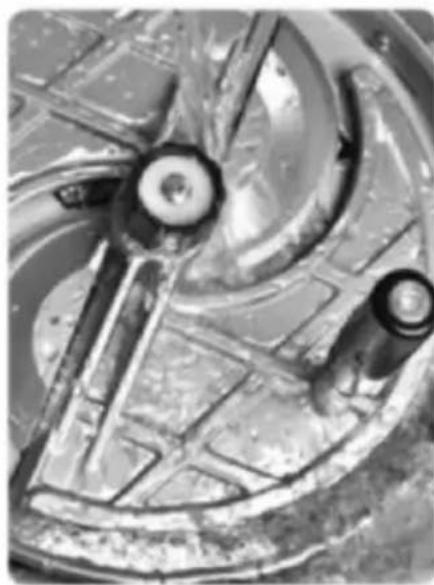

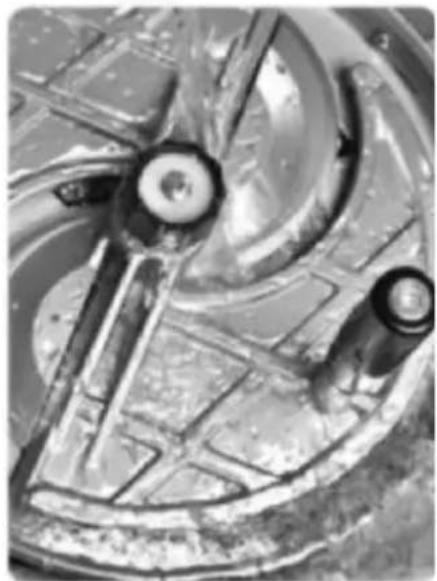

Close-up of a mechanical component with no visible text or symbols

Easy rinse

clean cutterhead and fuselage

Note: If there is any technical change, please refer to the nameplate product without further notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE: SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODÈLE: SL-P01/SL-02

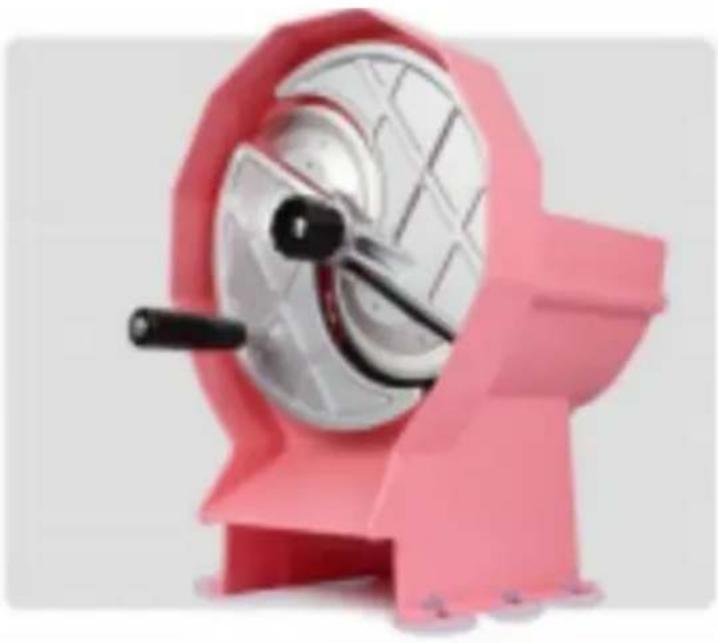

Pink plastic mechanical device with a circular dial and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular top and internal mesh structure (no visible text or symbols)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GARANTIES IMPORTANTES

Technical diagram of a mechanical device with seven numbered parts labeled for identification.

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink plastic tray with an orange interior and black handles, being cut by a hand using a tool (no text or symbols visible)

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with black buttons (no text or symbols visible)

The base is stable and fixed for better operation

Top-down view of a red and pink toy vehicle with six wheels (no text or symbols visible)

Pink industrial fan with a handle and mesh blade, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a metallic handle and cylindrical body, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

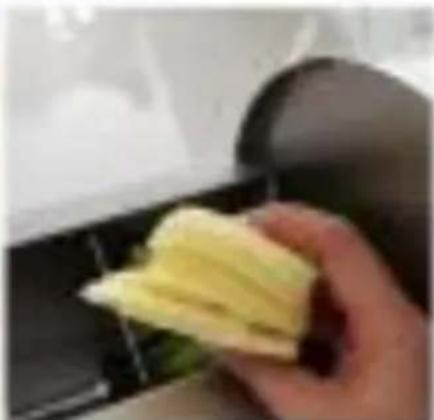

Cut potatoes

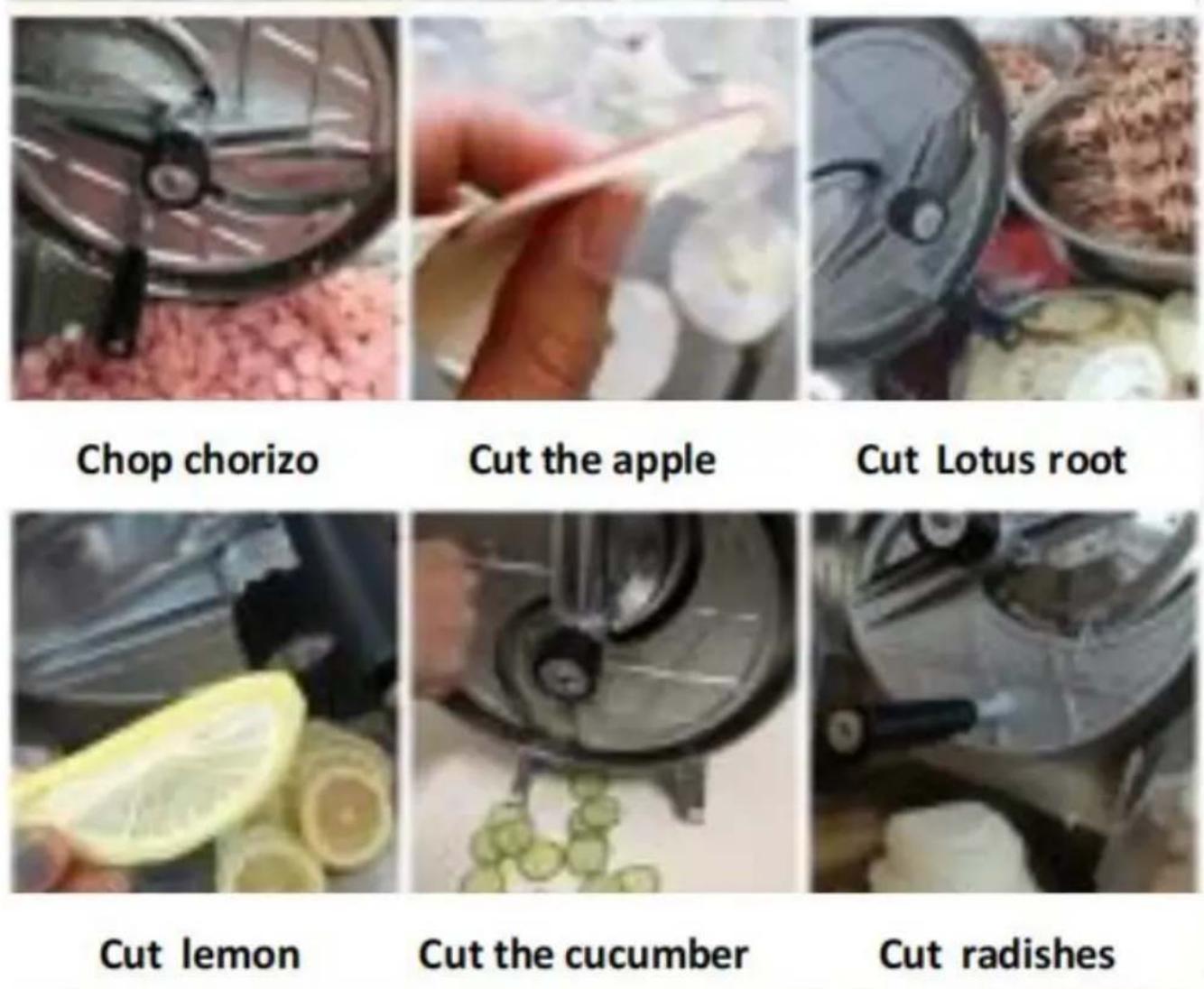

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

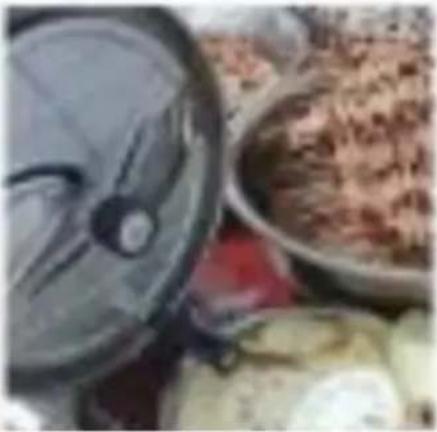

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

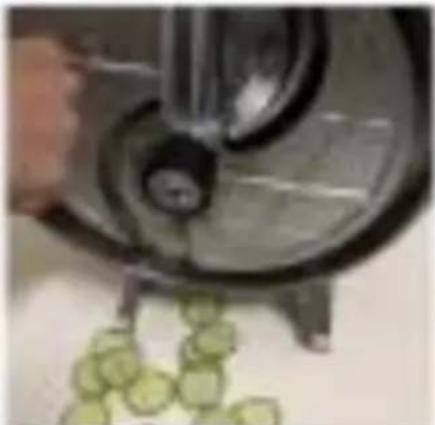

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

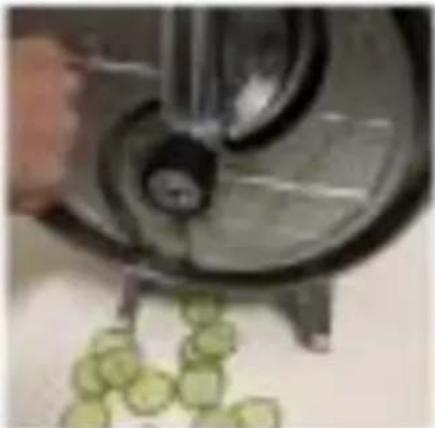

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool near the wheel (no visible text or symbols)

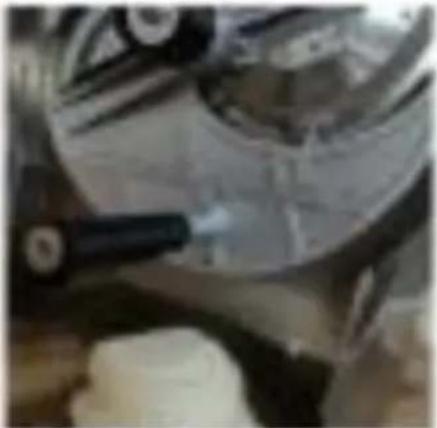

Cut radishes

Thickness adjustable to meet multiple requirements

Pink paper mechanical component with black clamps, no visible text or symbols

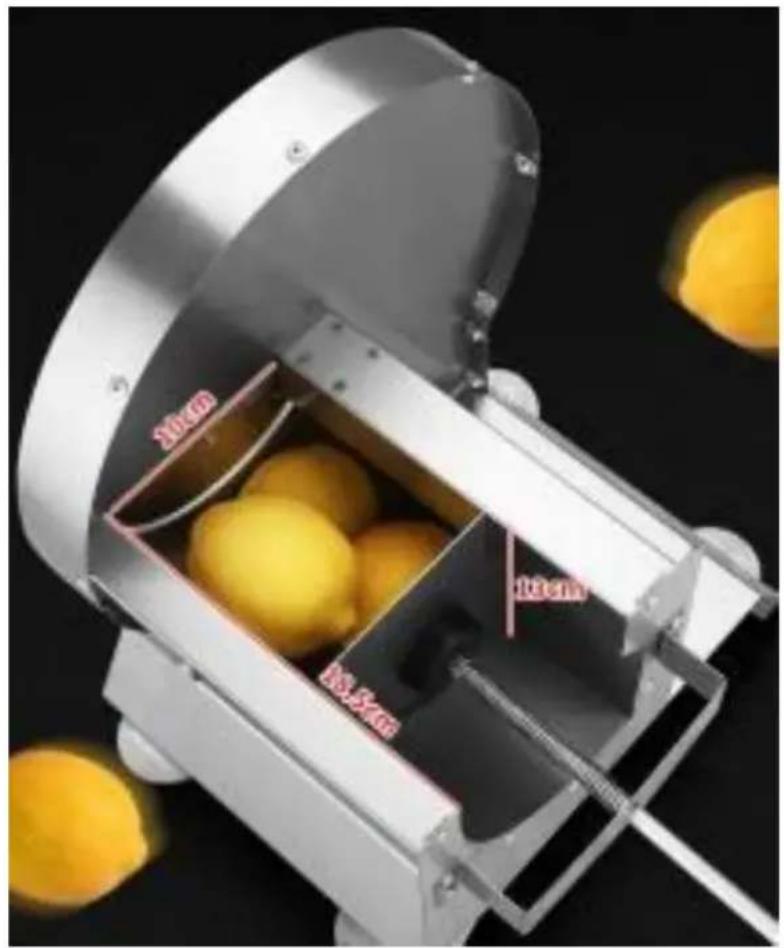

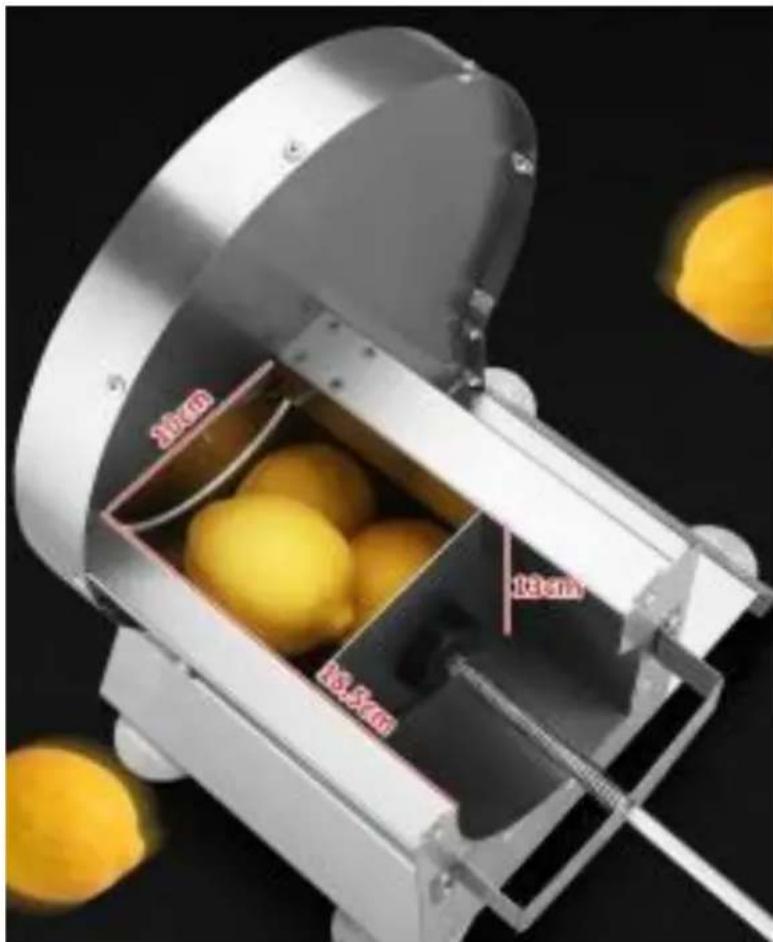

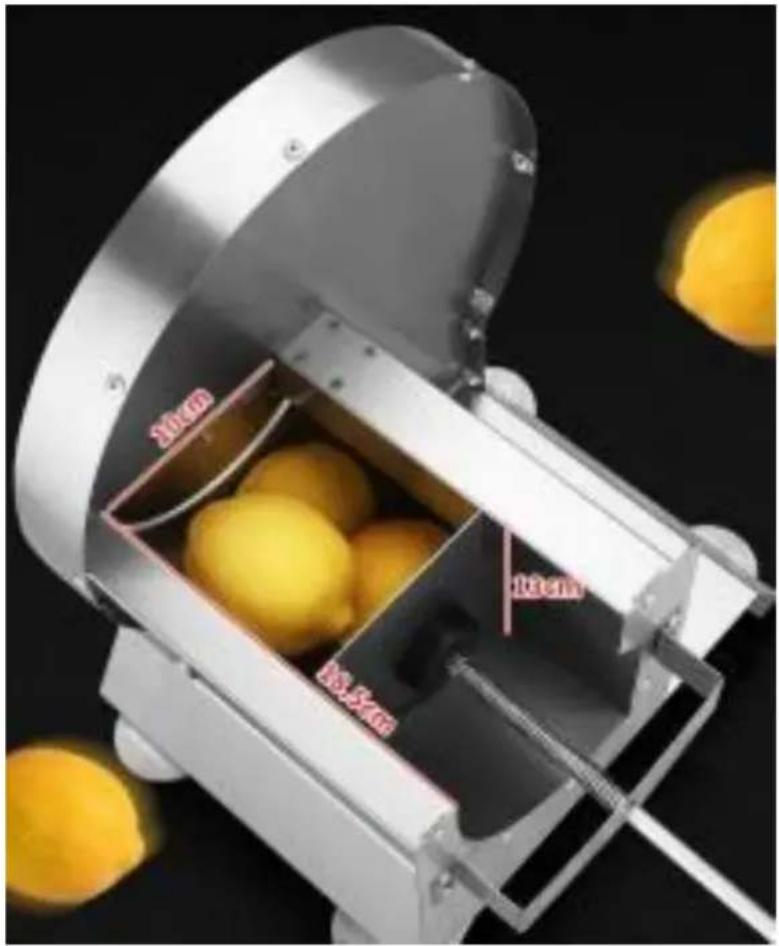

20cm 18.5cm 14cm

Technical line drawing of a mechanical device with internal components, showing assembly and disassembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a pink 3D-printed helmet with black components being handled by a hand using a metal clamp (no text or symbols visible)

3、Detachable cutter head

Two small electronic devices: a pink circular device with black internal components and a white circular disc with a silver lens (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic mechanical component with a red arrow indicating a curved feature, against a red background (no text or symbols)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white circular object with a small component (no text or symbols visible)

Close-up of a metallic curved surface with small circular indentations, no visible text or symbols.

4、Remove blade with screwdriver, Removed blade.

5. Nettoyage

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with no visible text or symbols

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODELL: SL-P01/SL-02

Pink plastic mechanical device with a circular dial and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular top and internal mesh structure (no visible text or symbols)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Technical diagram of a mechanical device with seven numbered parts labeled for identification.

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink plastic tray with an orange interior and black handles, being cut by a hand using a tool (no text or symbols visible)

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

The base is stable and fixed for better operation

Top-down view of a red and pink toy vehicle with six wheels (no text or symbols visible)

Pink industrial fan with a handle and mesh blade, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a cylindrical body and flanged shaft, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

Close-up of a car wheel and a knife resting on a surface with pink granular material (no visible text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a yellow lemon slice, with sliced citrus fruits in the background (no text or symbols visible)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle wheel with a black tool applying material to its side (no visible text or symbols)

Cut radishes

Thickness adjustable to meet multiple requirements

Pink paper mechanical component with black bolts and a flat blade (no text or symbols visible)

20cm 10cm 8.5cm

Technical line drawing of a mechanical device with internal components, showing assembly and disassembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Hand holding a metallic tool interacting with a pink 3D-printed helmet component (no text or symbols visible)

3、Detachable cutter head

Pink plastic object with internal dark fragments next to a circular disc (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic tool or bracket with a red arrow pointing to a curved edge, against a red background (no text or symbols visible)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white dome-shaped object (no text or symbols visible)

Close-up of a metallic curved surface with small circular indentations, no visible text or symbols.

4、Remove blade with screwdriver, Removed blade.

6. Reinigung

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols.

Remove cutter head

Close-up of a mechanical component with no visible text or symbols

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO: SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODELLO: SL-P01/SL-02

Pink plastic mechanical device with a circular saw and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular blade and mounting base (no visible text or symbols)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

TUTELA IMPORTANTE

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink toy box with orange interior and black handle, no visible text or symbols

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

The base is stable and fixed for better operation

Top-down view of a red and pink toy vehicle with six wheels (no text or symbols visible)

Pink industrial fan with a handle and mesh blade, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a cylindrical body and flanged shaft, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool near the wheel (no visible text or symbols)

Cut radishes

Thickness adjustable to meet multiple requirements

Pink paper mechanical component with black cylindrical pins and a flat blade (no text or symbols visible)

20 cm 10 cm 15.5 cm

Technical line drawing of a mechanical device before and after assembly, showing internal components and motion direction (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a pink 3D-printed helmet with black components being handled by a hand using a metal clamp (no text or symbols visible)

3、Detachable cutter head

Two small electronic devices: a pink circular device with black internal components and a white circular disc with a silver lens (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic mechanical component with a red arrow indicating a curved feature, against a red background (no text or symbols)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white circular object with a small component (no text or symbols visible)

Close-up of a metallic curved surface with small white dots, no visible text or symbols

4、Remove blade with screwdriver, Removed blade.

7. Pulizia

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with visible gears and blades (no text or symbols)

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODELO: SL-P01/SL-02

Pink plastic mechanical device with a circular saw and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular blade and mounting base (no text or symbols visible)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink toy box with orange interior and black handle, no visible text or symbols

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

The base is stable and fixed for better operation

Top-down view of a red rectangular object with six wheels, no visible text or symbols

Pink industrial machine with a circular dial and handle, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a metallic handle and cylindrical body, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool applying material to the wheel (no visible text or symbols)

Cut radishes

Thickness adjustable to meet multiple requirements

Pink mechanical component with black adjustment knobs and a flat top (no visible text or symbols)

20mm 15.5mm 10mm

Technical line drawing of a mechanical device with internal components, showing assembly and disassembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a pink mechanical device with black components being handled by a hand using a metal clamp (no visible text or symbols)

3、Detachable cutter head

Pink plastic object with internal dark fragments next to a circular disc (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic tool or bracket with a red arrow pointing to a curved edge, against a red background (no text or symbols visible)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white circular object with a small inset showing internal components (no text or symbols visible)

Close-up of a metallic curved surface with small white dots, no visible text or symbols

4、Remove blade with screwdriver, Removed blade.

8. Limpieza

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with visible gears and blades (no text or symbols)

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODEL: SL-P01/SL-02

Pink plastic mechanical device with a circular saw and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular blade and mounting base (no text or symbols visible)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAŻNI OCHRONIARZE

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink plastic tray with an orange interior and black handles, being cut by a hand using a tool (no text or symbols visible)

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

The base is stable and fixed for better operation

Top-down view of a red and pink toy vehicle with six wheels (no text or symbols visible)

Pink industrial fan with a handle and mesh blade, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a cylindrical body and flanged shaft, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object, blurred background with no visible text or symbols

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool applying material to the wheel (no visible text or symbols)

Cut radishes

Thickness adjustable to meet multiple requirements

Pink paper mechanical component with black cylindrical pins and a flat blade (no text or symbols visible)

30cm 10cm 15.5cm

Technical line drawing of a mechanical device with internal components, showing assembly and disassembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a pink mechanical device with black components being handled by a hand using a metal clamp (no visible text or symbols)

3、Detachable cutter head

Two pink plastic objects: a circular fan with black interior and a circular disc with white rim (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic tool or bracket with a red arrow pointing to a curved edge, against a red background (no text or symbols visible)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white circular object with a small component (no text or symbols visible)

Close-up of a metallic curved surface with small circular indentations, no visible text or symbols.

4、Remove blade with screwdriver, Removed blade.

9. Czyszczenie

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with no visible text or symbols

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODEL: SL-P01/SL-02

Pink plastic mechanical device with a circular saw and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular blade and mounting base (no text or symbols visible)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

BELANGRIJKE VEILIGHEIDSMAATREGELEN

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small circular indentations (no text or symbols)

Lock screw firm

Close-up of a black bottle and several translucent circular objects with purple and white markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink toy box with orange interior and black handle, no visible text or symbols

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with no visible text or symbols

The base is stable and fixed for better operation

Top-down view of a red and pink toy vehicle with six wheels (no text or symbols visible)

Pink industrial fan with a handle and mesh blade, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Easy Slice in drie stappen

Close-up of a mechanical component with a cylindrical body and flanged shaft, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool applying material to the wheel (no visible text or symbols)

Cut radishes

Thickness adjustable to meet multiple requirements

Pink mechanical component with black adjustment knobs and a cylindrical shaft (no visible text or symbols)

20mm 15.5mm 10mm

Technical line drawing of a mechanical device before and after assembly, showing internal components and motion (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a hand using a tool to adjust a pink 3D-printed helmet component (no visible text or symbols)

SL-p01Remove the safety buckle by hand to remove the cutter head.
3、Detachable cutter head

Two pink plastic devices, one with a black interior and the other a white circular tray (no text or symbols visible)

Close-up of a metallic component with a curved metal end, against a red background (no text or symbols visible)

Elastic

Close-up of a hand adjusting a metal bracket with a red arrow pointing to the handle (no text or symbols visible)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white circular object with a small inset showing internal components (no text or symbols visible)

Close-up of a metallic curved surface with small circular indentations, no visible text or symbols.

4、Remove blade with screwdriver, Removed blade.

10. Schoonmaak

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with visible gears and blades (no text or symbols)

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: SL-P01/SL-02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Multifunctional Fruit and Vegetable Slicer

MODELL: SL-P01/SL-02

Pink plastic mechanical device with a circular dial and handle, no visible text or symbols

3D rendering of a stainless steel industrial machine with a circular top and wheels (no visible text or symbols)

SL-P01 SL-02

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

VIKTIGA SÄKERHETSÅTGÄRDER

Technical diagram of a mechanical device with numbered parts for identification

Close-up of a pink fabric with a circular white object nearby (no text or symbols visible)

Unique suction cup design, adsorption more stable, do not worry about shaking

Orange juice being splashing with a splash (no text or symbols)

Close-up of a pink and white surface with small dark circular marks (no text or symbols)

Lock screw firm

Close-up of a black pen and several translucent circular objects with purple markings, no visible text or symbols.

Complete accessories, stable installation allows you to operate more stable, safer to use

Pink toy box with a hand holding a tool, containing an orange fruit inside and wheels (no text or symbols visible)

Strongly elastic pull ring

Pink 3D-rendered object resembling a stylized helmet or device with a cylindrical body and two small protrusions (no text or symbols visible)

The base is stable and fixed for better operation

Top-down view of a red rectangular object with six wheels, no visible text or symbols

Pink industrial machine with a circular dial and handle, no visible text or symbols

Handle of humanized design

Close-up of a black tool handle against a red and gray background (no text or symbols visible)

Pink cartoon character holding a white fan with a black handle, no visible text or symbols

Close-up of a mechanical component with a metallic handle and cylindrical body, no visible text or symbols

Put in the ingredients and pull the push rod

Close-up of a hand adjusting a mechanical component with a rotary knob (no visible text or symbols)

Adjust slice thickness turn nut, adjust slice thickness

Close-up of a kitchen grater with chopped green vegetables, no visible text or symbols

Cut cabbage

Close-up of white circular objects with dark outlines, possibly food items or containers (no visible text or symbols)

Chop ginger

Hand holding a piece of cheese or cheese next to a black tray (no visible text or symbols)

Cut potatoes

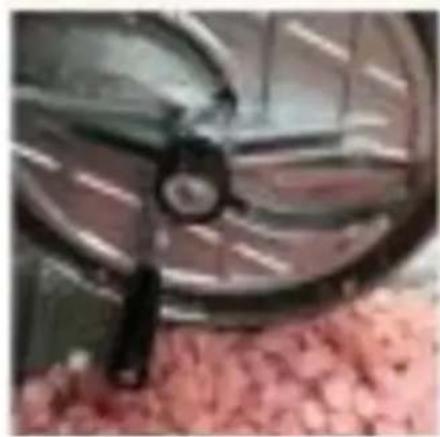

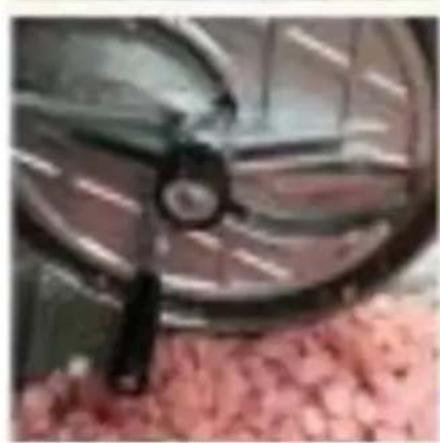

Close-up of a car wheel with a black tool partially visible, surrounded by pink granular material (no text or symbols)

Chop chorizo

Close-up of a hand holding a small white object against a blurred background (no text or symbols visible)

Cut the apple

Close-up of a kitchen pot and food items including a bowl of meat and a knife (no visible text or symbols)

Cut Lotus root

Close-up of a hand holding a lime slice, with sliced citrus fruits in the background (no visible text or symbols)

Cut lemon

Close-up of a hand using a mechanical device to press green leafy vegetables (no text or symbols visible)

Cut the cucumber

Close-up of a motorcycle's wheel and seat, showing a black tool near the wheel (no visible text or symbols)

Cut radishes

2 . Tjockleksjustering

Thickness adjustable to meet multiple requirements

Pink mechanical component with black adjustment knobs and a cylindrical shaft (no visible text or symbols)

20mm 15.5mm 10mm

Technical line drawing of a mechanical device with internal components, showing assembly and disassembly (no text or symbols)

1、Insert the cutter head into the hole of the body.

Close-up of a pink mechanical device with black components being handled by a hand using a metal clamp (no visible text or symbols)

3、Detachable cutter head

Pink plastic object with internal black components next to a circular white disc (no text or symbols visible)

SL-p01Remove the safety buckle by hand to remove the cutter head.

Close-up of a metallic tool or bracket with a red arrow pointing to a curved edge, against a red background (no text or symbols visible)

Elastic

Close-up of a hand pressing down on a metallic mechanical component with a red arrow pointing to the handle (no visible text or symbols)

SL-02 Remove the safety buckle by hand to remove the cutter head.

Close-up of hands using a screwdriver to cut a white dome-shaped object (no text or symbols visible)

Close-up of a metallic curved surface with small circular holes, no text or symbols visible.

4、Remove blade with screwdriver, Removed blade.

11. Rengöring

Close-up of a hand holding a metal clip attached to a metal bracket (no text or symbols visible)

Just remove the safety buckle

Close-up of a mechanical component with a hand operating a tool, showing internal gear and mesh structure (no text or symbols visible)

Remove cutter head

Close-up of a mechanical component with no visible text or symbols

Easy rinse

clean cutterhead and fuselage

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
