USER MANUAL O6120L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WORKTOP WORKBENCH USER'S MANUAL

MODEL:O6120L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

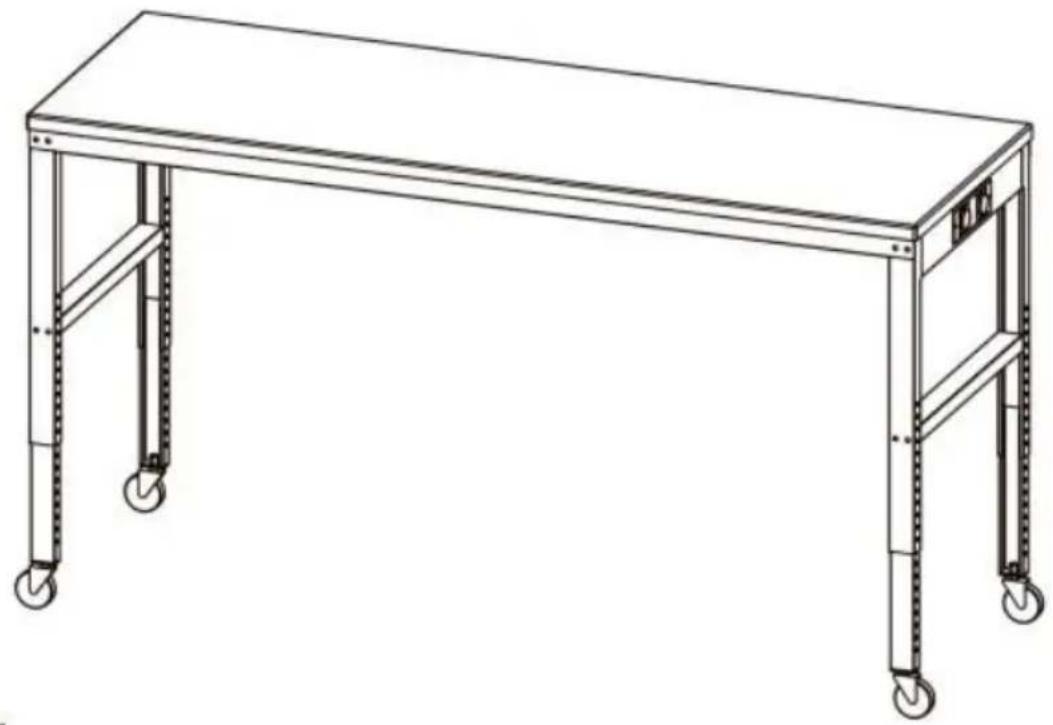

MODEL:O6120L

Line drawing of a four-legged metal table with wheels, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Please read this user manual carefully!

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safe supporting a fully loaded workbench.

Use Precautions

1. Do not attach or mount this product to a vehicle. This may cause personal injury or product damage.
2. Do not stand or step on this product. You may fall which may cause personal injury.
3. Keep the product on level surfaces. The product may become unsta and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
4. Lock the drawers before moving this product. The drawers could open and make the product unstable and tip, which may cause personal or product damage.
5. Keep children and bystanders away while loading, unloading and moving the product.

6. Do not lift the product directly with a forklift or tow with any mec devices.

7. Do not exceed the maximum load capacity, including contents. Do not exceed the maximum load capacity of each drawer. Do not exceed maximum load capacity of each tray.

8. Do not alter this product in any manner.
9. The box contains some small components; please place them prop before installation to keep them away from kids and ensure safety
10. Before installing the socket, the desktop should be cleaned to en that there are no stains on the desktop. In particular, attention sh be paid to not bringing water into the socket so as to avoid saf problems during subsequent use.

CAUTION: Carefully read instructions and procedures for safe operation SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	O6120L
Desktop Size	61"x20"
Maximum Load Capacity	1540lbs
Table Height Range	31.5"-40.9"
Power Strip	AC 230V 50Hz, USB (DC5V,2.1A)

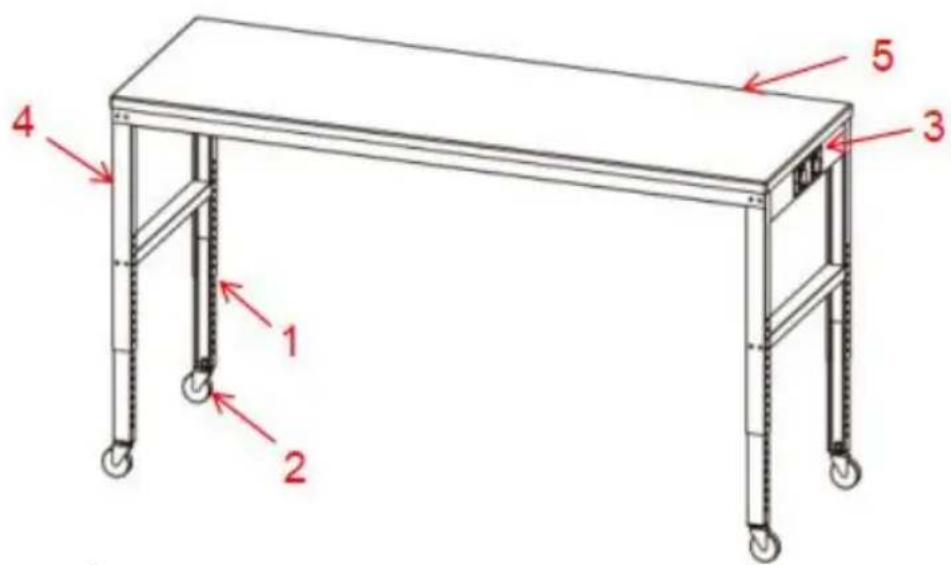

STRUCTURE DIAGRAM

1 2 3 4 5

1. Telescopic Leg
2. Universal Wheel
3. Power Strip
4. Desktop Support
5. Desktop

COMPONENTS

P1x1	M5.5*12mmF1 x 24	M8*12mmF2 x 8
I I	M8F3 x 16	M8*65mmF4x8
P4x2	M4*12mmF5x2
[06H] P5x4 P6x4	F6x1

INSTALLATION

Installation Preparation:

1. Two or more people to move and assemble the workbench.
2. Please prepare a carpet or mat to protect your floor you need to out all the accessories.
3. Please prepare gloves to avoid being scratched by sharp parts that occur during installation.
4. Please open all the boxes to check that the accessories are comp and in good condition.
5. If you need to use power tools to install this product, please set speed to low speed in advance.
6. When installing, please align all the holes and do not tighten all screws first; otherwise, it may make the installation difficult.

Installation:

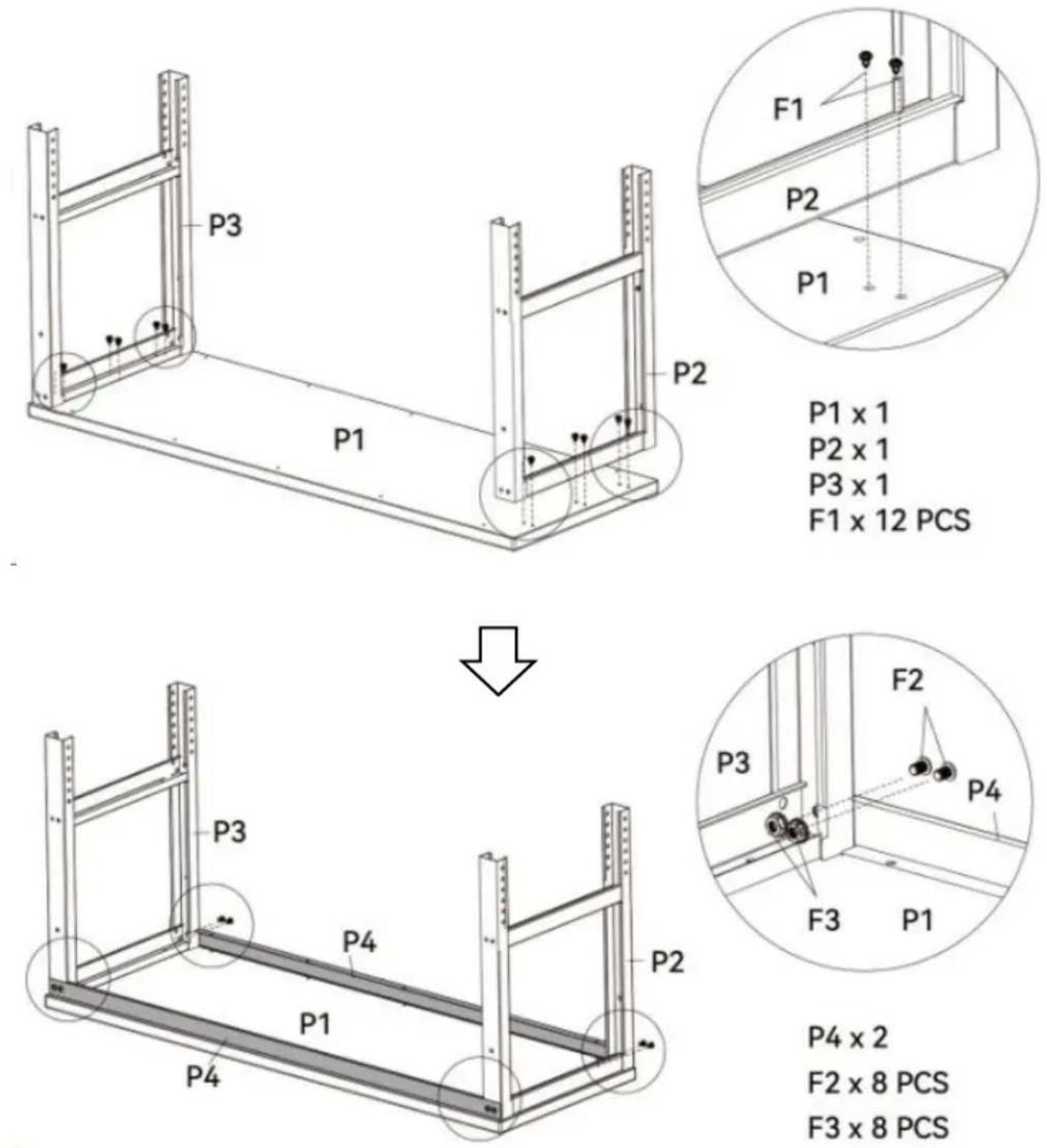

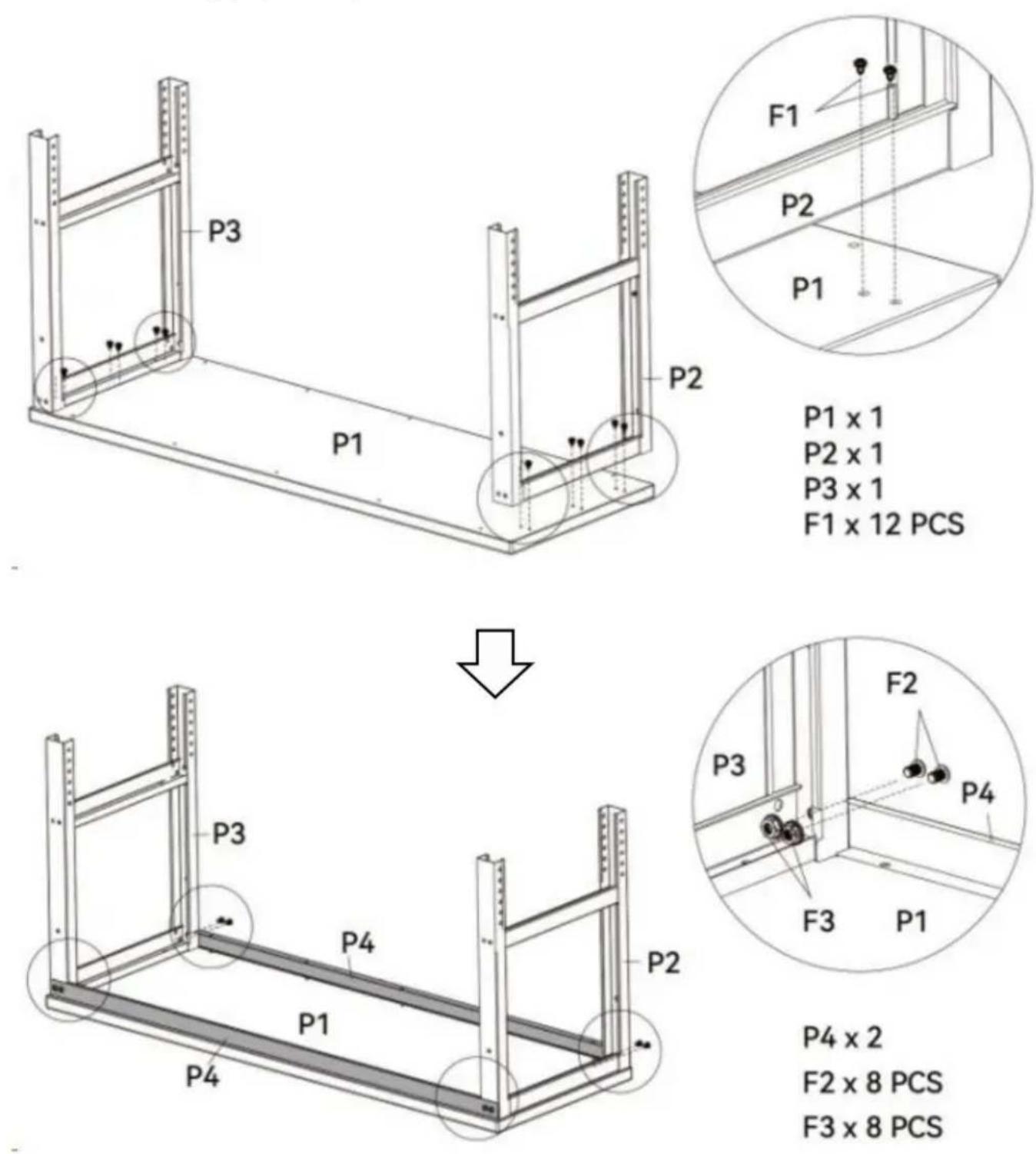

STEP 1: Install the desktop and supports

P1 x 1
P2 x 1
P3 x 1
F1 x 12 PCS
P4×2
F2 × 8 PCS
F3 × 8 PCS

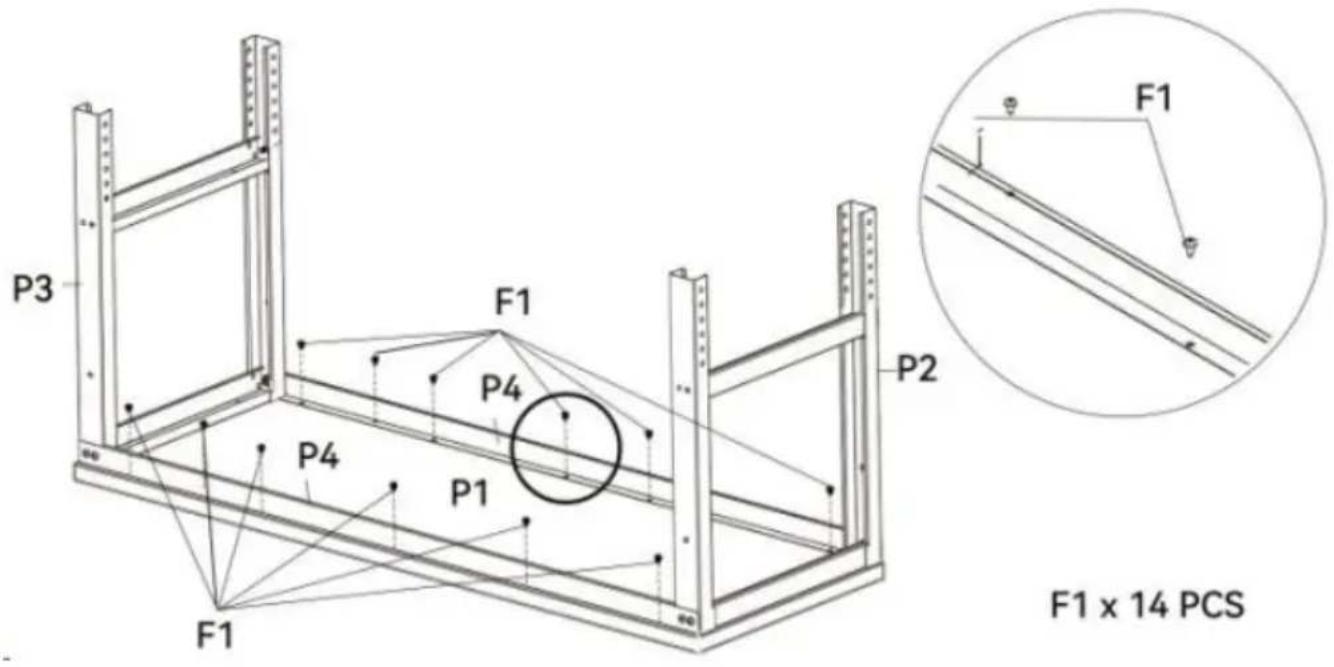

STEP 2: Lock the self-tapping screws.

P3 F1 P4 P2 P1 P4 F1 F1 x 14 PCS

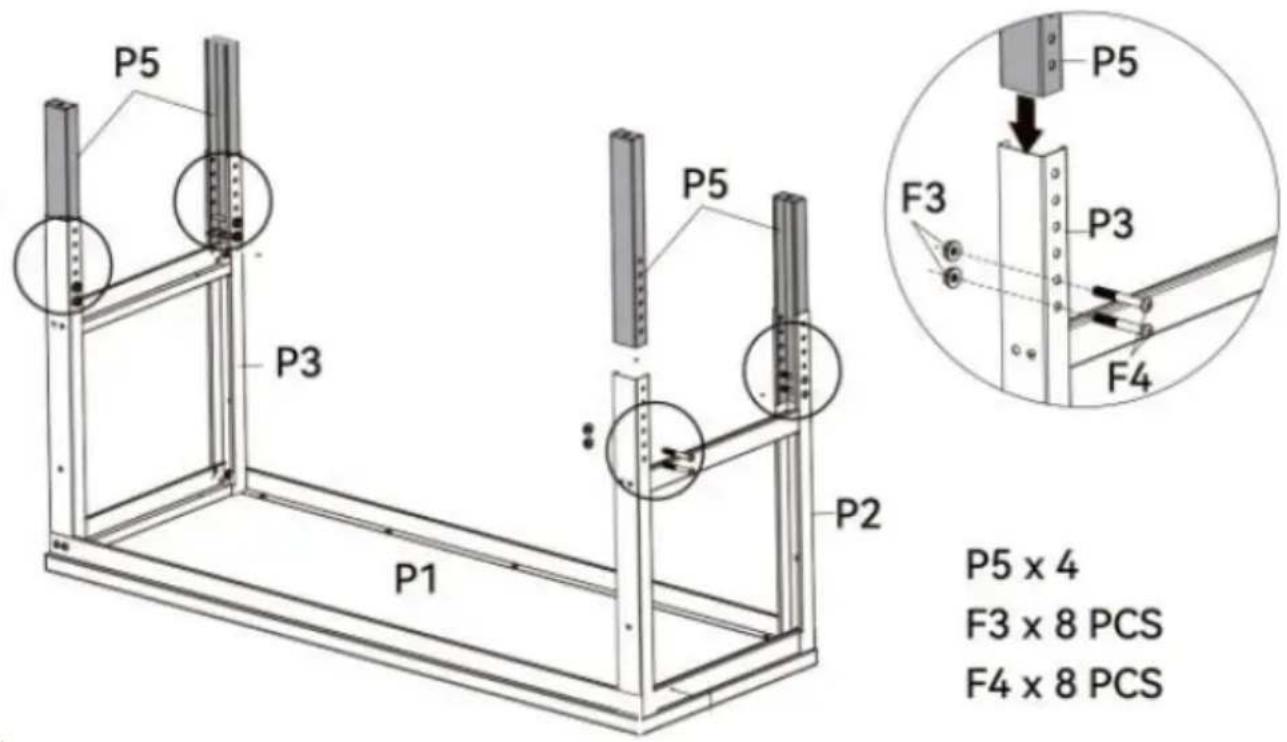

STEP 3: Install the telescopic legs.

P5 P3 P1 P2 P5 P5 F3 P3 F4 P5 x 4 F3 x 8 PCS F4 x 8 PCS

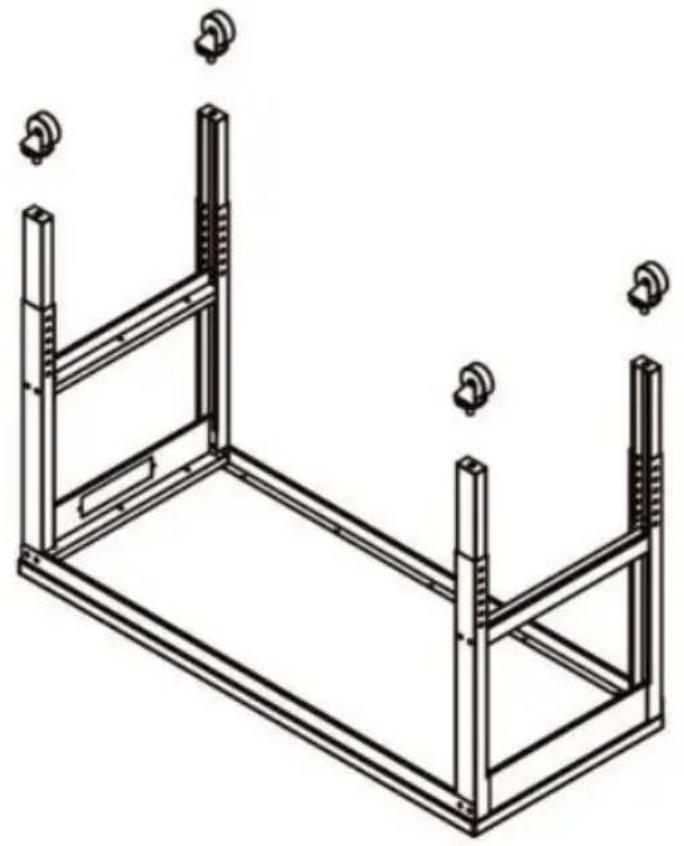

STEP 4: Install the universal wheels.

Isometric line drawing of a two-story metal frame structure with mounting feet and hanging weights (no text or symbols)

P6 × 4

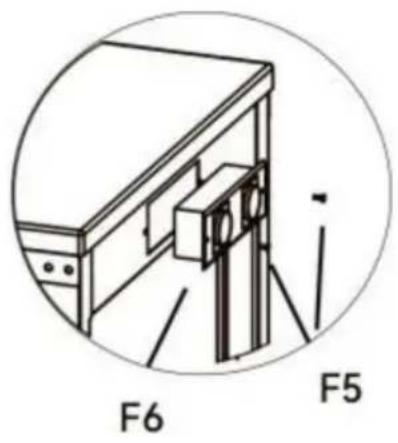

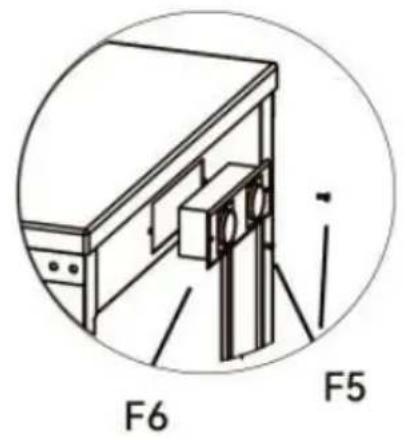

STEP 5: Install power strip. Re-confirm that all parts are locked and installation is complete.

Line drawing of a four-legged metal table with wheels, no text or symbols present

F6 F5

F6 x 1
F5 x 2 PCS

MAINTENANCE

1. Please try to avoid putting wet items on desktop.
2. Dust off regularly with a clean rag, and arrange items neatly on (
3. Don't let it sit in the sun for too long.
4. Check the table regularly to prevent screws from loosening and fall off.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt

am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX
