USER MANUAL HYDXMG-2000VA Vevor

Affordable. Reliable. Home Improvement.

Unidirectional Voltage Converter

Model: HYDXMG-2000VA / HYDXMG-3000VA /

HYDXOG-2000VA / HYDXOG-3000VA

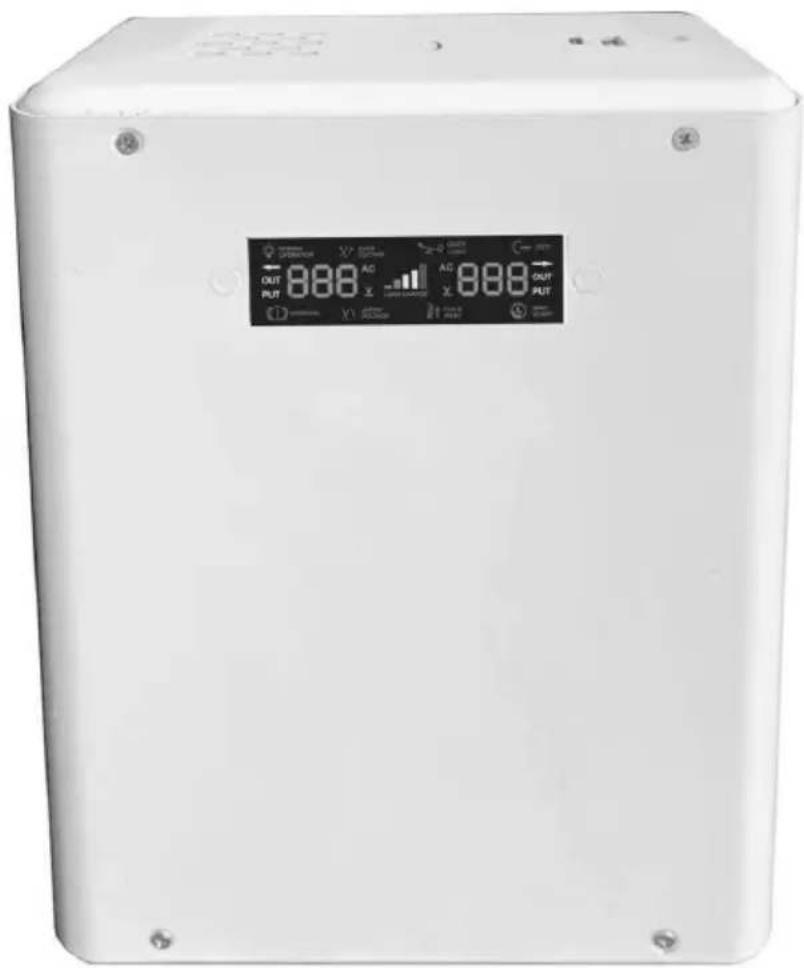

MODEL:HYDXMG-2000VA/ HYDXMG-3000VA/ HYDXOG-2000VA HYDXOG-3000VA

OUT PUT 888 AC X 888 OUT X 888 PUT

(The picture is for reference only, please refer to the actual object

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructi manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

INTRODUCTION

Thank you for your visit, welcome to choose to use VEVOR high-end series voltage transformer. The product is specially designed for the use of 100V-12V voltage electrical appliances from the United States or Japan to China or Europe, Australia 220V-240V voltage areas, or the use of China or Europe, Australia 220V-240V electrical appliances in the United States, Japan and other regions. VEVOR high-end series voltage transformer is used for the main purpose of voltage matching. VEVOR high-end series voltage transformer, fashionable appearance design, ultra-thin shape, safe metallic shell, voltage display, electric power at a glance, let you use at ease, feel comfortable, warm.

Energy conservation

This product is made of high quality and efficient ring transformer, small loss

TECHNICAL PARAMETERS

product model	HYDXMG-2000VA	HYDXMG-3000VA	HYDXOG-2000VA	HYDXOG-3000VA
rated capacity	2000VA	3000VA	2000VA	3000VA
Maximum applicable power	1600W	2400W	1600W	2400W
Six major protections	YES	YES	YES	YES
Product wiring	3×16AWG	3×14AWG	3×1.00mm ^2	3×1.50mm ^2

SIX MAJOR PROTECTIONS

1 Intelligent overload protection
2 Overvoltage and undervoltage protection
3 Intelligent short circuit power failure protection
4 Temperature control overheat protection
5 Protection of anti-seepage measures on circuit boards

6 Ring cow insulation material can withstand high temperature of more than

Environment temperature		-5S°C~55°C		relative humidity		45%~75%
insulation grade	B		levels of protection	IP20	Electrical category		I
operative norm		Q/GM J021002

Note: The maximum applicable power refers to the maximum power that can be used for half an hour continuously.

* For specific technical parameters, please refer to the product description

direction for use

1. Before use, please confirm that the input voltage range of the transformer is consistent with the local voltage.

(If there is no abnormality after 3 minutes of power on standby for the first time, you can core electrical appliance to use it to avoid damage caused by transportation)

1. Keep the transformer and the electrical appliances in a closed state, plug electrical appliances into the output socket of the transformer, and then start transformer for use.

VOLTAGE CONVERSION

HYDXMG series

input: AC110V±10%, output: 220V±10%

HYDXOG series

input: AC220V±10%, output: 110V±10%

(The specific input and output voltage shall be subject to the product identific

COUNTRIES USE VOLTAGE LIST

Service voltage	countries and regions
AC100V	Japan
AC110~130V	Taiwan China,America,Canada,Mexico,Panama Cuba,Lebanon(and 30 others)
AC220~240V	China,Hong Kong,UK,Germany,France,Italy,AustraliaIndia,Singapore,Thailand,Netherlands,Spain,Greece,Austria,Philippines,Norway(about 120 countries)

USE FAULTS AND TROUBLESHOOTING METHODS

fault phenomenon	Performance failure	Fault problems	Solution
The display screen is not showing.	No voltage output	The input power cable is not plugged in properly.	Replug the power cord.
		The input power cable is damaged.	You must contact the manufacturer Consultation solutions.
		The power switch was n pressed.	Press the switch again to tu on the power
		The machine is faulty.	Contact the manufacturer directly Consultation on solutions.
The display screen shows	No voltage output	The power cord of an electrical appliance.The plug wasn't plugged in properly.	Plug in the power cord.
		The power cord plug of appliance is damaged.	Replace the power cord with good one.
		The digital display does move and the power but does not respond.	Unplug the power cord and plug it in again.Press the power switch.
Overtemperature protection of transformer	Using electrical appliances with large power is easy to heat	Replace the VC first-class power transformer.	Replace our power supply products with a higher power rating.

ATTENTION

Warning:

When using this product, please pay attention to the safety of electricity. The following precautions should be paid attention to when using!

Danger:

To avoid electric shock, do not open the cover without authorization!

1. The total power of electrical appliances should not exceed 80% of the rat power of the machine.
2. This machine is only suitable for indoor use.
3. The outer shell of this machine is a plastic box, which cannot be placed temperature environment.
4. Pay attention to ventilation and heat dissipation when the machine is work Do not use cloth or close to objects on the side, and keep a distance of
5. can not be placed in the wet, water drop position, should be placed in a ventilated and dry place.
6. When cleaning the machine, first unplug the power plug and wipe it with towel without water. Do not drop water into the machine during operation to avoid electric shock.
7. Please do not let metal objects and debris fall into the body of the macl prevent short circuit and electric shock.
8. Do not open the bottom cover by yourself, and non-professionals are proh from opening the cover plate.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
