USER MANUAL HT-310 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRENCH FRIES WARMER

MODEL:HT-310

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FRENCH FRIES WARMER

MODEL:HT-310

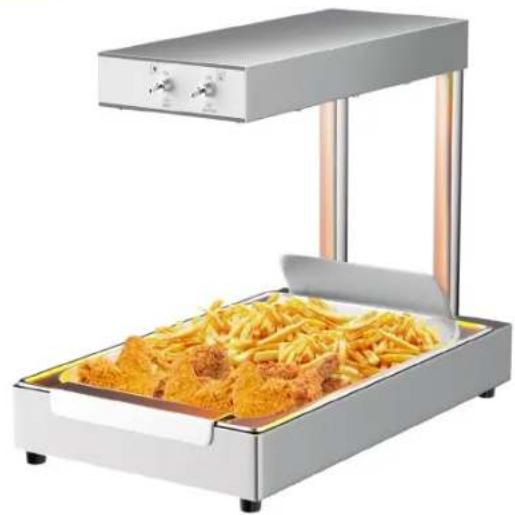

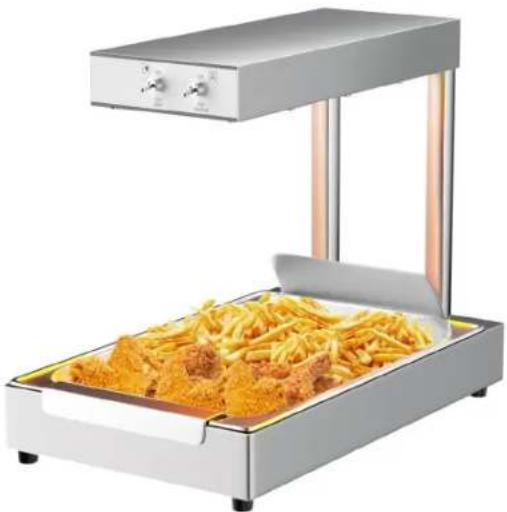

Exterior view of a modern kitchen grater with fried fries and a control panel (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data to where there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

a) Read all instructions.
b) To protect against risk of electrical shock do not put the plug, power supply cord and the driving base in water or other liquid.
C) This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they are closely supervised and instructed concerning the use of the appliance by a person responsible for their safety. Close supervision is necessary when or near children use any appliance. Children should be supervised to ensure they do not play with the appliance.
d) Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.

e) Avoid contacting moving parts.
f) Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner.
g) The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
h) For household use only. Do not use outdoors.
i) Do not let cord hang over edge of table or counter.
j) NEVER use the product for other purposes.
K) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
L) The product should be located at a steady area and depart from a noncombustible item (i.e. the wall) for more than 10 cm(left and right side), more than 20 cm (back hand side).
M) The working voltage must match what is shown in the product
N) The switch, fuse, and leakage protector should be installed close to the product. No sundries can be in front of the product.
O) It must be safety grounding before use.
P) Please inspect if the components are connected securely and safety grounding well done before starting up.
Q) Please choose same model wires when replacing them and ask specialized persons to replace it.
Professionals with Electrician operation certificates must process the installation and repair of the product.
S) No spraying water when cleaning!
T) DO NOT touch the hot surface to avoid burns, use handles or knob instead.
U) MUST be careful when moving the hot oil machine to avoid burns.
V) NEVER use not from the manufactured electrical appliance to avoid injury.
W) MUST turn off all control or function keys before uplagging the product.

SAVE THESE INSTRUCTIONS

INSTALLATIONS

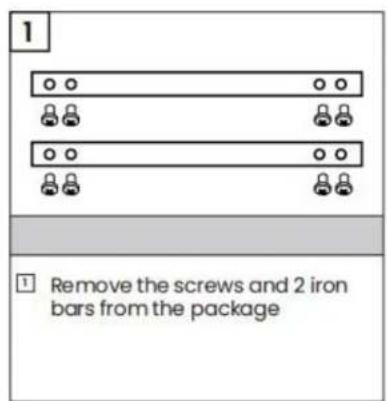

1 Remove the screws and 2 iron bars from the package

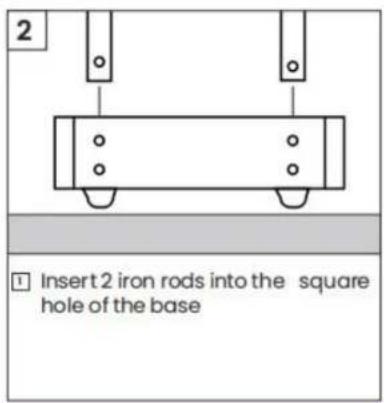

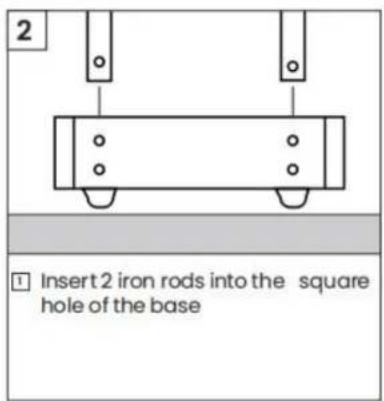

2 Insert 2 iron rods into the square hole of the base

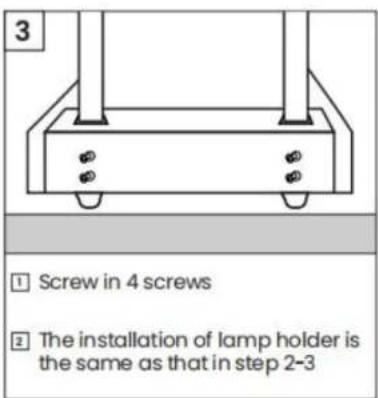

3 ① Screw in 4 screws ② The installation of lamp holder is the same as that in step 2-3

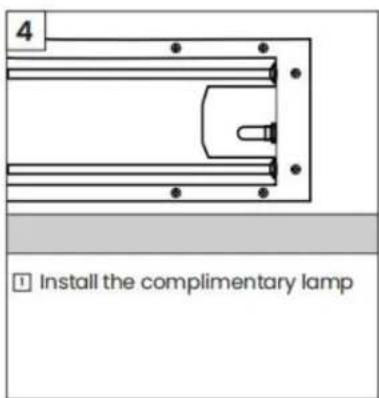

4 Install the complimentary lamp

MARK

The barrier bar isn't need after unscrewing from the shelf. Never use water to clean the machine directly.

OPERATIONAL APPROACH

a. Thermostat is in the front. it controls the working temperature of the

element.

b. Switch the power before toasting. Then turn the thermostat clockwise to the temperature number needed. Thus the orange pilot lamp will be light and the elements begin working. When the temperature rise to the target, the thermostat will cut off the power and the pilot lamp black out with elements stop working. After the temperature comes down, the thermostat will connect the power and the red pilot lamp light. The elements start working and the temperature goes up.

such iterations keep the temperature constant.

c. Please clean up the oil in the oil box timely.

d. If there is any abnormal occurrence, please stop the machine immediately. Lt will be used after inspection and trouble remedy. The machine should not be shaken, or upside down, pressed and kicked.

CLEANING AND MAINTENANCE

1. Please keep power off when cleaning up
2. Please clean the surface of the machine and the wire using cleanser without a corrosive object. DO NOT USE WATER TO WASH THE APPLIANCE PART.
3. Please clean the water in the oil box timely when cleaning up the machine.

THE BASICPARAMETERS

Model	Voltage	Frequently	Power	Dimension
HT-310	120V	60Hz	750W	560*330*465mm
HT-310	220-240V	50-60Hz	750W	560*330*465mm
