USER MANUAL NFS140SS00 NewAir

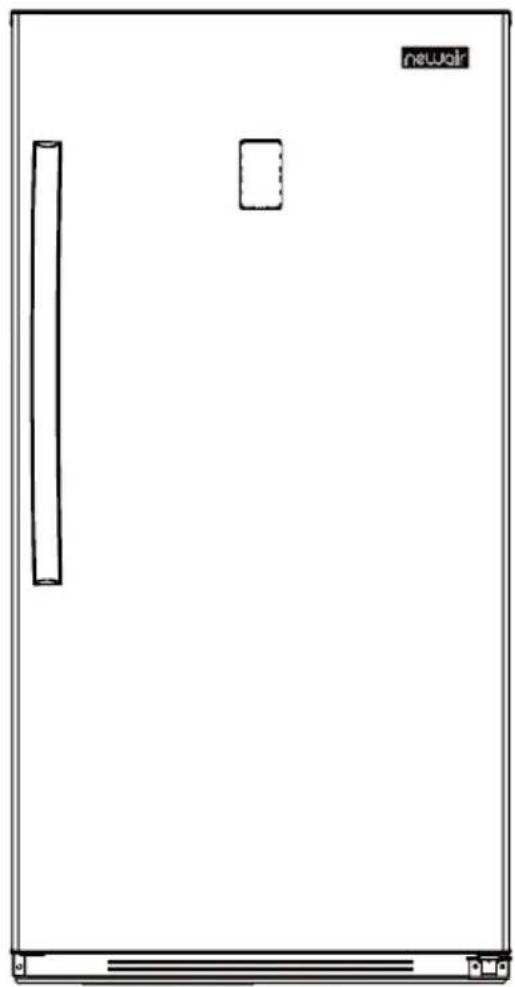

Newair 13.8 cu ft. Upright Freezer

Newair 13.8 cu ft. Congélateur vertical Newair Congelador vertical de 13.8 pies cúbicos

Simple line drawing of a rectangular frame with two vertical bars and a small square, no text or symbols present.

OWNER'S MANUAL

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call: 1-855-963-9247 | Email: [e-mail] | Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us

Facebook.com/newairusa

YouTube.com/newairusa

Instagram.com/newairusa

Twitter.com/newairusa

REGISTER YOUR PRODUCT ONLINE

Register Your Newair Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase:
Serial Number:
Model Number:

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

Register Your Product Online....2

Table Of Contents 3

Specifications 4

SAFETY INFORMATION & WARNINGS 5

Meaning of Safety Warning Symbols 6

Disposal Warnings....6

EnergyWarnings 7

Electricity Related Warnings 7

Use Warnings 8

Storage Warnings....8

Parts List....10

ASSEMBLY & INSTALLATION 11

Unpacking Your Freezer 11

Placement 11

Leveling Feet 12

Door Handle Installation 12

OPERATING INSTRUCTIONS....13

Function and Operation....13

Function 13

Changing The Light....14

Starting Your Fridge 15

Energy Saving Tips....15

CLEANING & MAINTENANCE 16

Overall Cleaning 16

Cleaning The Door Tray....16

Defrosting 17

Out of Operation....17

TROUBLESHOOTING 18

LIMITED MANUFACTURER'S WARRANTY 20

SPECIFICATIONS

MODEL NO.	NFS140SS00
VOLTAGE:	115V~
NOISE LEVEL:	42dB
FREQUENCY:	60Hz
TEMPERATURE RANGE:	Fridge: 32-50°F/0~10°CFreezer: -11.2~10.4°F/-24~-12°C
POWER CONSUMPTION:	394 kWh/year
STORAGE CAPACITY:	13.8 cu ft.
REFRIGERANT:	R600a

SAFETY INFORMATION & WARNINGS

WARNING: risk of fire / flammable materials

• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other residential type environments; bed and breakfast type environments; catering and similar non-retail application.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid a hazard.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• The appliance must be unplugged before carrying out user maintenance.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Please dispose of the refrigerator according to local regulators for it use flammable cyclopentane foaming material and refrigerant.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the tear of appliance.
• Do not use extension cords or ungrounded (two prong) adapters.
• WARNING: Risk of child entrapment. Before discarding your refrigerator or freezer:

- Remove doors and door seals.

- Leave the shelves in place so that children may not easily climb inside.

- To avoid food contamination, please observe the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage system.
• Keep raw meat and fish stored in suitable containers within the refrigerator, prevent contact or dripping onto other food items.
• If the refrigerating appliance is left empty for a long period, switch off defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

- For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

- SAVE THESE INSTRUCTIONS –

MEANING OF SAFETY WARNING SYMBOLS

This manual contains lots of important safety information which shall be observed by the users.

Prohibition	This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the productor endanger the personal safety of the user.
Warning	This is a warning symbol.It is required to operate in strict observance of instructions marked with this Symbol to prevent personal injury or damage to the product.
Caution	This is a cautioning symbol.Instructions marked with this symbol require special caution.Insufficient caution may result in slight or moderate injury, or damage to the product.

DISPOSAL WARNINGS

	Refrigerant and cyclopentane foaming material used by the appliance are flammable. Therefore, when the appliance is disposed of, it must be kept away from any fire source and be recovered by a special company with the corresponding qualification to dispose of it in a manner that is both safe and will prevent damage to the environment or any other harm.
	When the refrigerator is disposed of, disassemble the doors, and remove gasket of the doors and shelves; secure the shelves in place, so as to prevent children from becoming entrapped or climbing inside the appliance.
	Correct Disposal of This Product:This marking indicates that this product should not be disposed of with other household waste. To prevent possible harm to the environment or human health, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

ENERGY WARNINGS

Warning for energy:

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of me below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. Carbonated drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets and that some products such as water should not be consumed too cold.
3. Do not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets.
4. Take the necessary precautions to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. A rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

ELECTRICITY RELATED WARNINGS

	Do not pull from the cord when disconnecting power from an electrical socket. Firmly grasp the plug and pull it directly out from the socket.To ensure safe use, do not use the power cord when it is damaged or worn.If you notice abnormal noise, odor, or smoking, unplug the unit immediately and call customer service support.
	Use the dedicated power socket.The power plug should be firmly inserted into the socket otherwise may cause a fire hazard.Ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
	Turn the valve off from leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.
	Do not use place or use another electrical appliance on top of the unit.

USE WARNINGS

	Do not arbitrarily disassemble or reconstruct the freezer or damage the refrigerant circuit. Maintenance of the appliance must be conducted by a specialist.Damaged power cord must be replaced by the manufacturer, its maintenance department, or related professionals to avoid danger.
	The gaps between the freezer and freezer door are small.Do not put your hand in these areas to prevent from squeezing the finger.Do not pick food or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers to avoid frostbite.
	Do not allow any children to get into or climb the freezer, otherwise suffocation or injury maybe caused.
	Do not place heavy objects on top of the freezer to avoid accidental injuries considering that objects may fall when opening or closing the door and accidental injuries might be caused.Pull the plug out in case of power failure or cleaning. Do not connect the freezer to a power supply within five minutes to prevent damages to the compressor due to successive starts.

STORAGE WARNINGS

	Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damage to the product or cause a fire hazard.Do not place flammable items near the freezer to avoid fires.
	The freezer is intended for household use, such as storing food.It should not be used for other purposes, such as storage of blood, drugs or biological products, etc.
	Do not store beer, beverages or other fluids contained in bottles or enclosed containers in the freezing chamber of the freezer; otherwise the bottles or enclosed containers may crack due to freezing

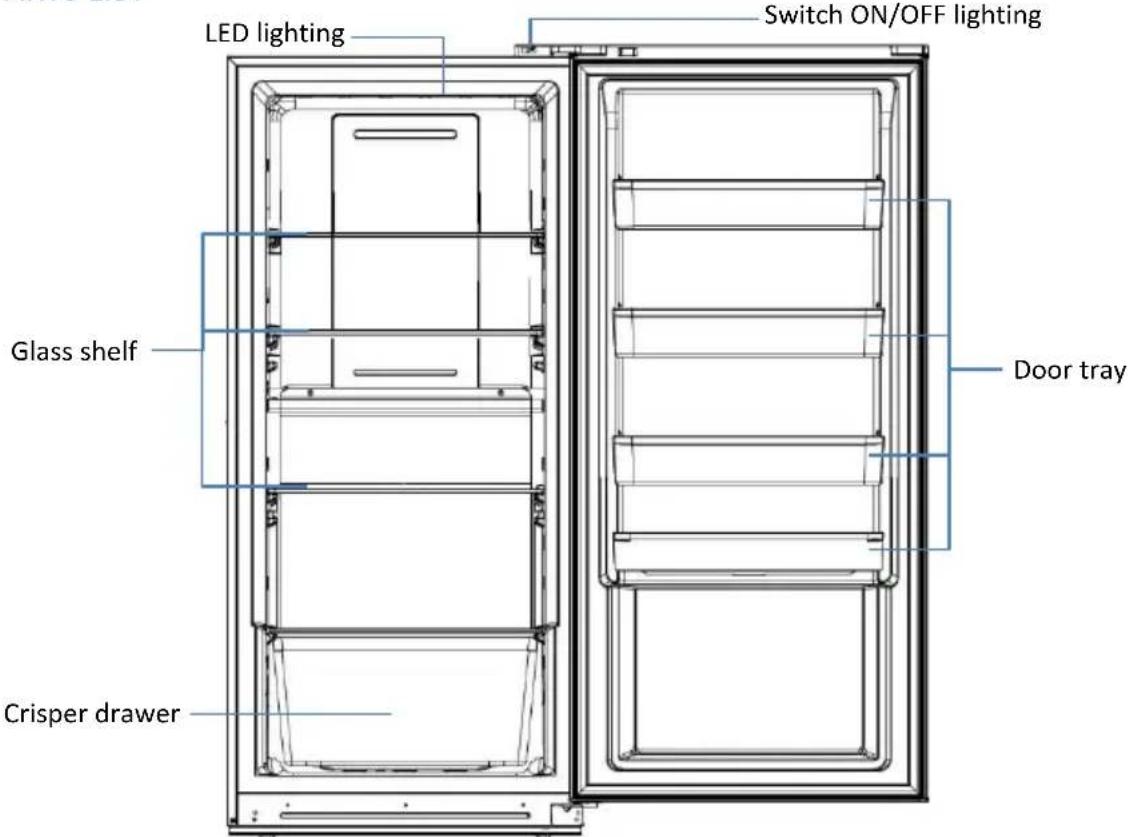

PARTS LIST

LED lighting Switch ON/OFF lighting Glass shelf Door tray Crisper drawer

Using as a Refrigerator

• Suitable for storage for variety of fruits, vegetables, beverages and other food consumed in short term.
• Cooking foods should not be put in the refrigerator until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down to accommodate your storage needs.

Using as a Freezer

• Suitable for storage of meat, fish, and other food not to be consumed in short term.
• The low temperature may keep food fresh for a long time and is mainly used to store frozen food and ice.
• It is preferred that meat is divided into small pieces for quick freezing and easy access. Note that food should be consumed within the shelf time.

Note: Storing too much food immediately after the initial connection to power may adversely affect the cooling effect of the refrigerator. Foods stored must not block the air outlet; otherwise, the cooling effect will also be adversely affected.

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads, and all tape on the inside and outside of the refrigerator.

Tear off the protective film on the doors and the refrigerator body.

PLACEMENT

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a smiling refrigerator and a door (no text or symbols)

30° 4' 12" 4"

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or damp places to prevent rust or a reduction in the insulating effect.

Do not directly spray or wash the refrigerator; do not put the refrigerator in a place where it will be splashed with water. This could impact the refrigerator's electrical insulation properties.

Ensure the refrigerator is placed in a well-ventilated indoor place; the ground must be flat and sturdy (rotate left or right to adjust the wheel for leveling if unstable).

The top space of the refrigerator must be greater than 12 inches, and the refrigerator should be placed against a wall with a free distance of more than 4 inches to facilitate heat dissipation.

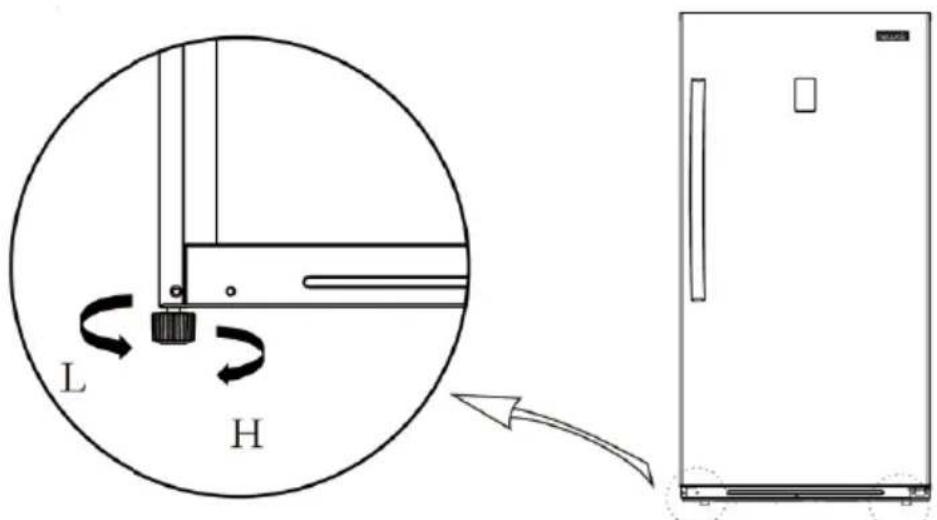

LEVELING FEET

L H

• Turn feet clockwise to increase the height.
• Turn feet counterclockwise to decrease the height.
• If the unit is placed on uneven ground, adjust the feet accordingly to level horizontally.

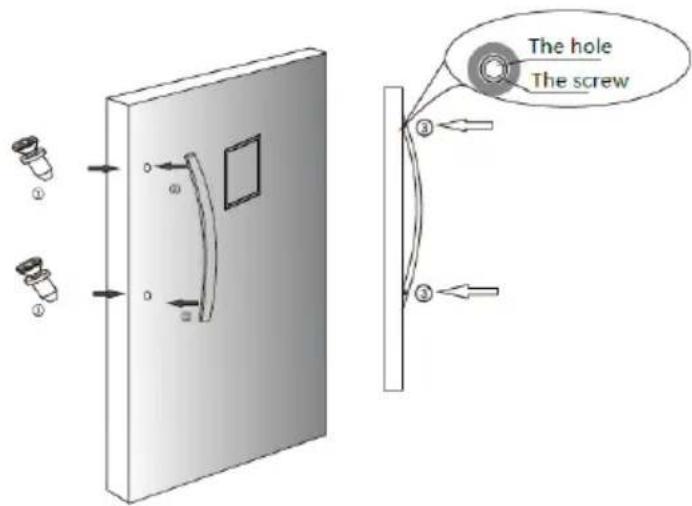

DOOR HANDLE INSTALLATION

Precautions shall be taken to prevent the handle from falling, which may cause some personal injury.

Tools to be provided by user
	Cross screwdriver

The hole The screw

Explanatory notes:

①Bolt ②Bolt hole
③Handle screw

Installation procedure:

• With the included bolts ①, use your cross screwdriver to fix it into the bolt hole ② of the appliance door.
• Place the handle over the bolts ①, and ensure that it makes close contact with the door.
• Fix the handle by turning the handle screw ③ clockwise, and verify it is secure by tugging on the handle.

OPERATING INSTRUCTIONS

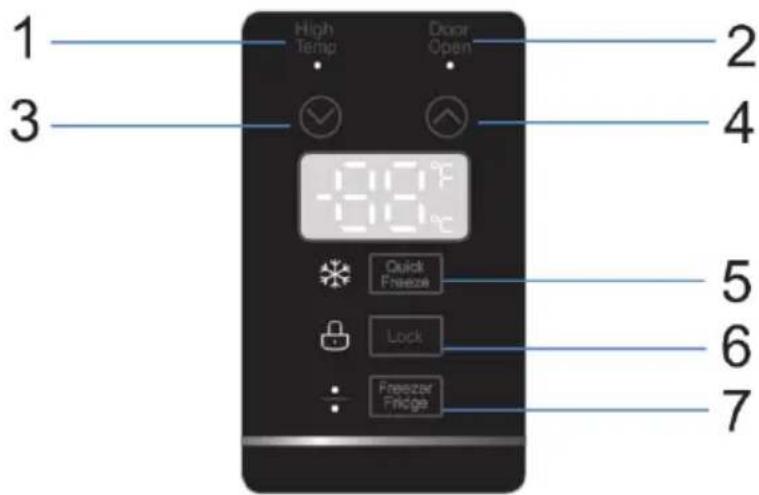

1 2 3 4 5 6 7 High Temp Door Open -10.0 °C Quick Freeze Lock Freezer Fridge

1	High temperature indicator	5	Quick freeze button
2	Door open indicator	6	Lock control panel button
3	Decrease temperature button	7	Freezer/Fridge mode switch
4	Increase temperature button

FUNCTION

Freezer & Refrigerator conversion:

Hold down for 3s to change between freezer and refrigerator modes. The control panel will beep to indicate the mode switch.

• : freezer mode (temperature range: -11°F \~ 10°F/-24°C\~-12°C)
  : refrigerator mode (temperature range: 35°F \~ 46°F/2°C\~8°C)

Quick Freeze Function setting:

Press to enter Quick Freeze Mode indicated by . Press again to exit the Quick Freeze Mode. When the internal temperature reaches below -13°F, it will exit Quick Freeze Mode automatically after 3 hours. If the internal temperature cannot reach -13°F, it will exit Quick Freeze Mode automatically after 24 hours.

Fahrenheit-Celsius conversion:

Hold down and at same time for 3 seconds until the control panel beeps.

LED will light up when the door is open. If the unit is kept open for 5 minutes or more, icon will flash and the control panel will start beeping.

High temp. alert

In refrigerator mode, if the inside temperature is over 59^ F ( 15^ C for 36 hours, will flash and beep for 10 seconds. The control panel will continue to beep for 10 seconds every 30 minutes.

If the temperature reach below 54^(12^) , the High Temp warning will disappear. Or press any button to cancel this alert.

In freezer mode, if the inside temperature is over 18^ F(-8°C) for 36 hours,

flash and beep for 10 seconds. The control panel will continue to beep for 10 seconds every 30 minutes.

If the temperature reach below 10^ F(-12°C), the High Temp warning will disappear. Or press any button to cancel this alert.

Door Open Alert

Opening the door will cause the indicator light will turn on. Closing the door will cause this indicator to turn off. If the door is open for 5 minutes while unit is on, the will flash while beeping.

Lock

Press LOCK for 3 seconds, to lock the control panel. will light up with a beep. Then press it for another 3 seconds to unlock it, will go off with a beep.

Temperature

Press to decrease the temperature. Press to increase the temperature.

Reset

Press LOCK and at the same time for 3 seconds until you hear a beep and the unit will reset. The display will be fully lighted for 3 seconds just like the freezer is powered on for the first time.

While resetting, if the compressor is running, it will pause for 5 minutes then run again.

Recommended setting: Refrigerated chamber 39°F, freezing chamber 0°F.

Please contact the after-sales service department of the company or professionals to deal with the faults.

Fault Code	Fault Description
E2	Temperature sensor failure of freezing chamber
E5	Failure of defrosting sensor in freezing chamber
E6	Communication error
E7	Failure of ambient temperature sensor

CHANGING THE LIGHT

Any replacement or maintenance of the LED lights is intended to be made by the manufacturer, its service agent or similar qualified person.

STARTING YOUR FRIDGE

	Before connecting the refrigerator to the power supply, allow the refrigerator to settle into place for half an hour.Before placing any fresh or frozen foods, the refrigerator must have run for 2-3 hours or above 4 hours in summer when the ambient temperature is high.
	Leave enough space for the doors and drawers to easily open and around for proper airflow.

ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
• Be sure to wrap foods properly and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper towel. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce the frequency and length of door openings. Remove as many items as needed at one time and close the door as soon as possible

CLEANING & MAINTENANCE

OVERALL CLEANING

• Dust behind and around the freezer should be cleaned regularly to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer should be cleaned with clean water and a dry cloth. Open the door for natural drying before the power is turned on.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean freezer considering that this may damage the freezer surface and interior.
• Do not rinse with water so as not to affect the electrical insulation properties.

Illustration of various household items including a gas cylinder, water dispenser, and kettle (no text or symbols)

Unplug the freezer for defrost and cleaning.

CLEANING THE DOOR TRAY

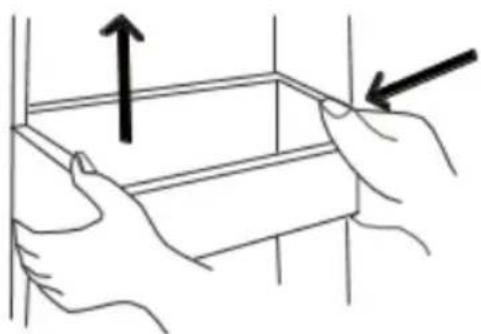

• According to the direction arrow in the figure below, use right hand to squeeze the tray, push it upward, then you can take it out.
• After washing the tray having been taken out, you can adjust its installation height in accordance with your requirement.

Line drawing of two hands holding a rectangular object with an upward arrow and a black arrow pointing to it (no text or symbols)

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

DEFROSTING

- The freezer is made based on the air-cooling principle, which has an automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

OUT OF OPERATION

• Power failure: In case of power failure, even in the summer, food inside the appliance can be kept for several hours. During the power failure, the amount of times the door opens should be reduced and no more food should be put into the appliance.
• Long-time nonuse: The appliance should be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the freezer is moved, take all objects out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet. Close the doors and seal them with tape. During moving, the appliance should not be laid upside down, horizontally, or be vibrated. The inclination during movement should be no more than 45^ .

The appliance should run continuously once it is started. Generally, the operation of the appliance should not be interrupted; otherwise the service life may be impaired.

TROUBLESHOOTING

You may try to solve the following simple problems by yourself. If you need further assistance, please contact customer service.

Issues	Cause/Suggestions
Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous food should be tightly wrappedCheck whether there is any rotten foodClean the inside of the freezer
Long-time operation of the compressor	Long operation of the freezer is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood should cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the freezer is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesToo much food is placedThe freezer is tilted
Loud noise	Check whether the floor is level and whether the freezer is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the freezer is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)

- Use in commercial or industrial applications

- Fire, water damage, theft, war, riot, hostility or natural disasters as hurricanes, floods, etc.

- Use of force or damage caused by external influences

- Partially or completely dismantled appliances

- Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a Newair™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].

Un nom de confiance

Instagram.com/newairusa

Twitter.com/newairusa

ENREGISTRER VOTRE PRODUIT EN LIGNE

Simple line drawing of a person pushing a cardboard box next to an refrigerator (no text or symbols)

The hole The screw

FONCTION ET OPÉRATION

1 2 3 High Temp Door Open -10.0 °C -10.0 °C Quick Freeze Lock Freezer Fridge 5 6 7

REEMPLACER LA LUMIÈRE

Illustration of various household items including a gas stove, water dispenser, and a kettle with a steaming cup (no text or symbols)

Line drawing of two hands holding a rectangular object with an upward arrow and a downward arrow, no text or symbols present.

Instagram.com/newairusa

Twitter.com/newairusa

REGISTRE SU PRODUCTO EN LÍNEA

Disposal Warnings....46

Advertencias Energéticas....47

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a potted plant and sun symbol (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a refrigerator with labeled dimensions (no text or symbols beyond basic geometry)

The hole The screw

Illustration of various household items including a gas container, spray bottle, and teapot (no text or symbols)

Line drawing of two hands holding a rectangular object with an upward arrow and a black arrow pointing to it (no text or symbols)
