GUC10KM - Network adapter IOGEAR - Free user manual and instructions

Product Type	USB-C to Gigabit Ethernet Network Adapter
Brand	IOGEAR
Model	GUC10KM
Host Connector	USB 3.1 Type-C Male
Network Port	RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
System Compatibility	Windows 7 and later, Mac OS X 10.7 and later
Power	Bus-powered (via USB port)
LED Indicators	Link LED (green), Activity LED (orange)
Plug and Play	Yes, with recommended driver from IOGEAR website
Dimensions	Approximately 6 × 2 × 1.5 cm
Weight	Approximately 30 g
Operating Temperature	0 °C to 40 °C
Warranty	3-year limited warranty
Package Contents	Adapter, quick start guide, warranty card
Maintenance	Clean with a dry, soft cloth; do not use chemicals
Certifications	FCC Class B, CE

Frequently Asked Questions - GUC10KM IOGEAR

How to install the IOGEAR GUC10KM network adapter?

Plug the adapter into a free USB Type-C port on your computer. It is normally recognized automatically. If not, download the latest driver from www.iogear.com for model GUC3C01.

Which operating systems are compatible?

The adapter is compatible with Windows 7, Windows 8, Windows 10 and Mac OS X 10.7 and later.

Does the adapter support Gigabit Ethernet?

Yes, it supports speeds 10/100/1000 Mbps (Gigabit).

Do I need to install a driver?

The adapter is plug and play on most systems. However, it is recommended to download the latest driver from www.iogear.com to avoid recognition issues after reboot.

Can I use the adapter with a computer equipped with a USB-C port?

Yes, the adapter is designed for USB 3.2 Type-C (USB-C) ports. It is also backward compatible with USB 3.0/2.0 Type-C ports.

What do the LEDs on the adapter mean?

The Link LED (green) indicates an active network connection. The Activity LED (orange) blinks during data transfer.

What is the warranty of the IOGEAR GUC10KM adapter?

This product comes with a 3-year limited warranty. For more details, visit https://www.iogear.com/support/warranty.

How to clean the adapter?

Use a soft, dry cloth to clean the adapter. Avoid solvents or abrasive products that could damage the casing.

Does the adapter work with all Ethernet cables?

Yes, it is compatible with standard Ethernet cables (Cat5e, Cat6, etc.) for Gigabit performance.

Can I find additional drivers or support?

Visit www.iogear.com/support for technical assistance and to download the latest drivers.

USER MANUAL GUC10KM IOGEAR

USB Type-C™ to Gigabit Ethernet Adapter

1xGUC3C01B
1 x Quick Start Guide
1 x Warranty Card

System Requirements

PC

• Windows® 7, Windows® 8, Windows® 10
• USB 3.2 Type-C™ port

Mac

Mac OS X 10.7+
USB 3.2 Type-C™ port

Overview

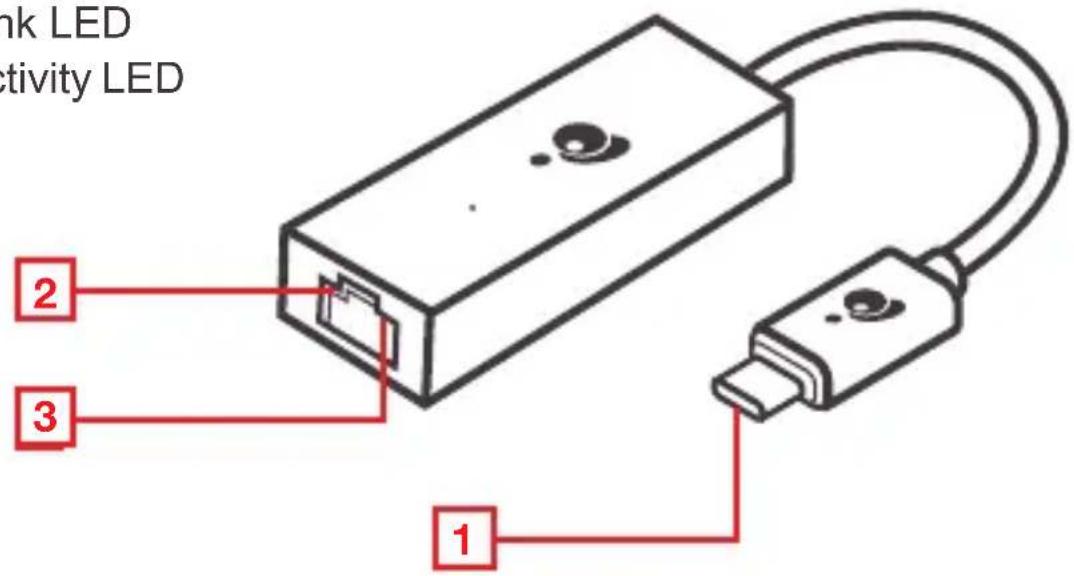

Front view

1. USB 3.1 Type C Connector
2. Link LED
3. Activity LED

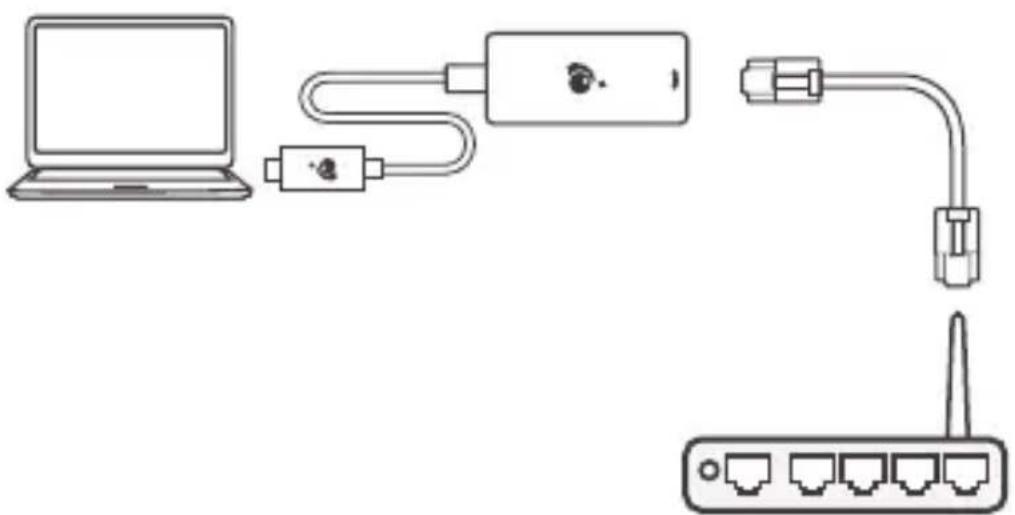

Hardware Installation

2

Note: While this device is plug n play, you might need to connect/disconnect the device after a system reboot. To avoid this, please visit www.iogear.com and download the latest GUC3C01B drivers.

1. Connect the GigaLing Pro 3.1 to an available USB Type-C™ port on your laptop.

1. Now you can connect your network device (switch router, DSL or Cable modem, etc.) to the adapter's LAN port with an Ethernet cable.

Limited Warranty

Warranty Information

This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information Product Model Serial Number

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

FEDERAL COMMUNICATIONS COMMISSION STATEMENT:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Warning: Operation of this equipment in a residential environment could cause radio interference.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE Statement

This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2014/30/EU) and Low Voltage (2006/95/EC).

WARNING: This product may expose you to chemicals including Cadmium which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
