NELA 1 - Radiator Sonnenkönig - Free user manual and instructions

Product type	Towel warmer radiator
Brand	Sonnenkönig
Model	NELA 1
Power supply	220-240 V ~ 15 A
Mounting	Vertical only, wall-mounted
Drilling center distance	Up to 20 cm (offset possible)
Operating modes	Economy (7s cycling) and Comfort (full power)
Maximum surface temperature	60 °C (integrated sensor)
Control	On/off, economy, comfort buttons; indicator lights
Safety	Overheating protection, do not use in small rooms without supervision, do not cover
Maintenance	Clean with a soft damp cloth; do not use abrasive products
Warranty	24 months from purchase date
Compliance standards	CE, LVD, EMC, RoHS, WEEE
Intended use	Household use only
Heat transfer fluid type	Heating fluid (physical properties)

Frequently Asked Questions - NELA 1 Sonnenkönig

What is the power supply type of the NELA 1 radiator?

The radiator operates on a mains socket of 220-240 V and 15 A. It must be plugged directly into a properly grounded socket.

How to install the NELA 1 towel warmer radiator?

Installation is done vertically only. Fix the supplied wall brackets with screws, then slide the radiator onto them. The drilling center distance can vary up to 20 cm. Ensure the brackets are properly secured.

What operating modes are available?

Two modes are available: Economy mode (on/off cycling every 7 seconds, yellow light) and Comfort mode (full power, red light). A button turns the device on or off while keeping the last used mode.

What is the maximum temperature of the radiator?

The radiator is equipped with an integrated temperature sensor that limits the surface temperature to 60 °C to prevent burns. The lower pipes may be cooler, which is normal.

Is it safe to use this radiator in a bathroom?

The radiator can be used in a bathroom, but it must not be placed in front of an electrical outlet. It is important to respect safety distances and not to use it in very small rooms without constant supervision.

How to clean the NELA 1 radiator?

Unplug the device and let it cool down. Clean the outer casing with a soft damp cloth. You may use a mild cleaning product. Never use alcohol, gasoline, abrasive powder, or wax. Dry thoroughly before plugging back in.

What to do if the radiator does not work?

Check first that the power cord is plugged in and the mains socket works. Make sure the power switches are on. If the problem persists, contact a qualified technician. Do not attempt to repair yourself.

What is the warranty period of the radiator?

The warranty is 24 months from the purchase date. Keep your proof of purchase for any claims. Repairs must be carried out by qualified personnel; otherwise, the warranty is void.

Can I use an extension cord with this radiator?

It is recommended to avoid using an extension cord. If necessary, use an extension cable with a minimum cross-section of 1.5 mm² to avoid any risk of overheating and fire.

How to dispose of the radiator at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE directive, it must be taken to a suitable collection point or returned to a specialized retailer. Any batteries must be removed and disposed of separately.

USER MANUAL NELA 1 Sonnenkönig

Two technical line drawings of a corrugated metal structure with vertical supports (no text or symbols)

FIRMA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848 870 850

Sonnenkönig of Switzerland

04 - STEUERUNG

Simple diagram of a container with three horizontal sections and scattered square markers (no text or symbols)

Two technical line drawings of a corrugated metal structure with vertical supports (no text or symbols)

MAISON

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848 870 850

Sonnenkönig of Switzerland

04 - CONTRÔLE

Simple diagram of a container with three horizontal sections and four small square markers inside (no text or symbols)

Modifications techniques

Two technical line drawings of a corrugated metal structure with vertical supports (no text or symbols)

DITTA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848 870 850

Sonnenkönig of Switzerland

04 - CONTROLLO

Simple diagram of a container with three horizontal sections and scattered square markers (no text or symbols)

Two technical line drawings of a corrugated metal structure with vertical supports (no text or symbols)

COMPANY

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848 870 850

Sonnenkönig of Switzerland

Please read and understand these instructions completely before attempting to assemble, operate or install the product.

This manual contains important information about the installation, operation and maintenance of this towel radiator. General safety information is presented on these first pages and is also found throughout this manual. Retain this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when dealing with mechanical or electronic powered equipment. These precautions are required when using, storing and maintaining this item. Using this equipment with due respect and caution will reduce the possibility of personal injury or property damage.

Inspect the unit for damage after removing the packaging. If damage is suspected, do not operate the device and contact a specialist. The recyclable packaging material must not be kept accessible to small children, but must be disposed of properly.

This device may only be used for the purpose for which it was expressly designed. Any other use is to be considered improper and consequently dangerous. The supplier is not liable for any personal injury and/or damage to property resulting from improper or incorrect use.

Repairs to electrical equipment may only be carried out by qualified personnel. Improperly performed repairs and modifications to the equipment may result in dangerous consequences for the user, whereupon warranty claims will be rejected.

WARNING: This radiator is not equipped with a device for regulating the room temperature. Do not use this radiator in small rooms if it is occupied by people who are not able to leave the room by themselves, unless constant monitoring is provided.

CAUTION: Some parts of this product may become very hot and cause burns. Special attention must be paid to the presence of children and vulnerable persons.

The following basic precautions should always be followed when handling electrical equipment:

• If the power cord is damaged, it must be replaced by an authorized technician or other skilled personnel to avoid danger.
  • Children should be supervised to ensure that they do not play with the appliance.
• Read ALL instructions before using this equipment.
• CAUTION: Risk of electric shock. DO NOT open the unit yourself or attempt to repair it.
• Extreme caution should be used when a radiator is used by or near children or disabled persons, or when the radiator is left in operation and unattended.
• DO NOT operate the radiator with a damaged cord or after the radiator has been disturbed, come down, or damaged in any way. Return the heater to an authorized service facility for inspection of electrical, mechanical adjustment or repair.
• DO NOT touch the control panel or plug with wet hands.
• DO NOT run the cord under carpeting. DO NOT cover the cable with throw rugs, caulk, or similar coverings. Route the cable away from traffic areas and where it cannot break or kink.
• Avoid using an extension cord because the extension cord can overheat and create a fire hazard. However, if you must use an extension cord, the cord size must be 1.5 ~mm^2 .

• To avoid fire or shock hazard, connect the unit directly to a 220-240 V and 15 A outlet.

- To turn off the radiator, set the controls to OFF, then unplug the unit from the wall outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord.

• Always unplug the unit before moving or cleaning the unit, or when the heater is not in use.

- Use only for its intended household use as described in this manual. Any other use not recommended by the manufacturer may result in fire, electric shock or personal injury. Use of attachments not recommended or sold by authorized dealers may result in hazards.

- DO NOT attempt to repair or adjust any electrical or mechanical functions on this equipment. Doing so will void your warranty. The interior of the unit does not contain any user-serviceable parts. Maintenance should only be performed by qualified personnel.

- Connect the unit only to properly grounded outlets.

- The radiator must not be located in front of an electrical outlet. Mount the radiator far enough away from an electrical outlet so that the cord cannot be damaged by heat.

- KEEP THESE INSTRUCTIONS.

03 - MOUNTING

This device may only be mounted vertically!

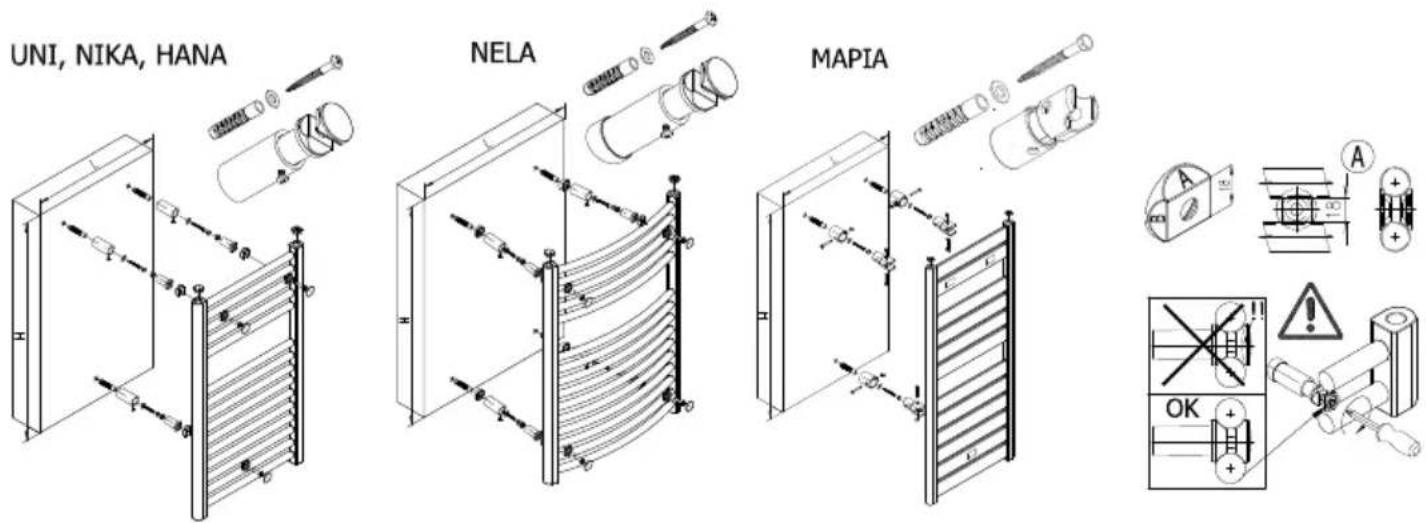

1. Brackets are supplied for mounting the towel radiator. Fasten them to the wall using the screws supplied. Then press the radiator into the wall brackets on the wall.

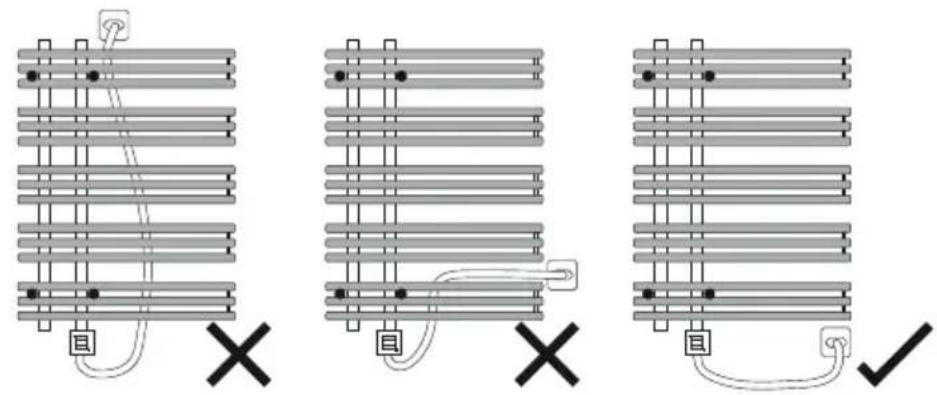

2. Connect the power cord to a normal household outlet and only as shown.

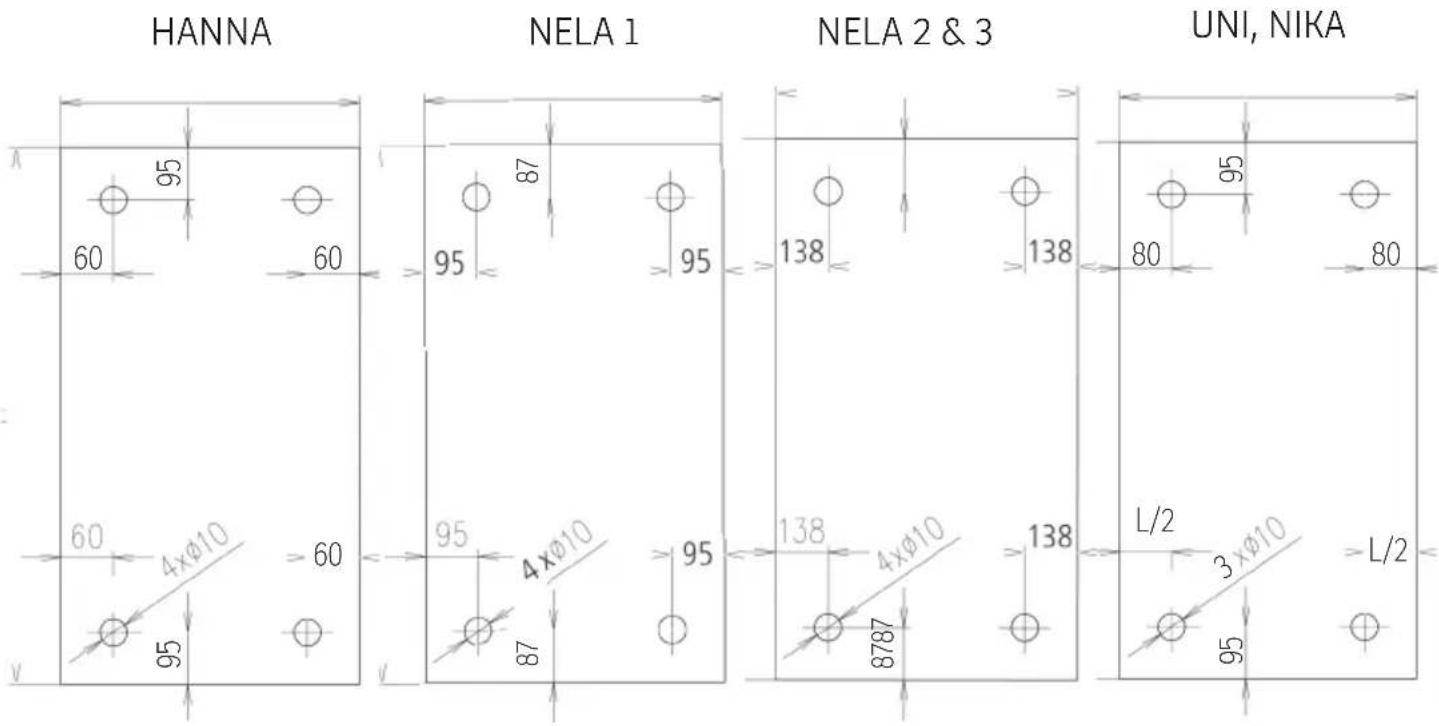

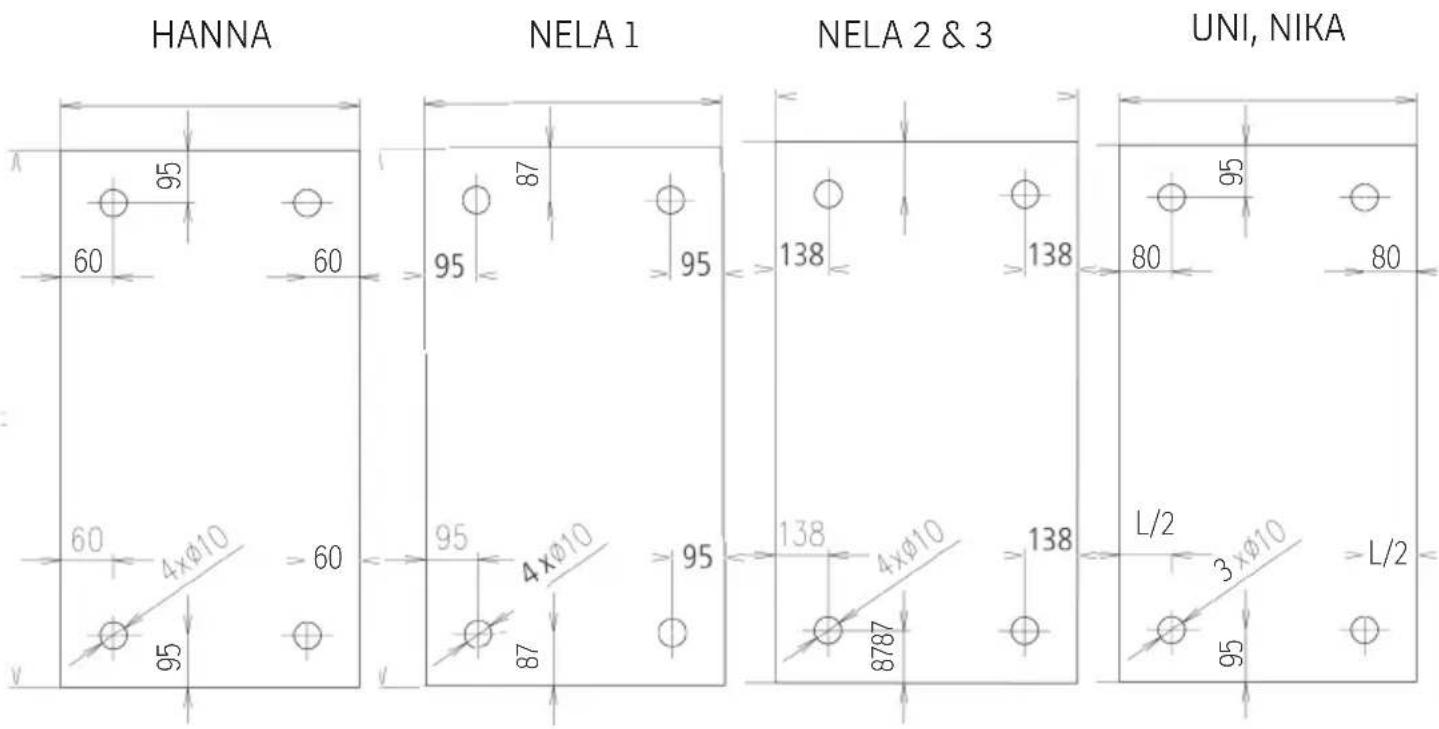

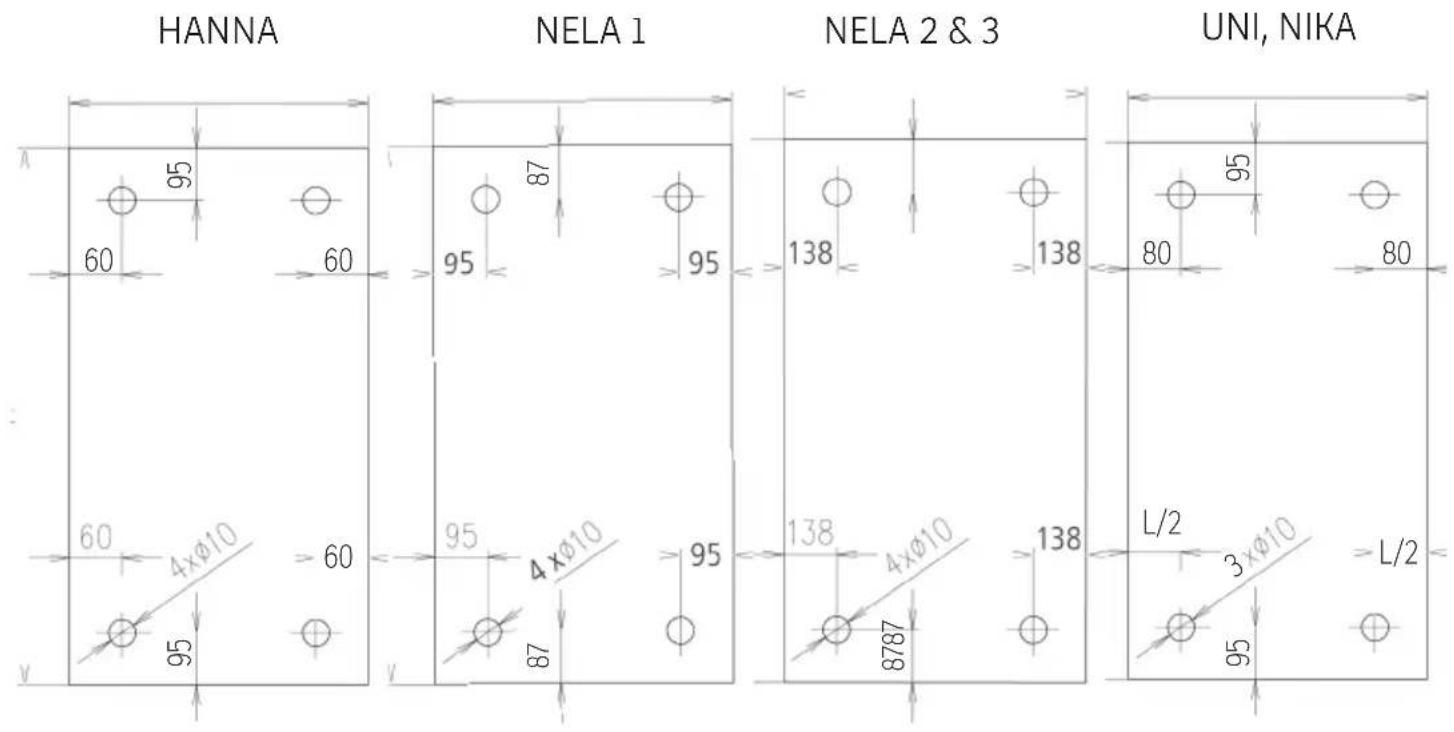

The hole may vary by max. 20 cm.

1. Measure your holes with the given dimensions. If this does not fit, you can offset the hole.
2. Make sure that the bracket can then be attached to the radiator.

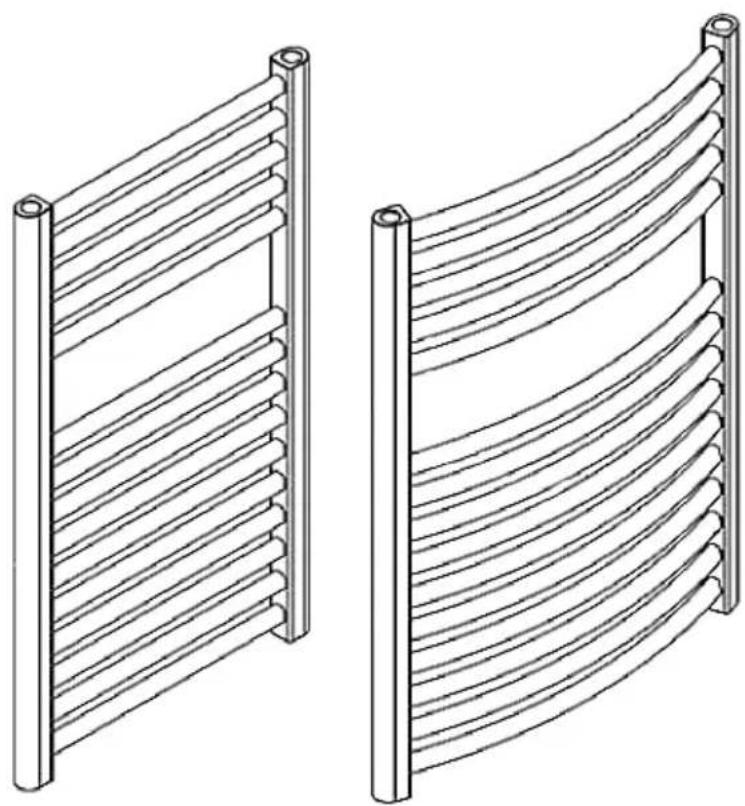

3. With a flat towel radiator, you can move the brackets freely.
4. With a curved radiator, you should only vary the height if necessary.
5. Make sure that the hole cannot be drilled further than 20 cm from the specified distance.

04 - CONTROLS

• The unit has a light control system that allows the cartridge heater to operate at half or full power.
• The button ☐ turns the cartridge heater on or off. Each time it is turned on, the cartridge heater operates at the same power as when it was turned off.
• The button indicates the energy saving mode. When activated, the yellow LED in the upper corner of the cartridge heater lights up. The unit alternates on and off every 7 seconds.
• The button corresponds to the COMFORT mode. When activated, the red LED in the lower corner of the heating cartridge lights up. The unit is operating at full power.
• The integrated temperature sensor protects against possible burns by preventing the maximum heater temperature of 60^ from being exceeded.
• The design of the cartridge heater, as well as the physical properties of the heating medium, cause the lowest pipes of the radiator (mainly the two lowest ones) to have a lower temperature than the rest of the radiator - this is quite normal.

Simple diagram of a container with three horizontal sections and scattered square markers (no text or symbols)

05 - TROUBLESHOOTING

If the heater does not work, please check the following points before repairing:

• Check that the power cord is plugged into an electrical outlet.
• Check if the power to the main fuse is working.
• Make sure the power switches are turned on. If not, select a setting.

06 - CLEANING, CARE AND MAINTENANCE

Attention! The general safety conditions must be observed during maintenance and care. To ensure trouble-free operation of the heater, the unit should be cleaned regularly.

The following procedure is recommended for this:

1. Disconnect the power plug and allow the unit to cool down completely.
2. To keep the heater clean, the outer casing can be cleaned with a soft, damp cloth. You can use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
3. DO NOT use alcohol, gasoline, abrasive powder, furniture polish or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
4. Wait until the heater is completely dry before use.

STORAGE

If the heater will not be used for an extended period of time, store it in a cool, dry place when not in use. To avoid dust and dirt accumulation, use the original packaging to repack the unit.

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit.

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer fort he removal.

Technical changes

Technical changes in technique and design are possible.

CE declaration of Conformity

This device complies with the following standards

LVD EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019
EN 60335-2-30:2009 + Cor.:2010 + A11:2012 + A1:2020
EN 62233:2008

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

WEEE 2012/19/EU

Any modifications or repairs to the device must be carried out by a qualified person.

Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

NL

NEDERLANDS

HANDDOEKRADIATOREN

GEBRUIKSAANWIJZING

Two technical line drawings of a corrugated metal structure with vertical supports (no text or symbols)

BEDRIJF

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848 870 850

Sonnenkönig of Switzerland

04 - CONTROLE

Simple diagram of a container with three compartments and scattered square markers (no text or symbols)
