USER MANUAL LT-32VDH5400 JVC

1 Insert the batteries into the Remote Control

Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.

2 Connect the antenna to your TV

* The back connection options may differ depending on the model

3 Connect the TV to the mains socket

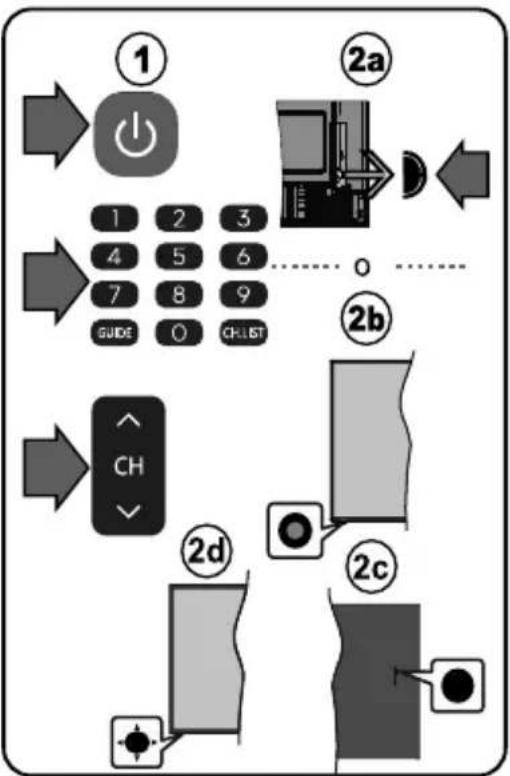

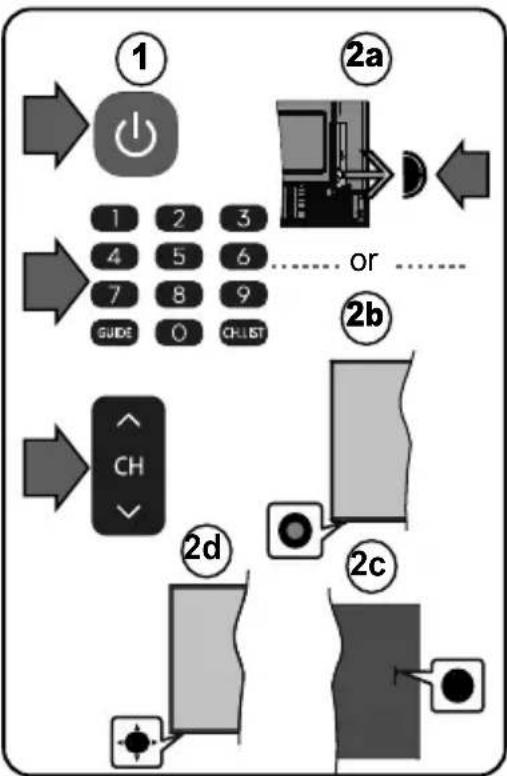

4 To switch the TV on (depending on the model)

After connecting the power cord to the mains socket, the standby LED lights up.

To switch on the TV from standby mode either;

1. Press the Standby button, Guide, Netflix or Prime Video button on the remote control.

or

2a. Press the middle of the side function switch on the TV in.

2b. Press the control button on the TV.

2c. Press the control button on the TV.

2d. Press the centre of the joystick on the TV in or push it up/down.

* The appearance of the remote control buttons and the position of the control buttons on the TV may differ depending on the model

REAR SIDE OF THE TV

LNB ANT

Simple line drawing of a plug inserted into a socket with a circular socket (no text or symbols)

5 HDMI input

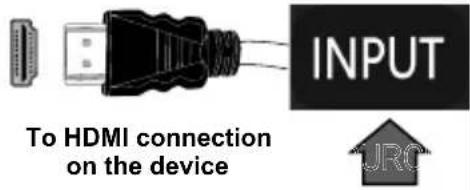

PLEASE ENSURE BOTH UNITS ARE SWITCHED OFF BEFORE CONNECTING. Use a HDMI to HDMI cable to connect the two units together. To select the HDMI input, press the Input button on the remote control. Each time it is pressed the on-screen menu confirms your selection.

* The appearance of the Input button may differ depending on the model of the remote control

INPUT To HDMI connection on the device

6 Auto Setup procedure

When turned on for the first time, the language selection options listed on the screen. Select the desired language from the list and press OK to continue. Follow the on-screen instructions to complete the initial setup process. Use the directional buttons and the OK button on the remote to select, set, confirm and proceed.

Note: For detailed information and instructions on the initial setup process refer to the Instruction Book of this TV.

7

Connect your TV to the Internet

You can access the Internet via your TV, by connecting it to a broadband system. It is necessary to configure the network settings in order to enjoy a variety of streaming content and internet applications. These settings can be configured from the Network menu located under the Settings menu on the Home Screen.

Wired Connection

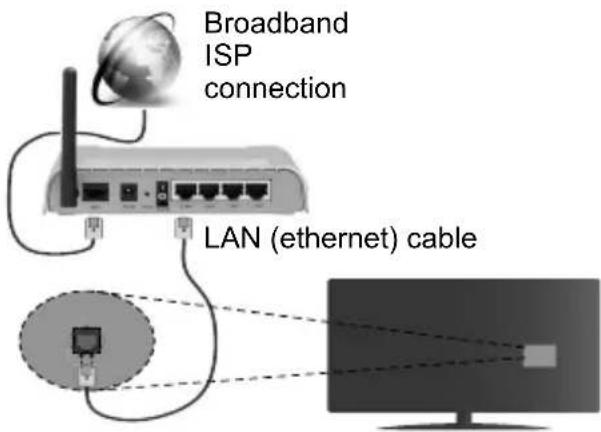

Connect your TV to your modem/router via an Ethernet cable. There is a LAN port on the rear side of your TV. Set the Connection Type in the Network Configuration menu to Ethernet. The status of the connection will changed from Disconnected to Connected.

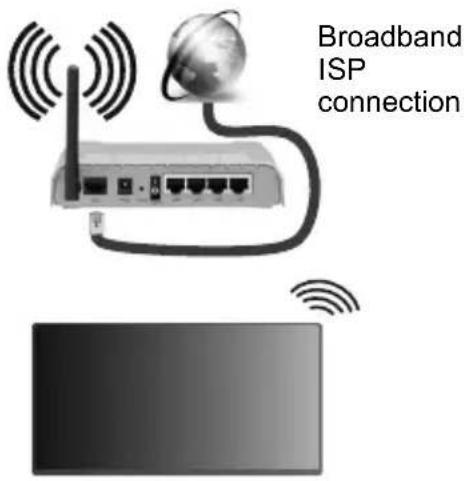

Wireless Connection

A wireless LAN modem/router is required to connect the TV to the Internet via wireless LAN. Set the Connection Type in the Network Configuration menu to Wireless to enable wireless connection. Available networks will be listed. Highlight your network from the list and press OK to connect. You may be asked to enter a password to connect to the selected network, in case the network is password protected.

Wireless Connection

Broadband ISP connection

TV with internal Wi-Fi
(depending on the model)

Wired Connection

Broadband ISP connection LAN (ethernet) cable

LAN input on the rear side of the TV

Dear Customer

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of the manufacturer is:

Vestel Germany GmbH

Parkring 6

85748 Garching b.München

Germany

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Quick Start Guide

Depends on model

• Power Cord
• Wall Mount Kit

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 5000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar indoor use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free space around the TV.

• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

- Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

- Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

- Do not place the TV on the floor and inclined surfaces.

- To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

- Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.

- Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING - Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

WARNING - Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Power Connection(Depends on model)

IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

Illustration of a vehicle's exhaust system inside a vehicle cabin, showing a fuel nozzle and warning sign (no text or symbols)

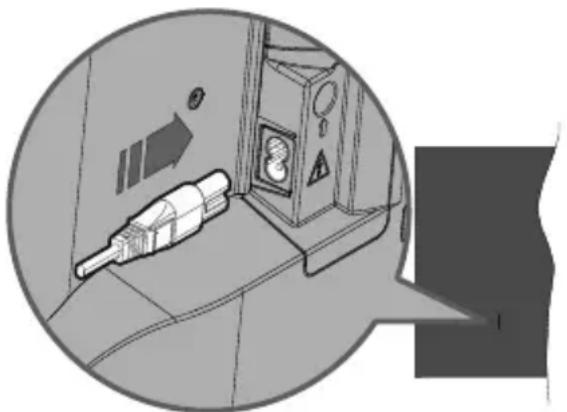

Plug one end (the two-hole plug) of the supplied detachable power cord into the power cord inlet on the rear side of the TV as shown above. Then plug the other end of the power cord into the mains socket outlet.

Note: The position of the power cord inlet may differ depending on the model.

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1 LASER PRODUCT

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

A television may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television set.
• ALWAYS use furniture that can safely support the television set.
• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.
• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
• NEVER place a television set in an unstable location.
• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
• The equipment is only suitable for mounting at heights ≤ 2 m.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Figures and illustrations in this user manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

License Notification

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Dolby Audio

YouTube and the YouTube logo are trademarks of Google Inc.

Depends on model

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.

Depends on model

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vestel Elektronik Sanayi ve Ticaret A.S. is under license. Other trademarks and trade names are those of their respective owners.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

DVB is a registered trademark of the DVB Project.

This product is manufactured, distributed and warranted exclusively by VESTEL Ticaret A.Ş and serviced by its designated service providers. "JVC" is the trademark of JVCKENWOOD Corporation, used by such companies under license.

Wall mounting instructions (depending on the model)

Wall Mounting the TV

The TV can be mounted on a wall using a MXX*X mm (*) VESA mounting kit supplied separately. Remove the base stand as shown. Mount the TV according to the instructions supplied with the kit. Beware of electrical cables, gas and water pipes in the wall. In case of any doubt please contact a qualified installer. The screw thread length must not exceed X mm (*) into the TV. Contact the store where you purchased the product for information on where to purchase the VESA kit.

(*) Refer to the related additional page for the accurate VESA measurements and screw specifications.

Removing the base stand

- To remove the base stand, protect the screen and lay the TV flat on its face on a stable table with the base over the edge. Remove the screws fixing the stand to the TV.

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-or-

Diagram showing two vertical metal supports with circular holes and directional arrows pointing to each, against a plain gray background (no text or symbols)

Disposal Information

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.

By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

[Business users]

If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

Contact your local authority to learn about disposal and recycling.

The product and packaging should be taken to your local collection point for recycling.

Some collection points accept products free of charge.

Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

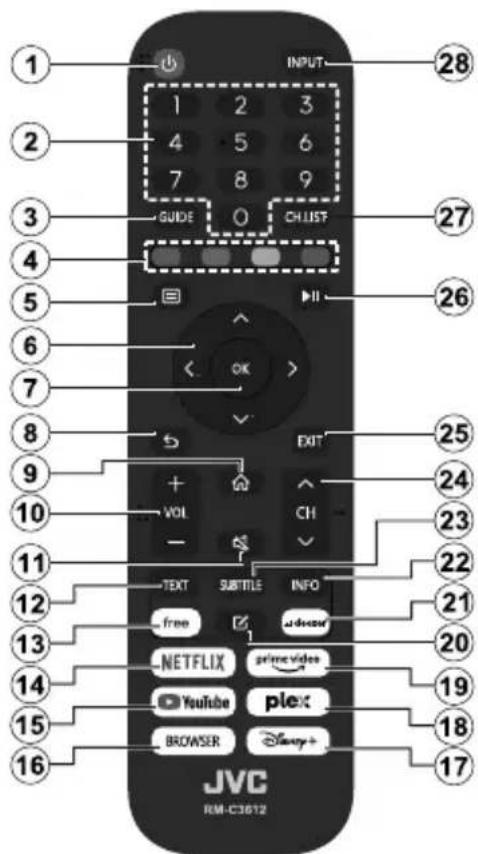

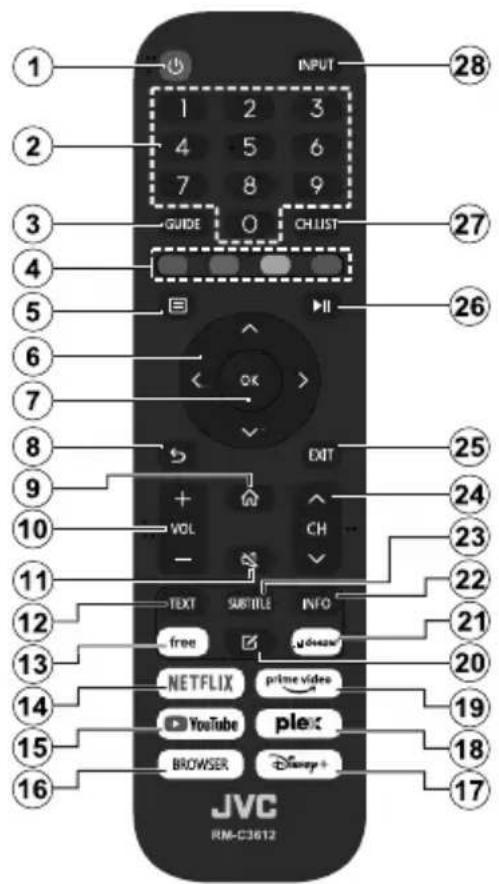

INPUT 1 2 3 4 5 6 7 8 9 GUIDE CHLIST 28 2 3 4 5 6 7 8 9 10 VOL EXIT CH 25 24 23 22 21 20 19 18 17 16 JVC RM-C3612

1. Standby (*): Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen

3. Guide: Displays the electronic programme guide

4. Coloured Buttons: Follow the on-screen instructions for coloured button functions

5. Menu: Displays TV menu

6. Directional buttons: Helps navigate menus, content, etc. and displays the subpages in TXT mode when pressed Right or Left

7. OK: Confirms user selections, holds the page (in TXT mode), views Channels menu (DTV mode)

8. Back/Return: Returns to previous screen, previous menu, opens index page (in TXT mode). Quickly cycles between previous and current channels or sources

9. Home: Opens the Home Screen

10. Volume +/-: Increases/decreases the volume level

11. Mute: Completely turns off the volume of the TV

12. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)

13. Free: Launches the Vidaa Free application

14. Netflix: Launches the Netflix application

15. YouTube: Launches the YouTube application

16. Browser: Launches the Browser application

17. Disney+: Launches the Disney+ application

18. Plex: Launches the Plex application

19. Prime Video: Launches the Amazon Prime Video application

20. Edit (*)

21. Deezer: Launches the Deezer application

22. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

23. Subtitle: Opens the subtitle menu where you can turn subtitles on or off (where available)

24. Channel +/-: Increases/decreases channel number

25. Exit: Closes and exits from displayed menus or returns to previous screen

26. PlayPad: Select the button you want to use on the PlayPad and press OK

Use the media buttons to control the playback of the media. Control elements to play, pause, stop, rewind and fast forward the media will be available Select the record button and press OK to record a programme or select the pause button and press OK to start timeshift recording(**)

1. Channel List: Opens the channel list

2. Input: Shows available broadcast and content sources

(\*) Edit Button

Press and hold the Edit button on the remote control. A menu will appear on the screen where you can change the behaviour of the button. You can select one of the input sources (e.g. HDMI, AV, etc.) or apps (any app that is available at Home>More Apps) shown on the screen.

If the function of the Edit button is changed, the selected app/feature will be launched when the button is pressed. If not, you will see a message stating how to assign a function to this button.

Footnote:

Red, green, blue and yellow buttons are multifunction; please follow on-screen prompts and section instructions.

(**) If this feature is supported by your TV.

Simple line drawing of a plug inserted into a socket with a circular socket, no text or symbols present.

5

Entrada HDMI

Diagram of a device with a connector and control panel, enclosed in a circular frame (no text or symbols)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-0-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket with a circular socket, no text or symbols present.

5

Entrada HDMI

Illustration of a fuel pump inside a vehicle, showing airflow direction and warning symbol (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-OU-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

5

HDMI-Eingang

Diagram of a mechanical device with directional arrows and a warning symbol, no readable text or labels present.

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-oder-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket (no text or symbols)

5

HDMI vstup

PŘED PŘIPOJENÍM SE UJISTĚTE, ŽE JSOU OBĚ JEDNOTKY VYPNUTÉ

Diagram of a mechanical device with a connector and directional arrows, enclosed in a circular frame (no text or symbols)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-nebo-

Diagram showing two vertical supports with circular symbols and arrows pointing to each, no text or labels present.

Informace o likvidaci

Evropská Unie

Simple line drawing of a plug inserted into a socket (no text or symbols)

5

Vstup HDMI

Diagram showing a device connected to a control panel inside a vehicle or industrial space, with no visible text or symbols.

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-alebo-

Diagram showing two vertical metal supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket socket (no text or symbols)

5 HDMI-bemenet

A CSATLAKOZTATÁS ELÖTT GYÖZÖDJÖN MEG RÓLA, HOGY MINDKÉT EGYSÉG KI VAN KAPCSOLVA

Diagram of a fuel pump inside a vehicle, showing airflow direction and component placement (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-vagy-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket (no text or symbols)

5

Hyrja HDMI

Illustration of a mechanical device with a tool and warning symbol, enclosed in a circular frame (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-ose-

Diagram showing two vertical metal supports with circular holes and directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a plug inserted into a socket with a circular socket, no text or symbols present.

① ②a 1 2 3 4 5 6 7 8 9 GUIDE O CHLIST ИЛИ ②b CH ②c ②d

5

HDMI вход

Diagram of a vehicle's fuel injection system inside a vehicle cabin, showing fuel flow direction and component placement (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-ИПИ-

Diagram showing two vertical metal supports with circular holes and directional arrows pointing to each, against a plain gray background (no text or symbols)

Simple line drawing of a plug inserted into a socket (no text or symbols)

5 HDMI ulaz

PRE POVEZIVANJA PROVERITE DA LI SU OBA UREĐAJA ISKLJUČENA. Koristite HDMI - HDMI kabl za povezivanje ta dva uređaja. Da biste izabrali HDMI ulaz, pritisnite dugme Izvor na daljinskom upravljaču. Svaki put kada ga pritisnite, meni na ekranu potvrđuje vaš izbor.

* Izgled dugmeta Izvor može se razlikovati u zavisnosti od modela daljinskog upravljača

INPUT Ka HDMI vezu na uređaju

Diagram of a mechanical device with a connector and directional arrows, enclosed in a circular frame (no text or symbols)

Ukopčajte jedan kraj (utikač sa dvije rupe) isporučenog kabla za napajanje koji može da se odvaja u utičnicu za napajanje na stražnjoj strani TV-a kako je prikazano na slici. Zatim drugi kraj kabla za napajanje ukopčajte u utičnicu za napajanje.

Napomena: Položaj ulaza za napajanje može se razlikovati kod različitih modela uređaja.

Oznake na proizvodu

Sljedeći simboli se koriste na proizvodu kao oznake za ograničenja, mjere predostrožnosti i sigurnosne upute. Svako objašnjenje se uzima u obzir samo kada je na proizvodu navedena odgovarajuća oznaka. Imajte na umu takvu informaciju iz sigurnosnih razloga.

Oprema klase II: Ovaj uređaj je dizajniran tako da ne zahtijeva sigurnosnu vezu sa električnim uzemljenjem.

Opasni terminal pod naponom: Označeni terminal(i) je/su opasni u normalnim uvjetima funkcioniranja.

Oprez, vidjeti upute za upotrebu: Označeni dio/dijelovi sadrži/e zamjenjive dugmaste ili ćelijske baterije.

CLASS 1 LASER PRODUCT

Laserski proizvod klase 1:

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-iji-

Diagram showing two vertical metal supports with circular symbols and arrows pointing to them, no text or labels present.

Simple line drawing of a plug inserted into a socket with a circular socket, no text or symbols present.

5

Entrée HDMI

Illustration of a mechanical device with a tool inserted, enclosed in a circular frame (no text or symbols)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical or electrical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-OU-

Diagram showing two vertical metal supports with circular holes and directional arrows pointing to each, no text or symbols present.

Informations de la disposition

[Union européenne]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist in the GT, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.
Produits

Piles

INPUT 1 2 3 4 5 6 7 8 9 GUIDE O CH LIST 28 27 26 OK > EXIT 25 24 23 22 21 20 19 18 17 JVC RM-C3612 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VOL TEXT SUBTITLE INFO free www.jvc.com/ NETFLIX prime video YouTube plex BROWSER Disney+

Simple line drawing of a plug inserted into a socket (no text or symbols)

5

Ingresso HDMI

Diagram of a vehicle's fuel efficiency valve inside a vehicle cabin, showing internal components and directional arrows (no text or labels)

CLASS 1 LASER PRODUCT

Diagram showing a mechanical component with arrows indicating direction, surrounded by circular symbols (no text or labels)

-oppure-

Diagram showing two vertical supports with circular symbols and arrows pointing to them, no text or labels present.
