USER MANUAL 22BR410 LG

* LG LED Monitor applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

22MR410 22MR41S

22MR41A 22BR410

22MS31W

24MR400-BA 24MR41S-BB

24MR400-BB 24BR400-BB

24MR41A-BB 24MS31W-BB

24MR400-WB 24MC400-BB

27MR400 27MR41S

27MR41A 27BR400

27MC41D

www.lg.com

Copyright ©2023 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS

ASSEMBLING AND PREPARING 4

- Installing....5

Moving and Lifting the Monitor ....5

Installing on a Table 6

Using the Kensington Lock....6

Installing on the Wall 7

- Product Description....9

How to Use the Joystick Button....10

Adjusting the Angle ....10

- Supported Software....11

USING THE MONITOR....11

- Connecting to a PC 12

D-SUB Connection....12

HDMI Connection 12

Connecting AV Devices....13

HDMI Connection ....13

Connecting Peripherals ....13

Headphones Connection ....13

USER SETTINGS 14

- Activating the Main Menu....14

Main Menu Features....14

Menu Settings....15

[Quick Settings]....15

[Input]....16

[Picture]....16

[General]....19

PRODUCT SPECIFICATION....20

- Support Mode 22

(Preset Mode, D-SUB/ HDMI)....22

(Preset Mode, D-SUB/ HDMI, only 24MR400-BB / 24MR41A-BB / 24MR41S-BB / 24BR400-BB / 24MS31W-BB / 24MC400-BB / 24MR400-WB model)....23

HDMI Timing (Video)....24

TROUBLESHOOTING 25

LICENSE 27

BEEP GUIDE 28

LIMITED WARRANTY (USA) 30

LIMITED WARRANTY (CANADA) 32

ASSEMBLING AND PREPARING

CAUTION

• Always use genuine LG components to ensure safety and product performance.
- The product warranty will not cover damage or injury caused by the use of unauthorized components.
• It is recommended that use the supplied components.
- If you use generic cables not certified by LG, the screen may not display or there may be image noises.
- The product figures and screen displays used in this manual are examples to help consumers use the product and may differ from the actual product.
- Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)
- Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
- Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the stand and could result in personal injury.
- When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

NOTE

• The components may look different from those illustrated here.
- Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product.
- To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer from which you purchased the product.
• The power cord provided may differ depending upon the region.

Installing

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

• Place the monitor in the original box or packing material before attempting to move it.
• Before moving or lifting the monitor, disconnect the power cord and all other cables.
• Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
• When holding the monitor, the screen should face away from you to prevent it from being scratched.
• When transporting the monitor, do not expose the monitor to shock or excessive vibration.
• When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.

Diagram illustrating how to change foot positions with numbered instructions for each step

CAUTION

• Avoid touching the monitor screen as much as possible.
• This may result in damage to the screen or some of the pixels used to create images.

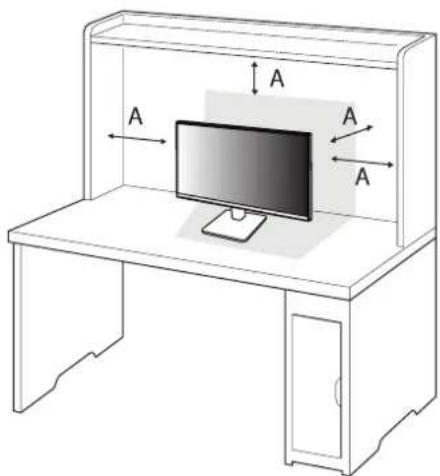

Installing on a Table

- Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm (3.9 inches) away from the wall to ensure sufficient ventilation.

Diagram of a desktop computer setup with labeled monitor and wall-mounted door, showing directional arrows for orientation.

A: 100 mm (3.9 inches)

CAUTION

• Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
• Make sure to use the power cord that is provided in the product package and connect it to a grounded power outlet.
• If you need another power cord, please contact your local dealer or the nearest retail store.

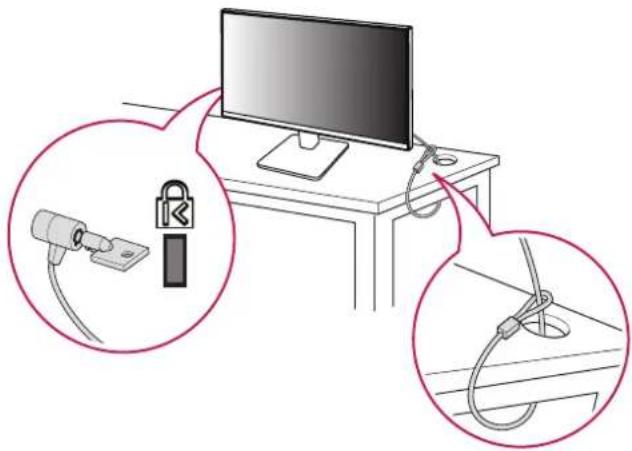

Using the Kensington Lock

For more information on installation and usage, refer to the Kensington lock owner's manual or visit the website at http://www.kensington.com.

Connect the monitor to a table using the Kensington security system cable.

Diagram showing cable installation steps with lock and cable rope connections on a monitor

NOTE

- The Kensington security system is optional. You can obtain optional accessories from most electronics stores.

Installing on the Wall

This monitor meets the specifications for the wall mount plate or other compatible devices.

Install the monitor at least 100 mm (3.9 inches) away from the wall and leave about 100 mm (3.9 inches) of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a tilting wall mounting bracket.

A A A A

A: 100 mm (3.9 inches)

Installing the Wall Mount Plate

To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor. Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.

Wall Mount (mm) 100 x 100 (3.9 x 3.9 inches)
Standard screw M4 x L10
Number of screws 4
Wall Mount Plate (Optional) LSW149

NOTE

• Use the screws specified by VESA standards.
- The wall mount kit includes the installation guide and all necessary parts.
- The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
- The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard length, it may damage the inside of the product.
- For more information, please refer to the user manual for the wall mounting bracket.
- Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the screen.
- Remove the stand before installing the monitor on a wall mount by performing the stand attachment in reverse.

CAUTION

• Unplug the power cord before moving or installing the monitor to avoid electric shock.
• Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.
• Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.
• Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or misuse of inappropriate components will not be covered by the product warranty.
• When measured from the back of the monitor, the length of each installed screw must be 8 mm (0.3 inches) or less.

A B A B C D

A: Wall Mount Plate
B: Back of the Monitor
C: Standard screw
D: Max. 8 mm (0.3 inches)

Product Description

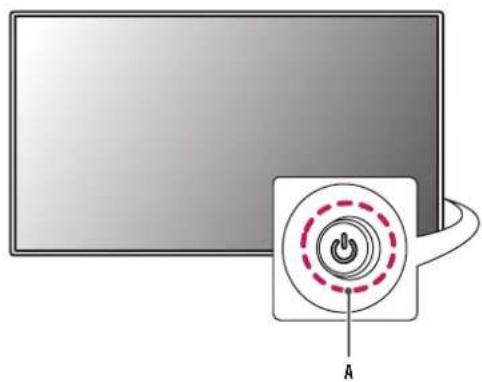

Diagram showing a monitor with a power button icon and label 'A' (no text or symbols on the device itself)

A: Joystick Button

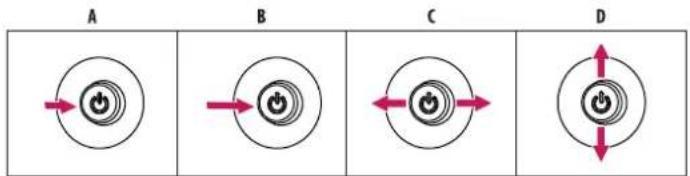

How to Use the Joystick Button

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/down with your finger.

Basic Functions

A (Power on): Press the joystick button once with your finger to turn on the monitor.
B (Power off): Press and hold the joystick button once more than 5 seconds with your finger to turn off the monitor.
C (Volume control): You can control the volume by moving the joystick button left/right.
D Enters the [Accessibility] menu.

Adjusting the Angle

1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.

The angle of the screen can be adjusted forward or backward from -5^ to 20^ for a comfortable viewing experience.

WARNING

• To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.
• Be careful not to touch or press the screen area when adjusting the angle of the monitor.

Illustration of a hand using a tool to lift a vertical rod, with a green circle highlighting the point on the rod (no text or symbols present)

Diagram showing a hand holding a tool with a prohibition symbol, indicating no movement or force in the process.

Diagram showing a hand using a tool to cut a blade, with a red prohibition symbol indicating no movement.

Supported Software

You can download and install the latest version from the LGE website (www.lg.com).

• Monitor Driv@nScreen Control

USING THE MONITOR

• Illustrations in this manual may differ from the actual product.

Press the joystick button, go to [Settings] > [Input], and then select the input option.

CAUTION

• If you use generic cables not certified by LG, the screen may not display or there may be image noises.
• Do not press the screen for a prolonged time. This may cause image distortion.
• Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC screensaver if possible.
• When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power outlet.
• The monitor may flicker when turned on in an area where the temperature is low. This is normal.
• Sometimes red, green, or blue spots may appear on the screen. This is normal.
• Make sure to use the supplied cable of the product. Otherwise, this may cause the device to malfunction.

Connecting to a PC

• This monitor supports the aged play.

* P/Feature that allows you to add a device to your computer without having to reconfigure anything or install any manual drivers.

D-SUB Connection

Transmits analog video signal from your PC to the monitor.

NOTE

- AppleAdapter

- For Apple Macintosh use, a separate plug adapter is needed. This adapter can be purchased at Apple ^® .

HDMI Connection

Transmits digital video and audio signals from your PC to the monitor.

NOTE

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

• Recommended HDMI cable types

• High Speed HDMI/™ cable
• High Speed HDMI/ ^TM cable with Ethernet

Connecting AV Devices

HDMI Connection

HDMI transmits digital video and audio signals from your AV device to the monitor.

NOTE

• Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
- Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
• Recommended HDMI cable types

- High Speed HDMF/ ^TM cable

- High Speed HDMI/™ cable with Ethernet

Connecting Peripherals

Headphones Connection

Connect peripherals to the monitor via the headphones port.

NOTE

• Peripheral devices are sold separately.

• Depending on the audio settings of the PC and external device, headphones and speaker functions may be limited.
• If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones.

Angled Straight

(Recommend)

USER SETTINGS

NOTE

• Your monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.
• When [Beep Guide] is activated, pressing the joystick button will take you to [Settings] right away.

Activating the Main Menu

Joystick Button

1 Press the joystick button on the back of the monitor.
2 Move the joystick up/down and left/right to set the options.
3 Press the joystick button once more to exit the main menu.

Main Menu Features

B A E C D'

(for HDMI only) (for D-SUB only)

A B C D"

Main Menu Description
A: [Input] Sets input mode.
B: [Power Off] Turns off the monitor.
C: [Settings] Configures the screen settings.
D': [Picture Mode] (for HDMI only) Sets the picture mode.
D": [Auto Configuration] (for D-SUB only) Operate the Auto Configuration for optimal display in D-SUB.
E: [Exit] Exits the main menu.

Menu Settings

1 To view the OSD menu, press the joystick button at the back of the monitor and then enter the [Settings].
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to ◀ or pressing (💡) it.
4 If you want to exit the OSD menu, move the joystick to ◀ until you exit.

[Quick Settings] [Input] [Picture] [General]

[Quick Settings]

[Settings] > [Quick Settings]

• [Brightness]: Adjusts the brightness of the screen.
• [Contrast]: Adjusts the contrast of the screen.
• [Volume]: Adjusts the volume level.
- You can adjust [Mute] / [Unmute] by moving the joystick button to ▼ in the [Volume] menu.
• [Auto Configuration]: Operate the Auto Configuration for optimal display in D-SUB.

[Input]

[Settings] > [Input]

• [Input List]: Selects the input mode.
[Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide], and [Original] options at the recommended resolution (1920 x 1080).
- [Full Wide]: Displays the video in widescreen, regardless of the video signal input.
- [Original]: Displays video according to the aspect ratio of the video signal input.

- The menus may disabled at the recommended resolution (1920 x 1080).

- [Auto Input Switch]: When [Auto Input Switch] is set to [On], display will automatically switch to new input when connected.

[Picture]

[Settings] > [Picture] > [Picture Mode]

• [Custom]: Allows the user to adjust each element.
[Reader]: Optimizes the screen for reading documents. You can brighten the screen in the OSD menu.
• [Photo]: Optimizes the screen to view photos.

[Cinema]: Optimizes the screen to improve the visual effects of a video.

[Color Weakness]: This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.

- This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.

- This function can't distinguish some colors in some images.

• [Game]: Optimizes the screen for gameplay.

NOTE

- If the [Picture Mode] is changed, the screen may flicker or the resolution of your PC screen may be affected.

[Settings] > [Picture] > [Picture Adjust]

• [Brightness]: Adjusts the brightness of the screen.
• [Contrast]: Adjusts the contrast of the screen.
• [Sharpness]: Adjusts the sharpness of the screen.

- [SUPER RESOLUTION+]: Because this is a function to increase the sharpness of low resolution pictures, it is not recommended to use the function for normal text or for desktop icons. Doing so may result in unnecessarily high sharpness.

• [High]: Optimizes the screen for crystal clear images. Best for high-definition video or games.
• [Middle]: Optimizes the screen for comfortable viewing, with images at the middle level between the low and high modes.
• [Low]: Optimizes the screen for smooth and natural images. Best for still images or images with less movement.
• [Off]: Displays in the most common setting. Disables [SUPER RESOLUTION+].
  • [Black Level]: Sets the offset level (for HDMI only).

Offset: as a reference for a video signal, this is the darkest color the monitor can display.

• [High]: Keeps the current contrast ratio of the screen.
• [Low]: Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
  • [DFC]
• On: Adjusts the brightness automatically according to the screen.
• Off: Disables the [DFC] feature.

[Settings] > [Picture] > [Game Adjust]

- [Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the screen. For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is recommended that you use [Faster]. Setting to [Faster] may cause image sticking.

• [Faster]: Sets the response time to faster.
• [Fast]: Sets the response time to fast.
• [Normal]: Sets the response time to normal.
• [Off]: Does not use the response time improvement feature.

- [FreeSync]: Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. Note that the screen flickering may occur intermittently in a specific gaming environment.

- Supported Interface: HDMI

• Supported Graphic Card: A graphic card that supports AMD's FreeSync is necessary.
• Supported Version: Make sure to update the graphic card to the latest driver.
• For more information and requirement, refer to AMD website (www.amd.com).

- [Black Stabilizer]: You can control the black contrast to have better visibility in dark scenes. You can easily distinguish objects on dark game screens.

[Settings] > [Picture] > [Color Adjust]

• [Gamma]

- [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma value, the lighter the image becomes.

- [Mode 4]: If you do not need to adjust the gamma settings, select [Mode 4].

• [Color Temp]: Set your own color temperature.

- [Custom]: The user can customize the red, green and blue color.

- [Warm]: Sets the screen color to a reddish tone.

- [Medium]: Sets the screen color to between a red and blue tone.

- [Cool]: Sets the screen color to a bluish tone.

- [Red], [Green], [Blue]: You can customize the picture color using [Red], [Green], and [Blue] colors.

[Settings] > [Picture] > [Configuration Adjust] (D-SUB only)

• [Horizontal]: To move image left and right.
[Vertical]: To move image up and down.
- [Clock]: To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change.
- [Phase]: To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

[Settings] > [Picture] > [Resolution] (D-SUB only)

- User can set the desired resolution. This option is enabled only when the screen resolution on your computer is set to the following (D-SUB only).

• 1024 x 768, 1280 x 768, 1360 x 768, 1366 x 768, off
• 1280 x 960, 1600 x 900, off
• 1440 x 900, 1600 x 900, off

[Settings] > [Picture] > [Picture Reset]

• Returns picture and color to the default settings.

[General]

[Settings] > [General]

• [Language]: Sets the menu screen to the desired language.
- [SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm.
- [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.
- [Low]: Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.
- [Off]: Disables the feature.
- The value of energy saving data may differ depending on panel and panel suppliers.
- If you select the option of [SMART ENERGY SAVING] is [High] or [Low], monitor luminance become higher or lower depend on source.
- [Automatic Standby]: If there is no operation on the monitor for a certain period of time, the monitor will automatically switch to standby mode.
- [OSD Lock]: This feature disables the configuration and adjustment of menus.
All features are disabled except [Brightness], [Contrast], [Volume] in [Quick Settings], [Input], [OSD Lock] and [Information] in [General].
• [Information]: The following display information will be shown; [Total Power On Time], [Resolution].
• [Reset]: Returns to the default settings.

PRODUCT SPECIFICATION

Specifications are subject to change without notice.

The symbol\~means alternating current, and the symbol \~means direct current.

Colour Depth:

• 8-bit color is supported.

Resolution

• Max Resolution:

- 1920 x 1080 @ 100 Hz (HDMI)

- 1920 x 1080 @ 75 Hz (D-SUB)

• Recommended Resolution:

- 1920 x 1080 @ 60 Hz

Environmental Conditions

- Operating Conditions

- Temperature: 0 °C to 40 °C (32 °F to 104 °F)

- Humidity: Less than 80%

Storing Conditions

- Temperature: -20 °C to 60 °C (-4 °F to 140 °F)

- Humidity: Less than 85 %

AC/DC Adapter

• Model: ADS-25FSF-19 19025EPCU-1

ADS-25FSF-19 19025EPG-1

ADS-25FSF-19 19025EPK-1

ADS-25FSF-19 19025EPI-1

ADS-25FSF-19 19025EPB-1

ADS-25SFA-19-3 19025E

Manufacturer: SHENZHEN HONOR ELECTRONIC CO., LTD

- Input: 100-240 V\~50/60 Hz, 0.7 A

- Output: 19 V-1.3 A

Power Sources

• Power Rating: 19 V-1.3 A

Dimensions: Monitor Size (Width x Depth x Height) (mm/ inches)

22MR410 / 22MR41A / 22MR41S / 22BR410 / 22MS31W

• With Stand: 491.9 x 200 x 378.1 (19.3 x 7.8 x 14.8)
• Without Stand: 491.9 x 50.5 x 284.3 (19.3 x 1.9 x 11.1)

24MR400-BA / 24MR400-BB / 24MR41A-BB / 24MR400-WB / 24MR41S-BB / 24BR400-BB /

24MS31W-BB / 24MC400-BB

• With Stand: 540 x 200 x 414 (21.2 x 7.8 x 16.2)
• Without Stand: 540 x 50.5 x 320.6 (21.2 x 1.9 x 12.6)

27MR400 / 27MR41A / 27MR41S / 27BR400 / 27MC41D

• With Stand: 611.7 x 200 x 456.1 (24 x 7.8 x 17.9)
• Without Stand: 611.7 x 50.5 x 362.3 (24 x 1.9 x 14.2)

Weight (kg/ lbs) (Without Packaging)

22MR410 / 22MR41A / 22MR41S / 22BR410 / 22MS31W

• With Stand: 2.5 (5.5)
• Without Stand: 2.1 (4.6)

24MR400-BA / 24MR400-BB / 24MR41A-BB / 24MR400-WB / 24MR41S-BB / 24BR400-BB /

24MS31W-BB / 24MC400-BB

• With Stand: 2.9 (6.3)
• Without Stand: 2.5 (5.5)

27MR400 / 27MR41A / 27MR41S / 27BR400 / 27MC41D

• With Stand: 3.9 (8.5)
• Without Stand: 3.3 (7.2)

Support Mode

(Preset Mode, D-SUB/ HDMI)

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
720 x 400 31.469 70.086 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.50 75.0 -/-
800 x 600 37.879 60.316 +/+
800 x 600 46.875 75.0 +/+
1024 x 768	48.363 60.003	-/-
1024 x 768	60.023 75.028 +/+
1152 x 864 67.5	75.0 +/+
1280 x 720	44.772 59.855 -/+
1280 x 800	49.702 59.810 -/+
1280 x 960 60.0	60.0 +/+
1280 x 1024	63.981 60.019 +/+
1280 x 1024	79.976 75.024 +/+
1440 x 900	55.935 59.887 -/+
1680 x 1050	65.290 59.954 -/+
1920 x 1080	67.50	60	+/+	Recommended timing
1920 x 1080	83.894 74.972 -/+
1920 x 1080	110	100	+/-	HDMI only

(Preset Mode, D-SUB/ HDMI, only 24MR400-BB / 24MR41A-BB / 24MR41S-BB / 24BR400-BB / 24MS31W-BB / 24MC400-BB / 24MR400-WB model)

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
720 x 400 31.469 70.086 -/+
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.028 +/+
1152 x 864 67.07	74.94 +/-
1280 x 960	60	60 +/+
1280 x 720 44.772 59.855 -/+
1280 x 800 49.702 59.81 -/+
1280 x 1024	63.668 59.894 -/+
1280 x 1024	80.295 74.902 -/+
1440 x 900 55.935 59.887 -/+
1680 x 1050	64.674 59.883 +/-
1920 x 1080 67.5 60 +/+	Recommended timing
1920 x 1080 83.89	74.97 +/-
1920 x 1080 110.0	100.0 +/- HDMI only

HDMI Timing (Video)

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz)
480p 31.5 60
576p 31.25 50
720p 37.5 50
720p 45 60
1080p 56.25 50
1080p 67.5 60

TROUBLESHOOTING

Please refer to the list below if you experience any of the following issues during product use. It may not be a malfunction.

Nothing is displayed on the screen.

• Is the monitor's power cord plugged in?
- Check if the power cord is correctly plugged into the power outlet.
• Is the monitor's adapter plugged in?
- Make sure to use the adapter that is provided in the product package.
- If the monitor is in sleep mode (standby mode), move the mouse, or press any key on the keyboard, to switch the display on.
- Check if the computer is turned on.

• Is the monitor powered on?

- Check if the input setting is correct. ([Settings] > [Input])

- Is the [The screen is not currently set to the recommended resolution.] message being displayed?

- This occurs when signals transferred from the PC (graphics card) are out of the recommended horizontal or vertical frequency range of the monitor. Please see the "PRODUCT SPECIFICATION" section of this manual to set the appropriate frequency.

• Is the [No Signal] message being displayed?

- This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

• Is the [Out of Range] message being displayed?

- This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical frequency range of the monitor. Please see the "PRODUCT SPECIFICATION" section of this manual to set the appropriate frequency.

Do you see an "Unrecognized monitor, Plagnified Play(d/EsteDage)?

• Have you installed the display driver?
- Be sure to install the display driver from our web site: https://www.lg.com.
- Make sure to check if the graphics card supports PlogmotioPlay

The screen retains an image.

• Does image sticking occur even when the monitor is turned off?
- Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image.
- To extend the lifetime of the monitor, use a screensaver.

Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.

• Did you select the appropriate resolution?
- If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the resolution to 1080p or the recommended resolution.

The display color is abnormal.

• Does the display appear discolored (16 colors)?
- Set the color to 24 bit (true color) or higher. (The settings may differ depending on the operating system (OS) you use.)
• Does the display color appear unstable or monochrome?
- Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
• Are there spots on the screen?
- When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.

Some features are disabled.

• Are some functions not available when you press the Menu button?
• The OSD is locked. Disable [OSD Lock] in [General].

No sound from the headphone port.

• Are images displayed without sound?
- Make sure that the headphone port connections are made properly.
- Try increasing the volume with the joystick.
- Set the audio output of the PC to the monitor you are using. (The settings may differ depending on the operating system (OS) you use.)

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

BEEP GUIDE

Menu Location
Quick Settings 1
Quick Settings - Brightness 1 1
Quick Settings - Brightness 1 1 1 Slider
Quick Settings - Contrast 1 2
Quick Settings - Contrast 1 2 1 Slider
Quick Settings - Volume 1 3
Quick Settings - Volume 1 3 1 Slider
Quick Settings - Auto Configuration(only Dsub) 1 4
Quick Settings - Auto Configuration(only Dsub) - No 1 4 1
Quick Settings - Auto Configuration(only Dsub) - Yes 1 4 2
Input 2
Input - Input List 2 1
Input - Input List - D-SUB 2 1 1
Input - Input List - HDMI 2 1 2
Input - Aspect Ratio 2 2
Input - Aspect Ratio - Full Wide 2 2 1
Input - Aspect Ratio - Original 2 2 2
Input - Auto Input Switch	2 3
Input - Auto Input Switch - On	2 3 1
Input - Auto Input Switch - Off	2 3 2
Picture	3
Picture - Picture Mode	3 1
Picture - Picture Mode - Custom	3 1 1
Picture - Picture Mode - Reader	3 1 2
Picture - Picture Mode - Photo	3 1 3
Picture - Picture Mode - Cinema	3 1 4
Picture - Picture Mode - Color Weakness	3 1 5

Menu Location
Picture - Picture Mode - Game	3 1 6
Picture - Picture Adjust	3 2
Picture - Picture Adjust - Brightness	3 2 1
Picture - Picture Adjust - Brightness	3 2 1 1 Slider
Picture - Picture Adjust - Contrast	3 2 2
Picture - Picture Adjust - Contrast	3 2 2 1 Slider
Picture - Picture Adjust - Sharpness	3 2 3
Picture - Picture Adjust - Sharpness	3 2 3 1 Slider
Picture - Picture Adjust - SUPER RESOLUTION+	3 2 4
Picture - Picture Adjust - SUPER RESOLUTION+ - High	3 2 4 1
Picture - Picture Adjust - SUPER RESOLUTION+ - Middle	3 2 4 2
Picture - Picture Adjust - SUPER RESOLUTION+ - Low	3 2 4 3
Picture - Picture Adjust - SUPER RESOLUTION+ - Off	3 2 4 4
Picture - Picture Adjust - Black Level	3 2 5
Picture - Picture Adjust - Black Level - High	3 2 5 1
Picture - Picture Adjust - Black Level - Low	3 2 5 2
Picture - Picture Adjust - DFC	3 2 6
Picture - Picture Adjust - DFC - On	3 2 6 1
Picture - Picture Adjust - DFC - Off	3 2 6 2
Picture - Game Adjust	3 3
Picture - Game Adjust - Response Time	3 3 1
Picture - Game Adjust - Response Time - Faster	3 3 1 1
Picture - Game Adjust - Response Time - Fast	3 3 1 2
Picture - Game Adjust - Response Time - Normal	3 3 1 3
Picture - Game Adjust - Response Time - Off	3 3 1 4
Picture - Game Adjust - FreeSync	3 3 2
Picture - Game Adjust - FreeSync - On	3 3 2 1
Picture - Game Adjust - FreeSync - Off	3 3 2 2
Picture - Game Adjust - Black Stabilizer	3 3 3

Menu Location
Picture - Game Adjust - Black Stabilizer	3 3 3 1 Slider
Picture - Color Adjust - Gamma 3 4 1
Picture - Color Adjust - Gamma - Mode 1	3 4 1 1
Picture - Color Adjust - Gamma - Mode 2	3 4 1 2
Picture - Color Adjust - Gamma - Mode 3	3 4 1 3
Picture - Color Adjust - Gamma - Mode 4	3 4 1 4
Picture - Color Adjust - Color Temp	3 4 2
Picture - Color Adjust - Color Temp - Custom	3 4 2 1
Picture - Color Adjust - Color Temp - Warm	3 4 2 2
Picture - Color Adjust - Color Temp - Medium	3 4 2 3
Picture - Color Adjust - Color Temp - Cool	3 4 2 4
Picture - Color Adjust - Red 3 4 3
Picture - Color Adjust - Red 3 4 3 1 Slider
Picture - Color Adjust - Green	3 4 4
Picture - Color Adjust - Green	3 4 4 1 Slider
Picture - Color Adjust - Blue	3 4 5
Picture - Color Adjust - Blue	3 4 5 1 Slider
Picture - Configuration Adjust (Only D-SUB)	3 5
Picture - Configuration Adjust (Only D-SUB) - Horizontal	3 5 1
Picture - Configuration Adjust (Only D-SUB) - Horizontal	3 5 1 1 Slider
Picture - Configuration Adjust (Only D-SUB) - Vertical	3 5 2
Picture - Configuration Adjust (Only D-SUB) - Vertical	3 5 2 1 Slider
Picture - Configuration Adjust (Only D-SUB) - Clock 3 5 3
Picture - Configuration Adjust (Only D-SUB) - Clock 3 5 3	3 1 Slider
Picture - Configuration Adjust (Only D-SUB) - Phase	3 5 4
Picture - Configuration Adjust (Only D-SUB) - Phase	3 5 4 1 Slider
Picture - Resolution(Only D-SUB)	3 6
Picture - Resolution(Only D-SUB) - 1024*768	3 6 1
Picture - Resolution(Only D-SUB) - 1280*768	3 6 2
Picture - Resolution(Only D-SUB) - 1360*768 3 6 3
Picture - Resolution(Only D-SUB) - 1366*768 3 6 4
Picture - Resolution(Only D-SUB) - Off 3 6 5
Picture - Resolution(Only D-SUB) - 1280*960 3 6 1
Picture - Resolution(Only D-SUB) - 1600*900 3 6 2
Picture - Resolution(Only D-SUB) - Off 3 6 3
Picture - Resolution(Only D-SUB) - 1440*900 3 6 1
Picture - Resolution(Only D-SUB) - 1600*900 3 6 2
Picture - Resolution(Only D-SUB) - Off 3 6 3
Picture - Picture Reset 3 7
Picture - Picture Reset - No 3 7 1
Picture - Picture Reset - Yes 3 7 2
General 4
General - Language 4 1
General - Language - English 4 1 1
General - Language - German 4 1 2
General - Language - French 4 1 3
General - Language - Spanish 4 1 4
General - Language - Italian 4 1 5
General - Language - Swedish 4 1 6
General - Language - Finnish 4 1 7
General - Language - Portuguese 4 1 8
General - Language - Portuguese (Brazil) 4 1 9
General - Language - Polish	4 1 10
General - Language - Russian	4 1 11
General - Language - Turkish	4 1 12
General - Language - Ukrainian	4 1 13
General - Language - Chinese	4 1 14
General - Language - Traditional Chinese	4 1 15
General - Language - Japanese	4 1 16

Menu Location
General - Language - Korean	4 1 17
General - Language - Hindi	4 1 18
General - Smart Energy Saving	4 2
General - Smart Energy Saving - High	4 2 1
General - Smart Energy Saving - Low	4 2 2
General - Smart Energy Saving - Off	4 2 3
General - Automatic Standby 4 3
General - Automatic Standby - 8H	4 3 1
General - Automatic Standby - 6H	4 3 2
General - Automatic Standby - 4H	4 3 3
General - Automatic Standby - Off	4 3 4
General - OSD Lock	4 4
General - OSD Lock - On	4 4 1
General - OSD Lock - Off	4 4 2
General - Information	4 5
General - Information	4 5 1
General - Reset	4 6
General - Reset - No	4 6 1
General - Reset - Yes	4 6 2

LIMITED WARRANTY (USA)

THE PRODUCT'S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/us AND/OR YOUR WARRANTY.

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS ("LG") TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

PROCEDURE FOR RESOLVING DISPUTES:

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds \25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support and clicking on "How do I find my model number?").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure.

Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

LIMITED WARRANTY (CANADA)

THE PRODUCT'S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/ca_en/AND/OR YOUR WARRANTY.

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

• DISCLAIMER:

IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO'S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY WARRANTIES PROVIDED THEREUNDER.

PROCEDURE FOR RESOLVING DISPUTES:

EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with provincial legislation, the consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. For consumers in Ontario and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than \$25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for \25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds \25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out. The arbitration provision does not apply to consumers in Ontario and Québec.

For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out," or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/).

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

LG

Life's Good

The model and serial number of the product are located on the back and on one side of the product.

Record them below in case you ever need service.

Model

Serial No.

Supplier's Declaration of Conformity

Trade Name LG

Responsible

Party

Address

111 Sylvan Avenue, North

Building, Englewood Cliffs,

NJ 07632

E-mail [e-mail]

IMPORTANT PRECAUTIONS

Please read these safety precautions carefully before using the product. All precautions and safety information applies to LCD and OLED models.

WARNING

Failure to follow those warnings may result in death, serious injury or damage to the product or other property.

Precautions to the AC Adapter and Electrical Power

WARNING

• If water or any foreign substance goes inside the product (TV, monitor, power cord, or AC adapter), disconnect the power cord immediately and contact the service center.
  Otherwise, this may cause a fire or electric shock due to damage to the product.
• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe and dry them before use.
  Otherwise, this may cause a fire or electric shock.

- Make sure to completely insert the power cord into the AC adapter.

» If loosely connected, the poor connection may cause a fire or electric shock.

- Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.

» The use of non-approved products may cause a fire or electric shock.

- When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force.

» The power line can be damaged, which may cause electric shock or fire.

- Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.

» Damaged power cords may cause a fire or electric shock.

- Never disassemble, repair or modify the power cord or AC adapter.

» This may cause a fire or electric shock.

- Use only the power cord supplied with the unit or another manufacturer's authorized cord.

» Failure to do so may result in fire or electrical shock or damage to the product.

- Use only a properly grounded plug and receptacle.

» If you do not you may be electrocuted or injured. Or the product might be damaged.

- Do not use a damaged or loose plug.

» This may cause electrical shock or fire.

- Operate the display only from a power source(i.e. voltage) indicated in the product specification.

» Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what type of power supply you have, consult a certified electrician.

- In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very dangerous.

» It can cause electric shock.

- Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a power bar with a grounding terminal designed for exclusive use with the computer.

» A fire can break out due to overheating.

- Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off before plugging in the cord.

» You may be electrocuted due to excess moisture.

- If you don't intend to use the product for a long time, unplug the power cable from the product.

» Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

- Insert the power plug firm so it cannot come loose.

» A loose connection can cause fire.

• Do not insert metal or other conductive materials into the product openings. Additionally, do not touch the power cable right after plugging into the wall input terminal.
  » You may be electrocuted.
• The AC Plug is the disconnecting device. It should be easily accessible in case of emergency.
• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet is easily accessible.
• Be sure to keep the outlet, AC adapter, and pins of the power plug clean from dust and etc.
  » This may cause a fire.
• Do not unplug the power cord while the product is in use.
  » Electrical shock can damage the product.
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

Precautions in installing the Product

WARNING

- Keep away from heat sources like heaters or open flames.

» Electrical shock, fire, malfunction or deformation may occur.

- Keep the packing anti-moisture material or vinyl packing out of the reach of children.

» Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

- Do not put heavy objects on the product on sit upon it.

» If the product collapses or is dropped, you may be injured. Children must pay particular attention.

- Do not leave the power or signal cable where someone can trip over it.

» The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.

• Install the product in a neat and dry place. Do not use near water.

» Dust or moisture can cause electrical shock, fire or product damage.

- Do not add accessories that have not been designed for this display.

- If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service.

» If you continue to use without taking proper measures, electrical shock or fire can occur.

- If you dropped the product or the case is broken, turn off the product and unplug the power cord.

» If you continue to use without taking proper measures, electrical shock or fire can occur. Contact LG Customer Service.

- Do not drop an object on or apply impact to the product. Do not throw any toys or objects at the product.

» It can cause injury to humans, problems to the product and damage the display.

- Keep out of reach of children and do not place toys near the product.

- Make sure the product ventilation hole is not blocked. Install the product more than 10cm from the wall.

» If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat build-up.

- Do not cover the product with cloth or other material (eg. plastic) while plugged in.

» The product can be deformed or fire can break out due to internal overheating.

- Place the product on a flat and stable surface that is large enough to support the product.

» If the product is dropped, you may be injured or the product may be broken.

• Install the product where no Electromagnetic Interference occurs.

- Keep the product away from direct sunlight.

» The product can be damaged.

- Do not place the product on the floor.

» Small Children and others may trip over it.

- Do not install this product on a wall if it could be exposed to oil or oil mist.

» This may damage the product and cause it to fall.

- For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

Precautions in Moving the Product

WARNING

• Make sure to turn off the product.

» You may be electrocuted or the product can be damaged.

- Make sure to remove all cables before moving the product.

» You may be electrocuted or the product can be damaged.

- When lifting or moving the product, do not hold it upside down while holding only the stand.

» This may cause the product to fall resulting in damage or injury.

- Do not shock the product when moving it.

» You may be electrocuted or the product can be damaged.

- Make sure the panel faces forward and hold it with both hands to move.

» If you drop the product, the damaged product can cause electric shock or fire.

- Do not place the product face down.

» This may damage the TFT-LCD screen.

Precautions in Using/Cleaning the Product

WARNING

- Do not attempt to disassemble, repair or modify the product yourself.

» Fire or electric shock can occur.

» Contact LG Customer Service for repair.

- When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. An electric shock may occur. (Do not use chemicals such as benzene, paint thinners or alcohol)

- Keep the product away from water.

» Fire or electric shock accident can occur.

- Avoid high temperatures and humidity.

- Do not put or store flammable substances near the product.

» There is a danger of explosion or fire.

- Keep the product clean at all times.

• Take a comfortable and natural position when working with the product.

• Take a regular break when working with the product for a long time.

- Do not press on the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.

- Keep proper distance from the product and rest from time-to-time.

» Your vision may be impaired if you look at the product too closely or for too long.

- Set the appropriate resolution by referring to the User's Guide.

- Keep small accessories out of the reach of children.

- Displaying a still image for long time on the monitor may leave persistent image or stain on the monitor screen. To avoid this problem, use a screen saver and power off when this product is not used. Persistent image or stain caused by long time usage are not covered by the warranty on this product.

- Do not use products using high voltage around the Monitor. (ex. Electrical Swatter)

» Monitor may have malfunction as its electrical shock.

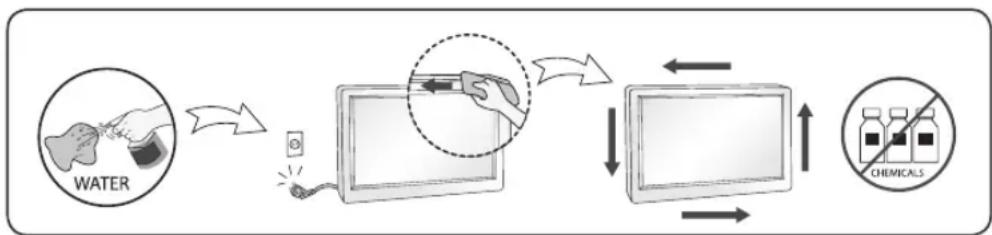

- Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame; wipe in one direction only. Too much moisture may cause staining.

PRÉCAUTIONS IMPORTANTES

DDC is a communication channel over which the monitor automatically informs the host system (PC) about its capabilities.

DDC protocol

① DDC1/DDC2B
An uni-directional communication channel.
② DDC 2AB/DDC2B+/DDC2Bi
A bi-directional communication channel.

Note

- PC must support DDC functions to do this.

E-DDC (Enhanced DDC)

A protocol based on I²C and used on a bidirectional data channel between the display and host. This protocol accesses devices at I²C address of A0/A1 as well as the address 60. The 60 address is used as a segment register to allow larger amounts of data to be retrieved than is possible using DDC2B protocols. The protocol is compatible with DDC2B protocols.

DEUTSCH

DDC (Display Data Channel)

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

② DDC 2AB/DDC2B+/DDC2Bi

양방향 통신 채널.

주

② DDC 2AB/DDC2B+/DDC2Bi

双方向通信チャンネル。

注

② DDC 2AB/DDC2B+/DDC2Bi

Energy Saving Design

This program is designed to have computer equipment manufacturers build circuitry into their products to reduce power consumption when it is not in operation.

When this monitor is used with a PC on which a screen blanking software complying with the VESA Display Power Management Signalling (DPMS) Protocol is installed, it can conserve significant energy by reducing power consumption when it is not in operation.

There are 2 signal lines, 3 modes of operation.

: On Mode, Sleep Mode, Off Mode.

Mode Definition
On mode	The normal operation.When the monitor is on mode, being connected to a power source, it displays an image.
Sleep Mode	The reduced power state returns to on mode when the user moves the mouse or presses a key on the keyboard.
Off Mode	The lowest power consumption state returns to on mode when the user pushes a power switch.

Note

- The energy saving Design monitors only work while connected to the computers that have energy saving features.

Programa de economia de energia

Mode activé (On), mode de veille (Sleep), mode désactivé (Off).

Unplug the monitor from the wall outlet and refer servicing to qualified service personnel when :

• The power cord or plug is damaged or frayed.
  • Liquid has been spilled into the monitor.
• The monitor has been exposed to rain or water.
• The monitor does not operate normally following the operating instructions. Adjust only those controls that are covered in the operating instructions. An improper adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore the monitor to normal operation.
• The monitor has been dropped or the cabinet has been damaged.
• The monitor exhibits a distinct change in performance.
• Snapping or popping from the monitor is continuous or frequent while the monitor is operating. It is normal for some monitors to make occasional sounds when being turned on or off, or when changing video modes.

Do not attempt to service the monitor yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DEUTSCH

Wartun
