Product type	Smartphone
Brand	Motorola
Model	Moto G86 5G (XT2527-2)
Display	Not specified (estimated: 6.5-inch touchscreen)
Dimensions	Not specified (estimated: 163.9 x 74.7 x 8.0 mm)
Weight	Not specified (estimated: 190 g)
Power supply	Rechargeable built-in battery, fast charging up to 33W (QC) or 68W (PD)
Connectivity	5G, LTE, Wi-Fi 5/6, Bluetooth 5.3, NFC, USB-C
Main camera	Main sensor + ultra-wide/macro
Front camera	Yes
Fingerprint sensor	Yes
Dust and water resistance	Yes (check the user guide for details)
Headphone jack	USB-C (adapter for 3.5mm jack available separately)
Speakers	Internal speaker + earpiece
Storage	Internal + microSD (card sold separately)
Security	Fingerprint, SAR info available via *#07#
Maintenance	Do not block ventilation openings; screen protector max 0.5 mm
Spare parts and repairability	Battery replaceable only by qualified personnel
Operating temperature	-20°C to 45°C
General information	Manual reference 80602075H001-A; Extended warranty via Moto Care

Frequently Asked Questions - Moto G86 5G MOTOROLA

How to insert the SIM card and microSD card?

Use the provided tool to eject the tray located on the side of the phone. Insert the nano-SIM (and optionally a microSD card) with gold contacts facing down, then close the tray.

How to turn the phone on and off?

To turn on, press and hold the Power button until the logo appears. To turn off, press the Power and Volume Up buttons simultaneously.

What type of charger to use for fast charging?

Use a Motorola QC 33W or higher charger with the included QC cable, or a PD 68W charger with a compatible PD cable (sold separately). Fast charging is supported.

Is the phone water and dust resistant?

Yes, it offers resistance. For precise details and care instructions, refer to the user guide or go to Settings > Help.

How to get SAR (Specific Absorption Rate) information?

Swipe up on the home screen, tap Settings, then enter 'Regulatory labels' or dial *#07# directly on the keypad.

Can I use a headset with a 3.5mm jack?

Yes, but you will need a USB-C to 3.5mm jack adapter (sold separately), as the phone only has a USB-C port.

What to do if the phone becomes unresponsive?

Press and hold the Power button until the screen turns off and the phone restarts.

Where can I find help and updates?

Swipe up on the home screen, then tap Settings > Help. You can also visit www.motorola.com/mymotog.

Can I use an eSIM?

Yes, the single physical SIM model can support an eSIM in addition. Contact your carrier for activation.

How to recycle my phone at end of life?

Do not dispose of the device with household waste. Visit www.motorola.com/recycling for collection points and recycling instructions.

USER MANUAL Moto G86 5G MOTOROLA

moto g86 5G

English (en-GB)....3

Deutsch (de)......7

Français (fr)....11

Español(es)....15

Scan with your Camera app for how-to videos.

motorola.com/g86/row

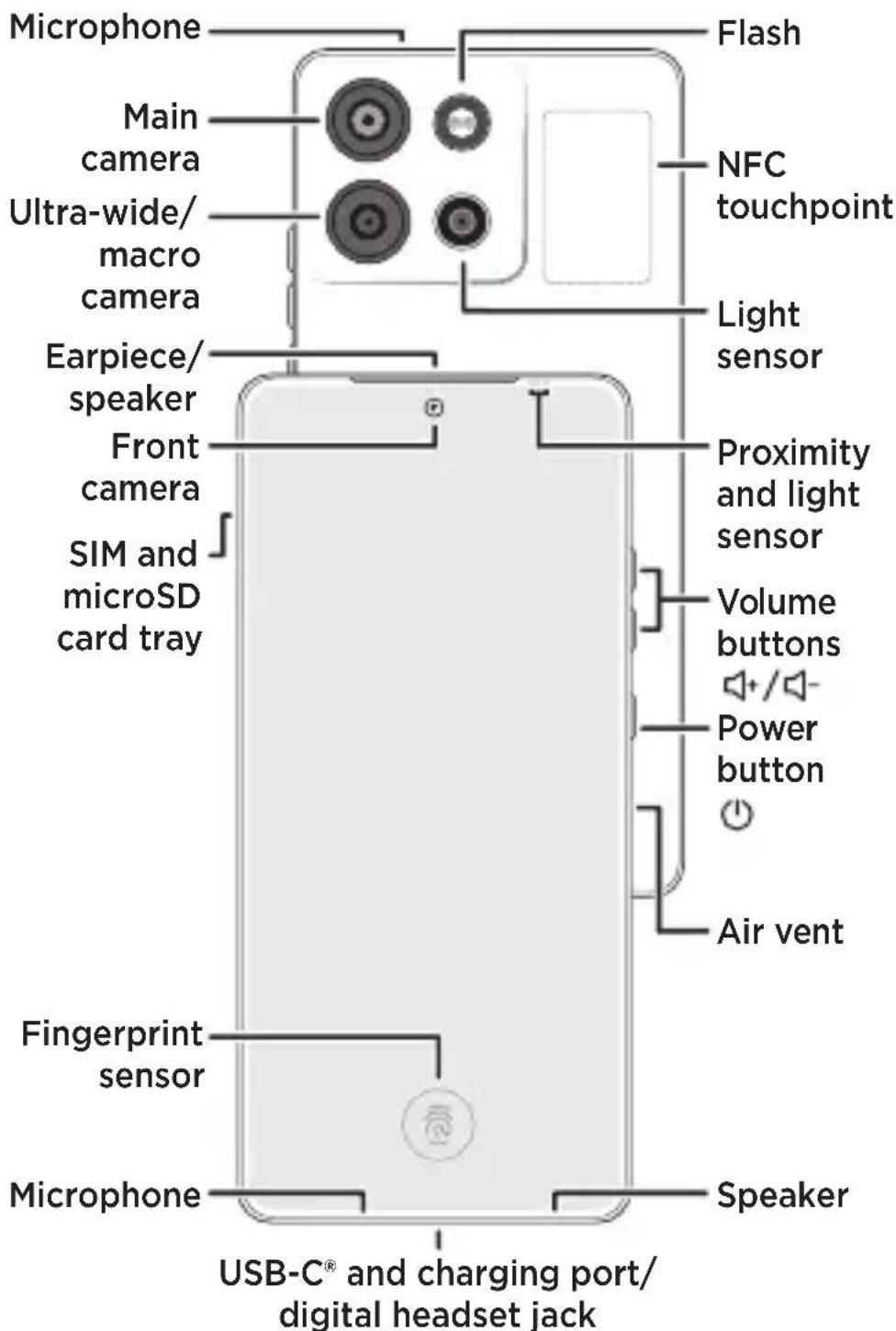

Let's get started

Before using your phone, please read the legal, safety and regulatory information provided with your product.

Note: to use a headset, you'll need one with a USB-C connector. If you're using a 3.5mm headset, you'll need an adapter to connect a 3.5mm connector to USB-C. Headset and adapter may be sold separately.

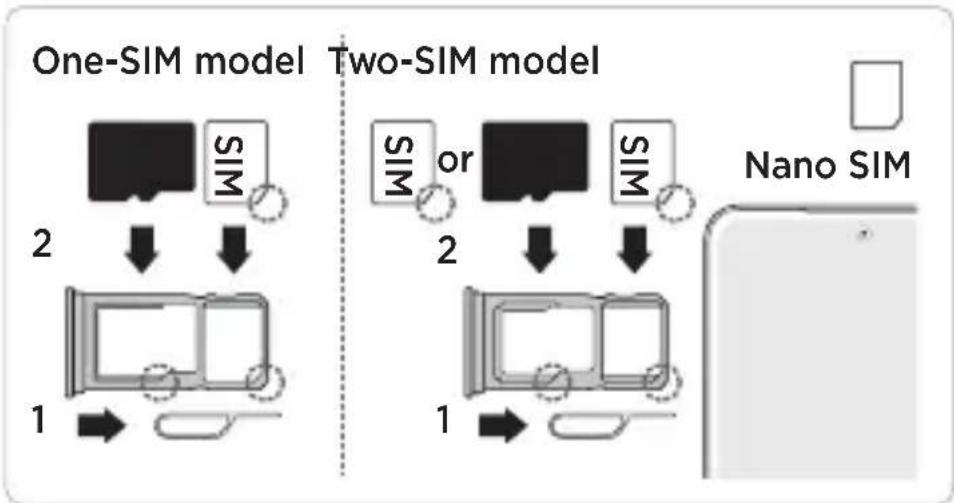

Put the card(s) in and power on

1 Insert the SIM tool into the hole next to the SIM and microSD card tray to pop out the tray.

Make sure you use the correct size of SIM card and don't cut the SIM card.

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card (optional, sold separately) for additional storage.

eSIM option (one physical SIM model only): your phone may support an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.

Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

3 Press and hold the power button (to turn on your phone, then follow the prompts to get started.

To turn off your phone, press the power and volume up buttons ⏻+◀+ at the same time.

Energy label: the energy label and product information defined within Regulation (EU) 2023/1669 is available at https://eprel.ec.europa.eu/screen/home.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Getmore: get software, user guides and more at www.motorola.com/mymotog.
  • Air vent: to prevent noise during calls or media playback, ensure protective accessories like films, covers and their adhesives do not obstruct the air vent hole.

Screen protector. Screen protectors may reduce your phone's touchscreen sensitivity. Do not use screen protectors thicker than 0.5mm.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen, swipe up and tap Settings > Q, then type Legal information or visit www.motorola.com/device-legal.

Dust and water resistance. For detailed information about your phone's dust and water resistance design and care tips, swipe up and tap Settings > Help, or refer to the user guide.

Charging and battery safety. The battery in your phone can be removed by suitably competent individuals following Motorola-approved repair and service manuals. To prevent possible burning and injury, always follow the instructions provided. If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts.

The phone supports QC and USB PD fast charging. The power delivered by the charger must be between min 5 Watts required by the radio equipment, and max 33 Watts in order to achieve the maximum charging speed. For the fastest charging speed, choose a Motorola 33W or higher USB-A QC (Quick Charge) charger with the included QC cable, or a Motorola 68W or higher USB-C PD Delivery) charger and compatible PD cable (both sold separate Use of other chargers is not recommended and may impair charging performance.

Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. Don't charge your phone in temperatures below -20°C or above 45°C. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Disposal and recycling. Don't dispose of your battery or mobile device with your household waste. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store or transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time of printing or release. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > , then type Regulatory labels, from your phone's dial pad, type *#07# or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2527-2). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/band	Maximum nominal transmit power dBm
Bluetooth 240	0-2483.5 20 dBm EIRP
Wi-Fi 2400-24	483.5/5250-5350/5470-5725	20 dBm EIRP
Wi-Fi 5150-52	50 23 dBm EIRP
Wi-Fi 5725-58	50 14 dBm EIRP
GNSS 1559-16	10 N/A
NFC 13.56 -15.69 dBuA/m @ 10m
GSM 2*/3*/5/8	33/30*
UMTS 1/2/5/8	24
LTE	1/2/3/5/7/8/20/26/28/32/38/40/41*/42/71	23/26*
5G	n1/3/5/7/8/20/26/28/38/40/41/71/77*/78*	23/26*

Product ID: moto g86 5G (Model XT2527-2)

Manual Number: 80602075H001-A

Erste Schritte

Copyright & trademarks. MOTOROLA, the stylized M logo, MOTO, and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2025 Motorola Mobility LLC. All rights reserved.

moto care

Protect your phone with moto care. Visit:

motorola.com/motocare.

With moto care, extend your warranty coverage up to three years, and take advantage of features like accidental damage protection.
