Product Type	PC Power Supply
Brand	Zalman
Model	Acrux II ZM1200-ARX2
Rated Power	1200 W
Form Factor	ATX
Dimensions (L x W x H)	150 mm x 86 mm x 180 mm
Weight	2.5 kg
80 Plus Certification	80 Plus Gold
Cable Modularity	Fully modular
Fan	135 mm with oil bearing
Built-in protections	OVP, UVP, OCP, OPP, SCP, OTP
Main connectors	1x ATX 24-pin, 2x EPS 4+4-pin, 6x PCIe 6+2-pin, 12x SATA, 4x Molex
Input Voltage	100-240 V AC, 50-60 Hz
Operating Temperature Range	0 °C to 40 °C
Maintenance and cleaning	Unplug the power supply before cleaning. Use a dry cloth to dust the case and fan. Do not use liquid products.
Safety instructions	Do not open the case while powered on. Avoid exposure to moisture or liquids. Do not insert objects into the fan while it is running.
Spare parts and repairability	Repairs must be carried out by a professional. Modular cables are replaceable. The warranty does not cover accessories.
General information	Designed for computer use (office, multimedia, gaming). Outdoor or external use not permitted.

Frequently Asked Questions - Acrux II ZM1200-ARX2 ZALMAN

What is the power of the Zalman Acrux II ZM1200-ARX2 power supply?

The power supply has a rated power of 1200 watts, suitable for high-end configurations.

Is this power supply modular?

Yes, the Acrux II ZM1200-ARX2 is fully modular, allowing only necessary cables to be used.

What are the dimensions of the power supply?

Typical dimensions are approximately 150 mm x 86 mm x 180 mm, compatible with most ATX cases.

What connectors are provided?

It is equipped with a 24-pin ATX connector, two 4+4-pin EPS for CPU, six 6+2-pin PCIe for GPUs, twelve SATA, and four Molex.

What safety protections are built-in?

Protections include OVP (over voltage), UVP (under voltage), OCP (over current), OPP (over power), SCP (short circuit), and OTP (over temperature).

How to maintain the power supply?

Unplug the device before any cleaning. Use a dry cloth to remove dust from the case and fan. Avoid liquids.

Can I use this power supply outdoors?

No, it is designed only for indoor computer use. Outdoor or external use voids the warranty.

What is the 80 Plus certification of this model?

The model is certified 80 Plus Gold, guaranteeing an energy efficiency of at least 87% at 100% load.

What to do in case of malfunction?

First check the connections and power source. If the problem persists, contact a specialist or Zalman after-sales service.

Does the warranty cover modular cables?

For the fully modular version, the warranty applies only to the power supply unit and not to accessories such as cables.

USER MANUAL Acrux II ZM1200-ARX2 ZALMAN

ACRUX II SERIES

POWER SUPPLY UNITS

850W, 1000W, 1200W

User's manual

Ver. 052725

English

Warnings and Safety Precautions

Neglecting the following may cause serious injury or death.

• Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
• Handling the power cord with wet hands may cause electrocution.
• Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

• Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
• Exposure to liquids may cause malfunction.
  ▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
• Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
  ▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
  ▶ Please use gloves to prevent injuries during installation.
• Product designs and specifications may be revised without prior notification to improve quality and performance.

WARNING

This product is designed for computer use only, such as offices, multimedia, the Internet and games. Using this product in any other application will void the warranty. The power supply unit(PSU) is for integration into a computer system and not intended for external or outdoor usage. Please note that Full Modular PSU's warranty is applicable to the power supply unit ONLY and does not include accessories such as, power cable, connector and etc. Non-Modular warranty is applicable to PSU and its power cables. If you have any questions, please ask a specialist for help.

DISCLAIMER

Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

Français

User's ManualAC Power CordCable + Cable Bag

3. ZM850-ARX2 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I				min	Imax	Ipeak
AC Input Current	100VAC	12A~6A		+3.3V 0A	20A			120W	850W
	240VAC +5V 0A 20A
PFC Type Active PFC +12V 0A 70.83A 850W
Power Factor Correction Max 99% -12V 0A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A		+5VSB	0A	3A		15W
	240VAC			Ambient Temperature
Efficiency	Max 94% @230V~, Typical load			Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range	At Full LoadS	Storage		-20 ~ +70°C
	+3.3VDC	±5% +3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5% +4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC ±5% +11.4 ~ +12.6V			Storage		5% ~ 95% RH
	-12VDC	±10% - 0.8 ~ -13.2V Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5% +4.75 ~ +5.25V		Weight		2.4Kg
DC Output Ripple & Noise	Vout	Standard Range	At Full Load	Protection Funtions
	+3.3VDC 50mV			Over-Current Protection (OCP)
	+5VDC	50mV		Over-Voltage Protection (OVP)
	+12VDC	120mV		Over-Power Protection (OPP)
	-12VDC 120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV		Under-Voltage Protection (UVP)
				Short-Circuit Protection (SCP)

2) Connector Specifications

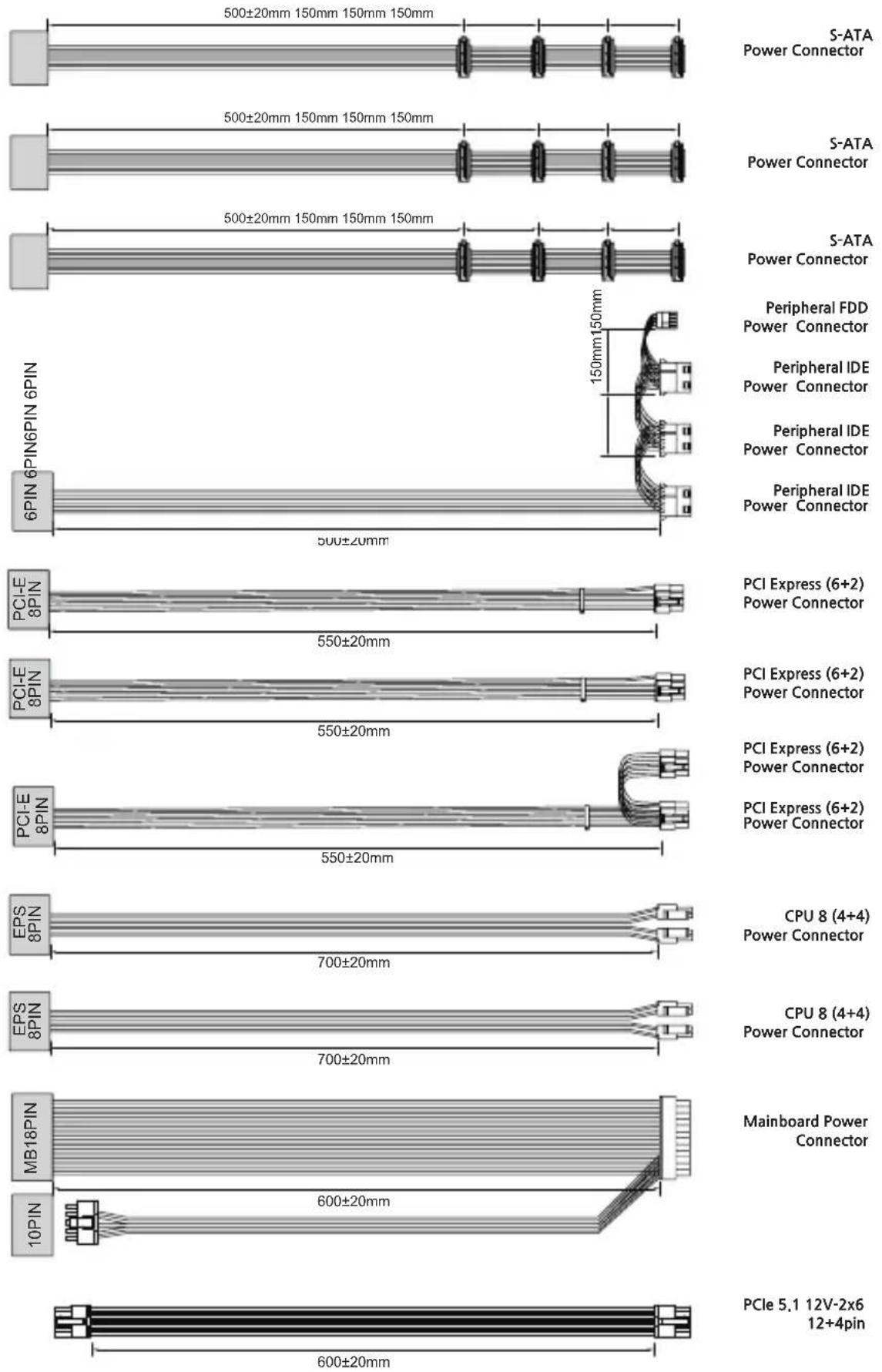

3) Cable Specifications

S-ATA
Power Connector
S-ATA
Power Connector
S-ATA
Power Connector
Peripheral FDD
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
CPU 8 (4+4)
Power Connector
CPU 8 (4+4)
Power Connector
Mainboard Power
Connector
PCIe 5.1 12V-2x6
12+4pin

3. ZM1000-ARX2 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I				min	Imax	Ipeax
AC Input Current	100VAC	12A~6A		+3.3V 0A	20A			120W	1000W
	240VAC +5V 0A 20A
PFC Type Active PFC +12V 0A 83.33A 1000W
Power Factor Correction Max 99% -12V 0A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A		+5VSB	0A	3A		15W
	240VAC			Ambient Temperature
Efficiency	Max 94% @230V~, Typical load			Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range	At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5% +3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V	Operation		5% ~ 85% RH
	+12VDC ±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10% -10.8 ~ -13.2V Dimensions		140(L) X 150(W) X 86(H) mm
	+5VSB	±5% +4.75 ~ +5.25V		Weight		2.45Kg
DC Output Ripple & Noise	Vout Standard Range		At Full Load	Protection Funtions
	+3.3VDC 50mV			Over-Current Protection (OCP)
	+5VDC	50mV		Over-Voltage Protection (OVP)
	+12VDC	120mV		Over-Power Protection (OPP)
	-12VDC 120mV			Over-Temperature Protection (OTP)
	+5VSB	50mV		Under-Voltage Protection (UVP)
				Short-Circuit Protection (SCP)

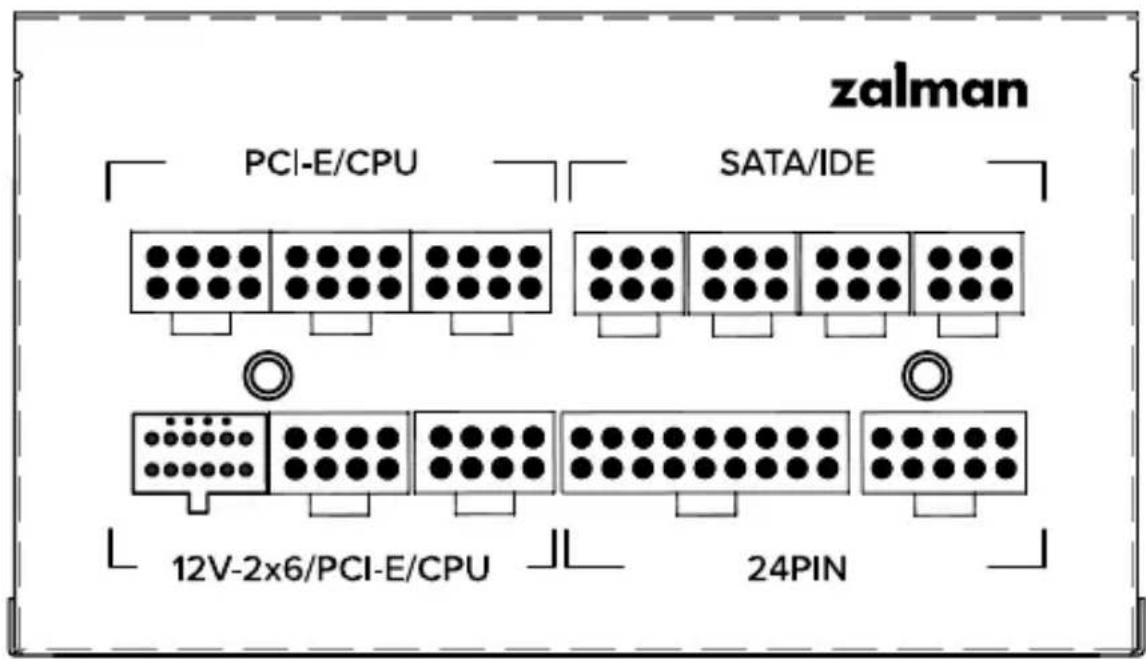

2) Connector Specifications

3) Cable Specifications

S-ATA
Power Connector
S-ATA
Power Connector
S-ATA
Power Connector
Peripheral FDD
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
Peripheral IDE
Power Connector
PCI Express (6+2)
Power Connector
PCI Express (6+2)
Power Connector
CPU 8 (4+4)
Power Connector
CPU 8 (4+4)
Power Connector
Mainboard Power
Connector
PCIe 5.1 12V-2x6
12+4pin

3. ZM1200-ARX2 Specifications

1) Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz I					min	Imax	Iceax
AC Input Current	100VAC	14A~7A			+3.3V 0A	20A			120W	1200W
	240VAC +5V 0A 20A
PFC Type Active PFC +12V 0A 100A 1200W
Power Factor Correction Max 99% -12V 0A 0.3A 3.6W
Inrush Current Limit (@ Cold Start at 25°C)	100VAC	Max 100A			+5VSB	0A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 94% @230V~, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load Insions	Storage		-20 ~ +70°C
	+3.3VDC ±5%	+3.14 ~ +3.47V			Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 85% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC ±10%	-10.8 ~ -13.2V Dime			140(L) X 150(W) X 86(H) mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.5Kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC 50mV				Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Over-Power Protection (OPP)
	-12VDC 120mV				Over-Temperature Protection (OTP)
	+5VSB	50mV			Under-Voltage Protection (UVP)
					Short-Circuit Protection (SCP)

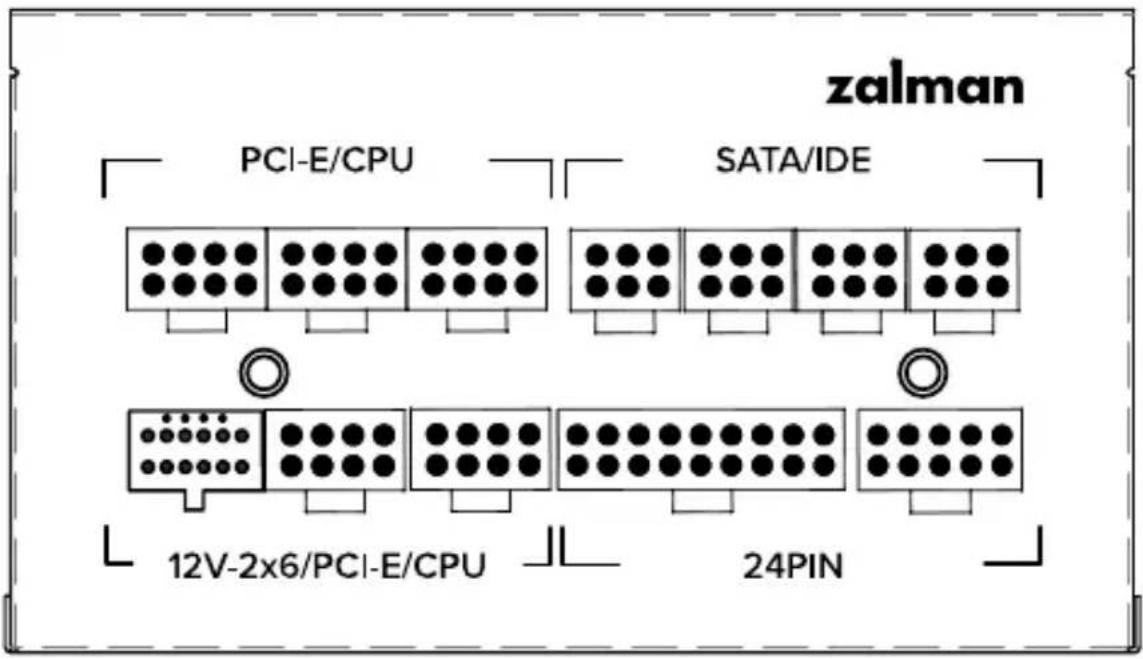

2) Connector Specifications

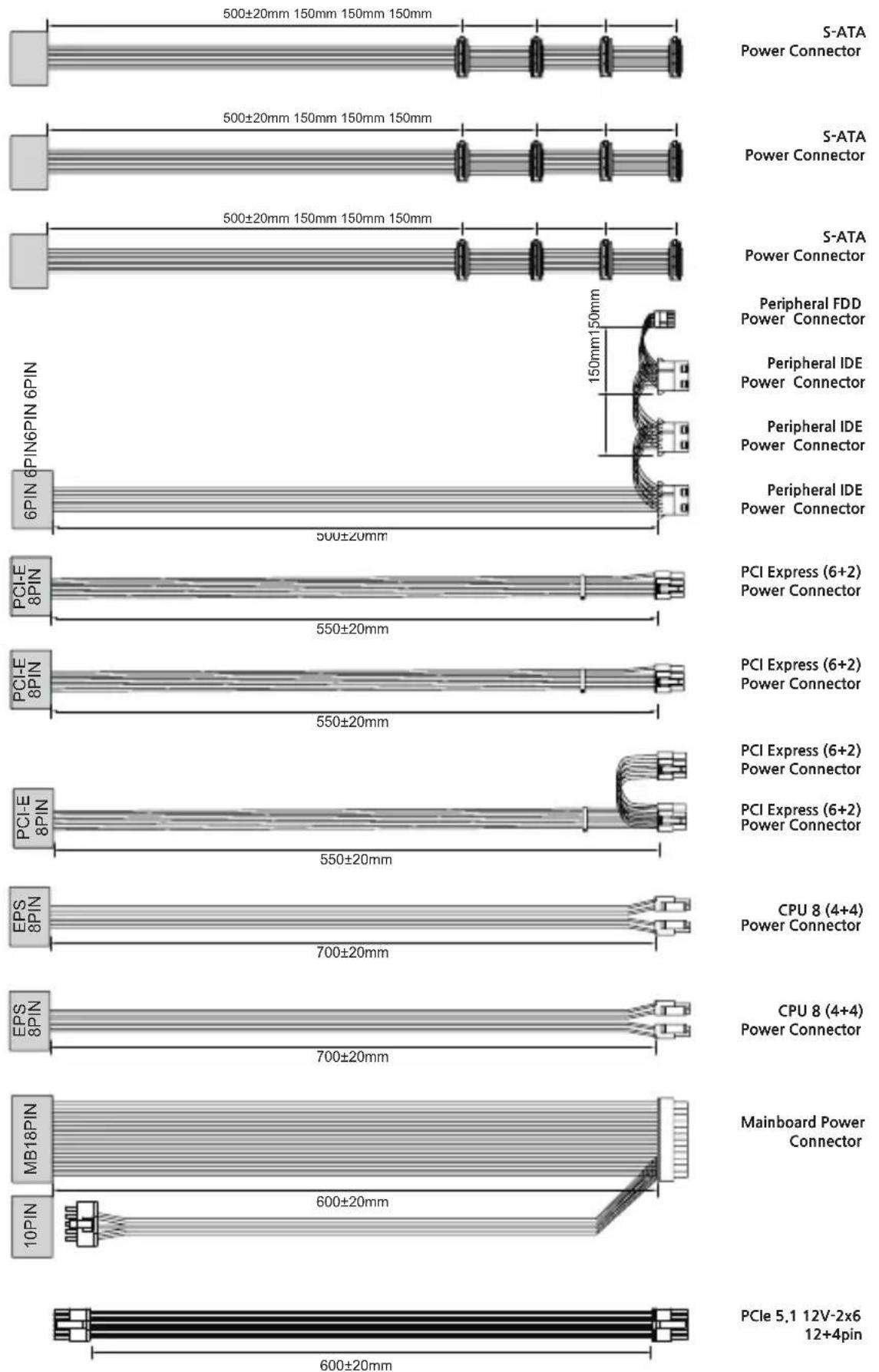

3) Cable Specifications
