USER MANUAL HyperDrive Flex HD4103 HyperJuice

Line drawing of a handheld electronic device with ports and leads (no text or symbols)

USER GUIDE

Table of Contents

Copyright 1

Trademarks 1

Regulatory Compliance 2

FCC Conditions 2

CE 2

WEEE Information 2

EN-Introduction 3

Package Contents 3

Product Overview 4

How to Connect 5

Power Distribution 5

Specifications 6

DE-Introduction 8

FR-Introduction 13

ES-Introduction 18

Safety Instructions 23

Before attempting to connect, operate or adjust this product, please save and read the User Guide completely. The style of the product shown in this User Guide may be different from the actual unit due to various models.

Copyright

This document contains proprietary information protected by copyright. All rights are reserved. No part of this guide may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

Trademarks

Hyper, the ++Hyper logo, and HyperDrive are trademarks or registered trademarks of Targus International LLC in the U.S. and in certain other countries. All trademarks and registered trademarks are the property of their respective owners or companies.

Regulatory Compliance

FCC Conditions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

CE

This equipment is in compliance with the requirements of the following regulations: EN 55032/EN 55035: CLASS B

WEEE Information

For EU (European Union) member users: According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this product as household waste or commercial waste. Waste electrical and electronic equipment should be appropriately collected and recycled as required by practices established for your country. For information on recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

CAN ICES(B)/NMB(B)

EN-Introduction

The HyperDrive Flex 9 Port Dual 4K HDMI USB-C Hub provides expanded connectivity for USB-C laptops, supporting multiple peripherals and dual-display output. It includes two HDMI 4K60Hz ports for external monitors, a USB-C 100W PD passthrough for charging, two USB-C (5Gbps) ports, a USB-A (5Gbps) port, and slots for SD (104Mbps) and MicroSD (104Mbps) cards. A 3.5mm audio jack is also included for headphone or speaker connections. Designed for enhanced productivity and broad compatibility, this dock has also been made with 75% recycled post-consumer recycled materials and falls within our EcoSmart product category.

Package Contents

• HyperDrive Flex 9 Port Dual 4K HDMI USB-C Hub
- User Guide

Requirements

• The HyperDrive USB-C Hub supports multiple devices.
• The HyperDrive USB-C Hub devices are supported on Windows, Chrome OS and macOS.
• The HyperDrive USB-C Hub devices are supported without extra-driver installation.

Product Compatibility

• Windows® PC
• MacBook®
• Chromebook™

Operating System

- Windows 10/11, Chrome OS, macOS 10.14 and above, Android OS, IOS

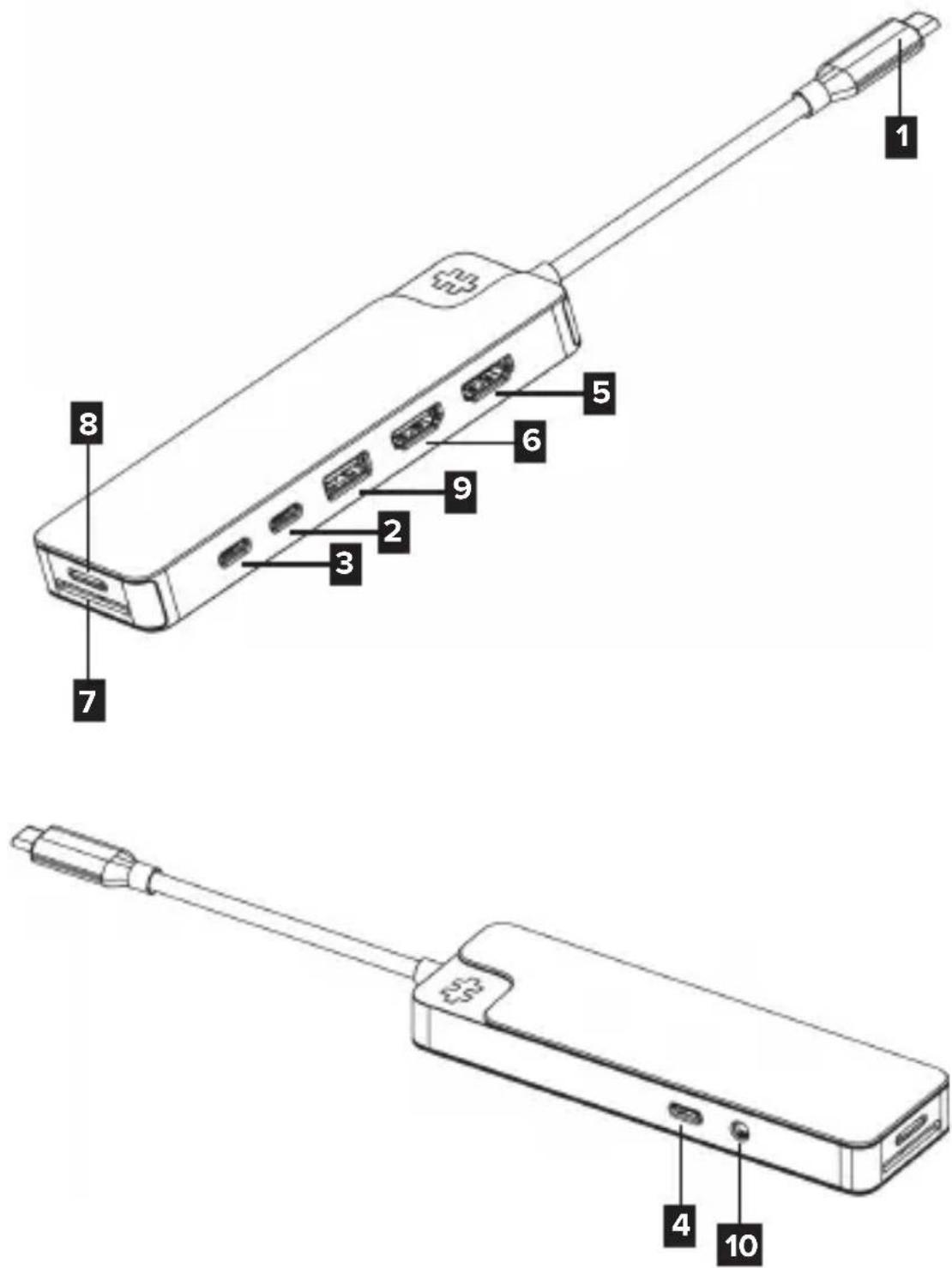

Product Overview

Technical diagram of a USB device with numbered parts for identification

How to Connect

Connect to the laptop via the USB-C port.

Simple line drawing of a cable or connector with a rectangular device attached, no text or symbols present.

This equipment complies with European Commission Regulation (EU) 2023/826.

Standby mode power consumption: < 0.5W

Above testing data is based on below external power supply which is not included.

External power supply information.: Manufacturer: Targus International LLC
	Model: APA108
	Input rating: 100-240Va.c., 50-60Hz, 1.8A
	Output rating: 5Vdc, 3.0A; 9Vdc, 3.0A;12Vdc, 3.0A;15Vdc, 3.0A; 20Vdc, 5A

Power Distribution

Item Description

1. USB-C Connects to a USB-C Host
2. USB-C Connects to a USB-C device
3. USB-C Connects to a USB-C device
4. USB-C PD Port	Connects to a USB-C PD Charging Adapter
5. HDMI Port	Connects to a HDMI device, 4K 60Hz output by single port
6. HDMI Port	Connects to a HDMI device, 4K 60Hz output by single port
7. SD Card Slot Connects to a standard SD card
8. Micro SD Card Slot Connects to a standard Micro SD card
9. USB-A Port Connects to a USB-A device
10. 3.5mm Audio Port Connects to a 3.5mm audio device

Specifications

Interface: USB-C (Host) x1		USB 3.2 Gen 15Gbps, PD 3.0Passthrough Support 5V/1.5A, 9V/2A, 15V/2A, 20V/4.25A, max charging power 85W
	USB-C (Device) x2	USB 3.2 Gen 15Gbps
	SD Card Slot (Device) x1	Support standard SD card 3.0104MB/s Max 2TB
	Micro SD Card Slot (Device) x1	Support standard Micro SD card 3.0104MB/s Max 2TB
	USB-A (Device) x1	USB 3.2 Gen 15Gbps
	3.5mm Audio x1	Support standard 3.5mm audio device
	HDMI (Device) x 2	HDMI 2.0 Support 4K60Hz display
	USB-C (Device) x1	Connect PD adaptor, PD 3.0Passthrough Support 5V/3A, 9V/3A, 15V/3A, 20V/5A max charging power 100W
Dimension & Weight	Length	136mm/ 5.35inch
	Width	42mm/ 1.65inch
	Height	14.8mm/ 0.58inch
	Weight	98g/ 0.22lb

2 YEAR LIMITED WARRANTY

PORTUGAL AND SPAIN CUSTOMERS: 3 YEARS LIMITED

WARRANTY OR AS REQUIRED BY LOCAL LAWS.

We pride ourselves on the quality of our products. For complete warranty details and a list of our Worldwide offices, please visit www.HyperShop.com. Hyper product warranty does not cover any device or product that is not manufactured by Hyper (including, but not limited to, laptops, smartphones, devices, or any other product that may be used in connection with the Hyper product). Hyper Limited Warranty provided is subject to any rights and remedies the purchaser may have under local laws. Australian customers: For complete warranty details, see warranty statement enclosed.

DE-Einleitung

Technical diagram of a USB device with numbered parts for identification

Verbindungsmodus

Simple line drawing of a cable or cable connector connected to a rectangular device (no text or symbols)

Technical diagram of a USB device with numbered parts for identification

Simple line drawing of a device with cables and components, no text or symbols present

Technical diagram of a USB device with numbered parts for identification

Cómo Conectar

Simple line drawing of a device with a cable and connector (no text or symbols)

- Do not expose to moisture or submerge in liquid.

- Store in a cool, dry place. Recommended storage temperature: -10°C/14°F to 70°C/158°F; Operating temperature: 0°C/32°F to 40°C/104°F.

- Do not disassemble or attempt to re-purpose or modify the product in any manner.

- Stop using and contact manufacturer if the product is excessively hot, emitting odor, deformed or if you witness any other abnormalities.

- Avoid strenuous vibration, impact, extrusion on transportation, and keep the product away from intense sunlight and rain.

- Please dispose of discarded products properly according to local regulations.

- Do not clean with harmful chemicals or detergents.

- Keep away from children under 3 years old for safety.

- Be cautious of drops, bumps, abrasions, or impact.

AUSTRALIAN AND NEW ZEALAND CONSUMERS ONLY

Thank you for your purchase. Hyper warrants to the original purchaser that its products are free from defects in materials and workmanship and, during the specified warranty period, and lasts as long as the original purchaser owns the product. The warranty period is stated on the packaging or in the documentation provided with this Hyper product. Hyper's Limited Product Warranty excludes damage caused by accident, neglect, abuse, misuse, improper care, normal wear and tear, ownership transfer, or alteration. The limited warranty also excludes any product that is not manufactured by Hyper (including, without limitation, laptops, smartphones, devices, tablets, or any other non-Hyper item) that is used in connection with the Hyper product. In the event that the Hyper product has a defect in materials or workmanship Hyper will, after receiving a warranty claim and inspecting the product, at its discretion, do one of the following: repair, replace, or refund with the same or a similar product (or part) of no lesser quality and ship it to the original purchaser at Hyper's expense. As part of this inspection, proof of purchase will be required. There is no charge for inspection. To make a warranty claim, please contact Hyper Australia or New Zealand (see details below), or return the product to the place of purchase. The original purchaser must bear the cost of the delivery to Hyper. Under Australian and/or New Zealand Consumer Laws, in addition to any warranty Hyper gives, our products come with guarantees that cannot be excluded. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are entitled to have the products repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

For any warranty question, contact Targus Australia Pty. Ltd. (i) by mail at Suite 2, Level 8, 5 Rider Boulevard, Rhodes NSW 2138, by phone AUS 1800 641 645 or NZ 0800 633 222 or by Email: [e-mail]. For additional information, check out our website at targus.com/au/warranty.

Technical Support

For technical questions, please visit:

Hyper Customer Support Email:

[e-mail]

Hyper Customer Support Phone:

[phone] (non-USA); 1-888-202-1888 (USA)

US Internet:

http://targus.com/us/support

Canada Internet:

http://www.targus.com/ca/support

Australia Internet:

http://www.targus.com/au/support

Email:

[e-mail]

Telephone:

1-800-641-645

New Zealand Telephone:

0800-633-222

Latin America Email:

[e-mail]

Supplier's Declaration of Conformity

Manufacturer/

Responsible Party:

Address:

Hyper Products Inc

1211 N. Miller St.

Anaheim, CA 92806 USA

Tel: [phone]

Fax: [phone]

Internet: www.hypershop.com

Hereby declares that the Product

Trade name: HYPER

Product name: Dual HDMI USB-C Mobile Dock

Model number: HD4103

Conforms to the following specifications

FCC CFR Title 47 Part 15 Subpart B and ANSI C63.4-2014 standard limits

The test data & results are referred to the test report umber: FS2503WDG0014

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Director - Director, Targus International LLC

Function Title

CF Ngoh

Name

04-25-2025

Date

Signed for and on behalf of Targus

HYPER

Declaration of Conformity

Manufacturer: Hyper Products Inc

Tel [phone]

Address: 1211 N.Miller St., Anaheim, CA

Fax: [phone]

92806 USA

Importer: Targus Europe Ltd

Internet: www.targus.com

Address: Fourth Floor One London Road

Tel: [phone]

Staines, TW18 4EX, UK

We herewith confirm the following designated product Dual HDMI USB-C Mobile Dock

Model No. HD4103 Brand name "HYPER", complex with below UK legislation and relevant

standards.

For the evaluation regarding the below legislation, the following standards were applied:

Electromagnetic Compatibility Regulations 2016

BS EN 65032:2015 + A1:2020. CLASS B

BS EN 55032:2015 + A11:2020, CLASS B

BS EN 55035:2017 + A11:2020

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

General Product Safety Regulations 2005

BS EN IEC 82368-1:2020+A11:2020

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

EN IEC 83000 2018

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Director, Targus - Global Sourcing Group

CF Ngoh

Function Title

Name

04-25-2025 / Hong Kong

Date / Place of Issue

Signed for and on behalf of Targus

HYPER

CE

Manufacturer: Hyper Products Inc

Tel: [phone]

Address : 1211 N. Miller St., Anaheim, CA 92806 USA

Fax: [phone]

Importer: Targus Europe Ltd

Internet: www.bargus.com

Address: Targus EMEA Account Management Van Hilststraat 19, 5145 RK Waalwijk Netherlands

Tel: [phone]

We herewith confirm the following designated product Dual HDMI USB-C Mobile Dock.

Model No. HD4103 Brand name "HYPER", complies with EMC directive 2014/30/EU, General

Product Safety Regulation (EU) 2023/988 COMMISSION REGULATION (EU) 2023/826. EU

ROHS Directive 2011/65/EU and its amendment Directive (EU) 2015/863

For the evaluation regarding the above Directives, the following standards were applied:

EMC directive 2014/30/EU

EN 55032:2015 + A1:2020, CLASS B

EN 55032:2015 + A11:2020, CLASS B

EN 56035:2017 + A11:2020

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

General Product Safety Regulation (EU) 2023/988

EN IEC 62388-1:2020+A11:2020

COMMISSION REGULATION (EU) 2023/826

EN 60564:2011

RoHS Directive: 2011/65/EU and its amendment Directive (EU) 2015/863

EN IEC 63000.2018

Year to begin CE marking: 2025

Director, Targus - Global Sourcing Group

CF Ngah

Function Title

Name

04-25-2025

J Hong Kong

Date

/ Place of Issue

Signed for and on behalf of Targus

( This page intentionally left blank )
