USER MANUAL HyperDrive Flex HyperJuice

Regulatory Compliance 2

FCC Conditions 2

CE 2

WEEE Information 2

EN-Introduction 3

Package Contents 3

Product Overview 4

How to Connect 5

Power Distribution 5

Specifications 6

DE-Introduction 8

FR-Introduction 13

ES-Introduction 18

Safety Instructions 23

Before attempting to connect, operate or adjust this product, please save and read the User Guide completely. The style of the product shown in this User Guide may be different from the actual unit due to various models.

Copyright

This document contains proprietary information protected by copyright. All rights are reserved. No part of this guide may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

Trademarks

Hyper, the ++Hyper logo, and HyperDrive are trademarks or registered trademarks of Targus International LLC in the U.S. and in certain other countries. All trademarks and registered trademarks are the property of their respective owners or companies.

Regulatory Compliance

FCC Conditions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

CE

This equipment is in compliance with the requirements of the following regulations: EN 55032/EN 55035: CLASS B

WEEE Information

For EU (European Union) member users: According to the WEEE (Waste electrical and electronic equipment) Directive, do not dispose of this product as household waste or commercial waste. Waste electrical and electronic equipment should be appropriately collected and recycled as required by practices established for your country. For information on recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

CANICES(B)/NMB(B)

EN-Introduction

The HyperDrive Flex 8 Port USB-C Hub expands connectivity options for USB-C laptops, providing access to multiple peripherals. It includes an HDMI 4K30Hz port for external displays, a USB-C 100W PD passthrough for charging, two USB-A (5Gbps) ports, a USB-C (5Gbps) port, and slots for SD (104Mbps) and MicroSD (104Mbps) cards. A 3.5mm audio jack is also included for headphone or speaker connectivity. This hub is designed for efficient expansion and compatibility with various devices. It has also been made with 75% recycled post-consumer recycled materials and falls within our EcoSmart product category.

Package Contents

HyperDrive Flex 8 Port USB-C Hub
- User Guide

Requirements

• The HyperDrive USB-C Hub supports multiple devices.
• The HyperDrive USB-C Hub devices are supported on Windows, Chrome OS and macOS.
• The HyperDrive USB-C Hub devices are supported without extra-driver installation.

Product Compatibility

• Windows® PC
  MacBook®
• Chromebook™

Operating System

• Windows 10/11, Chrome OS, macOS 10.14 and above, Android OS, IOS

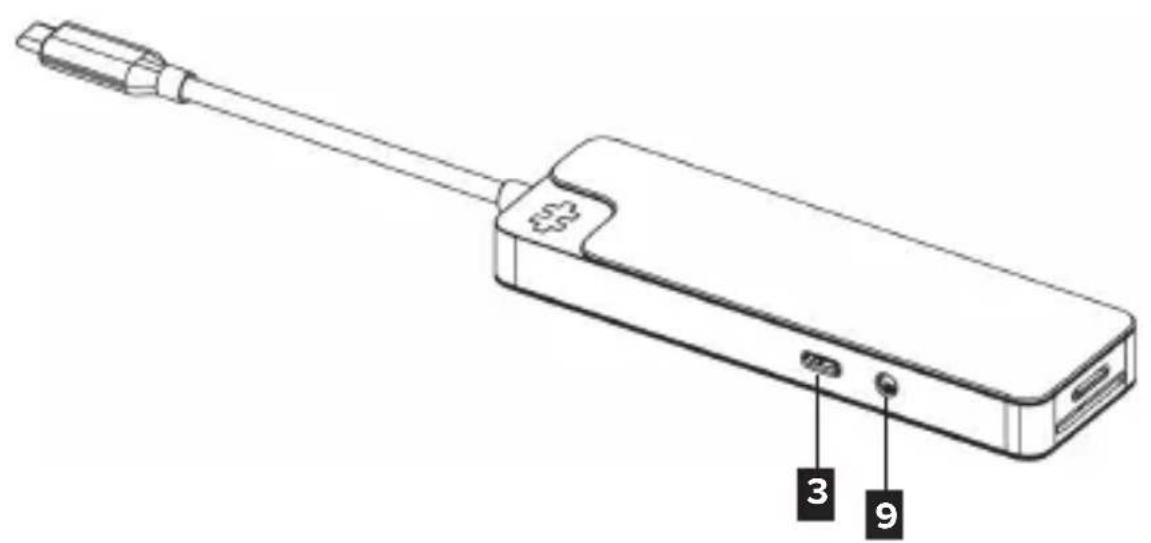

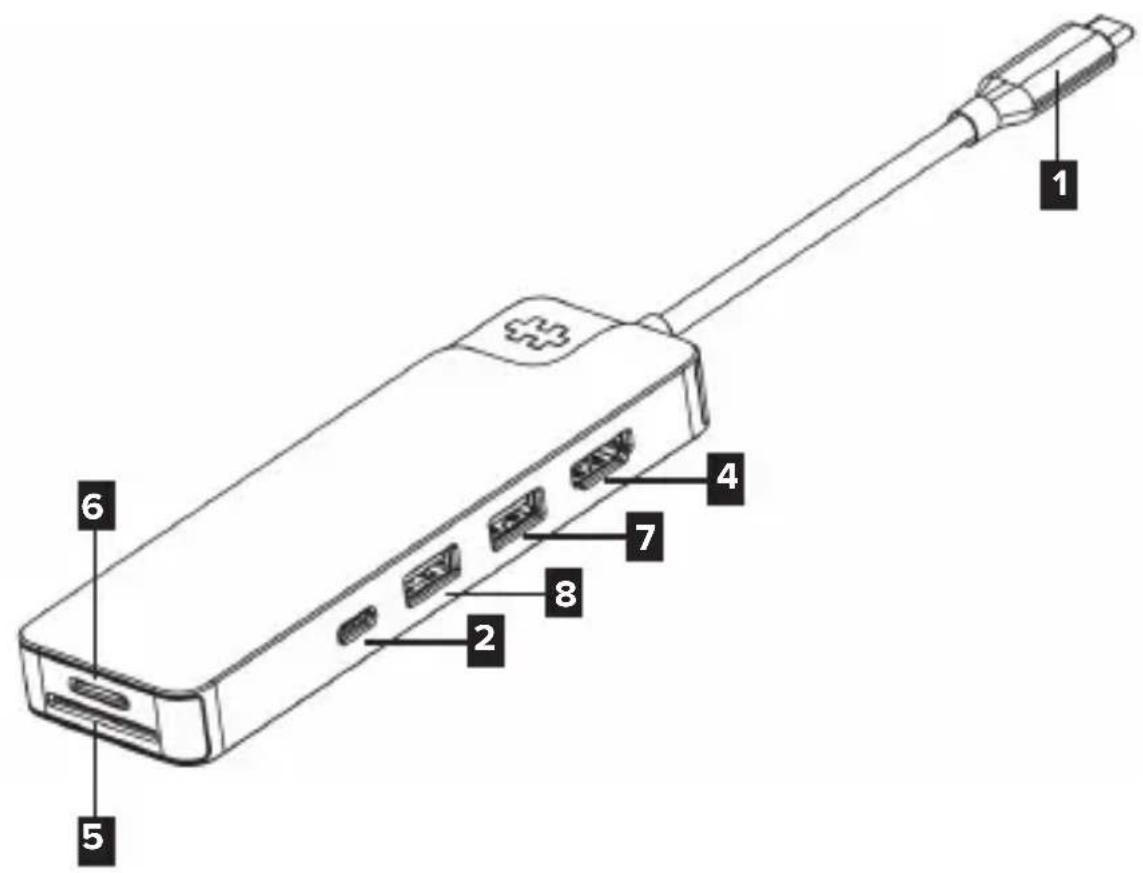

Product Overview

How to Connect

Connect to the laptop via the USB-C port.

This equipment complies with European Commission Regulation (EU) 2023/826.

Standby mode power: < 0.5W

Above testing data is based on below external power supply which is not included.

External power supply information...: M	Manufacturer: Targus International LLC
	Model: APA108
	Input rating: 100-240Va.c., 50-60Hz, 1.8A
	Output rating: 5Vdc c, 3.0A; 9Vdc, 3.0A; 12Vdc, 3.0A; 15Vdc, 3.0A; 20Vdc, 5A

Power Distribution

Item Description

1. USB-C Port Connects to a host
2. USB-C Port Connects to a USB-C device
3. USB C PD Port Connects to a USB-C PD adapter
4. HDMI Port Connects to a HDMI device
5. SD Card Slot Connects to a standard SD card
6. Micro SD Card Slot Connects to a standard Micro SD card
7. USB-A Port Connects to a USB-A device
8. USB-A Port Connects to a USB-A device
9. 3.5mm Audio Port Connects to a 3.5mm audio device

Specifications

Interface: USB-C (Host) x1		USB 3.2 Gen 1 5Gbps, PD 3.0 Passthrough Support 5V/1.5A, 9V/2A, 15V/2 A, 20V/4.25A, max charging power 85W
USB-C (Device) x1		USB 3.2 Gen 1 5Gbps
SD Card Slot (Device) x1		Support standard SD card 3.0 104MB/s Max 2TB
Micro SD Card Slot (Device) x1		Support standard Micro SD card 3.0 104MB/s Max 2TB
USB-A (Device) x2		USB 3.2 Gen 1 5Gbps
3.5mm Audio x1		Support standard 3.5mm audio device
HDMI (Device)		HDMI 1.4 Support 4K30Hz display
USB-C (Device) x1		Connect PD adaptor, PD 3.0 Passthrough Support 5V/3A,9V/3A, 15V/3A, 20V/5A max charging power 100W
Dimension & Weight	Length	136mm/ 5.35inch
	Width	42 mm/ 1.65inch
	Height	14.8mm/ 0.58inch
	Weight	98g/ 0.22lb

2 YEAR LIMITED WARRANTY PORTUGAL AND SPAIN CUSTOMERS: 3 YEARS LIMITED WARRANTY OR AS REQUIRED BY LOCAL LAWS.

We pride ourselves on the quality of our products. For complete warranty details and a list of our Worldwide offices, please visit www.HyperShop.com. Hyper product warranty does not cover any device or product that is not manufactured by Hyper (including, but not limited to, laptops, smartphones, devices, or any other product that may be used in connection with the Hyper product). Hyper Limited Warranty provided is subject to any rights and remedies the purchaser may have under local laws. Australian customers: For complete warranty details, see warranty statement enclosed.

DE-Introduction

• Do not expose to moisture or submerge in liquid.
• Store in a cool, dry place. Recommended storage temperature: -10^ / 14^ to 70^ / 158^ ; Operating temperature: 0^ / 32^ to 40^ / 104^ .
• Do not disassemble or attempt to re-purpose or modify the product in any manner.
• Stop using and contact manufacturer if the product is excessively hot, emitting odor, deformed or if you witness any other abnormalities.
• Avoid strenuous vibration, impact, extrusion on transportation, and keep the product away from intense sunlight and rain.
• Please dispose of discarded products properly according to local regulations.
• Do not clean with harmful chemicals or detergents.
• Keep away from children under 3 years old for safety.
• Be cautious of drops, bumps, abrasions, or impact.
  The symbol indicates DC voltage

AUSTRALIAN AND NEW ZEALAND CONSUMERS ONLY

Thank you for your purchase. Hyper warrants to the original purchaser that its products are free from defects in materials and workmanship and, during the specified warranty period, and lasts as long as the original purchaser owns the product. The warranty period is stated on the packaging or in the documentation provided with this Hyper product. Hyper's Limited Product Warranty excludes damage caused by accident, neglect, abuse, misuse, improper care, normal wear and tear, ownership transfer, or alteration. The limited warranty also excludes any product that is not manufactured by Hyper (including, without limitation, laptops, smartphones, devices, tablets, or any other non-Hyper item) that is used in connection with the Hyper product. In the event that the Hyper product has a defect in materials or workmanship Hyper will, after receiving a warranty claim and inspecting the product, at its discretion, do one of the following: repair, replace, or refund with the same or a similar product (or part) of no lesser quality and ship it to the original purchaser at Hyper's expense. As part of this inspection, proof of purchase will be required. There is no charge for inspection. To make a warranty claim, please contact Hyper Australia or New Zealand (see details below), or return the product to the place of purchase. The original purchaser must bear the cost of the delivery to Hyper. Under Australian and/or New Zealand Consumer Laws, in addition to any warranty Hyper gives, our products come with guarantees that cannot be excluded. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are entitled to have the products repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

For any warranty question, contact Targus Australia Pty. Ltd. (i) by mail at Suite 2, Level 8, 5 Rider Boulevard, Rhodes NSW 2138, by phone AUS 1800 641 645 or NZ 0800 633 222 or by Email: [e-mail]. For additional information, check out our website at targus.com/au/warranty.

Technical Support

For technical questions, please visit:

Hyper Customer Support Email:

[e-mail]

Hyper Customer Support Phone:

[phone] (non-USA); 1-888-202-1888 (USA)

US Internet:

http://targus.com/us/support

Canada Internet:

http://www.targus.com/ca/support

Australia Internet:

http://www.targus.com/au/support

Email:

[e-mail]

Telephone:

1-800-641-645

New Zealand Telephone:

0800-633-222

Latin America Email:

[e-mail]

Supplier's Declaration of Conformity

Manufacturer

Hyper Products Inc.

Tel: [phone]

Responsible Party:

1211 N.Miler St.,Anaheim,

Fax:[phone]

CA 92806 USA

Internet: www.hypershop.com

Hereby declares that the Product

Trade name: HYPER

Product name: 8 Port USB-C Mobile Dock

Model number: HD4102

Conforms to the following specifications

FCC CFR Title 47 Part 15 Subpart B and ANSI C63.4-2014 standard limits The test data & results are referred to the test report umber: FS2502WDG0193

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Head of Product - Hyper

Yu-Wen Chen

Function Title

Name

03/20/2025

Data

Signed for and on behalf of HYPER

HYPER

Declaration of Conformity

Manufacturer: Hyper Products Inc

Tel: [phone]

Address: 1211 N.Miller St., Anaheim, CA 92806 USA

Fax：[phone]

Internet: www.targus.com

Importer: Targus Europe Ltd

Te+4402088312000

Address: Fourth Floor One London Road Staines, TW18 4EX, UK

We herewith confirm the following designated product B Port USB-C Mobile Dock Model

No. HD4102, Brand name "HYPER", complies with below UK legislation and relevant standards.

For the evaluation regarding the below legislation, the following standards were applied:

Electromagnetic Compatibility Regulations 2016

BS EN 65032:2015+A1:2020

ENIEC61000-3-2:2019+A1:2021

EN61000-3-2013+A2-2021+AC-2022-01

BSEN650362017+A11-2020

General Product Safety Regulations 2005

BSENIEC62388-1:2020+A11:2020

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

ENIEC63002018

This declaration of conformity is issued under the sale responsibility of the manufacturer.

Head of Product - Hyper

Yu-Wen Chen

Function Title

Name

03-20-2025

JHongKong

Date

/Place of Issue

Signed for and on behalf of HYPER

HYPER

CE

Manufacturer: Hyper Products Inc.

Tel: [phone]

Address: 1211 N.Miller St., Anaheim, CA 92806 USA

Fax: [phone]

Importer: Targus Europe Ltd

Internet: www.targus.com

Address: Targus EMEA Account Management
Van Hilststraat 19, 5145 RK Waalwijk
Netherlands

Tel: [phone]

We herewith confirm the following designated product B Port USB-C Mobile Dock Model

No. HD4102, Brand name "HYPER", complies with EMC directive 2014/30/EU, General

Product Safety Regulation (EU) 2023/968, COMMISSION REGULATORY (EU) 2023/926, EU

ROHS Directive 2011/65/EU and its amendment Directive (EU) 2015/863.

For the evaluation regarding the above Directives, the following standards were applied:

EMC directive 2014/30/EU

EN55032 2015+A1:2020

ENIEC61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A2:2021+AC:2022-01

EN550352017+A112020

General Product Safety Regulation (EU) 2023/988

ENIEC62368-1:2020+A11:2020

COMMISSION REGULATION (EU) 2023/826

EN50584:2011

RoHS Directive: 2011/65/EU and its amendment Directive (EU) 2015/863

ENIEC630002018

Year to begin CE marking: 2025

Head of Product - Hyper

Yu-Wen Chen

Function Title

Name

03-20-2025 /HongKong

Date
