USER MANUAL LK60C LG

Please read this manual carefully before operating

your product and retain it for future reference.

MODELS: LRTLS2403*, LTCS20120*, LTCS20020*, LTCS20040*

MANUEL D'UTILISATEUR

MACHINE À GLAÇONS (LK60C, LK75C)

Copyright © 2021-2024 LG Electronics Inc. All rights reserved.

Only training and service purposes.

Warning symbol image with exclamation mark inside a triangle

CAUTION

This accessory can be applied to both MR and VN production models, but the bracket must be replaced for VN production model.

TABLE OF CONTENTS

Warranty 3

Important Safety Instructions 4

Before You Begin 5

Replacing the Ice Maker 5

Introduction to the Automatic Ice Maker 6

Contents of Kit 7

Icemaker Installation 8-9

Before You Begin 8

Tools You Will Need 8

Installation Instructions 8-9

Water Valve Installation 10-13

Before You Begin 10

Tools You Will Need 10

Installation Instructions 11-13

Fill Tube Installation 14

Before You Begin 14

Tools You Will Need 14

Installation Instructions 14

Care 15

When Should You Set the Icemaker 15

Switch to O (off)

Normal Sounds You May Hear 15

When you Go On Vacation 15

Troubleshooting Guide 16

WARRANTY

LG ELECTRONICS CANADA, INC.

LG REFRIGERATOR LIMITED WARRANTY - Canada

WARRANTY: Should your LG Ice Maker Kit ("Product") fail due to a defect in material or workmanship under normal home use during the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Canadian distributor. The warranty only applies to Products located and used within Canada.

LG Icemaker Kit Warranty Period

WARRANTY PERIOD: (Note: If the original date of purchase cannot be verified, the warranty will begin ninety (90) days from the date of manufacture of the ice maker).
Product Parts Labor
Icemaker Kit 1 year 1 year [In-Home Service]

* Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
* Replacement products and parts may be new or remanufactured.
* LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE.

This warranty gives you specific legal rights. You may have other rights which may vary from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or c correction of wiring, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner's manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, commercial or industrial use, or use of accessories, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or recreational facilities) or contrary to the instructions outlined in the Product owner's manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including the Product owner's and installation manuals.
17. Accessories to the Product such as door bins, drawers, handles, shelves, etc. Also excluded are parts besides those that were originally included with the Product.

All costs associated with the above excluded circumstances shall be borne by the consumer.

For complete warranty details and customer assistance,please call or visit our website:Call 1-888-542-2623 (24 hours a day, 365 days a year) andselect the appropriate option from the menu or visit ourwebsite at http://www.lg.com

Write your warranty information below:Product Registration Information:Model: ____Serial Number: ____Date of Purchase: ____

IMPORTANT SAFETY INSTRUCTIONS

This guide contains many important safety messages. Always read and obey.

Warning symbol: white exclamation mark inside a triangle on black background (no text or numbers)

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you do not follow instructions.

WARNING

You can be killed or seriously injured if you do not follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed.

WARNING

IMPORTANT: Please read carefully all instructions before using.

To reduce the risk of fire, electric shock or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord in any way.
• Do not crush or damage the water line.
• Keep fingers out of 'pinch point' areas; clearances between the doors and cabinet are necessarily small. Be careful when you open the doors when children are in the area.
• Unplug your refrigerator before cleaning or making any repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

• The refrigerator-freezer should be positioned so that the power supply plug is accessible for quick disconnection if an accident happens.
• For personal safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electrician to make sure the outlet is properly grounded.
• For refrigerators with an automatic icemaker, avoid contact with the moving parts of the ejector mechanism and with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

Read these instructions completely and carefully.

• IMPORTANT: Save these instructions for local servicer's use.
  • IMPORTANT: ordinances. Observe all governing codes and
• Note to Installer: Be sure to leave these instructions with the consumer.
  • Note to Consumer: Keep these instructions for future reference.
• Skill level: Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time: 20\~60 minutes
  • Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the warranty.

Replacing the Icemaker

It is important that you use the water valve that came with this kit, even though your refrigerator may already have one installed.

The old valve will not allow enough water through to properly fill the icemaker and will cause damage.

! WARNING

Personal Injury Hazard

Avoid contact with the moving parts.

DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

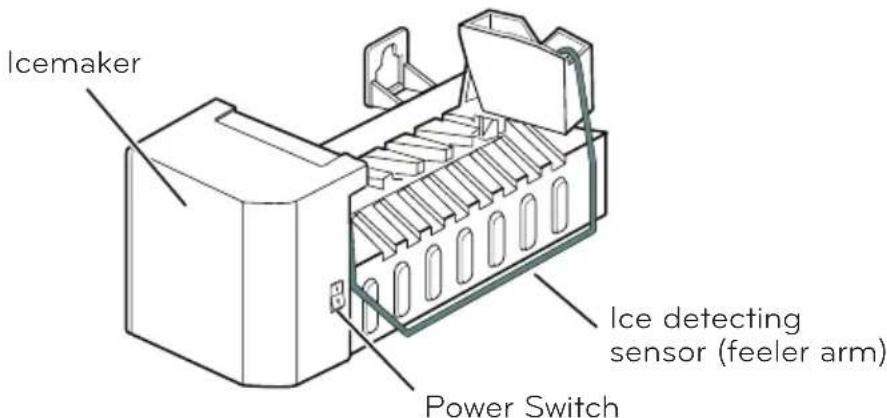

Icemaker Power Switch Ice detecting sensor (feeler arm)

The icemaker will produce 8 cubes per cycle, approximately 64-128 cubes in a 24 hour period, depending on freezer compartment temperature, room temperature, how frequently refrigerator doors are opened, and other use conditions.

If you wish to operate the refrigerator without connecting a water supply, set the icemaker switch to O (off).

When the refrigerator has been connected to the water supply, set the switch to I (on).

The icemaker will fill with water when it reaches the proper temperature. A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.

Discard the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the movement of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

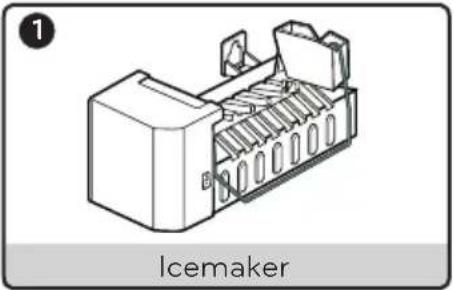

CONTENTS OF KIT

Illustration of an icemaker electrical connector with no visible text or symbols on the device itself

2 Screw 5EA

3 Icemaker Owner's Manual

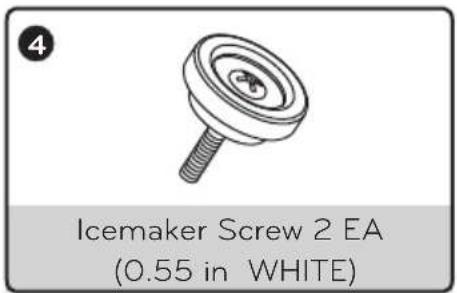

4 Icemaker Screw 2 EA (0.55 in WHITE)

Technical line drawing of a mechanical bracket component (no text or symbols on the diagram itself)

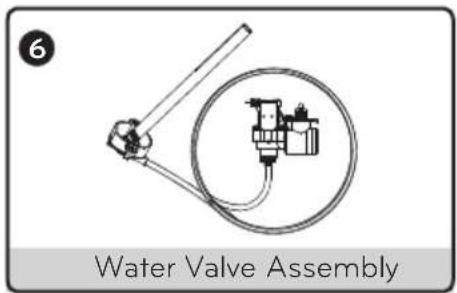

6 Water Valve Assembly

7 Valve Screw 1 EA

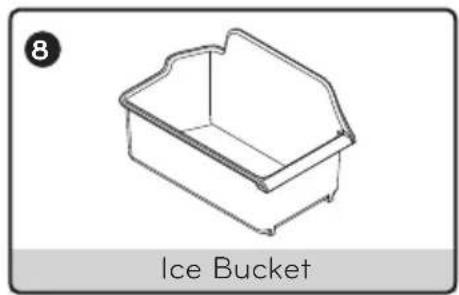

Line drawing of an ice bucket with labeled section (8), no other text or symbols present

9 Screw 1EA

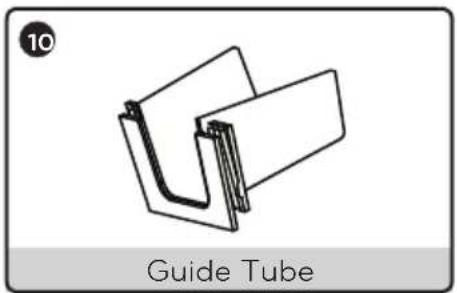

10 Guide Tube

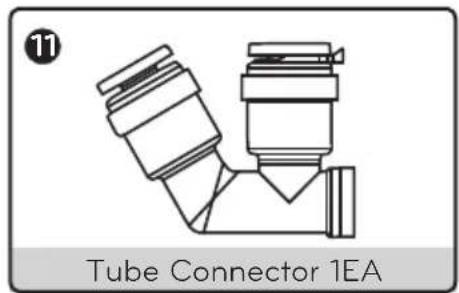

11 Tube Connector 1EA

12 Fill Tube

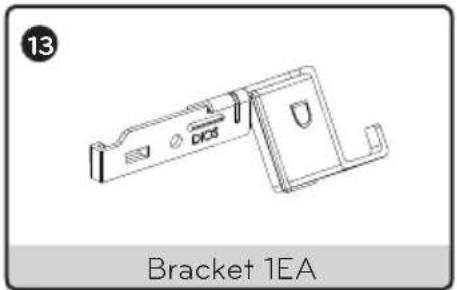

13 DCB Bracket 1EA

ICEMAKER INSTALLATION

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

CAUTION: Unplug the refrigerator power cord from the outlet.

TOOLS YOU WILL NEED

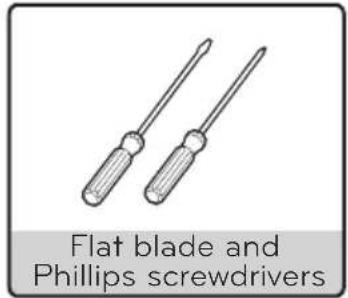

Flat blade and Phillips screwdrivers

INSTALLATION INSTRUCTIONS

1. TURN OFF THE ICEMAKER

Turn the icemaker switch to O (off). Leave the icemaker off until the refrigerator is connected to the water supply to prevent premature operation.

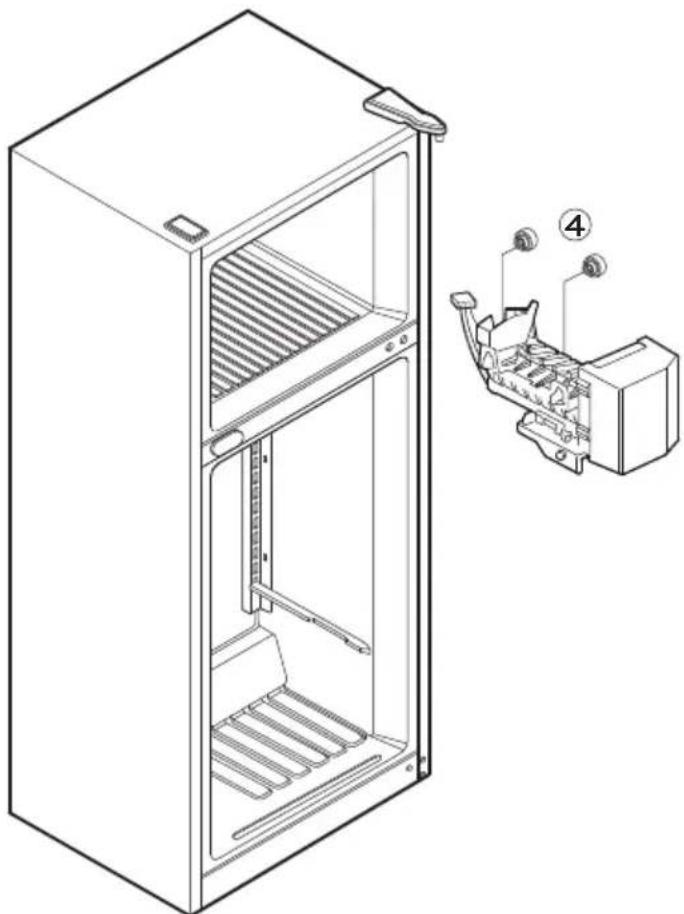

2. INSTALL THE ICEMAKER

Before installing icemaker, remove the freezer shelf.

To mount the icemaker, insert the two icemaker screws ④ provided through the holes at the base of the icemaker and into the slots located in the freezer left wall.

Line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

ICEMAKER INSTALLATION

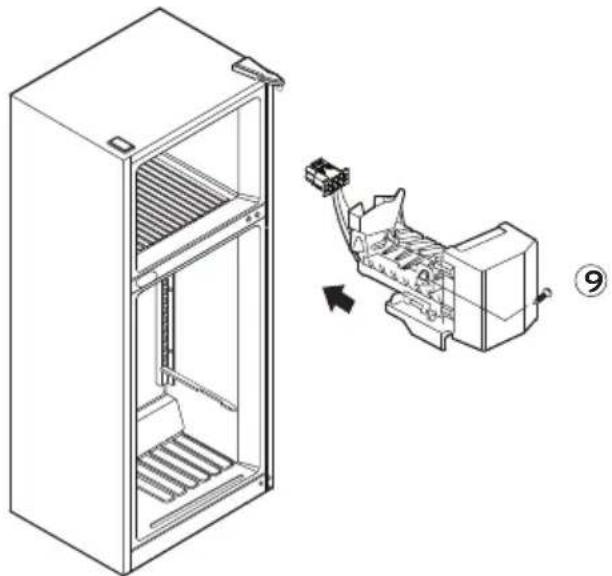

3. PLUG IN THE ICEMAKER

Remove the cover to connect the icemaker to the refrigerator.

Close-up of a hand holding an orange screwdriver inside a white appliance with yellow directional arrows indicating left and right motion (no text or symbols)

Close-up of hands using a red screwdriver to adjust a white electrical socket (no text or symbols visible)

1^st Step: Press to rel- 2^nd Step: Press to release lease the tab on the the right tab and remo-left. ve the cover.

Line drawing of a refrigerator with an internal mechanism showing a moving device (no text or symbols present)

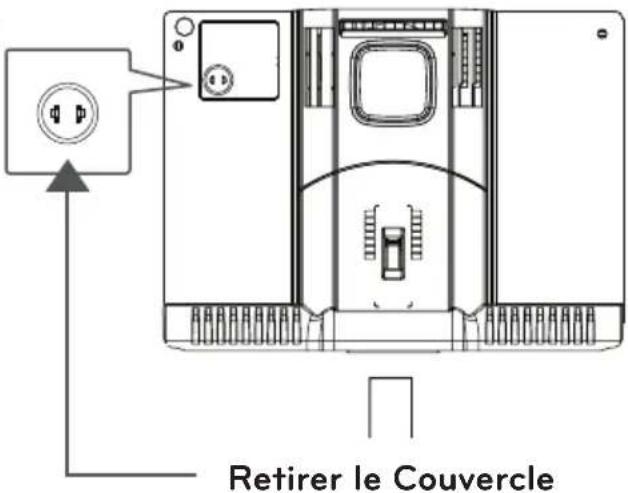

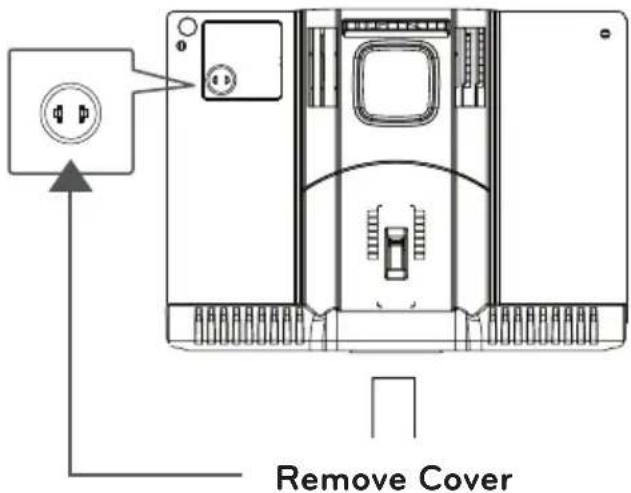

Remove Cover

Technical diagram of an electronic device with labeled ports and a directional arrow indicating process flow

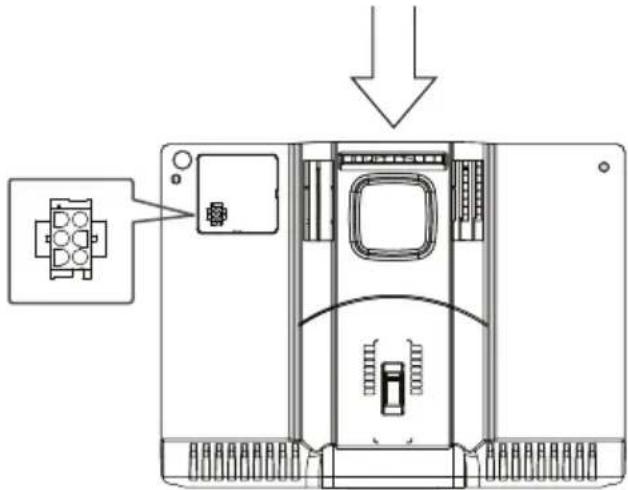

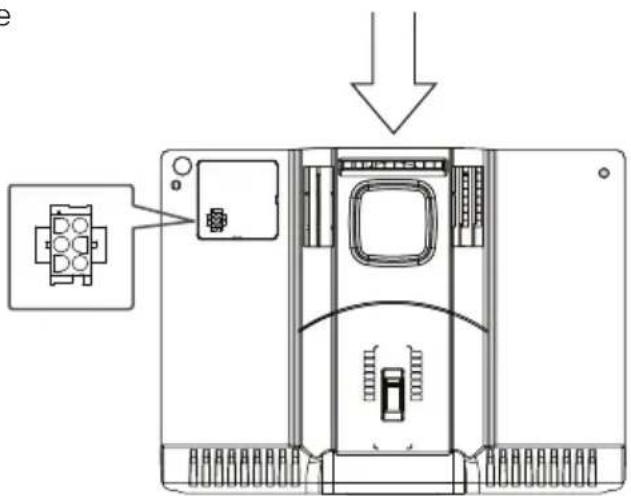

Plug the icemaker wire harness into the connector located in the freezer wall until you hear a click sound.

NOTE: Secure the icemaker to the freezer using 1.screw ⑨.

4. INSTALL THE ICE BUCKET

Before installing the ice bucket, install the freezer shelf.

Put the ice bucket directly under the icemaker (to the left and all the way to the rear of the shelf under the icemaker).

Make sure that the icemaker switch is set to O (off) position.

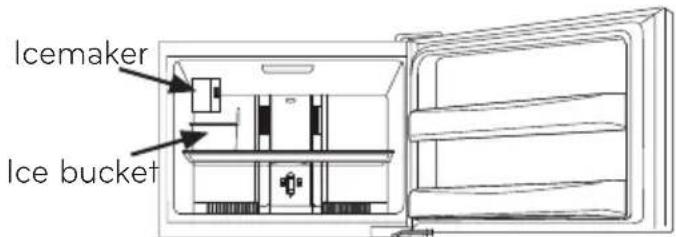

5. KEEP THIS MANUAL

Icemaker Ice bucket

WATER VALVE INSTALLATION

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

CAUTION: Unplug the refrigerator power cord from the outlet.

TOOLS YOU WILL NEED

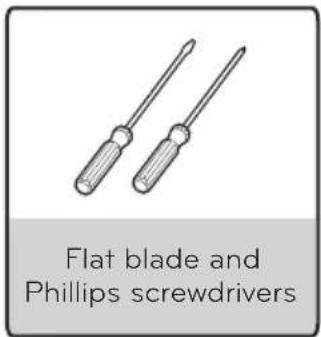

Flat blade and Phillips screwdrivers

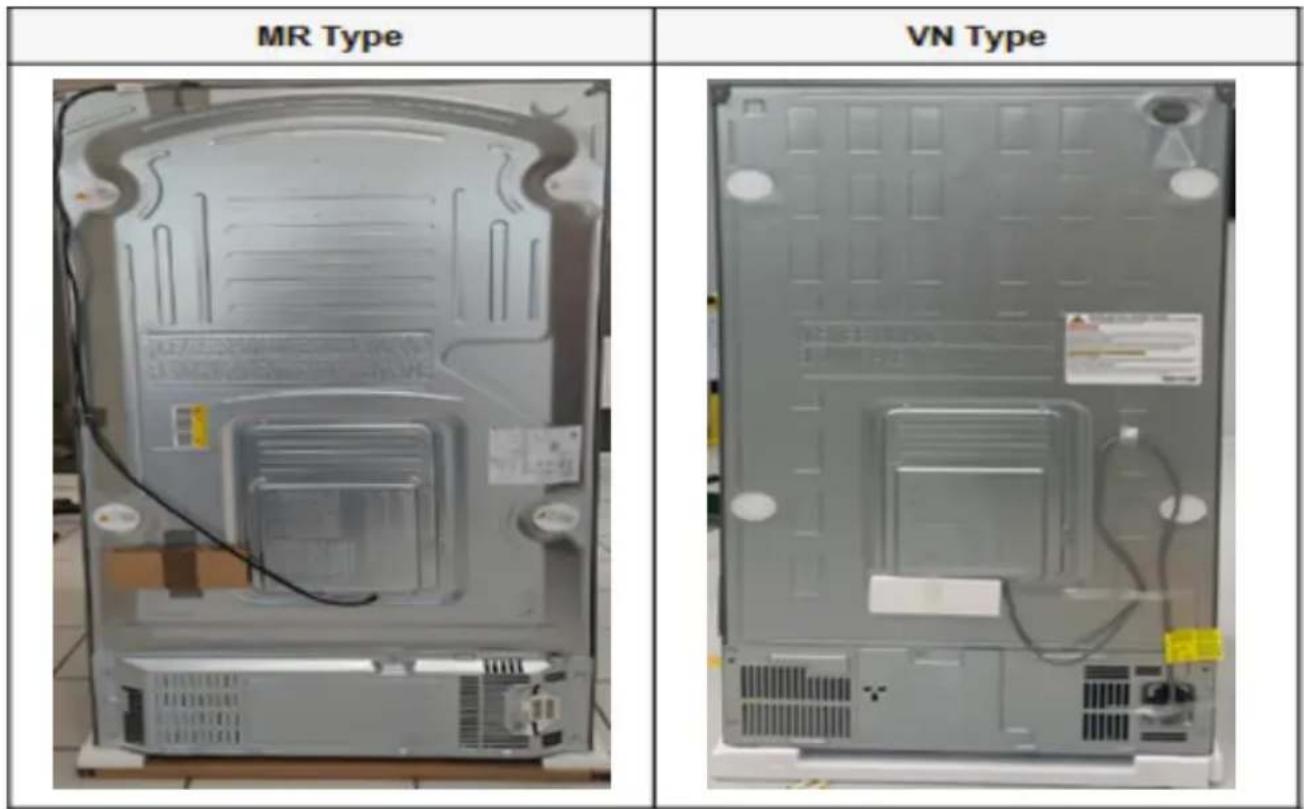

Replace Bracket (Only applies to serial numbers with "VN" on the label.)

Note : Check the serial number on the label attached to the freezer room.

LG HOUSEHOLD REFRIGERATOR / RÉFRIGÉRATEUR MÉNAGÈRE MODEL / MODÈLE: LTCS20020S /00 PRODUCT CODE / CODE DE PRODUKT: GV-USGS 5XN A 9TCN40 SER. No. / No. DE SÉRIE: 307VNHJ04286 RATING / CAPACITÉ NOMINALE 115V ~ 60 Hz 2.7A DEFROSTING INPUT / 198 WY PUISSANCE ABSORBÉE EN DÉGVRRAGE POWER INPUT OF ICEMAKER HEATER / PUISSANCE ABSORBÉE DE LA RÉSISTANCE DE LA FABRIQUE DE GLACE REFRIGERANT / RÉFRIGÉRANT R600a 2.2 oz (62g) DIMENSIONS (W x H ± D) 29 7/8 x 66 x 33 3/4 inch PRODUCTION DATE / DATE DE PRODUCTION 2023.07 MADE IN VIETNAM / FABRIQUE EN VIETNAM C US Energy Verified 162279 1-888-043-0000 (USA) 1-888-LG-CANADA (CANADA) FOR LG CUSTOMER SERVICE http://www.lg.com SER. No. / No. DE SÉRIE: 307VNHJ04286

MR Type VN Type

WATER VALVE INSTALLATION

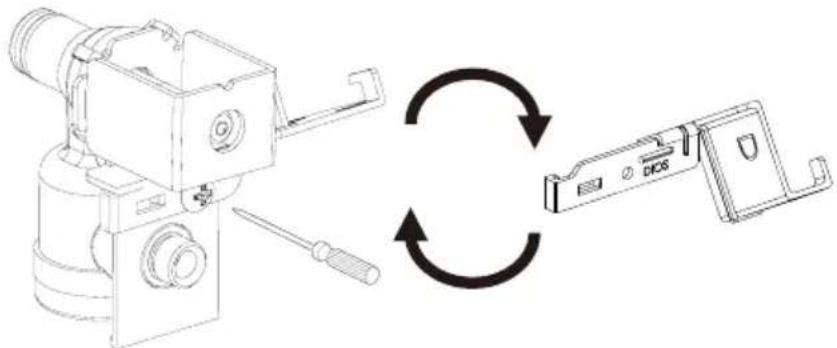

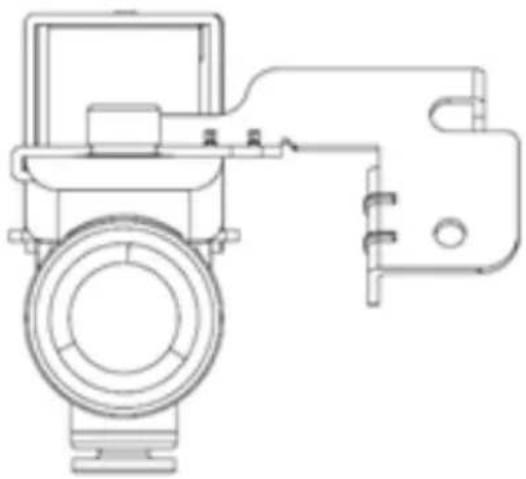

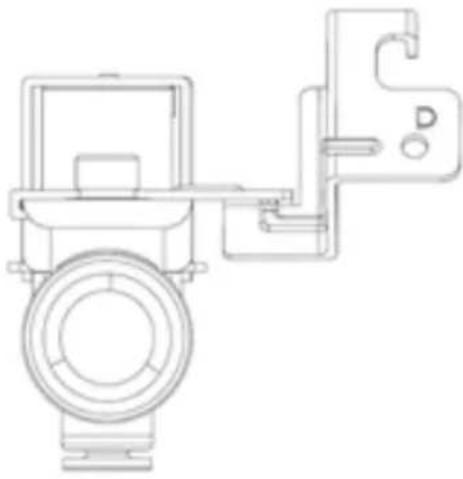

Loosen the screw, remove the bracket from the valve assembly, and replace the bracket on the valve assembly using a Phillips screwdriver.

Technical line drawing of a mechanical device with a screwdriver and a DICS switch, showing rotational assembly (no text or symbols)

Close-up of a black mechanical component with a small circular feature and a L-shaped extension (no visible text or symbols)

The bracket attached to the existing valve is an MR type, so replace it with a VN type if necessary.

MR Type	VN Type

INSTRUCTIONS

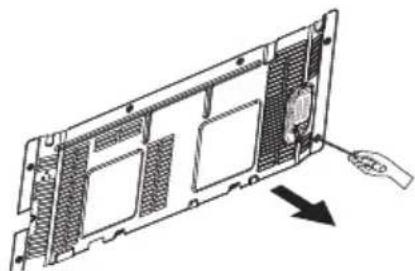

1. REMOVE THE BACK COVER

Remove the back cover of the refrigerator using a Phillips screwdriver.

Technical line drawing of a computer RAM module with a hand holding a cable (no text or symbols)

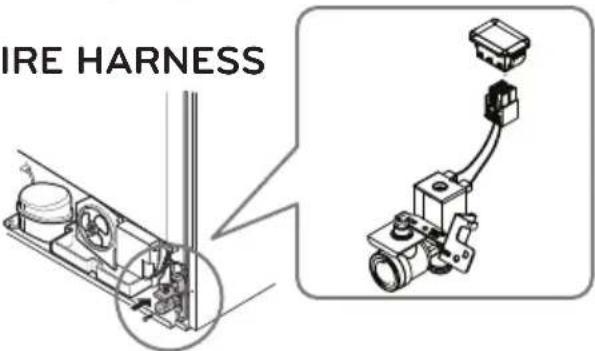

2. CONNE CT THE WATER VALVE WIRE HARNESS

Facing the back of the refrigerator, locate the wiring harness for the water valve at the lower right side. Plug the connector of the water valve harness onto the refrigerator terminals.

IRE HARNESS

WATER VALVE INSTALLATION

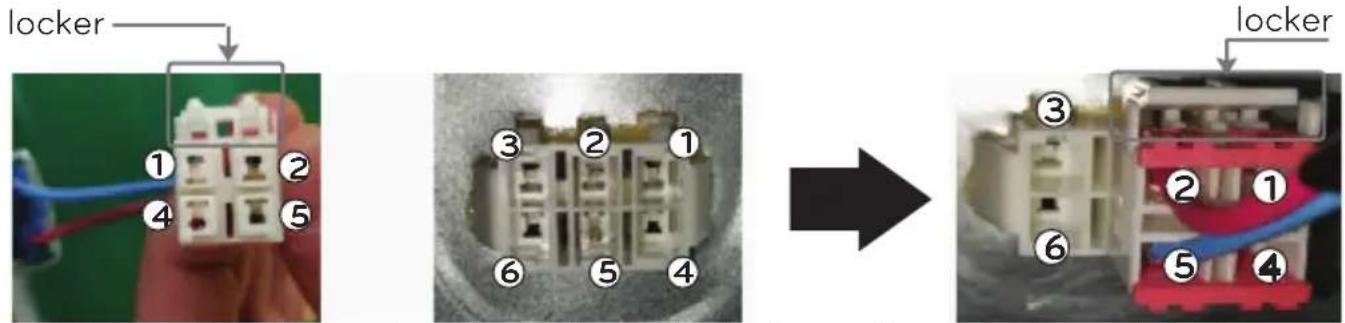

locker ① ② ④ ⑤ ③ ② ① ⑥ ⑤ ④ → ③ ② ① ⑥ ⑤ ④ locker

housing water valve
housing refrigerator bottom direction of combined

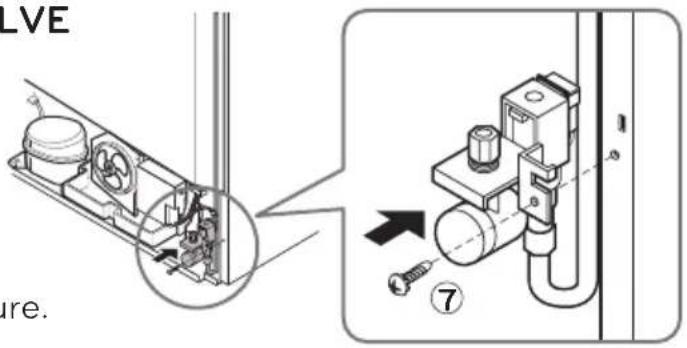

3. ATTACH THE WATER VALVE

Fasten the water valve to the back of the refrigerator using one Phillips screw ⑦

NOTE: Make sure the fill tube connection on water valve is secure.

LVE ire.

4. REMOVE THE ICEMAKER FILL TUBE COVER

Remove and discard the icemaker fill tube opening cover located on the upper right side of the refrigerator; insert the icemaker fill tube ⑥ all the way into the opening until it stops.

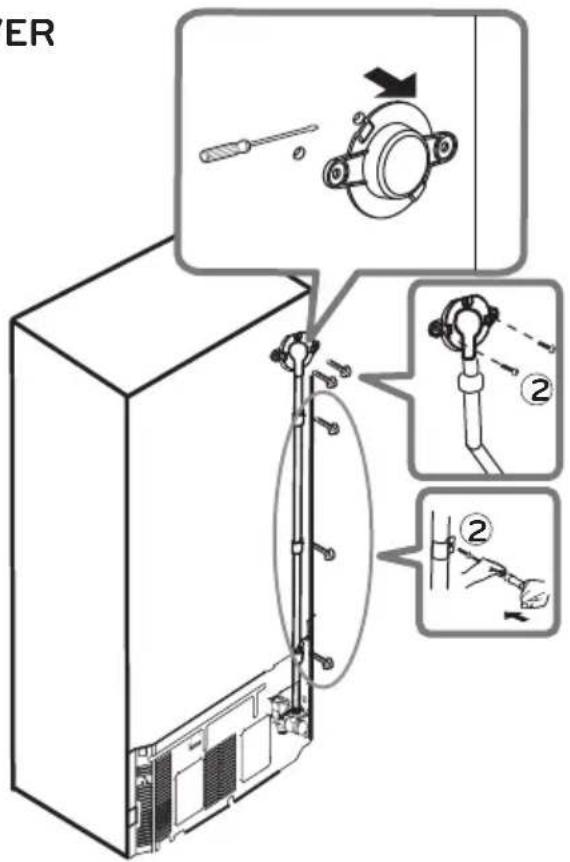

5. SECURE THE FILL TUBE

Locate the marks on the back of the cabinet where the fill tube ⑥ will be installed. Place the 5 screws ② on the marks and tap them with the screwdriver to make a small hole. Fasten the fill tube using the band ⑤ and the Phillips screws.

ER ② ②

WATER VALVE INSTALLATION

	MR Type	VN Type
Water Line Installation
	Remove the protective cap and push the water line into the opening all the way. Secure it with 2 screws.	Remove the protective cap and push the water line into the opening all the way until the plastic mount reaches the back of the unit. Firmly press the mount downward slightly. Continue pushing the mount all the way in until it clicks into place.

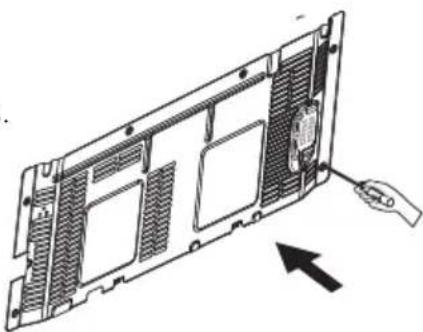

6. ATTACH THE BACK COVER

Fasten the back cover with the previously removed screws.

Diagram of a computer RAM module with a hand inserting a cable (no text or symbols)

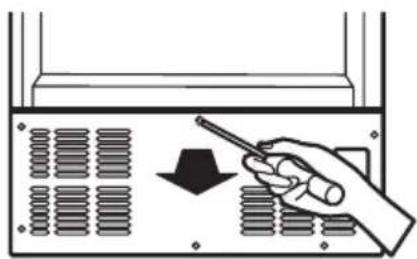

.7 CONNECT TO WATER LINE

To connect to the home water supply, refer to the Water Line Installation Instructions within the refrigerator's Owner's Manual.

Once the home water supply line is connected and turned on, be sure to turn the icemaker switch to the I (on) position.

The icemaker will require 12 to 24 hours for ice to be produced.

It is recommended to discard the first few batches of ice prior to using a batch for consumption.

Illustration of a hand holding a pointer at the bottom of a server rack with a downward arrow indicating compression (no text or symbols present)

FILL TUBE INSTALLATION

BEFORE YOU BEGIN

Read each step thoroughly before proceeding.

CAUTION: Unplug the refrigerator power cord from the outlet.

TOOLS YOU WILL NEED

Flat blade and Phillips screwdrivers

INSTALLATION INSTRUCTIONS

(Apply only for model; LRTLS2403*)

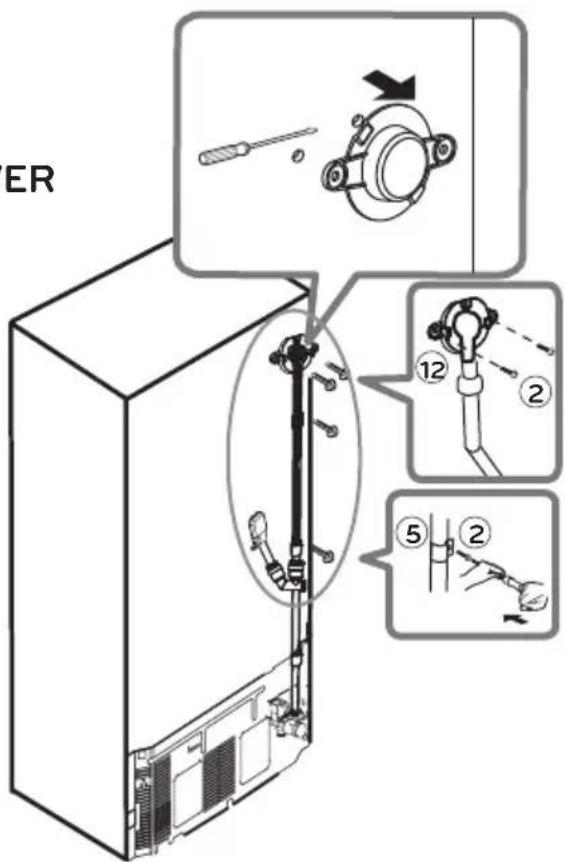

1. REMOVE THE ICEMAKER FILL TUBE COVER

Remove and discard the icemaker fill tube opening cover located on the upper right side of the refrigerator; insert the icemaker fill tube ⑫ all the way into the opening until it stops.

2. SECURE THE FILL TUBE

Locate the marks on the back of the cabinet where the fill tube ⑫ will be installed. Place the 5 screws ② on the marks and tap them with the screwdriver to make a small hole. Fasten the fill tube using the band ⑤ and the Phillips screws.

3. SECURE THE FILL TUBE

Position the tube connector ⑪ as shown. Insert the tube from the water valve (white) in the left opening A. Then remove the clip from around the right opening B, insert the icemaker fill tube (black), and reinsert to secure the tube

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

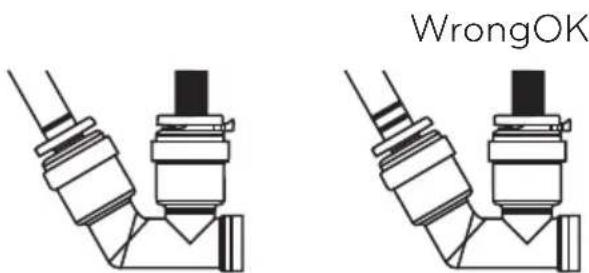

4. FILL TUBE INSTALLATION

Insert tubes until only one guideline is showing. Tug gently to make sure the tube is secure.

ER ⑫ ② ⑤ ②

WrongOK

WHEN SHOULD YOU SET THE ICEMAKER SWITCH TO O (OFF)

• When the ice storage bin is removed for more than a few minutes.
• When the water supply will be shut off for several hours.
• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

• During use, you may hear an occasional "buzzing" noise coming from the back of your refrigerator. This is normal and occurs when the water valve is turned on to allow water to fill the ice tray. If the refrigerator is not connected to a water supply, this noise will still occur and damage can result from operating the icemaker without having a water supply line installed. To avoid unnecessary operating noises, and avoid damaging the icemaker, locate the icemaker switch and place it in the O (off) position.

- You may occasionally hear the sound of ice dropping into the ice bin, and running water during use as the icemaker refills.

WHEN YOU GO ON VACATION

Set the icemaker switch to the O (off) position, and shut off the watersupply line to the refrigerator. If you anticipate that the temperature surrounding the refrigerator may drop below freezing, have a qualified plumber drain the water supply system to prevent property damage due to flooding from ruptured water lines or connections.

TROUBLESHOOTING GUIDE

AUTOMATIC ICEMAKER DOES NOT WORK

Check if... Then...

Icemaker switch in the O (off) position.	Move the switch to the I (on) position.
Water supply turned off or not connected.	See Connecting the Water Line.
Freezer compartment too warm.	After installing icemaker, wait 24 hours for freezer to reach its set temperature.Recommended freezer temperature is 0 degrees F (-18°C).
Piled up cubes in the storage bin causes the icemaker to shut off.	Level cubes by hand.

CUBES PRODUCED BY ICEMAKER ARE TOO SMALL

Check if... Then...

Water shutoff valve is not fully open or the water supply pressure is not adequate.

Check water supply for proper pressure. Recommended pressures is 20 -120 psi (138 - 827 kPa).

ICE CUBES ARE FREEZING TOO SLOWLY

Check if... Then...

The doors have been left open.	Check to ensure doors are closed properly.
Temperature control not set cold enough.	Refer to refrigerator's Owner's Manual to the Control Panel Features for temperature adjustments.

ICE CUBES HAVE A BAD TASTE OR ODOR

Check if... Then...

Ice storage bin needs cleaning.	Empty and thoroughly wash the ice bin.
Food transmitting odor/taste to ice cubes.	Cover or wrap food items to prevent the spread of odors.
Interior of refrigerator needs cleaning.	Refer to refrigerator's Owner's Manual.The Care and Cleaning section see General Cleaning Tips.

TABLE DES MATIERES

Garantie 3

Warning symbol: white exclamation mark inside a triangle on black background (no text or numbers)

ATTENTION

Warning symbol image with exclamation mark inside a triangle

Technical line drawing of a refrigerator with internal compartments and a close-up inset showing internal components (no text or symbols)

3. BRANCHER LA MACHINE À GLAÇONS

Close-up of hands using a red tool to adjust a white electrical socket (no text or symbols visible)

Close-up of hands using a red screwdriver to adjust a white electrical socket (no text or symbols visible)

Line drawing of a refrigerator with open door and side panel (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)

Retirer le Couvercle

Technical diagram of an electronic device with labeled components and directional arrow indicating assembly or operation.

Technical diagram showing a mechanical device with a screwdriver and a device labeled 'DIOS' connected by a circular arrow indicating rotation or assembly.

Close-up of a black electronic component with a metallic L-shaped bracket (no visible text or symbols)

locker ① ② ④ ⑤ ③ ② ① ⑥ ⑤ ④ → ③ ② ① ⑥ ⑤ ④ locker

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view highlighting a bolted component.

4. ENLEVER LE COUVERCLE DU TUBE DE REMPLISSAGE DE LA MACHINE À GLAÇONS

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

INSTALLATION DU ROBINET D'EAU

Diagram of a computer RAM module with a hand inserting a cable (no text or symbols)

7.. ROBINET D'EAU INSTAL

Illustration of a hand holding a screwdriver next to a control panel with buttons and a downward arrow (no text or symbols)

INSTALLATION DU TUBE DE REMPLISSAGE

AVANT DE COMMENCER

Pure mechanical component diagram without any text, numbers, or symbols

Pure mechanical component diagram without any text, numbers, or symbols

QUAND METTRE LA MACHINE À GLAÇONS HORS TENSION, INTERRUPTEUR EN POSITION "O"
