VESUVIO6072 - Oven Frilec - Free user manual and instructions

Brand	Frilec
Model	VESUVIO6072
Product type	Built-in oven
Cavity volume	72 L
Energy class	A++
Energy consumption (conventional)	1,10 kWh/cycle
Energy consumption (fan-assisted)	0,52 kWh/cycle
Input voltage	220-240 V~, 50-60 Hz
Total power	3,2 kW
Number of functions	13 (12 manual + Airfry)
Main functions	Conventional, Convection, Grill, Pizza, Fan-assisted, Airfry, Defrosting, Fermentation, Cleaning
Temperature range	30 °C to 280 °C depending on function
Timer	Up to 9 hours
Interior lighting	Yes, replaceable bulb (300 °C, class G)
Safety	Child lock, automatic shut-off after 20 min in standby mode
Included accessories	Grid, drip tray, Airfry basket, 2 slide-in guides
Cleaning	Steam cleaning function (100 °C, 30 min), removable door, tempered glass
Repairability	Replaceable lamp, removable door, after-sales service
Standby consumption	0,8 W
Country of manufacture	Not specified

Frequently Asked Questions - VESUVIO6072 Frilec

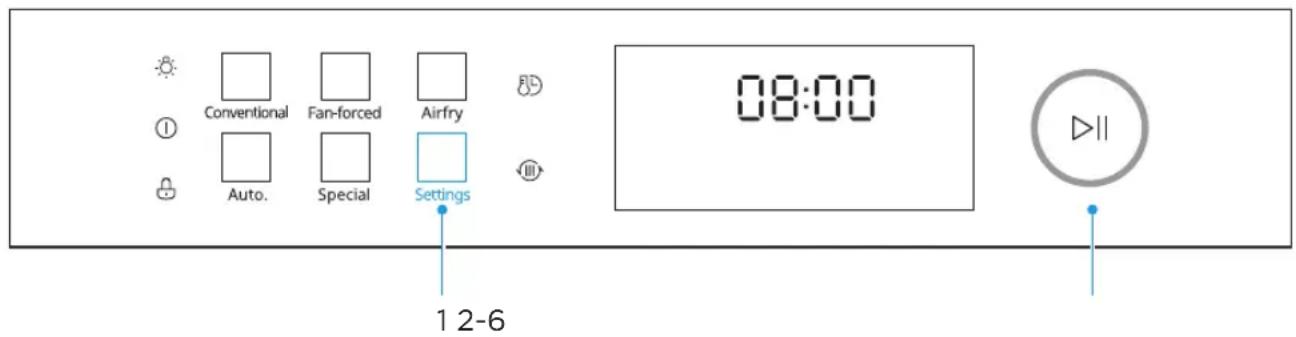

How to set the clock of the VESUVIO6072 oven?

From standby mode, press the Settings button, then the ▷ll button. Turn the knob to set the hours, press ▷ll to confirm, then set the minutes and press ▷ to finish.

What to do during first use to eliminate odors?

Before first use, clean the oven and accessories. Heat the empty oven in Conventional mode at 250 °C for 30 minutes. Ensure the kitchen is well ventilated.

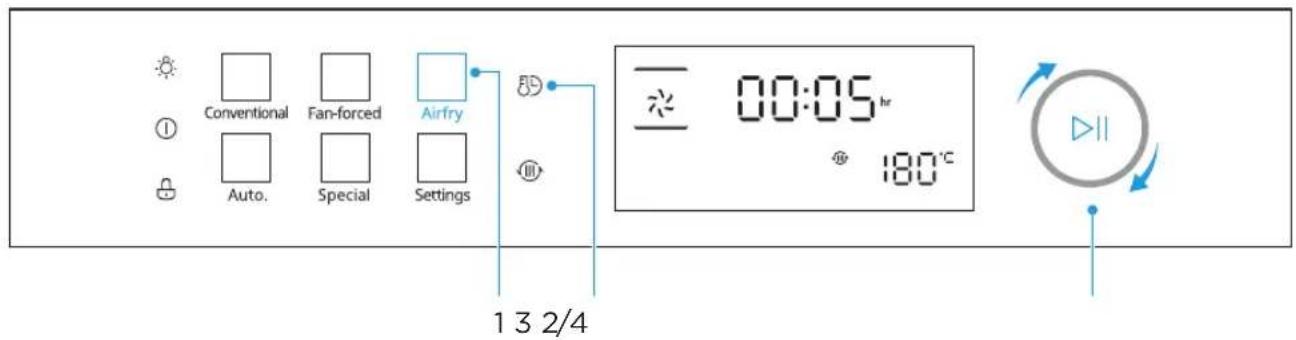

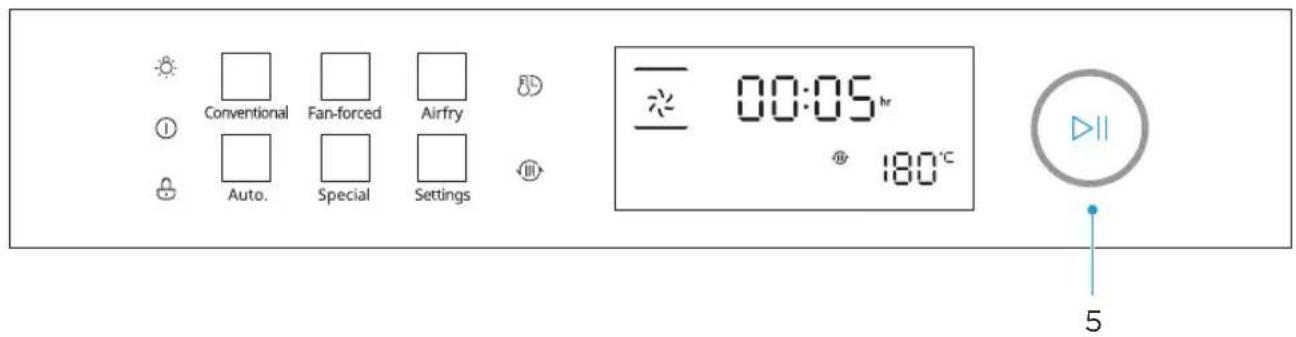

How to use the Airfry function?

In standby mode, press the Airfry button. Set the temperature with the knob, press the ▷ll button to confirm, set the time, then press ▷ to start. Use the supplied Airfry basket.

How to clean the oven door glass?

Do not use abrasive cleaners or metal scrapers. For deep cleaning, you can disassemble the oven door. Remove the door cover by pressing the side buttons, then clean the glass with a soft cloth and mild soap.

How to disable the child lock?

Press and hold the (lock) button for 3 seconds to activate or deactivate the child lock.

What if the oven does not heat up?

Check that the power supply is connected, the main switch is on, and the door is properly closed. If the problem persists, contact after-sales service.

How to replace the oven light bulb?

Turn off and unplug the oven. Ensure the interior is cool. Remove the lamp cover by turning counterclockwise. Replace the bulb with a new one resistant to 300 °C (class G). Reattach the cover.

What accessories are provided with the oven?

The oven comes with: a grid, a drip tray, an Airfry basket, and two slide-in guides for cooking levels.

How to install the oven in a cabinet?

Installation must be carried out by an authorized technician. Follow the built-in dimensions given in the manual (free height of 5 mm at top and bottom, 20 mm on each side). Use the screws and plugs provided to fix the oven to the cabinet.

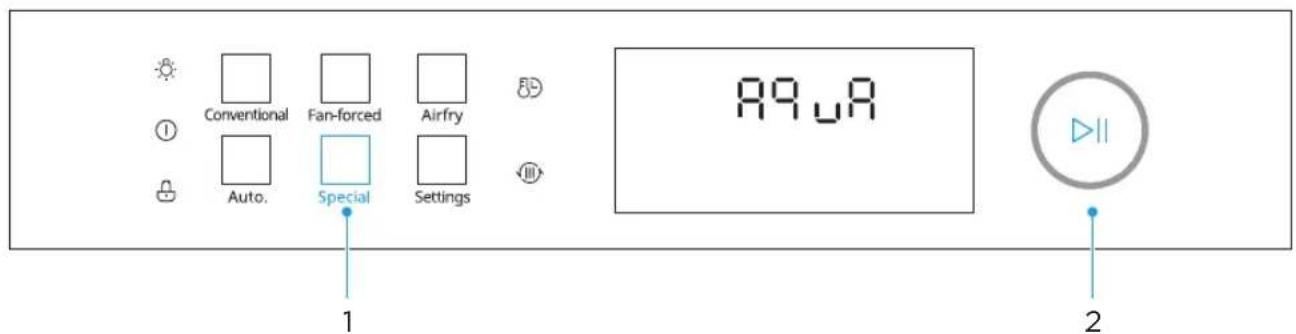

How to use the automatic cleaning function?

In standby mode, press the Special button until AquA is selected. Pour 250 ml of purified water at the bottom of the cavity. Press ▷ll to start the 30-minute cleaning cycle at 100 °C. Then wipe the cavity with a soft cloth.

USER MANUAL VESUVIO6072 Frilec

ELEGANZA BY FRIELED

Handleiding

INBOUWOVEN VESUVIO6072

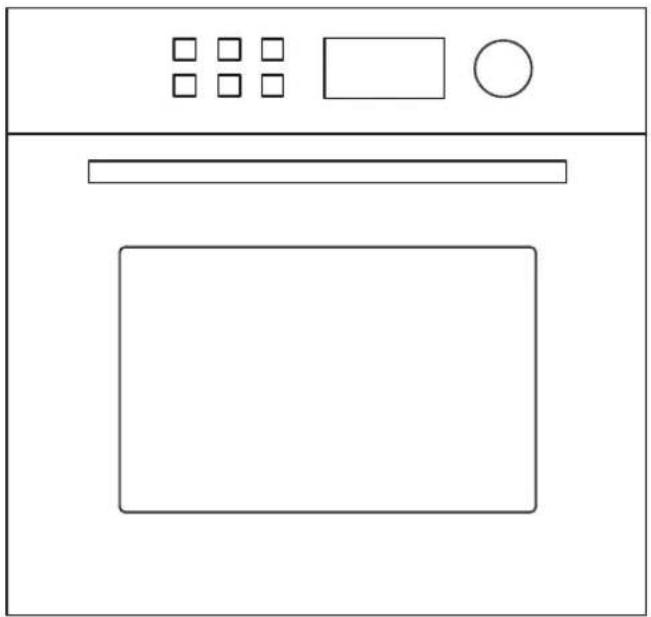

Line drawing of a kitchen oven with control panel and buttons (no text or symbols)

PRODUCT INSTALLATIE 10

Line drawing of a rectangular tray with internal geometric patterns (no text or symbols)

Voedsel bereiden of etensresten opvangen

Convention a Fan-forced Airfly

Auto Special Settings

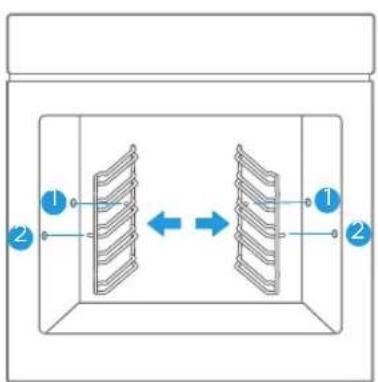

Diagram showing two vertical structures with numbered labels and directional arrows, likely illustrating a physical or engineering concept.

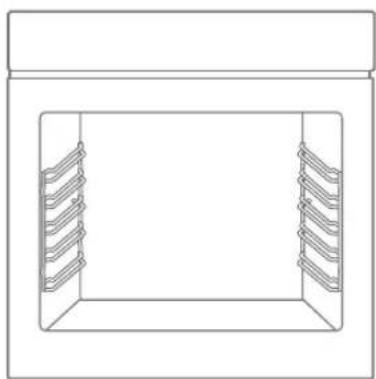

Simple line drawing of a rectangular enclosure with vertical supports and a top panel (no text or symbols)

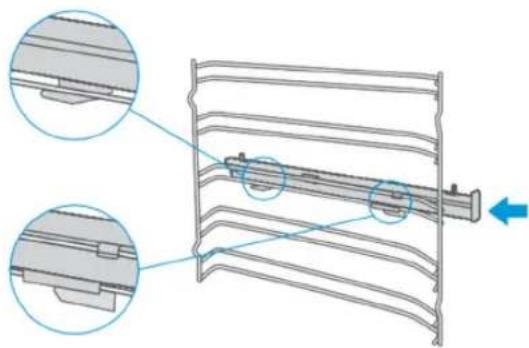

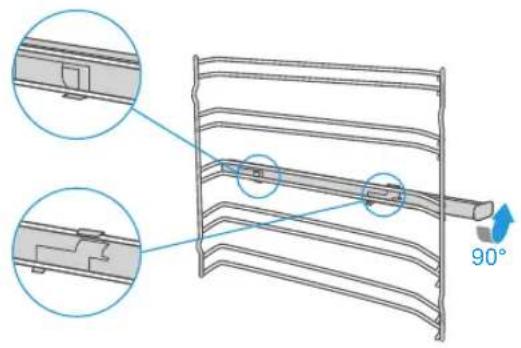

Technical diagram of a rack structure with two circular inset views showing internal components (no text or symbols)

2

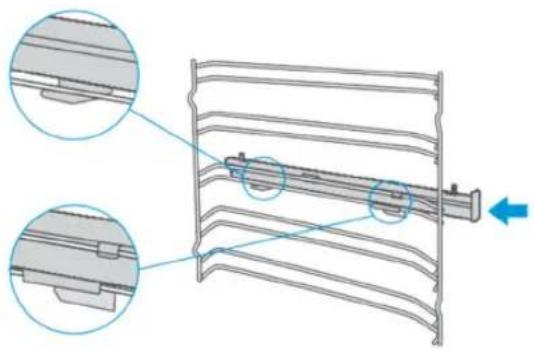

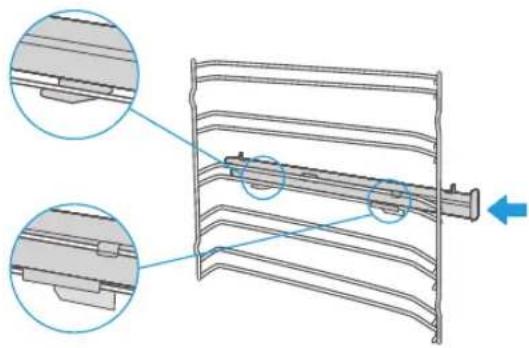

Technical diagram of a structural frame with two magnified views showing internal components (no text or symbols)

3

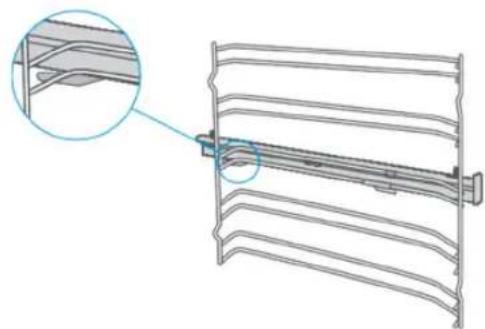

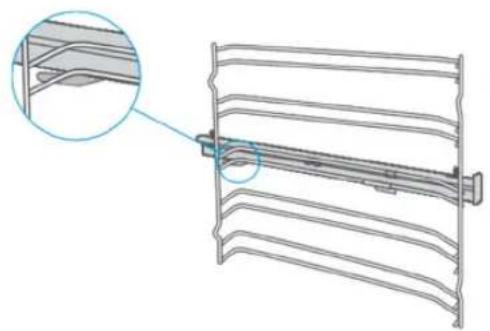

Technical line drawing of a rack-mounted device with a magnified inset showing structural details (no text or symbols)

Conventional Fan-forced Airfly Auto. Special Settings 12-6 08:00 ▶II

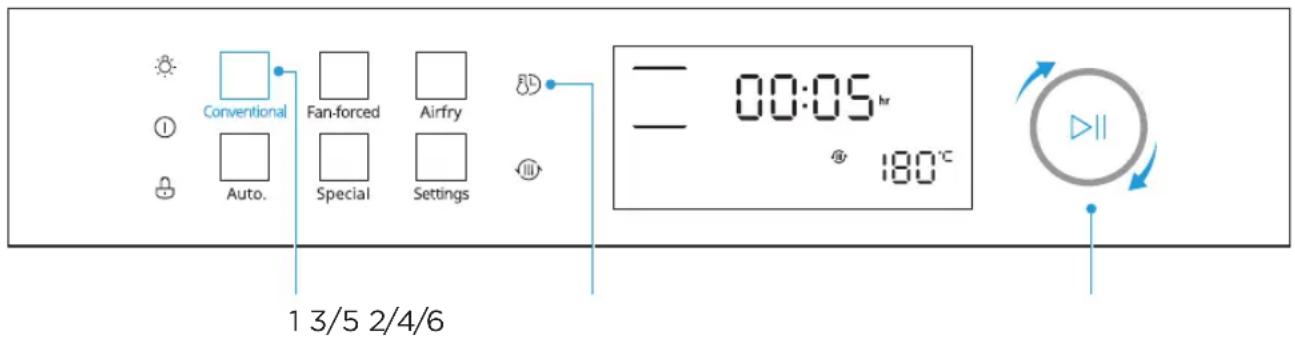

Conventional Fan-forced Airfry Auto. Special Settings 1 3/5 2/4/6 00:05 hr 180 °C

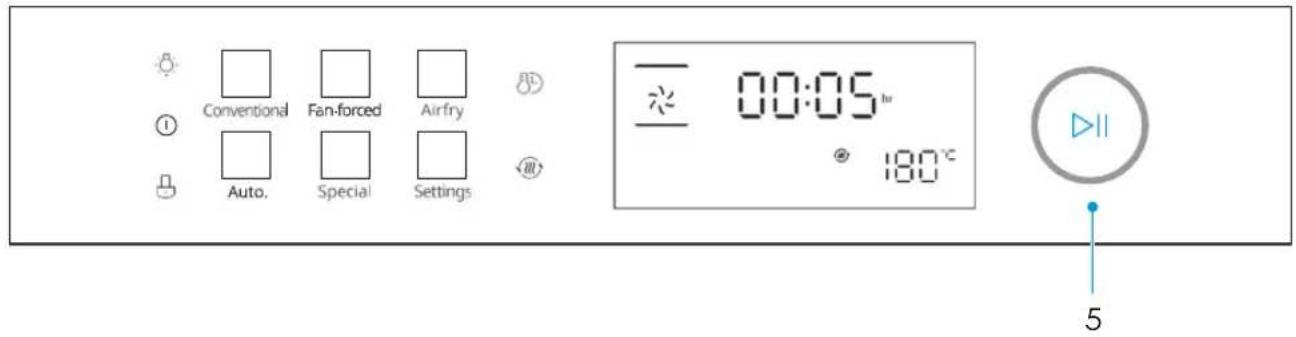

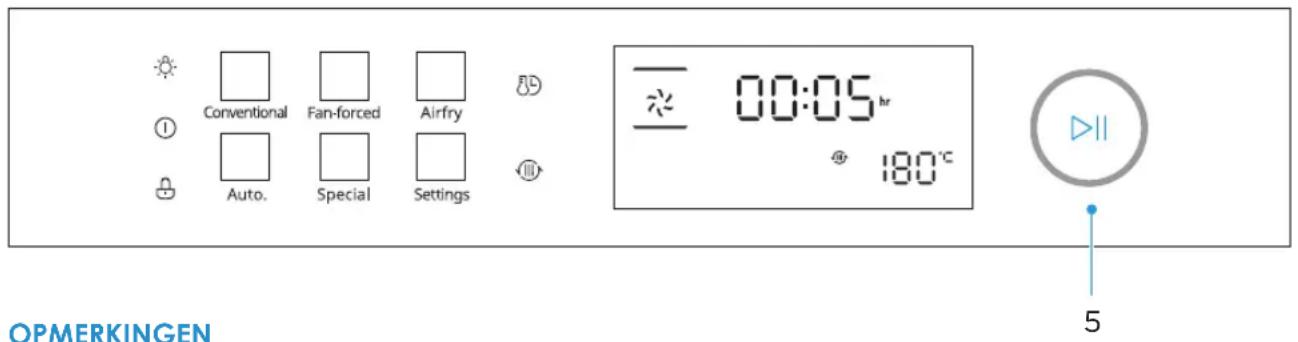

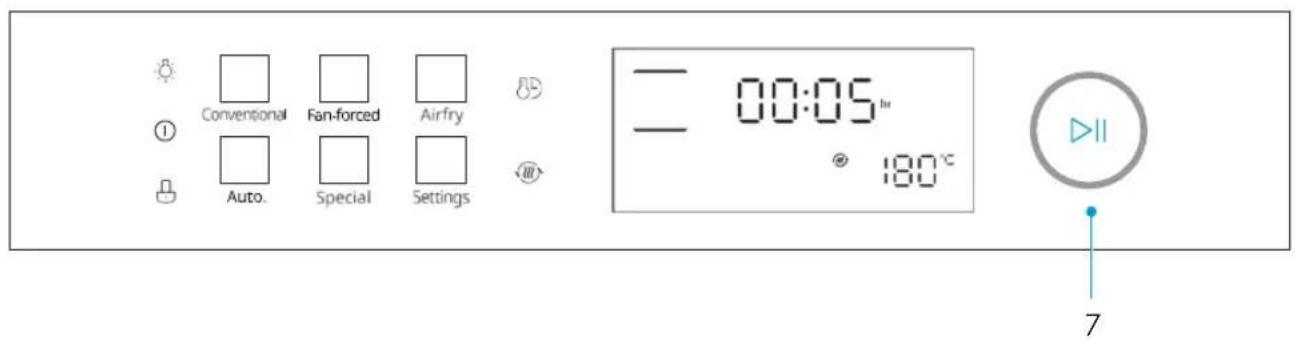

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180 °C 7

OPMERKINGEN

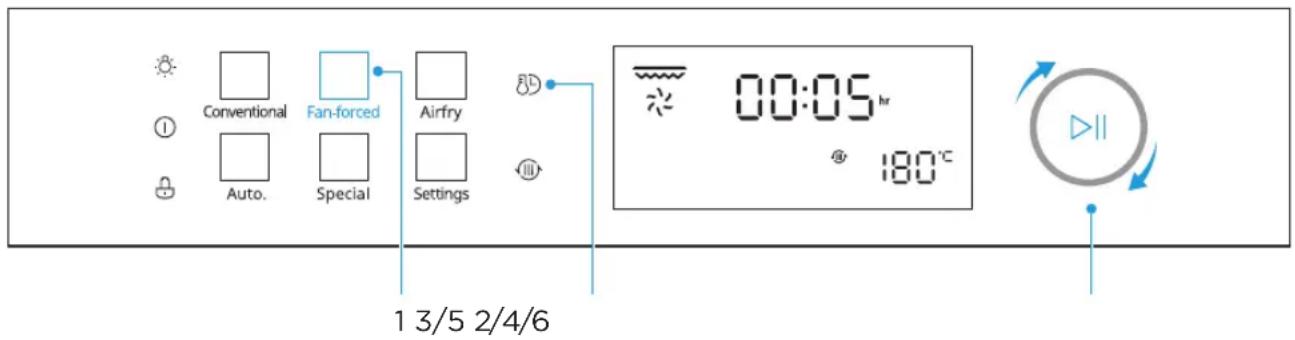

Conventional Fan-forced Airfry Auto. Special Settings 1 3/5 2/4/6 00:05 hr 180°C

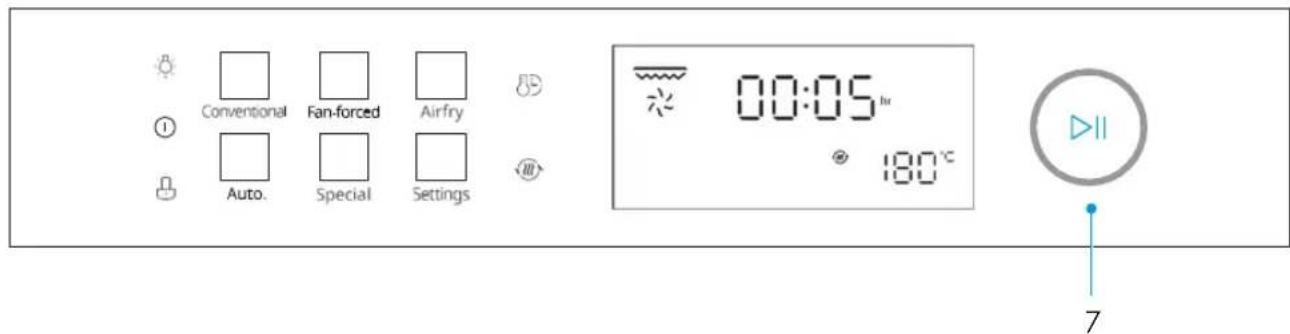

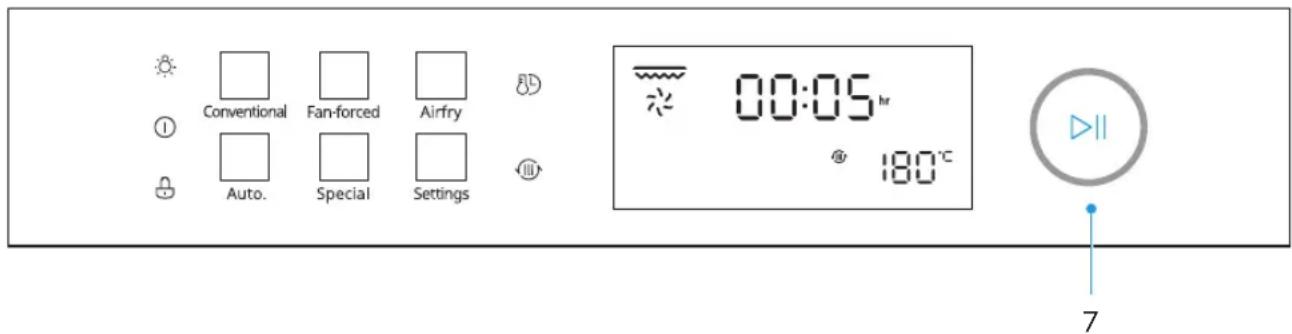

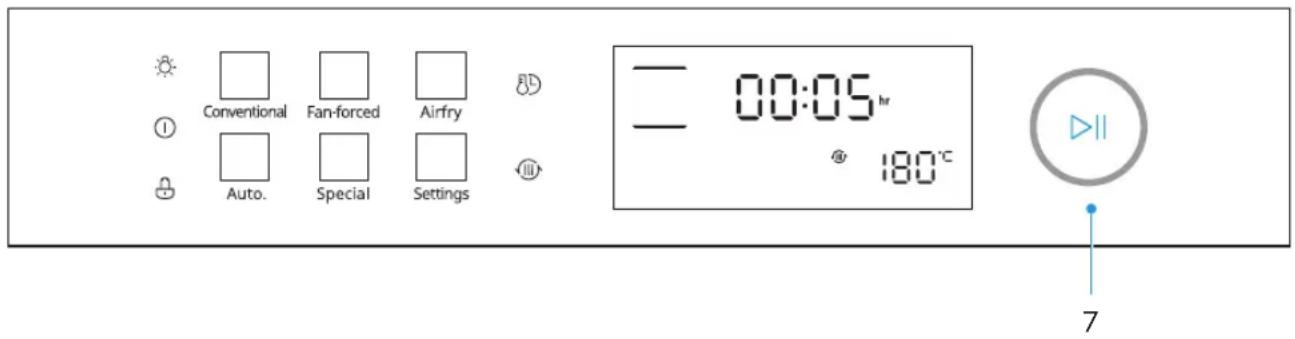

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180°C 7

OPMERKINGEN

Conventional Fan-forced Airfry Auto. Special Settings 13 2/4 00:05 hr 180°C

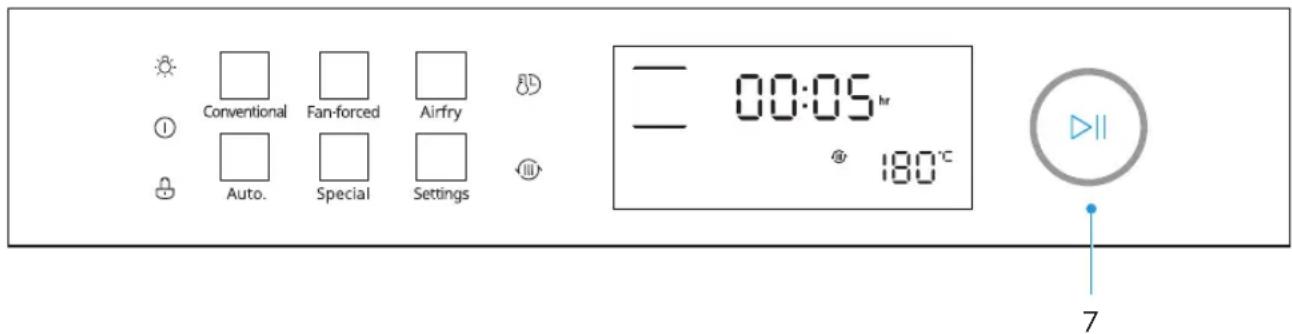

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180°C OPMERKINGEN 5

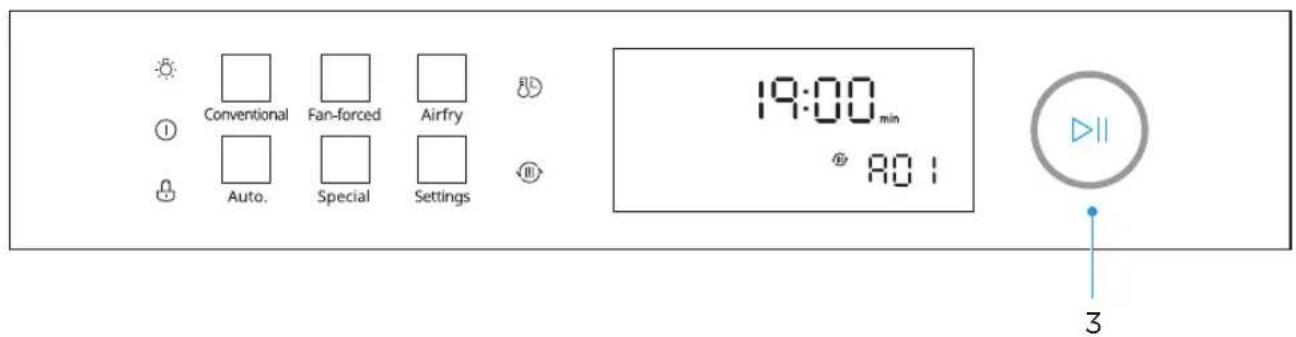

Conventional Fan-forced Airfly Auto. Special Settings 19:00 min 80 l 2

Conventional Fan-forced Airfly Auto. Special Settings 19:00 min 80:1 3

OPMERKINGEN

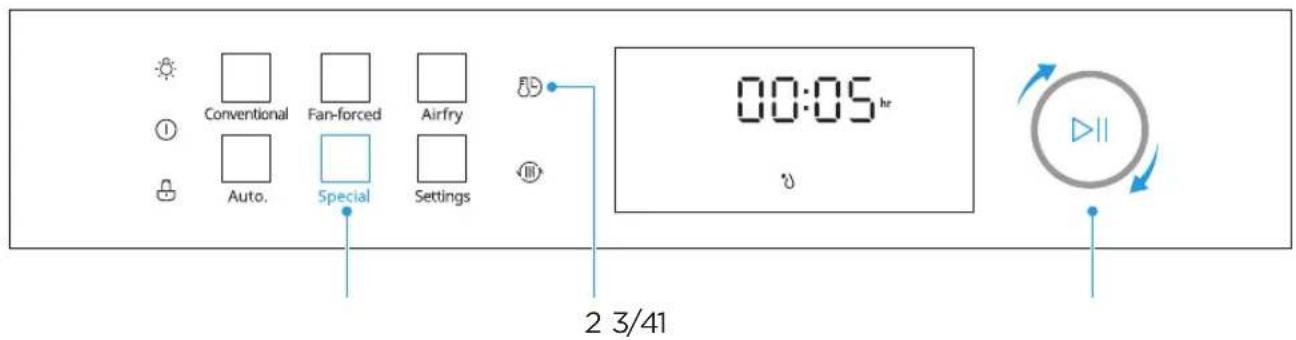

Conventional Fan-forced Airfly Auto. Special Settings 00:05 hr 2 3/41

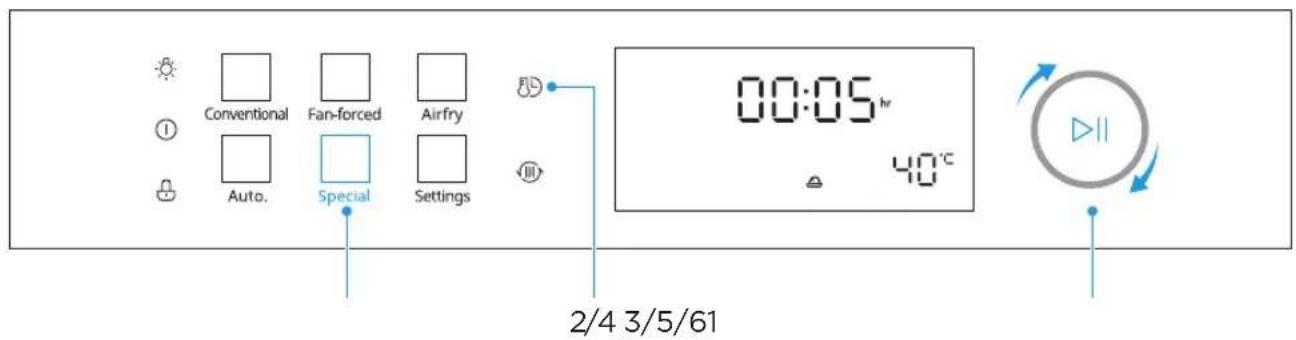

Fermentatie

Conventional Fan-forced Airfly Auto. Special Settings 00:05 hr 40°C 2/4 3/5/61

Reinigen

Conventional Fan-forced Airfly Auto. Special Settings 1 2 R9_UR

Instellingen

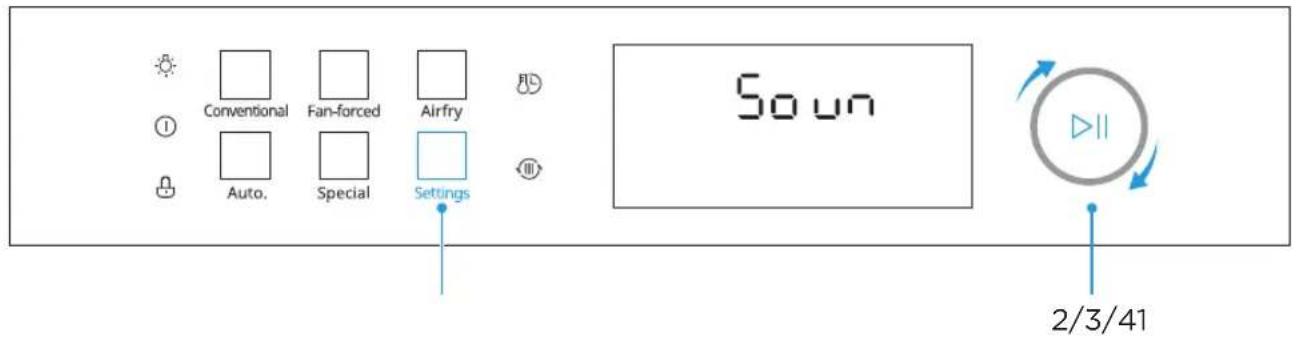

Geluid

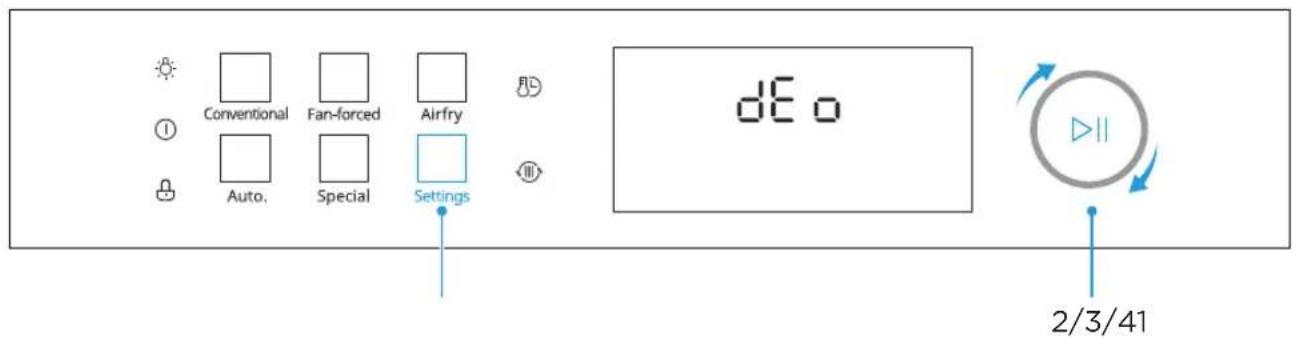

Conventional Fan-forced Airfry Auto. Special Settings dEo 2/3/41 OPMERKING

OPMERKING

Simple line drawing of a mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Waarschuwing

Diagram of a kitchen appliance with a side view showing a seatbelt switch and a close-up of the interior (no text or symbols)

Diagram of a door with a blue arrow pointing to the lock (no text or symbols present)

Diagram of a mechanical assembly with a blue arrow indicating direction (no text or symbols present)

OPMERKING

Symbol of a trash bin crossed with diagonal lines and a blank rectangular block below (no text or labels)

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

domestic and professional appliances

MULTIBRAND SALVES & SERVICES

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND

ELEGANZA BY PRICES

Usermanual

BUILT-IN OVEN VESUVIO6072

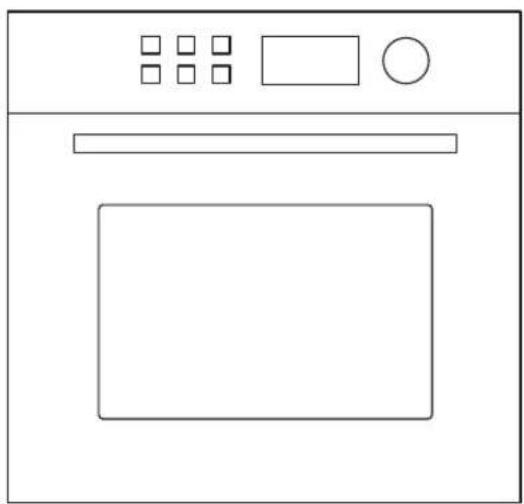

Line drawing of a kitchen oven with control panel and door (no text or symbols)

Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement.

Consult with your dealer or manufacturer for details.

The illustration is for reference only. Please take the appearance of the actual product as the standard.

THANK YOU

Thank you for choosing our product. Before using your new purchase, read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 06

PRODUCT OVERVIEW 07

QUICK START GUIDE 09

PRODUCT INSTALLATION 10

OPERATION INSTRUCTIONS 15

CLEANING AND MAINTENANCE 25

TROUBLESHOOTING 27

DISPOSAL AND RECYCLING 28

QR CODE to WARRANTY & SERVICE 29

SAFETY INSTRUCTIONS

Intended use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

WARNING

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

PROHIBIT

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in the shattering of the glass.
• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or a separate remote control system.
• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
• When the door or drawer of the oven is open do not leave anything on it, or you may unbalance your appliance or break the door.
• Do not allow children to go near the oven when it is operating, especially when the grill is on.
• Don't use under the worksurface and it must not be subject to spillage from containers onto surfaces under which the appliance is installed.

CAUTION

• Please use the product in an open environment.
• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
• Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Accessible parts may become hot during use. Young children should be kept away.
• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ATTENTION

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run the new empty product with the conventional cooking function, 250°C, for 30 minutes to clean oil impurities inside the cavity.
• During the first use, it is completely normal that there will be slight smoke and door. If it does occur, you should wait for the smell to be cleared before putting food into the oven.
• Only use the temperature probe recommended for this oven.
• The oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of the oven is open do not leave anything on it, or you may unbalance your appliance or break the door.
• Some parts of the appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.

ENERGY EFFICIENCY

Product Information and Product Information Sheet according to EU and UK Ecodesign and Energy Labelling Regulations

Brand	Eleganza
Model	VESUVIO6072
Energy Efficiency Index	61.2
Energy efficiency class	A++
Energy consumption with a standard load, conventional mode	1.10kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.52kWh/cycle
Number of cavities	1
Heat source	Electricity
Volume	72L
Type of oven	Built-in Oven
Power Supply 220 V-240 V~ , 50 Hz-60 Hz
Electric Power	3.2kW

ENERGY CONSUMPTION

Product information for power consumption and maximum time to reach applicable low power mode.

Standby mode 0.8 W

The maximum time needed for the oven to automatically reach the applicable low power mode or condition. 20 minutes

PRODUCT OVERVIEW

Oven

When taking out food, please wear heat-insulating gloves to prevent burns! Pay attention to the hot air when opening the oven door.

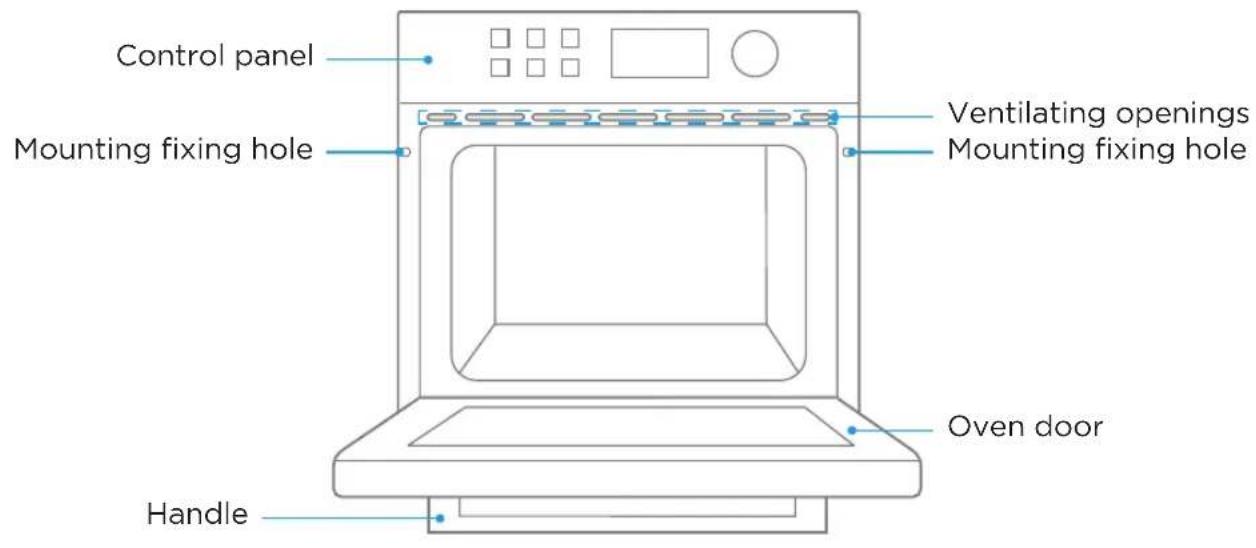

Control panel Mounting fixing hole Ventilating openings Mounting fixing hole Oven door Handle

Accessories

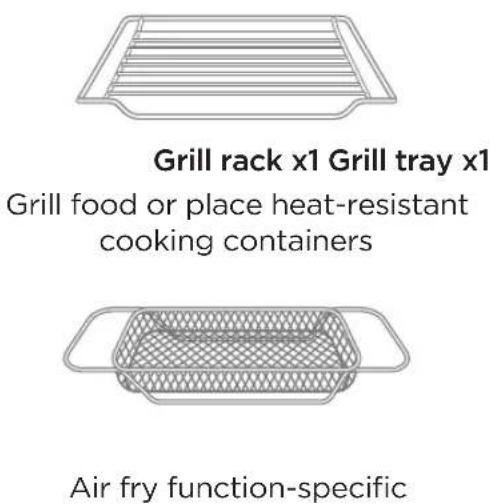

Grill rack x1 Grill tray x1 Grill food or place heat-resistant cooking containers Air fry function-specific

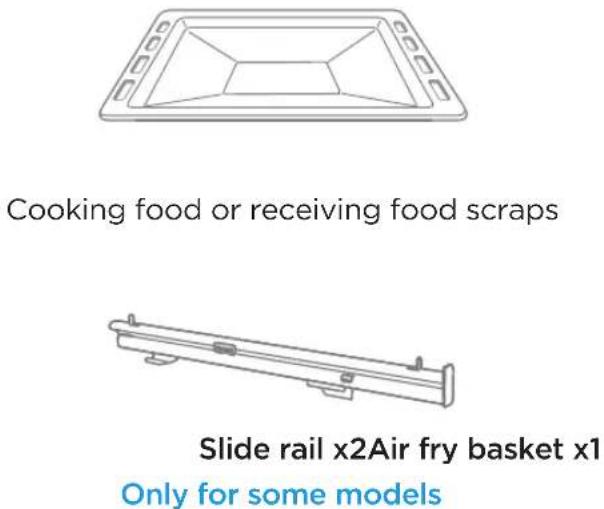

Cooking food or receiving food scraps Slide rail x2Air fry basket x1 Only for some models

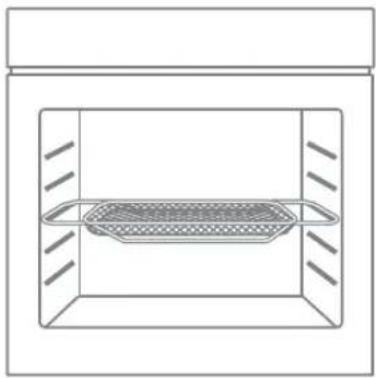

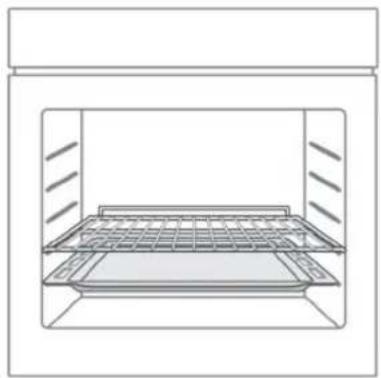

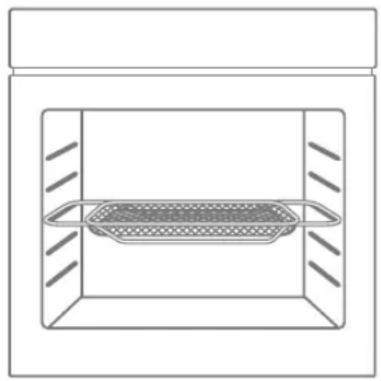

Accessories Use

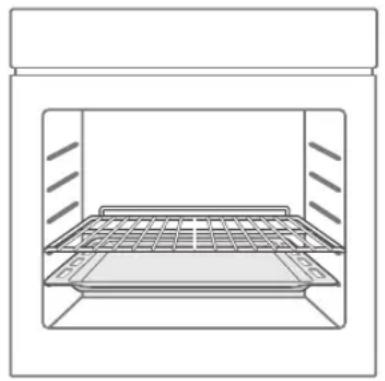

For the oven to work properly, the grill rack and grill tray should only be placed between the first and fifth levels. When used together, place the grill tray under the grill rack.

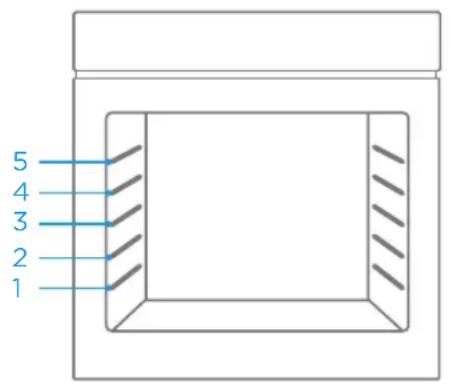

5 4 3 2 1

Line drawing of a laboratory or storage unit with a grid-patterned tray inside (no text or symbols)

Simple line drawing of a rectangular container with internal mesh structure (no text or symbols)

Only for some models

QUICK START GUIDE

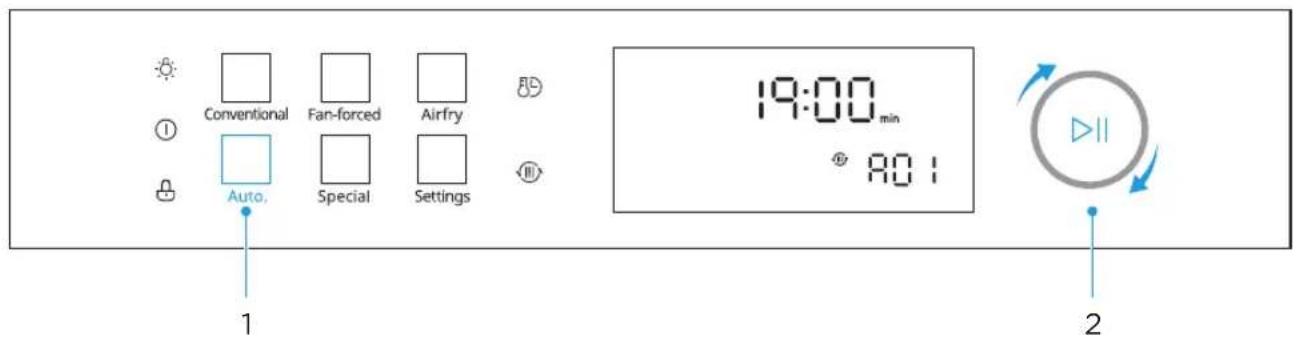

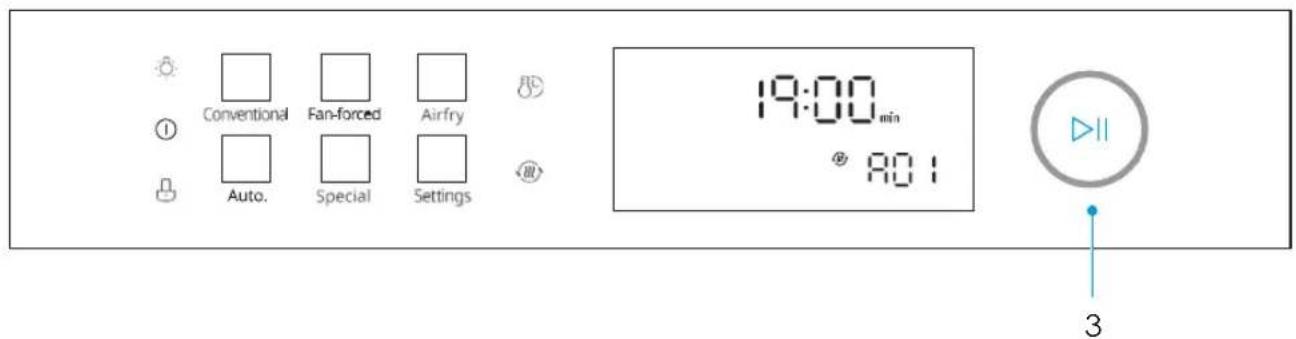

Oven Control Panel

Conventional

Fan-forced

Airfry

Auto.

Special

Settings

88:88 hr min 18.88 w III ≈ A 888 °C kg

icon	Introduction
[XY0K]	Cancel the current setting and return to the standby state.
	Press this key to turn on or off the lamp.
[63X0]	Press and hold for 3 seconds to enter or exit the child lock state.
	Press this key to adjust the time or temperature.
[ZTOY]	Preheat the cavity to ensure the taste of the food.
	Turn the knob to select mode or menu.Press this key to start or pause.

Notes

1. As a separate function, Oven light is used by consumers to actively choose to observe food or clean the cavity. After the user opens it, they need to actively close it before exiting and returning to standby mode.
2. After cooking in the oven, the cooling fan will continue to dissipate heat. The oven will only close when the core temperature is below 75^ C.

PRODUCT INSTALLATION

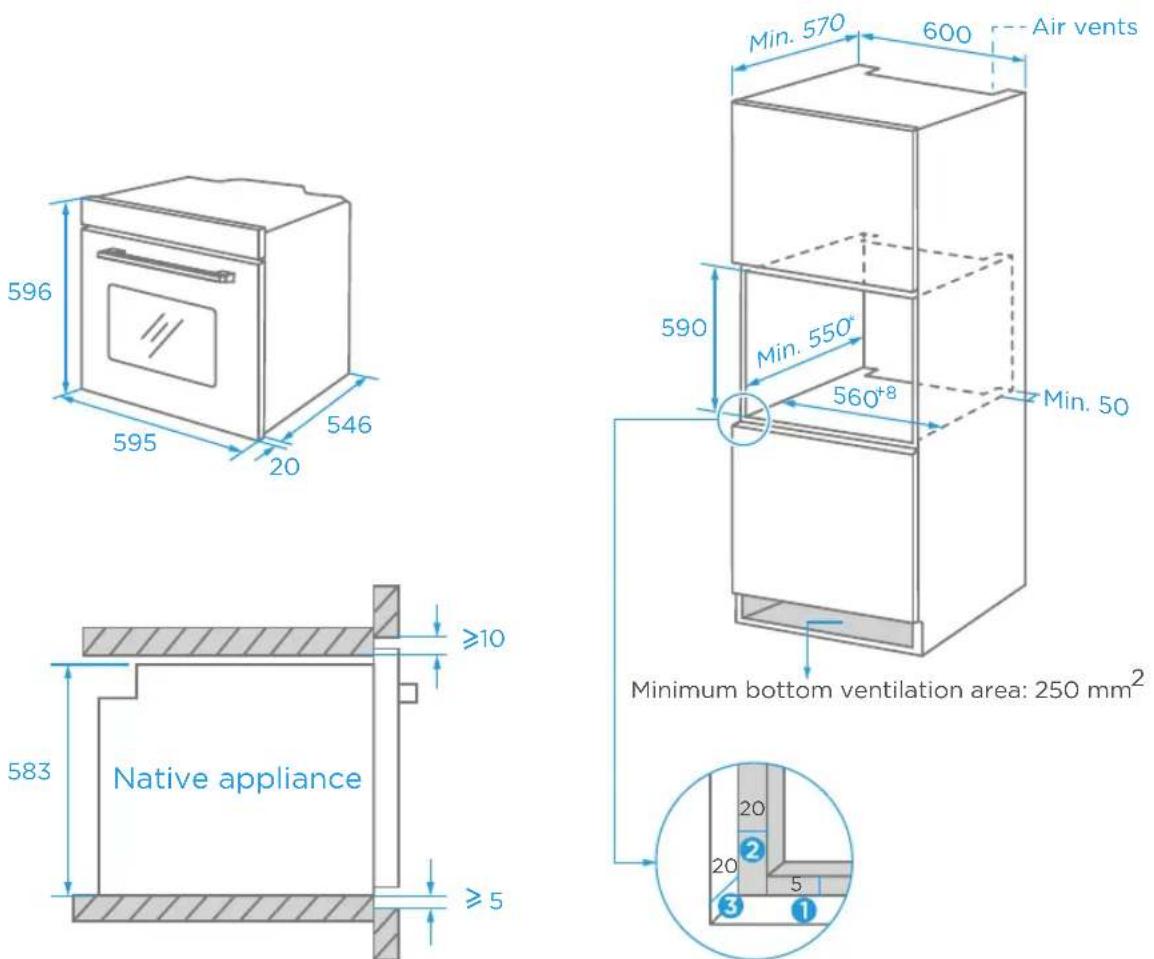

Cupboard Diagram (Standing Cupboard)

1 Reserve 5 mm for the door panel at the top and bottom respectively.
② Reserve 20 mm for the door panel on the left and right respectively.
③ Reserve 20 mm for the door panel in thickness.

1. The thickness of the cupboard board is 20 mm.
2. If the power socket is installed on the back of the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
3. The dimensions in the figures are in mm.

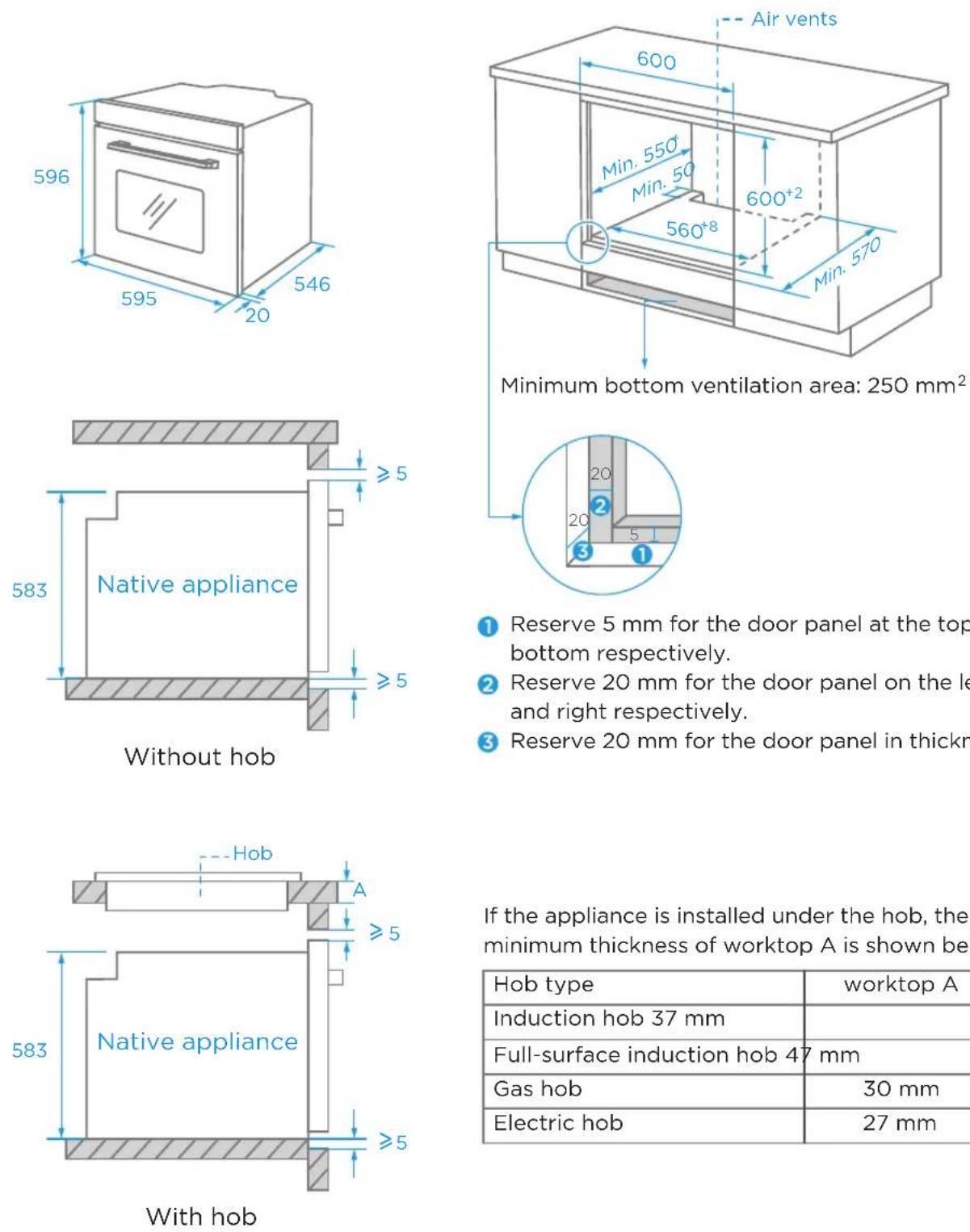

Cupboard Diagram (Ground Cupboard)

1 Reserve 5 mm for the door panel at the top and bottom respectively.
② Reserve 20 mm for the door panel on the left and right respectively.
③ Reserve 20 mm for the door panel in thickness.

If the appliance is installed under the hob, the minimum thickness of worktop A is shown below:

Hob type	worktop A
Induction hob 37 mm
Full-surface induction hob 47 mm
Gas hob	30 mm
Electric hob	27 mm

1. The thickness of the cupboard board is 20 mm.
2. If the power socket is installed on the back of the appliance, the depth of the cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
3. The dimensions in the figures are in mm.

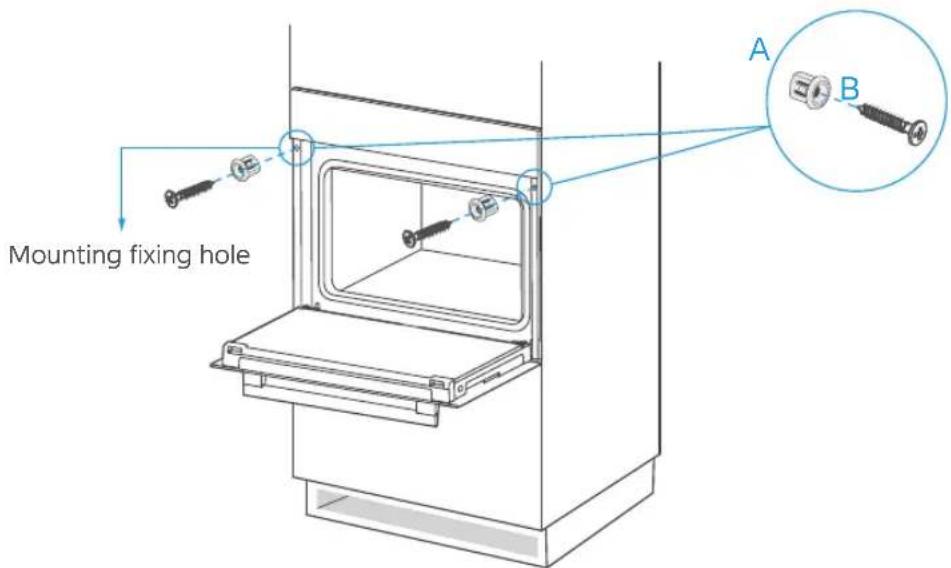

Installation Important Instructions

Content that means [mandatory]

1. The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard by these installation instructions. The installer shall be liable for any damage resulting from incorrect installation.
2. The entire installation process requires two professional installers. Wear dry protective gloves during installation to avoid scratches or electric shock.
3. Fitted units must be heat-resistant up to 90°C, and adjacent unit fronts up to 70°C.
4. Please use a 16A socket.

Content that means [prohibit]

1. Do not install the appliance behind a decorative door or the door of a kitchen unit, as this may cause the appliance to overheat.
2. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.
3. Do not block the vent of the appliance and the gap between the cupboard and the appliance.
4. Use extreme caution when moving or installing the appliance. It is very heavy, do not lift the appliance by the door handle.
5. If the power cord or power plug is damaged, stop using the appliance immediately, to avoid fire, electric shock or other injuries.

⚠️ Content that means [note]

1. Be very careful when moving or installing the appliance to avoid damage to the appliance or damage to the cupboards.
2. Before starting up the appliance, remove all packaging materials and accessories from the cavity.
3. The power socket shall be accessible to users (such as next to the cupboard) for easy power-off.
4. After installation is complete, make sure that the power plug is firmly inserted into the socket.
5. Please refer to the "Cupboard Diagram" for the requirements of net depth of the cupboard. The clearance between the cupboard bottom board and the rear board (or wall) shall not be less than 50 mm.

Installation steps

1. Please customize the cupboard according to the "Cupboard Diagram".
2. Before installation, please check for normal power sockets and appropriate grounding, and check whether the cupboard dimension meets the installation requirements.
3. Place the appliance in designated locations in the kitchen, install it in a vertical cupboard, and connect the power supply.
4. To locate the mounting fixing holes, open the appliance door and look at the side frame of the appliance (position shown above).
5. Fix the appliance to the cupboard with two rubber plugs A and screws B provided with the appliance.

Mounting fixing hole A B

Accessory installation

Simple line drawing of a rectangular enclosure with vertical supports and a top shelf (no text or symbols)

Accessory installation (Only for some models)

1

Technical diagram of a mechanical component with 90-degree angle标注 (no text or symbols on the diagram itself)

2

Technical diagram of a structural panel with two views and a directional arrow, no text or symbols present.

3

Technical line drawing of a rack structure with a magnified inset showing structural details (no text or symbols)

OPERATION INSTRUCTIONS

First Use

1. Before using it for the first time, please clean the oven and accessories to a certain extent. Remove the oven packaging shipping protection parts. Remove all accessories (eg: baking trays, grills, foam, etc.) from the cavity.
2. Thoroughly clean the attachment with soapy water and a rag or soft brush.
3. Wipe the cavity and oven surfaces with a soft damp cloth.
4. To avoid fire, please make sure that the cavity is free of any remaining packing materials and accessories when using it for the first time.
5. When using it for the first time, keep the kitchen highly ventilated (open the hood and windows). During this time, keep children and pets out of the kitchen and keep the doors of adjacent rooms closed.
6. To remove the smell of new products, run the following:

Oven Mode Temperature Time
—	250°C 0.5 HourConventional

Setting the clock

Before using your oven, set the clock.

If you want to modify the clock again, please follow steps 1.

1. In the standby state, Press the "Settings" key.
   2.3Press the "▷II" key.
2. Turn the knob to adjust the hour digit.
3. Press the "▷II" key to confirm.
4. Turn knob to adjust the minute digit.
   Press the "▷II" key to complete the clock setting.

Conventional Fan-forced Airfly Auto. Special Settings 12-6 08:00 ▶II

Function introduction

		FunctionIcon Time Temperature PreheatNumber
01 0-9 hour	—	Conventional		30-250°C
	◎	Convection	0-9 hour Optional50-280°C
03	—	Conventional+fan	0-9 hour Optional50-250°C
04	~	Single grill	0-9 hour Optional150-250°C
05 Double grill+fan			0-9 hour	50-250°C
06	~	Double grill	0-9 hour Optional150-250°C
07 Pizza	◎		0-9 hour Optional50-280°C
08 Bottom heating			0-9 hour	30-220°C
09 ECO	◎ Eco		0-9 hour	140-240°C
10 Defrost *			0-9 hour	50°C
11 Fermentation			0-9 hour	30-45°C
12	— A9uR	Clean	30 min	100°C

Conventional function

1. In standby mode, press the "Conventional" key.
2. Turn the knob to select the mode.
3. Press the " 🔺 " key.
4. Turn the knob to adjust the time.
5. Press the "ID" key.
6. Turn the knob to adjust the temperature.
7. Press the "▷II" key to start cooking.

Conventional Fan-forced Airfry Auto. Special Settings 1 3/5 2/4/6 00:05 hr 180°C

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180°C 7

NOTE

1. During cooking, press the "85" key and adjust the time or temperature through the knob.
2. During cooking, press the "▷II" key or open the door to pause cooking, and press the "▷II" key to continue cooking.
3. During cooking or pause, you can press the "Conventional" key to switch functions.
4. If no cooking time is set, the maximum working time of the oven is 9 hours.
5. Preheating is to ensure the taste and nutrition of food. In the mode where the preheating icon "m" is lit, you need to put the food into the oven after preheating. Press the "m" key to cancel preheating.

Fan-forced function

1. In standby mode, press the "Fan-forced" key.
2. Turn the knob to select the mode.
3. Press the " 🔺 " key.
4. Turn the knob to adjust the time.
5. Press the "ID" key.
6. Turn the knob to adjust the temperature.
7. Press the "▷II" key to start cooking.

Conventional Fan-forced Airfry Auto. Special Settings 1 3/5 2/4/6 00:05 hr 180°C

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180°C 7

NOTE

1. During cooking, press the " 🔒 " key and adjust the time or temperature through the knob.
2. During cooking, press the "▷II" key or open the door to pause cooking, and press the "▷II" key to continue cooking.
3. If no cooking time is set, the maximum working time of the oven is 9 hours.
4. Preheating is to ensure the taste and nutrition of food. In the mode where the preheating icon " 🔘" is lit, you need to put the food into the oven after preheating. Press the " 🔘" key to cancel preheating.

Airfry function

1. In standby mode, press the "Airfry" key.
2. Turn the knob to adjust the temperature.
3. Press the " 🔺 " key.
4. Turn the knob to adjust the time.
5. Press the "▷II" key to start cooking.

Conventional Fan-forced Airfly Auto. Special Settings 1 3 2/4 00:05 hr 180°C

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180 °C 5

NOTE

1. Please use a baking tray to cook.
2. During cooking, press the " 🔒 " key and adjust the time or temperature through the knob.
3. During cooking, press the "▷II" key or open the door to pause cooking, and press the "▷II" key to continue cooking.
4. If no cooking time is set, the maximum working time of the oven is 9 hours.
5. Preheating is to ensure the taste and nutrition of food. In the mode where the preheating icon " 🔘" is lit, you need to put the food into the oven after preheating. Press the " 🔘" key to cancel preheating.

Auto. function

1. In standby mode, press the "Auto." key.
2. Turn the knob to select the menu.
3. Press the "▷||" key to start cooking.

Conventional Fan-forced Airfly Auto, Special Settings 19:00 min 80 l 2

Conventional Fan-forced Airfly Auto. Special Settings 19:00 min 80:1 3

NOTE

1. For the menu with preheating program, please put the ingredients in the oven after preheating.

Automatic menu table

Airfry menu

	Menu Name ModeWeight		Time Temperature PreheatCode
A01	French Fries	350g	Airfry	19min	200°C	Yes
	French Fries	750g	Airfry	23min	230°C	YesA02
A03 Chicken drumsticks		500g	Airfry	20+10min	250°C	No
A04 Chicken drumsticks		1000g	Airfry	20+12min	250°C	No
A05 Chicken Nugget		200g	Airfry	17min Yes	250°C
A06	Vegetable Nuggets	180g	Airfry	11.5min Yes	250°C
A07 Mozzarella Fries		120g	Airfry	10min	250°C	Yes
	Onion Rings thick cut	160g	Airfry	11.5min Yes	A08220°C
A09 Breaded Mushrooms		125g	Airfry	13min Yes	230°C
A10 Breaded Mushrooms		250g	Airfry Yes	13min	230°C
		Menu Name Mode Weight	Time	TemperatureCode
A11		Lasagna	—	600g	20 mins	220°C
A12		Tomahawk steak	—	1350g	15 mins	230°C
A13		Soufflé	—	4 Portions	13 mins	200°C
A14		Cannelé	—	1050g (5 servings)	15+50 mins	220+180°C
A15		Baked Lobster with mushroom sauce	—	680g (2 servings)	7 mins	230°C
A16		Roasted lamb leg with minst sauce	—	1500g	45+35 mins	175°C
A17		Baked Pork Chop	—	350g (2 servings)	10 mins	220°C
A18		Roasted duck with orange sauce	—	1400g	40+15 mins	220+250°C
A19		Chocolate delight	—	726g (3 servings)	40 mins	150°C
A20		Pork marsala with sautéed spinach and mushroom	—	1080g (2 servings)	10 mins	220°C
A21		Salt-crusted sea bass	◎	1300g	13mins	250°C
A22		Roasted lamb leg with Beans	—	2000g	15+75 mins	205°C
A23		BBQ pork rib with guava sauce	—	1000g	20+10 mins	180+235°C
A24		Baked potato with cheese	—	2 servings	60+18 mins	205°C
A25		Pizza with Tomatoes, Mozzarella and Basil	—	2 servings	8 mins	250°C
A26		Apple pie	—	500g	20+35 mins	205+180°C
A27		Mille-feuille	—	640g (2 servings)	7+20 mins	200+170°C
A28		Roasted Salmon with watercress salad and caviar	—	300g	6 mins	220°C
A29		Fish en papillote	—	150g	10 mins	220°C
A30		Roasted chicken with lemon and herbs	—	880g (2servings)	20+15 mins	230+180°C
A31		Jugged Duck Leg	◎	500g (2servings)	20 mins	250°C

Special function

Defrost

1. In standby mode, press the "Special" key to select "◇".
2. Press the " 🔒 " key.
3. Turn the knob to adjust the time.
4. Press the "▷||" key to start.

Conventional Fan-forced Airfly Auto. Special Settings 00:05 hr 2 3/41

Fermentation

1. In standby mode, press the "Special" key to select "☐".
2. Press the " 🔊 " key.
3. Turn the knob to adjust the time.
4. Press the " 🔊 " key.
5. Turn the knob to adjust the temperature.
6. Press the "▷II" key to start.

Conventional Fan-forced Airfly Auto. Special Settings 00:05 hr 40°C 2/4 3/5/61

Clean

1. Pour 250 ml of purified water into the bottom of the cavity.
2. In standby mode, press the "Special" key to select "AquA".
3. Press the "▷||" key to start.

Conventional Fan-forced Airfly Auto. Special Settings 1 2 R9_UR

Settings

Sound

1. In standby mode, press the "Settings" key to select "Soun".
2. Press the "▷II" key.
3. Turn the knob to select "OFF" or "On".
4. Press the "▷II" key to confirm.

So un 2/3/41

Demo mode

1. In standby mode, press the "Settings" key to select "dEo".
2. Press the "▷II" key.
3. Turn the knob to select "OFF" or "On".
4. Press the "▷II" key to confirm.

Conventional Fan-forced Airfly Auto. Special Settings dE o 2/3/41

NOTE

1. When the demo mode is on, the heating tube does not work after the function is started.

Probe function (Only for some models)

1. In the standby state, disassemble the short end of the probe into the hole in the upper right corner of the oven cavity, and the screen will display "☐".
2. Insert the long end of the probe into the centre of the food (avoid fat and bones).
3. Press the " Conventional " or " Fan-forced " key to select the mode. ( _ )
4. Press the " 🔒 " key.
5. Turn the knob to adjust the temperature.
6. Press the "▷II" key to start cooking.

CLEANING AND MAINTENANCE

Cleaning

Disconnect the power supply before cleaning and maintenance.

To ensure the life of the oven, it should be thoroughly cleaned frequently.

The cleaning steps are as follows:

1. After cooking, wait for the oven to cool completely.
2. Remove oven accessories, rinse with warm water and dry.
3. Clean up food debris from the oven chamber.
4. Wipe the oven with a soft cloth stained with detergent, then dry with a soft cloth.

NOTE

1. Do not use sharp cleaning tools, hard brush and corrosive cleaning products, so as not to damage the oven and its accessories.
2. Do not use a rough scrubbing agent or sharp metal spatula to clean the door glass.

Lamp Replacement

1. Switch off and disconnect the power from the oven. Ensure that the internal parts are cool before touching the internal parts.
2. Remove the lamp cover by turning it counter-clockwise (note, it may be stiff), and replace the bulb with a new one of the same type.
3. Insert the new bulb, which should be resistant to 300^ C. For replacement bulbs contact your local service centre.
4. If in any doubt, consult a qualified electrician for help.
5. The product contains a light source of energy efficiency class: G.

Simple line drawing of a mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Warning

To avoid electric shocks-please ensure that the electricity supply to the appliance is switched off and the appliance is fully cold. before removing the lamp lens.

Door Cleaning

With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come.

For cleaning purposes and to remove the door panels, you can detach the appliance door. There is a lock lever on the left and right hinges of the appliance door. When the locking levers are closed, the appliance door is secured in place. It cannot be detached. When the locking levers are open in order to detach the appliance door, the hinges are locked. They cannot snap shut.

Warning

1. The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.
2. If the hinges are not locked, they can snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the appliance door, fully open.

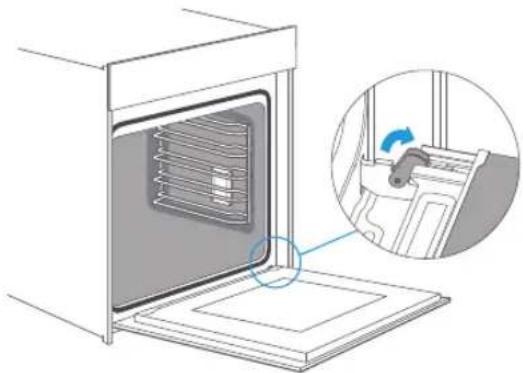

Removal and installation of oven door

1. Open the appliance door fully.
2. Fold open the two locking levers on the left and right.
3. Close the appliance door as far as the limit stop.
4. With both hands, grip the door on the left- and right-hand side, and pull it out upwards.
5. The plastic inlay in the door cover may become discoloured. To carry out a thorough cleaning, you can remove the cover. Press the left and right switches the cover.
6. After removing the door cover, the rest parts of the appliance door can be easily taken off so that you can go on with the cleaning. When the cleaning of the appliance door has finished, put the cover back in place and press on it until it clicks audibly into place.

Line drawing of an oven with a rack inside, showing a close-up inset of the interior (no text or symbols)

Diagram of a door with a blue arrow pointing to the door handle (no text or symbols present)

Technical diagram of a mechanical assembly with a blue arrow indicating direction (no text or symbols present)

NOTE

Reattach the appliance door in the opposite sequence to remove.

TROUBLESHOOTING

If the problem cannot be solved or other problems occur, please contact the after-sales service.

Problem Possible reason Solution
Unable to start	Power is not connected connect power supply
	The main power switch is not turned onThe oven door is not closed Close the oven door
The lamp does not come on	It's broken	Contact after-sales service
Has a pungent odour or smoke	first use No processing required
The food is not cooked	Temperature is too low	Use a higher temperature
	Food portion is too large	Cook food in smaller pieces or extend the cooking time.
Burnt or uneven food	The temperature is set too high or the heating time is too long	Adjust the cooking temperature or time
	The food is too close to the heating tube	Adjust the placement layers of accessories
The fan did not stop working after stopping the heating	Fan delays blowing for heat dissipation	No processing required

DISPOSAL AND RECYCLING

Important instructions for the environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with the EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used devices must be returned to the official collection point for the recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

CE

Compliance with RoHS Directive

The product you have purchased complies with the EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

The packaging materials of the product are manufactured from recyclable materials by our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Warranty conditions

Dear user,

For our warranty conditions, please scan the QR code below or use the link underneath. At the bottom in the footer you will find our warranty conditions.

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

For questions regarding sales you can email to: [e-mail]

For questions regarding service you can email to: [e-mail]

For other questions you can email to: [e-mail]

We can also be reached by phone : [phone]

DOMEST

domestic and professional appliances

MULTIBRAND SALIES & SERVICES

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

SALES & SERVICES

MULTIBRAND

Line drawing of a kitchen oven with control panel and buttons (no text or symbols)

APERÇU DU PRODUIT 07

GUIDE DE DÉMARRAGE RAPIDE 09

INSTALLATION DU PRODUIT 10

INSTRUCTIONS D'UTILISATION 15

NETTOYAGE ET ENTRETIEN 25

DÉPANNAGE 27

ÉLIMINATION ET RECYCLAGE 28

CODE QR GARANTIE ET SERVICE 29

CONSIGNES DE SÉCURITÉ

Utilisation prévue

Simple line drawing of a rectangular tray with horizontal slats (no text or symbols)

Line drawing of a rectangular tray with internal geometric patterns (no text or symbols)

Grille de gril x1 Plateau du gril x1

Line drawing of a rectangular basket with lattice pattern (no text or symbols)

Simple line drawing of a rectangular chamber with internal channels and blue arrows indicating flow or force (no text or symbols)

Line drawing of a stainless steel oven with internal grating and ventilation duct (no text or symbols)

Technical line drawing of a rectangular enclosure with internal grid pattern (no text or symbols)

GUIDE DE DÉMARRAGE RAPIDE

Panneau de commande

Conventional

Fan-forced

Airfry

80:00 hr min 18.88 w m ≈ A ≈ 800 °C kg ↕ ↙ ↻ ↺ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↻ ↵

INSTALLATION DU PRODUIT

Simple line drawing of a rectangular enclosure with vertical supports and a top panel (no text or symbols)

Technical diagram of a mechanical assembly with two views and a 90-degree angle indicator (no text or symbols present)

2

Technical diagram of a heat exchanger or cooling unit with two circular inset views showing internal components (no text or symbols present)

3

Technical line drawing of a rack structure with a magnified inset showing internal layer details (no text or symbols)

INSTRUCTIONS D'UTILISATION

Conventional Fan-forced Airfry Auto. Special Settings 12-6 08:00 ▶II

Conventional Fan-forced Airfly Auto. Special Settings 00:05 180°C 3/5 2/4/6

Conventional Fan-forced Airfry Auto. Special Settings 00:05 hr 180°C 7

NOTE

Conventional Fan-forced Airfry Auto. Special Settings 1 3/5 00:05 ℃ 180℃ 2/4/6

Conventional Fan-forced Airfry Auto. Special Settings 00:05" 180°C 7

NOTE

Conventional Fan-forced Airfly Auto. Special Settings 00:05 1 3 180°C 2/4

Conventional Fan-forced Airfry Auto. Special Settings 00:05 mp 180°C 5

NOTE

Conventional Fan-forced Airfry Auto. Special Settings 19:00 min 80 l 2

Conventional Fan-forced Airfry Auto. Special Settings 19:00min 801 3

NOTE

Conventional Fan-forced Airfry Auto. Special Settings 1 2 00:05 hr 3/4

Fermentation

Conventional Fan-forced Airfly Auto. Special Settings 00:05 hr 40°C 2/4 3/5/61

Nettoyer

Conventional Fan-forced Airfly Auto. Special Settings 1 2 89 µA

Paramètrø (Settings)

Son

Conventional Fan-forced Airfry Auto. Special Settings So un

1 2/3/4

Mode démo

Conventional Fan-forced Airfly Auto. Special Settings 1 dEo 2/3/4

NOTE

Simple line drawing of a mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Avertissement

Diagram of an oven with a side panel showing a cooling rack and a close-up inset of the interior (no text or symbols)

Diagram of a door with a lock and arrow indicating left angle (no text or symbols)

Diagram of a mechanical assembly with a blue arrow indicating direction (no text or symbols present)

NOTE

QR code image containing encoded data, no visible human-readable text

https://www.frilec.nl

domestic and professional appliances

MULTIBRAND SALES & SERVICES

DOMEST

domestic and professional appliances

Solid teal-colored square with rounded corners (no text or symbols)

MULTIBRAND SALES & SERVICES
