VSA-2744 - Shelf Middle Atlantic - Free user manual and instructions

Product Type	Rack Shelf
Brand	Middle Atlantic
Model	VSA-2744
Maximum Load Capacity	226.8 kg (500 lb)
Intended Use	Support for electronic equipment in a standard rack
Material	Steel (estimated)
Color	Black (estimated)
Installation	Rack mount; do not exceed three slots on each side of the outer shelf
Maintenance	Clean with a dry cloth only
Safety	Follow load and installation warnings; grounding in accordance with electrical codes
Components Provided	Mounting hardware (screws and brackets)
Standards	Compliant with electrical grounding requirements
Net Weight	Not specified
Warranty	Not specified
Rack Compatibility	Standard 19-inch rack (estimated)

Frequently Asked Questions - VSA-2744 Middle Atlantic

What is the maximum load capacity of the VSA-2744 shelf?

The maximum load capacity is 226.8 kg (500 lb). Never exceed this limit to avoid any risk of instability or injury.

How to properly install the VSA-2744 shelf?

Secure the shelf in a standard rack using the provided hardware. Follow the instruction not to exceed three slots on each side of the outer shelf (mark C) to ensure stability. Tighten all screws firmly.

Can I use this shelf with other rack brands?

Yes, the VSA-2744 shelf is designed for standard 19-inch racks. Verify that the dimensions and mounting points are compatible with your rack.

How to clean the VSA-2744 shelf?

Clean it with a dry cloth. Do not use solvents or abrasive products that could damage the finish.

What to do if the shelf seems unstable after installation?

Check that you have not exceeded the three slots on each side. Make sure all screws are properly tightened and the total load does not exceed 226.8 kg. If the problem persists, contact the manufacturer.

Is this product suitable for supporting heavy equipment like servers?

Yes, provided that the total weight of the equipment does not exceed 226.8 kg. Distribute the load evenly on the shelf.

Are there electrical precautions to take during installation?

If the shelf is used with electrical equipment, ensure the entire system is grounded in accordance with the National Electrical Code or local codes. Follow all warnings in the manual.

Can I mount the shelf using more than three slots?

No, to ensure stability, do not exceed three slots on each side of the outer shelf. The label on the shelf clearly indicates this limit.

Where can I find replacement parts for the VSA-2744 shelf?

Replacement parts (screws, brackets) are available from Middle Atlantic or its authorized dealers. Contact customer service to order.

What is the warranty for the VSA-2744 shelf?

The warranty duration is not specified in the manual. Please contact Middle Atlantic directly for warranty information applicable to your product.

USER MANUAL VSA-2744 Middle Atlantic

TELESCOPING RACKSHELF

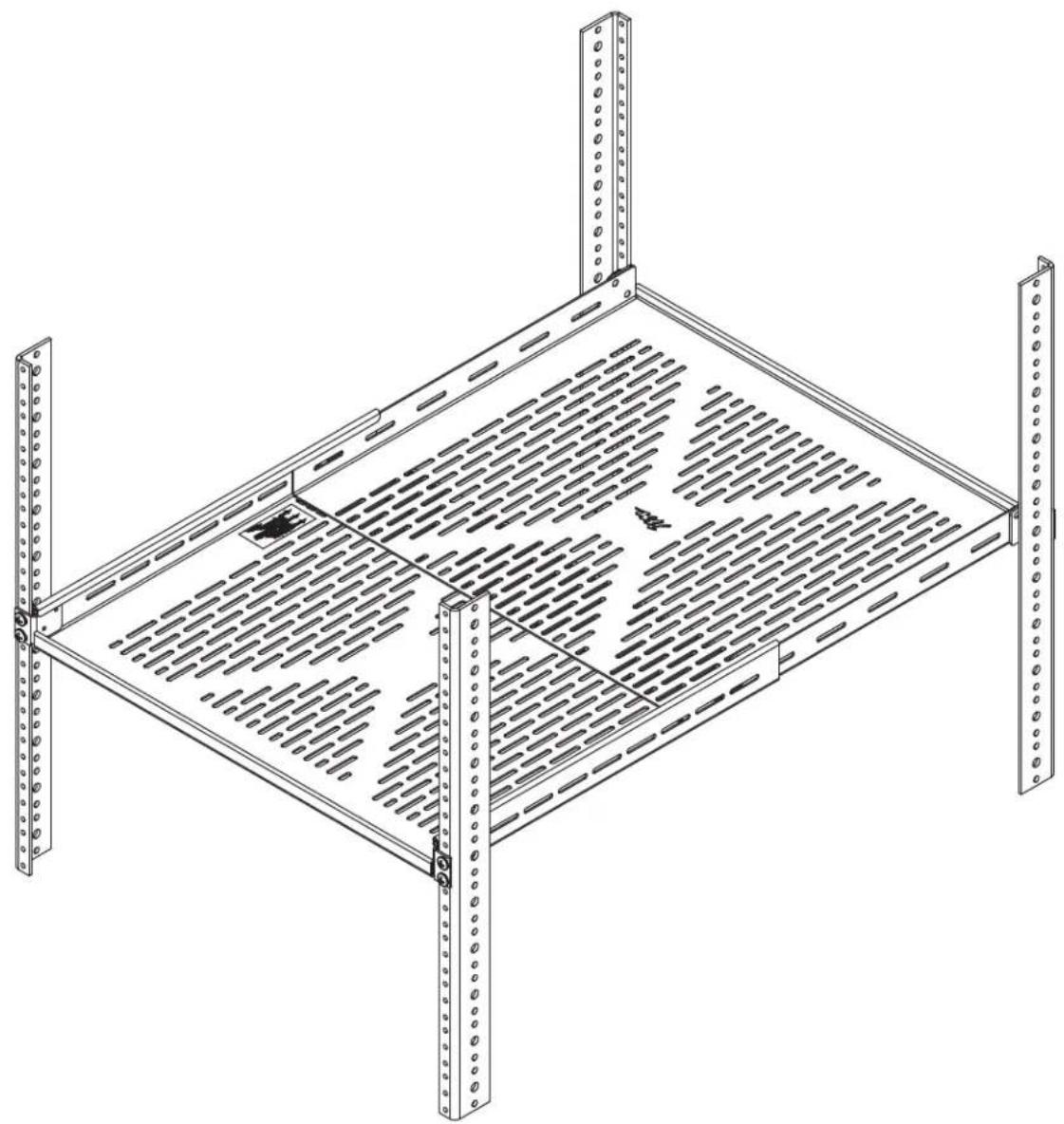

Technical line drawing of a server rack with ventilation grilles and mounting brackets (no text or symbols)

THANK YOU

Thank you for purchasing the VSA Series Telescoping Rackshelf. Please read these instructions thoroughly before installing or assembling this product.

PRODUCT FEATURES

• Shelf area telescopes to reach from front to rear rackrail.
• Can mount upside down for an increased usable width.

Middle Atlantic Products

1-00236

Rev

IMPORTANT SAFETY INSTRUCTIONS

- Read these instructions.

- Heed all warnings.

- Clean only with dry cloth.

- Keep these instructions.

- Follow all instructions.

- Only use attachments/accessories specified by the manufacturer.

WARNING: A warning alerts you to a situation that could result in serious personal injury or death.

WARNING: Middle Atlantic Products, Inc. electrical systems conform to and should be properly grounded in compliance with requirements of the current National Electrical Code or codes administered by local authorities.

All electrical products may present a possible shock or fire hazard if improperly installed or used. Middle Atlantic Products, Inc. electrical products may bear the mark of a Nationally Recognized Testing Laboratory (NRTL) and should be installed in conformance with current local and/or the National Electrical Code.

WARNING: Failure to read, understand and follow the following information can result in serious personal injury, damage to the equipment or voiding of the warranty. It is the responsibility of the Installer/User to ensure that this product is loaded according to specifications.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ

- Lire ces instructions.

Model Number Weight Rating
VSA-XXXX 500 lb. (226.8 kg) Maximum Total Rated Load

Isometric diagram of a Inner Shelf with grid pattern, labeled A (no text or symbols within the diagram itself)

NOTE: Cage nuts are included for installations using Middle Atlantic's Forward rackrail.

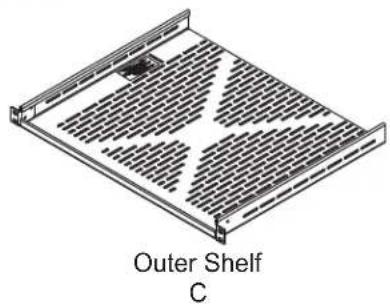

Isometric diagram of a Outer Shelf with grid pattern and label 'C' (no text or symbols on the diagram itself)

NOTE: Additional hardware is included that may not be required for your installation.

REQUIRED HARDWARE AND TOOLS

• (8x) Standard, 10-32 Rack Screws
• #2 Phillips Screwdriver
- Brace Wrench (Provided)

WARNING: Use tools with caution and follow all necessary safety protocols.

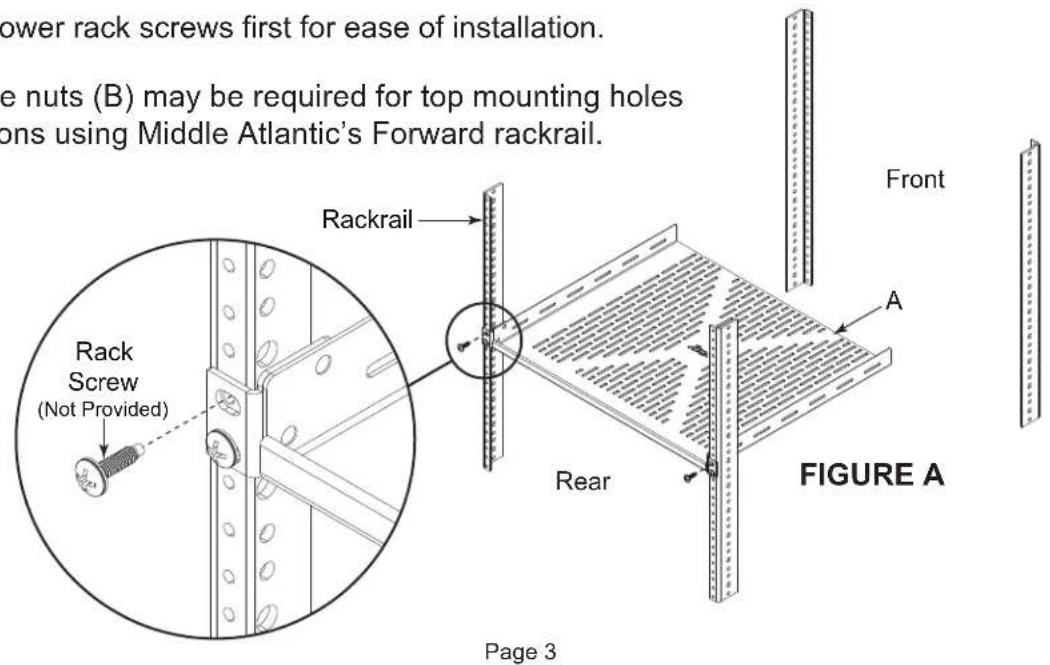

1. Use a #2 Phillips screwdriver and (4x) rack screws (not provided) to attach the inner shelf (A) to your desired rear rackspace as shown. (FIGURE A)

TIP: Install lower rack screws first for ease of installation.

NOTE: Cage nuts (B) may be required for top mounting holes on installations using Middle Atlantic's Forward rackrail.

STANDARD INSTALLATION (CONTINUED)

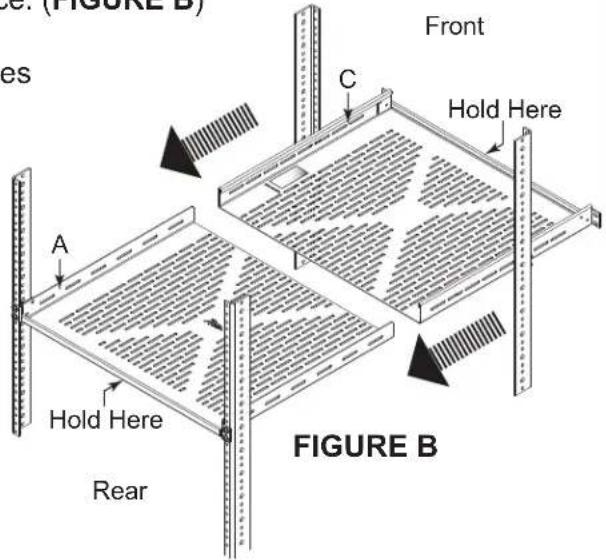

1. Carefully slide the outer shelf (C) onto the inner shelf (A) and then use (4x) rack screws (not provided) to attach the outer shelf to the corresponding front rackspace. (FIGURE B)

NOTE: Cage nuts (B) may be required for top mounting holes on installations using Middle Atlantic's Forward rackrail.

Label on outer shelf (C).

REVERSE INSTALLATION

NOTE: You may install your rackshelf upside down to increase the usable width, if desired.

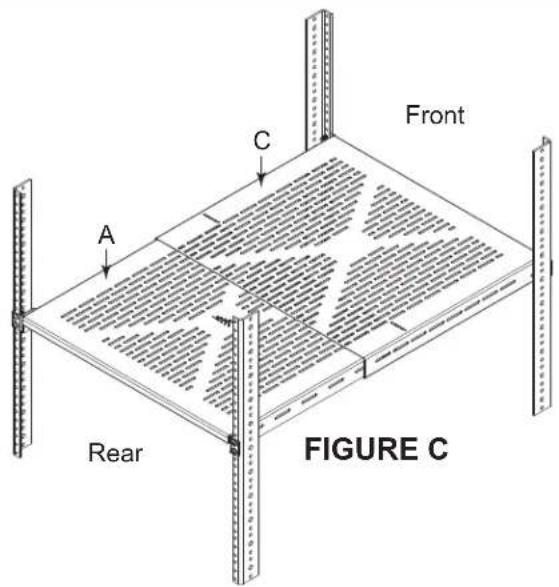

- Perform the "Standard Installation" procedure starting on page 4, with both the inner shelf (A) and outer shelf (C) turned over as shown. (FIGURE C)

INSTALLING THE SUPPORT BRACE (OPTIONAL)

NOTE:

• Install the support brace (D) to prevent any excess bowing and provide extra support, if desired.
- The support brace (D) may be added to both standard and reverse installations.

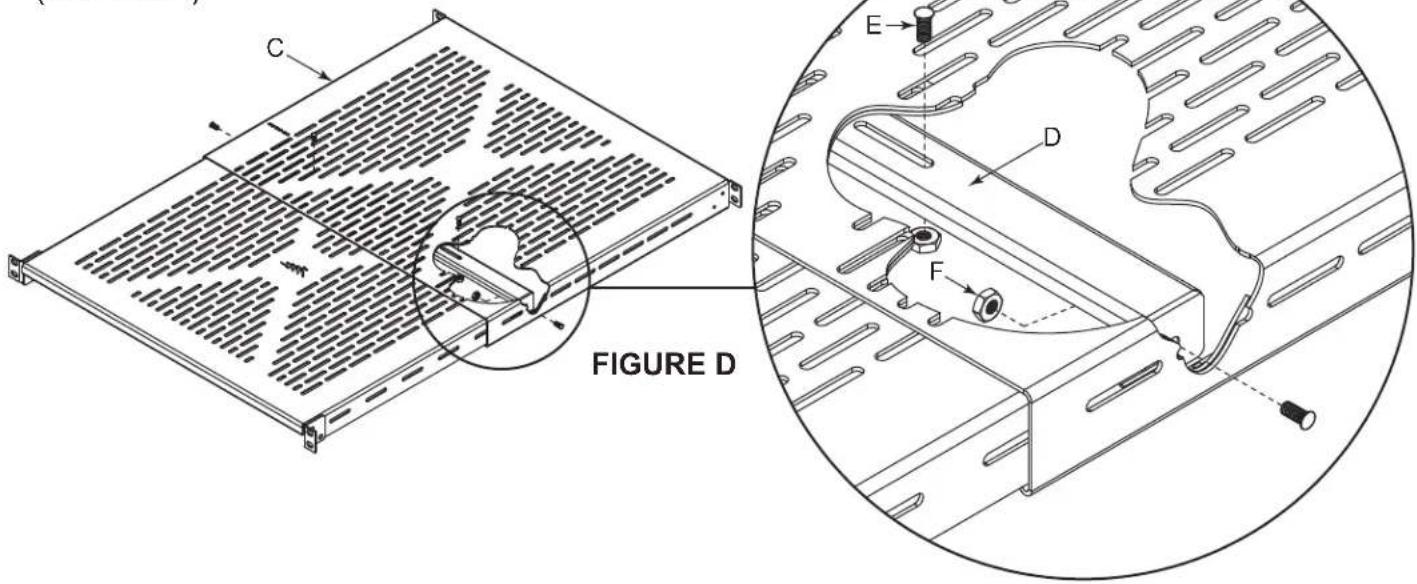

- Use wrench (provided), (4x) brace studs (E), and (4x) brace nuts (F) to attach the support brace (D) to the outer shelf (C) as shown.

(FIGURE D)

WARRANTY

For warranty information, refer to http://www.middleatlantic.com/company/about-us.aspx#warranty

Corporate Headquarters

Voice: 973-839-1011 - Fax: [phone] - International Voice: [phone] -

Fax: [phone] - www.middleatlantic.com - [e-mail]

Middle Atlantic Canada

Voice: 613-836-2501 - Fax: [phone] - ca.middleatlantic.com -

[e-mail]

Middle Atlantic EMEA Technical Support

Voice: [phone] - [e-mail]

Factory Distribution

United States: New Jersey, California, Illinois - Canada: Ontario - The Netherlands: Weert

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 and ISO 14001 Registered Company.
