USER MANUAL M4225-LVE AXIS

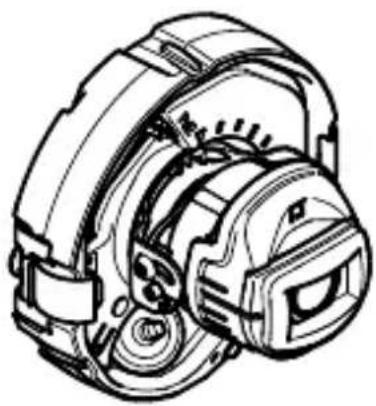

AXIS M4227-LVE Dome Camera

AXIS M4228-LVE Dome Camera

Abstract line drawing of a toroidal shape with curved contours (no text or symbols)

Installation guide

Read through this installation guide carefully before you install the product. Keep the installation guide future reference.

Legal considerations

Video and audio surveillance can be regulated by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes.

This product includes the following licenses:

• one (1) H.264 decoder license
• one (1) H.265 decoder license

To purchase further licenses, contact your reseller.

Liability

Every care has been taken in the preparation of this document. Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. This product is only to be used for its intended purpose.

Intellectual property rights

Axis AB has intellectual property rights relating to technology embodied in the product described in this document. In particular, and without limitation, these intellectual property rights may include one or more of the patents listed at axis.com/patent and one or more additional patents or pending patent applications in the US and other countries.

This product contains licensed third-party software. See the third-party license information in the product's user interface for more information.

This product contains source code copyright Apple Computer, Inc., under the terms of Apple Public Source License 2.0 (see opensource.apple.com/apsl). The source code is available from developer.apple.com/bonjour/.

Equipment modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Trademark acknowledgements

AXIS COMMUNICATIONS, AXIS, ARTPEC and VAPIX are registered trademarks of Axis AB in various jurisdictions. All other trademarks are the property of their respective owners.

Apple, Apache, Bonjour, Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, Real, SMPTE, QuickTime, UNIX, Windows, and WWW are registered trademarks of the respective holders. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Oracle and/or its affiliates. The UPnP Word Mark and UPnP Logo are trademarks of OpenaConnectivity Foundation, Inc. in the United States or other countries.

microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

Regulatory information

Europe

This product complies with the applicable CE marking directives and harmonized standards:

- Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic compatibility (EMC), on page 3.

• Low Voltage Directive (LVD) 2014/35/EU. See Safety, on page 4.
• Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU and 2015/863, including any amendments, updates or replacements. See Disposal and recycling, on page 4.

A copy of the original declaration of conformity may be obtained from Axis Communications AB. See Contact information, on page 6.

Electromagnetic compatibility (EMC)

This equipment has been designed and tested to fulfil applicable standards for:

• Radio frequency emission when installed according to the instructions and used in its intended environment.
• Immunity to electrical and electromagnetic phenomena when installed according to the instructions and used in its intended environment

USA

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested using a shielded network cable (STP) and found to comply with the limits for a Class A digital device, pursuant to part 1 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at home own expense. The product shall be connected using a shielded network cable (STP) that is properly grounded Contact information

Axis Communications Inc.
300 Apollo Drive
Chelmsford, MA 01824
United States of America
Tel: [phone]

Canada

This digital equipment fulfills the requirements for RF emission according to the Class A limit of EN 55032. The product shall be connected using a shielded network cable (STP) that is properly grounded. Notice! This is a Class A product. In a domestic environment this product may cause RF interference, in which case the user may be required to take adequate measures.

Australia/New Zealand

This digital equipment fulfills the requirements for RF emission according to the Class A limit of AS/NZS CISPR 32. The product shall be connected using a shielded network cable (STP) that is properly grounded. Notice! This is a Class A product. In a domestic environment this product may cause RF interference, in which case the user may be required to take adequate measures.

Japan

This product complies with IEC/EN/UL 62368-1 ed. 3, safety of audio/video and IT equipment for outdoor use.

The product shall be grounded either through a shielded network cable (STP) or other appropriate method.

When used with Power over Ethernet (PoE), the Power Sourcing Equipment (PSE) shall comply with IEEE 802.3af and Limited Power Source (LPS) according to annex Q of IEC/EN/UL 62368-1.

We recommend the use of Axis midspans or Axis PoE switches.

Photobiological safety

This product fulfills the requirements for photobiological safety according to IEC/EN 62471 (exempt).

Disposal and recycling

When this product has reached the end of its useful life, dispose of it according to local laws and regulations. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. In accordance with local legislation, penalties may be applicable for incorrect disposal of this waste.

Europe

This symbol means that the product shall not be disposed of together with household or commercial waste. Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) is applicable in the European Union member states. To prevent potential harm to human health and the environment, the

product must be disposed of in an approved and environmentally safe recycling process. For information about your nearest designated collection point, contact your local authority responsible for waste disposal. Businesses should contact the product supplier for information about how to dispose of this product correctly.

This product complies with the requirements of Directive 2011/65/EU and 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).

China

This product complies with the requirements of SJ/T 11364-2014, Marking for the restriction of hazardous substances in electrical and electronic products.

Declaration of the Presence Condition of the Restricted Substances Marking.

限用物質含有情況標示

Axis Communications AB

Gränden 1

223 69 Lund

Sweden

Tel: [phone]

axis.com

Warranty information

For information about Axis' product warranty and thereto related information, go to axis.com/warranty.

A,

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and software updates
  • find answers to resolved problems in the FAQ database, search by product, category, or phrase
  • report problems to Axis support staff by logging in to your private support area
• chat with Axis support staff
• visit Axis Support at axis.com/support

Cybersecurity

Axis security notification service

Axis provides a notification service with information about vulnerability and other security related matters for Axis devices. To receive notifications, you can subscribe at axis.com/security-notification-service.

Vulnerability management

To minimize customers' risk of exposure, Axis, as a Common Vulnerability and Exposures (CVE) numbering authority (CNA), follows industry standards to manage and respond to discovered vulnerabilities in our devices, software, and services. For more information about Axis vulnerability management policy, how to report vulnerabilities, already disclosed vulnerabilities, and corresponding security advisories, see axis.com/vulnerability-management.

Secure operation of Axis devices

Axis devices with factory default settings are pre-configured with secure default protection mechanisms. We recommend using more security configuration when installing the device. To learn more about Axis' approach to cybersecurity, including best practices,

resources, and guidelines for securing your devices, go to https://www.axis.com/about-axis/cybersecurity.

Learn more!

Visit Axis learning center axis.com/learning for useful trainings, webinars, tutorials and guides.

English

Safety information

Hazard levels

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NNOOTT

Indicates a situation which, if not avoided, could result in damage to property.

Other message levels

Important

Indicates significant information which is essential for the product to function correctly.

Note

Indicates useful information which helps in getting the most out of the product.

Safety instructions

NNOOTT

• The Axis product shall be used in compliance with local laws and regulations.
  • This product is for professional use.
• Install this product at a safe distance from children.
• Store the Axis product in a dry and ventilated environment.
• Avoid exposing the Axis product to shocks or heavy pressure.
• Install the product using screws and plugs appropriate for the material (e.g. wood, metal, sheet rock, stone).
• Do not install the product on unstable poles, brackets, surfaces or walls.
• Use only applicable tools when installing the y-axis product. Using excessive force with power tools could cause damage to the product.
• Use a soft cloth dampened with pure lukewarm water to clean the device.
• Don't use chemicals such as window cleaner or acetone to clean your device.
• Use only accessories that comply with the technical specification of your product. These can be provided by Axis or a third party. Axis recommends using Axis power source equipment compatible with your product.
• Use only spare parts provided by or recommended by Axis.
• Do not attempt to repair the product yourself. Contact Axis support or your Axis reseller for service matters.

Transportation

NNOOTT

- When transporting the Axis product, use the original packaging or equivalent to prevent damage to the product.

Battery

The Axis product uses a 3.0 V BR1632 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

Low battery power affects the operation of the RTC, causing it to reset at every power-up. When the battery voltage is low, a log message will appear in the product's server report.

CAUTION

Do not replace the battery yourself. Contact Axis support if the log message requests a battery change.

Lithium coin cell 3.0 V batteries contain 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), CAS no. 110-71-4.

Dome or front glass

NNOOTT

• Be careful not to scratch, damage or leave fingerprints on the dome or front glass since this can decrease image quality. Keep the protective plastic on until the installation is complete.
• Don't clean a dome or front glass that looks clean to the eye, and never polish the surface. Excessive cleaning can damage the surface.
• Never use harsh detergents, gasoline, benzene, acetone, or similar chemicals.
• For general cleaning of the dome or front glass it is recommended to use a non-abrasive, solvent-free neutral soap or detergent mixed with pure water and a soft, clean cloth. Rinse well with pure lukewarm water. Dry with a soft, clean cloth to prevent water spotting.
• Avoid cleaning the dome or front glass in direct sunlight or at elevated temperatures, since this can cause stains.

Français

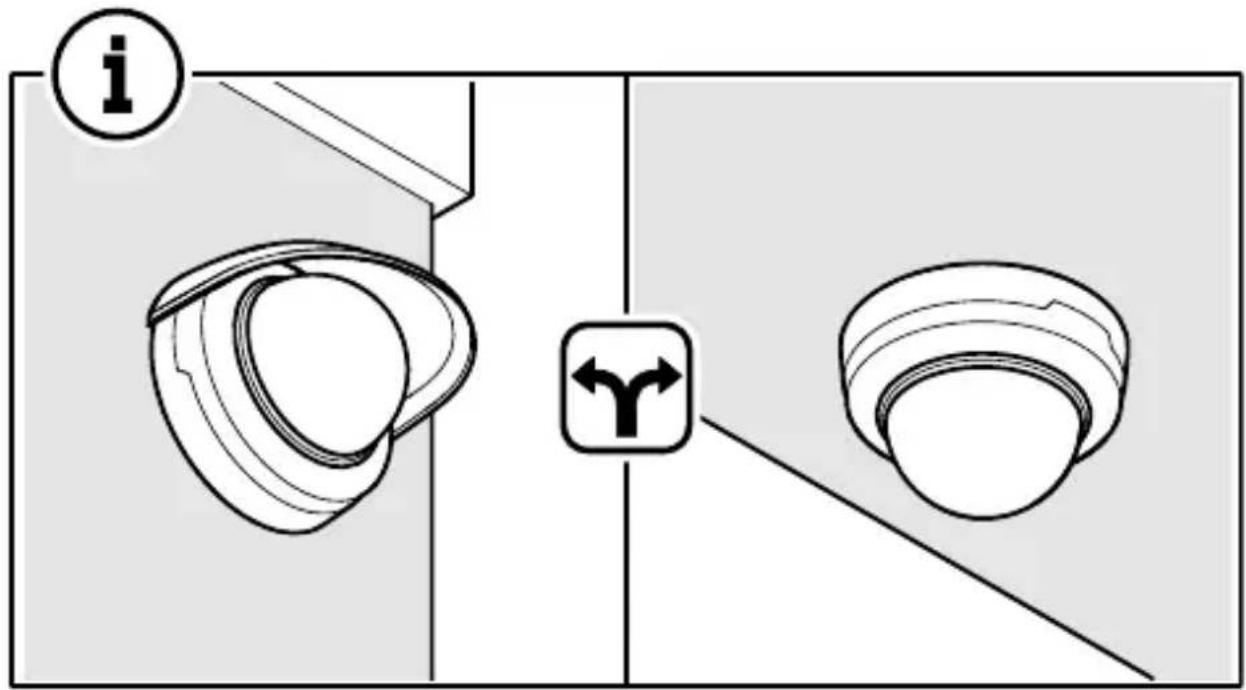

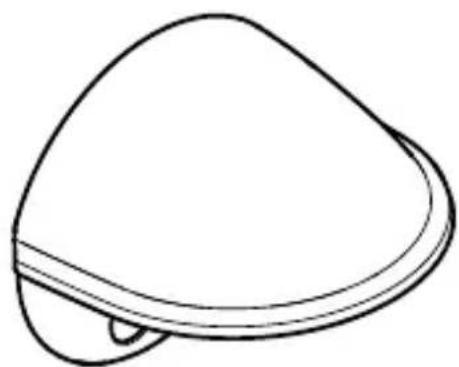

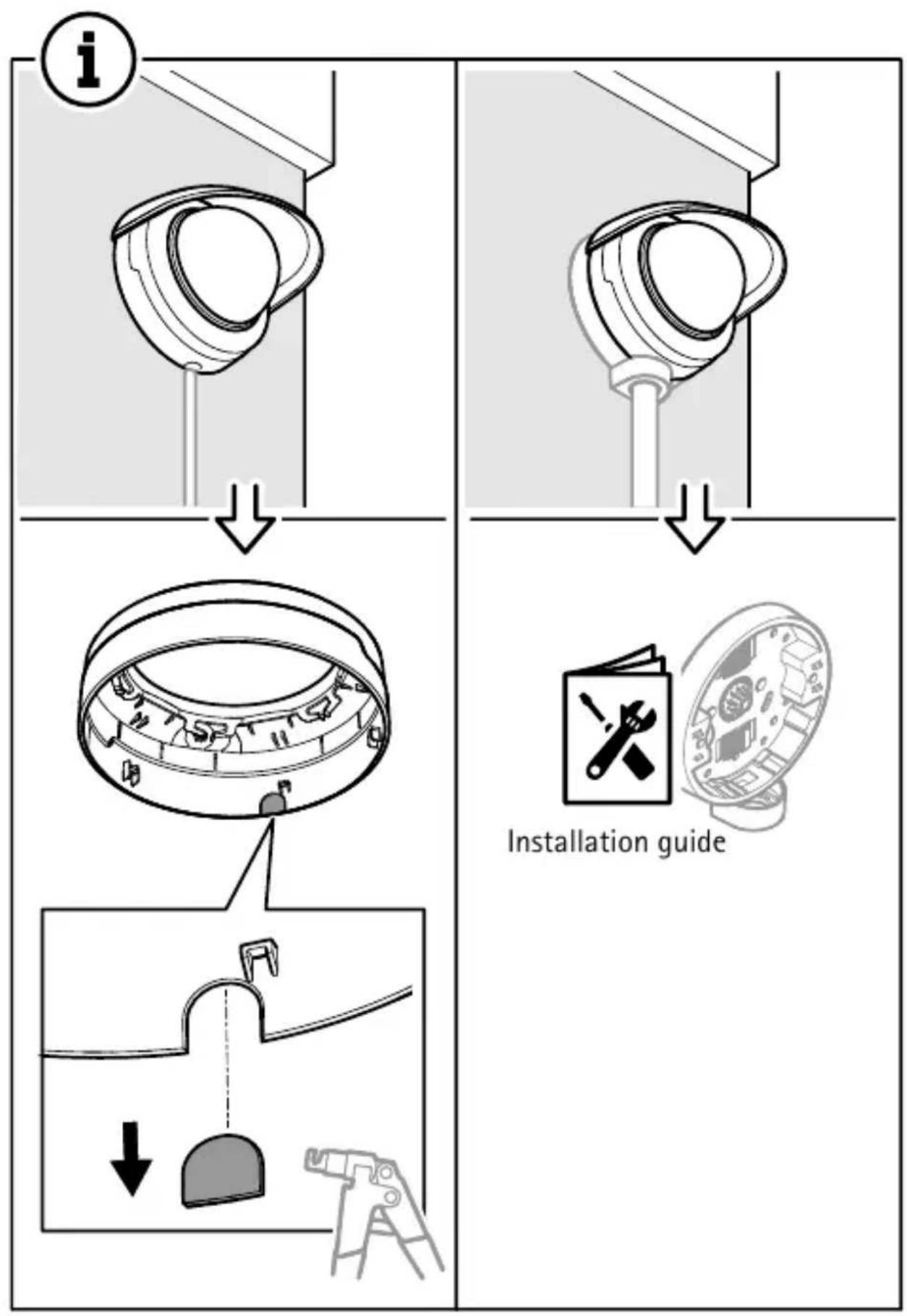

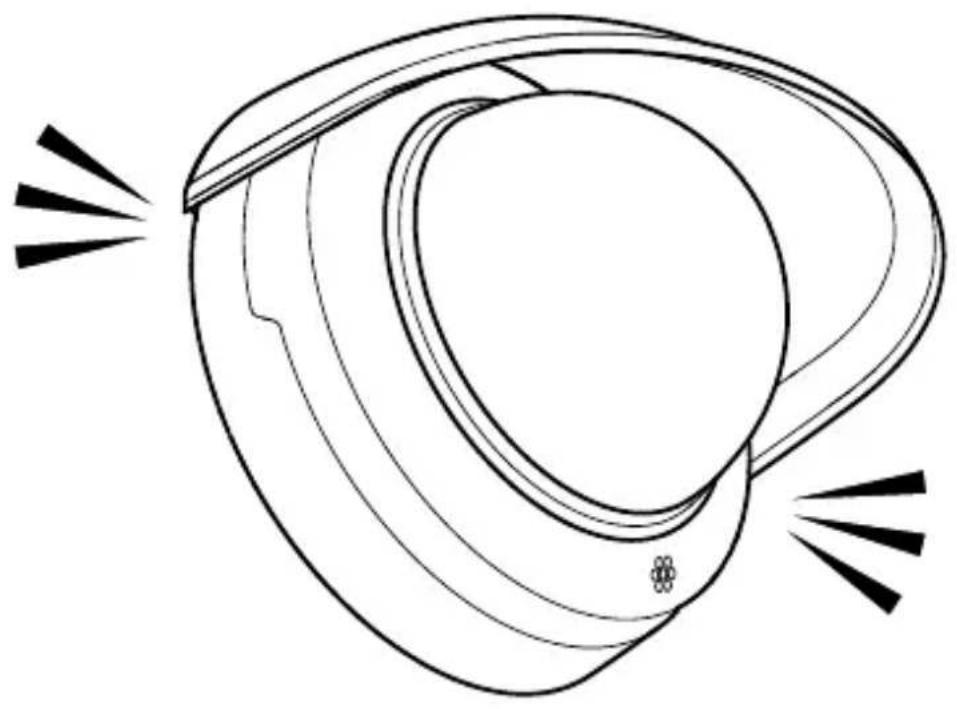

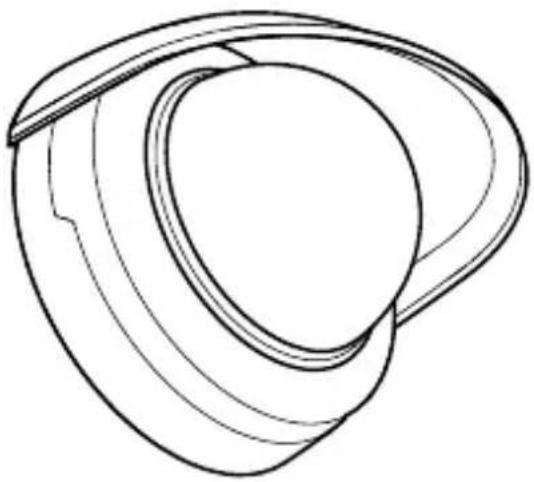

Line drawing of a dome-shaped object with segmented sides (no text or symbols)

1x

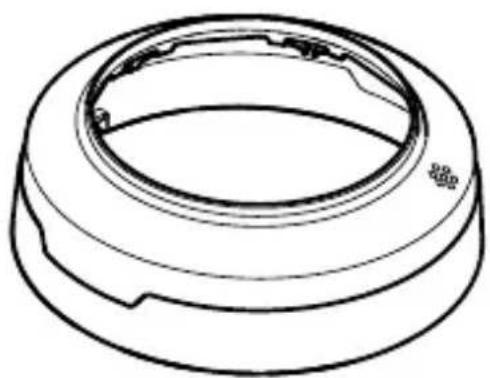

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

1x

Technical line drawing of a mechanical component with no visible text or symbols

1x

Simple line drawing of a mushroom-shaped object with a curved stem and small protrusion (no text or symbols)

1x

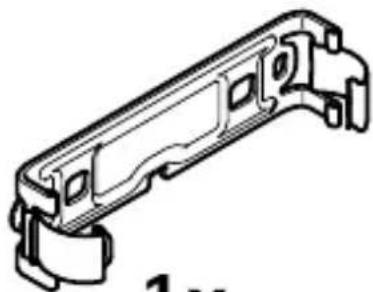

Technical line drawing of a mechanical bracket component (no text or symbols)

1x

1x

1x

i


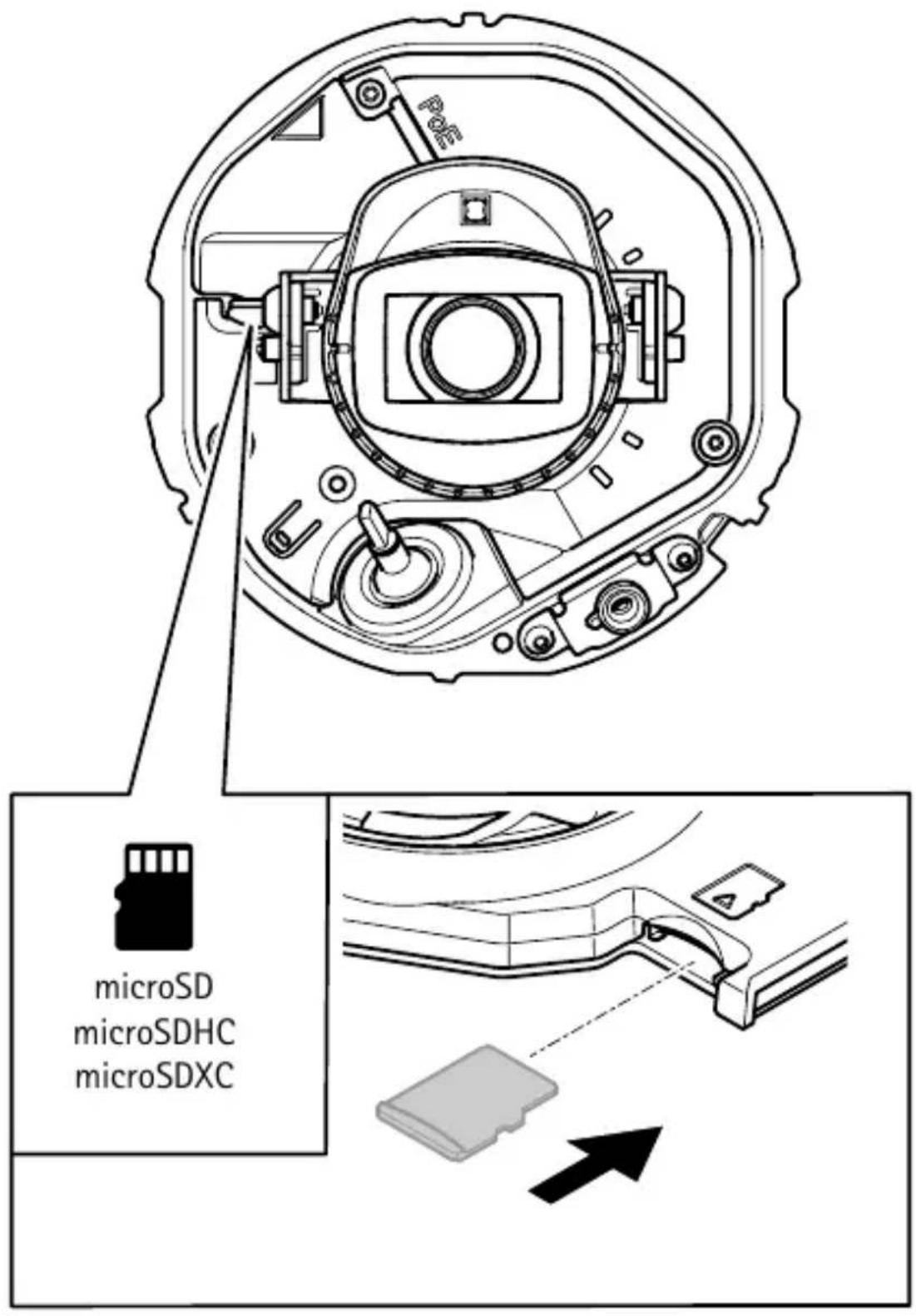

microSD microSDHC microSDXC

i-

1:1

QR code image containing encoded data, no visible human-readable text

www.axis.com/products/ axis-m4225-lve/support

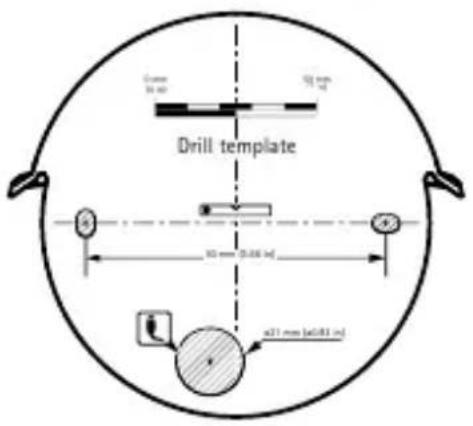

Drill template

Drill template 50 mm (2.000 m) 50 mm (2.000 m) x31 mm (x0.83 m)

AXIS M4225-LVE

AXIS M4227-LVE

AXIS M4228-LVE

1.1


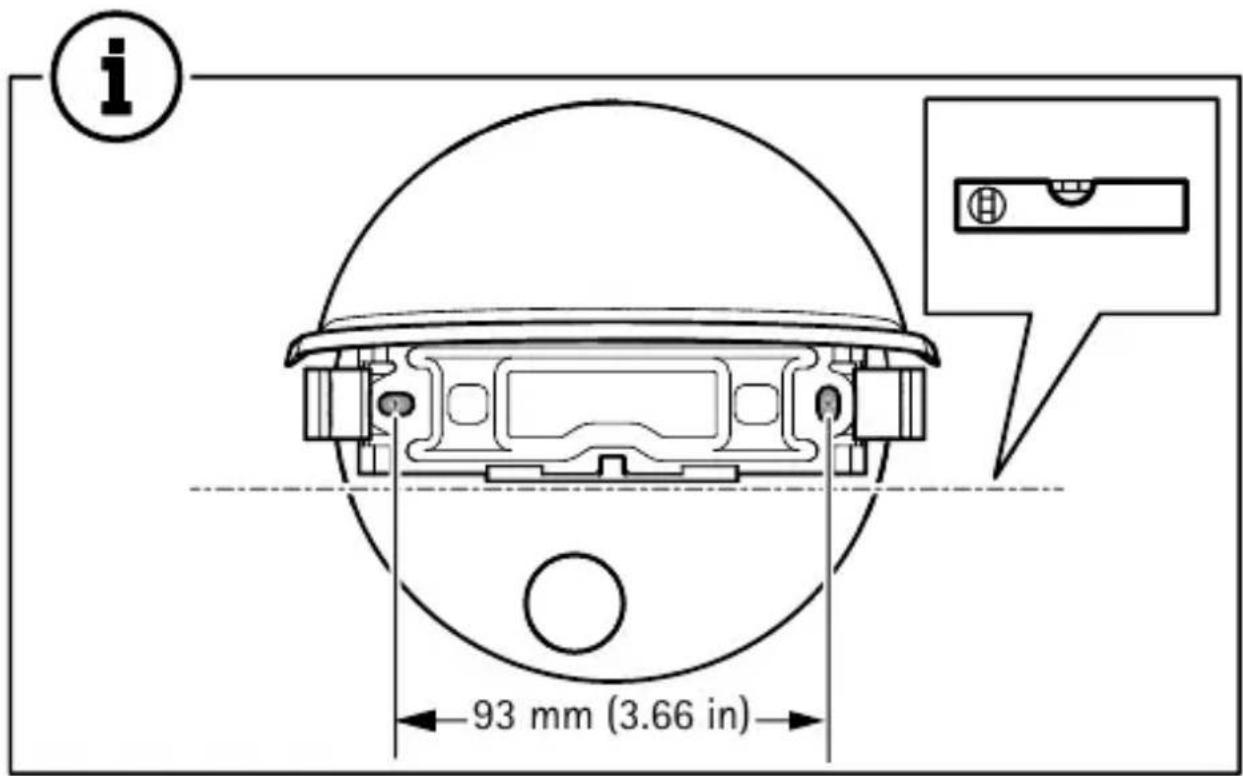

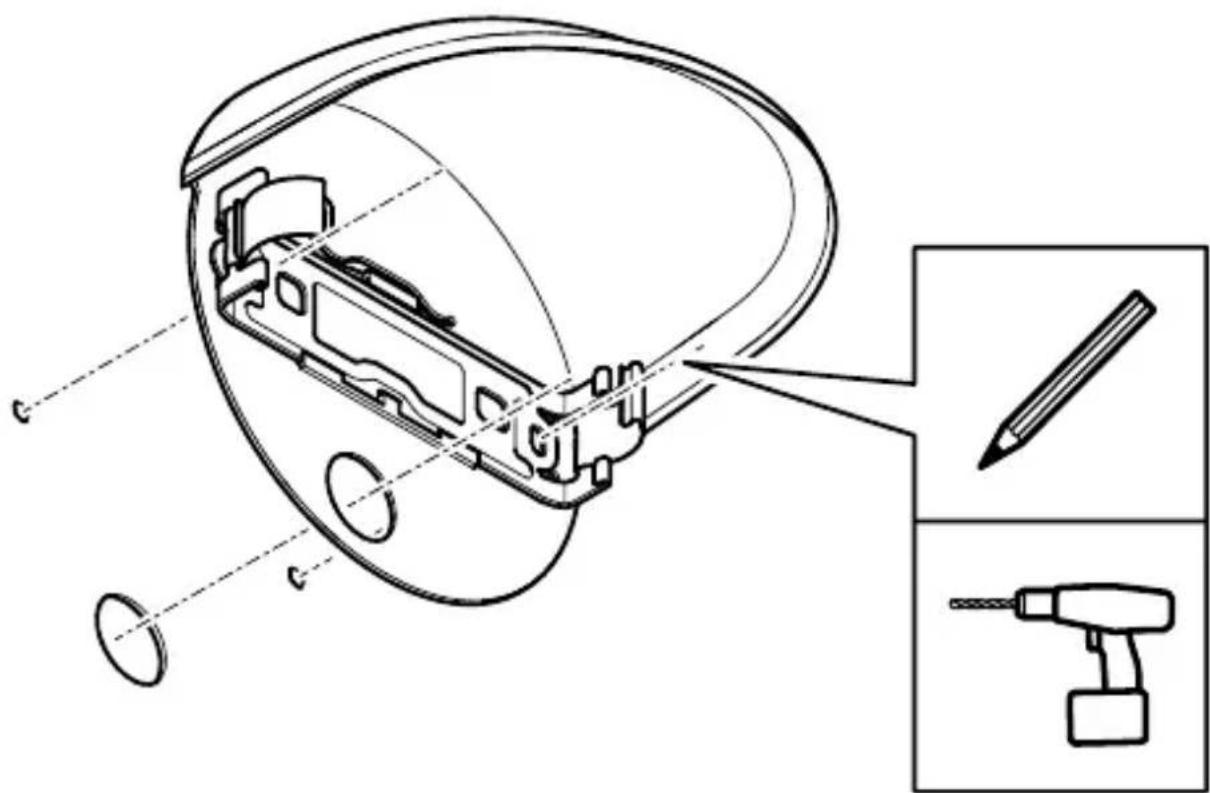

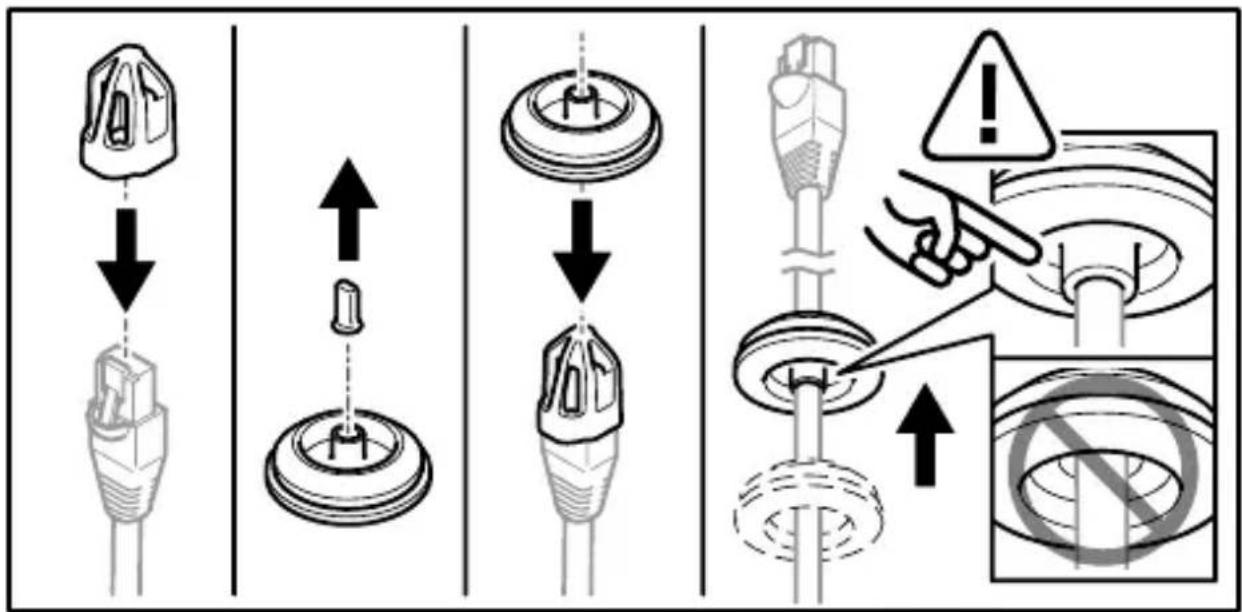

1.2

i 93 mm (3.66 in)

Technical diagram of a car interior with labeled parts and an inset showing a pencil and a tool.

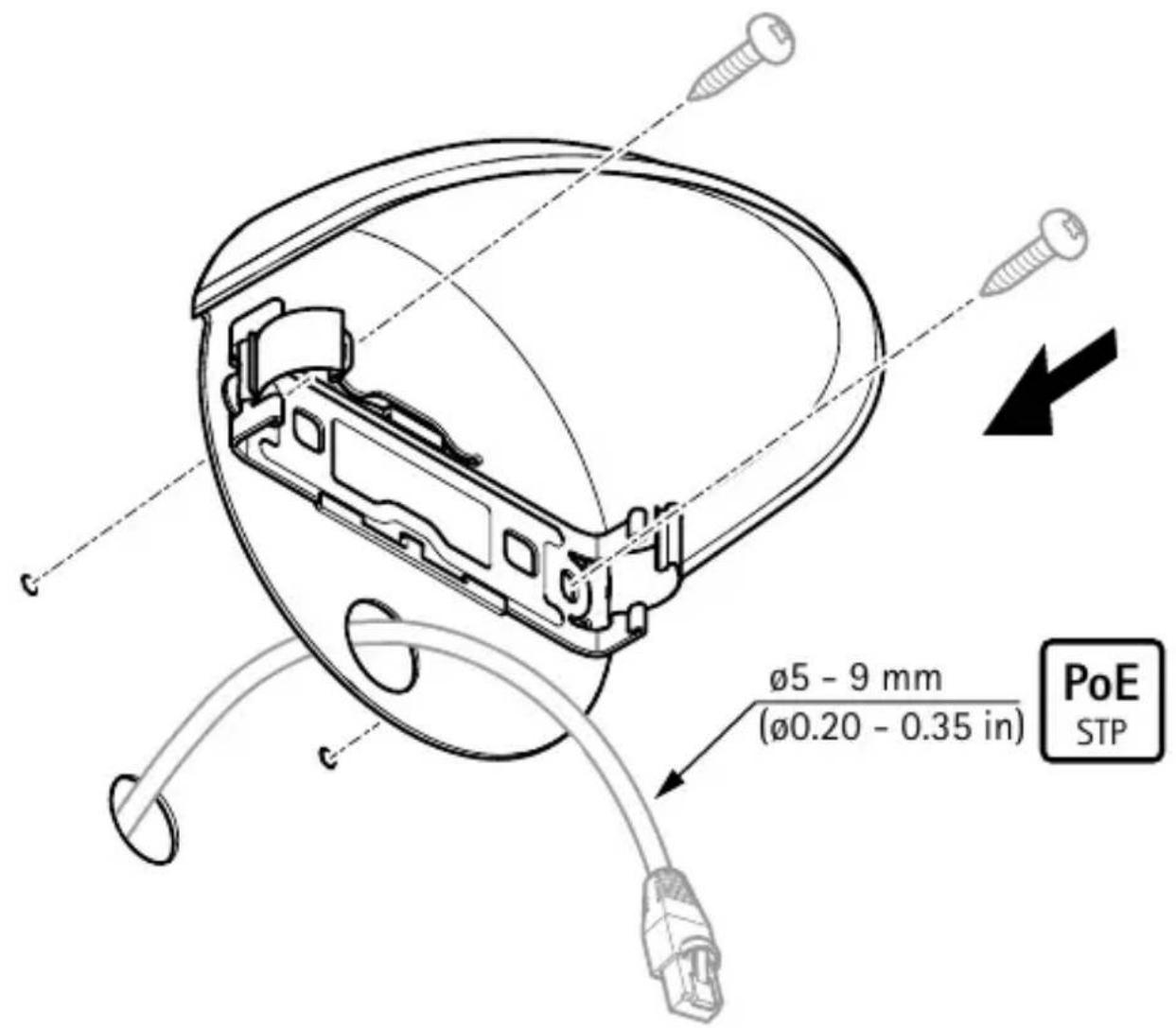

1.3

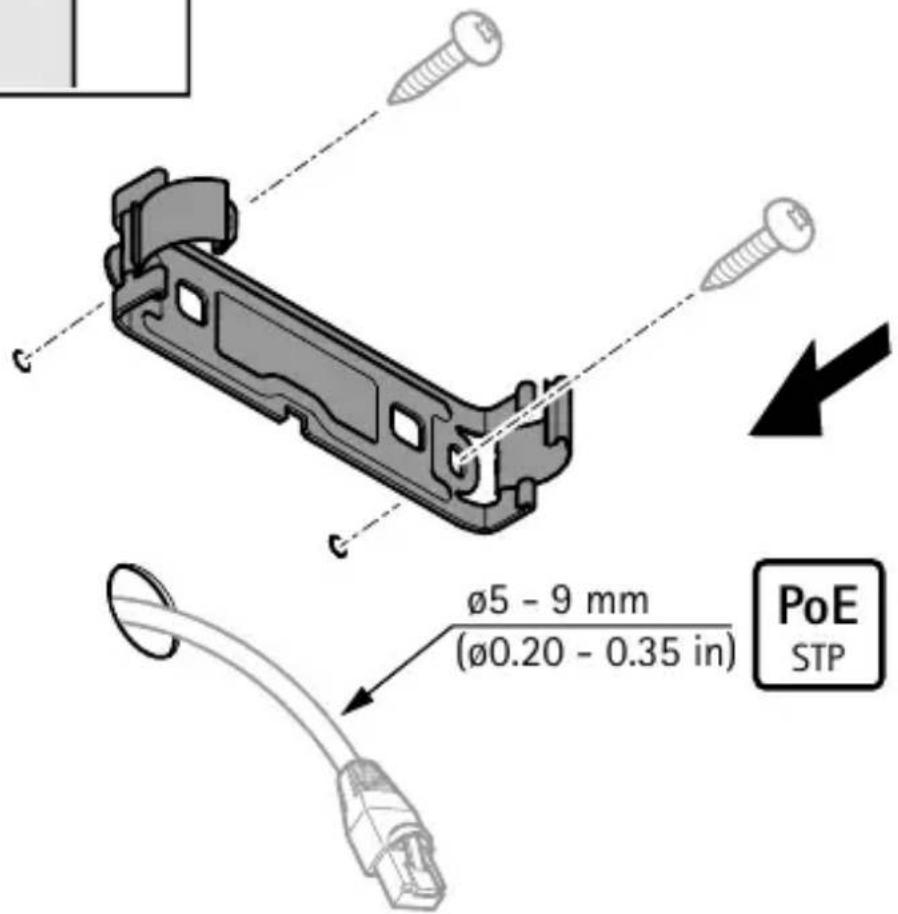

Ø5 - 9 mm (Ø0.20 - 0.35 in) PoE STP

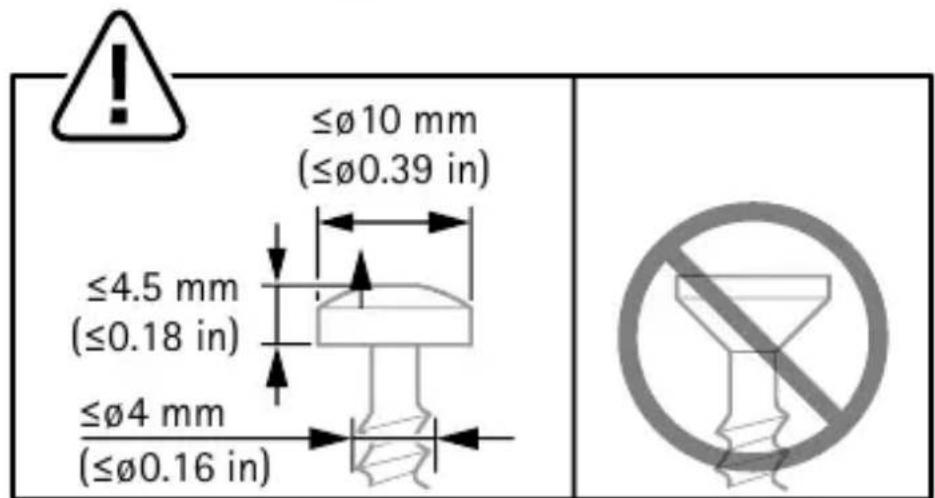

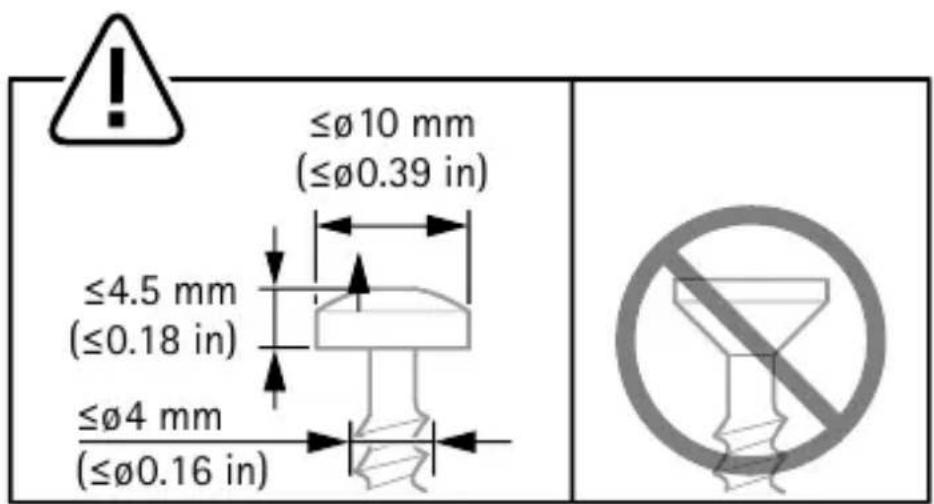

≤Ø 10 mm (≤Ø 0.39 in) ≤4.5 mm (≤0.18 in) ≤Ø 4 mm (≤Ø 0.16 in)

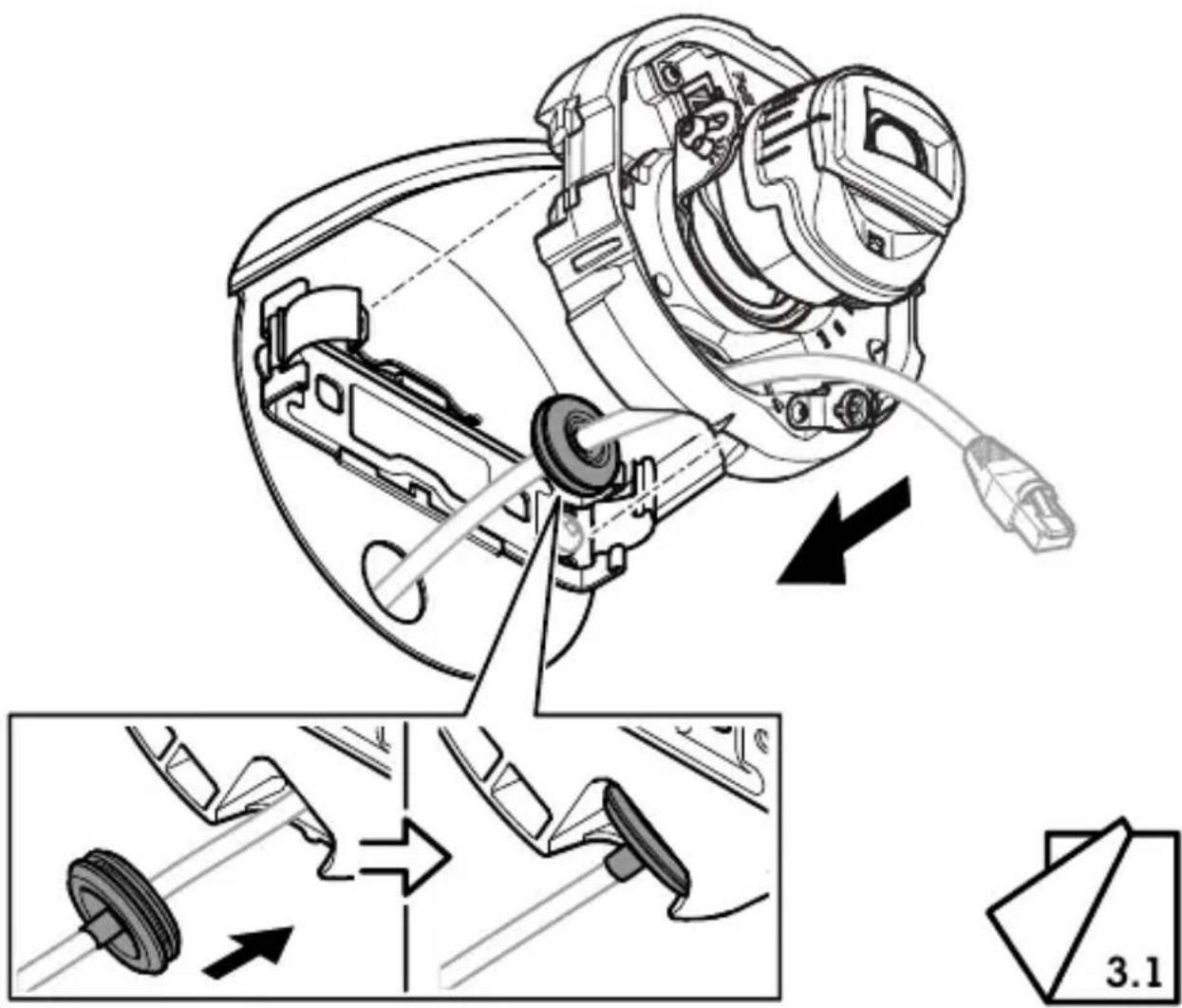

1.4

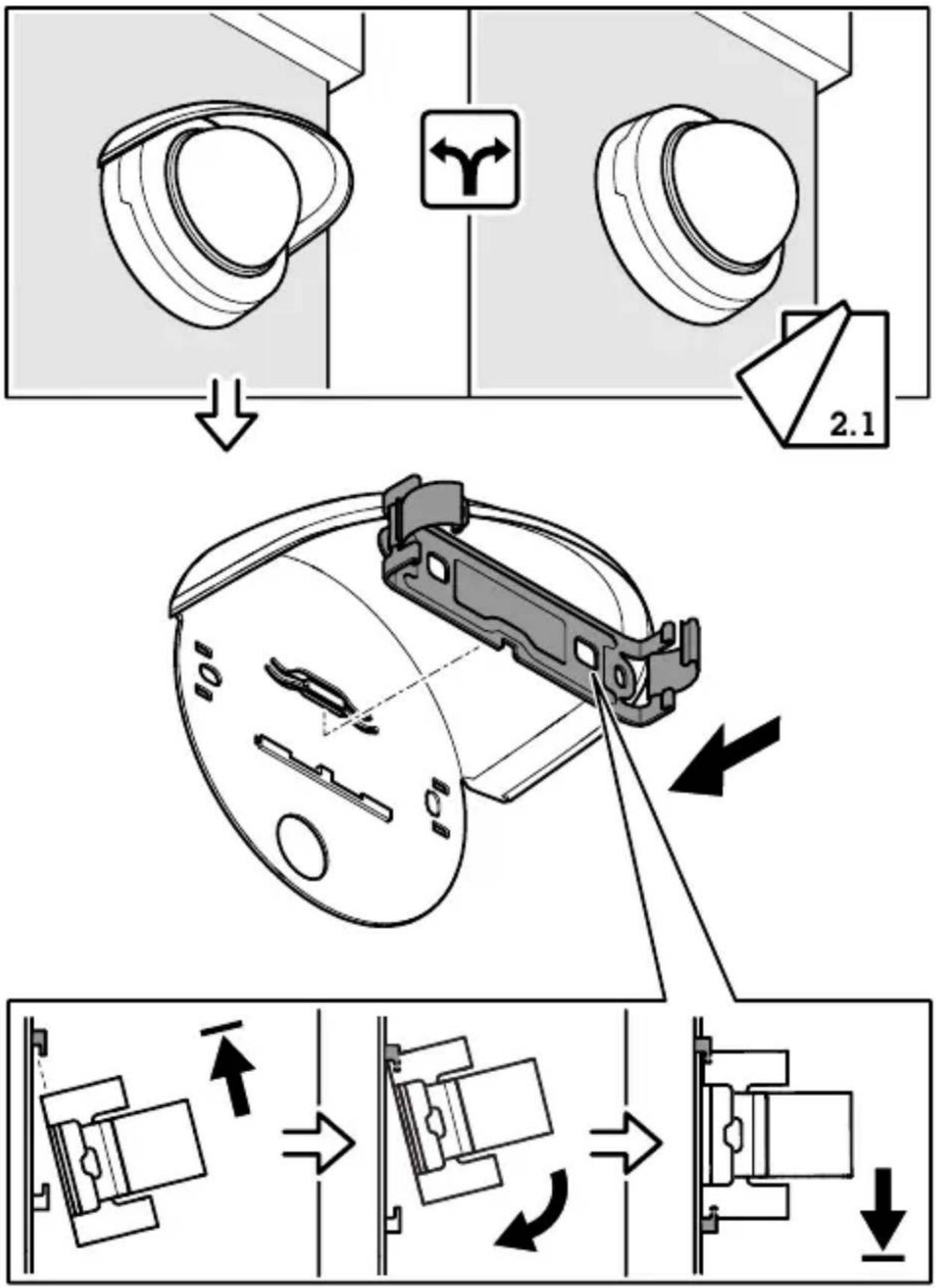

Diagram illustrating the step-by-step installation of a mechanical component with warning symbols and explanatory text.

Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows indicating motion or assembly.

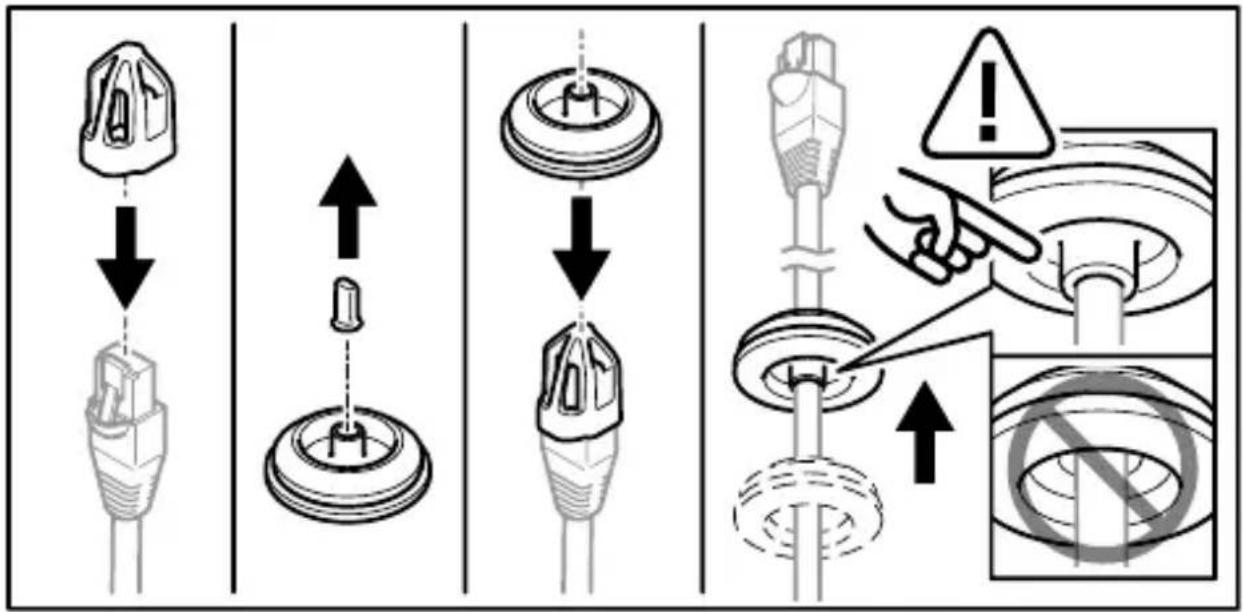

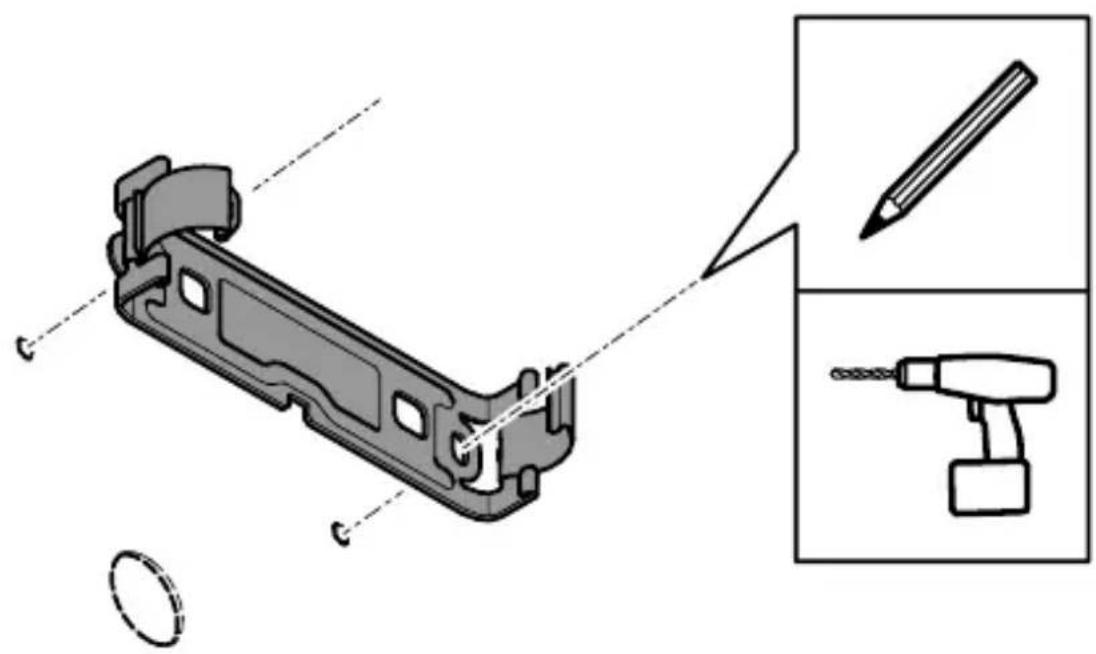

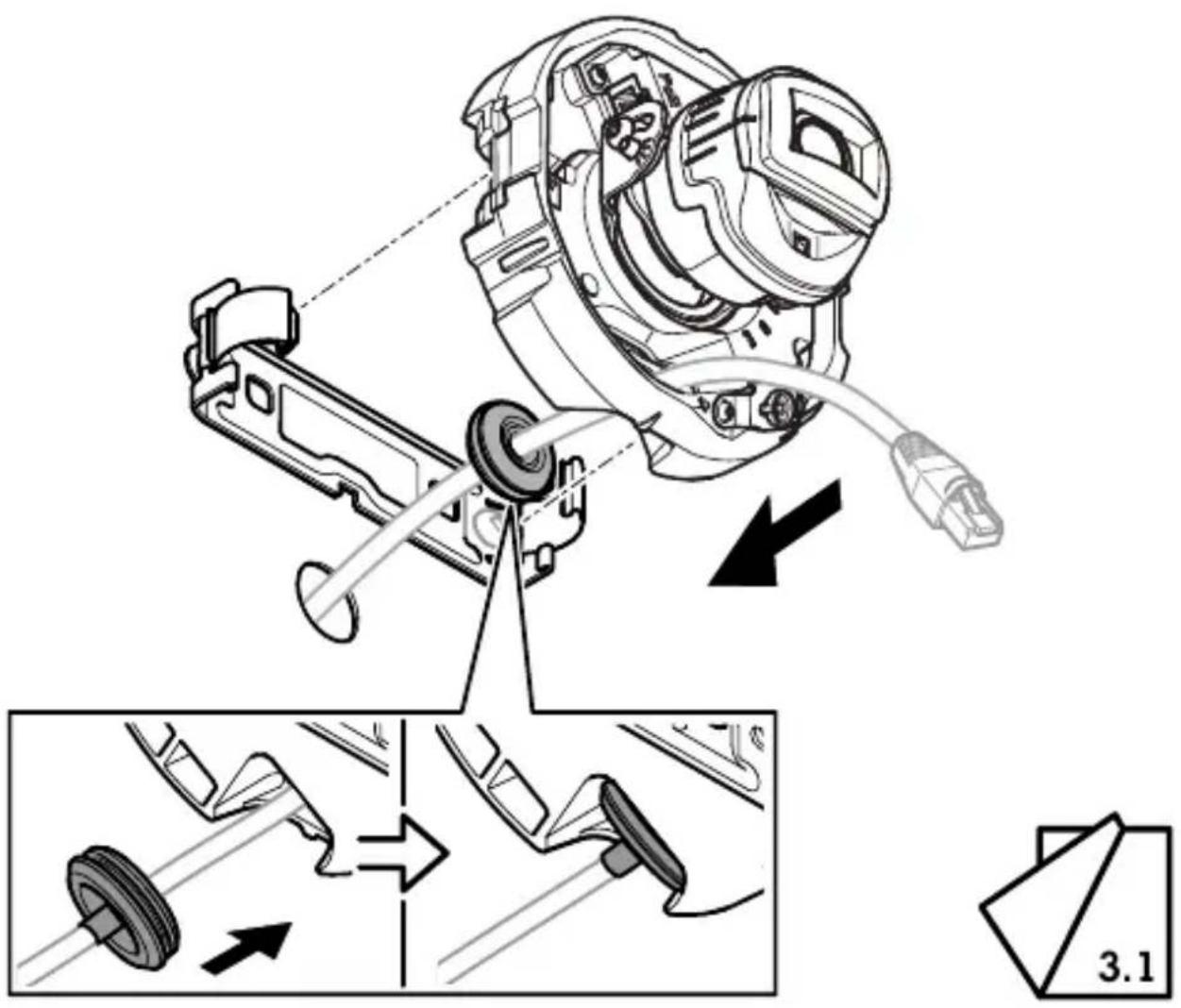

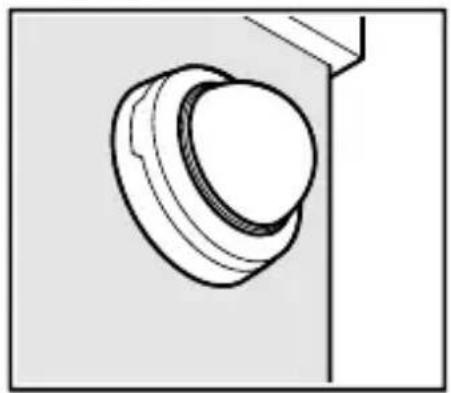

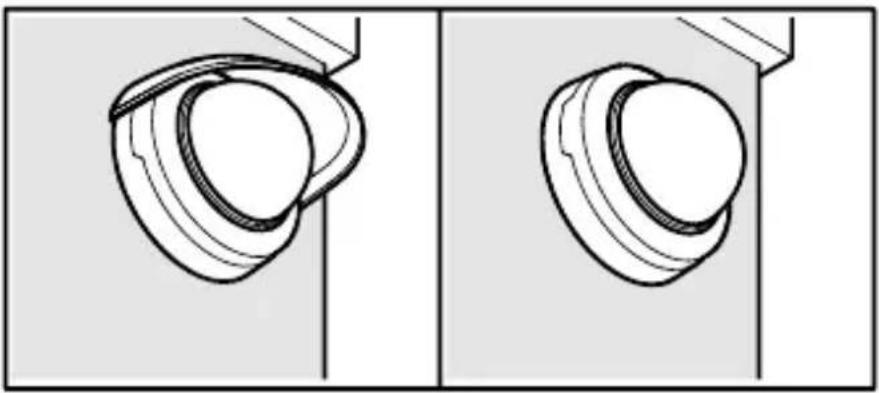

2.1

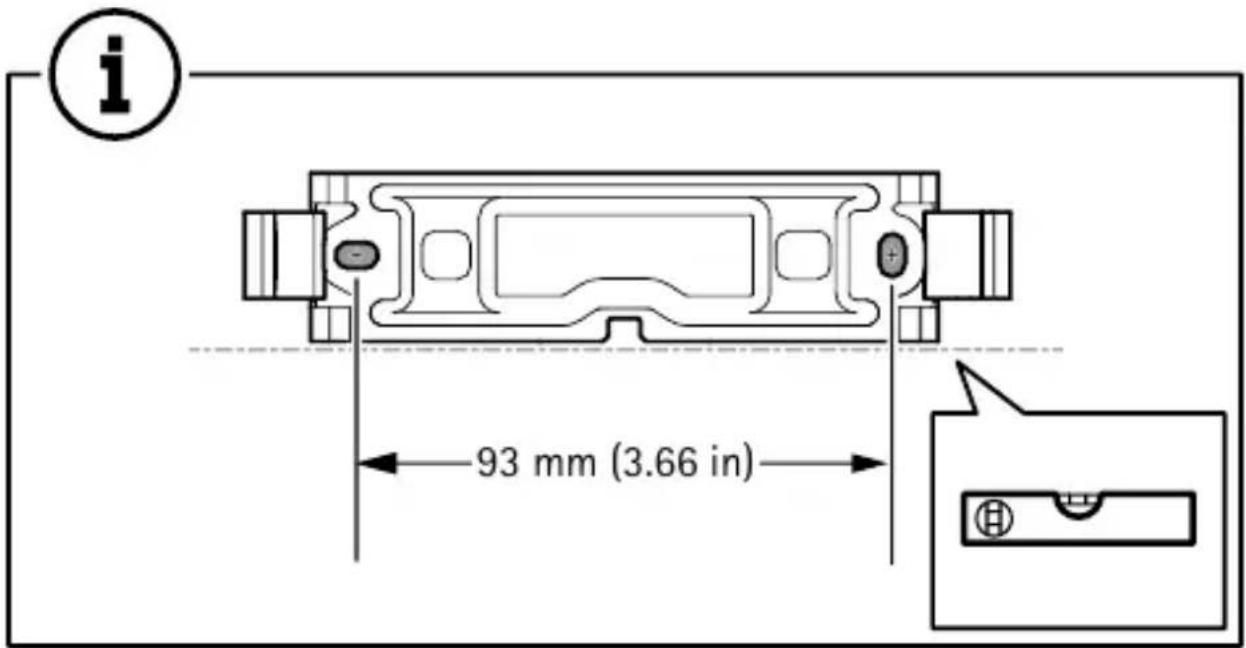

i 93 mm (3.66 in)

Technical diagram showing a mechanical component with labeled parts and two technical illustrations of a tool.

2.2

Technical line drawing of a mechanical component with concentric rings and a base (no text or symbols)

Ø5 - 9 mm (Ø0.20 - 0.35 in) PoE STP

≤Ø10 mm (≤Ø0.39 in) ≤4.5 mm (≤0.18 in) ≤Ø4 mm (≤Ø0.16 in)

2.3

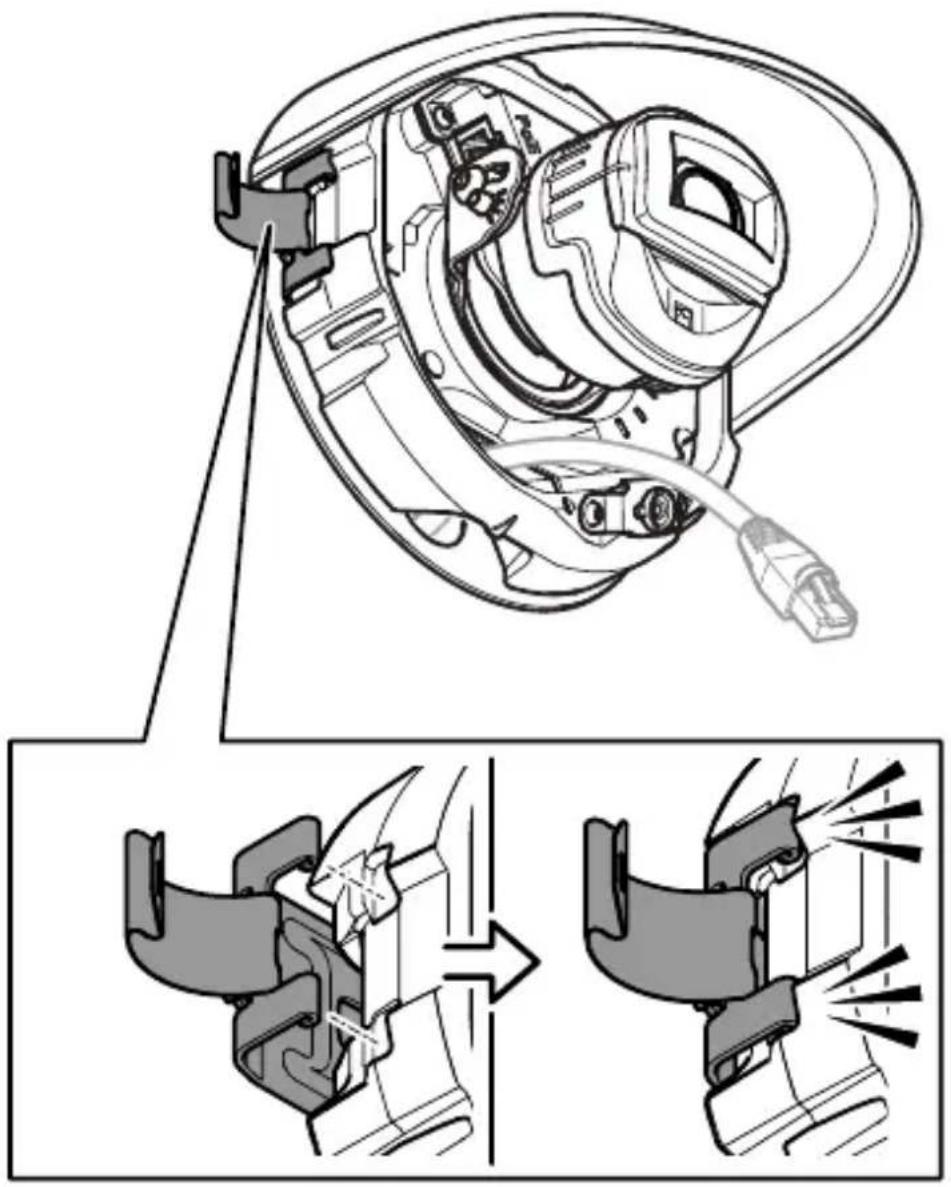

Diagram illustrating the step-by-step installation of a mechanical component with directional arrows and warning symbols.

Technical diagram illustrating the assembly of a mechanical component with labeled parts and directional arrows indicating motion.

3.1

Two technical line drawings of a mechanical component, one showing a curved section and the other a flanged circular feature (no text or symbols)

Technical illustration of a mechanical assembly with exploded view and close-up of internal components (no text or symbols)

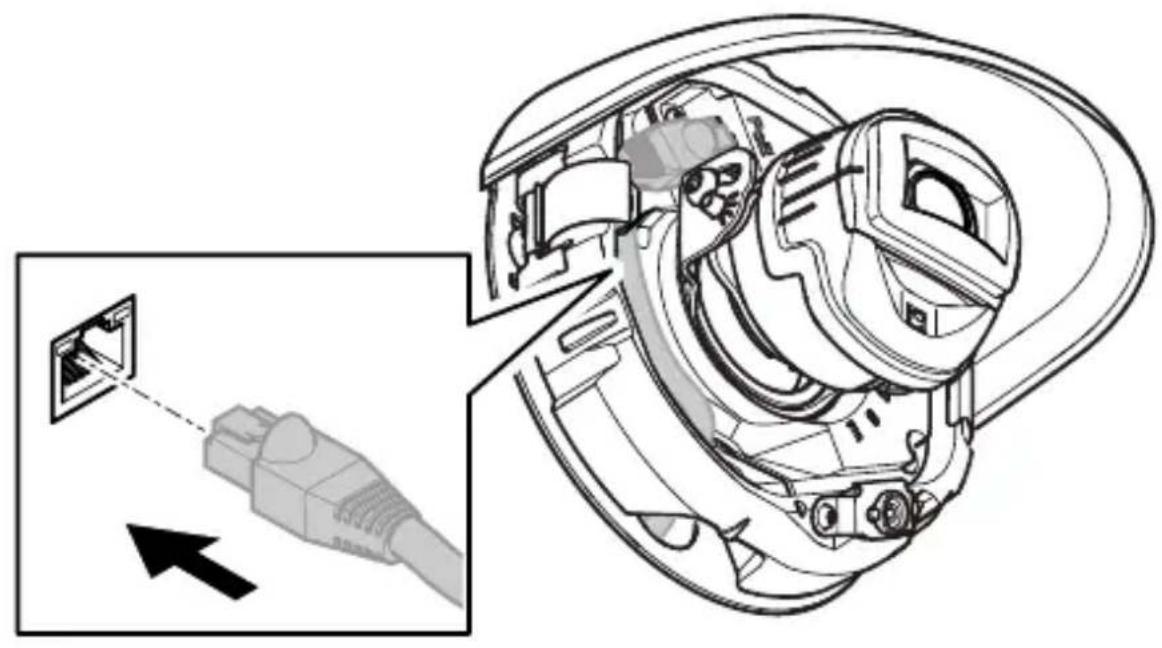

3.2

Technical diagram of an electrical connector with internal components and a close-up view showing wiring connection (no text or labels)

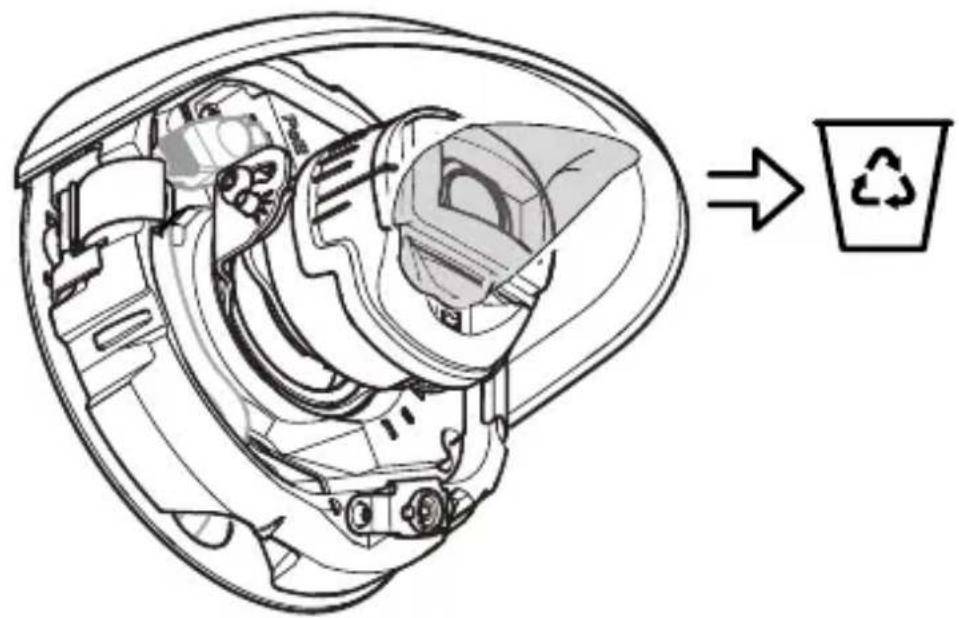

3.3

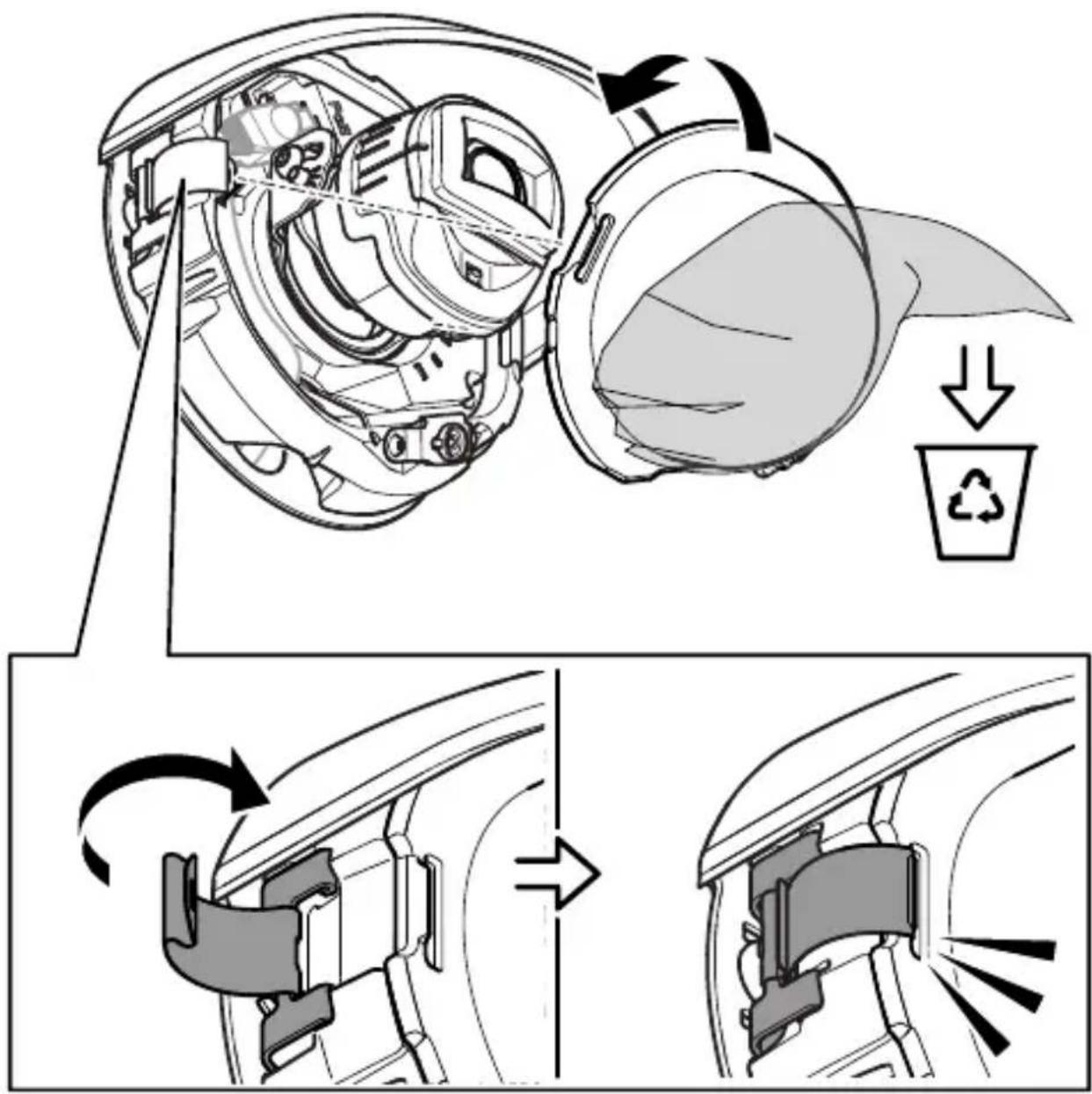

Diagram of a mechanical device with a recycling symbol, showing internal components and directional arrow

3.4

QR code image containing encoded data, no visible human-readable text

help.axis.com

AXIS M4225-LVE AXIS M4227-LVE AXIS M4228-LVE User manual

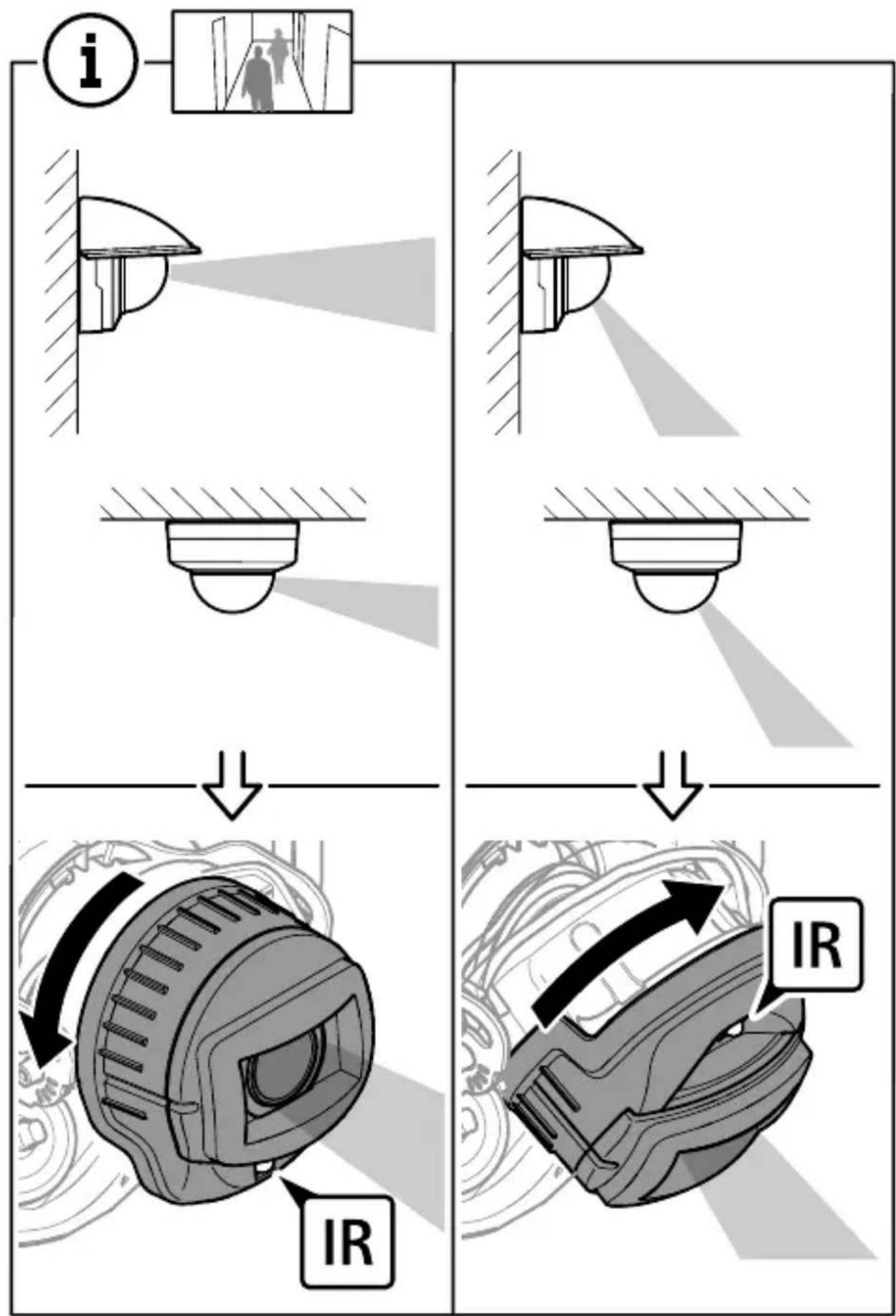

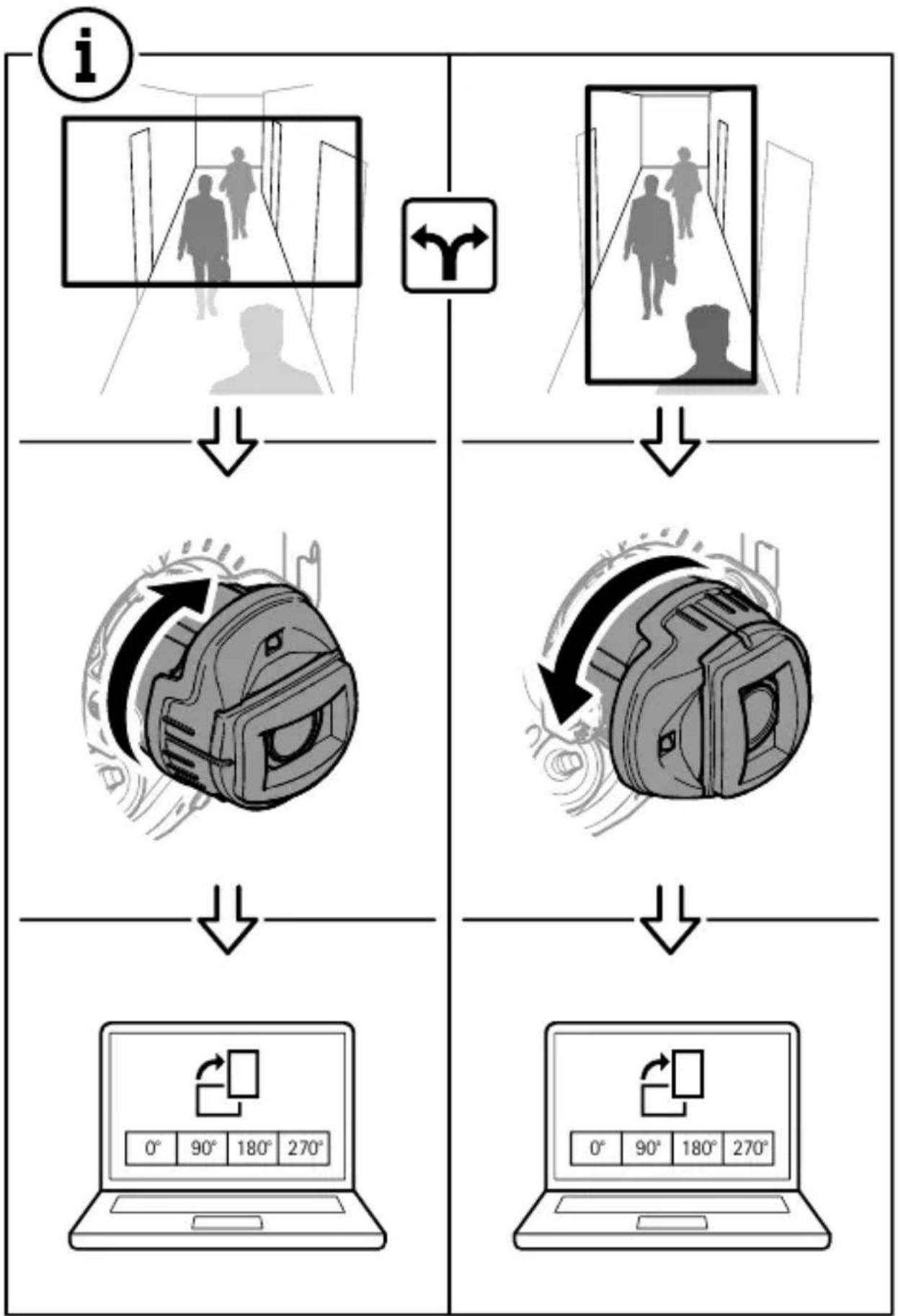

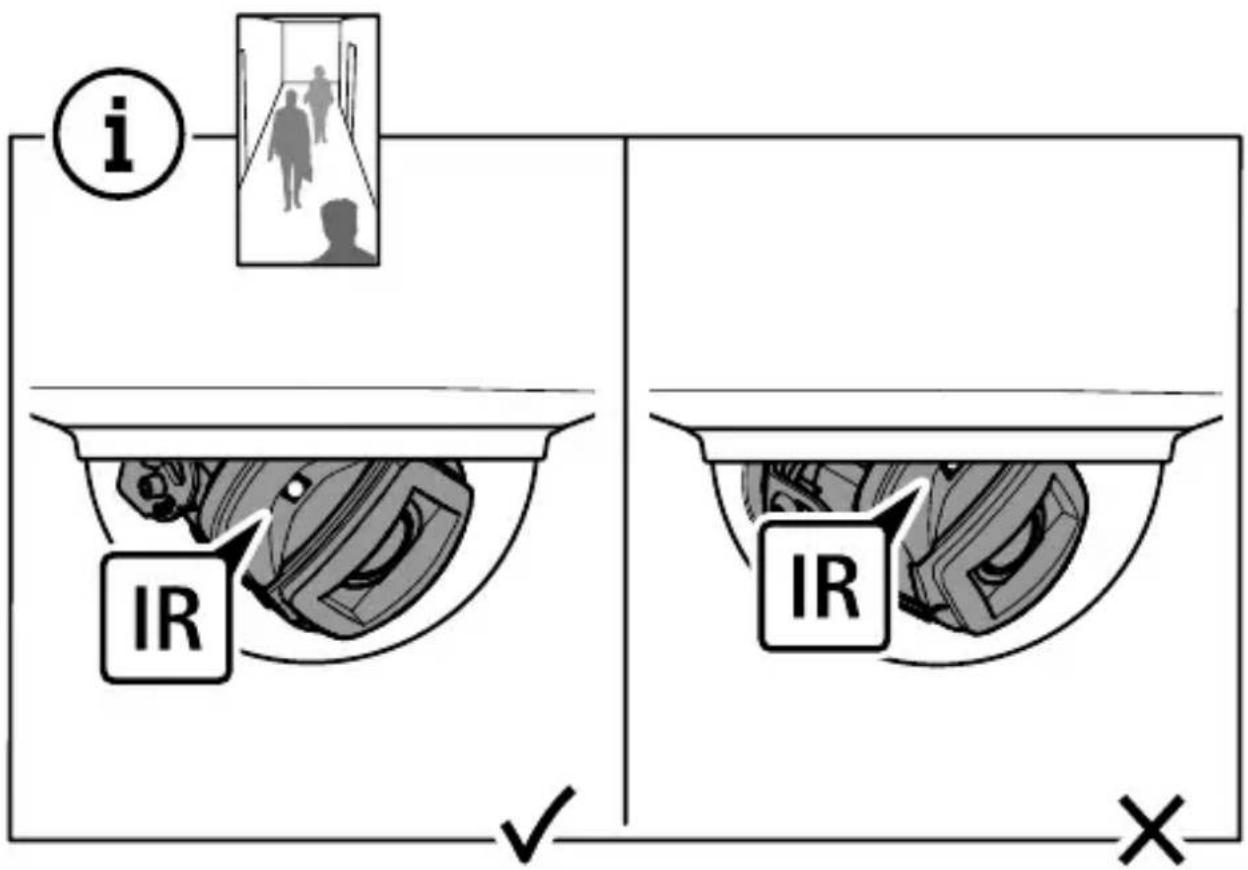

i IR IR

3.5

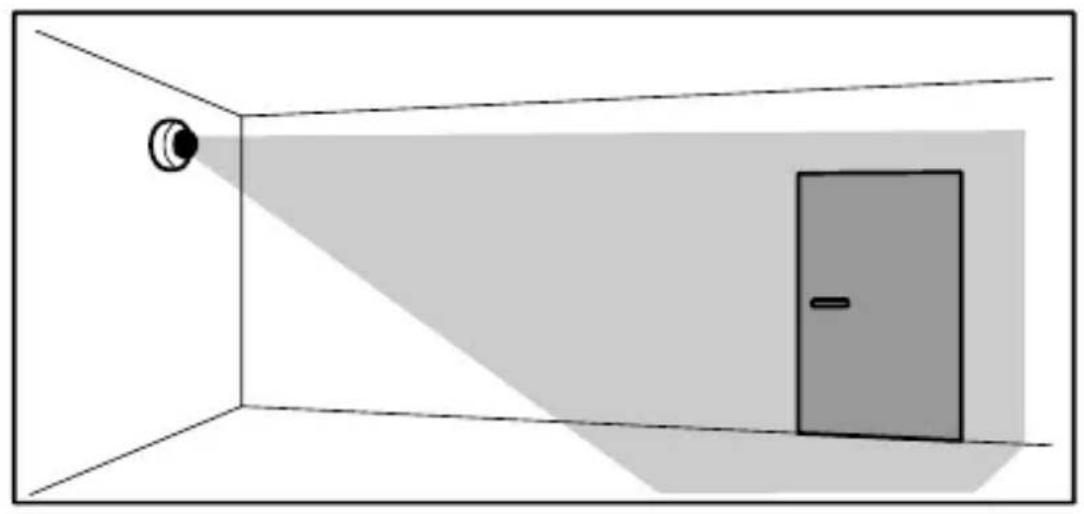

Simple line drawing of a room interior with a door and wall-mounted fixture (no text or symbols)

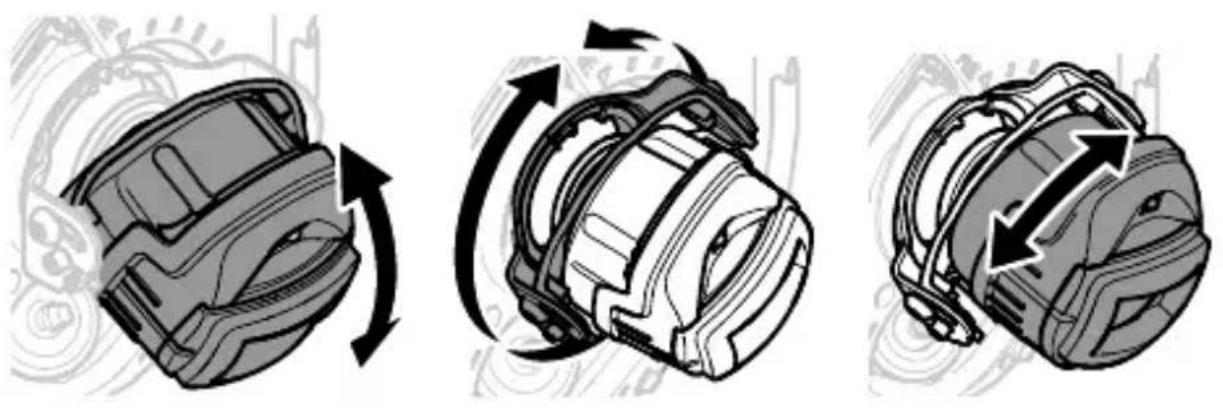

Three technical illustrations of a mechanical device with rotational arrows indicating motion (no text or symbols)

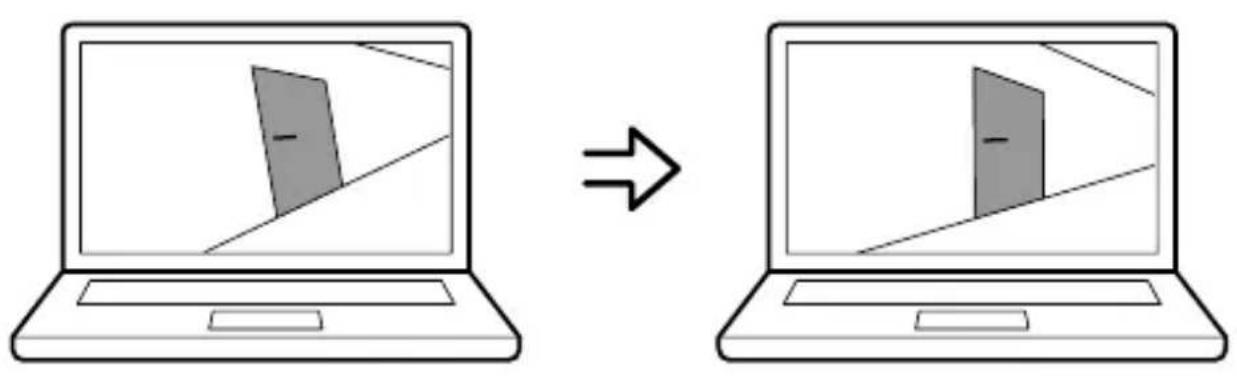

Diagram showing a laptop screen with a shaded screen and an arrow pointing to its right, indicating transformation or change.

3.6

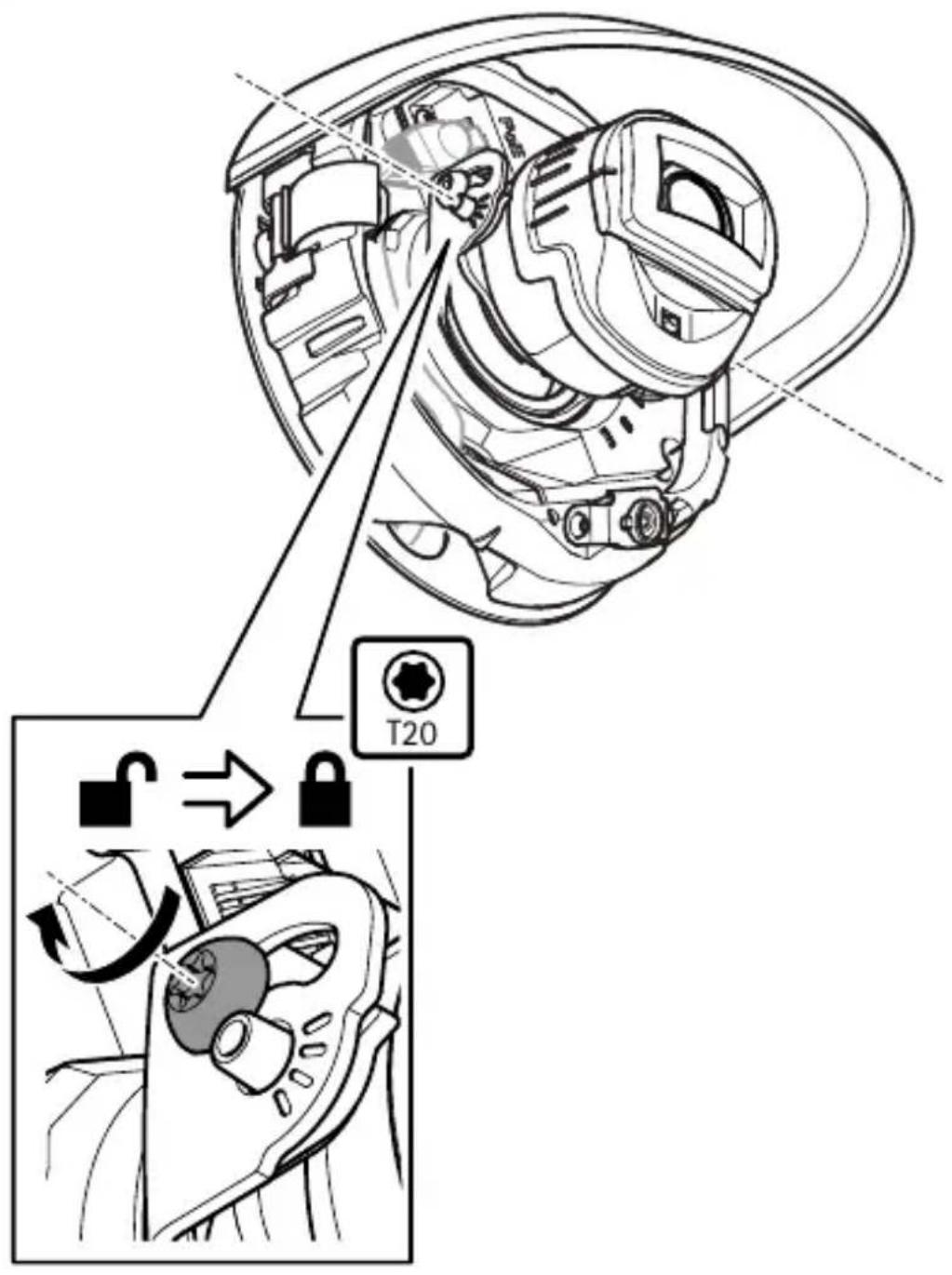

Technical diagram showing mechanical assembly with T20 component and lock mechanism, including a close-up of internal components.

3.7

Diagram illustrating the process of a washing machine's internal components, showing before-and-after states with recycling symbols.

3.8

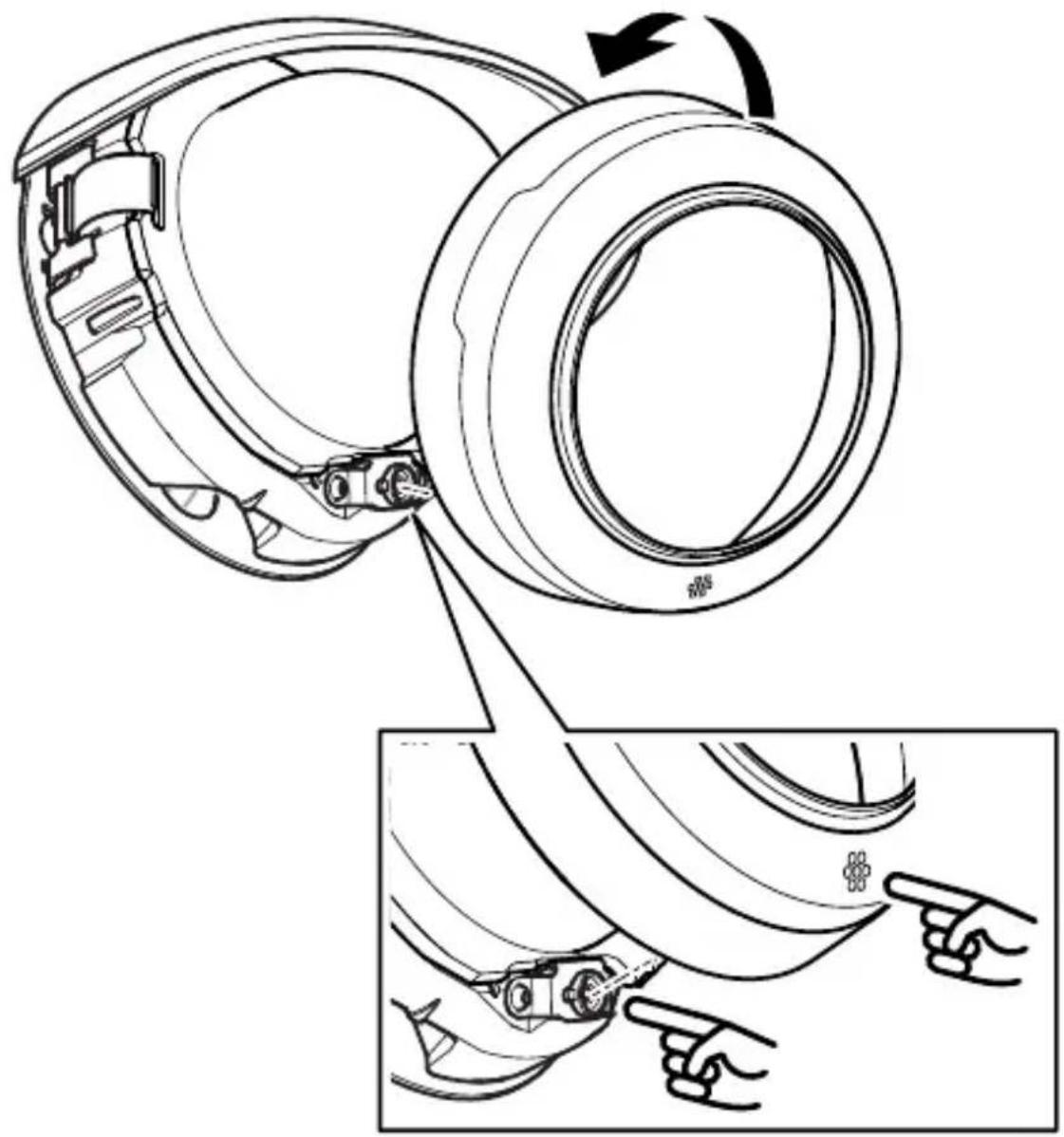

Technical line drawing of a mechanical assembly with a close-up view showing hands interacting with a component (no text or symbols present)

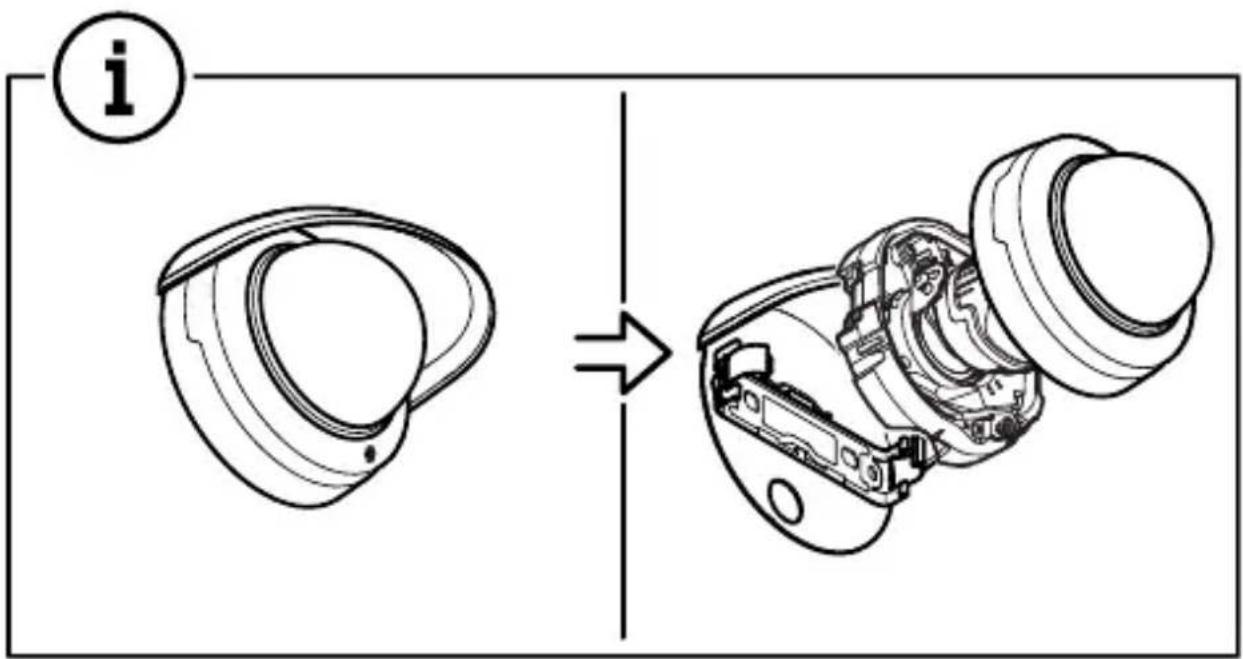

3.9

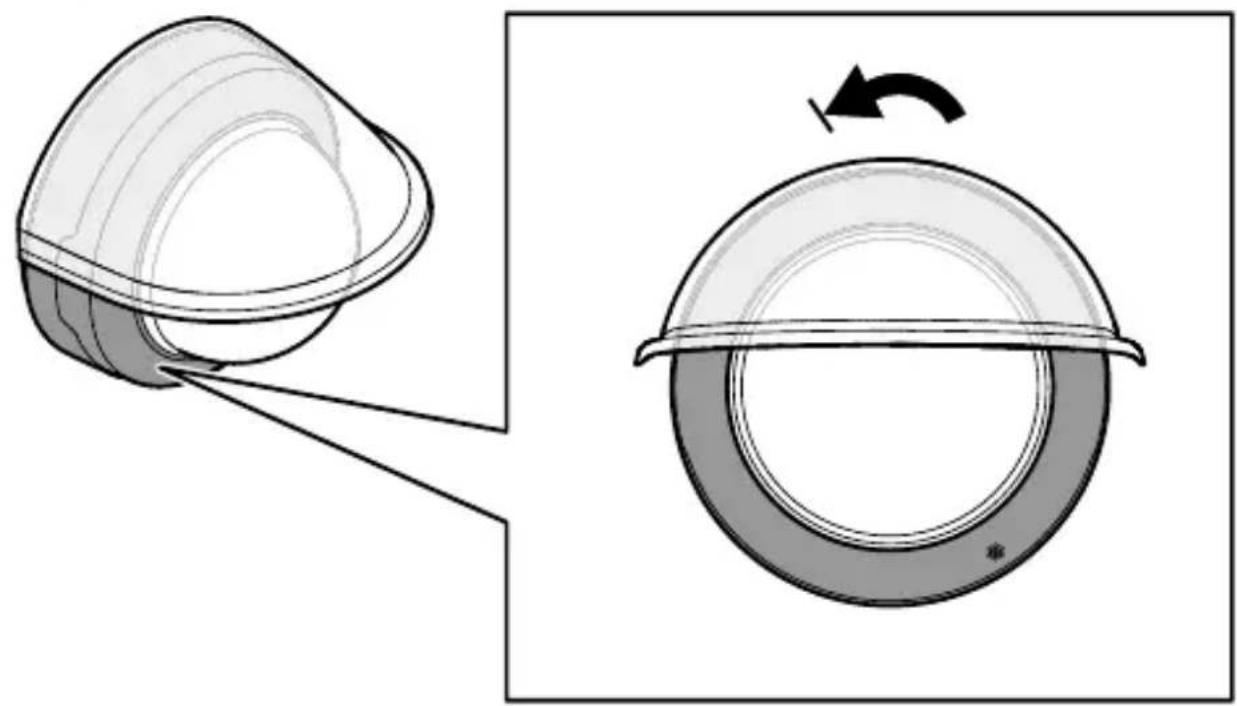

Abstract line drawing of a stylized eye-like shape with radiating lines and small starburst elements (no text or symbols)

i

4.1

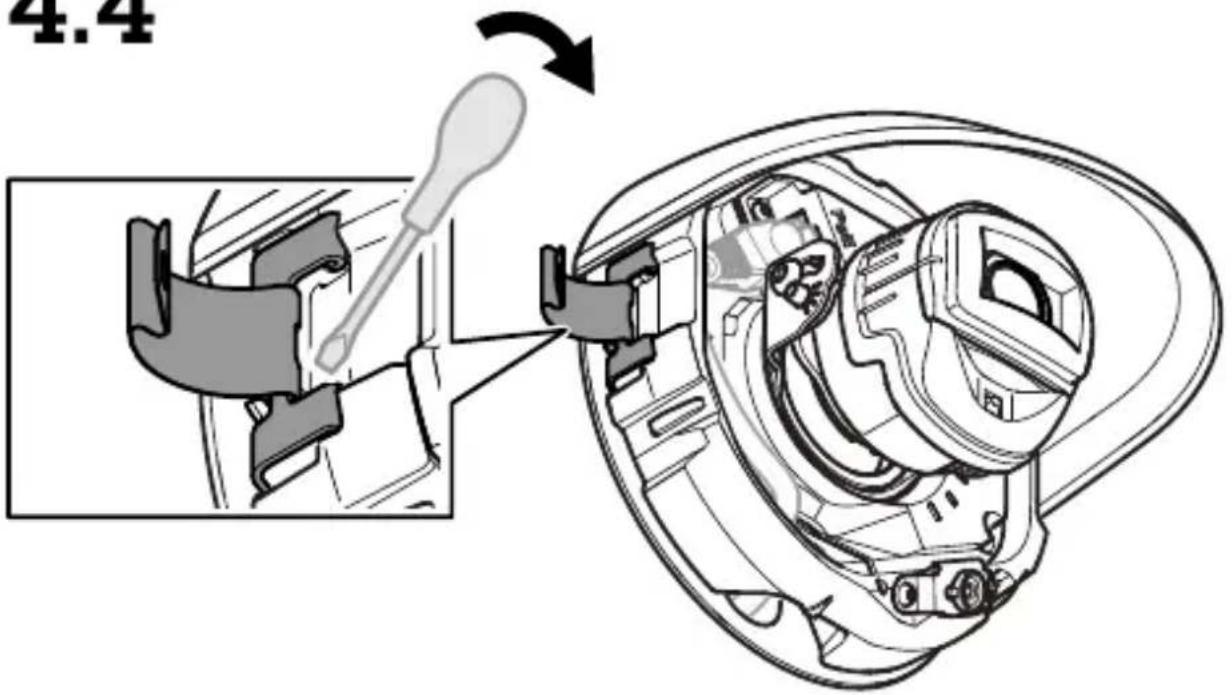

Diagram showing a mechanical component being lifted by a tool, with no visible text or symbols

4.2

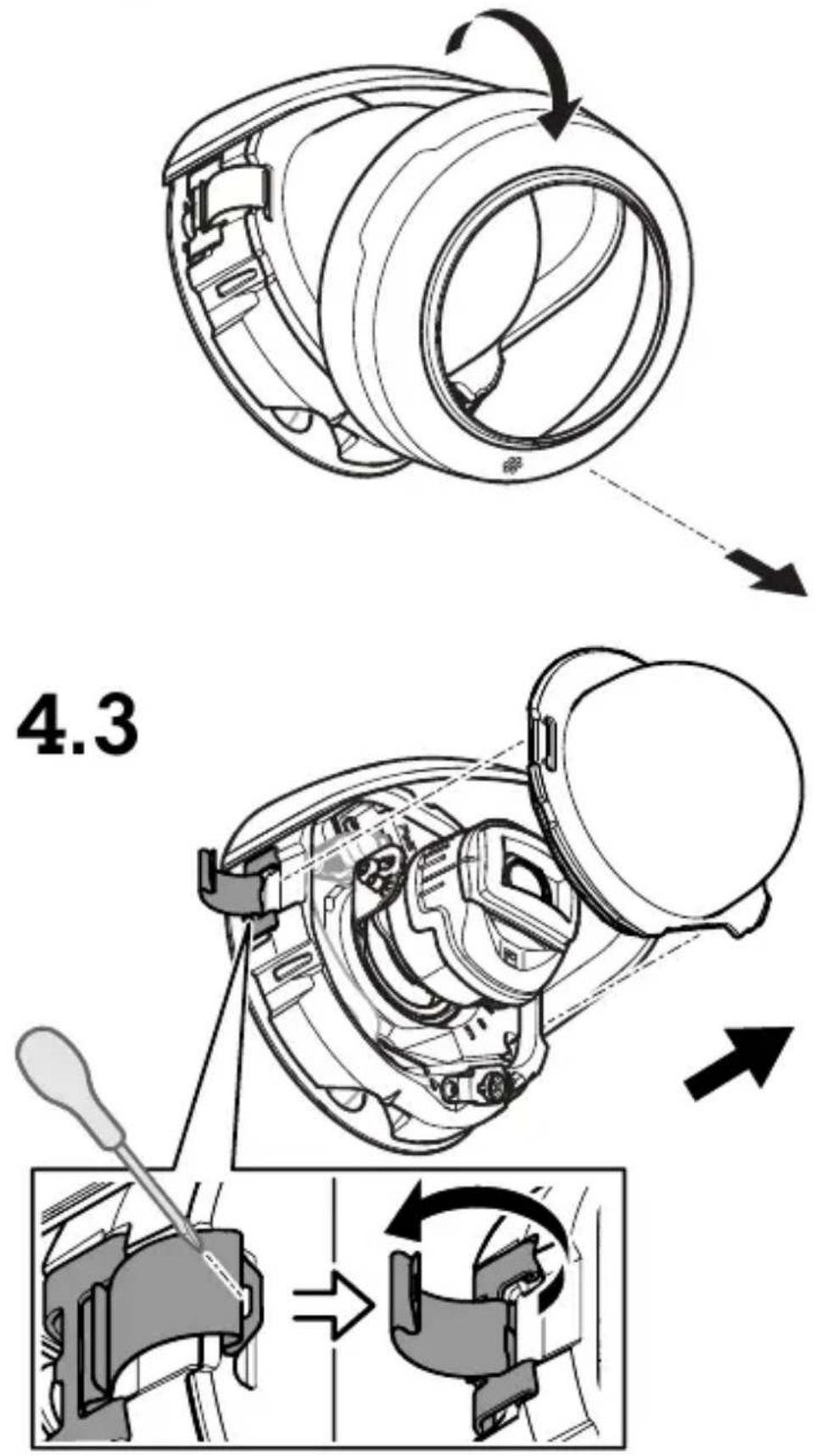

4.3

4.4

4.4

4.5

Technical line drawing of a mechanical device with internal components and a directional arrow, no text or symbols present.

3288236

2025-04 (M2.4)

© 2024 - 2025 Axis Communications AB
