USER MANUAL CNP100 Canarm

PLEASE READ AND SAVE THESE INSTRUCTIONS

CANARM®

HVAC

MODELS: CNP80, CNP100

The purpose of this manual is to aid in the proper installation and operation of the CNP Series exhaust fans. These instructions are intended to supplement good general practices and are not intended to overwrite local codes and ordinances.

IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.

Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER'S BILL OF LADING AND FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.

GENERAL SAFETY

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switching on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. Ducted fans must always be vented to the outdoors. 6.

6. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. This unit must be grounded. 8.

7. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

8. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up.

9. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit. Please read specification label on product for further information and requirements. 12.

10. Please follow all applicable national, state/provincial and local codes. All of them will supersede this manual.

11. Failure to follow the safety instructions in this manual may cause serious injury or death due to electrical shock or high speed rotating parts.

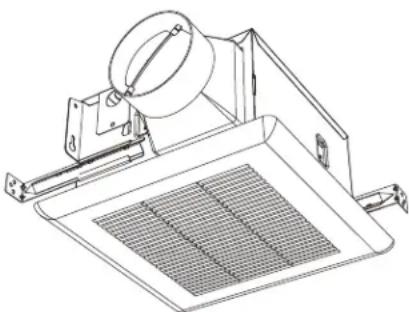

Technical line drawing of a ceiling-mounted air duct fixture with a circular component and mesh grille (no text or symbols)

CLEANING AND MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

OPERATION

See Electrical Wiring Connection section for details.

PLAN THE INSTALLATION

1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.

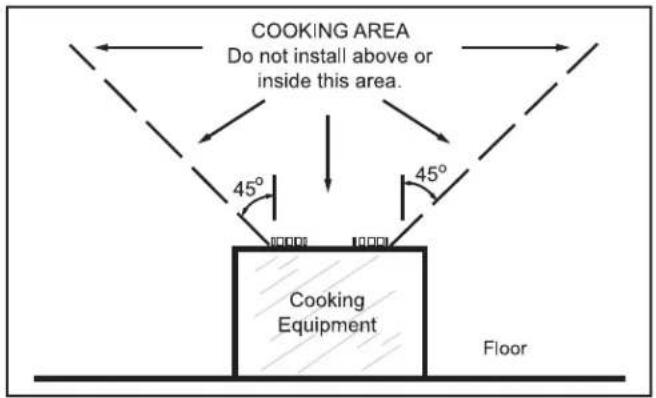

COOKING AREA Do not install above or inside this area. 45° 45° Cooking Equipment Floor

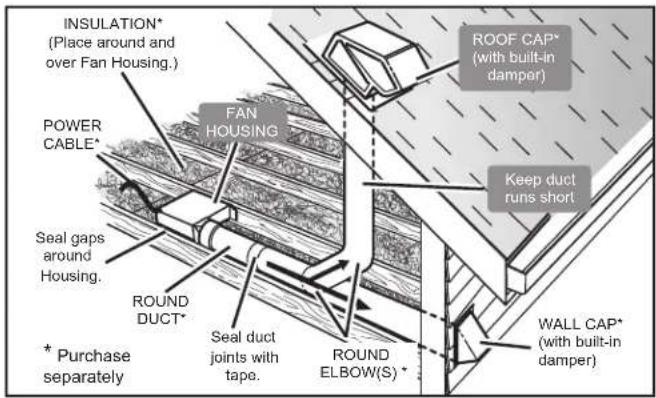

INSULATION* (Place around and over Fan Housing.) POWER CABLE* FAN HOUSING Seal gaps around Housing. ROUND DUCT* * Purchase separately ROOF CAP* (with built-in damper) Keep duct runs short. Seal duct joints with tape. ROUND ELBOW(S) * WALL CAP* (with built-in damper)

TYPES OF TYPICAL INSTALLATIONS

1. Housing mounted to I-joists - start at Assembly Instructions 1.
2. Housing mounted to joists - start at Assembly Instructions 1.
3. Housing mounted to truss - start at Assembly Instructions 2.

ASSEMBLY INSTRUCTIONS

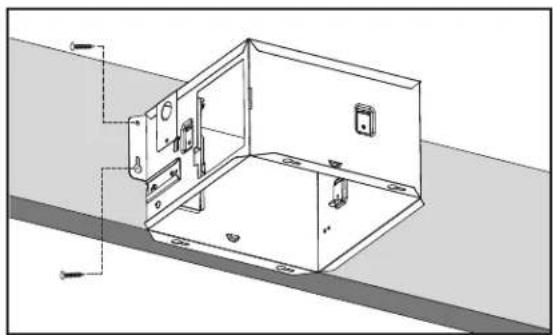

1. Mount housing to joist or I-joist.

a. Hold the housing so that it is in contact with the bottom of the joist.
b. Attach the housing with four (4) screws to the joist through the holes in each mounting flange.

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

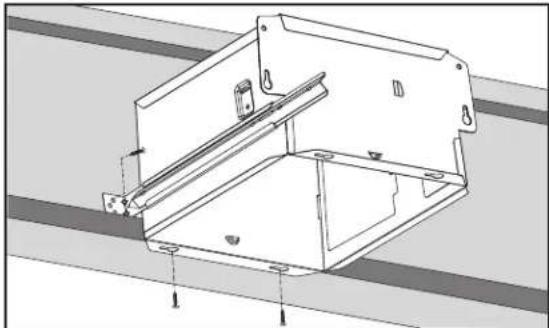

1. Mount with mounting holes and hanger bar.

a. Slide one hanger bar into the channel on the housing and adjust as needed to fit between framing.
b. Hold housing in place so that the housing contact the bottom of the joist, Screw housing to joist through the hole of the housing.
c. Screw the hanger bar onto the other side of joist through the hole.
d. Screw hanger bar to housing with screw.
e. Refer to the right diagram.

Four technical line drawings of a mechanical or electrical component assembly, showing front, side, top, and side views (no text or symbols present)

ASSEMBLY INSTRUCTIONS CONTINUED

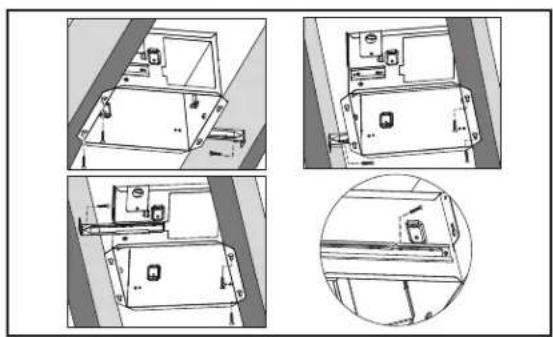

3. Mount to I-joist.

a. Slide one hanger bar into channel on the housing and adjust as needed.
b. Hold housing in place so that the housing contacts the bottom of the joist.
c. Screw housing to joist through the hole of the housing.
d. Screw the hanger bar onto the joist through the hole.
e. Screw hanger bar to housing with screw.

4. Install duct and blower assembly.

a. Install duct from the inside of the housing. Fix. the duct by the tab.
b. Attach the blower assembly to the housing by 3 screws.

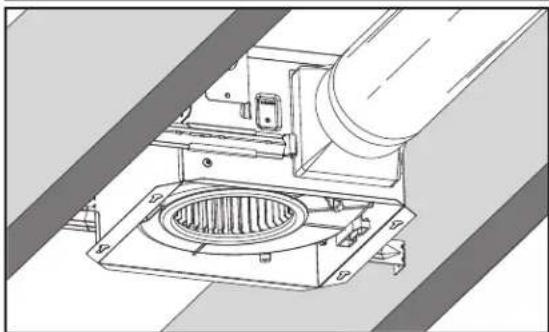

5. Install round ductwork.

a. Connect the round ductwork (not included) to the damper/duct connector, and run the ductwork to a roof or wall cap (not included).
b. Using tape (not included), secure all the ductwork connections so that they are air tight.
c. Insulated flexible duct is recommended for the quietest possible installation. If rigid duct is used, a short (1-3 feet) section of insulated flexible duct will ensure quiet operation.

The ducting from this fan to the outside of building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow.

Technical line drawing of a mechanical assembly with mounting brackets and a diagonal rod (no text or symbols)

Hole Hole Hole

Technical line drawing of a mechanical assembly with a circular component and pipe (no text or symbols)

ELECTRICAL WIRING CONNECTION

Run 120 V AC house wiring to the location of the fan. Use only UL-approved connectors (not included) to attach the house wiring to the wiring plate. Refer to the wiring diagram, and connect the wires as shown.

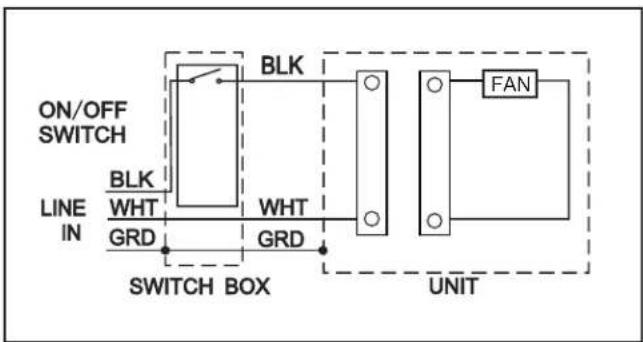

ON/OFF SWITCH LINE IN BLK WHT GRD SWITCH BOX BLK WHT GRD UNIT FAN

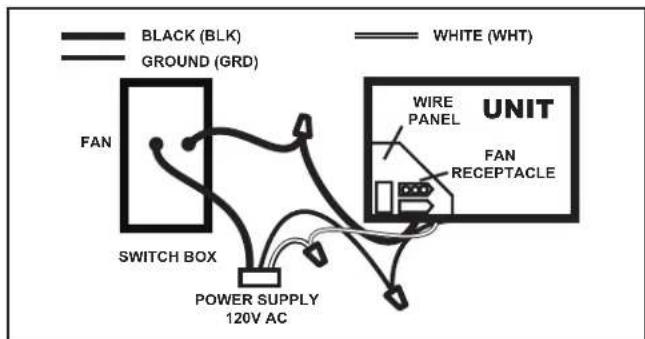

BLACK (BLK) GROUND (GRD) FAN SWITCH BOX POWER SUPPLY 120V AC WHITE (WHT) WIRE PANEL UNIT FAN RECEPTACLE

GRILLE INSTALLATION

Install ceiling material to complete the ceiling construction. Then, cut around the fan housing.

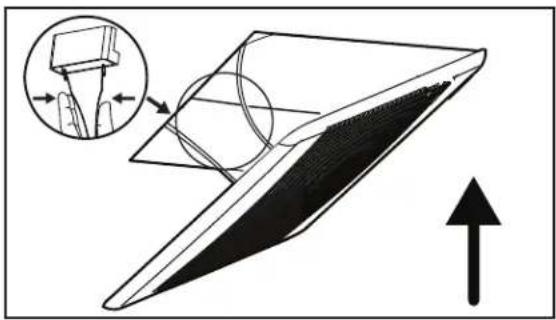

To attach the grille assembly to the fan housing. Pinch the grille springs on the sides of the grille assembly, and position the grille into the housing with the grille springs in the appropriate slots. Push the grille assembly towards the ceiling to secure.

Diagram of a mechanical component with an inset showing a close-up view of a cylindrical part and a circular hole, plus an upward arrow (no text or symbols)

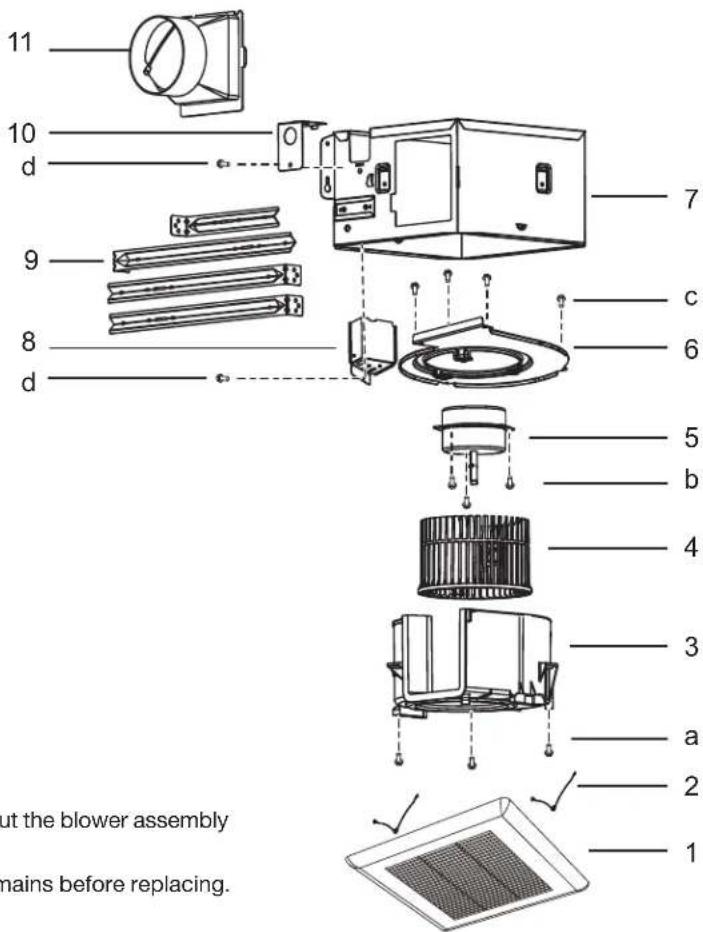

SERVICE PARTS

PARTPART NAMEQTY
1Grille Assembly (2 parts)1
2Grille Spring2
3Blower1
4Blower Wheel1
5Motor1
6Motor Plate1
7Housing1
8	Wire Panel /Harness Assembly	1
9Hanger Bars		4
10	Wiring Plate	1
11	Damper /Duct Connector	1
a	Screw	3
b	Screw	3
c	Screw	4
d	Screw	2

Blower Assembly includes part 3, 4, 5, 6, a, b, c
Replacement installation: Remove the screw (part a), then take out the blower assembly from the housing (part 7). Replace the broken parts.
WARNING: Ensure that the fan is switched off from the supply mains before replacing.

WARRANTY

11 10 d 9 8 d 7 c 6 5 b 4 3 a 2 1 ut the blower assembly mains before replacing.

CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year from the date of purchase CANARM Ltd. shall either repair or replace at CANARM's option, any unit or part thereof, returned freight prepaid and found to be defective.

This warranty does not include any labour or transportation costs incidental to the removal and reinstallation of the unit at the user's premises.

NOTICE: No warranty claims will be honored by CANARM Ltd. unless prior authorization is obtained.

Canarm Ltd. - Corporate Head Office 2157 Parkedale Avenue, PO Box 367 Brockville, Ontario Canada K6V 5V6

Tel: [phone]

Fax: [phone]

www.canarm.com

[e-mail]

SÉRIE CNP

VENTILATEURS D'EXTRACTION COMPACTS ULTRA SILENCIEUX

MODE D'OPÉRATION

LIRE ET GARDER CES INSTRUCTIONS

CANARM®

HVAC

MODÈLES: CNP80, CNP100

Technical line drawing of a ceiling-mounted air duct fixture with ventilation grilles and mounting bracket (no text or symbols)

OPÉRATION

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Four technical line drawings of a mechanical or electrical component assembly, showing front, side, top, and side views with no visible text or symbols.

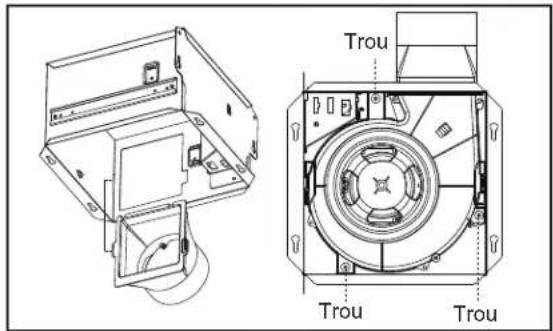

INSTRUCTIONS DE MONTAGE SUITE

Technical line drawing of a mechanical assembly with mounting brackets and a central rod (no text or symbols)

Trou Trou Trou

Technical line drawing of a mechanical assembly with a circular component and pipe (no text or symbols)

CONNEXION DU CÂBLAGE ÉLECTRIQUE

Diagram of a mechanical component with an inset showing a close-up view of a cylindrical part and a circular feature, accompanied by an upward arrow (no text or symbols present)

PIÈCES DE RECHANGE
