USER MANUAL EEE PAD TRANSFORMER PRIME TF201 ASUS

Charging Your Batteries

If you intend to use battery power, be sure to fully charge your battery pack before going on long trips. Remember that the power adapter charges the battery pack as long as it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge the battery pack when the Eee Pad is in use.

Remember to fully charge the battery (8 hours or more) before first use and whenever it is depleted to prolong battery life. The battery reaches its maximum capacity after a few full charging and discharging cycles.

Airplane Precautions

Ask an airline personnel if you want to use your Eee Pad onboard an aircraft. Most airlines have restrictions for using electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings.

There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can send your Eee Pad through airport X-ray machines. But do not send your Eee Pad through airport magnetic detectors or expose it to magnetic wands.

Contents

Charging Your Batteries. 1
Airplane Precautions 1

Contents 2
Package Contents 4
Your Eee Pad. 5
Charging the Eee Pad 8
Your Eee Pad Mobile Docking (optional) 9

Special Keyboard Functions 11

Docking the Eee Pad 13
Undocking the Eee Pad. 14
Charging the Eee Pad on the Docking 15
To Begin 16

Unlock your Eee Pad 16
Home Screen 16
ASUS Launcher 17
Screen Views. 18
Touch Panel Control 19
File Manager 21
Market 23

Settings 24

Power Management 27

ASUS Battery 27

Music 28

Image 29

Gallery 29

Camera 32

Mail 33

Email 33

Gmail 35

Reading 36

MyLibrary 36

Locating 39

Places and Maps 39

Documenting 40

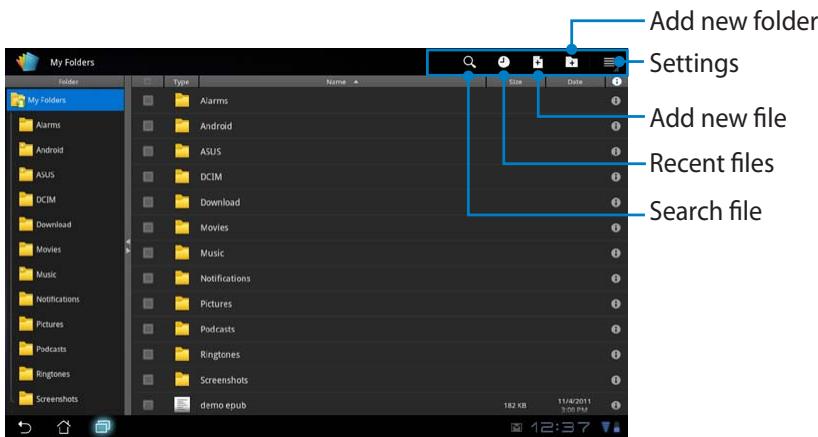

Polaris® Office 40

Sharing 44

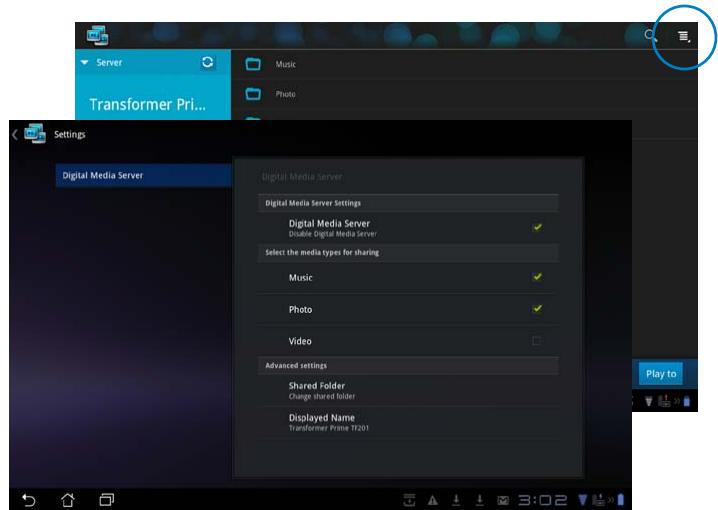

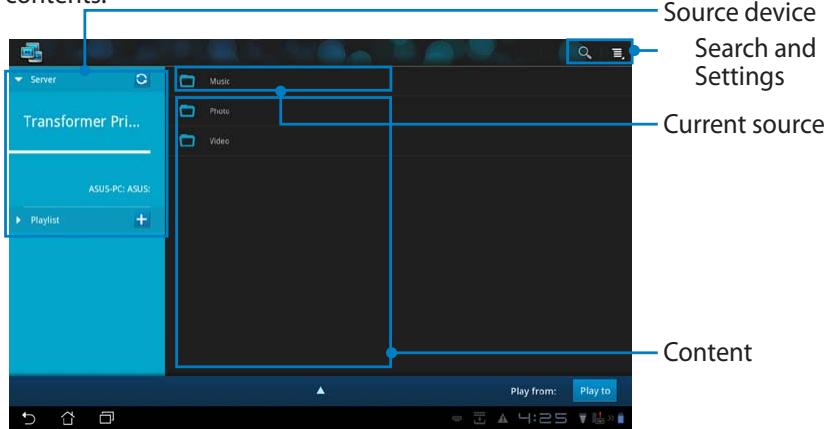

MyNet 44

MyCloud 47

Security 55

AppLocker 55

App Backup 56

ASUSFeaturedApp. 58

SuperNote 58

Eee Pad PC Suite (on PC). 63

My Desktop PC Server. 63

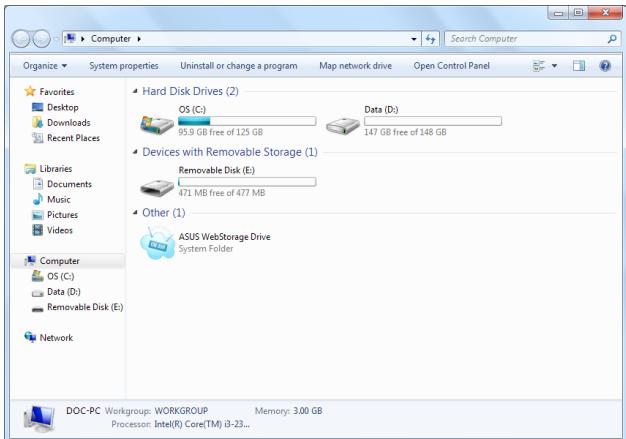

ASUS Webstorage. 63

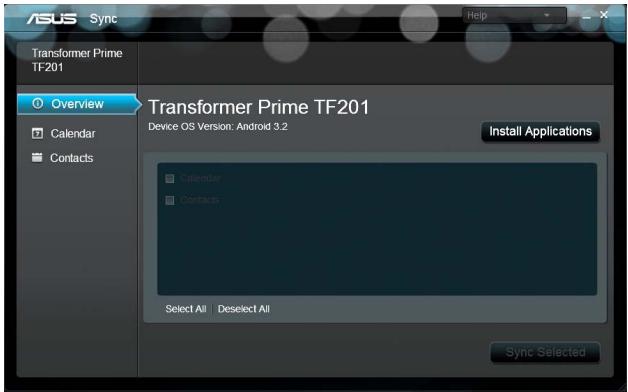

ASUS Sync 64

Declarations and Safety Statements 66

Federal Communications Commission Statement. 66

RF Exposure Information (SAR) 66

IC Regulations 67

IC Radiation Exposure Statement. 67

CE Mark Warning. 68

Power Safety Requirement 68

ASUS Recycling/Takeback Services. 68

Copyright Information 70

Limitation of Liability. 70

Package Contents

Eee Pad	USB Charger
Power Plug	Docking connector to USB cable
User Manual	Warranty Card

If any of the items is damaged or missing, contact your retailer.
- The power plug that comes with your Eee Pad may vary depending on your territory to fit the wall outlet.

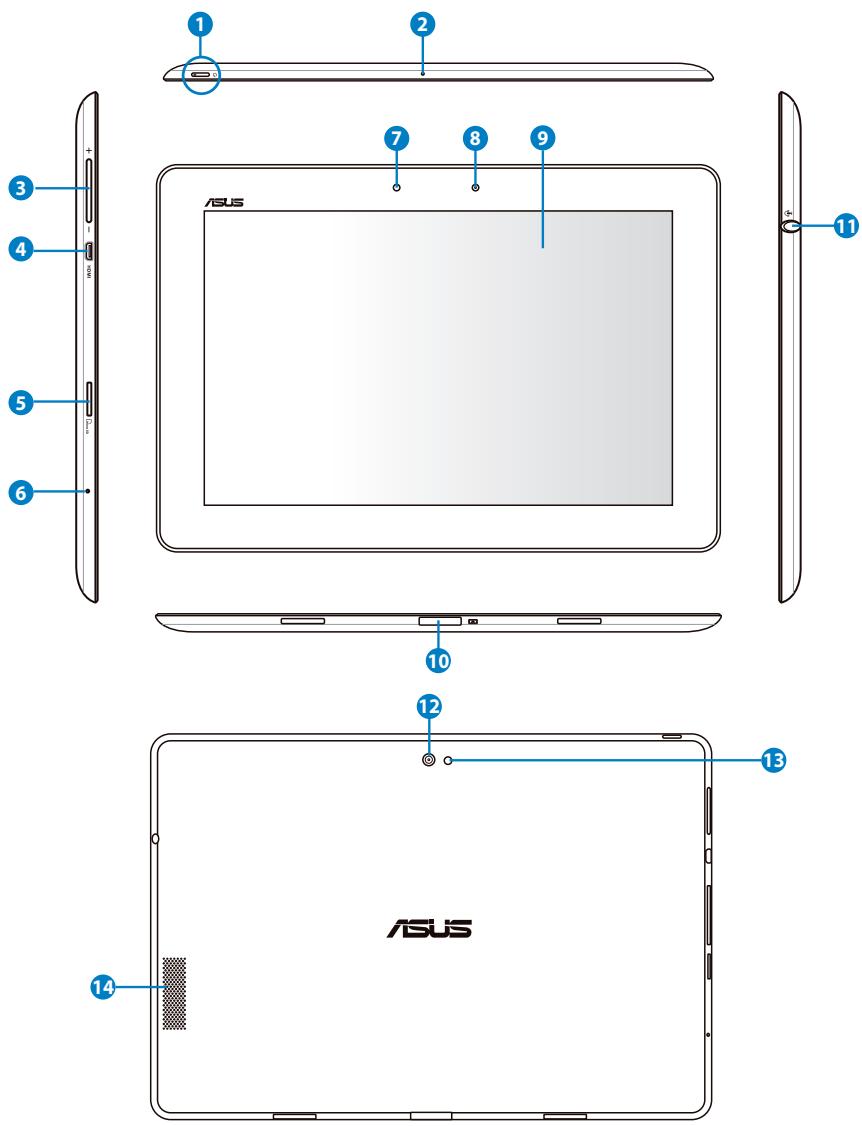

Your Eee Pad

Power Button

The power button turns your Eee Pad on/off. Hold the power button for 1 second and release the button to power on your Eee Pad. When the Eee Pad is powered on, press the power button to put the Eee Pad into sleep mode or wake it up from sleep mode. Hold the power button for 0.5 second to display the shutdown dialog box.

Battery Charge Indicator (dual-color)

Dim: The power charger is not plugged in the Eee Pad.

Green ON: The battery level is up to 100%

Orange ON: The Eee Pad is in battery charging status.

Built-in Microphone

The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio recordings.

3 Volume Key

Press this button to increase or decrease the system volume.

4 Micro HDMI Port

Insert a micro HDMI cable into this port to connect to a high-definition multimedia interface (HDMI) device.

Micro SD Card Slot

Insert Micro SD card into this slot.

6 Reset Button

If the system becomes unresponsive, press the reset button to force the Eee Pad to restart.

Forcing the system to restart may result in data loss. Please inspect your data to ensure there is no data loss. We strongly recommend that important data be backed up regularly.

Light Sensor

The light sensor detects the amount of light in your environment and automatically adjusts the brightness of the display panel for better viewing.

Built-in Front Camera

Use the built-in camera for picture taking, video recording, video conferencing, and other interactive applications.

9 Touch Screen Panel

The Touch Screen Panel allows you to operate your Eee Pad using multi-touch up to ten fingers.

10 Docking Connector

• Insert the power adapter into this port to supply power to your Eee Pad and charge the internal battery pack. To prevent damage to your Eee Pad and battery pack, always use the bundled power adapter.
• Connect the docking connector to USB cable to the Eee Pad and another system (notebook PC or desktop) for data transmission.
• Dock the Eee Pad to the mobile dock for extended functions, including keyboard, touchpad and USB interface.

11 Headphone Output/Microphone Input Combo Jack

The stereo combo jack (3.5mm) connects the Eee Pad's audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speaker.

For microphone input function, the jack best supports headset microphones by ASUS.

Built-in Rear Camera

Use the built-in camera for picture taking, video recording, video conferencing, and other interactive applications.

13 Camera LED Flash

Use the flash to take photos when lighting conditions are poor or when there is a backlight.

14 Audio Speaker System

The built-in stereo speaker system allows you to hear audio without additional attachments. Audio features are software controlled.

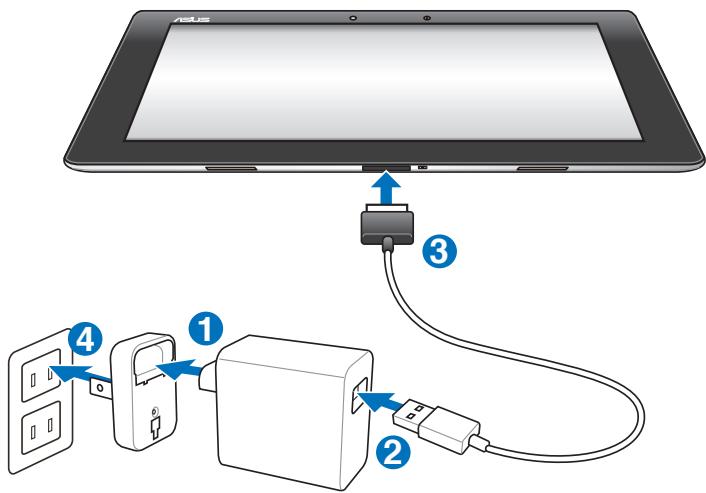

Charging the Eee Pad

• Use only the power adapter that comes with your device. Using a different power adapter may damage your device.
• Using the provided power adapter and USB cord to connect your Eee Pad to a power outlet is the best way to charge the Eee Pad.
• The input voltage range between the wall outlet and this adapter is AC 100V–240V, and the output voltage of this adapter is DC 15V, 1.2A.

• To prolong battery life, fully charge the battery for up to 8 hours when using the Eee Pad for the first time and whenever the battery power is fully depleted.
• TF201 can be charged via the USB port on the computer only when it is powered off.
• Charging through the USB port may take longer time to complete.
• If the computer does not provide enough power for charging Eee Pad, use the wall outlet instead.

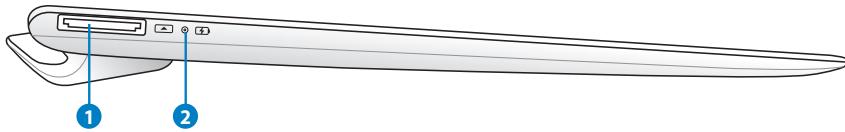

Your Eee Pad Mobile Docking (optional)

The Eee Pad mobile docking is purchased separately.

Docking Connector

• Insert the power adapter into this port to supply power to your Eee Pad and charge the internal battery pack. To prevent damage to your Eee Pad and battery pack, always use the bundled power adapter.
• Connect the docking connector to USB cable to the Eee Pad and another system (notebook or desktop) for data transmission.

2 Battery Charge Indicator (dual-color)

Dim: The power charger is not plugged in the mobile docking.

Green ON: The battery level is up to 100%

Orange ON: The mobile dock is in battery charging status.

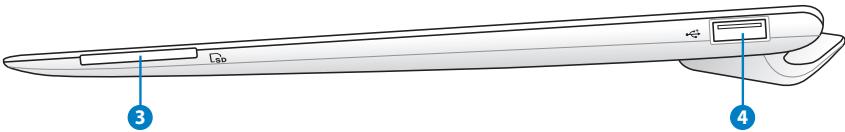

3 Memory Card Slot

This Eee Pad mobile dock has a built-in high-speed memory card reader that can conveniently read from and write to many flash memory cards.

4 USB Port (2.0)

The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, flash disk drive and hard disk drives.

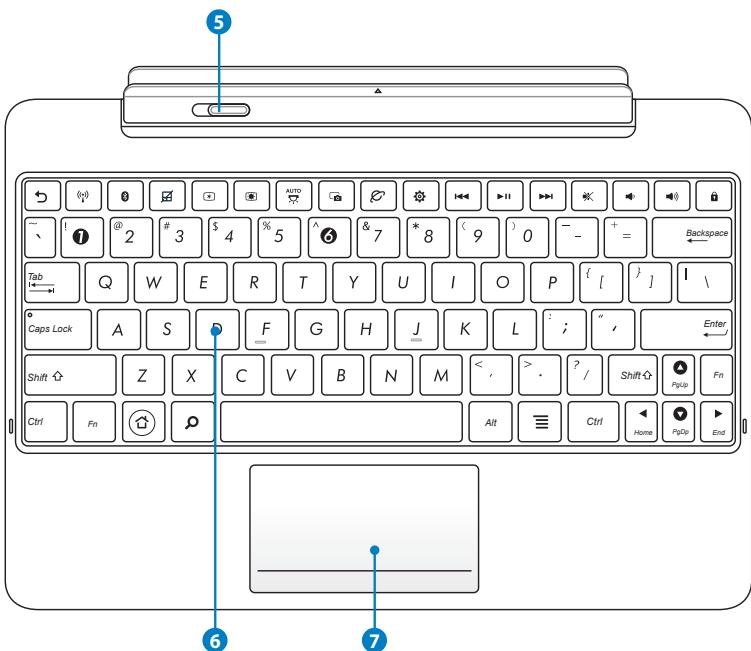

5 Mobile docking latch

Move the mobile docking latch to the left to release the Eee Pad from the mobile docking.

6 Keyboard

The keyboard provides comfortable travel (depth at which the keys can be depressed) and palm rest for both hands.

The keyboard differs by territory.

7 Touchpad

The touchpad area marked below can be used to simulate the left and right mouse buttons.

Special Keyboard Functions

The following defines the hot keys on the Eee Pad mobile docking's keyboard. Some commands may have standalone function and some must combine with the function key .

The Hot Key locations on the function keys may vary depending on model but the functions should remain the same. Follow the icons instead of the function keys.

Returns to the previous page.

Toggles the internal wireless LAN ON or OFF.

Toggles the internal Bluetooth ON or OFF.

Toggles the touchpad ON or OFF.

Decreases display brightness.

Increases display brightness.

Toggles the ambient light sensor ON or OFF.

Captures screen image.
Initiates web browser.
Opens the Settings screen.
l Returns to the previous track when playing music.
Starts playing music from your playlist. Resumes or pauses the current music playing.
Fast forwards or skips to the next track during the music playing.
Mutes the speaker.
Decreases the speaker volume.
Increases the speaker volume.
Locks the Eee Pad and puts it into sleep mode.

Press and arrow keys to scroll up and down or scroll to the start and end in documents.

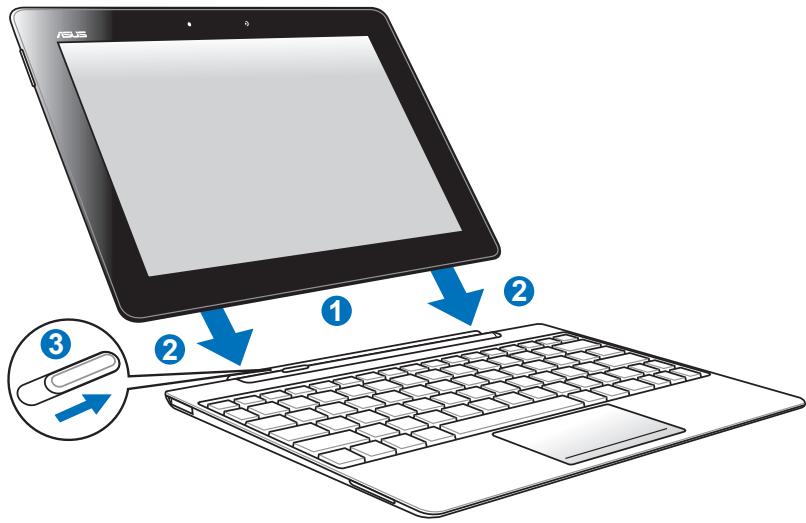

Docking the Eee Pad

1. Align the Eee Pad with the mobile docking.
2. Firmly insert the Eee Pad into the socket until it snaps in place and the Eee Pad is properly seated.
3. Ensure that the latch completely moves to the right.

When your Eee Pad is attached to the mobile docking, never pick up the Eee Pad alone. Always pick up the entire assembly from the bottom of the mobile docking.

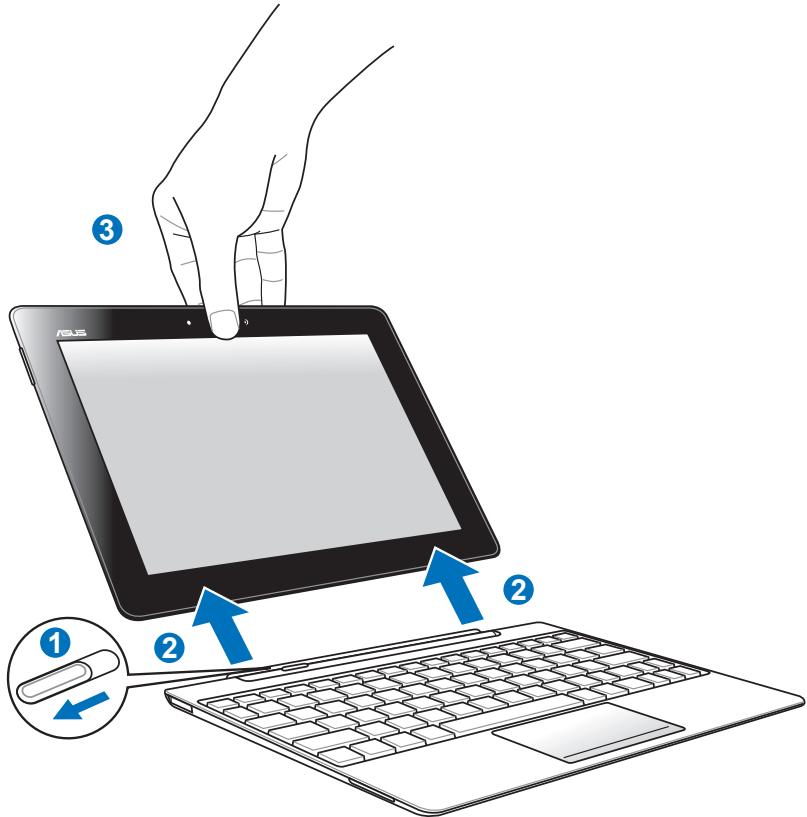

Undocking the Eee Pad

1. Use one hand to move the latch to the left to release the Eee Pad and stabilize the mobile docking.
2. Use the other hand to remove the Eee Pad from the mobile docking.

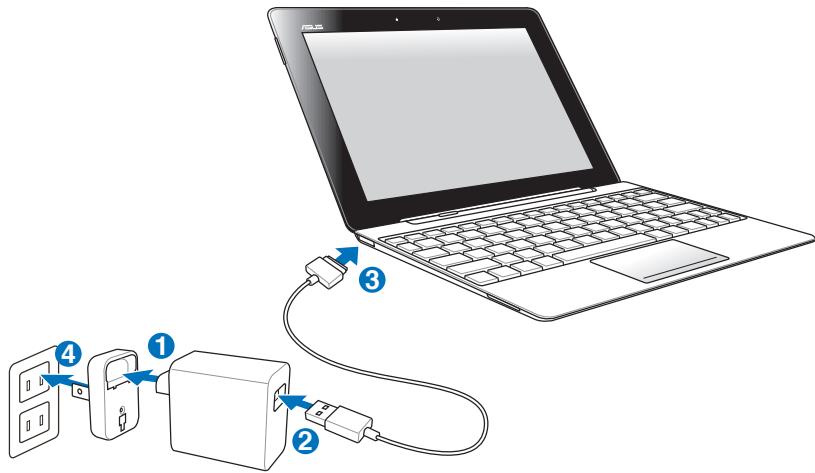

Charging the Eee Pad on the Docking

• Use only the power adapter that comes with your device. Using a different power adapter may damage your device.
• The input voltage range between the wall outlet and this adapter is AC 100V-240V, and the output voltage of this adapter is DC 15V, 1.2A.

• To prolong battery life, fully charge the battery for up to 8 hours when using the Eee Pad for the first time and whenever the battery power is fully depleted.
• The Eee Pad cannot be charged via USB cord when it is connected to the mobile docking.

To Begin

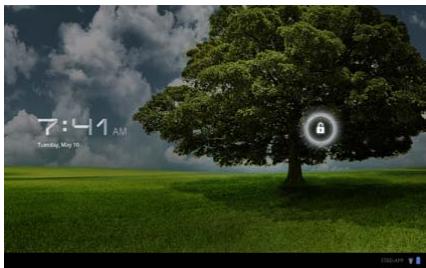

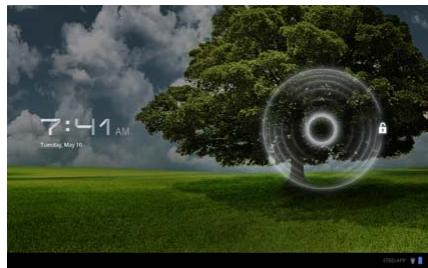

Unlock your Eee Pad

Tap and drag the lock out of the circle to unlock your Eee Pad.

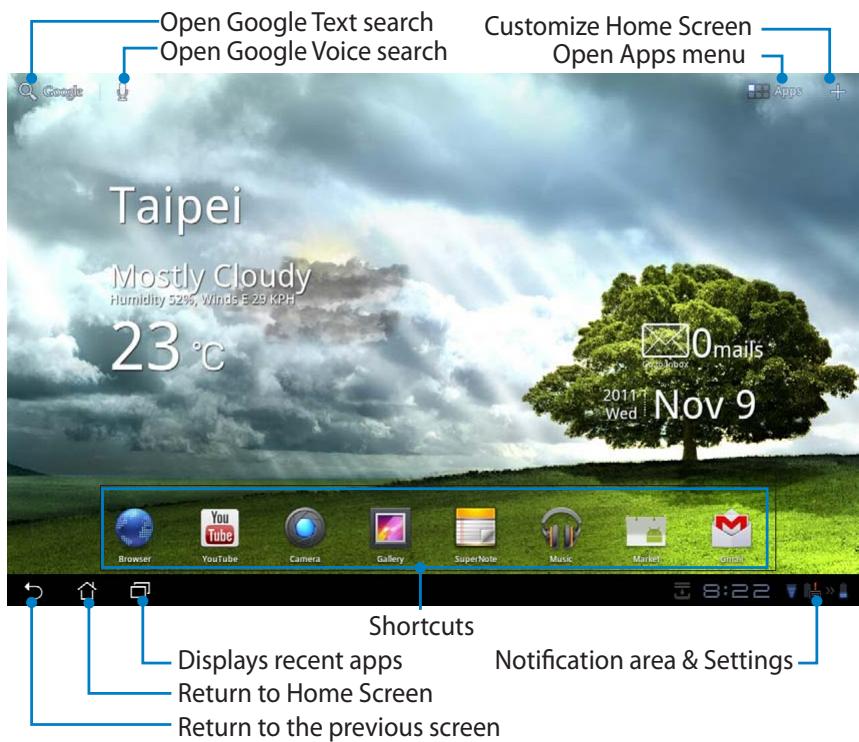

Home Screen

The Home Screen may update and change with Android OS.

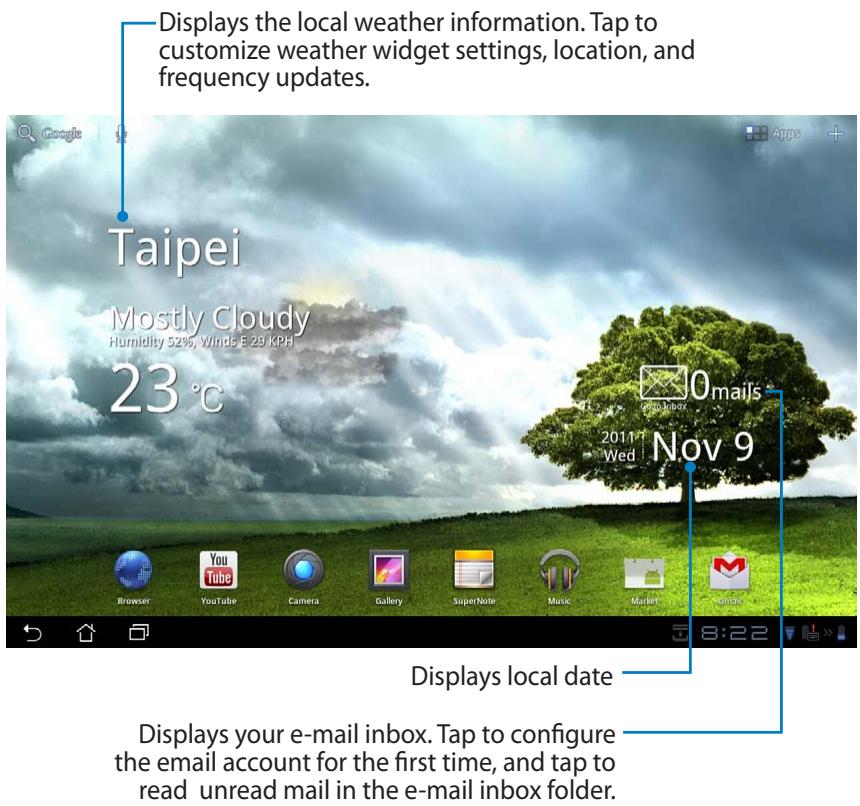

ASUS Launcher

Screen Views

The screen view rotates by itself when you hold the tablet horizontally to vertically, and vice versa. To enable/ disable Auto-rotate screen, go to Settings>Screen to configure.

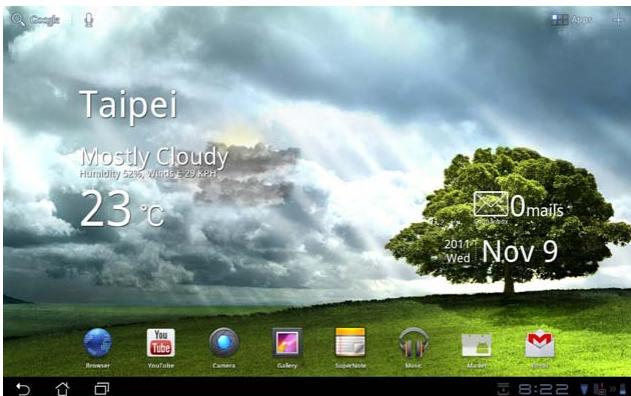

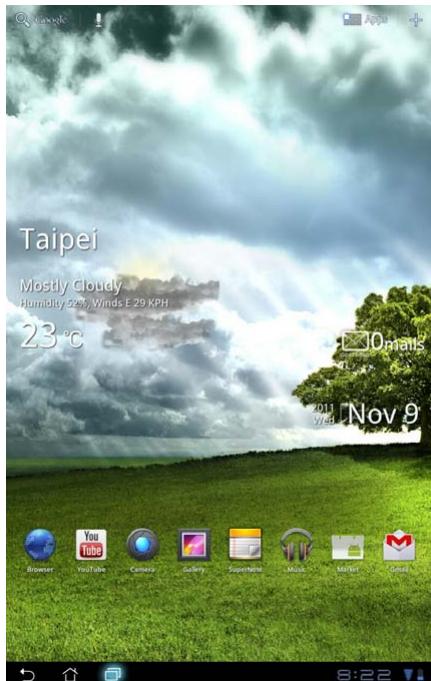

Landscape view

Portrait view

Touch Panel Control

Single tapping

• Single-tapping on the touch panel allows you to select a desired item or activate an application.
• Single-tapping in the File Manager allows you to open, select, Copy, Cut, Delete, or Rename the desired files.

Long pressing

• Long-pressing, or holding, an application allows you to drag and drop the application or the application shortcut to another Home Screen.
• Long-pressing the Recent Apps Key allows you to capture screen images. (To enable Screenshot, go to Settings>ASUS Customized Setting)
• Long-pressing a file in the Gallery allows you to enter selection mode.

Pinching

Use two fingers to pinch an image in the Gallery, Maps, or Places to zoom in or zoom out.

Flipping

Use one finger to flip back and forth between home screens, through different images in the Gallery or pages in MyLibrary and SuperNote.

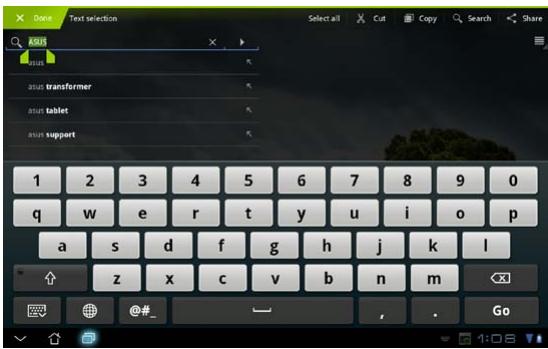

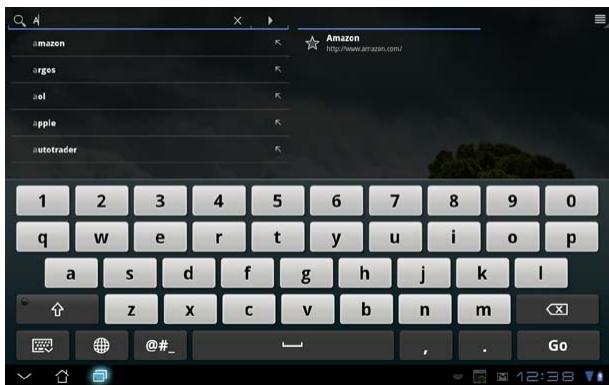

Inputting, inserting, selecting, and copying text

When the Eee Pad is undocked, the panel keyboard appears when you tap on Google Text Search on the upper left corner. Enter a web address on the web browser address bar or use word processor to edit documents.

After typing in Google Text Search, tap on the text you have just inputted and you will see an insertion point. Move by dragging the point or tapping on the space you would like to insert a letter or a word.

Double tap or hold the text to cut or copy the selected text. You can move the selection tab to expand or reduce the range of the selected text.

Tap or hold the desired text on the web page and a tool bar appears on the top. You can copy, share, select, find, or search on the web.

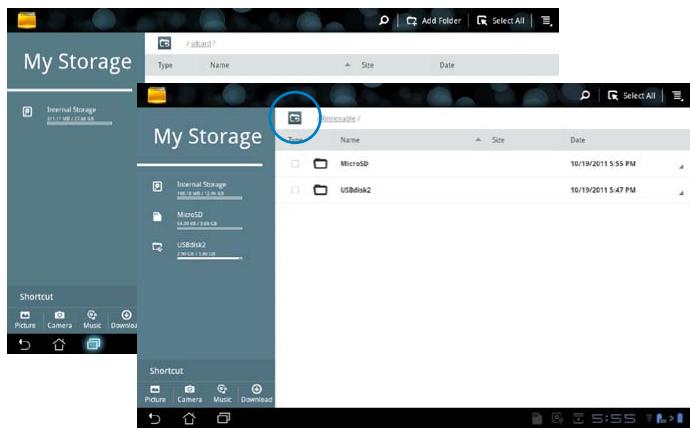

File Manager

File Manager allows you to easily locate and manage your data either on the internal storage device or the connected external storage devices.

To access the internal storage:

1. Tap on the Apps menu shortcut on the top right corner.
2. Tap on File Manager to go into My Storage.

1. The Internal Storage (/sboard/) and any connected external storage devices (/Removable/) are displayed on the left panel. Select a source by tapping to view the content.
2. Tap on the Return folder icon to return to the root directory of My Storage.

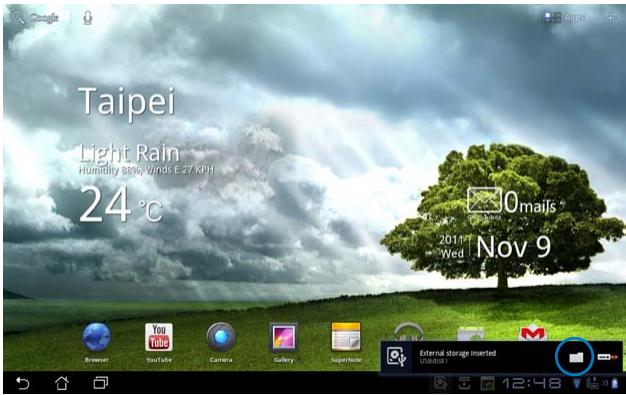

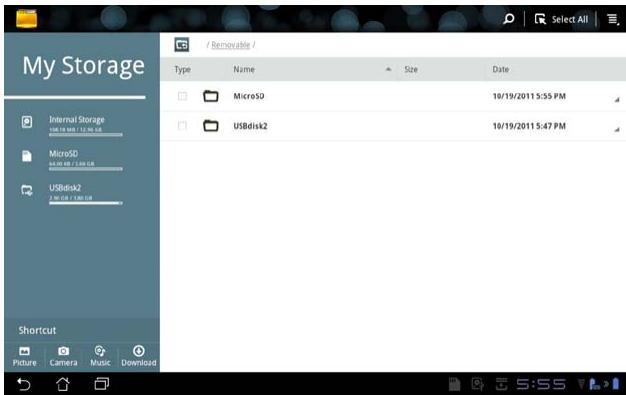

To access the external storage device directly:

1. Tap the USB or SD card icon on the bottom right corner.
2. Tap on the folder icon in the pop-up notification box.

1. The content of the external storage device (Removable/XXX/) is displayed.

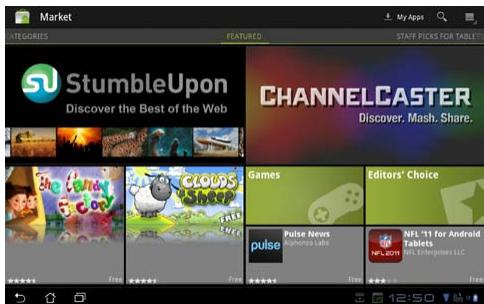

Access all kinds of enjoyment and tools in the Android Market with your Google account. Set up your account for the first time and you can access the market anytime you want.

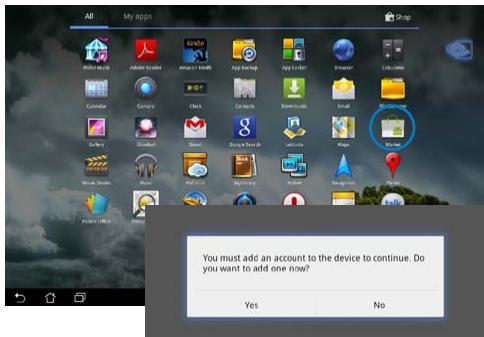

1. Tap the Market icon on the Apps menu.
2. You have to add an account to your Eee Pad to continue. Tap Yes to continue.

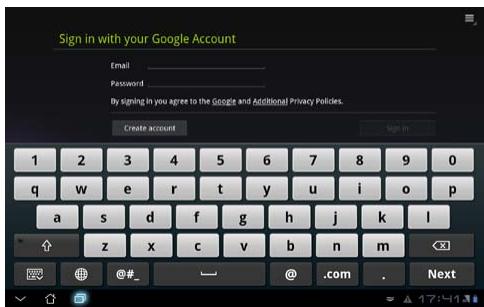

1. Enter your Email and Password to Sign in if you already have an account. If not, tap Create account to create your Google Account.

1. After signing in, you can download and install applications from the Android Market.

Some applications are free and some might charge you through a credit card.

You cannot restore the deleted applications, but you can login with the same ID and download them again.

Settings

Settings screen allows you to configure the settings of your Eee Pad, including Wireless & network, Sound, Screen, Location & security, Applications, Account & sync, Privacy, Storage, Language & input, Accessibility, ASUS Customized Setting, and Date & time. Tap on the tabs on the left to switch screens and do the configurations.

There are two ways to enter the Settings screen.

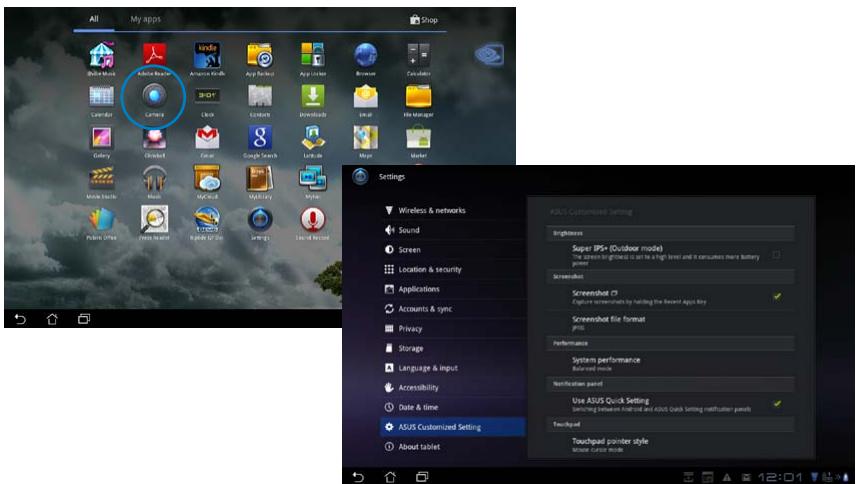

From the Apps menu:

1. Tap the Apps menu shortcut on the top right corner.
2. Tap on Settings to display the settings menu.

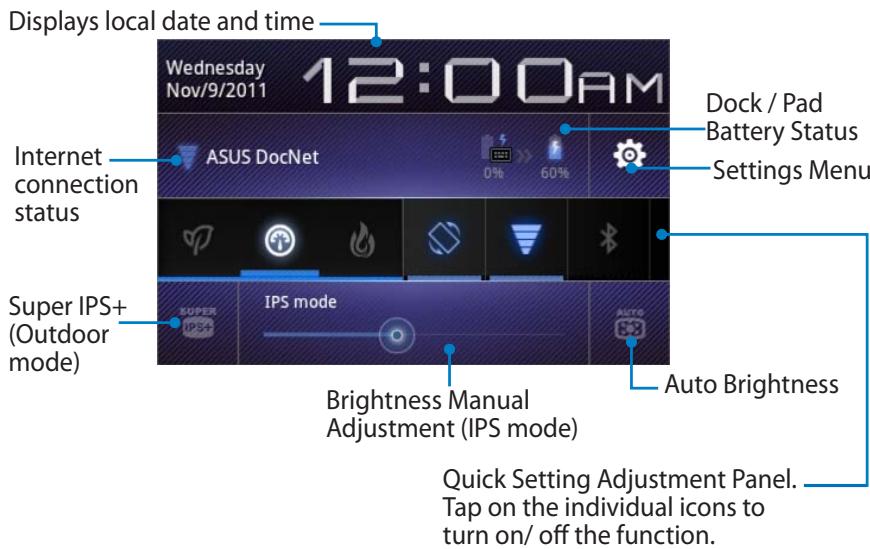

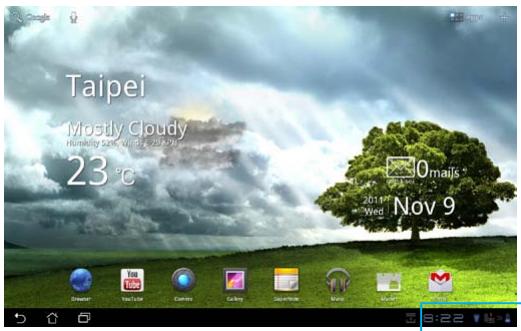

From ASUS Quick Setting:

Tap on the notification area on the bottom right corner. The Quick Setting panel will pop up on the right.

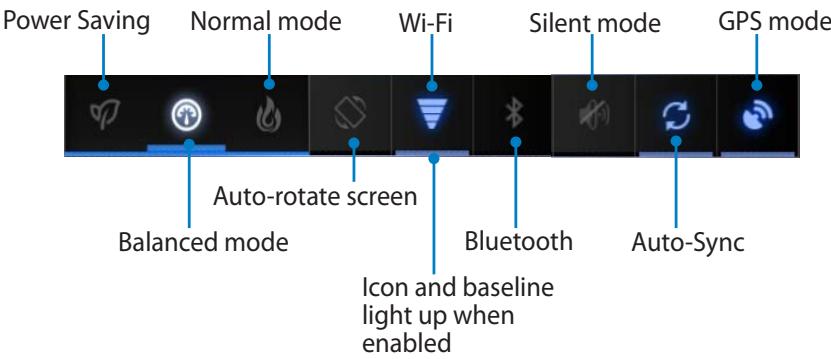

ASUS Quick Setting Adjustment Panel

Tap on the individual utility icons to enable or disable its function.

• Balanced mode: [Default] Optimal battery status and performance
  Normal mode: Optimal system performance
  Power saving mode: Energy saving

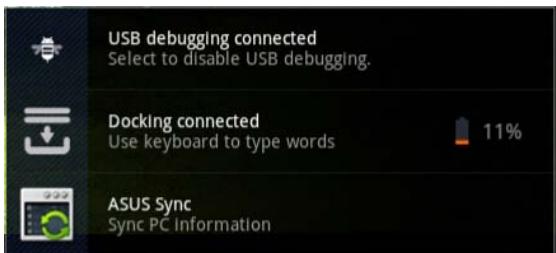

Notification Panels

Notification panels will appear under Quick Setting for prompt updates in apps, incoming emails, and utility status.

You can enable or disable ASUS Quick Setting to Simplified Mode in Settings>ASUS Customized Setting>Notification Panel.

Power Management

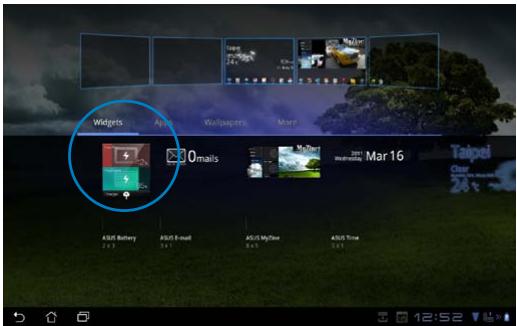

ASUS Battery

This featured widget shows the individual battery status of the Eee Pad and keyboard dock by percentange and color. The more battery power, the brighter the color.

1. Tap on the plus sign (+) on the top right corner of the Home Screen to access tablet utilities.
2. Tap on Widgets to display the widgets menu.
3. Select ASUS Battery. The ASUS Battery box will appear on the Home Screen.

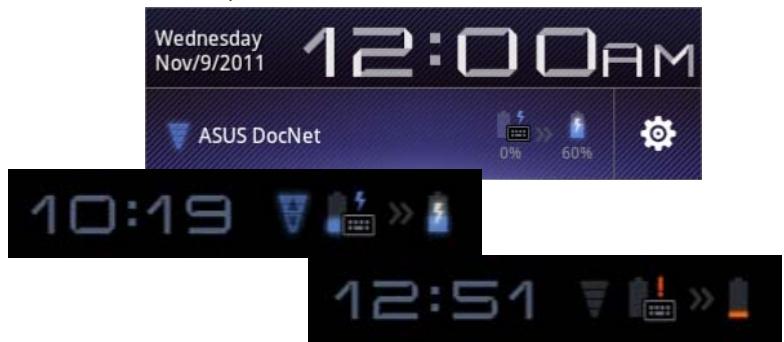

1. ASUS Quick Setting and the notification panel also display battery status. The battery status of the Eee Pad and dock are shown separately. When low in power, the battery icon color turns from blue to red accompanied by an exclamation mark. There will also be a warning sound to notify users of low battery status.

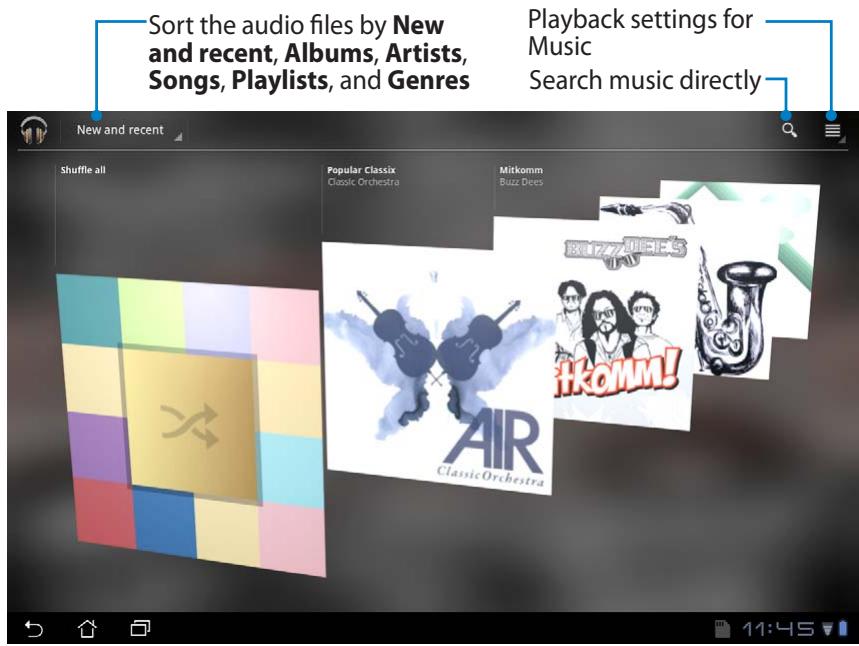

Tap Music on the Home Screen to play your desired music files. This application automatically collects and displays all the audio files stored in your Eee Pad and the connected external storage devices.

You can shuffle and play all audio files randomly or flip to select your desired album for music enjoyment.

Use the buttons on the top to either sort or search your audio files quickly.

The audio and video codec supported by TF201:

Decoder

Audio Codec: AAC LC/LTP, HE-AACv1(AAC+), HE-AACv2(enhanced AAC+),

AMR-NB, AMR-WB, MP3, FLAC, MIDI, PCM/WAVE, Vorbis,

WAV a-law/mu-law, WAV linear PCM, WMA 10,

WMA Lossless, WMA Pro LBR

Video Codec: H.263, H.264, MPEG-4, VC-1/WMV, VP8

Encoder

Audio Codec: AAC LC/LTP, AMR-NB, AMR-WB

Video Codec: H.263, H.264, MPEG-4

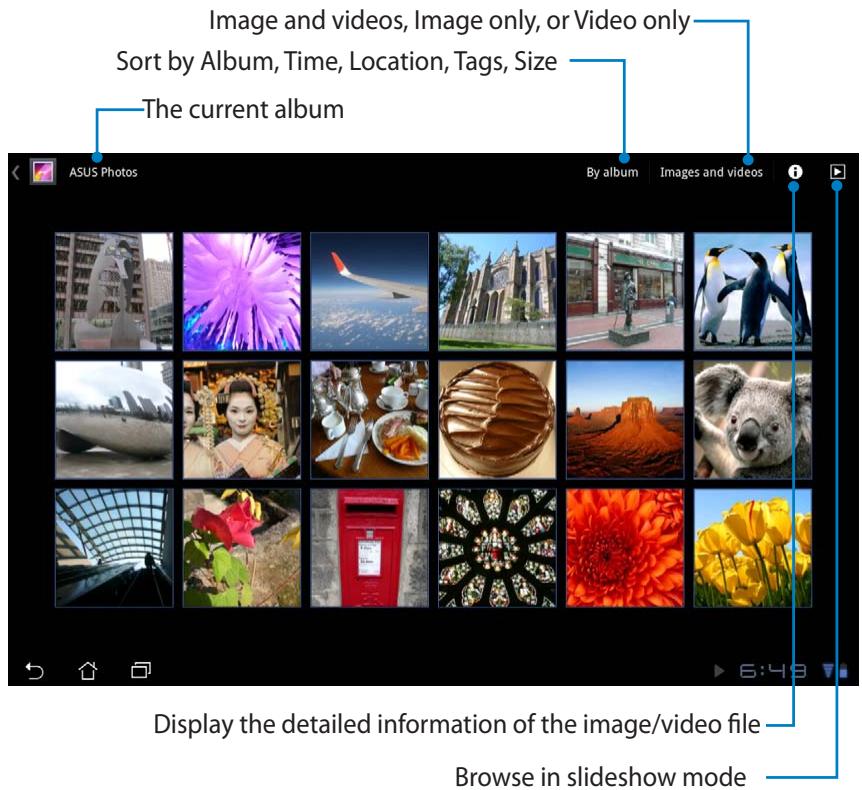

Gallery

Tap on Gallery on the Home Screen to browse your desired image or video files. This application automatically collects and displays all the image and video files stored in your Eee Pad.

You can play all image files in a slideshow, or tap to select your desired image or video files.

Use the button on the top to sort the files by album, by time, by location, by tags, or by size. You can decide to view image files only, video files only or both files.

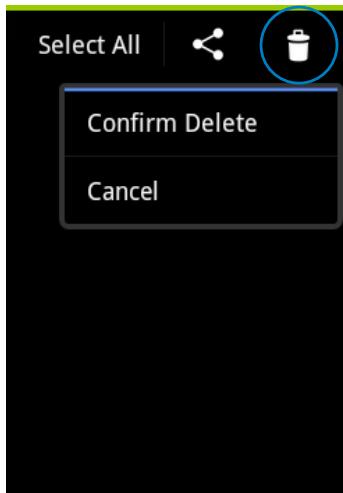

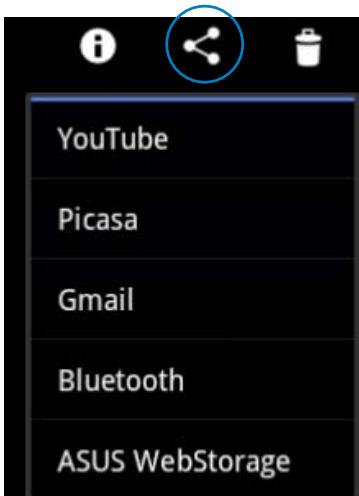

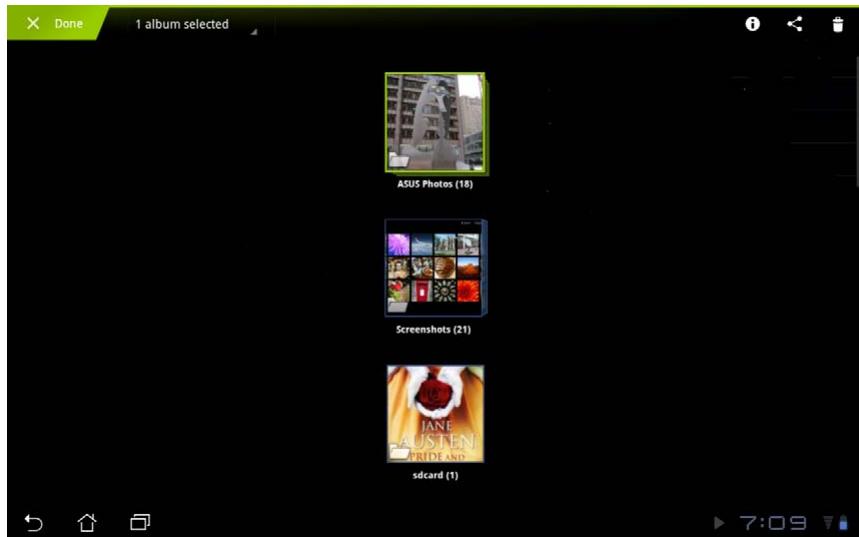

Sharing, and deleting albums

Tap on a desired album in the gallery and hold until the tool bar on the top appears. You can upload, delete, or share selected albums through the Internet.

Share the selected album through YouTube, Picasa, Gmail, Bluetooth, or ASUS Webstorage.

Delete the selected album.

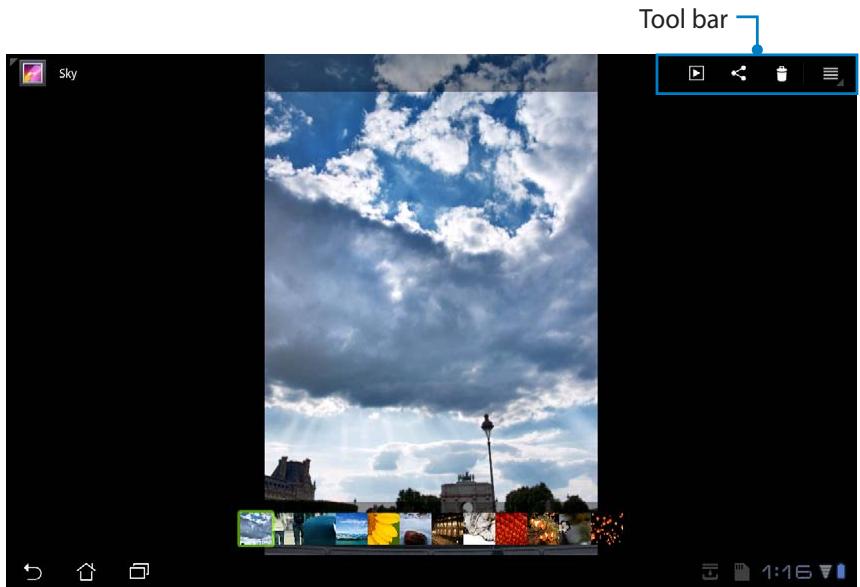

Sharing, deleting, and editing images

Tap on a desired image in the gallery and use the tool bar on the top right corner to share, delete, or edit a selected image.

Share the selected image through Picasa, Bluetooth, or Gmail.

Delete the selected image.

Check the image information, and edit the selected image.

You cannot restore a deleted file.

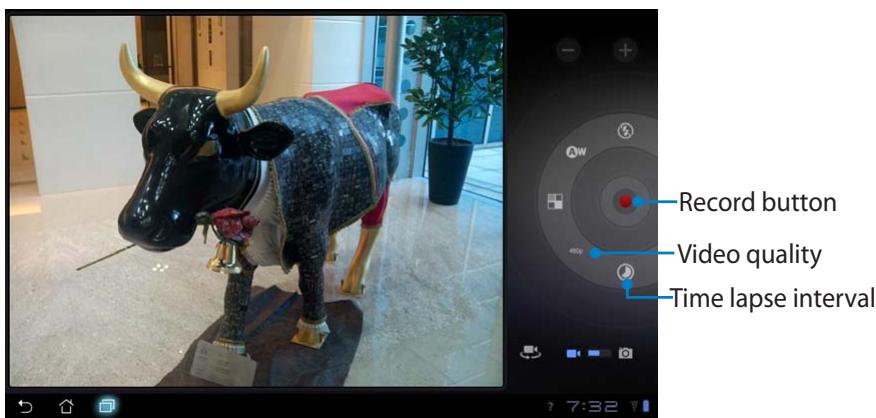

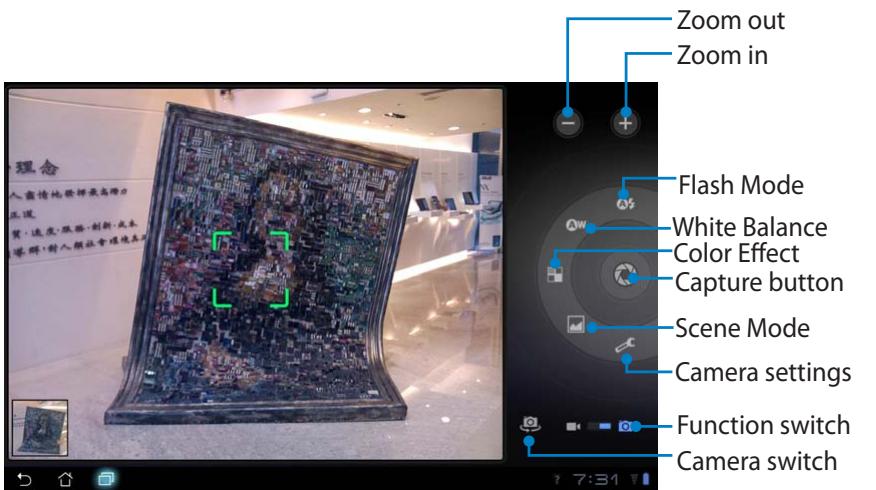

Camera

Tap Camera on the Apps menu to take pictures or record videos. You can use either the front camera or the back camera to take pictures or record videos.

The image files and video files will be saved to Gallery automatically.

Mail

Email

Email allows you to add several e-mail accounts and conveniently browse and manage your e-mails.

To set up an Email account:

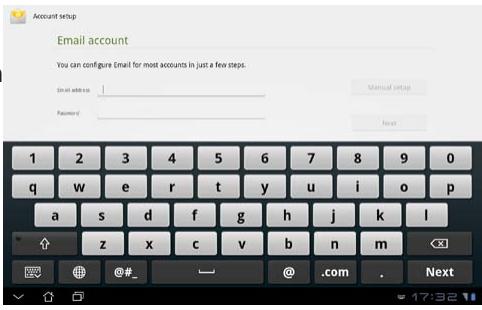

1. Tap on Email on the Apps menu. Enter your Email address and Password, then tap Next.

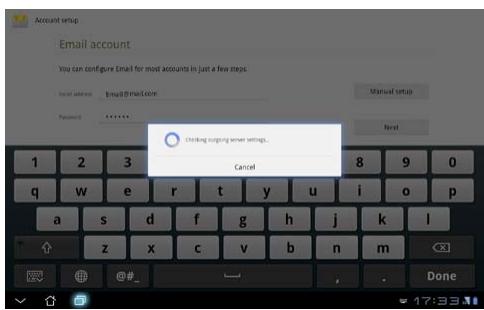

1. Please wait while the Eee Pad automatically checks your outgoing mail server settings.

1. Configure the Account options and tap Next.

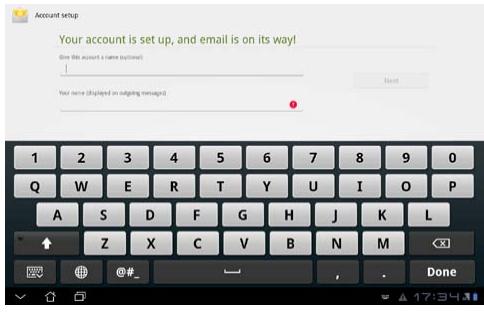

1. Name the account and enter your desired name displayed on the outgoing messages. Tap Next to login your mail inbox directly.

To add Email accounts:

1. Tap on Email and login using the account that you've previously set up.
2. Tap on Account settings button on the top right corner.

1. All the preferences of this account are displayed. Tap Add account on the top right corner to add another account.

You can include all your e-mail accounts in Email.

Gmail

Gmail (Google mail) allows you to access your Gmail account, receive, and compose e-mails.

To set up a Gmail account:

1. Tap on Gmail on the Apps menu. Enter your existing Email and Password, then tap Sign in.

Tap Create account if you do not own a Google Account.

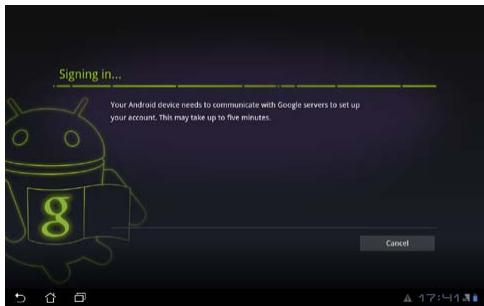

1. Please wait while your Eee Pad communicates with Google servers to set up your account.

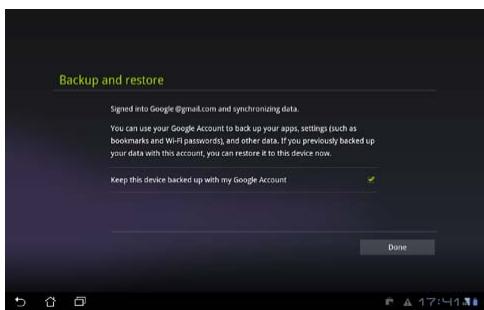

1. You can use your Google account to backup and restore your settings and data. Tap Done to sign in to your Gmail.

If you have several e-mail accounts in addition to Gmail, use Email to save your time and access all your e-mail accounts at same time.

Reading

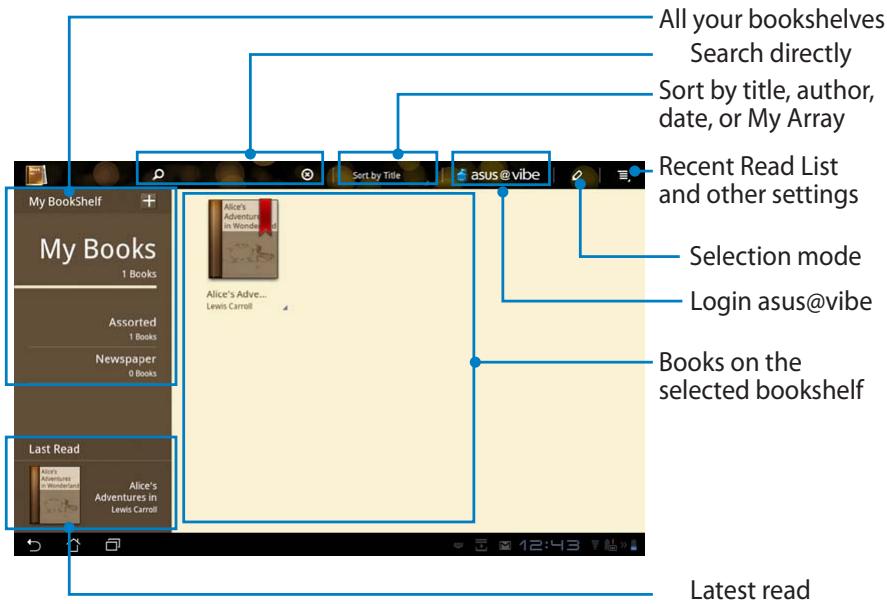

MyLibrary

MyLibrary is an integrated interface for your book collections. You can build up different bookshelves for different genres. Your purchased e-books from all different publishers are also placed on the shelves.

Login @Vibe to download more e-books.

MyLibrary supports e-books in ePub, PDF and TXT format.
- Some previewed content may need Adobe Flash® player from the Android Market to open. Download Adobe Flash® player before using MyLibrary.

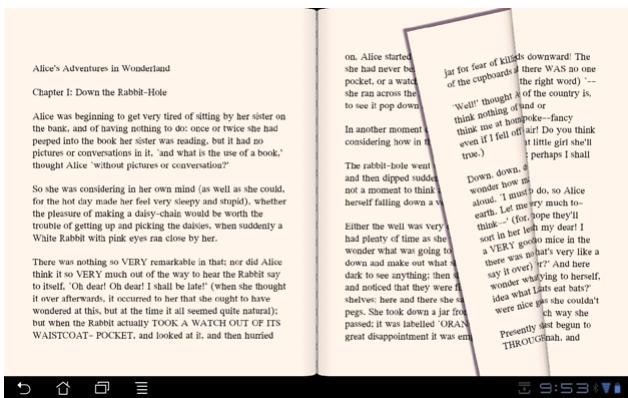

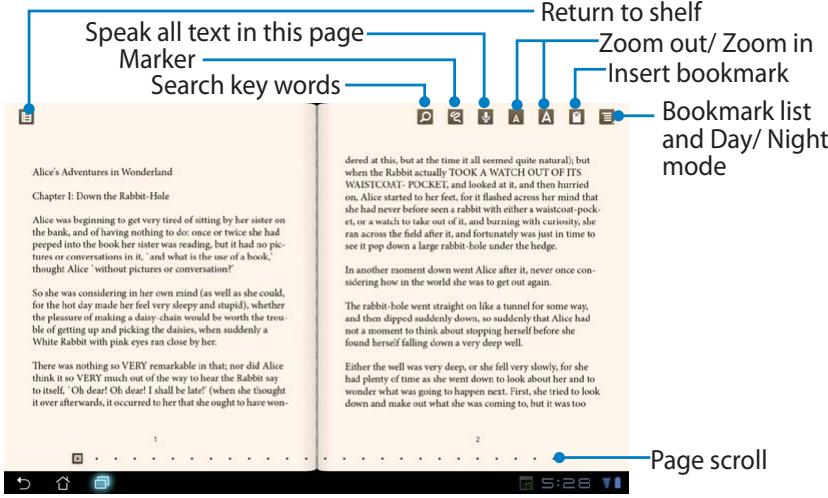

Reading your e-books

1. Select and tap on your desired e-book on the bookshelf.
2. Tap the screen to show the tool bar on the top.

1. Android initiates the download and installation of necessary resource if you would like to use the text-to-speech function.

2. Tap on the bookmark list and select the marked page to show the bookmark icon on the upper right corner of the screen.

3. Flip pages like a real book or move the page scroll at the bottom.

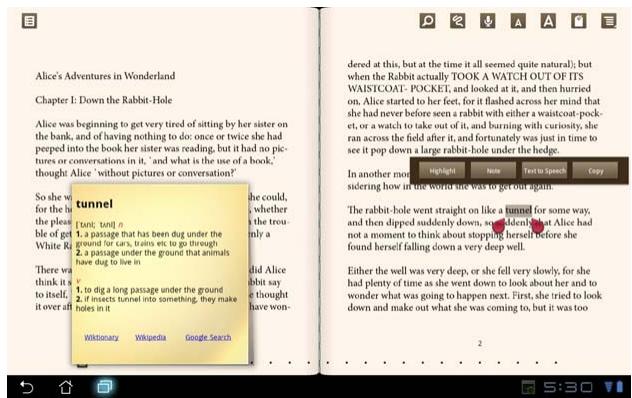

Making notes on your eBooks

1. Long press on the desired word or sentence until the tool menu and the dictionary definition are displayed.

1. You can highlight the selected word with a marker, add a note, speak the selected text, or simply copy the word.
2. Move selection tab to extend the selected region to a whole phrase or sentence if needed.

Locating

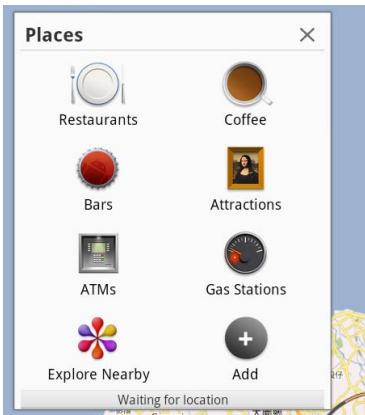

Google Places

Places offers you information of nearby attractions, including restaurants, coffee shops, gas stations, etc..

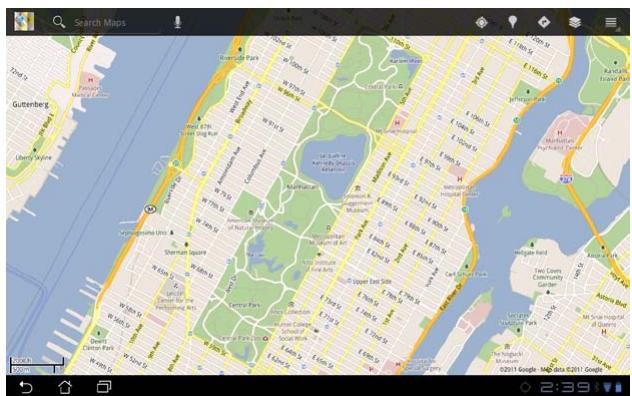

Google Maps

Maps helps you locate where you are. Use the tool bar on the top to get directions or create your own maps.

Documenting

Polaris® Office

Polaris® Office is an office software that supports Document, Sheet and Slide. To start using Polaris® Office:

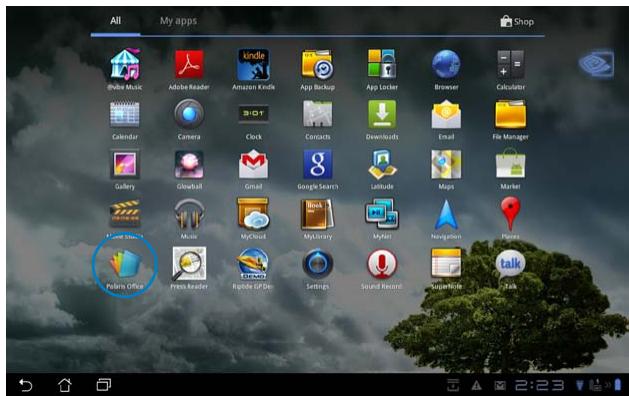

1. Tap on Apps menu on the top right corner.
2. Tap Polaris® Office.

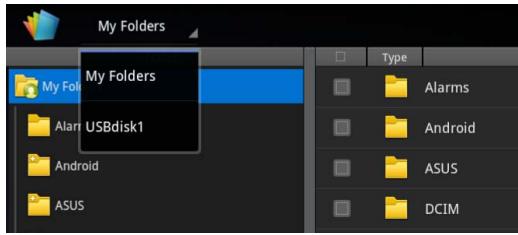

1. Tap on My Folders on the upper left and select the desired file.

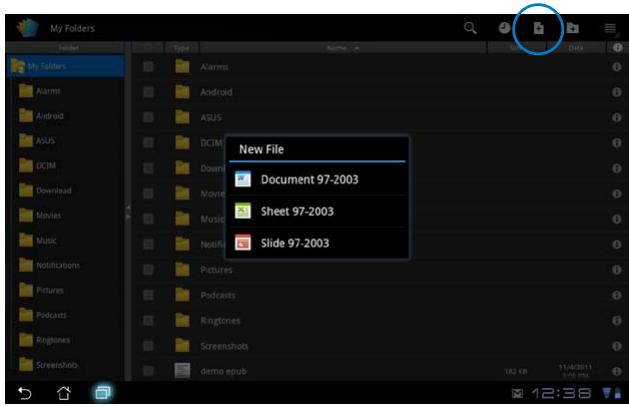

Adding New Files

To add new files, tap on New File on the top right corner. Tap on Document to start the word processor to edit documents. Tap on Sheet to start the spreadsheet to perform calculation and manage information. Tap on Slide to start the application to create and share presentations.

1. Polaris® Office 3.0 supports file types as below:

2. Microsoft Word: .doc/.docx

3. Microsoft Excel: .xls/.xlsx
4. Microsoft PowerPoint: ppt/.pptx
5. Adobe Acrobat: .pdf

6. Text:.txt
   Images:.bmp/ .jpg/ .jpeg/ .png/ .gif/ .wbpm
   Zip Archives: .zip

7. Polaris® Office 3.0 currently saves files into .doc/.xls/.ppt formats only.

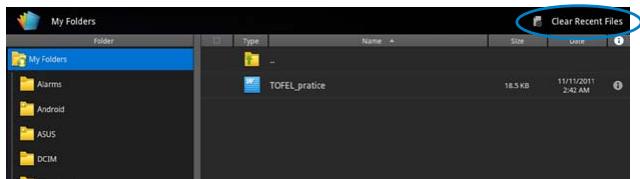

Recent Files

Tap on Recent Files on the top right corner to quickly access your recently-edited files.

Tap on Clear Recent Files to clear the list of files recently used.

Adding Accounts

You are allowed to edit your files with Polaris® Office from other accounts, including Google docs and Box.net.

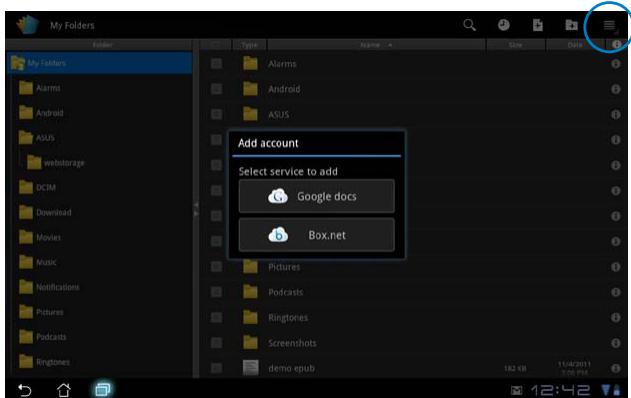

1. Tap on the settings button on the top right corner and select Add account.
2. Select a desired service to add.
3. Enter your e-mail account and password and tap OK to add the account.

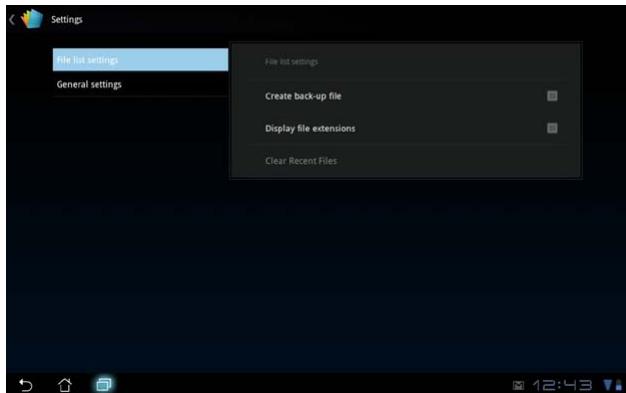

Configuring Settings

Tap settings button on the top right corner and select Settings. You are allowed to configure File list settings and General settings.

Sharing

MyNet

MyNet allows you to play media files and view image files from or to your PCs, DLNA TV or DLNA speakers. You can play music, watch videos, or view pictures stored in your Eee Pad on your PC and vice versa.

1. Ensure that your Eee Pad and PC are connected to the same wireless access point (AP).

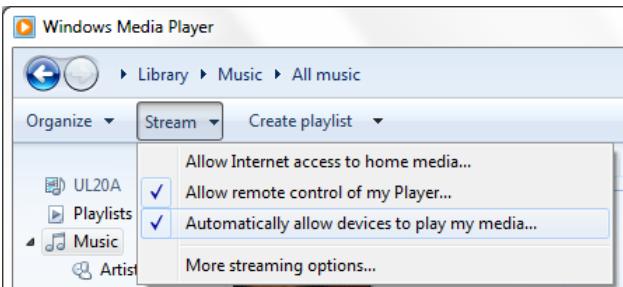

2. Click and enable Allow remote control of my Player and Automatically allow devices to play my media in Windows Media Player on the PC. (Go to "More streaming options..." to configure, if necessary.)

1. On the Server list, select the source device on the left panel to view the contents.

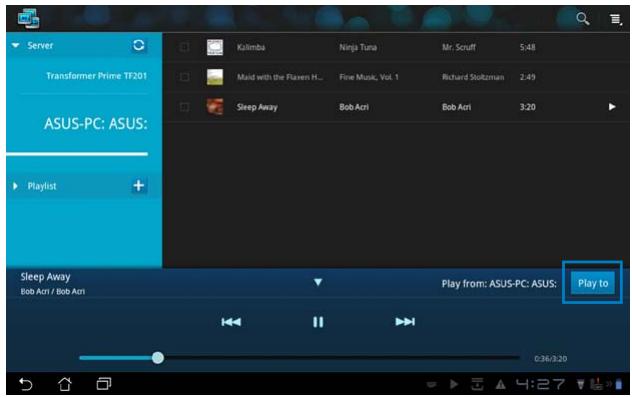

1. Select a file and tap Play to on the bottom right to start playing on the target device.

MyNet only works with Microsoft Media Player 11 or later versions.
- All the devices, including PC, DLNA TV or DLNA speakers, must be connected to the same wireless access point (AP) while connecting via MyNet; otherwise MyNet will not function. Accordingly, MyNet will not be able to function when connecting through 3G network. Network location for connecting devices must all be set to Home network.

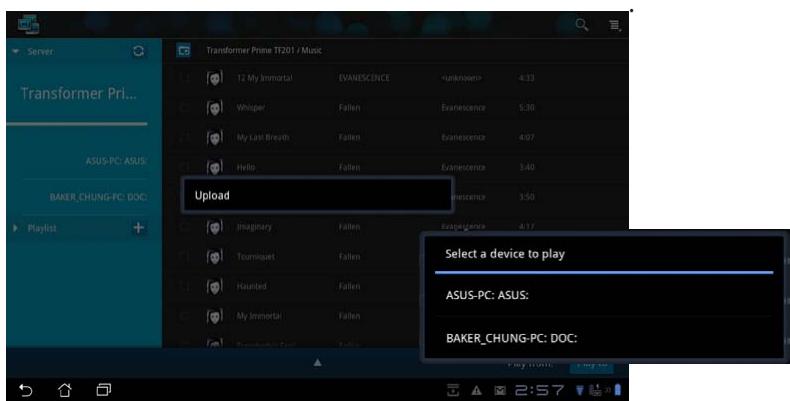

Long pressing a media file allows you to upload or download the file to and from the connecting devices.

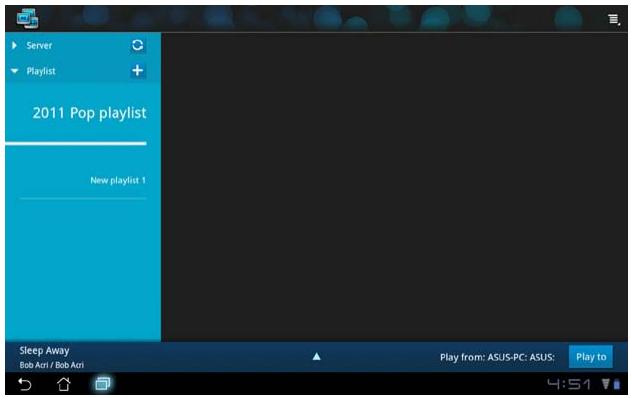

You can also select a file from the Playlist. The Playlist offers a common space for the connected devices to share files. Tap on the plus sign (+) to create new lists.

1. To enable Digital Media Server, tap on Settings at the upper right corner and tick Digital Media Server Settings to allow the other connecting devices to access media files on your Eee Pad. You can also select the location of the file you want to share.

MyCloud consists of My Content, My Desktop, and @Vibe. It is a total solution for you to access and obtain your cloud content.

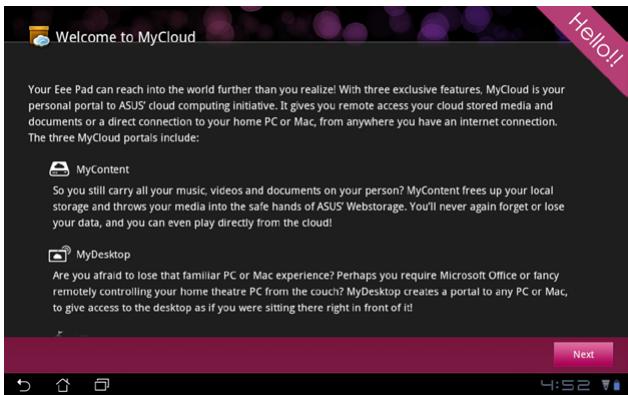

Launching MyCloud:

1. Tap on MyCloud on the Apps Menu.
2. Click Next to continue.

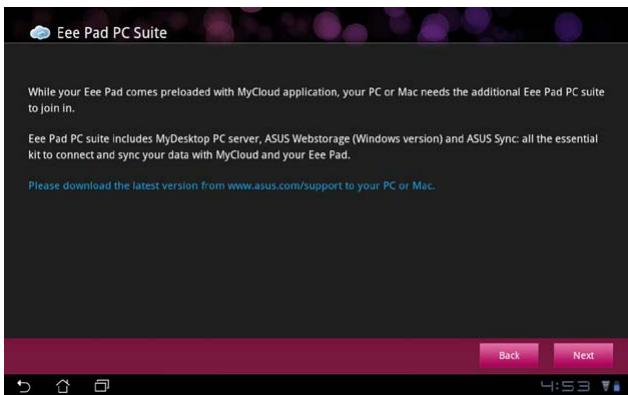

1. MyCloud needs to work with Eee Pad PC Suite to avail its full function. Download and install Eee Pad PC Suite from the ASUS support site at support.asus.com to your PC. Click Next to continue.

My Content

My Content allows you to access your personal data in the Webstorage and conveniently categorize your cloud data into Music for the audio files, Gallery for image and video files, and Others.

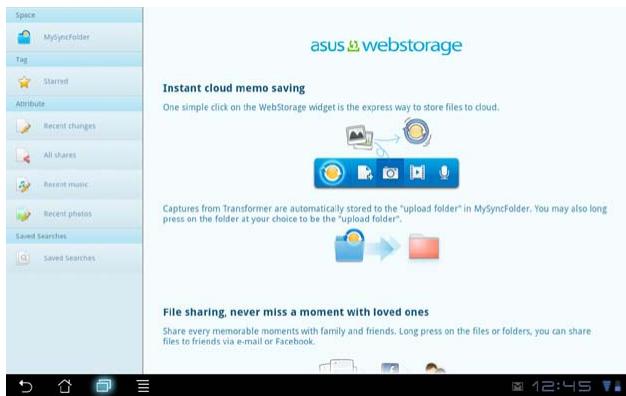

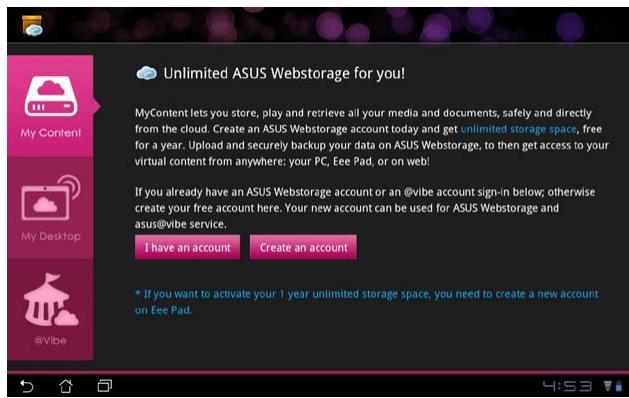

To access MyContent:

1. Tap I have an account to sign in or tap Create an account to create your free account.

1. After signing in, you will see all your data stored in ASUS Webstorage. Locate your data according to its category.

My Desktop

My Desktop allows you to remotely control your other PC from your Eee Pad.

You will need to download Eee Pad PC Suite to your PC first to enable My Desktop on your Eee Pad.

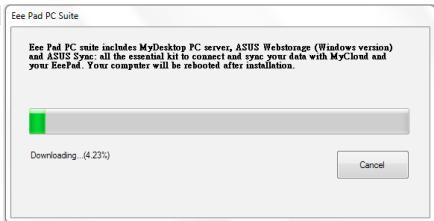

To install and set up Eee Pad PC Suite (on PC):

1. Ensure that your PC is connected to the Internet.
2. Double-click the applicable file you downloaded from the ASUS support site.
3. Click Restart Now to reboot your PC.

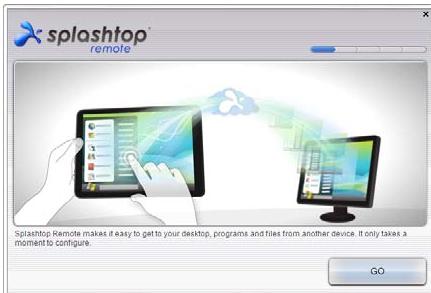

4. Click on GO to configure necessary settings for My Desktop.

1. Click Next to continue.

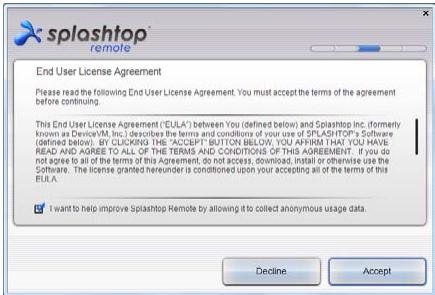

1. Read the license agreement and click Accept to continue.

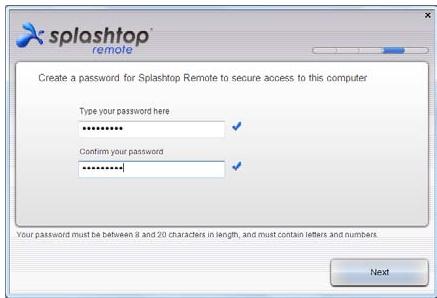

1. Create a password and click Next.

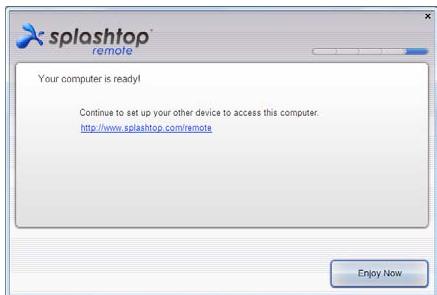

1. Click Enjoy Now to continue.

1. Copy the IP address of your PC for later use on your Eee Pad.

Pairing the Eee Pad and PC (on Eee Pad):

1. Ensure that your Eee Pad and the PC are connected to the same wireless access point (AP). Access My Desktop.

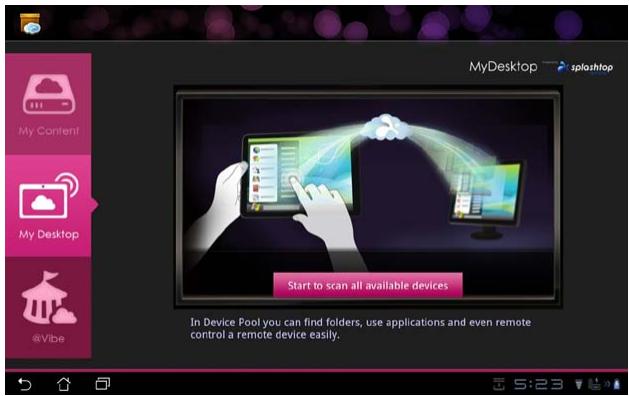

2. Tap the screen to scan the available devices.

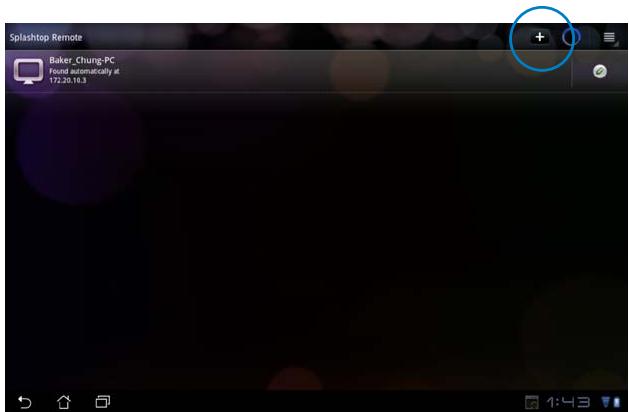

1. Tap on the plus sign (+) on the top right corner to add your client PC.

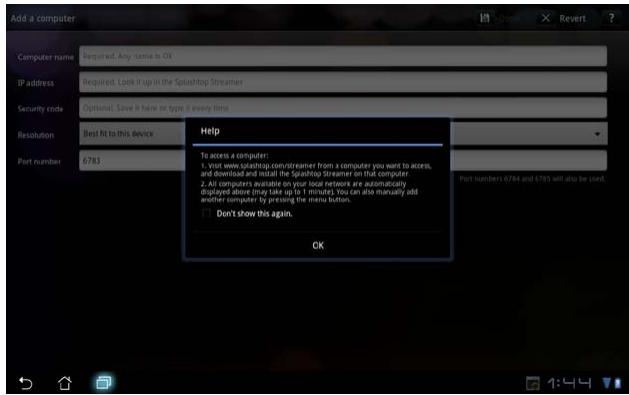

4. Tap on OK to continue.

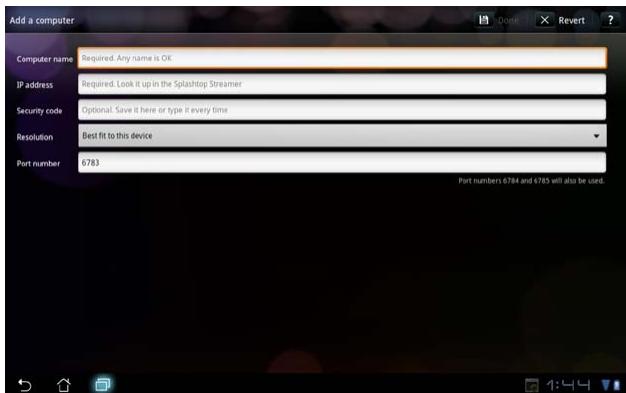

5. Manually enter all the information of your client PC, including the IP address and the password paired with your PC and tap Done to add the client.

The devices must be connected to the same wireless access point (AP) while enabling My Desktop. Accordingly, My Desktop will not be able to function when connecting through 3G network.

Setting up Internet Discovery for My Desktop

On your PC:

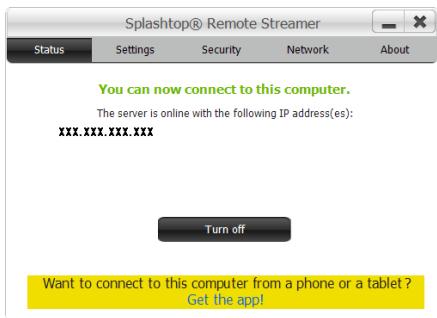

1. Download and activate Splashtop Streamer from the ASUS support site.

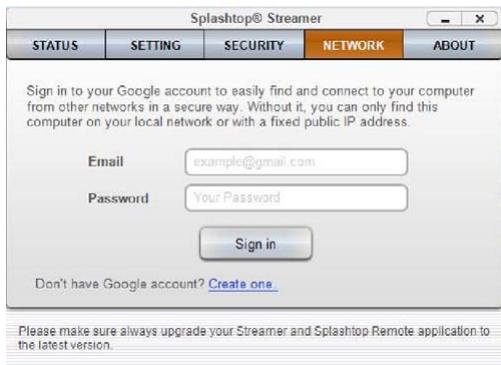

2. Go to Network in Splashtop Remote Streamer.
3. Enter your Google credentials in the Email and Password fields. Then click Sign in.

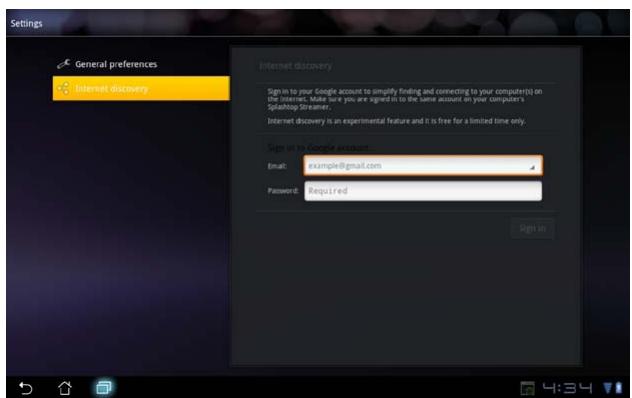

On your Eee Pad:

Go to Settings on the upper right and enter your Google account in Internet discovery. Your device will automatically detect your PC.

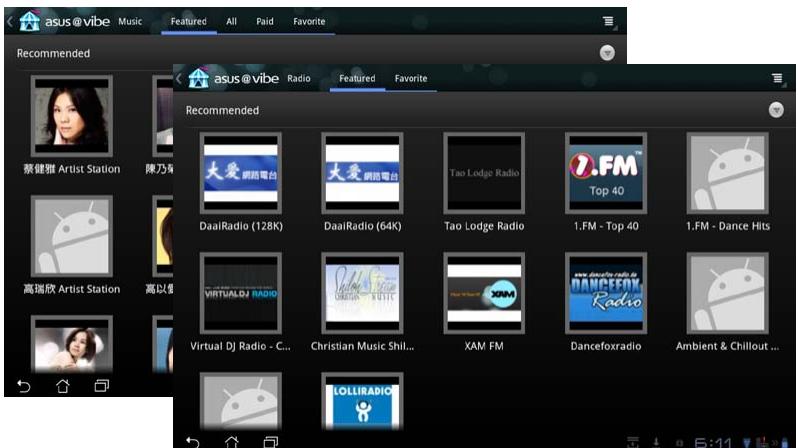

@Vibe

Asus@Vibe is a one-stop entertainment platform that serves as a value-added service for all ASUS products. With the Asus@Vibe platform, users can access or download a wealth of exciting and engaging digital content such as music, videos, games, magazines, and e-books. You can also tune into your favorite radio stations and stream live TV anytime and anywhere.

The contents supplied may vary with the country of origin.

Login with your ASUS Access account to enjoy the multimedia content at @ Vibe.

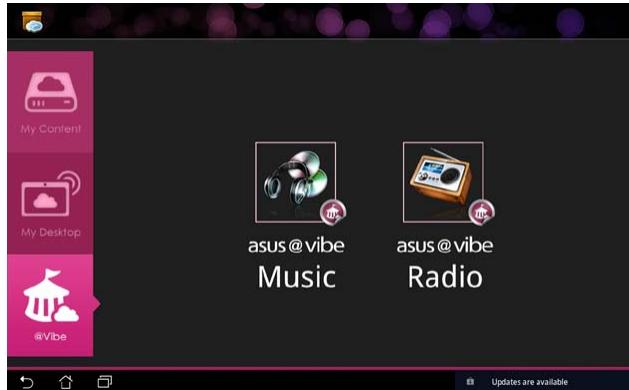

1. Tap on Apps menu and tap @Vibe.
2. Login by using your account.
3. Select Music or Radio.

1. Scroll and select your desired disc or radio station.

Security

App Locker

App Locker allows you to protect all of your apps with a password and you can change the password any time.

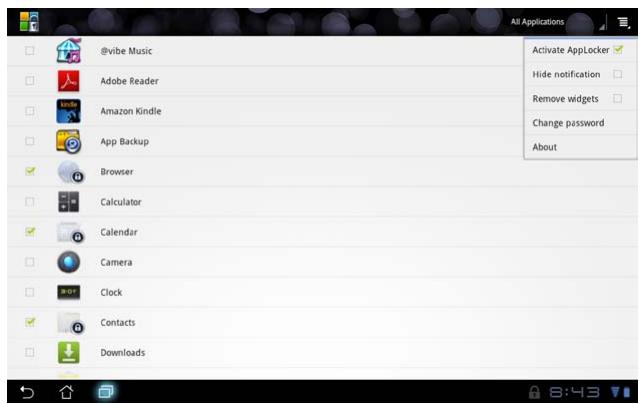

To use App Locker:

1. Tap on App Locker on the Apps Menu.

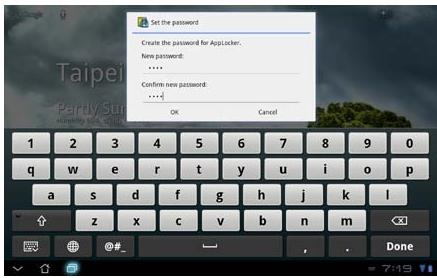

2. Set up your password to start using App Locker.
3. Tick the apps you would like to lock.
4. Activate App Locker from Settings on the upper right corner.

1. Lock signs will appear by the locked apps on the Home Screen.
2. You will be asked for your password every time you access the locked apps.

App Backup

App Backup can back up your installed apps and app data on local storage and duplicate a copy to the external storage to save your backup files. App Backup can also restore your installed apps and app data after updating your device to make sure your data will not be lost.

App Backup cannot restore apps without an account certification. If you encounter problems, please clear data for the apps via the path: Settings>Applications>Manage applications and log in again.

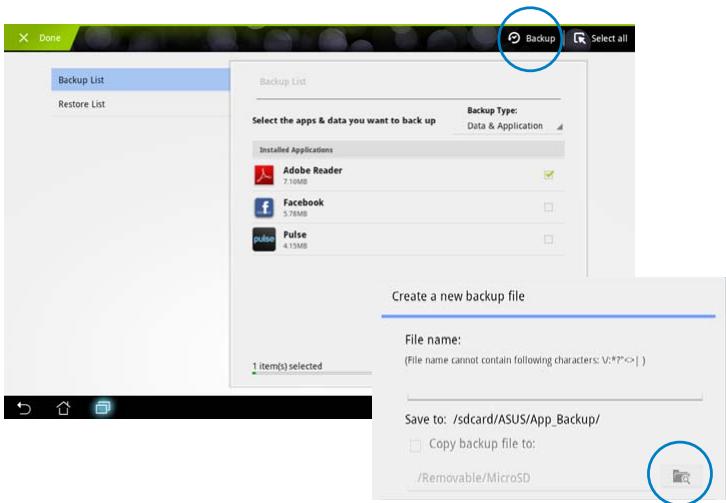

To use App Backup:

1. Tap on App Backup from the Apps Menu.
2. The Backup List shows the installed applications on your Eee Pad downloaded from the Android market. Tick on the apps you want to back up and tap on Backup on the upper right.
3. Insert a MicroSD card or other storage devices if necessary. Click on File Manager at the lower right of the dialog box to select the external storage location to duplicate backup app files.
4. Key in the file name of new backup file to create and select OK.

1. Backup files are automatically stored in App_Backup folder in internal storage and selected external storage.

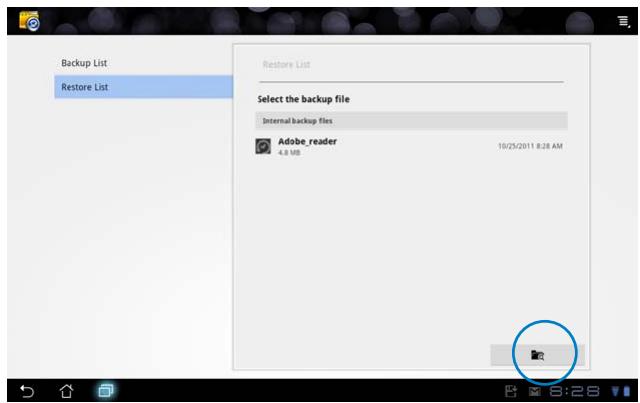

To use App Restore:

1. The Restore List instantly shows the app files stored in Backup.
2. Tap on a backup file to restore or click on Browse at the lower right to access files in the internal or external storage.

1. Enter file password to decrypt the backup file and restore contents to your Eee Pad.

ASUS Featured App

SuperNote

SuperNote is a convenient app used for writing and painting on your Eee Pad. You can take notes, send instant messages, make sketches, create e-cards with audio recordings or diaries with video, and lots more.

Using SuperNote

To create a new notebook or paintbook:

1. Tap on + Add New on the left panel of the SuperNote main page.
2. Name the file and choose Notebook or Paintbook.
3. Select a font size and page background color, then tap on OK. The new note page appears instantly.
4. Tap on the return path on the upper left for an overall view of the books and note pages.
5. On the upper right, tap on Share to share by e-mail, webstorage, social networks, or online gallery.

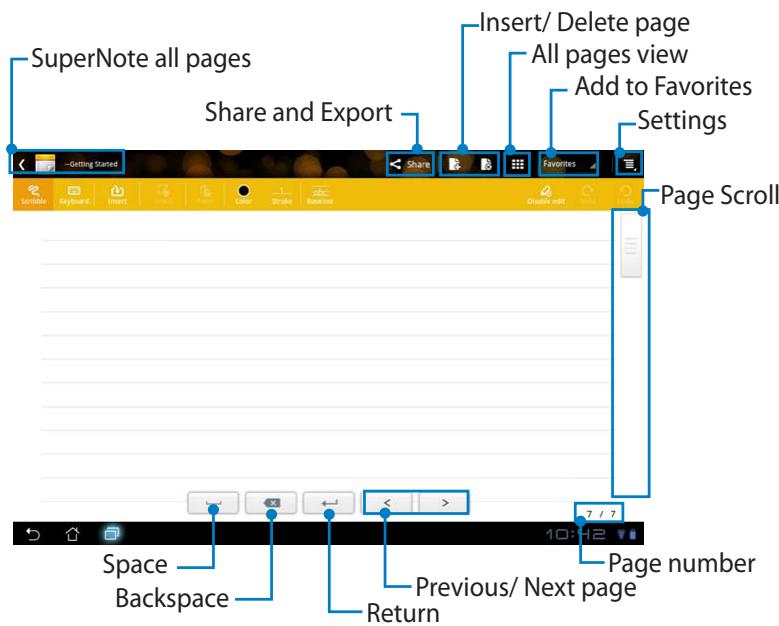

Using the SuperNote Notebook

SuperNote Notebook is designed to allow you to scribble on the Eee Pad continuously regardless of page lines. The app will automatically adjust the manuscript to fit into the page lines.

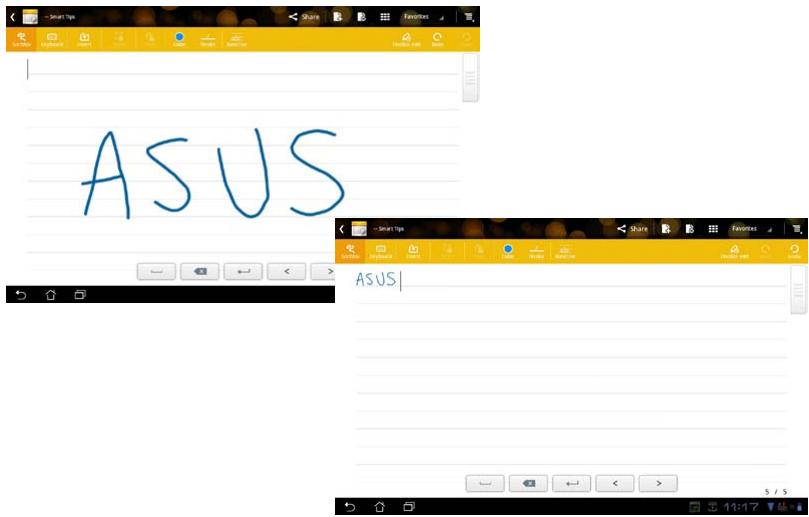

1. Choose Scribble mode or Keyboard mode to enter your notes.
2. In Scribble mode, select Color and Stroke weight to customize strokes.
3. Tap to set a spot for the text cursor, then scribble on the tablet. The manuscript will be automatically adjusted into the page lines.

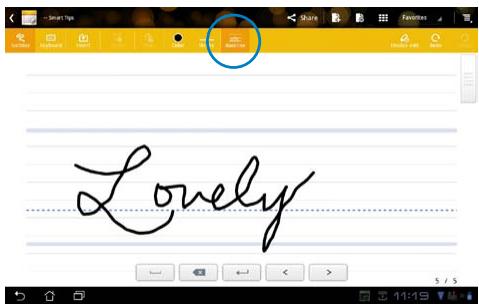

1. Tap on the Baseline function for penmanship guidelines, if necessary.

1. Tap on Insert to make annotations, create time stamps, insert photos, drawings from paintbook, picture from gallery, voice, video, or other text and picture file.

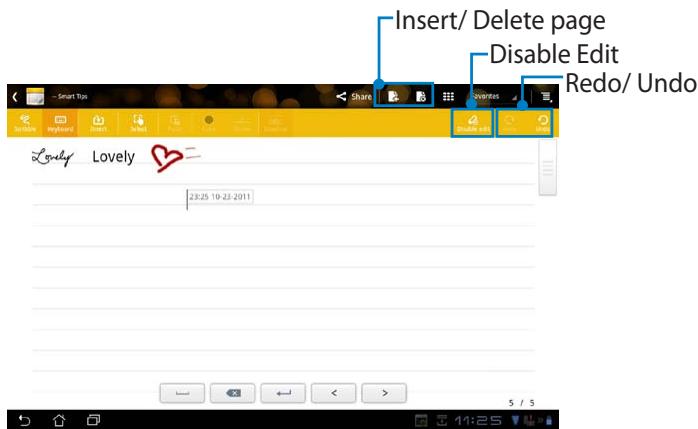

1. Insert a new page in the notebook or delete to discard unwanted pages.
2. Tap on Disable Edit to enable Read Only mode to view and flip through the note pages and avoid entering unnecessary marks on the pages.
3. Tap on Undo to delete changes. Tap Redo to keep the changes.
4. SuperNote automatically saves and sorts the files by date in /sdcard/supernote.

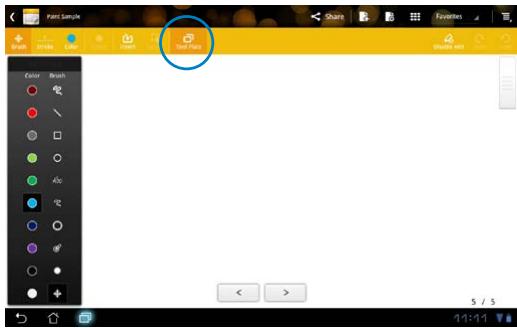

Using the SuperNote Paintbook

SuperNote Paintbook provides an immediate interface for users to draw and save to an electronic file. The Paintbook is similar to the Notebook in structure with additional color options and brush selections for users to draw freely on a canvas.

1. Select Brush, Stroke, and Color to customize strokes.
2. Tap on Tools to display Brush and Color palettes together.

1. Once you enter the first stroke or tap on Select, the canvas will switch to Edit mode.
2. Tapping on Select enables you to move, scale, rotate, or edit the selected area. A red dotted box will appear to designate the area.
3. Tap on Done to return to Paintbook mode.

Eee Pad PC Suite (on PC)

Eee Pad PC Suite consists of My Desktop PC Server, ASUS Webstorage and ASUS Sync. It is a package tool on your PC to co-work with your Eee Pad.

My Desktop PC Server

It is a remote desktop tool that works with My Desktop on your Eee Pad. Refer to the section on MyCloud for details.

ASUS Webstorage

It is an online storage for you to store and access your data whenever you want and wherever you are.

After installing Eee Pad PC Suite on your PC. ASUS Webstorage Drive appears in Computer. Double-click the drive to login.

Ensure that you are connected to the Internet before accessing ASUS Webstorage Drive.

ASUS Sync

ASUS Sync helps you synchronize the Contacts and Calendar of your Outlook on your PC with your Eee Pad.

To synchronize your Eee Pad with your PC:

1. Connect your Eee Pad to the PC, with the installed Eee Pad PC Suite.

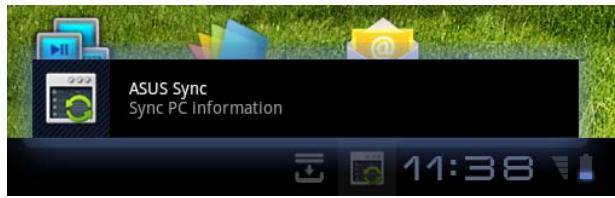

2. Click the ASUS Sync on the bottom right corner to build the connection between your Eee Pad and the PC.
3. Start ASUS Sync on your PC.

For Calendar synchronization, ASUS Sync supports Outlook (2003 or later version), and Windows Vista Calendar. For Contacts synchronization, ASUS Sync supports Outlook (2003 or later version), Outlook Express, and Windows Vista Contacts.

1. Click the item you want to synchronize and click Sync Selected, or you can click Select All to sync both items.

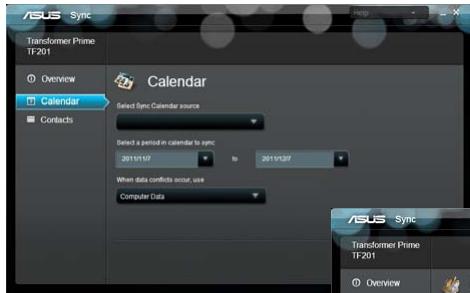

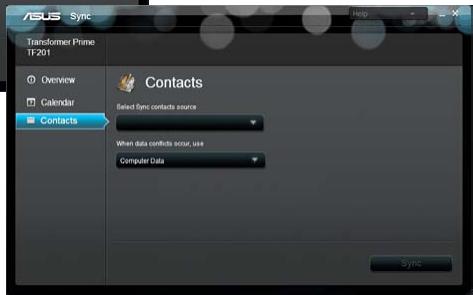

2. Click Calendar or Contacts on the left for detailed configurations.

Declarations and Safety Statements

Federal Communications Commission Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

RF Exposure Information (SAR)

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W / kg . Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels.

The highest SAR value for the device as reported to the FCC is 0.387 W/kg when placed next to the body.

The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: MSQTF101.

This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C.

IC Regulations

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This Category II radiocommunication device complies with Industry Canada Standard RSS-310.

This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528. This equipment should be installed and operated with minimum distance 0cm between the radiator & your body.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

The County Code Selection feature is disabled for products marketed in the US/Canada.

For product available in the USA/ Canada markets, only channel 1~11 can be operated. Selection of other channels is not possible.

CE Mark Warning

C E

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

C E

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm^2 or H05VV-F, 2G, 0.75mm^2 .

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Risk of Explosion if Battery is Replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

DO NOT throw the Eee Pad in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

SAFE TEMP: This Eee Pad should only be used in environments with ambient temperatures between 0^ ( 32^ ) and 35^ ( 95^ ).

TUXERA

Tuxera software provides support for NTFS format.

SRS SOUND is a trademark of SRS Labs, Inc.
SOUND technology is incorporated under license from SRS Labs, Inc.

AccuWeather.com

The weather information is provided by AccuWeather.com.

ARPHIC

The iFont font format adopted in this product is developed by Arphic.

Adobe® Flash® Player support+

+Flash Player 10.2 is now available for download on Android Market. This is a production GA (General Availability) release for Android 2.2 (Froyo) and 2.3 (Gingerbread) devices and an initial beta release for Android 3.x (Honeycomb) tablets that include at least Google's 3.0.1 system update.

For more details, please visit http://blogs.adobe.com/flashplayer/.

Copyright Information

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or tranPadd into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS and Eee Pad logo are trademarks of ASUSTek Computer Inc. Information in this document is subject to change without notice. Copyright © 2011 ASUSTeK COMPUTER INC. All Rights Reserved.

Limitation of Liability

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

Manufacturer	ASUSTek COMPUTER INC.
Address, City	No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C
Country	TAIWAN
Authorized Representative in Europe	ASUS COMPUTER GmbH
Address, City	HARKORT STR. 21-23, 40880 RATINGEN
Country	GERMANY
