Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully

understood.

● Children must not play with the appliance.
● Children must not clean and maintain the appliance without supervision.
- Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

• Do not damage the refrigerating circuit.
• Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.
• Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.
• Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

● Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.
- Regularly clean any surfaces that may come into contact with food and accessible drain systems.
- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.
- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.
- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.
- The "one, two and three star" compartments are not suitable for freezing fresh foods.

- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your town hall or your retailer for the used appliance collection points closest to your home. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive on Waste Electrical and Electronic Equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolantgas used in your appliance is clearly shown on the ID plate inside the fridgepart of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

Layout and presentation of your appliance

• Your appliance was designed and tested to optimise its energy use.
• The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.

Technical diagram of an open refrigerator with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

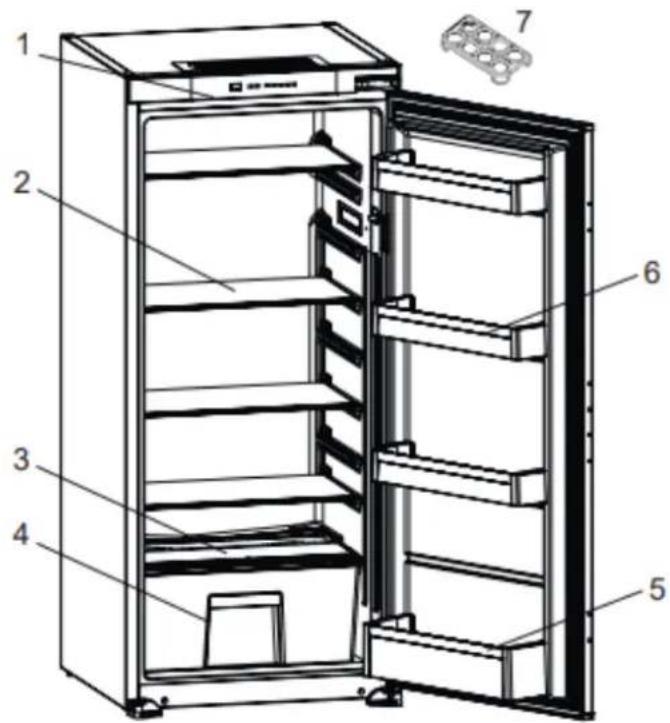

1) Control panel
2) Refrigerator shelves
3) Crisper cover
4) Crisper
5) Bottle shelf
6) Door shelves
7) Egg holder

This illustration is only for hinting, the detail please check your appliance.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

• Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries (if your model has it).
• Clean the refrigerator part at least once a month (see Care and cleaning)
• Keep home-made food in the refrigerator after first taking care to leave it to cool.
• Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Recommended temperature
Fresh food compartments	Fresh food compartment (refrigerator)	+4°C

- Place the food in the locations recommended in the tables below.

Fresh food compartments

Refrigerator compartments	Type of food
Refrigerator door and door racks	Jams, drinks, eggs, condiments.Do not place perishable fresh food in these areas
Crisper	Lettuce, fruit, vegetables, herbsDo not put bananas, onions, potatoes or garlic in the refrigerator.
Lower shelf	Raw meat, fish, highly perishable food.
Intermediate shelf	Milk products
Top shelf	Cold cuts, prepared meals, meals to reheat

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

① Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
- The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
- Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C
N	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C
T	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
• Appliance levelling is achieved by adjusting one or more adjustable feet located under the unit (refer to the "Levelling the appliance" section).
  ① If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

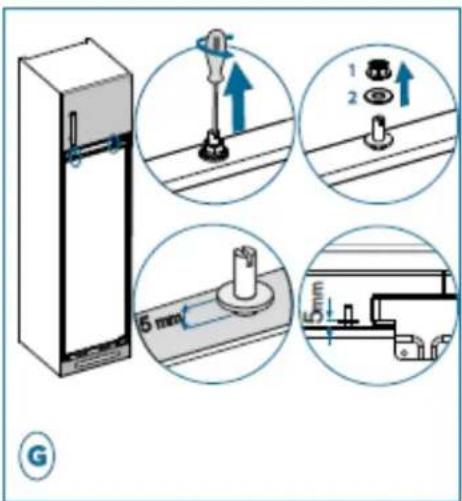

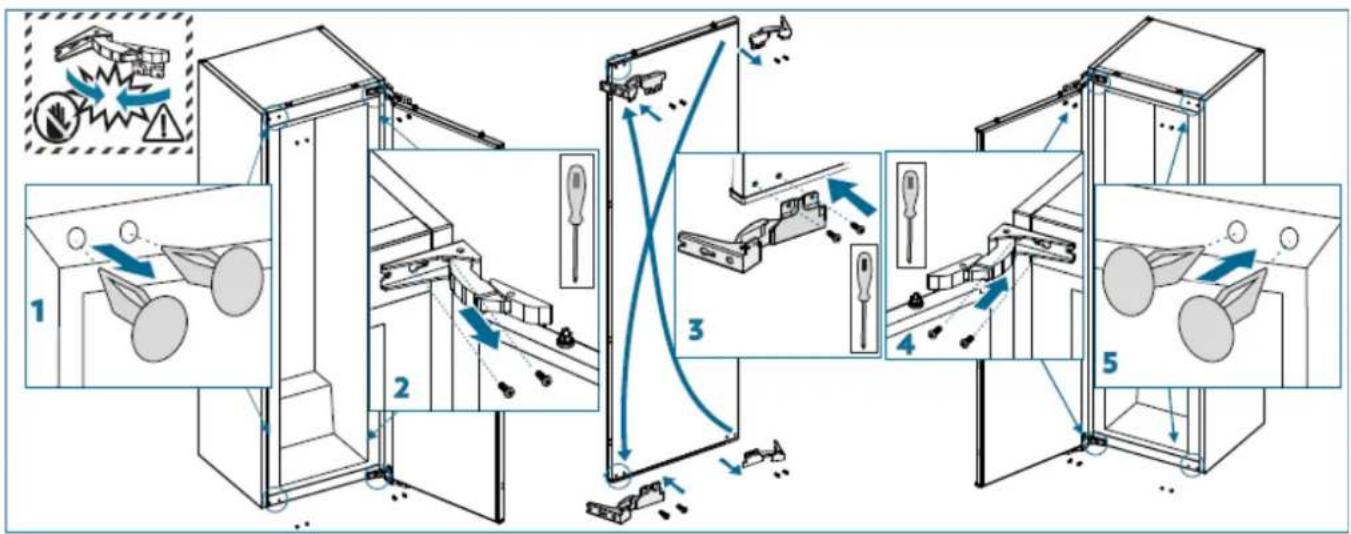

How to reverse the door

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
  • All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It is better that 2 people handle the unit during assembly.

Refer to the drawing below.

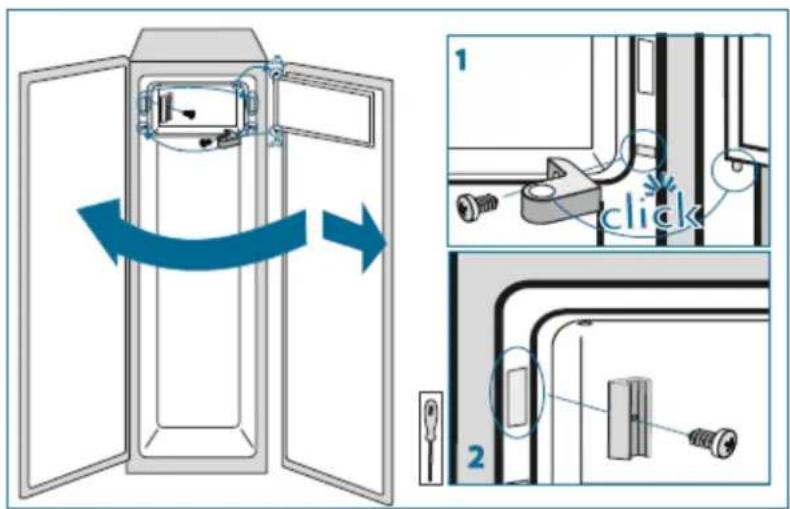

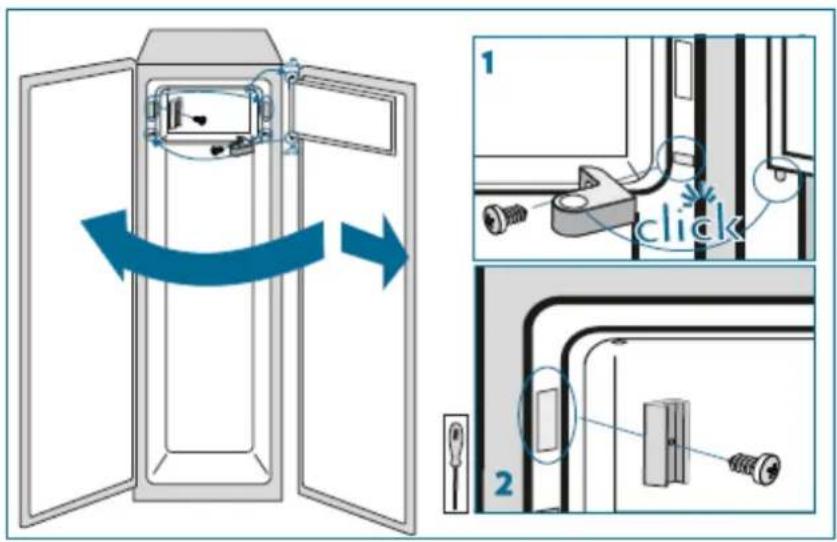

Diagram illustrating door lock mechanism with labeled parts and directional arrows indicating rotation or movement.

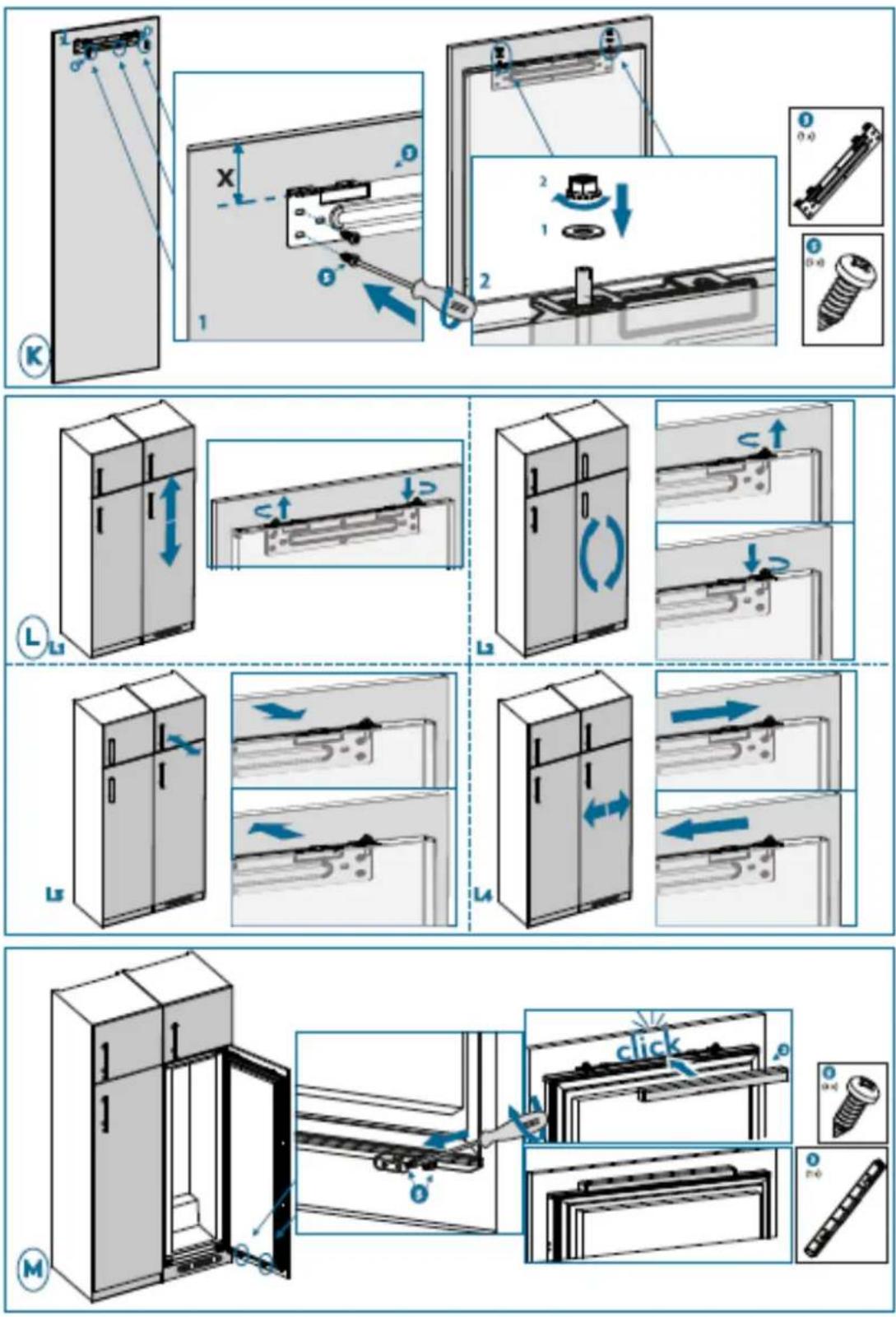

Installation

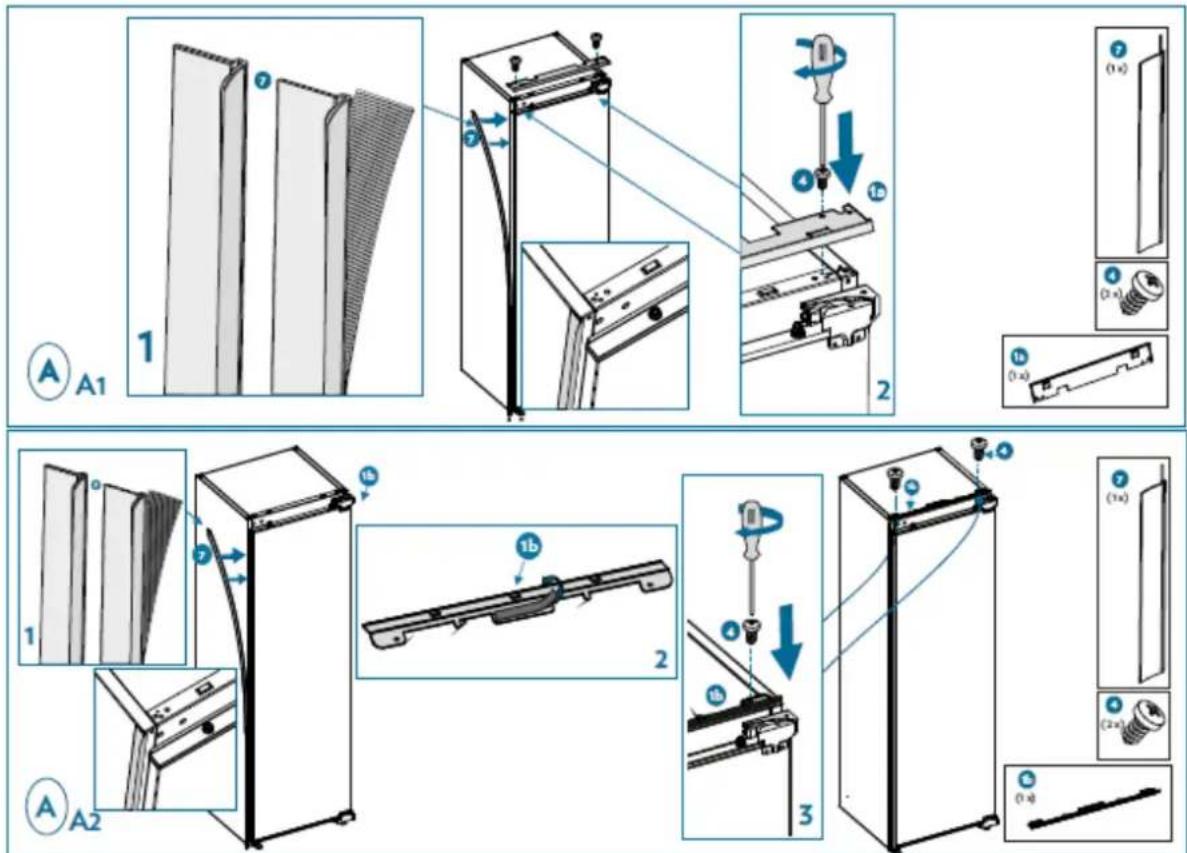

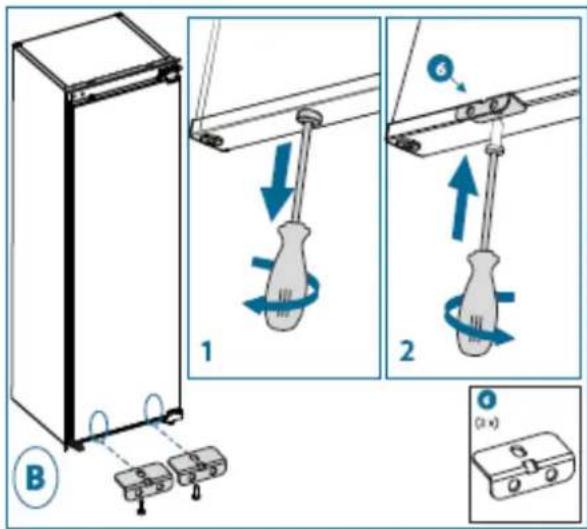

Kits for installation

*Depending on models

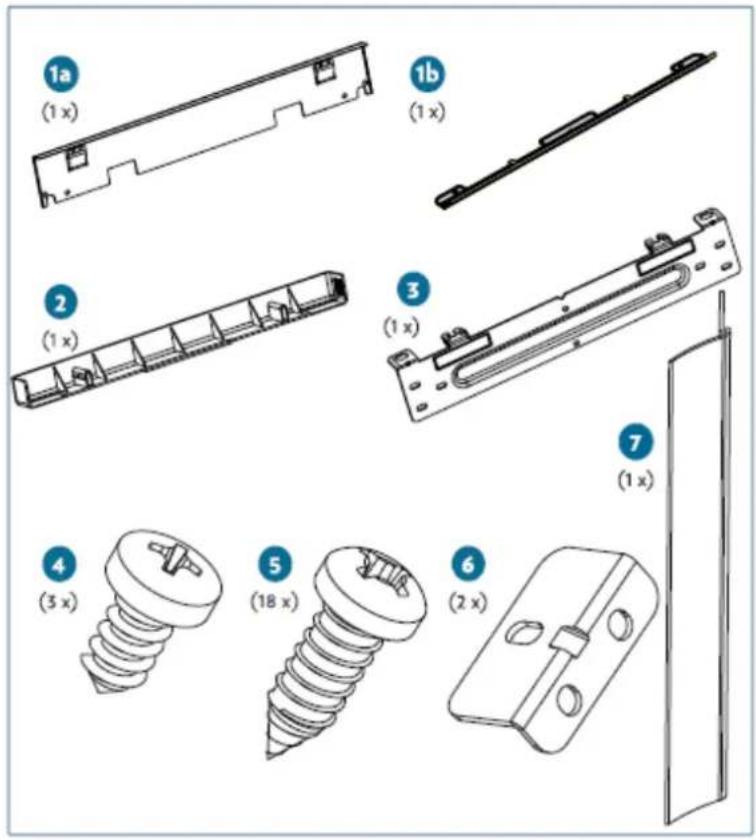

1a (1 x) 1b (1 x) 2 (1 x) 3 (1 x) 7 (1 x) 4 (3 x) 5 (18 x) 6 (2 x)

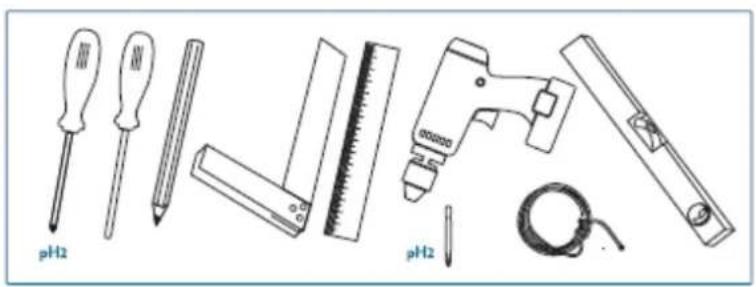

Tools needed

Illustration of various household cleaning tools including screwdriver, ruler, brush, and tool holder (no text or symbols)

* 1225 - 1233 for metal top cover

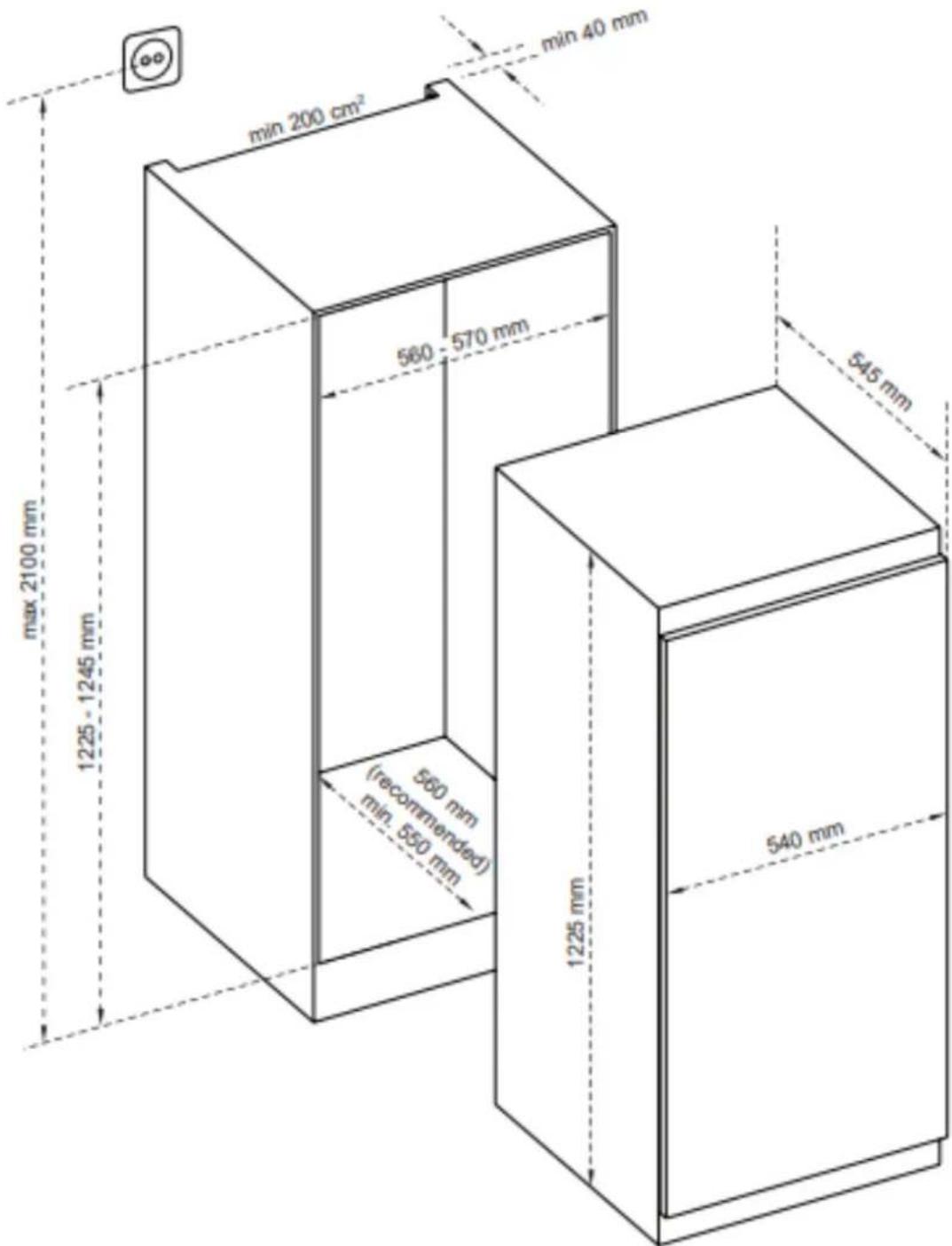

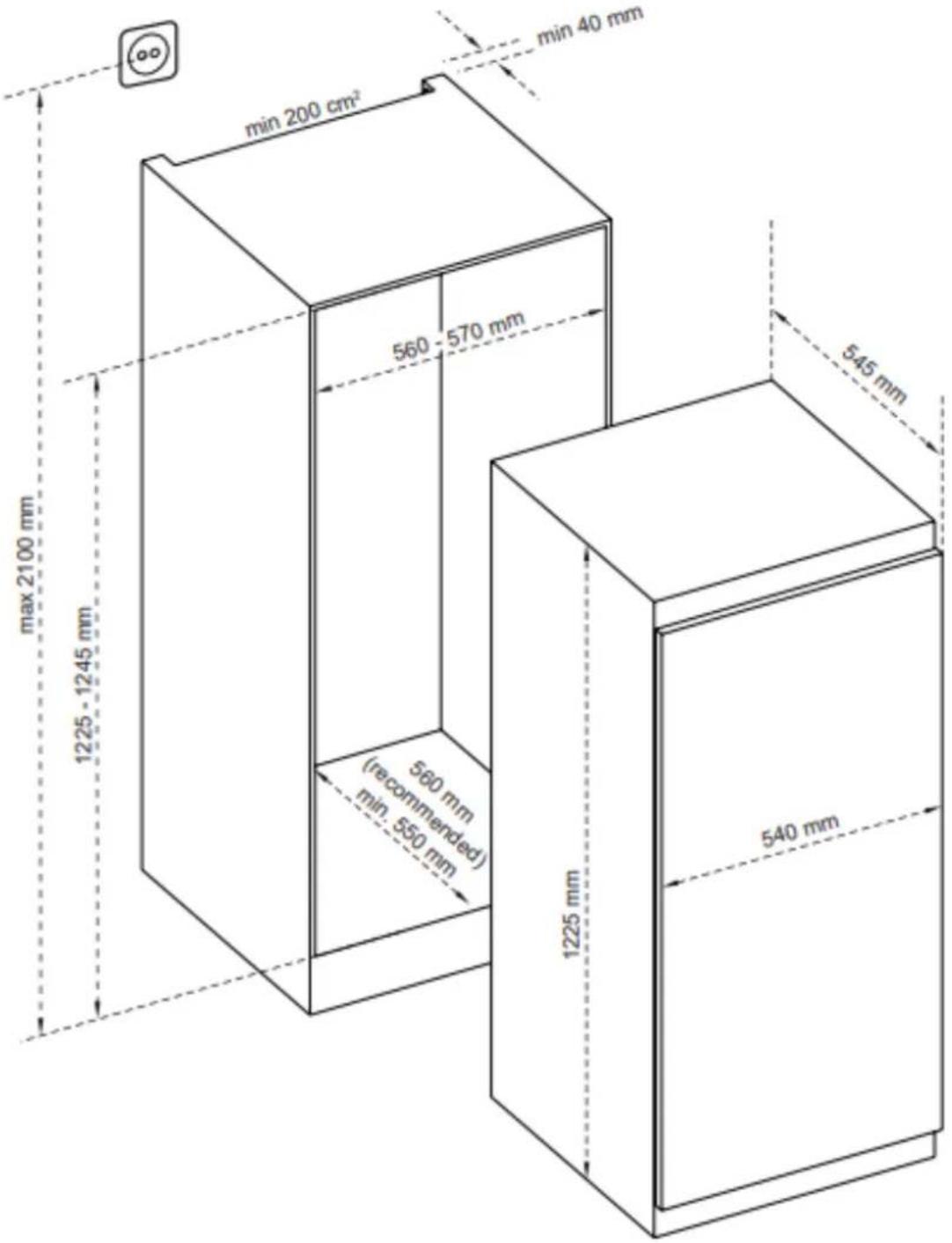

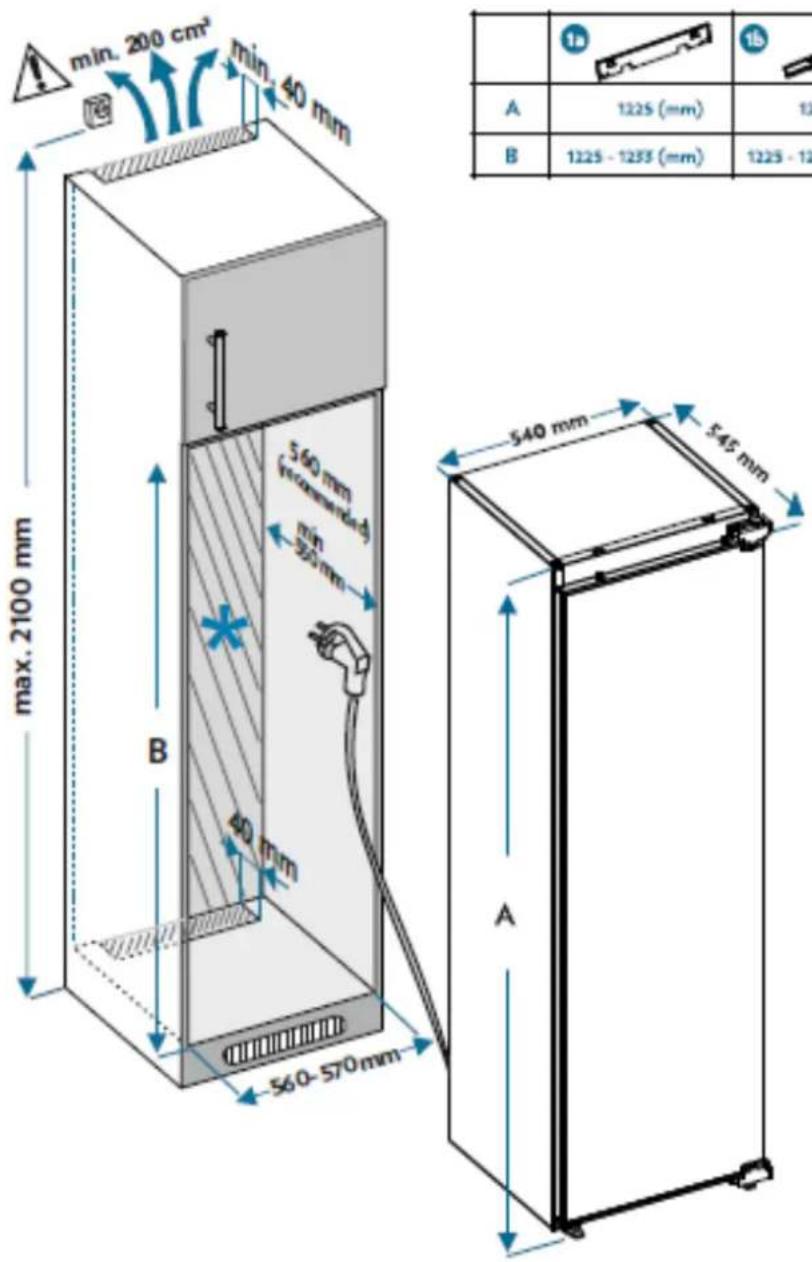

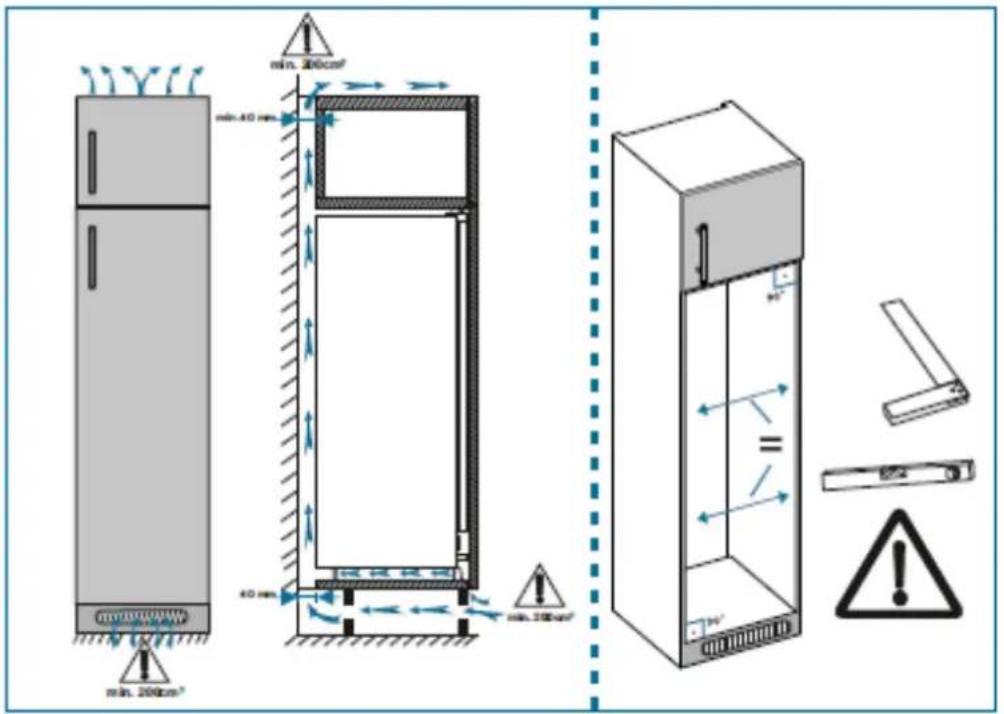

min 200 cm² 560 - 570 mm max 2100 mm 1225 - 1245 mm 560 mm (recommended) min: 550 mm 1225 mm 540 mm min 40 mm 545 mm

1.

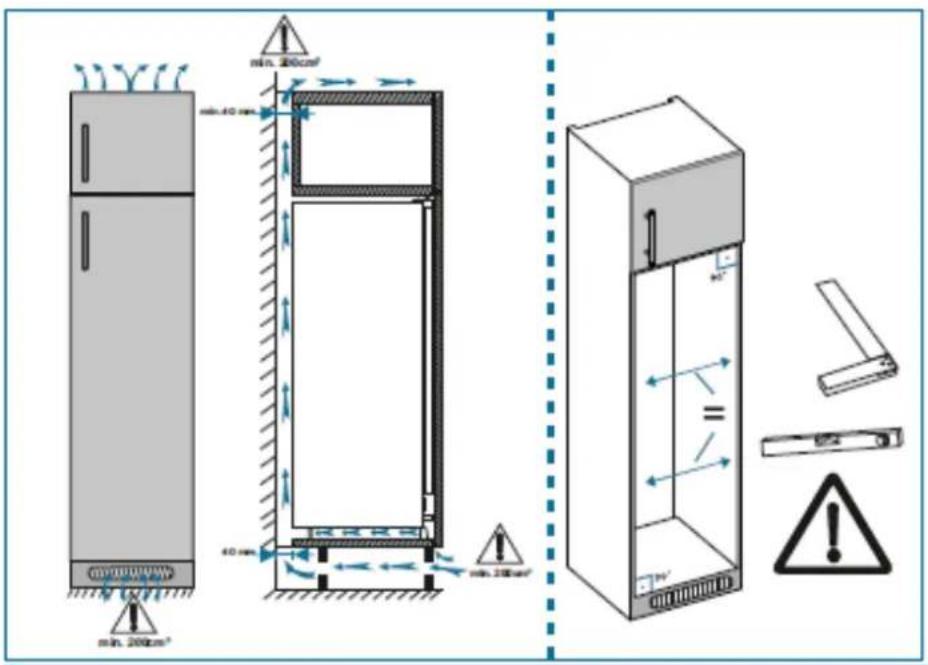

min. 200cm² min. 40 mm 40 mm min. 200cm² max. 200cm² max. 200cm²

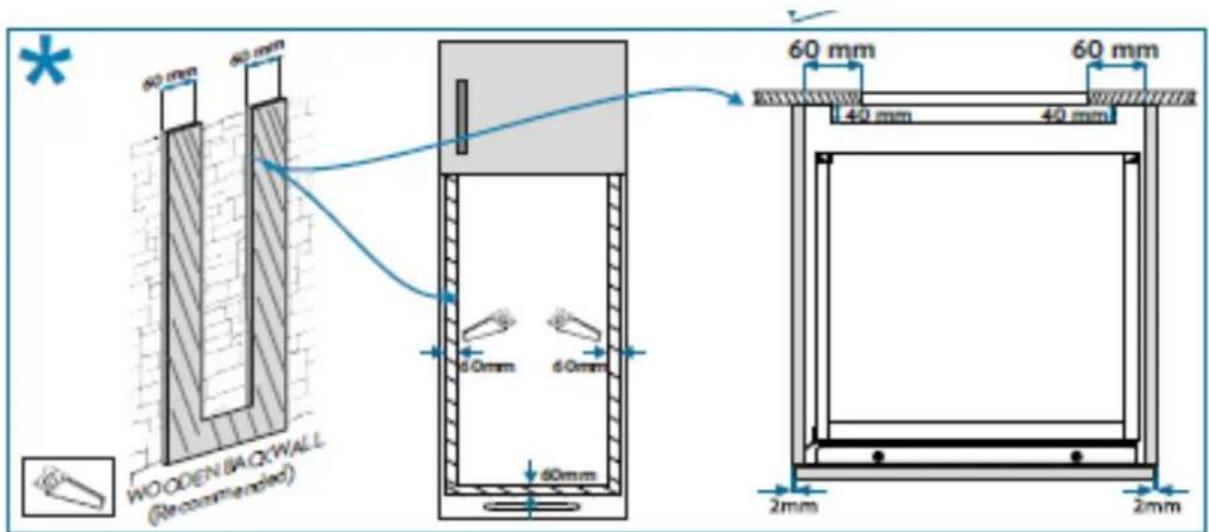

60 mm 60 mm WOODEN BAQWALL (Recommended) 60mm 60mm 60mm 60mm 60 mm 60 mm 40 mm 40 mm 2mm 2mm

A A1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

*Depending on models

min. 200 cm³ min 40 mm 560 mm (mm) min 350 mm 540 mm 545 mm A 1225 (mm) 12 B 1225 - 1235 (mm) 1225 - 12 max. 2100 mm B 40 mm 560-570mm A

	1a	1b
A	1225 (mm)	1225 (mm)
B	1225 - 1235 (mm)	1225 - 1245 (mm)

*Depending on models

Diagram illustrating screwdriver mechanism with labeled steps and component placement

Diagram illustrating welding process steps with labeled icons and warning symbols

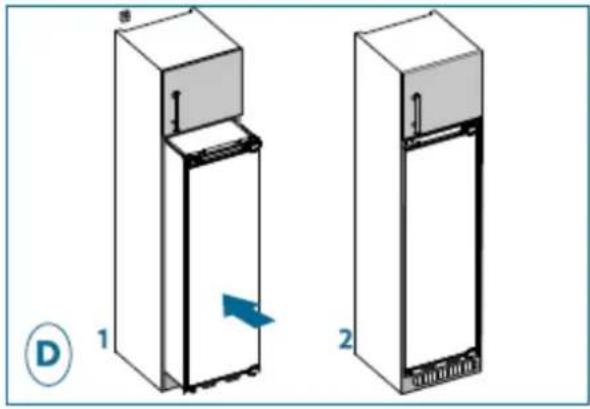

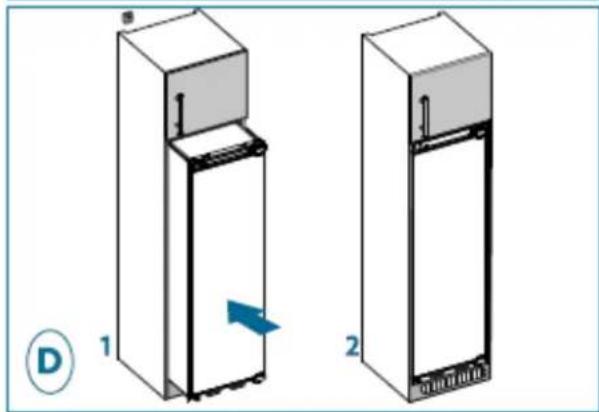

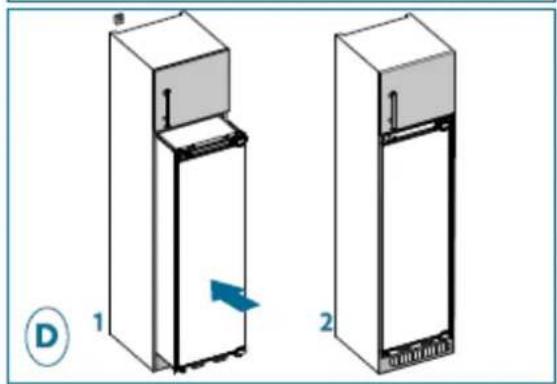

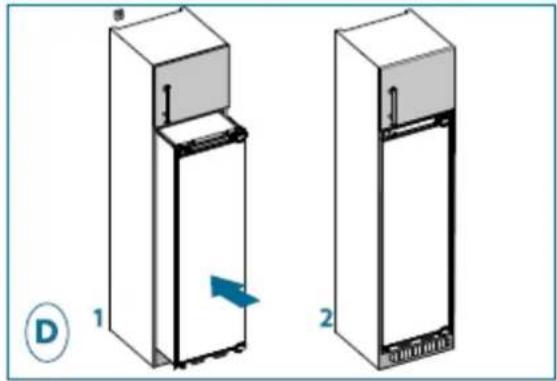

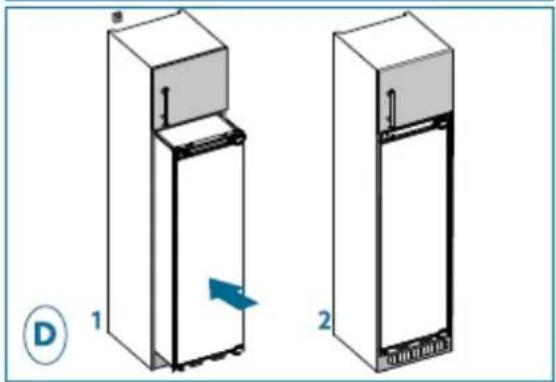

Diagram of two refrigerators with labeled parts, showing internal components and a blue arrow indicating movement (no text or symbols present)

Technical diagram showing a refrigerator with labeled components and warning symbols

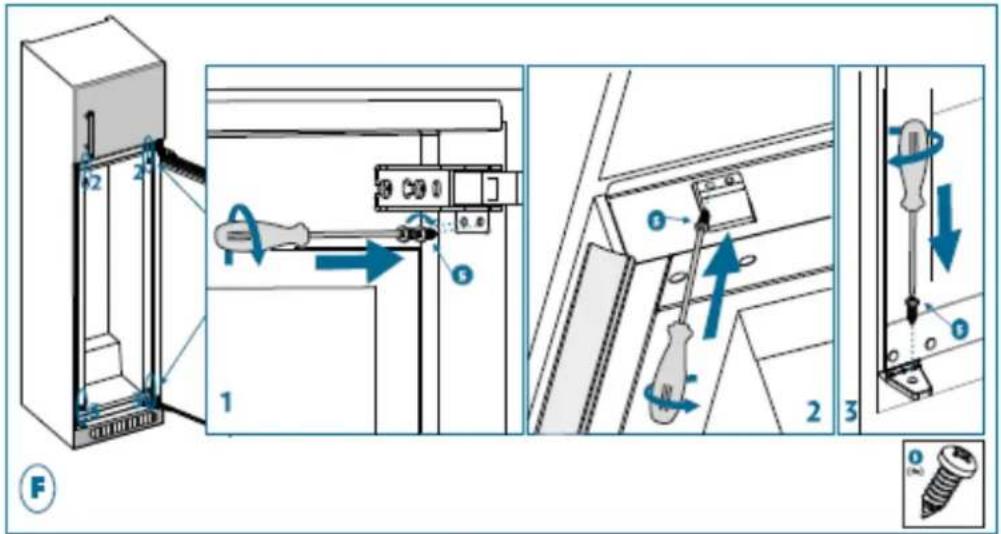

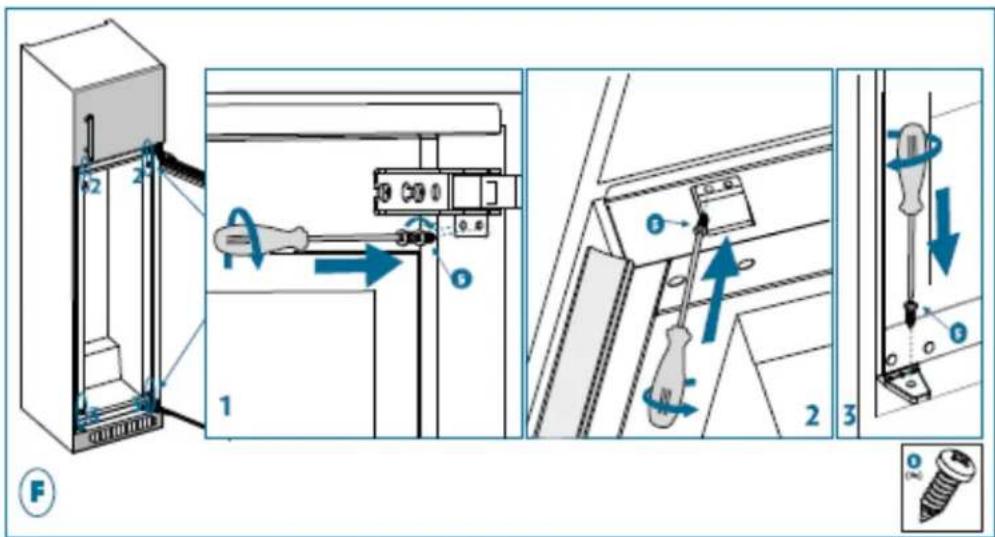

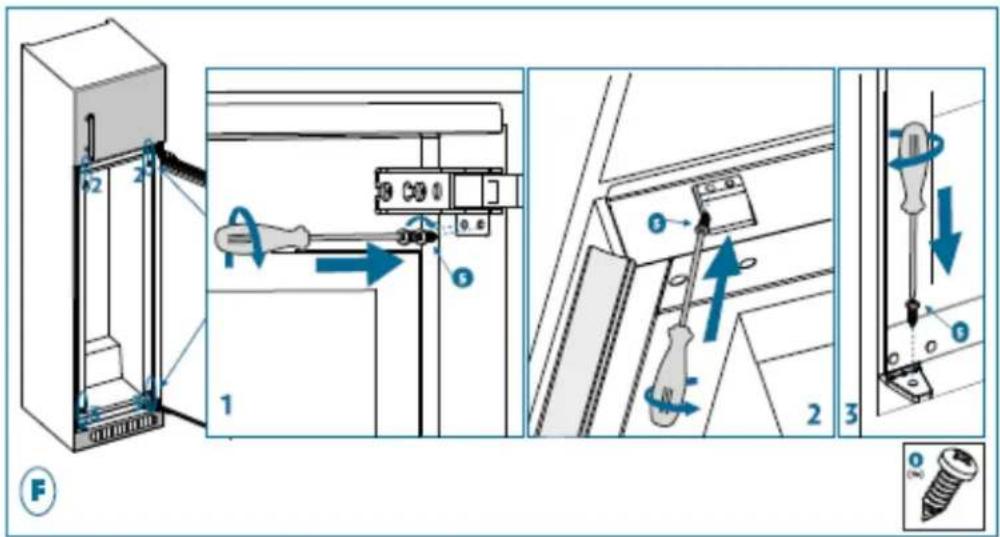

Technical diagram showing three-step installation of a mechanical device with labeled parts and directional arrows indicating motion.

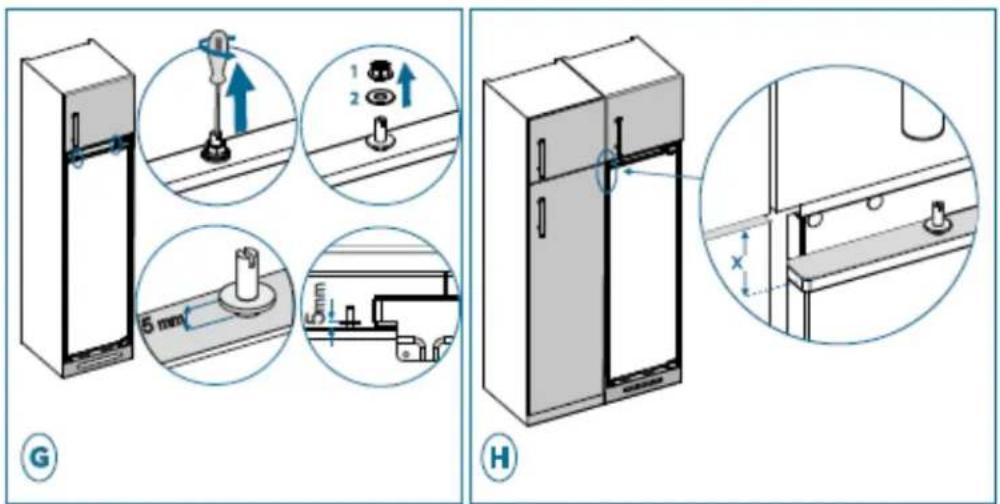

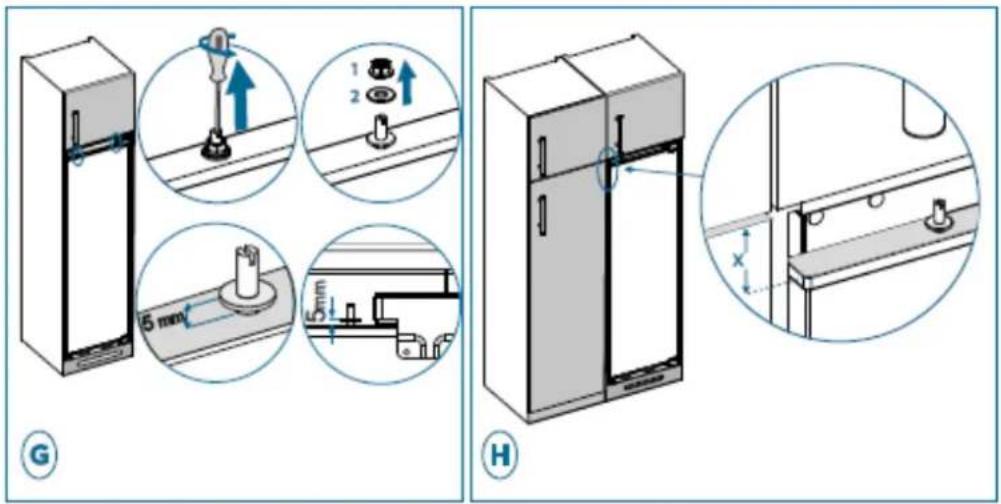

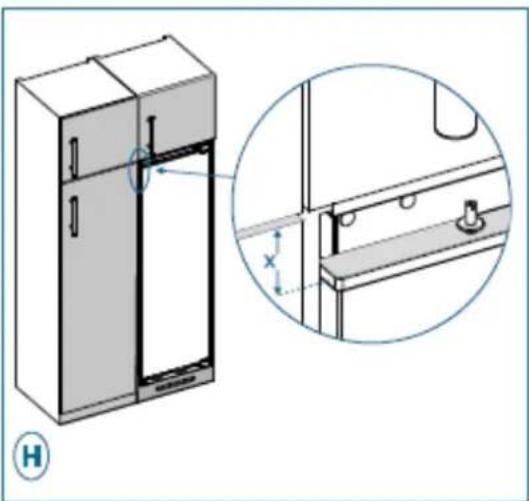

Technical diagram showing two views (G and H) of a refrigerator with labeled parts and dimensions, including adjustment indicators.

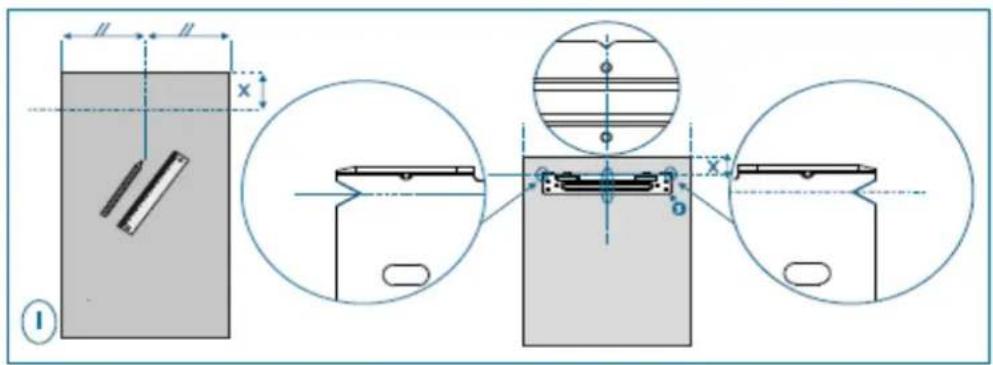

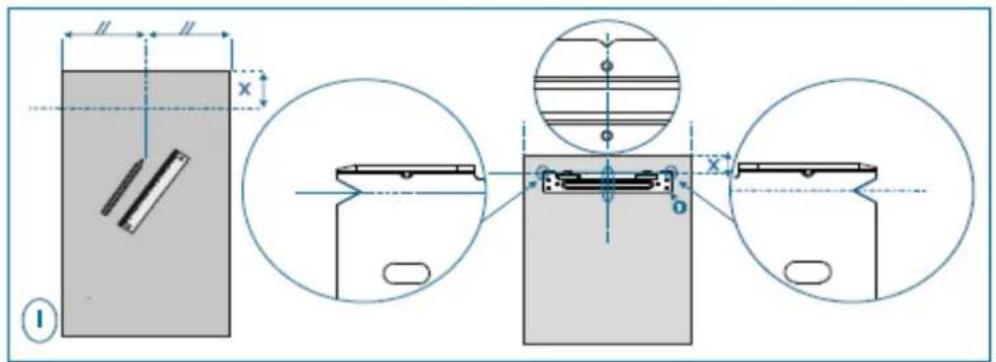

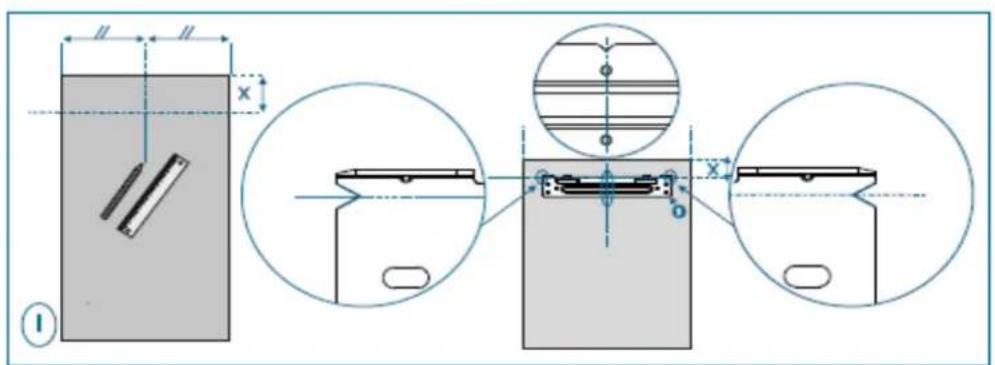

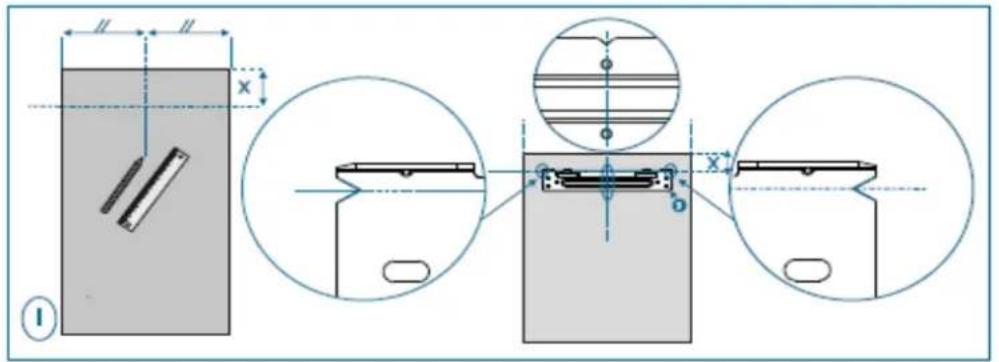

Technical diagram illustrating mechanical assembly and cross-sections with dimension annotations and component views

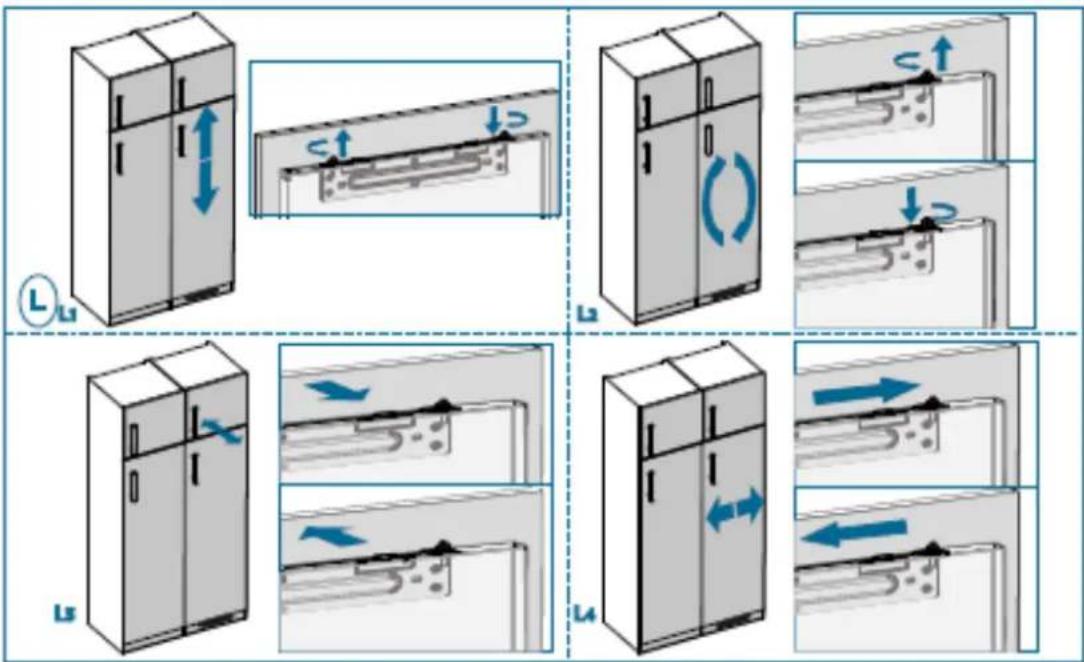

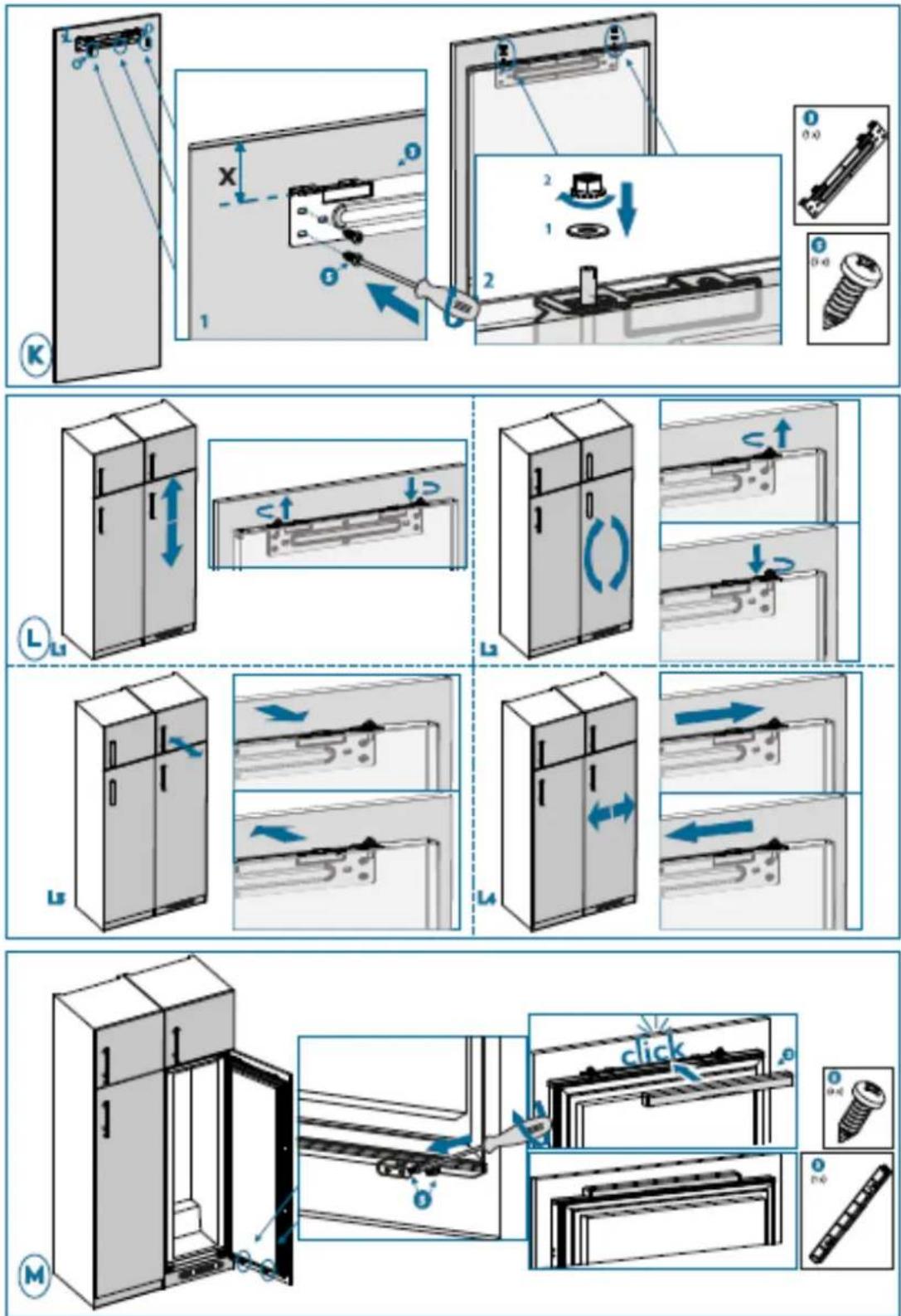

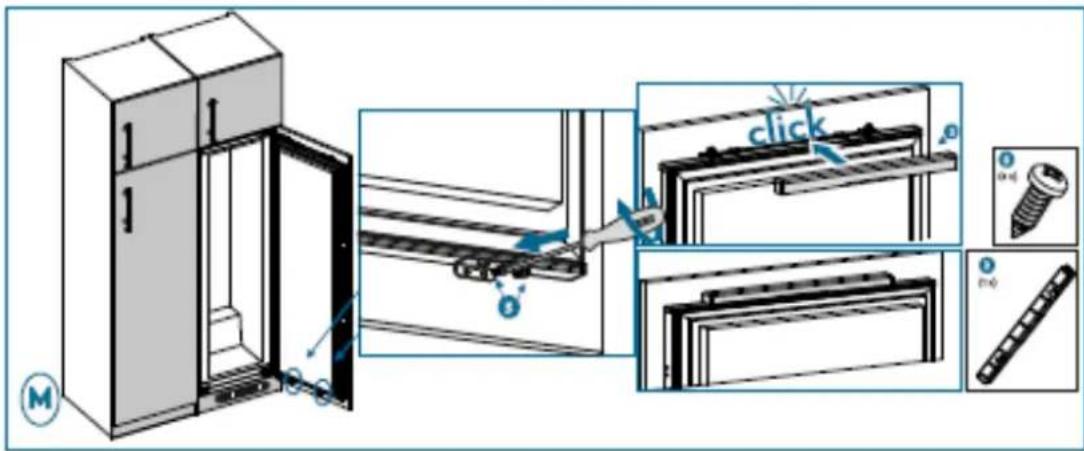

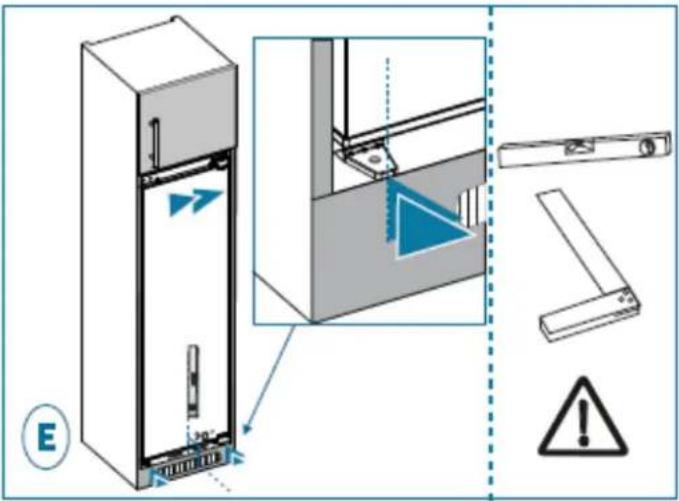

evelling the appliance

Choose a place to install the refrigerator on a flat surface.

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or rejection status.

If the appliance is not level, the doors will not be correctly aligned and compartment sealing will not be ensured.

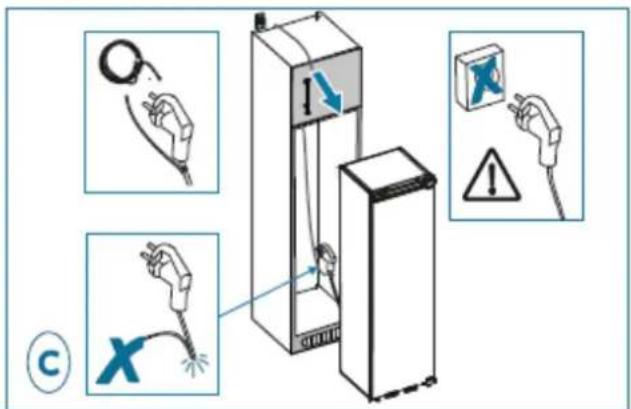

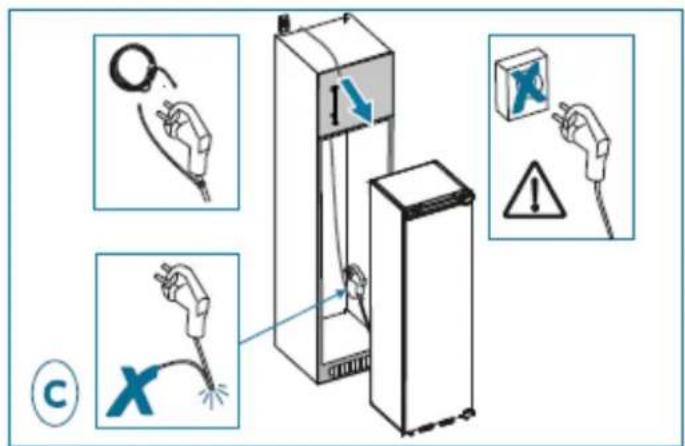

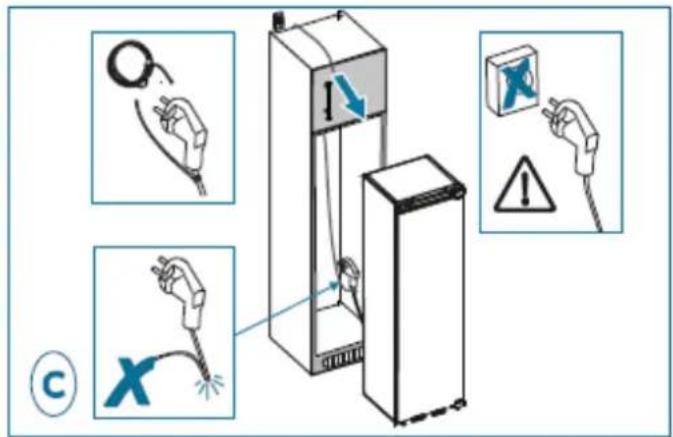

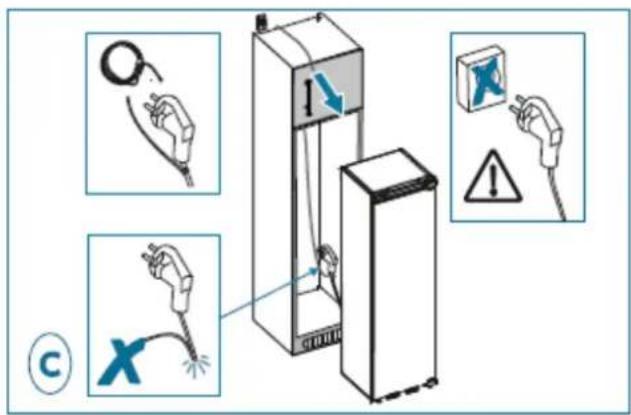

Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above-mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

"COLD AREA" indicator

The sign opposite can be found in your fridge.

It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4^ C.

A temperature gauge in this zone allows you to check the settings of your fridge.

Adjust the thermostat

Temperature correct

Warning!

If the door of the fridge is left open for too long, the temperature inside the fridge will rise. Check the temperature gauge within 30 seconds after opening the door to make sure that the reading is correct.

Temperature setting

1 2 3 08 o F | M Q7 | 6 5 4

Control Panel

3 – Press 3 to select Eco mode
5 – Super Cooling mode indicator

Lights

1 – Show the temperature of the freezer
2 – It enables the setting value of cooler to be modified and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C, and super cool mode
4 – Economy mode indicator
6 – Alarm indicator

Super cooling mode

• Cool and store large quantities of food in the refrigerator compartment.
• Rapidly refresh beverages.

04.0 | M |

Press the refrigerator setting button (2 on the control panel diagram) until the Super Cool symbol (#5) appears on the display.

A signal sounds. The mode is set.

During this mode :

- Economy modes cannot be selected.

- Supercool mode can be cancelled in the same way as it was selected.

Eco - Mode:

During periods of less frequent use (door opening) or when you want to move around, such as on vacation, the Eco program can provide optimum temperature while saving energy.

E C | n _

Press the Mode button (3 on the control panel diagram) until the Economy mode symbol is displayed.

- If no key is pressed for 1 second. The mode is set. The Economy mode symbol flashes (item 4 on the control panel diagram) 3 times.

When the mode is set, the buzzer sounds.

- The refrigerator temperature segment displays "E".

- The Economy mode symbol and E light up until the end of the mode.

When this mode is active :

The refrigerator can be set. When Economy mode is cancelled, the selected setting values are retained.

- Super Cool mode can be selected. Economy mode is cancelled automatically and the selected mode is activated.

- To cancel, simply press the Mode key.

Screen saver mode

This mode saves energy by switching off all control panel lighting when the control panel is inactive.

Hand interacting with a black background, showing a finger pressing a white musical note (no text or symbols present)

Screen saver mode is automatically activated after 30 seconds.

- If you press any key while the control panel lighting is off, the current device settings reappear on the screen, giving you the opportunity to make any desired changes.

- If you do not cancel the screen saver mode or press a key for 30 seconds, the control panel remains off.

To deactivate screen saver mode :

- To cancel Screen Saver mode, you must first press any key to activate the keys, then press and hold the Mode Selector button (marked 3 on the control panel diagram) for 3 seconds.

- To activate Screen Saver mode, simultaneously press and hold the Mode button for 3 seconds.

- To reactivate Screen Saver mode, press and hold the Mode Selector button (3 on the control panel diagram) for 3 seconds.

Refrigerator temperature settings

The initial temperature value of the refrigerator setting indicator is +4°C.

- Press the Refrigerator button once. (Mark 2 on the control panel diagram).

04 0 | M |

When this button is pressed for the first time, the last value is displayed on the refrigerator setting indicator. (#1).

- Each time this key is pressed, a lower temperature is set (+8°C, +6°C, +5°C, +4°C +2°C and Super Cool).

- When the refrigerator setting button is pressed until the Super Cool symbol is displayed, and no button is pressed for 1 second, Super Cool flashes.

- If the button remains pressed, the setting restarts from +8°C.

- The temperature value selected prior to activation of Super Cool or Economy mode remains unchanged once the mode is terminated or cancelled. The appliance continues to operate at the previously selected temperature.

Daily use

Your refrigerator compartment is equipped with shelves, door racks and drawers to help you store your food in the right place.

Using the shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

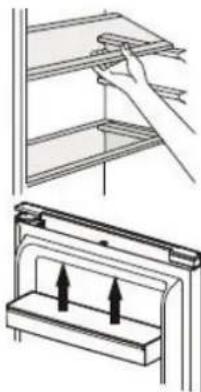

Positioning the small door trays

The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.

Diagram showing a hand placing a component into a rack, and a mechanical device with upward arrows indicating motion (no text or symbols)

Bottle shelf

This equipment is dedicated to bottles storage. It allows to optimize space and to save space when the bottle rack is full. For optimum use, recommended position of the bottle shelf is the second one starting from the top of the fridge.

Hints and Tips

- The refrigerator is a domestic appliance suited to short-term conservation of food products like fruit, vegetables, drinks, etc.

- Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.

• Cooked foods must be cooled to ambient temperature before they are placed in the refrigerator.

• We recommend placing food in sealed containers before storing them in the fridge.

• Never place food right next to the air outlet as this could impede the airflow and freeze the food.

- Never place volatile, inflammable or explosive liquids like solvents, alcohol, acetone or petrol in the fridge. There is an explosion hazard.

- Never leave the door open longer than necessary.

- If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

- The cooling unit of your refrigerator is located at the back of the appliance. Therefore, water droplets or ice may form on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal, there is no need to perform a defrosting operation unless there is an excessive amount of ice.

- If you do not intend to use your fridge for a long period of time (such as during the holidays), set the thermostat to “•” position, defrost and clean your fridge, leaving the door open to prevent the formation of mildew and odour.

Hints for refrigeration

• Meat (all types) must be wrapped in sealed polyethylene bags and placed on the glass shelf above the crisper.
• For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
• Butter and cheese should be placed in special sealed containers, wrapped in aluminium foil or placed in a sealed bag.
• Milk bottles should be capped and stored in the bottle rack in the door.
• To save energy, all of the door shelves and glass shelves should be fitted in their designed location.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution. Do not wash the accessories in a dishwasher.
  • After cleaning them, rinse surfaces with clear water and dry them.
  • After everything is dry, plug the appliance back into the plug.
• Make sure that no water enters the lamp housing and other electrical components.
• Clean the condenser with a brush at least twice a year. This will help you to save energy costs and increase productivity.

① Never clean the appliance with a steam cleaner.

Cleaning the drain

To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light

This product contains a light source whose the energy efficiency class is F.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.

Troubleshooting

Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional.

ERROR TYPE	MEANING	WHY	WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02	Sensor warning		Call Service for assistance as soon as possible.
E03	Sensor warning		Call Service for assistance as soon as possible.
E06	Sensor warning		Call Service for assistance as soon as possible.
E07	Sensor warning		Call Service for assistance as soon as possible.
E08	Low Voltage Warning	Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E10	Fridge compartment is not cold enough	Likely to occur after:- Long term power failure.- Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached.Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

① Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).
If you cannot find the cause of the anomaly, only call our approved after sales service on a qualified professional.

Customer Relations

For more information about our products or to contact us, please:

Visit our website: www.de-dietrich.com

Servicing and repairs,

Any repairs to your appliance must be made by a qualified professional accredited to work on the brand.

When making contact, mention the complete reference of your appliance (model, type, serial number). This information is provided on the ID plate located at the bottom left of the refrigerator (above the shelf or behind the crisper).

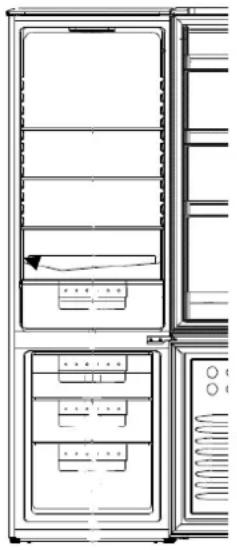

Interior view of a refrigerator with doors, refrigerators, and a door handle (no text or symbols visible)

Reference
Serial number
Type
Model
Service Reference

BFC Fridge/Freeze 6/8/14:13 00091 Service: BFC Model:D02-343-1 Space space: 271L High capacity: 1.5m Temperature range: 100°C (10h) Maximum power: 100kW / 10 g 229-300V SE Hz Max 110V/1.165A System Component CE CE CE

You can find a list of approved service centres on our website www.de-dietrich.com

This website also allows access to information on spare parts.

Original replacement parts

During servicing, ask for only original spare parts to be used.

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.

Technical diagram of an open refrigerator with numbered parts for identification

Diagram illustrating door lock mechanism with labeled steps and directional arrows indicating motion

Illustration of various household cleaning tools including screwdriver, ruler, pen, and tool holder (no text or symbols)

Diagram illustrating screwdriver mechanism with labeled steps and component placement

Diagram illustrating welding process steps with labeled icons and warning symbols

Diagram of two rectangular devices with internal components and a blue arrow indicating direction (no text or symbols)

Technical diagram showing a refrigerator with labeled components and warning symbols

Technical diagram illustrating a door lock mechanism with labeled parts and directional arrows indicating movement or force.

Technical diagram showing two views (G and H) of a refrigerator interior with labeled parts and dimensions, including mounting fixtures and wall-mounted components.

Technical diagram illustrating mechanical assembly and cross-sections with dimension annotations and component views

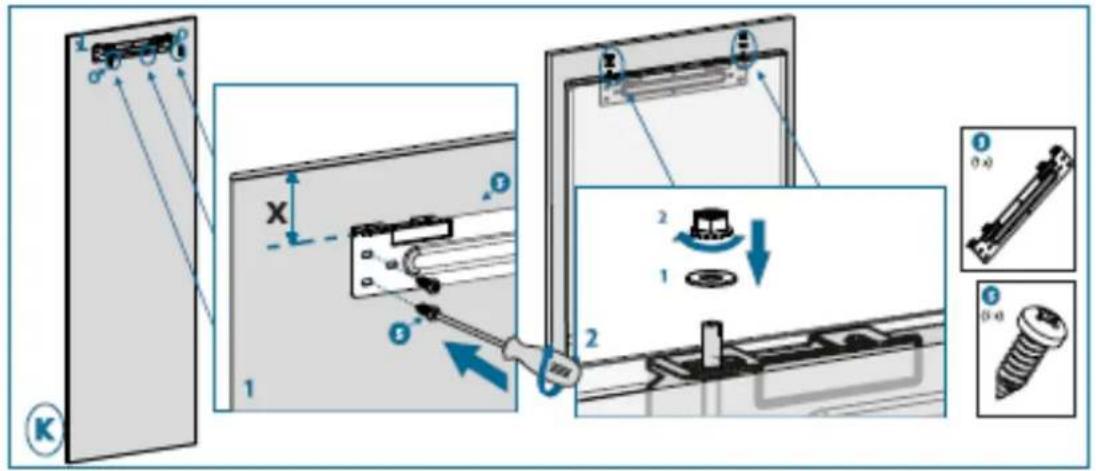

Technical diagram illustrating the assembly of a device with labeled parts and directional arrows indicating movement or assembly.

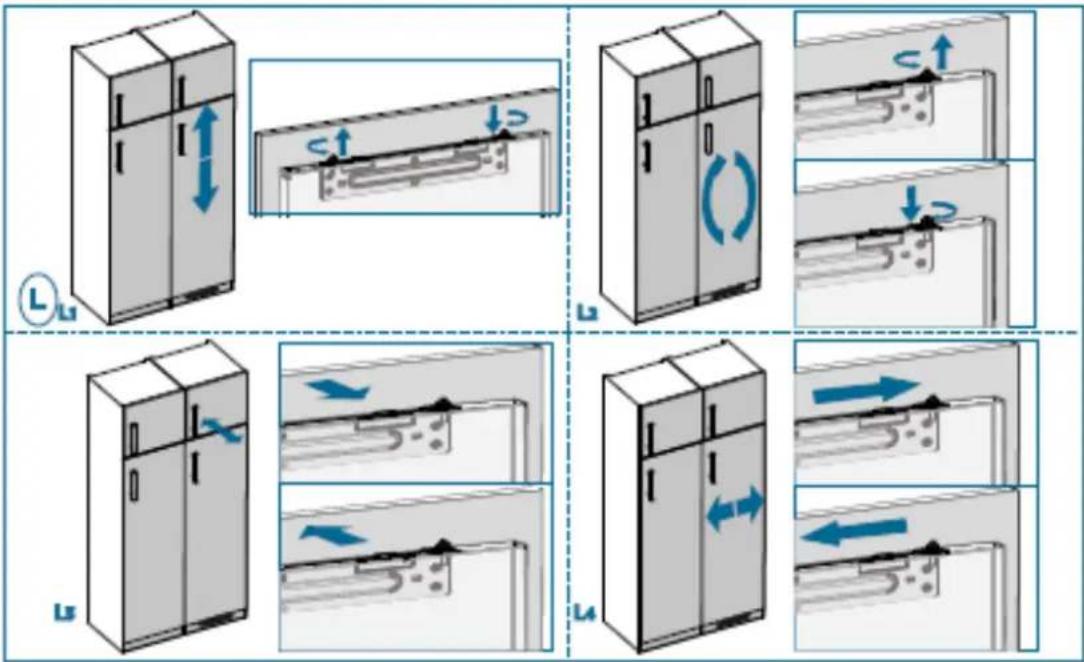

Diagram illustrating the process of lifting a refrigerator panel, showing step-by-step assembly and rotation.

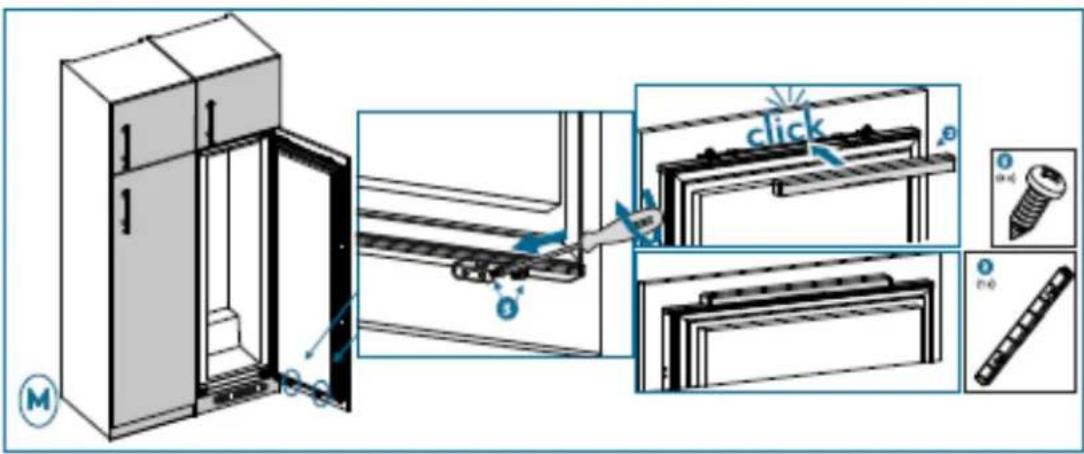

Technical diagram illustrating door opening and mounting process with labeled components and instructions

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or cancellation status.

1 2 3 08.0 P | M 6 5 4

Tasten

04.0 B | M |

Hand pointing at a black square with white symbols (no text or numbers visible)

Technical illustration showing a hand placing a component onto a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

Front and side technical line drawing of a refrigerator with doors, shelves, and cooling unit (no text or symbols)

Technical diagram of an open refrigerator with numbered parts labeled 1 through 7

Diagram illustrating door lock mechanism with labeled parts and directional arrows indicating rotation or movement.

Illustration of various household cleaning tools including screwdriver, pencil, ruler, and tool holder (no text or symbols present)

Diagram illustrating a mechanical setup with labeled parts and directional arrows, including a refrigerator and a switch mechanism.

Diagram illustrating electrical hazard warning and safety instructions for welding or disassembly, with labeled icons and symbols.

Diagram of two rectangular electronic devices with labeled parts and an arrow indicating a directional change (no text or symbols present)

Technical diagram showing a refrigerator with labeled components and warning symbols

Technical diagram showing three-step installation of a door panel with screwdriver and screwdriver, labeled with numbered components and directional arrows.

Technical diagram showing two views (G and H) of a refrigerator with labeled parts and dimensions, including 5 mm measurements.

Technical diagram showing mechanical assembly with dimension annotations and cross-sectional views

1.

Two identical signboards with checkmarks and an 'X' symbol, likely indicating cancellation or rejection status.

04.0 B | M |

E C | v v

Illustration of a hand pressing a finger on a black surface with no text or symbols

04 0 | M |

Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

Line drawing of a refrigerator interior showing front and side views with no text or symbols

BFC 5/6: 14 13 00091 Service: BFC Mode: B6Z-343-1 Data range: 278.0 Length: 10000.0 kg Temperature range: 12.0 Voltage: 100V / 60 128-340V 56 Hz Max 1160V 1.65A Date Range: 27/05/2017 Fridge/Freaser Clearance: 1.0Ω Innered surface: 0.5Ω Refringency: 3.0Ω/Hz Slight Coverage: 0.5Ω/Hz CE CE CE

Technical diagram of an open refrigerator with numbered parts for identification

Diagram illustrating door lock mechanism with labeled parts and directional arrows indicating rotation or movement.

Illustration of various tools including screwdrivers, pencils, ruler, and a tool holder (no text or symbols present)

* 1225 - 1233 for metal top cover

min 200 cm² 560 570 mm max 2100 mm 1225 - 1245 mm 560 mm (recommended) min 550 mm 1225 mm 540 mm min 40 mm 545 mm

Diagram illustrating screwdriver mechanism with labeled parts and directional arrows, including a 3D view of the device.

Diagram illustrating welding process with labeled warning symbols and safety instructions

Diagram of two rectangular electronic devices with labeled parts and directional arrows, no readable text or symbols present.

Technical diagram showing a device with labeled components and warning symbols, including a warning triangle and warning sign.

Technical diagram illustrating screwdriver installation steps with labeled components and directional arrows

Technical diagram showing two views (G and H) of a refrigerator interior with labeled parts and dimensions, including 15 mm measurements.

Technical diagram showing mechanical assembly with dimension annotations and cross-sectional views

1.

Diagram illustrating the assembly of a door panel with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating the process of lifting a refrigerator panel, showing step-by-step assembly and rotation.

Technical diagram illustrating door opening process with labeled components and instructions for click action

Two identical signboards with checkmarks and an 'X' symbol, likely indicating approval or cancellation status.

Hand pointing at a black interface element (no text or symbols visible)

Technical illustration showing a hand placing a component above a shelf, and a close-up of a mechanical component with arrows indicating motion (no text or symbols)

Interior view of a refrigerator with doors, refrigerators, and a door handle (no text or symbols visible)
