USER MANUAL 65HP6265E SHARP

Pencil sketch of a modern flat-screen TV with a blank screen and stand (no text or symbols)

Quick start guide

EN DE FR IT ES PT NL

PLLVSVNODKFILT

ETHRSKCZHUROBG

SRELSL

Trademarks

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The DVB logo is the registered trademark of the Digital Video Broadcasting - DVB - project.

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 1992–2024 Dolby Laboratories. All rights reserved.

Google TV

YouTube

Hey Google

Google TV is the name of this device's software experience and a trademark of Google LLC. Google, YouTube, and Google Cast are trademarks of Google LLC.

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG., Inc.

Important safety instructions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated:

In order to prevent fire always keep candles and other open flames away from this product.

\~ Alternating Current

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

• Television sets with 43"size screens or more must be lifted and carried by at least two people.
• This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the manufacturer or the authorised service agent. Contact with certain parts inside the TV might endanger your life. The guarantee does not extend to faults caused by repairs carried out by unauthorized third parties.
• Do not remove the rear part of the appliance.
• This appliance is designed for the receiving and reproduction of video and sound signals. Any other use is strictly forbidden.
• Do not expose the TV to dripping or splashing liquid.
• To disconnect the TV from mains please unplug the mains plug from the mains socket.
• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• The suggested distance to watch HD TV is approximately three times longer than the screen diagonal size. Reflections on the screen from other light sources can make the quality of the picture worse.
• Ensure the TV has sufficient ventilation and is not close to other appliances and other pieces of furniture.
  • Install the product at least 5 cm from the wall for ventilation.
• Ensure that the ventilation openings are clear of items such as newspapers, table-cloths, curtains, etc.
• The TV set is designed to be used in a moderate climate.
• The TV set is designed exclusively for operation in a dry place. When using the TV outside, please, make sure it is protected against moisture (rain, splashing water). Never expose to moisture.
• Do not place any objects, containers filled with liquids, such as vases, etc. on the TV. These containers might get pushed over, which would endanger electric safety. Place the TV exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the TV.
• Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.
• Do not place the appliance near heating elements or in a place with direct sunlight as it has a negative effect on cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the

appliance. In order to ensure the safety, ask a qualified person to remove the dirt from the appliance.

• Try to prevent damage to the mains cable or mains adapter. The appliance can only be connected with the supplied mains cable/adapter.
• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by lightening the appliance might get damaged, even if it is turned off. You should disconnect all the cables and connectors of the appliance before a storm.
• To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents and in no case use solvents.
• Position the TV close to the wall to avoid the possibility of it falling when pushed.
• WARNING - Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
• Use cabinets or stands recommended by the manufacturer of the television set.
• Only use furniture that can safely support the television set.
• Ensure the television set is not overhanging the edge of the supporting furniture.
• Not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not place the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educate children about the dangers of climbing on furniture to reach the television set or its controls.
• Ensure that children do not climb or hang onto the TV.
• If your existing television set is being retained and relocated, the same considerations as above should be applied.
• The software on your TV and the OSD layout can be changed without notice.
  • TV operating conditions:

- temperature from +10 to +35 °C

- humidity no more than 80% (at a temperature of 25 °C)

- atmospheric pressure from 86 to 106 kPa (from 650 to 800 mmHg)

- Turn off the TV after use and unplug it if it is not going to be used for a long time.

Warning:

• When turning off the set, use the standby button on the remote control. By long pressing of this button, TV will turn off and enter the energy saving standby mode to meet the eco-design requirements. This mode is default one.
• For the electrostatic discharge (ESD) test of EN55035, it was found that manual operation by Standby button ON/OFF switch is needed to resume normal operation as intended after the test.
• Do not use TV set directly after unpacking. Wait until TV warms up to the room temperature before using it.
• Never connect any external devices to a live appliance. Switch off not only the TV but also the devices which are being connected! Plug the TV plug into the wall socket after connecting any external devices and the aerial!
  • Always make sure there is free access to the TV mains plug.
• The appliance is not designed for a use in a workplace fitted with monitors.
• The systematic use of headphones at high volume might lead to irreversible hearing damage.
• Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.
• While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The chemicals contained in these products might have a reaction with

the TV stand. This could result in bits of the material sticking to the furniture surface, which are difficult to remove, if not impossible.

• The screen of your TV has been produced under top quality conditions and was checked in detail for faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen (even with maximum care while in production). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries defined by DIN norm.
• The manufacturer cannot be held responsible, or be liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third party content or service should be made directly to the applicable content or service provider.
• There are a variety of reasons you may be unable to access content or services from the device unrelated to the device itself, including, but not limited to, power failure, the Internet connection, or failure to configure your device correctly. Sharp Consumer Electronics Poland, its directors, officers, employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.
• All third party content or services accessible via this device is provided to you on an "as-is" and "as available" basis and Sharp Consumer Electronics Poland and its affiliates make no warranty or representation of any kind to you, either express or implied, including, without limitation, any warranties of merchantability, non-infringement, fitness for a particular purpose or any warranties of suitability, availability, accuracy, completeness, security, title, usefulness, lack of negligence or error-free or uninterrupted operation or use of the content or services provided to you or that the content or services will meet your requirements or expectations.
• 'Sharp Consumer Electronics Poland' is not an agent of and assumes no responsibility for the acts or omissions of third party content or service providers, nor any aspect of the content or service related to such third party providers.
• In no event will 'Sharp Consumer Electronics Poland' and/or its affiliates be liable to you or any third party for any direct, indirect, special, incidental, punitive, consequential or other damages, whether the theory of liability is based on contract, tort, negligence, breach of warranty, strict liability or otherwise and whether or not Sharp Consumer Electronics Poland and/or its affiliates have been advised of the possibility of such damages.
• This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
• Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Important information regarding use of video games, computers, captions and other fixed image displays.

- The extended use of fixed image program material can cause a permanent "shadow image" on the LCD screen (this is sometimes incorrectly referred to as "burnout to the screen"). This shadow image is then perma-

nently visible on the screen in the background. It is irreversible damage. You can avoid such a damage by following instructions below:

• Reduce the brightness/contrast setting to a minimum viewing level.
• Do not display the fixed image for a long period of time. Avoid displaying of:

» Teletext time and charts,
» TV/DVD menu, e.g. DVD contents,
» In the „Pause“ mode (hold): Do not use this mode for a long time, e.g. while watching a DVD or a video.
» Turn off the appliance if you are not using it.

Batteries

• CAUTION: Risk of explosion if the battery is replaced by an incorrect type.
• Observe the correct polarity when inserting the batteries.
• Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase quickly, e.g. near the fire or on the direct sunshine.
• Do not expose batteries to excessive radiant heat, do not throw them into the fi re, do not disassemble them and do not try to recharge un-rechargeable batteries. They could leak or explode.

» Never use different batteries together or mix new and old ones.
» Dispose of batteries in an environmentally friendly way.
» Most of the EU countries regulate the disposal of batteries by law.

Disposal

- Do not dispose of this TV as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Cd

CE Statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this equipment is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU.
• The full text of the EU declaration of conformity is available by following the link www.sharpconsumer.com/documents-of-conformity/ This equipment may be operated in all EU countries.

The 5 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors.

Wi-Fi max transmitter power:

100 mW at 2,400 GHz – 2,4835 GHz

100 mW at 5,150 GHz – 5,250 GHz

100 mW at 5,250 GHz – 5,350 GHz

100 mW at 5,470 GHz – 5,730 GHz

100 mW at 5,735 GHz – 5,835 GHz

BT max transmitter power: 10 mW at 2,402 GHz – 2,480 GHz.

What is included in the box

Supply of this TV includes following parts:

• 1x TV • 1x TV stand installation packet
• 1x Remote control • 1x Quick Start Guide
• 2x AAA batteries

Attaching the Stand

Please follow the instructions in Technical leaflet, located in the accessories bag.

Wall mounting the TV

Install the wall mounting bracket to the television as advised by the bracket manufacturer.

Connections

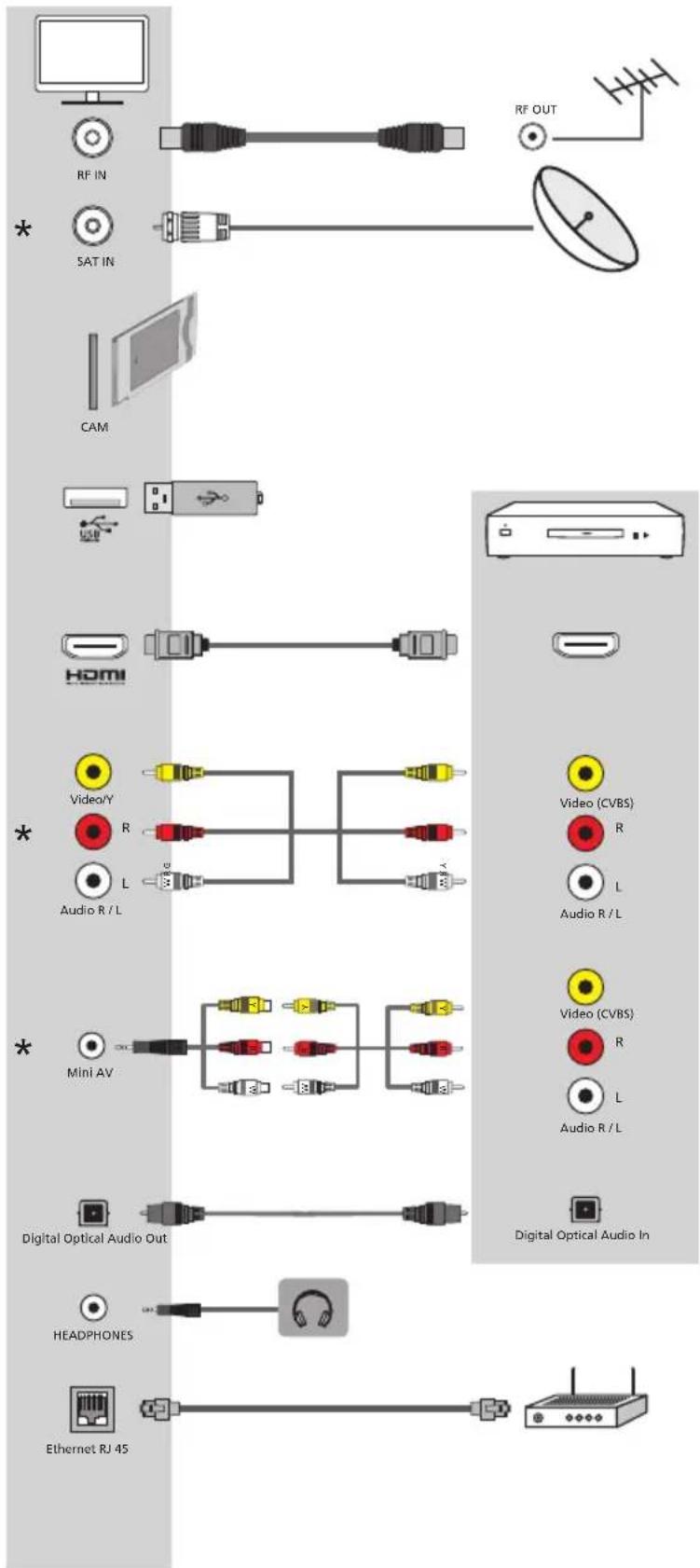

For connecting external devices, refer to the last page of this guide.

Getting started - initial set up

1. If rubber parts, foam parts or tape are attached to the TV frame, please remove them gently.
2. Using the antenna cable (not supplied), connect the TV to the antenna wall socket.
3. For connecting to the Internet with a wired connection connect a Cat 5/Ethernet cable (not included) from the TV to your broadband modem/router.
4. Insert the supplied batteries into the remote control.
5. Connect the power cable to the Electrical outlet.
6. Then press Standby button to power on TV.
7. After turning the TV on, you will be welcomed by the First Time Installation menu.
8. Follow the on-screen instructions to pair your voice remote. Briefly press the ⏻ (microphone) button to pair your remote with the TV.
9. Please select language for TV menu.
10. Please set desired settings in remaining screens of First installation menu.

NOTE: To connect your TV to the internet and access smart features, you must sign in with your Google Account. Without a Google Account, all internet-based features will be unavailable; however, you can still use the TV as a regular TV.

TV control button

The TV is equipped with a single control button located at the bottom of the LED light. Press the button to turn the TV on/off.

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

Choosing Mode Input/Source

To switch between the different input/connections.

Using the buttons on the remote control:

1. Press [SOURCE/ ☐] - The source menu will appear.
2. Press [▲] or [▼] to select the input you require.
3. Press [OK].

TV Menu navigation

Use the (▲/▼/◄/►) buttons to focus on the desired item. Press the OK button to select the item currently in focus. Press the ← (back) button to go back one step in the menu. Press and hold the ← (back) button to leave menu. Press the ↑ (home) button to enter the TV Home menu.

Electronic instruction manual

To access more useful information directly from your TV, you can launch the online manual by following these steps:

1. Press the (home) button on your remote.
2. Using the cursor, navigate downwards to "Your apps".
3. From the list of apps, locate and select "Instruction Manual."
   NOTE: Please ensure that your TV is connected to the internet in order to use this electronic manual.

Remote control

If your remote loses its pairing with the TV for any reason, you can manually pair it through the settings menu by following these steps:

1. Press the (home) button, then select [Settings] and press [OK].
2. The Quick settings menu appears. Keep the cursor on the Settings symbol and press the OK button again to enter the Settings menu.
3. Then select [Remotes & Accessories] > [Pair accessory].
4. Follow the on-screen instructions to pair the remote control with the TV.
5. The name of your remote will appear on the TV Screen. Press OK to confirm the pairing.

How to unpair / reset your remote

To unpair your remote from another device, press and hold the SOURCE and (back) buttons simultaneously for 5 seconds. The LED on the remote will blink red brief y to confirm successful unpairing.

NOTE: If you encounter any issues with pairing or using the remote control, you can try resetting it this way and then pair it again.

Accessibility

Accessibility settings are features designed to make the TV easier to use for people with disabilities. These settings assist users with visual or hearing impairments by adapting the TV interface and content.

To access the Accessibility menu, press the ⚙️ (quick settings) button and navigate to [Settings] > [System] > [Accessibility]. Within this menu, the following options are available:

[TalkBack (screen reader)] – A screen reader that assists visually impaired users by reading aloud on-screen text, menu items, and other interface elements. It can also be activated using the accessibility shortcut.

[Text to speech] – Settings for the TalkBack screen reader.

[Text Scaling] – Adjusts the size of text in the TV menus.

[Bold Text] – Makes menu text bold for easier readability.

[Colour Correction] – An accessibility option for colour-blind users. This setting allows you to adjust how colours are displayed. Available modes include:

[Deuteranomaly] (green-red)

[Protanomaly] (red-green)

[Tritanomaly] (blue -yellow)

[Greyscale] (Achromatopsia)

[Accessibility Shortcut] – A quick way to enable an accessibility feature.

When the shortcut is active, press both the ← (back) and Down buttons for 3 seconds to start the selected accessibility feature. You can choose the shortcut function under [Shortcut service]. The default option is TalkBack.

[Keyboard Accessibility] – Accessibility options for external keyboards:

[Time to take action (accessibility timeout)] – You can choose how long to show messages that ask you to take action, but are visible only temporarily.

[Key repeat delay] – Adjusts the delay before a held key starts repeating.

[Switch Access] – Allows control of the TV using one or more external switches instead of the remote. Items on the screen are scanned and highlighted sequentially until a selection is made.

[Audio Description] – Adds a narration track that describes visual elements of the program, aiding visually impaired users. Available only with supported digital TV content.

[Captions] – Displays text on the screen that represents spoken dialogue and sound effects. Useful for users who are deaf or hard of hearing.

Options include:

[Display] – Turn captions on or off.

[Language] – Select the preferred caption language.

[Text size] – Adjust size of displayed text.

[White on black] / [Black on white] – Choose the caption text and background color combination.

[High-contrast text] – Enhances text contrast on screen for improved readability.

How to download this document

You can download an electronic version of this document by scanning the QR code or following the link below. Once on the website, enter your model number in the search bar and select "Quick Start Guides" in the download section.

QR code image containing encoded data, no visible human-readable text

Simple line drawing of a rectangular panel with supports and a directional arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Déclaration CE :

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular object with supports and a downward arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Declaração CE:

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

Velge modus Inngang/Kilde

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

100mW at 2,400 GHz - 2,4835 GHz

100mW at 5,150 GHz – 5,250 GHz

100mW at 5,250 GHz - 5,350 GHz

100mW at 5,470 GHz - 5,730 GHz

100mW at 5,735 GHz - 5,835 GHz

BT max sändarkraft: 10 mW at 2,402 GHz – 2,480 GHz.

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Svarbüs saugos nurodymai

ATSARGIAI ELEKTROS SMÜGIO PAVOJUS NEATIDARYTI

Simple line drawing of a rectangular frame with supports and a directional arrow, no text or symbols present.

Ivesties (šaltinio) pasirinkimas

Perjungti jvairius jvesties variantus.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Komplekta saturs

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

Olulised ohutusjuhised

ETTEVAATUST

ELEKTRILÖÖGIOHT ÄRGE AVAGE

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

Režiimi sisendi/allika valimine

Erinevate sisendite/ühenduste vahel valimine.

Kasutades puldinuppe

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Co je v balení

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Declaratie CE:

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular frame with supports and a directional arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Važne sigurnosne upute

OPREZ OPASNOST OD ELEKTRIČNOG UDARA NE OTVARAJ

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular object with supports and a rotation arrow, no text or symbols present.

Biranje ulaza/izvora režima

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Izjava CE:

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

Izbiranje načina vhoda/vira

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Simple line drawing of a rectangular panel with supports and a power button, no text or symbols present

QR code image containing encoded data, no visible human-readable text

www.sharpconsumer.com

Connecting external devices Anschluss externer Geräte Connexion d'appareils externes Connessione di dispositivi esterni Conexión a dispositivos externos Ligar dispositivos externos Het aansluiten van externe apparaten Podłączenie urządzeń zewnętrznych

Tilkoble eksterne enheter Ansluta externa enheter Tilslutning af eksterne enheder Ulkoisten laitteiden kytkeminen Išorinių įrenginių prijungimas Ārējo ieriču pievienošana Välisseadmete ühendamine Připojování externích zařízení

Pripojenie externých zariadení Külső eszközök csatlakoztatása Conectarea dispozitivelor externe Свързване на външни устройства Spajanje vanjskih uređaja Povezivanje spoljašnjih uređaja Povezovanje zunanjih naprav Σύνδεση εξωτερικών συσκευών

RF OUT RF IN SAT IN CAM HDMI Video/Y R L Audio R / L Video (CVBS) R L Audio R / L Mini AV Video (CVBS) R L Audio R / L Digital Optical Audio Out Digital Optical Audio In HEADPHONES Ethernet RJ 45

* optional	valgfritt	volitelné
optional	valfritt	opcionalis
facultatif	Valgmuligheder	optional
opzionale	valinnainen	no избор
opcional	pasirenkama	opcijska
opcional	izvēles	opciono
optioneel	valikuline	dodatno
Opcja	volitelné	простретикó

CE

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Łysomice, Poland

www.sharpconsumer.eu

SHARP
