USER MANUAL CV 570 NaceCare Solutions

Original Instructions

Warning! Read instructions before using the machine

www.numatic.com

National flag of the Union of the United Kingdom (no text or symbols visible)

Flag of Germany with black, red, and yellow bands (no text or symbols)

National flag of France with blue, white, and red vertical stripes (no text or symbols)

National flag of the Netherlands, featuring red, white, and blue stripes (no text or symbols)

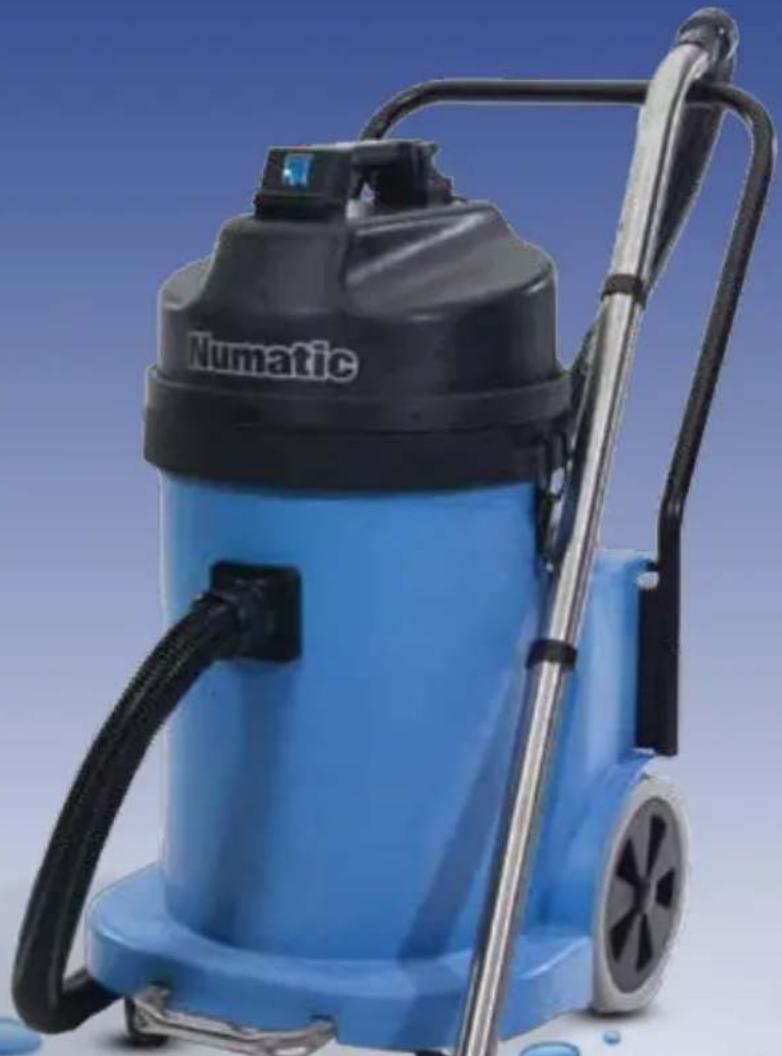

Blue Numatic vacuum cleaner with black cover and metal handle, no visible text or symbols on the device itself.

Operating Instructions

CV 570

CVD 570

CV 900

CVD 900

Original Instructions

Warning! Read instructions before using the machine.

Warnhinweis

NACECARE SOLUTIONS Clarity in Cleaning

Numatic INTERNATIONAL

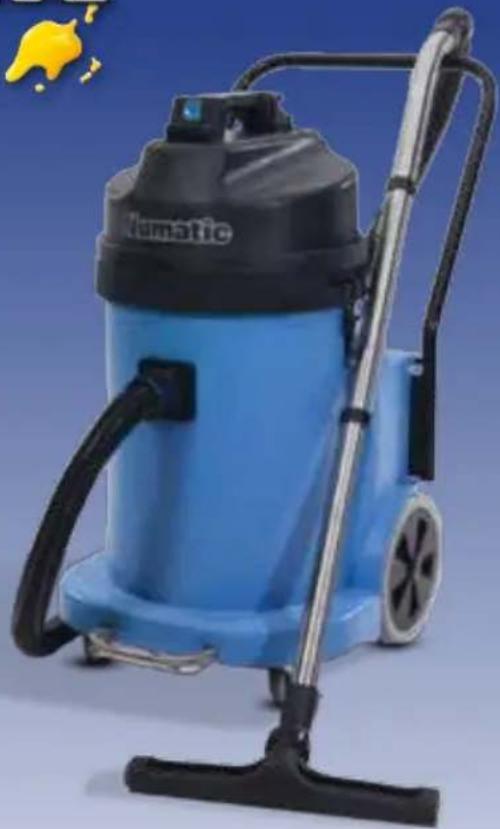

Two blue industrial vacuum cleaner units with black lids and metal handles, shown from different angles (no text or symbols visible)

CV/CVD 570/900

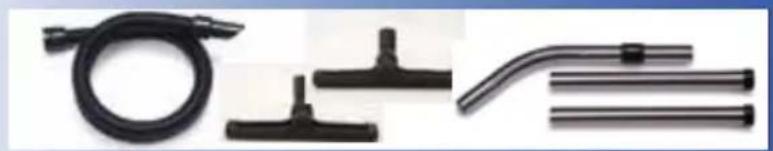

Product photo of black industrial hoses and connectors (no text or symbols visible)

B∞

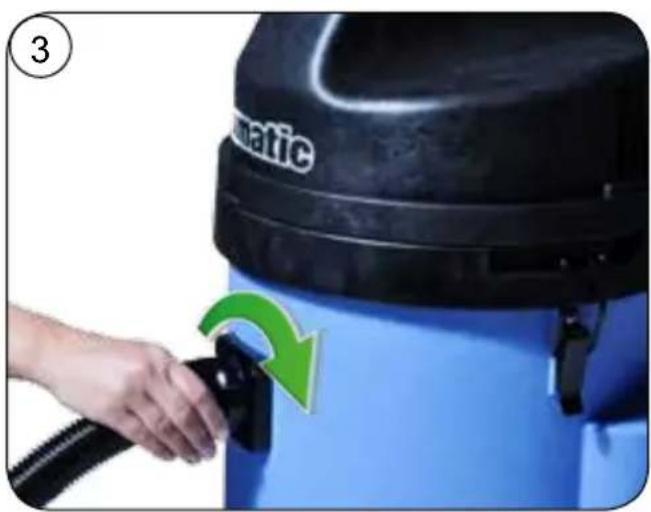

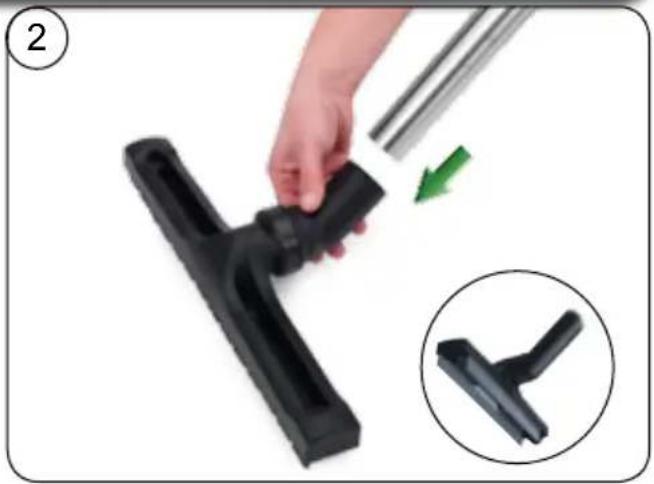

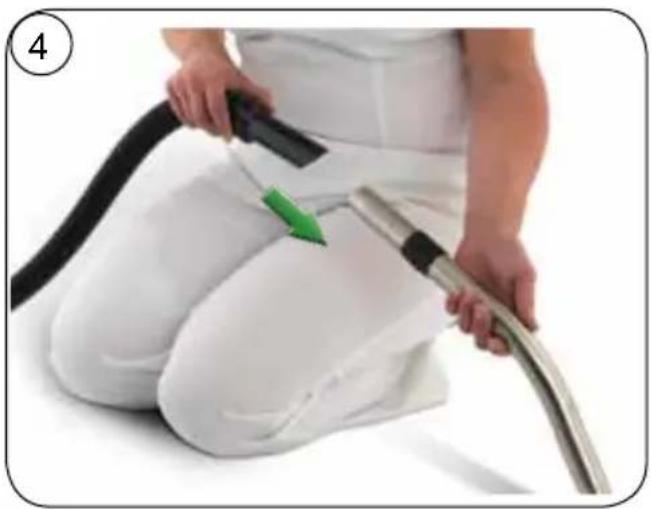

Assembling the machine

Person performing a walking exercise with a metal stick and green arrow indicating motion (no text or symbols)

Hand holding a black plastic clip with a green arrow indicating motion (no text or symbols)

Close-up of a blue automatic vacuum cleaner with a hand adjusting its cable, showing green circular arrow indicating rotation (no text or symbols on the device itself)

Person kneeling with a white medical or cosmetic device being adjusted by a tool, no visible text or symbols

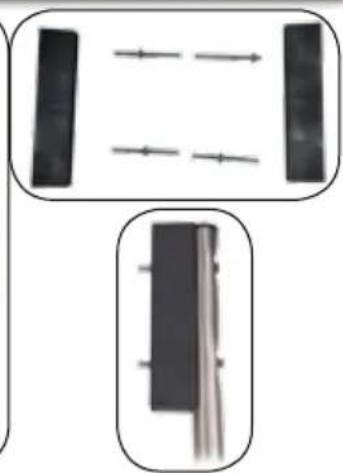

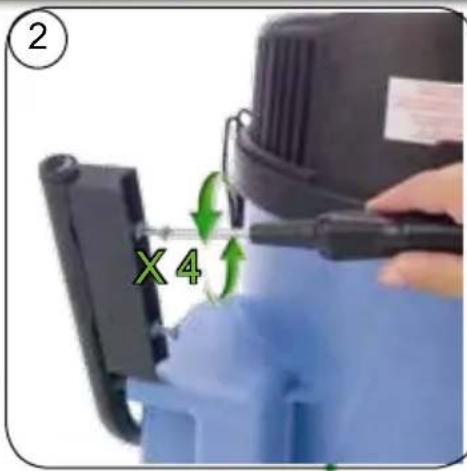

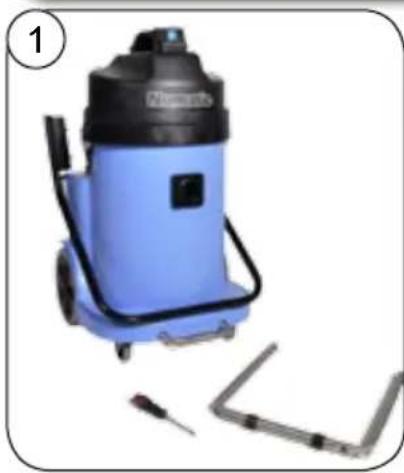

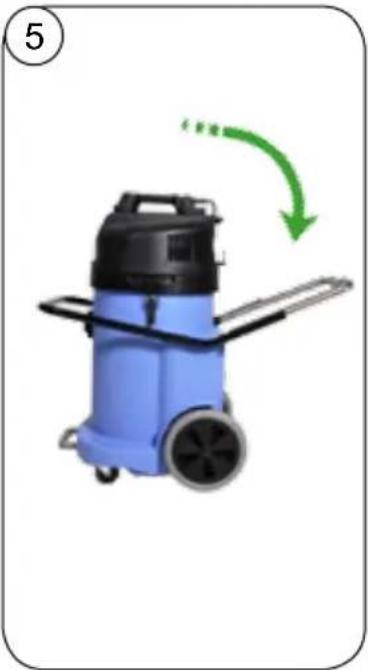

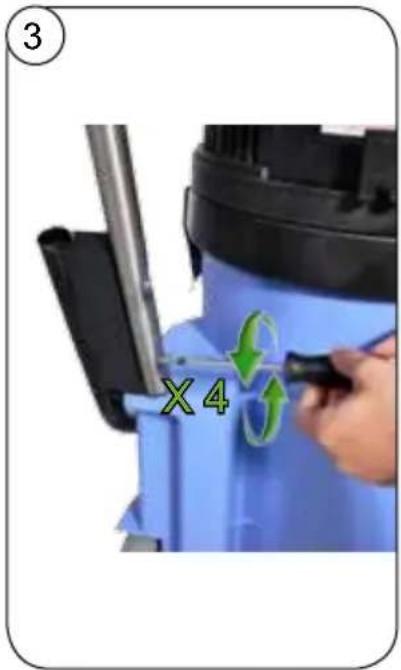

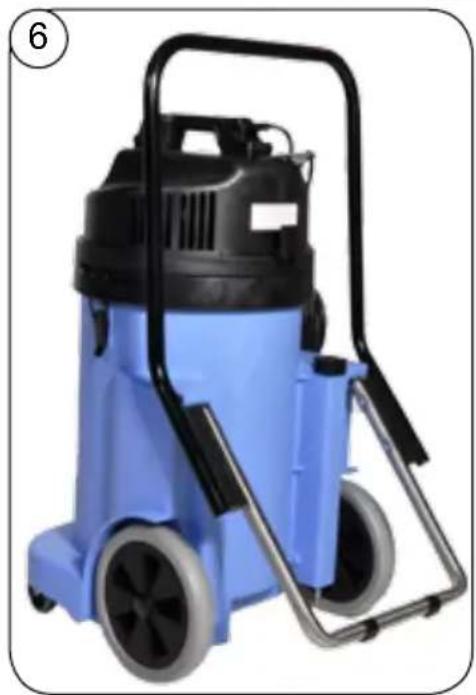

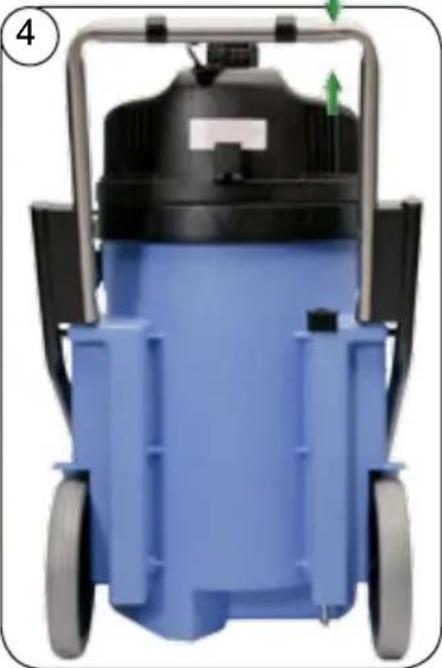

CV/CVD900 ASSEMBLY CV/CVD900 ZUSAMMENBAU CV/CVD900 UN ENSEMBLE / UN ASSEMBLAGE CV/CVD900 SAMENSTELLING

Blue industrial vacuum cleaner with attached tools and a numbered label (1), no visible text or symbols on the device itself.

② X4

Diagram showing two rectangular blocks with horizontal arrows and a separate black-and-white schematic of a cable or connector (no text or symbols)

③ X 4

Blue industrial vacuum cleaner with black top and wheels, no visible text or symbols

Blue industrial vacuum cleaner with black top handle and green arrow indicating motion (no text or symbols)

Blue and black portable vacuum cleaner with wheels and handle (no visible text or symbols)

Close-up of a hand holding a blue object, possibly a container or tool, with no visible text or symbols.

Close-up of a blue plastic component with an upward arrow and a lock icon (no text or symbols)

Close-up of a blue computer mouse with a green arrow pointing to the mouse (no text or symbols visible)

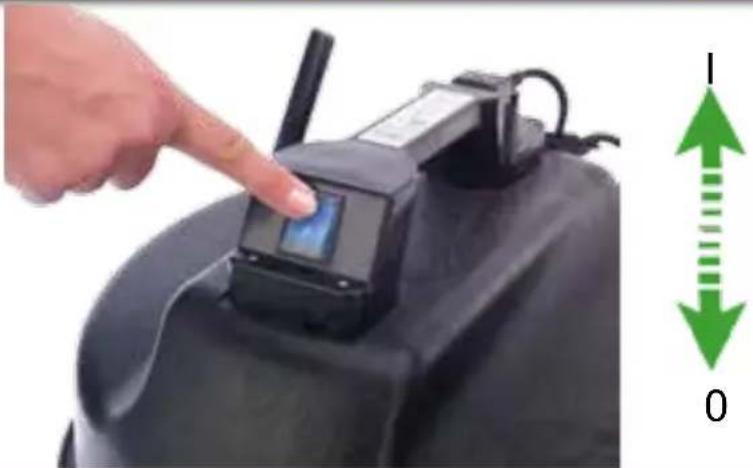

USING THE MACHINE ARBEITEN MIT DER MASCHINE UTILISATION DE LA MACHINE DE MACHINE GEBRUIKEN

Hand interacting with a black electronic device displaying a screen, with green arrows indicating direction (no text or symbols on device)

-Warning!

You must make sure all waste material has been emptied from machine after use. Make sure all filters are clean before every use.

Blue and black vacuum cleaner with adjustable arm and handle (no visible text or symbols)

1

Product photo of a vacuum cleaner with blue housing, black filter cover, and circular base (no text or symbols visible)

2

Person holding a blue portable device, viewed from behind (no text or symbols visible)

CV 900 / CVD 900

Blue and black industrial vacuum cleaner with adjustable arm and handle (no visible text or symbols)

1

Blue industrial vacuum cleaner with black handle and control panel (no visible text or symbols)

2

Person in dark uniform pushing a blue wheeled cart (no visible text or symbols)

3

Person pushing a blue cylindrical water dispenser (no visible text or symbols)

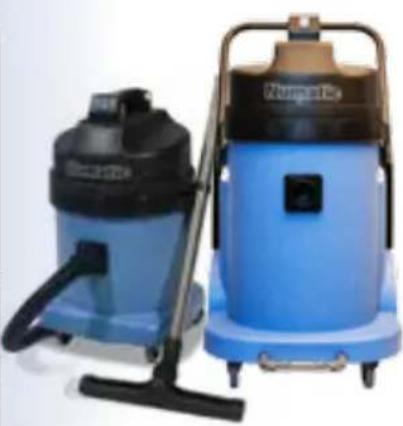

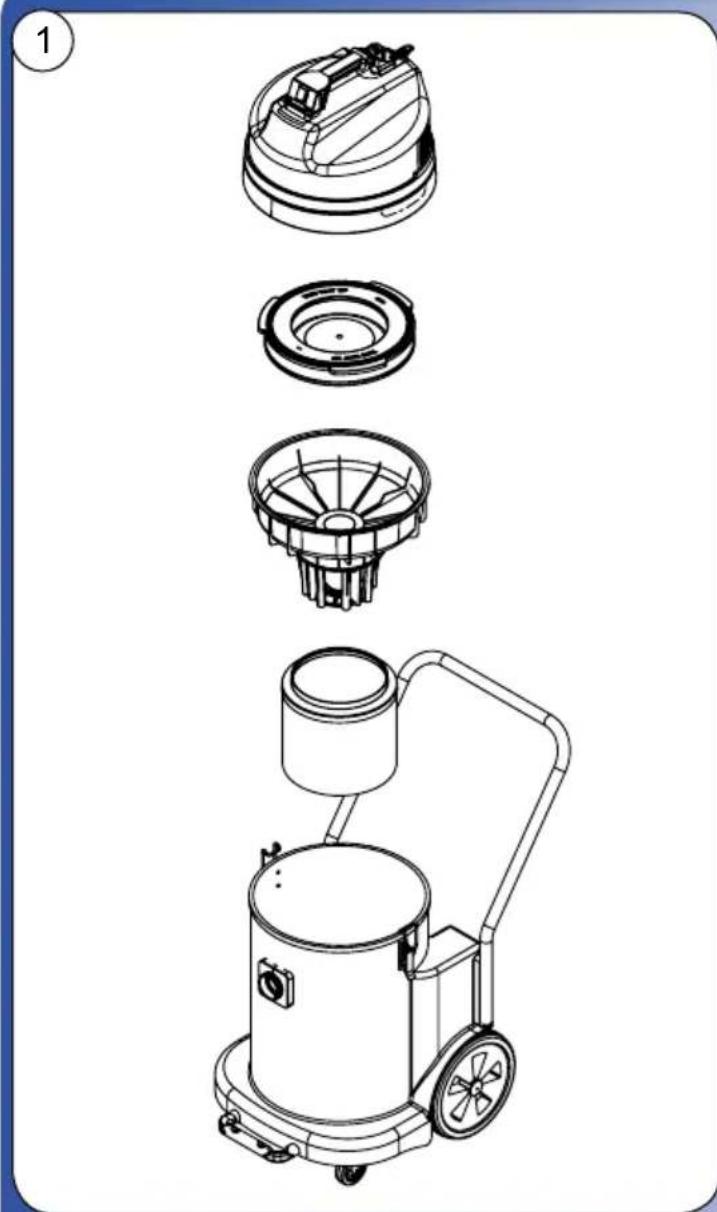

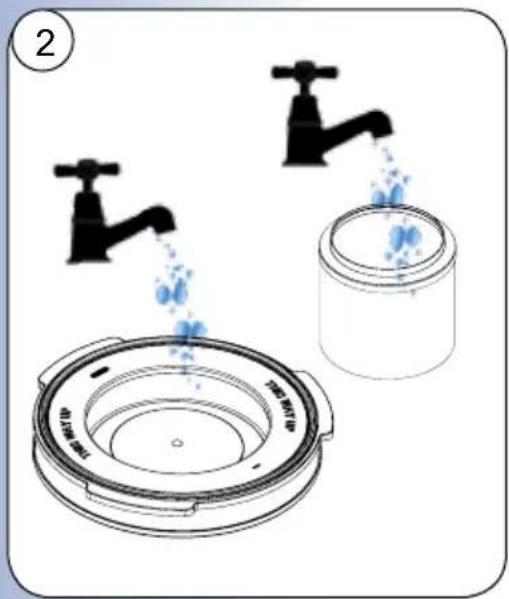

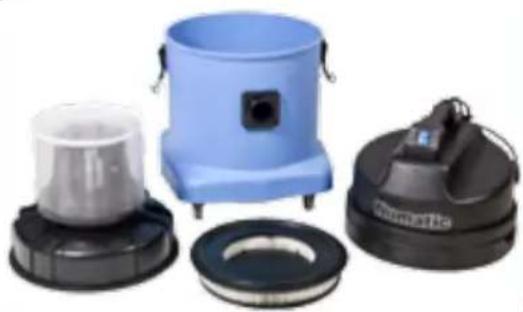

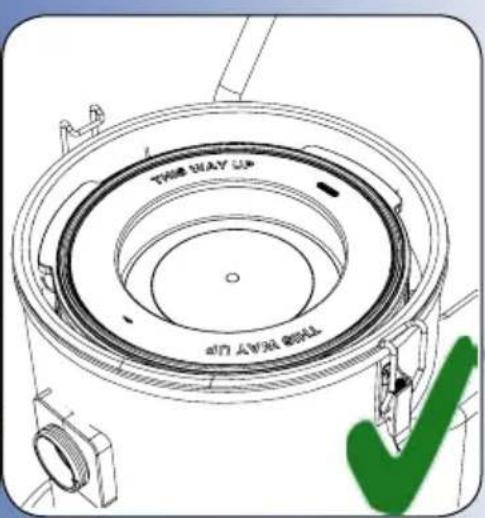

Cleaning the machine - Reinigung der Maschine Nettoyage de la machine - De machine reinigen

Technical line drawings of a cleaning or cleaning machine, showing top, front, side, and side views (no text or labels)

2 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 mL 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 L 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 M 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 100 N 10 5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5.5. 1 2

Technical line drawing of a circular mechanical component with concentric rings and mounting flanges (no text or symbols)

- Do not replace filter until completely dry!

Technical diagram of a mechanical component with concentric circles and a red X mark, no readable text or symbols present.

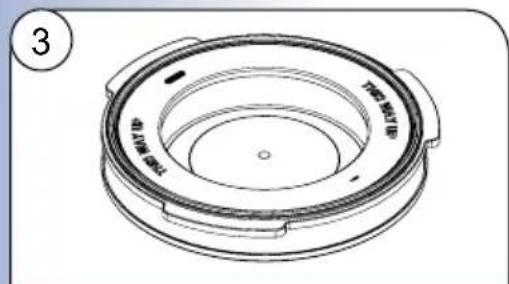

THIS WAY UP THIS WAY UP

Two blue and black industrial vacuum cleaner units (no visible text or symbols)

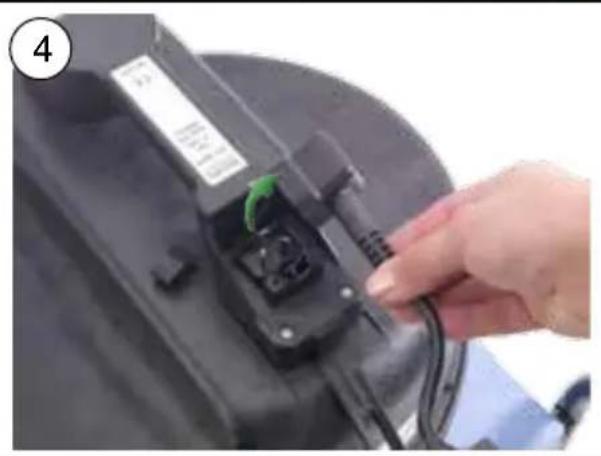

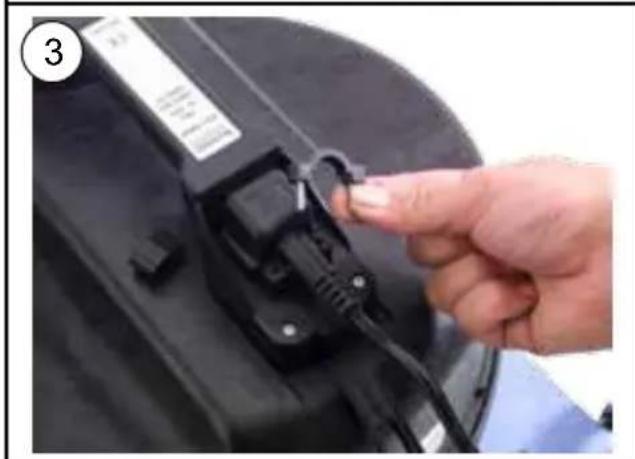

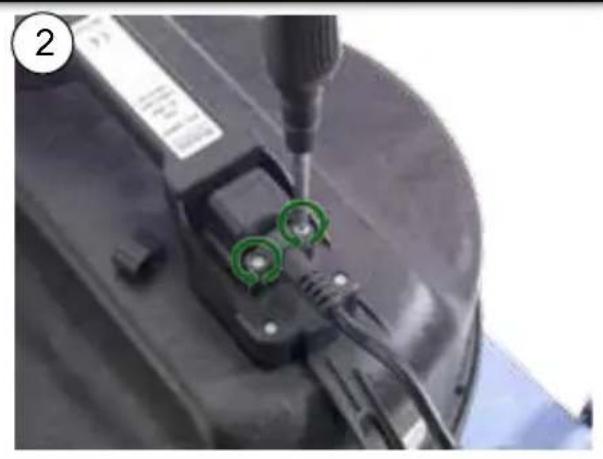

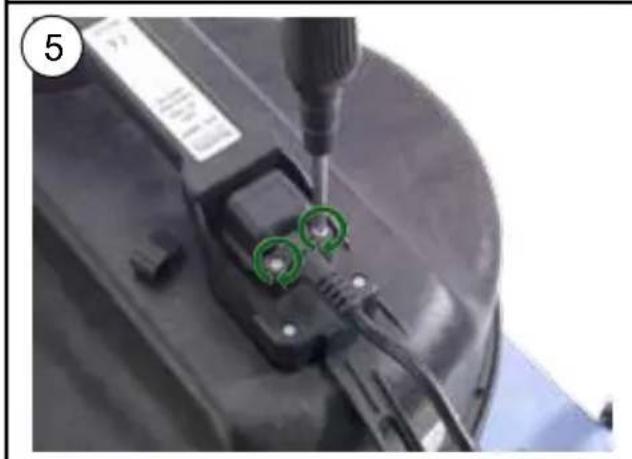

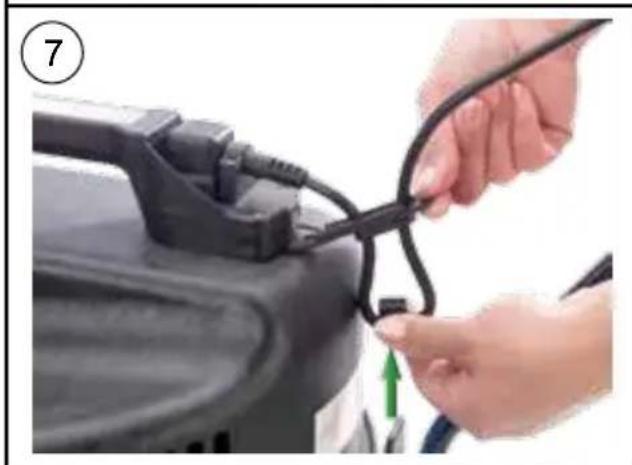

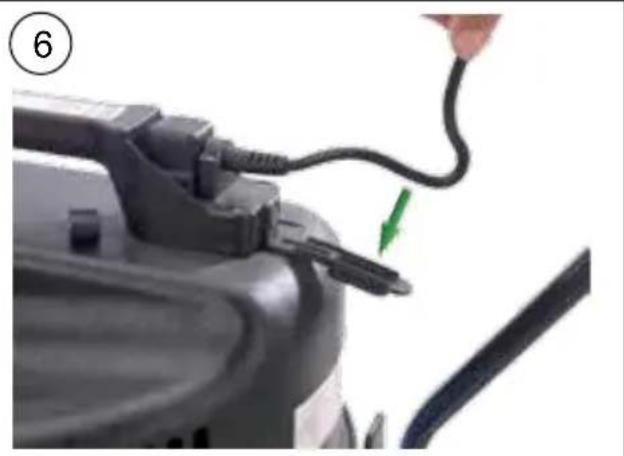

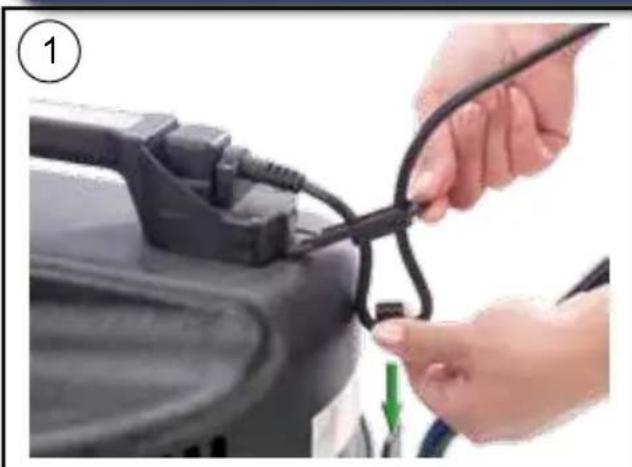

CHANGING THE CABLE - WECHSELN DES GERÄTEKABELS REEMPLACEMENT DU CÂBLE - VERVANGEN VAN HET SNOER.

Close-up of hands connecting a black cable to a car engine compartment, with a green arrow indicating a directional change (no text or symbols visible)

Close-up of a mechanical component with a screwdriver inserted, showing two green circular features on the base (no text or symbols visible)

Close-up of a hand inserting a black plastic component into a car body, with no visible text or symbols.

Close-up of a hand inserting cable into a black electronic device component (no visible text or symbols)

Close-up of a mechanical component with a screwdriver inserted, showing two green circular features on the base (no text or symbols visible)

Close-up of a car engine component with a green arrow pointing to a cable or connector (no text or symbols visible)

Close-up of hands connecting a black cable to a car engine compartment, with a green arrow indicating the cable's direction (no text or symbols visible)

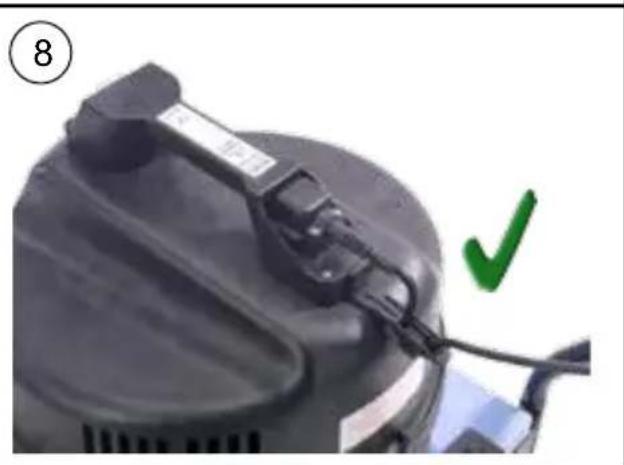

Close-up of a black mechanical component with a green checkmark and label, no readable text or symbols present.

CV / CVD 570

	Motor AirFlo	(motor only)	Suction Cleaning	Range	Class
CV 570CVD 570	1060 W1060 W x 2	49 L/sec98 L/sec	24002400	26.8m26.8m	II
		CapacityWet/dry	Size Weight Sound Pressure
CV 570CVD 570		13 Ltrs13 Ltrs	415x415x645 16.3 Kgs18.5 Kgs		73.6-79 dB(IEC 60704-2-1)Uncertainty: 0.2 dB (A)

CV / CVD 900

	Motor AirFlo Suction Cleaning			Range	Class
CV 900CVD 900	1060 W1060 W x 2	49 L/sec98 L/sec	24002400	26.8m26.8m	II
		CapacityWet/dry	Size Weight Sound Pressure
CV 900CVD 900		30 Ltrs30 Ltrs	490x800x880 25.2 Kgs27.7 Kgs		73.6-79 dB(IEC 60704-2-1)Uncertainty: 0.2 dB (A)

About the machine

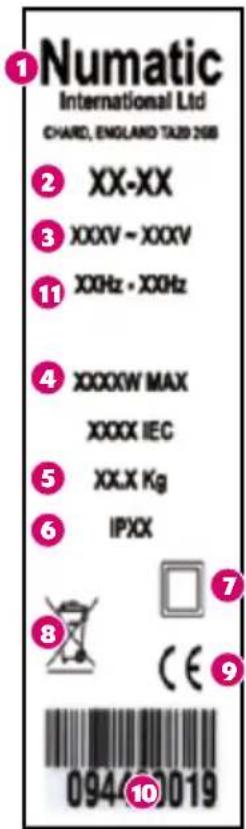

Rating Label

1 Company Name & Address
2 Machine Description
3 Voltage
4 Power rating
5 Weight (ready to use)
6 IPX Rating
7 Class 2 symbol
8 WEEE Logo
9 CE Mark
10 Machine yr/wk Serial number
11 Frequency

1Numatic International Ltd CHARD, ENGLAND TA29 268 2 XX-XX 3 XXXV - XXXV 11 XXHz · XXHz 4 XXXW MAX XXXX IEC 5 XX.X Kg 6 IPXX 7 8 CE 9 0940019

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EU countries:

Do not dispose of Vacuum cleaner into household waste!

According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.

Safety critical components

Mains lead

HO5VV-F x 10m x 2 x 1.00mm²

HO5VV-F x 10m x 2 x 1.50mm²

PPE

(personal protective equipment) that may be required for certain operations.

Ear Protection

Safety Footwear

Head Protection

Safety Gloves

Dust / Allergens Protection

Eye Protection

Protective Clothing

Caution FloorsignHi Viz Jacket

NOTE:

A risk assessment should be conducted to determine which PPE should be worn.

Information for Wet & DRY Use Vacuum cleaners

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

WARNING

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility

in this respect.

The machine shall be disconnected from the mains by removing the plug from the supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

The machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

If foam/liquid comes out of machine exhaust, switch off immediately. Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine. Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or

chemical content.

This machine is not suitable for the collection of biological hazards, hazardous or explosive dust. You should contact your local distributor if you require a machine capable of performing these tasks.

Ensure that the filtration system fitted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only

This product complies with the requirements IEC 60335 -2.69.

When moving from one place to another, consider the weight of the machine.

NOTES

This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices for other than normal housekeeping purposes.

• Keep your machine clean.
• Keep filters clean.
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
• Keep hoses clear.

• Replace any worn or damaged parts immediately.

• Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part.
  • Empty dust container frequently.

• Keep diffuser filter (where fitted) clean.
• Dispose of waste in an environmentally responsible way.

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
• Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.

• Run the machine over the power cable during operation as a hazard may occur.

• Pull on the cable to unplug the machine from the power supply.

• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Spray onto people or animals.
• Attempt machine maintenance or cleaning unless the power supply plus has been removed from the supply outlet.

Fault finding in Wet and Dry mode

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating where the fault lies.

If the vacuum cleaner has a blockage and will not pick up material, switch off and remove the plug from the wall. Check if the float valve has operated, this will shut off the suction and the pitch of the vacuum motor will change. Remove the power head and float cage and empty the waste out of the container, if the container is empty check that the floor tool, wands and hose are not blocked.

After use always inspect the machine for damage.

	Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical Helpline [phone]
	Wenn Sie das Problem nicht belieben können oder wenn es zu einer Störung kommt, wenden Sie sich an ihren Numatic-Händler oder rufen Sie bei der Numatic Technical Helpline an unter 0049 (0)511 9842160
	Sir vous ne parvenez pas risoudhre le problème ou en cas de pannel, contacted votre revendeur Numatic ou le service d'assistance technique Numatic au [phone]
	Neem contact op met uw Numatic-verdeler als u het probleem niet kunt verhelpen of de machine densit weigert. U kunt ook de technische hulpijn van Numatic belten op [phone]
	Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical Helpline 9861 656 284

Spare Parts

207124 CARTRIDGE FILTER
207125	(H10) CARTRIDGE FILTER (optional extra)
207126 MESH FILTER BAG
502988 FLOAT ASSEMBLY

EU DECLARATION

CONFORMITY

We hereby declare under our sole responsibility that the following equipment fulfils all the relevant provisions of the following EU Directives:

Machinery Directive 2006/42/EC EMC Directive 2014/30/EU RoHS Directive 2011/65/EU

Machine Description: Vacuum Cleaner Type: WVD, WV, CV, CVD series

Manufactured by: Numatic International Limited

Relevant standards upon which conformity is declared include:

IEC 60335-1 2001 + A1 2004 + A2 2006 + National Deviations IEC 60335-2-2 2002 + A1 +A2 IEC 60335-2.69 2002 + A2

EN 55014-1 2001 +A1 2001, +A2 2002 EN 55014-2 1997 + A1 2001 (Cat II) EN 50366 2003 + A1 2006

Position: Technical Manager

Date: 20/04/2016

NumaticInternationalLimited,

NumaticInternation

Chard, Somerset.

1A20 2GB

www.numatic.co.uk

Signed:

CV / CVD 570

Numatic International Limited

Hersteller:

L N M PCB

Numatic

INTERNATIONAL

CV 570

CVD 570

CV 900

CVD 900

Blue Humatic vacuum cleaner with black cover and metal handle, no visible text or symbols on the device itself.
