USER MANUAL Jogger Kit Burley

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

IMPORTANT

A LIRE ATTENTIVEMENT ET À CONSERVER POUR RÉFÉRENCE ULTÉRIEURE

WICHTIG

BITTE SORGFÄLTIG LESEN UND FÜR SPÄTERES NACHLESEN UNBEDINGT AUFBEWAHREN

IMPORTANTE

LEER DETENIDAMENTE Y MANTENERLAS PARA FUTURAS CONSULTAS

B

Burley®

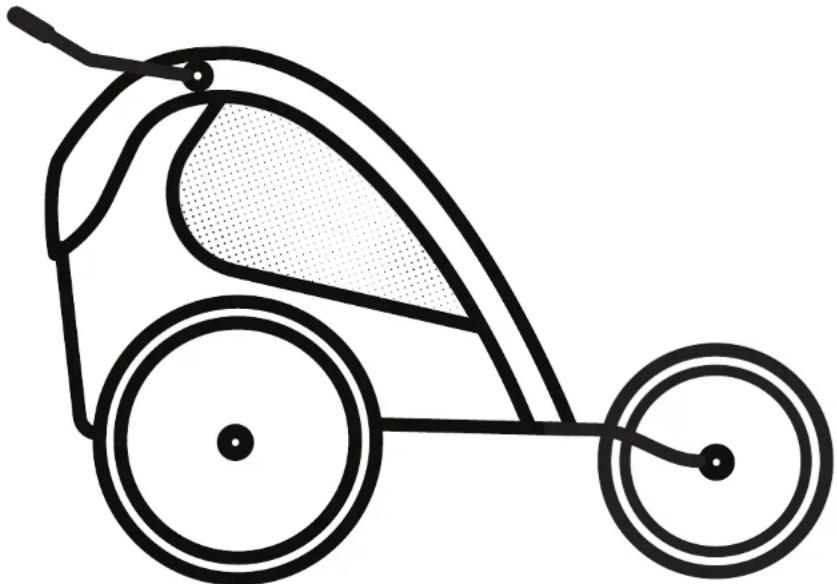

Line drawing of a two-wheeled toy car with wheels and a dotted interior (no text or symbols)

Jogger Kit

OWNER'S INSTRUCTION & SAFETY MANUAL

ENG

WARNING 3

Maximum Capacities 3

Installing the Jogger on Your Trailer 4

Tracking Adjustment 5

Attaching the Jogging Tether 5

Check before each use 6

Burley Limited Warranty 6

Connect with Burley 20

DEU

WARNHINWEIS 7

Before using your trailer, please familiarize yourself with this Burley manual. For questions and additional information, please contact your authorized Burley dealer or visit www.burley.com.

Wichtig

Failure to comply with the instructions and warnings in this manual could result in serious injury or death of the passenger or rider.

• Never leave your child unattended.
• Ensure that all locking devices are engaged before use.
  • To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• This seat is not suitable for children under 6 months (unless using a Burley approved accessory).

• Always use the restraint system.

- DO NOT install a car seat or any other seating device in the product.

• This product is not suitable for running or skating.

- When using double trailer with one child, always seat the child in the right side position.

Note: references to the left or right refer to standing behind the trailer looking forward.

- Make sure children cannot put fingers, clothing, toys or shoelaces into the wheel spokes or any other moving parts.

- Check comfort and safety of children frequently, especially during hot or cold weather.

- Parcels or accessory items, or both, placed on the unit may cause the unit to become unstable. Unstable hazardous conditions may exist if package carry accessories are added onto the product.

- Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

- Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

- DO NOT use with a total load that exceeds the weight limits, or more children than the vehicle has been designed for. If recommended load is exceeded, the unit may become unstable.

• DO NOT make modifications to the product.

• Always use the jogging tether when used as a stroller.

- When strolling use only on paths that are meant for walking. Do not use it on steep slopes, which can make the product unstable. You should be able to maintain traction and control at all times.

- Do not maneuver over stairs or other obstacles while your child is inside.

• View compatible trailer models: burley.com/compatibility

- Children must be able to sit upright without support and have adequate neck strength to support their heads before being carried in a trailer. Consult a pediatrician to determine if a child is of sufficient developmental age to be carried in a bicycle trailer.

Maximum Capacities

• Nominal Load:
• Double Trailer: 100 lbs (45 kg), one or two children + cargo
• Single Trailer: 75 lbs (34kg), one child + cargo
  • Maximum Weight of Child: 40 lb (18 kg)
  • Maximum standing height of child (without helmet): 41.25 in [105 cm]
  • Minimum Age of Child:
• When Biking: 12 months
• When Strolling: 6 months*
  -*Unless using a Burley approved accessory
  Always comply with local regulations for maximum trailer weight.

Installing the Jogger on Your Trailer

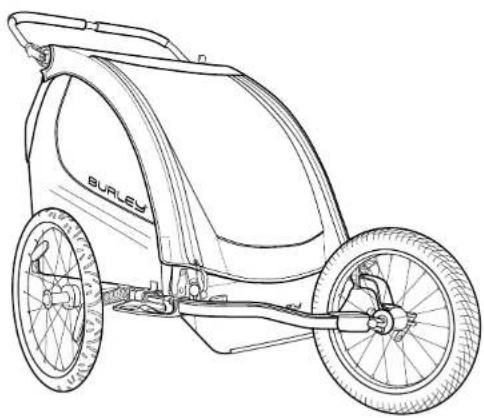

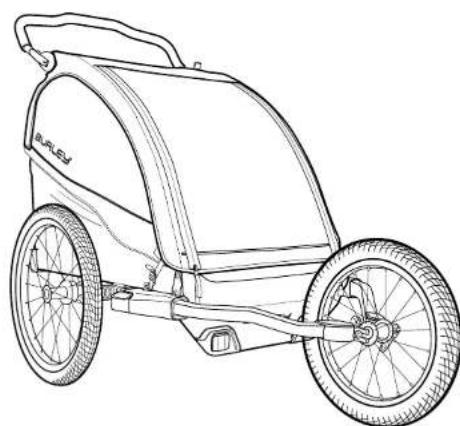

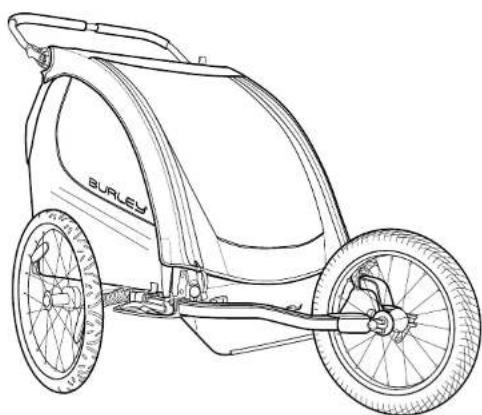

1. Observe (Figure 1) to see completed installation. Note the downward curve of the bars and the orientation.
2. Slide the jogger arms into the receiver on both sides. Refer to your trailer manual for directions on how to properly secure products for your specific trailer receiver.
3. Pull on the jogger arms to ensure they are securely attached to the receivers.
4. Insert the quick release lever skewer through the hub of the wheel, making sure there is a spring on either side of the hub. Screw the nut on loosely (Figure 2).

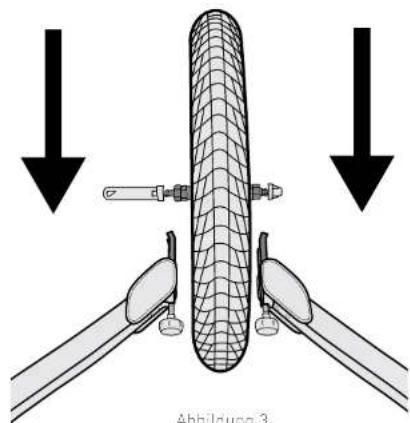

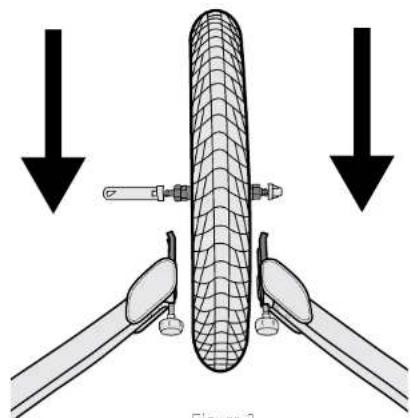

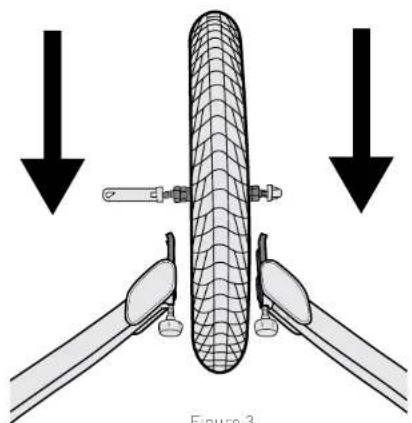

5. Place the wheel in the wheel dropouts (Figure 3).
6. With the QR handle pointing away from the wheel, tighten the nut so that you feel resistance halfway through closing the lever. Do not tighten the quick release lever by spinning the lever.
7. Close the quick release lever. The lever should point downward.
8. Make sure your handlebar is at the right height for jogging. If necessary, adjust the handlebar to a better height. See trailer manual to adjust your handlebar.

Line drawing of a BURLEY gasoline tanker vehicle with two wheels and rear cab (no text or symbols)

Line drawing of a Burley electric shuttle wagon with two wheels and a side-mounted mast (no text or symbols)

Figure 1

Diagram of a bicycle wheel with mesh pattern and handle (no text or symbols)

Figure 2

Diagram of a bicycle tire assembly with two arms and a central wheel, showing no text or symbols

Figure 3

4

ENG

Burley

JOGGER KIT

Tracking Adjustment

If your jogger pulls to the left or the right while in use, use the directions below to adjust the jogger wheel so it naturally rolls in a straight line.

Jogger pulling to the Right:

1. Loosen the Jogger Wheel QR skewer lever.

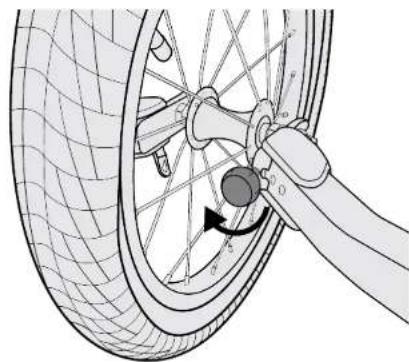

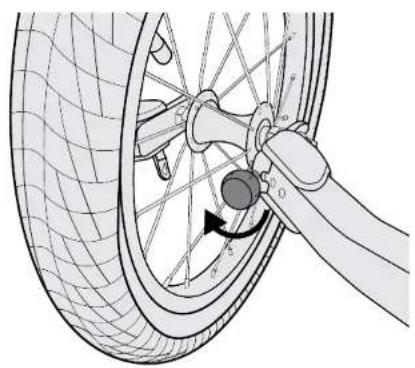

2. Turn the knob extending the tracking adjustment in the dropout on the right side (Figure 4).
3. This will orient or turn the wheel more to the left.

Jogger pulling to the Left:

1. Loosen the Jogger Wheel QR skewer lever.

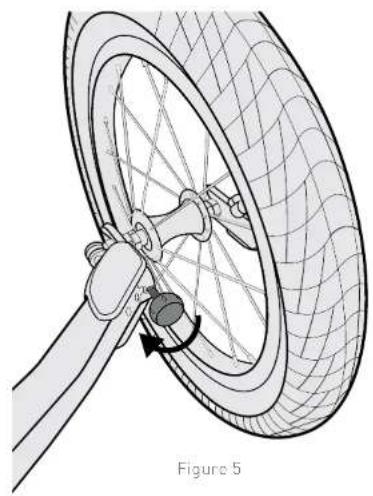

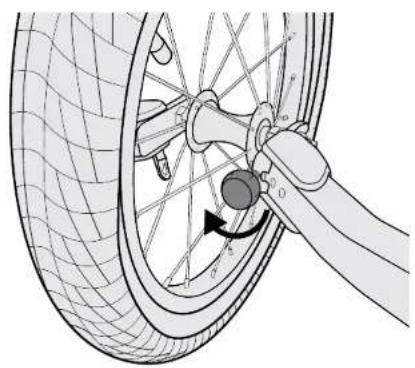

2. Turn the knob extending the tracking adjustment in the dropout on the left side. (Figure 5)
3. This will orient or turn the wheel more to the right.

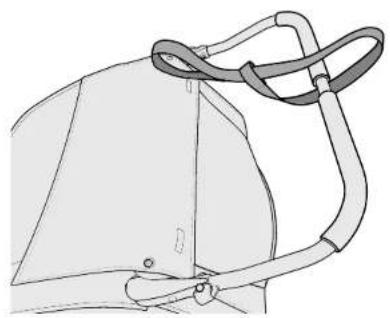

Attaching the Jogging Tether

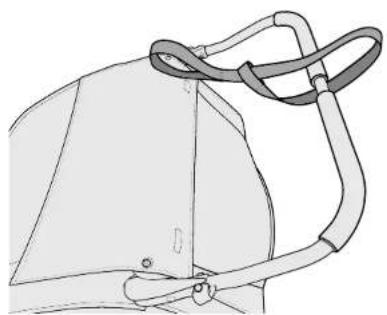

Wrap the strap around the handlebar center, slide the tether end through the loop on the other end of the strap and tighten securely (Figure 6).

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 6

Mechanical diagram showing a wheel and bicycle wheel assembly with a hand operating the wheel (no text or symbols present)

Figure 4

Diagram of a bicycle wheel assembly with a hand operating the wheel rim, showing tire structure and rotation arrow (no text or symbols)

OWNER'S INSTRUCTION & SAFETY MANUAL

BURLEY.COMENG

5

Check before each use:

1. Wheels are properly secured to the trailer
2. Tires are inflated to recommended pressure on the tire sidewall
3. Accessory is properly secured to the trailer
4. Load does not exceed:
5. Double trailer: 100 lbs (45 kg)
6. Single trailer: 75 lbs (34 kg)
7. Safety flag is installed
8. Children are properly secured with harness and lap belt
9. Lighting is adequate for riding conditions
10. Suspension is adjusted to the same setting on both sides of the trailer (if applicable)
11. Handlebar is in the correct position
12. Check that the parking brake is released before strolling

Check monthly:

• Inspect accessory, frame tubing and hardware for damage
• Check that bolts are tight
• Inspect tires and wheels for wear, cracks and trueness
• Inspect fabric parts for rips, abrasions, and missing or damaged hardware

Contact your authorized Burley dealer for replacement of any damaged or worn parts.

Burley Accessory Limited Warranty

This Burley accessory is warranted from the date of purchase against defects in materials and workmanship as follows: frame and plastic parts for two years, fabric for one year.

Your original dated sales or delivery receipt showing the date of purchase is your proof of purchase.

If a defect in materials or workmanship is discovered during the Limited Warranty period, we will, at our sole option, repair or replace your product at no cost to you.

This warranty is only valid in the country in which the product was purchased.

The Limited Warranty extends only to the original retail purchaser of this product and is not transferable to anyone who obtains ownership of the product from the original purchaser.

The Limited Warranty does not cover claims resulting from misuse, failure to follow the instructions, installation, improper maintenance and use, abuse, alteration, involvement in an accident, and normal wear and tear.

The Limited Warranty does not cover products which are used in rental operations and Burley will not be liable for any incidental or commercial damages relating to such use.

TO THE GREATEST EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, INCLUDING BUT NOT LIMITED TO ANY EXPRESS OR IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

The duration of any implied warranties, including any implied warranty of merchantability or fitness for a particular purpose that may exist during the express warranty period is expressly limited to the limited warranty period.

Some states and countries do not allow limitations on how long an implied warranty lasts; therefore, the above limitations and exclusions may not apply to you.

THE CUSTOMER'S EXCLUSIVE REMEDY FOR BREACH OF THIS LIMITED WARRANTY OR OF ANY IMPLIED WARRANTY OR OF ANY OTHER OBLIGATION ARISING BY OPERATION OF LAW OR OTHERWISE SHALL BE LIMITED AS SPECIFIED HEREIN TO REPAIR OR REPLACEMENT, AT OUR SOLE OPTION. IN ANY EVENT, RESPONSIBILITY FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES IS EXPRESSLY EXCLUDED.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

For Australian Customers: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the good repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from state to state or country.

For warranty service or replacement part information for the USA or Canada, please contact Burley directly by calling 800-311-5294 or emailing [e-mail].

For warranty service or replacement part information outside the USA and Canada please contact the place of purchase for warranty service. Please be prepared to provide the product model, serial number and a description of the warranty issue. Some replacement parts may be available for purchase after this limited warranty expires. Please visit us at www.burley.com or call us at 541-687-1644 for more information.

WARNHINWEIS

Line drawing of a two-wheeled cart with a rear bumper and wheels (no text or symbols)

Line drawing of a Burley gasoline shuttle wagon with wheels and rear wheel (no text or symbols)

Abbildung 1

Diagram of a cylindrical object with mesh texture and two protruding pins (no text or symbols)

Abbildung 2

Diagram of a bicycle tire assembly with two arms and a central wheel, showing no text or symbols

Abbildung 3

8

DEU

Burley

JOGGER KIT

Spureinstellung

Mechanical diagram showing a bicycle wheel with a hand operating the wheel rim, no text or symbols present

Abbildung 4

Line drawing of a garment collar with a strap and handle, no text or symbols present

Abbildung 6

Diagram of a bicycle wheel with a gear and tire, showing rotational motion (no text or symbols)

Line drawing of a two-wheeled toy car with a visible 'BURLEY' label on the side (no other text or symbols)

Line drawing of a Burley gasoline shuttle wagon with wheels and rear wheel (no text or symbols)

Figure 1

Diagram of a cylindrical object with mesh texture and two protruding pins (no text or symbols)

Figure 2

Diagram of a bicycle tire assembly with two arms and a central wheel, showing no text or symbols

Figure 3

12

DEU

Burley

JOGGER KIT

Line drawing of a person's shoulder and shoulders with a strap, no text or symbols present

Figure 6

Diagram of a bicycle wheel with a hand operating the wheel rim, showing a circular component and rotation arrow (no text or symbols)

Figure 4

Diagram of a bicycle wheel assembly with a hand operating the wheel rim, showing rotational motion (no text or symbols)

INSTRUCTION DU PROPRIÉTAIRE ET MANUEL DE SÉCURITÉ

BURLEY.COMFRA

13

Line drawing of a two-wheeled toy car with a visible 'BURLEY' label on the side (no other text or symbols)

Line drawing of a Burley gasoline shuttle wagon with wheels and rear wheel (no text or symbols)

Figure 1

Diagram of a cylindrical object with mesh texture and two protruding pins (no text or symbols)

Figure 2

Diagram of a bicycle tire assembly with two arms and a central wheel, showing no text or symbols

Figure 3

16

FRA

Burley

JOGGER KIT

Line drawing of a garment collar with a strap and handle (no text or symbols)

Figure 6

Mechanical diagram showing a wheel and gear assembly with a rotating component (no text or symbols)

Figure 4

Diagram of a bicycle wheel assembly with a hand operating the wheel rim, showing tire structure and rotation arrow (no text or symbols)

INSTRUCCIONES DEL PROPIETARIO Y MANUAL DE SEGURIDAD

BURLEY.COMESP

17

1500 Westec Drive | Eugene, OR 97402

P. 541.687.1644 or 800.423.8445 | F. 541.687.0436

[e-mail] | Burley.com

©2022 Burley Design LLC

"Burley" is a registered trademark of Burley Design LLC | MAN-00048_00
