Product Type	Industrial Unmanaged Network Switch
Brand	Planet
Model	ISW-504PT-E
Number of Ports	5-port RJ45 10/100/1000 Mbps
PoE Ports	4 PoE+ ports (802.3at/af) up to 30W per port
Power Supply	48V DC (via terminal block) or PoE power
Power Consumption	120W max (with PoE)
Operating Temperature	-40°C to 75°C
Dimensions (L x D x H)	140 x 100 x 30 mm
Weight	0.5 kg
Switching Method	Store-and-forward
Switching Capacity	10 Gbps
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3af/at
Mounting	DIN rail or wall mount
Maintenance	Clean with a dry, soft cloth. Do not use solvents.
Safety	Use only the supplied power supply. Disconnect before maintenance.
Spare Parts	External 48V DC power supply (ref. Planet PAD-48-120W)
Repairability	Contact Planet support for any repairs. No user-serviceable parts.
General Information	Class A device. Compliant with FCC, CE, WEEE. Industrial use.

Frequently Asked Questions - ISW-504PT-E Planet

How to wire the switch power supply?

Use a 48V DC power adapter (not included) or PoE power via an injector. Connect the positive wire (+) to the V+ terminal block and the negative (-) to V-

The power LED does not light up

Check the power source and connections. Ensure the voltage is between 46 and 57V DC. If the problem persists, contact support.

How to reset the switch?

There is no reset button. Disconnect the power for at least 10 seconds, then reconnect it. Settings return to default values.

Can I use this switch in a home environment?

This switch is a Class A device and may cause radio interference in residential areas. It is designed for industrial or professional use.

What is the maximum PoE power per port?

Each PoE+ port can deliver up to 30W (802.3at). The total available power depends on the power supply (120W max).

The switch does not detect a PoE device

Check that the device is PoE compatible (802.3af/at). Ensure the Ethernet cable is properly connected and the distance does not exceed 100 meters. Reset the switch.

How to mount the switch on a DIN rail?

Attach the supplied mounting bracket (clip) to the back of the switch, then snap it onto the DIN rail. For wall mounting, use the mounting holes.

What cables to use?

Use shielded Ethernet cables (STP) of Category 5e or higher for optimal performance and better immunity to interference.

Can I connect non-PoE devices?

Yes, PoE ports are compatible with non-PoE devices. The PoE function is automatically detected and disabled if necessary.

How to contact Planet technical support?

Visit the Planet website (www.planet.com.tw) for local contact information. Have the serial number and purchase date handy.

USER MANUAL ISW-504PT-E Planet

Compact Industrial 4-Port 10/100TX 802.3at PoE

+ 1-Port 100/100TX Ethernet Switch

ISW-504PT-E

User's Manual

Table of Contents

1. Package Contents 3
   2.Product Specifications 4
   3.Hardware Introduction 6

3.1 Three-View Diagram 6
3.2 Front View 6
3.3 LED Definition 7
3.4 Top View 7
3.5 Wiring the Power Inputs 7
3.6 Grounding the Device 8

1. Installation 9

4.1 DIN-rail Mounting Installation 9
4.2 Wall-mount Plate Mounting 10

1. Customer Support 11

1. Package Contents

Thank you for purchasing PLANET Compact Industrial 4-Port 10/100TX 802.3at PoE + 1-Port 100/100TX Ethernet Switch, ISW-504PT-E. In the following section, the term "Industrial PoE Ethernet Switch" means the ISW-504PT-E.

Open the box of the Industrial Ethernet Switch and carefully unpack it. The box should contain the following items:

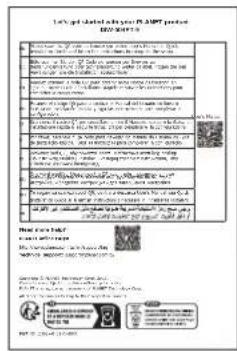

Industrial Ethernet Switch x 1 QR Code Sheet x 1

DIN-rail Kit x 1 Wall-mount Kit RJ45 Dust Cap x 5

If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

1. Product Specifications

Product ISW-504PT-E
Hardware Specifications
Copper Ports	5 x 10/100BASE-TX RJ45 auto-MDI/MDI-X ports, auto negotiation
Switch Architecture Store-and-Forward
Switch Fabric 1Gbps (non-blocking)
Throughput packet per second)	0.744Mpps@ 64 bytes
Address Table 1K entries
Shared Data Buffer 448K bits
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
ESD Protection 6KV DC
Enclosure IP40 metal case
Installation	DIN-rail kit and wall-mount kit (Side wall mount is an optional accessory)
Connector	Removable 4-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for Power 2 One for DC jack with central pole 2.1mm with Power 3
LED Indicator	System: Power (Green) Per 10/100TX RJ45 Ports: 10/100 LNK/ACT (Green)
Dimensions (W x D x H) 30.2 x 76.1 x 100 mm
Weight 266g
Power Requirements Dual 48~55V DC
Power Consumption Max. 128 watts/436.8 BTU (Ethernet full loading)
DIP Switch	Standard: In Normal mode, all interfaces can communicate with each other. Transmission distance is within 100 meters, and transmission rate is 10/100Mbps. Extend: In Link Extension mode, the data transmission distance for Ports 1 to 4 can be extended to 250 meters, and transmission speed is 10Mbps.
Power over Ethernet Specifications
PoE Standard IEEE 802.3af/at PoE+ PSE
PoE Power Supply Type End-span
PoE Power Output 30W (max.)
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 120 watts (max.)
Standards Conformance
Regulatory Compliance FCC	Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control and back pressure IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Environment
Operating Temperature -40	~ 75 degrees C
Storage Temperature -40 ~	85 degrees C
Operating Humidity 10 ~ 90% (non-condensing)
Storage Humidity 5 ~ 95%	(non-condensing)

3. Hardware Introduction

3.1 Three-View Diagram

The three-view diagram of the Industrial Ethernet Switch consists of five or eight auto-sensing 10/100BASE-TX RJ45 port and one removable 4-pin terminal block. The LED indicators are also located on the front panel.

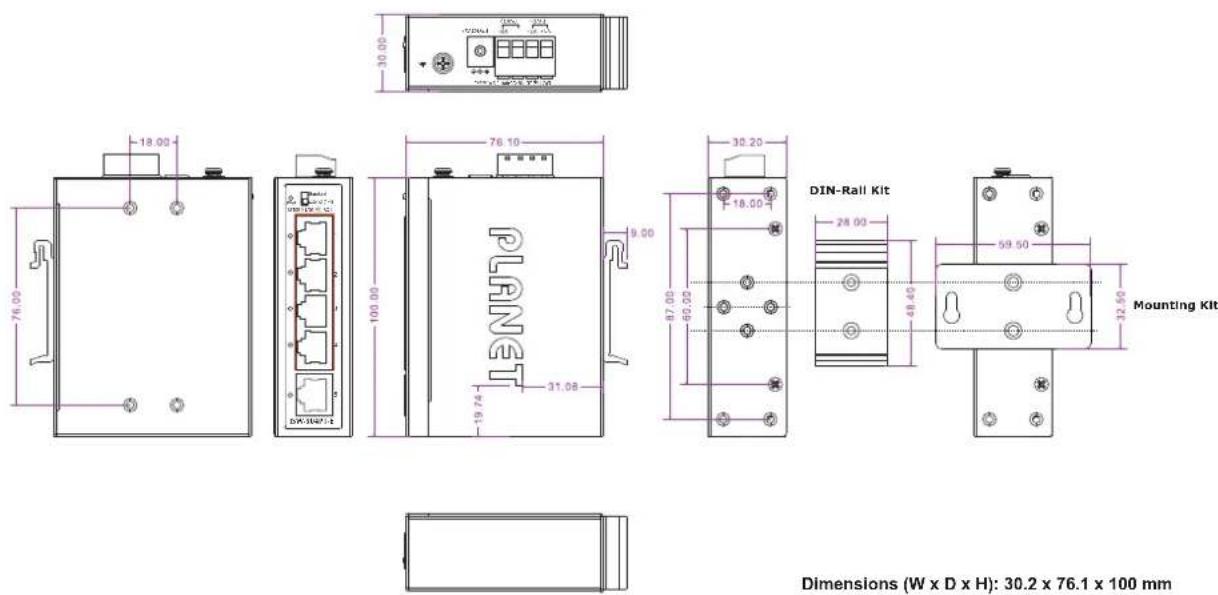

Figure 1: ISW-504PT-E Three-View Diagram

3.2 Front View

Figure 2: ISW-504PT-E Front View

3.3 LED Definition

System

LED Color Function

PWR Green Lights to indicate DC power input has power.

Per 10/100BASE-TX Port

LED Color Function
10/100 LNK/ACT	Green	Lights	Indicating the port is running at 10/100Mbps and successfully established.
		Blinks	Indicating that the switch is actively sending or receiving data over that port.

3.4 Top View

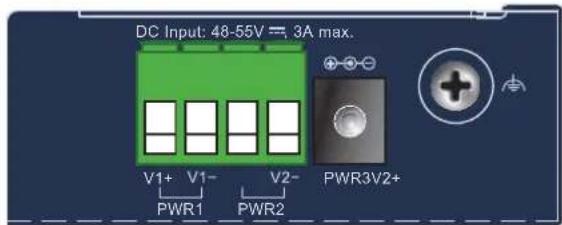

Figure 3: ISW-504PT-E Top View

3.5 Wiring the Power Inputs

The 4-contact terminal block connector on the top panel of Industrial Ethernet Switch is used for two DC redundant power inputs. Please follow the steps below to insert the power wire.

When performing any of the procedures like inserting the wires or tightening the wire-clamp screws, make sure the power is OFF to prevent from getting an electric shock.

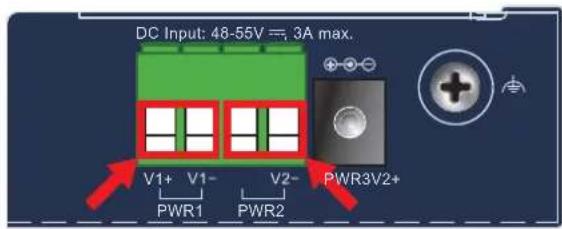

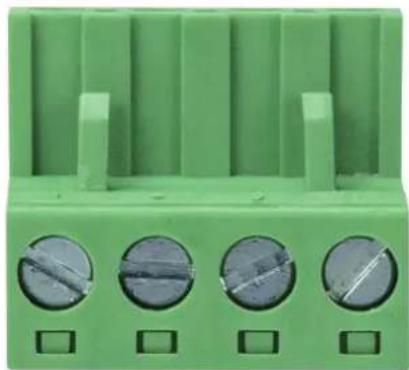

1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1, or contacts 3 and 4 for POWER 2.

1. Tighten the wire-clamp screws for preventing the wires from loosening.

1234

Power 1 Power 2

+--

Note

1. The wire gauge for the terminal block should be in the range between 12 and 24 AWG.
2. The DC power input range is 48V 55V DC.

3.6 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY.

4. Installation

This section describes the functionalities of the Industrial Ethernet Switch's components and guides you to installing it on the DIN rail and wall. Please read this chapter completely before continuing.

Note

This following pictures show the user how to install the device, and the device is not ISW-504PT-E.

4.1 DIN-rail Mounting Installation

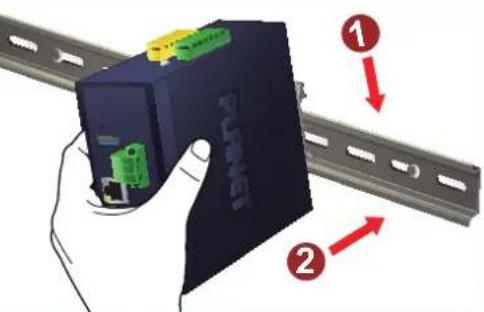

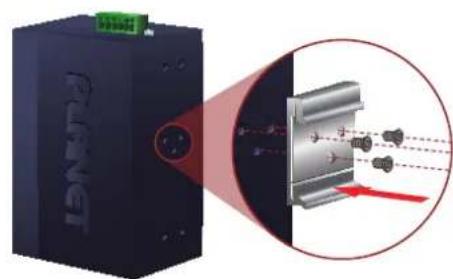

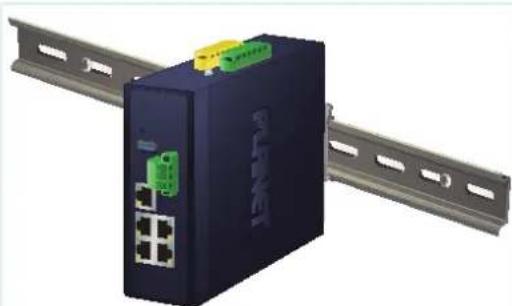

Place the bracket on the back of the device and with the given 3 screws, tighten them. Slide the device with the bracket mounted through the DIN-rail to installation.

4.2 Wall-mount Plate Mounting

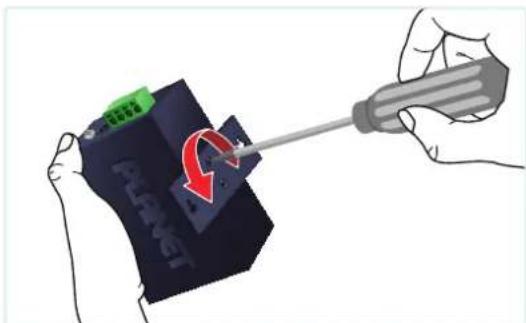

Place the mounting plate on the back of the device, and tighten it with the given screws. Then put the device with the plate mounted on the wall, and screw them to finish the installation.

You must use the screws supplied with the wall-mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty.

5. Customer Support

Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If yc support information, please contact PLANET switch support team.

PLANET online FAQs: http://www.planet.com.tw/en/support/faq.php

Switch support team mail address: [e-mail]

Copyright © PLANET Technology Corp. 2025.

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

FCC Warning

This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user's guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

To avoid the potential effects on the environment and human, here, result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not

dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
