USER MANUAL H55S80FUX HAIER

Front view of a blank whiteboard with a thin wireframe border and a small support structure at the bottom (no text or symbols)

Illustration in this guide are provided for reference only and may differ from actual product appearance. Product design and specification may be changed without notice.

LED Television

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

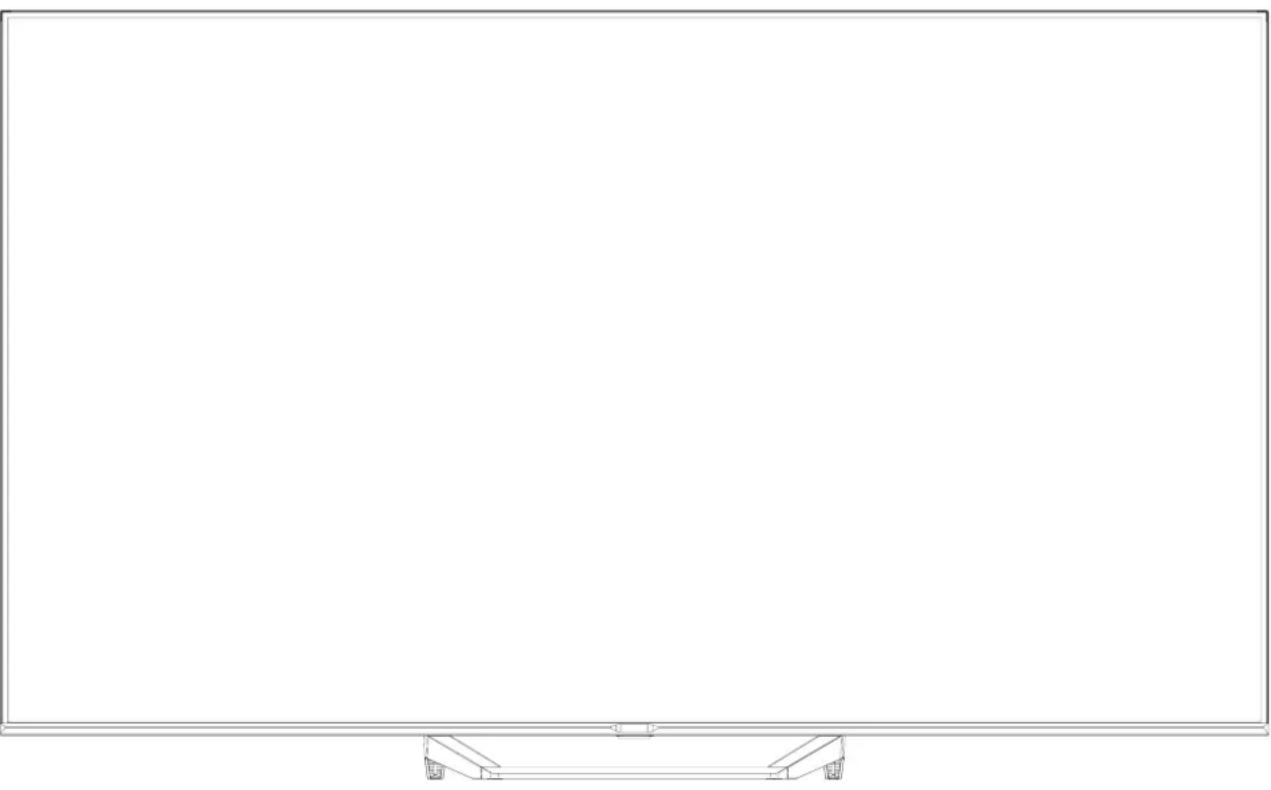

*Actual product may vary in appearance from above image*

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Where a plug on the power supply cord is used as the disconnect device, the installation instructions shall state that for pluggable equipment, the socket-outlet shall be easily accessible.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN!

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol indicates that dangerous voltages constituting a risk of electric shock arc present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the litcraturaccompanying this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a Battery. To avoid battery subjected to extremely low air pressure.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Illustration of a computer monitor with a hand holding a device and a crossed-out 'X' symbol (no text or labels)

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Do not trap the power supply cord under the television receiver.

Computer monitor displaying three prohibition symbols: no text, a document, and a map icon, with a question mark below.

If you are going to clean the product, Unplug the TV, use soft fabric, no water, never chemicals.

Cartoon illustration of a person running away from a computer screen with a crossed-out X symbol (no text or symbols present)

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

Illustration of a person running away from a computer monitor and holding a briefcase (no text or symbols present)

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Simple line drawing of a monitor with a cross mark and a lamp emitting smoke (no text or symbols)

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

Minimum distances 12cm 10cm 20cm 5cm

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Caution:

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the televisionset.

- ALWAYS use furniture that can safely support the television set.

- ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

- ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

- ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

- NEVER place a television set in an unstable location.

- NEVER place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- NEVER place the television set on cloth or other materials that may belocated between the television set and supporting furniture.

- NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television set is going to be retained and relocated, the same considerations as above should be applied.

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

ATTACHING THE STAND

IMPORTANT: The stand of the TV must be assembled prior to usage.

1. Place TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to Prevent any damage to the TV.

2. Fix the stand to the bottom of the TV with the 4 screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTE

The appearance of the product shall be in kind.

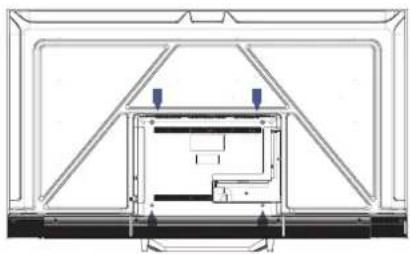

PREPARING YOUR LED TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stand. For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand.

To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.
2. Remove the stand from your TV.
3. Secure the wall mount bracket to the back of your TV using four screws. Follow the instructions of the user manual that came with the wall mount bracket to install.

Technical diagram of a structural frame with diagonal braces and internal components (no text or labels)

NOTE

The wall mount bracket are not included.

1. Fix the wall mount screws (M6x1 2mm/4pcs) into the rear side of the LEDTV, using the torque of 12kgf,cm.

TURNING ON THE TV

1. Install the stand and place the TV on a solid surface.

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and light source labeled with Chinese characters.

NOTE

• Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.
• To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

• Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

• Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.

• Remote control:

Remove the cover of the battery compartment. Insert 2 batteries (Type AAA 1.5V).

CAUTION: Risk of fire explosion if the battery is replaced by an incorrect type.

Diagram showing three stages of a battery internal structure: top, side, and side (no text or symbols)

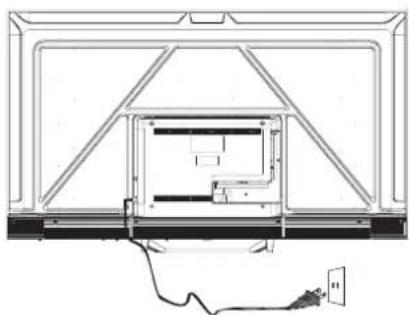

1. Power:

Plug the cord into a working power outlet.

Technical line drawing of a mechanical assembly with no visible text or symbols

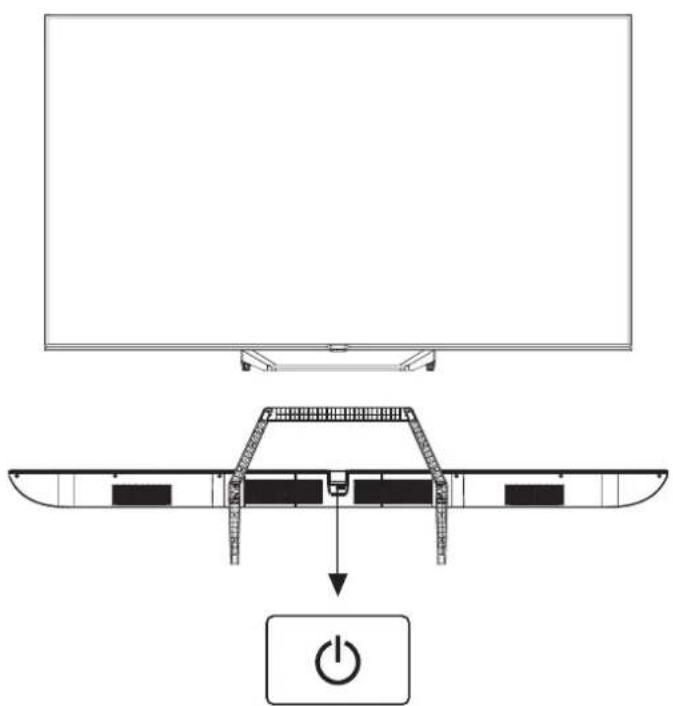

1. Turn the TV on:

Press ⏻ on the remote control or POWER button on the side control panel of the TV.

BUTTON CONTROL

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

ACCESSORIES

Remote Control -1 pcs

User's Manual - 1 pcs

Screws - 4 pcs

Quick Start Guide -1 pcs

Warranty Card -1 pcs

In standby mode, press the button to turn on the TV.

In the power on state, press the button to turn off the TV.

PERIPHERAL CONNECTION

LAN OPTICAL VIDEO L - IN - R HDMI* HDMI* HDMI*

All the terminals are(from left to right):

LAN, OPTICAL, VIDEO, L, R, HDMI4, HDMI3, HDMI2

HDMI (aARC/ARC) SATELLITE 13/18V mm 500mA ANT/CABLE USB 5.0V mm 500mA COMMON INTERFACE(CI)

All the terminals are(from left to right):

HDMI1(eARC/ARC), SATELLITE, ANT/CABLE, USB, EARPHONE

COMMON INTERFACE(CI).

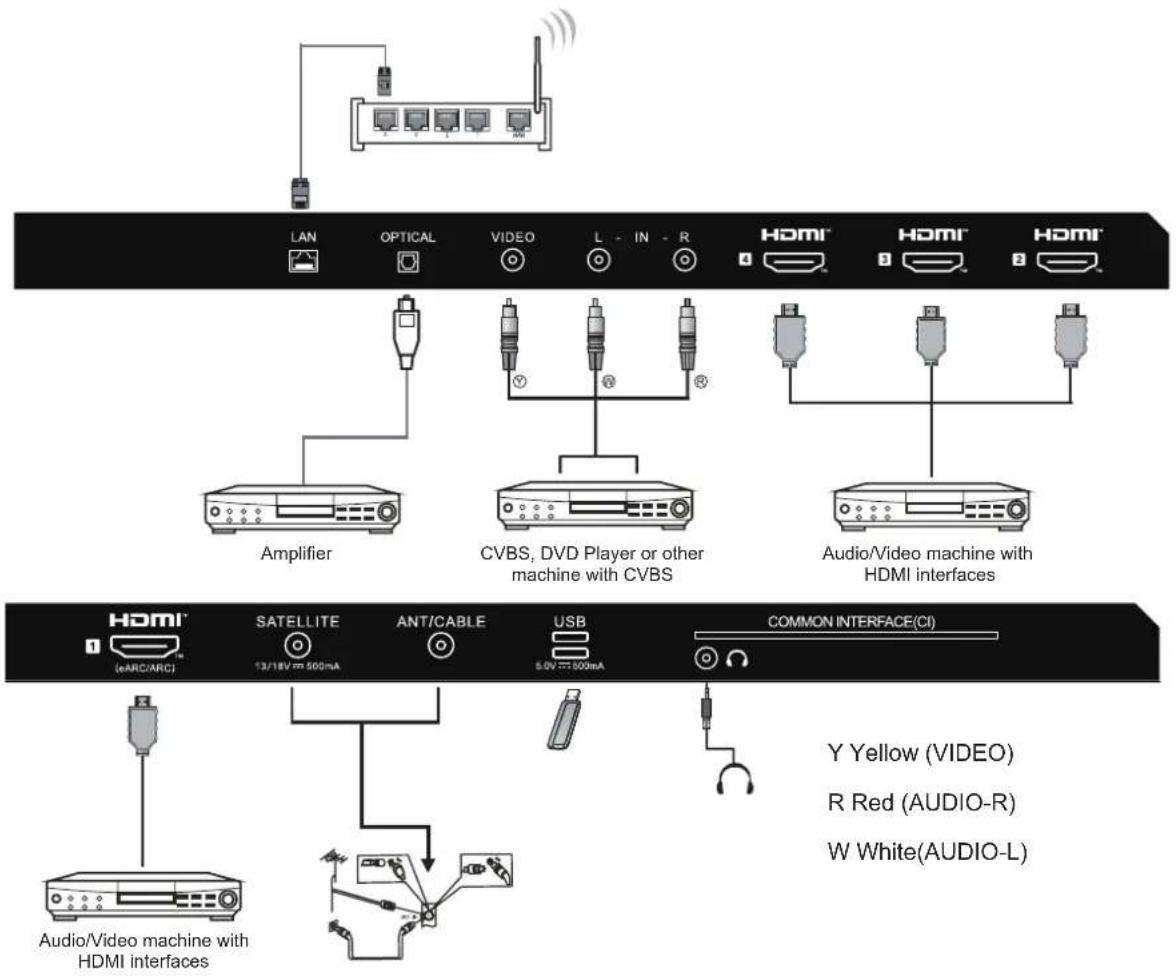

AV EQUIPMENT

This TV provides one group of AV for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

LAN OPTICAL VIDEO L - IN - R HDMI HDMI HDMI Amplifier CVBS, DVD Player or other machine with CVBS Audio/Video machine with HDMI interfaces HDMI (eARC/ARC) SATELLITE 13/18V mm 500mA ANT/CABLE USB 5.0V ~ 500mA COMMON INTERFACE(CI) Y Yellow (VIDEO) R Red (AUDIO-R) W White(AUDIO-L) Audio/Video machine with HDMI interfaces

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc

Note:

Sometimes it will not support in different device because the device supplies nonstandard signal.

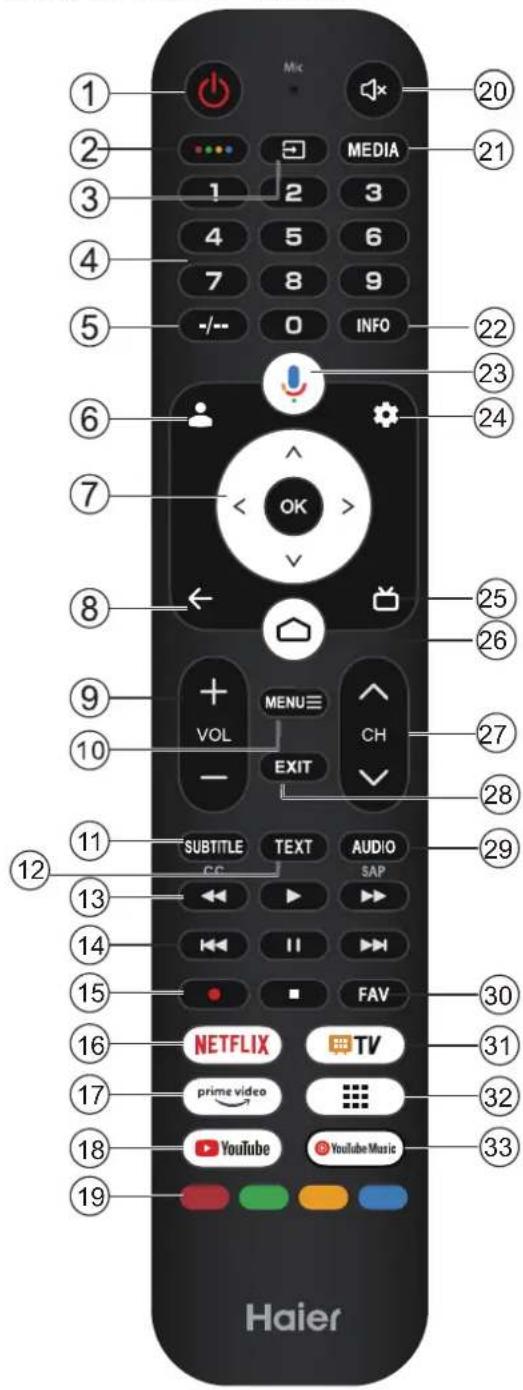

USING THE REMOTE CONTROL

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉴ ㉵ ㉶ ㉷ ㉸ ㉹ ㉺ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟C NETFLIX TV prime video YouTube Music Haier

# Item Descriptions
1	Power	Press to turn the TV on or off. When your TV is off, power still flows through it. To completely disconnect power, unplug the power cord.
2 Press to open MAGIC BOARD.
3		Press to open the input source list.
4 0~9		Press to select the number.
5	-/--	Press to enter "/" in the input box. (Not working on some models)
6		Press to Accounts&Sign-in to Google TV. (When setting up basic TV, this key is invalid.)
7	▲▼◀▶	Press to navigate the on-screen menu.
8	←	Return to the previous menu,
9	VOL+/VOL-	Press VOL+ or VOL- to adjust volume level.
10	MENU≡	Press to open or close the on-screen menu.
11	SUBTITLE	To select a subtitle language available for selected digital TV programme.
12	TEXT	Press to show the text.
13 Press to as backward, play or fast forward.
14		Goes to the previous ,next chapter or pauses.
15		To start recording or end the running program.
16	NETFLIX	Press to open the NETFLIX.
17	prime video	Press to open the prime video homepage.
18	YouTube	Press to open the YouTube.
19 Colour buttons		Performs multiple operations which correspond to the operation guide displayed on the menu screen.
20		Press to mute and un-mute the sound.
21	MEDIA	Press to open the Multi Media Player.
22	INFO	To display programme information.
23		Press to open the Google Assistant or start voice search.
24		Press to open the settings menu.
25		Press to display electronic programme guide in TV mode.
26		Press to open the Home Page.
27		Press to change TV channels.
28	EXIT	Exits the menu system.
29	AUDIO	Press to switch audio tracks.
30	FAV	Set or disable favorite channels.
31		Press to open the Live TV.
32		Press to open the apps.
33		Press to open the YouTube Music.

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup.

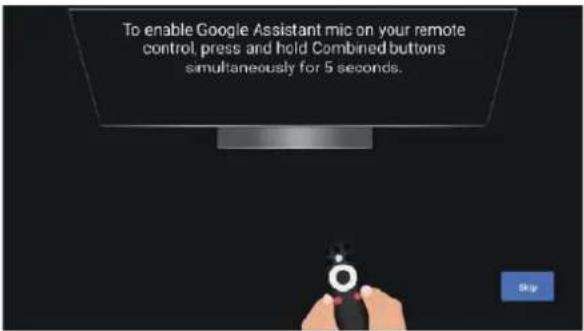

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Language English (United States) Afrikaans Ararbaycan Bokenski Catalá Ceftina

Press ▲/▼ to select the system language and press OK to confirm the language.

Select your region or country Albania Algeria Angola Aruba Australia Austria

Press ▲/▼ to select the region/country of your device and press OK to confirm. Complete the TV initialization settings according to the guide prompt.

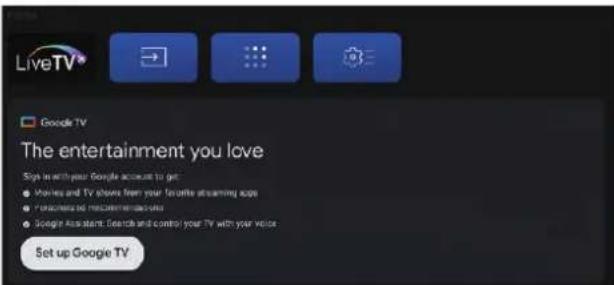

LiveTV* Google TV The entertainment you love Sign in with your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Printers or streamlines ● Google Assistant Search and control your TV with your voice Set up Google TV

Note: The picture is only for reference.

- Once in the user interface, you can switch from basic TV to Google TV settings

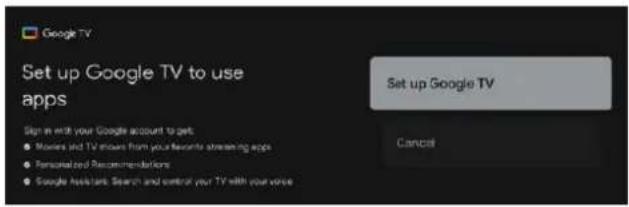

Set up Google TV to use apps Skip in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Press ▲/▼ to select the "Set up Google TV" of your device and press OK to complete the setup.

Google Sign in Use your Google Account Create place ! Target email? Create account Next

Use your Google Account Sign in. Follow the Google Guide.

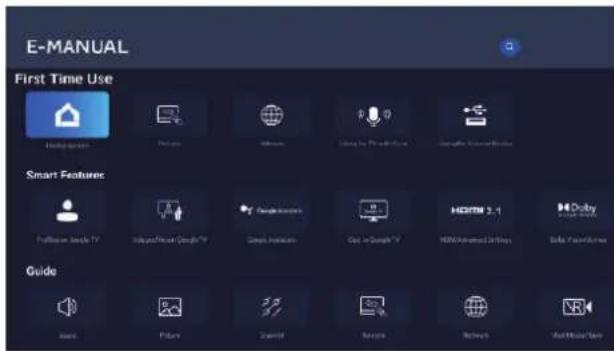

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DONW/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

E-MANUAL First Time Use Smart Features Guide

Note: The picture is only for reference.

Haier

Blank white image with a thin horizontal line at the bottom of a rectangular frame (no text or symbols)

Diagram showing a computer monitor with warning symbols and a hand crossed out, indicating no readable text or symbols.

Simple line drawing of a window frame with a diagonal X mark and a hanging cloth, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with diagonal lines (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map icon.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric structure with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a starburst (no text or symbols)

Simple line drawing of a monitor with a cross mark and a warning light (no text or symbols)

Technical line drawing of a structural frame with internal components and arrows indicating direction (no text or symbols)

NOTA

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and scattered light sources.

NOTA

Diagram showing three stages of a device's internal structure: top, side, and bottom (no text or symbols)

1. Alimentación:

Technical line drawing of a mechanical assembly with internal components and a cable (no text or symbols)

1. Encender o apagar el televisor:

Diagram showing a monitor setup with an electrical switch and power button, illustrating the circuit connection.

ACCESORIOS

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Start in with your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google's student Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google resistant. Search and control your TV with your voice Set up Google TV Cancel

Google Sign In Use your Google Account Create place 1 First email? Create account Next

Blank white image with a thin line at the bottom of a rectangular frame (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and warning symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: a crossed-out document, a crossed-out graph, and a document icon.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a star symbol (no text or symbols present)

Warning symbol showing a monitor with a 'X' crossed out and a warning light emitting smoke, indicating noise or hazard.

Technical diagram of a structural frame with labeled components and dimension annotations

NOTA

Technical diagram of a structural frame with internal components and directional arrows (no text or labels)

NOTA

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and scattered light sources.

NOTA

Diagram showing three stages of a device with internal components, no text or symbols present

1. Alimentação:

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Ligar a TV:

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

ACESSÓRIOS

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Sign in all your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite stretching apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Enable store ! Forget email? Create account Next

Illustration of a computer monitor with a hand crossed out and warning symbols (no text or labels)

Simple line drawing of a monitor with a cross mark and a falling object beside it (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols: no litter, document, and graph.

Cartoon depicting a person holding a crossed-out monitor with a 'No' symbol, surrounded by boxing gloves and clouds.

Simple line drawing of a geometric shape with intersecting lines and a horizontal base, no text or symbols present.

Illustration of a person running away from a computer screen with a clock nearby (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a lit lamp (no text or symbols)

Technical diagram showing structural layout with labeled components and a red triangular annotation indicating a specific section.

ΣΗΜΕΙΩΣΗ

Technical line drawing of a structural frame with supports and internal components (no text or symbols)

ΣΗΜΕΙΩΣΗ

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and spray effects including light, sun, and rain.

ΣΗΜΕΙΩΣΗ

Diagram showing three stages of a device's internal structure, from rectangular to vertical view with no text or symbols

1. Τροφοδοσία:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

Diagram showing a monitor setup with an electrical switch and power button, illustrating the process from front to side.

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign in with your Google account to get Movies and TV shows from your favorite streaming apps Consistencies requirements Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: ● Movies and TV answers from your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Google account 1 Target email ? Create account Next

Front view of a blank whiteboard with a thin wireframe border and a small support structure at the bottom (no text or symbols)

Televisore LED

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing monitoring or anti-protective (no text present)

Simple line drawing of a window with a diagonal X mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, document, and a map icon

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a flame (no text or symbols)

Simple line drawing of a monitor with a cross symbol crossed out, next to a speaker emitting sound waves (no text or symbols)

Architectural line drawing of a multi-level building structure with structural elements and a red triangular overlay (no text or symbols)

NOTA

Technical diagram of a mechanical assembly with no visible text or symbols

NOTA

Diagram illustrating a lighting experiment setup with a hand operating a device, light emission, and a speaker emitting sound waves.

NOTA

Diagram showing three stages of a device's internal structure: top-down, side-up, and top-right (no text or symbols)

1. Alimentazione:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

Diagram showing a monitor setup with an electrical switch and power button, illustrating the process from front to side.

ACCESSORI

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign in with your Google account to get Movies and TV shows from your favorite streaming apps Recommendations Google subscribers: Deaths and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assisters. Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Enter your ! Forget email? Create account Next

Front view of a blank whiteboard with a thin wireframe border and a small support structure at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing electrical hazard (no text or symbols present)

Simple line drawing of a window frame with a diagonal X mark and a cloth, no text or symbols present.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with no text or symbols

Computer monitor displaying three prohibition symbols: no litter, document, and file, indicating prohibited content.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a woman running away from a computer screen next to a circular object with a small symbol (no text or symbols present)

Warning symbol with crossed-out monitor and alarm lamp, indicating no warning or absence of text

Architectural line drawing of a modern building facade with structural elements and a central structure (no text or symbols)

REMARQUE

Technical diagram of a structural frame with internal components and arrows indicating direction (no text or symbols)

REMARQUE

Diagram illustrating a lighting experiment setup with a speaker, screen, and light sources labeled with X marks

REMARQUE

Diagram showing three stages of a device's internal structure: top, side, and bottom (no text or symbols)

1. Alimentation :

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

ACCESSOIRES

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Sign in with your Google account to get: • Movies and TV shows from your favorite advertising apps • Furthermore or Recommendation • Google Assistant Search and Control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Description: 1 Forget email? Create account Next

Blank white image with a thin horizontal line at the bottom of a rectangular frame (no text or symbols)

Illustration of a computer monitor with a hand holding a device and a crossed-out X symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, document, and file (no readable text or labels)

Cartoon illustration showing a person reacting to a 'No' symbol on a computer monitor, indicating no violation or rejection.

Simple line drawing of a geometric shape with intersecting lines and a right-angle arrow, no text or symbols present.

Illustration of a person reacting to a computer screen with a disc, no text or symbols present

Warning symbol showing a monitor with a cross crossed over it and a warning light emitting smoke, indicating electrical hazard or noise.

Architectural line drawing of a modern building facade with structural elements and a red triangular overlay (no text or symbols)

HINWEIS

Technical diagram of a structural frame with internal components and arrows indicating direction (no text or symbols)

HINWEIS

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and scattered light sources.

HINWEIS

Diagram showing three stages of a battery cell structure: top, side, and bottom (no text or symbols)

1. Strom:

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a monitor setup with an electrical switch and power button, illustrating the circuit connection.

ZUBEHÖR

Fernbedienung x 1

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Anuba Australia Austria

LiveTV Google TV The entertainment you love Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and Control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV knows from your favorite streaming apps • Personalized Recommendations • Google resistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Create account 1 Forget email? Create account Next

Illustration of a computer monitor with a crossed-out cable and lightning bolts, symbolizing electrical hazard (no text or symbols present)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, document, and a checkmark.

Cartoon illustration showing a person holding a crossed-out monitor with a 'X' symbol, surrounded by boxing gloves and clouds.

Simple line drawing of a geometric object with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer screen next to a broken circular object (no text or symbols present)

Simple line drawing of a monitor with a crossed-out X symbol and a ringing alarm clock (no text or symbols)

Technical diagram of a structural frame with diagonal braces and internal components (no text or labels)

ЗАБЕЛЕЖКА

Diagram illustrating a lighting experiment setup with a speaker, screen, and light sources labeled in English.

ЗАБЕЛЕЖКА

Diagram showing three stages of a device casing with internal components, no text or symbols present

1. Захранване:

Architectural cross-section diagram of a building facade with internal structural elements and wiring (no text or labels)

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

АКСЕСОАРИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Shop in with your Google accounts to get • Movies and TV shows from your favorite streaming apps • Personalization Recommendations • Google user start: Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV knows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Create store 1 First email? Create account Next

Diagram showing a computer monitor with lightning bolts and a hand holding a crossed-out device, indicating no text or symbols.

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols: no litter, document, and file.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person reacting to a computer screen with a magnifying glass (no text or symbols)

Simple line drawing of a monitor with a cross mark and a lit fuse (no text or symbols)

Architectural line drawing of a modern building facade with structural elements and a highlighted triangular section (no text or symbols)

NOT

Technical diagram of a structural frame with internal components and arrows indicating direction (no text or symbols)

NOT

Diagram illustrating a lighting experiment setup with a lamp, screen, and sun radiation, showing light emission and noise effects.

Diagram showing three stages of a device's internal structure, from rectangular to vertical view with arrows indicating progression (no text or symbols)

1. Güç:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

1. TV'yi açın:

Diagram showing a monitor setup with an electrical switch and power button, illustrating the process from front to side.

Uzaktan Kumanda - 1 adet

HDMI1 (eARC/ARC), SATELLITE (UYDU), ANT/CABLE (ANT/KABLOLU), USB,

KULAKLIK, COMMON INTERFACE (CI) (ORTAK ARABİRİM).

AV CİHAZI

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Sign in all your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized recommendations • Google Assistant Search and Control your TV with your video Set up Google TV

Set up Google TV to use apps Stop in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Dealer shop ! Firing email? Create account Next

Diagram showing a computer monitor with an electrical circuit and a hand holding a crossed-out resistor, indicating a disconnection or anti-assembly operation.

Ovaj TV prijemnik koristi visoki napon pri radu. Ne uklanjajte leđa sa televizora. Servisiranje prepustite kvalifikovanim serviserima.

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Da biste smanjili rizik od požara ili strujnog udara, ne izlažite TV kiši ili vlazi.

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Ne ispuštajte i ne gurajte predmete u proreze i otvore na leđima TV-a. Ne prosipajte tečnost na televizor.

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with no text or symbols

Nemojte da uštinete kabl za napajanje televizorom.

Computer monitor displaying three prohibition symbols: a crossed-out circle with 'no' and a document icon, alongside a broken-out box.

Ako želite da očistite proizvod, isključite ga iz struje i koristite meku tkaninu. Ne koristite vodu i hemikalije.

Cartoon illustration of a person on a computer screen with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a horizontal base (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a small symbol (no text or symbols present)

Ako nećete koristiti televizor duže vreme, preporučujemo da mu izvučete utikač iz napajanja.

Simple line drawing of a monitor with a cross mark and a warning light emitting sound waves (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

NAPOMENA

Technical diagram of a mechanical assembly with no visible text or symbols

NAPOMENA

Zidni nosač se ne isporučuje uz TV.

1. Fiksirajte zavrtnje zidnog nosača (M6 x 12 mm / 4 kom) na u leđa LED TV-a momentom pritezanja od 12 kgf,cm.

UKLJUČIVANJE TV-a

1. Montirajte stalak i stavite TV na stabilnu površinu.

Diagram illustrating a lighting experiment setup with a lamp, screen, and sun radiation, showing light emission and noise effects.

NAPOMENA

• Uverite se da je TV u položaju koji omogućava nesmetan tok vazduha. Ne prekrivajte ventilacione otvore na leđima.
• Da bi se izbegle nebezbedne situacije, na ili u blizinu TV-a ne smeju da se stavljaju izvori otvorenog plamena, poput upaljenih sveća.

• Izbegavajte izlaganje toploti, direktnom sunčevom svetlu i kiši ili vodi. Oprema ne sme da bude izložena kapanju ili prskanju.

• Priključite kabl antene ili kablovske TV u ANT IN priključak na TV-u.

• Daljinski upravljač:

Uklonite poklopac odeljka za baterije. Umetnite 2 baterije (tip AAA 1,5 V).

OPREZ: Ukoliko se baterije zamene pogrešnim tipom, postoji rizik od eksplozije i požara.

Diagram showing three stages of a device's internal structure: top-down, side-up, and top-right (no text or symbols)

1. Napajanje:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

1. Uključite televizor:

Diagram showing a monitor setup with an electrical switch and power button, illustrating the process from front to side.

To enable Google Assistant mic on your remote control, press and held Combined buttons simultaneously for 5 seconds.

Ova funkcija se koristi za kôd za uparivanje daljinskog upravljača. Kad se kôd unese, možete da koristite Bluetooth daljinski upravljač za upravljanje TV-om.

Language English (United States) Afrikaans Azerbaycan Bosenski Catala Ceitina

Pritiskanjem dugmadi ▲/▼ odaberite jezik sistema, pa pritisnite OK da potvrdite.

Select your region or country Albania Algeria Angola Aruba Australia Austria

Pritisnite ▲/▼ da biste odabrali zemlju ili region uređaja i pritisnite OK da biste potvrdili.

LiveTV® Google TV The entertainment you love Says in all your Google account to get! • Movies and TV shows from your favorite streaming apps • Transactional recommendations • Google Assistant Search and control your TV with your video Set up Google TV

Napomena: Slika služi samo kao referenca.

- Kada uđete u korisnički interfejs, možete da pređete sa osnovnih podešavanja TV-a na Google TV.

Set up Google TV to use apps Sign in with your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Assistant Search and control your TV with your worse Set up Google TV Cancel

Google Sign in Use your Google Account Enrollment ! Forgot email? Create account Next

Prijavite se pomoću svog Google naloga. Pratite Google vodič.

E-priručnik

E-priručnik je ugrađen u TV i može da se prikaže na ekranu. Da biste saznali više o funkcijama vašeg TV-a, otvorite e-priručnik na sledeći način.

Diagram showing a computer monitor with an electrical circuit and a hand holding a crossed-out resistor symbol, indicating no protection or disconnection.

Simple line drawing of a window frame with a diagonal X mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and star decorations (no text or symbols)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a diagonal line crossing (no text or symbols)

Computer monitor displaying three prohibition symbols: no prohibition, document, and file.

Cartoon depicting a person holding a crossed-out monitor while boxing gloves fly out, symbolizing online violence or suppression.

Simple line drawing of a geometric shape with intersecting lines and a rectangular block, no text or symbols present.

Illustration of a person running away from a computer monitor and a sun icon (no text or symbols)

Simple line drawing of a monitor with a cross mark and a warning light emitting smoke (no text or symbols)

Technical diagram showing structural components with labeled parts and a red triangular annotation indicating a specific section.

UWAGA

Technical diagram of a structural frame with diagonal braces and internal components (no text or labels)

UWAGA

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and spray particles

UWAGA

Diagram showing three stages of a device's internal structure: top-down, side-up, and top-right (no text or symbols)

1. Włącznik:

Technical line drawing of a mechanical assembly with internal components and a cable (no text or symbols)

Diagram showing a monitor setup with an electrical switch and power button, illustrating the process from front to side.

HDMI1 (eARC/ARC), SATELLITE (SATELITA), ANT/CABLE

(ANTENA/KABLÓWKA), USB, Slušalica, COMMON

INTERFACE (CI) (MODUL CI).

SPRZET AUDIO-WIDEO

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV Google TV The entertainment you love Stop in with your Google account to get • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite streaming apps • Personalized Recommendations • Google Assistant Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Create account 1 Forget email? Create account Next

Blank white image with a thin horizontal line at the bottom of a rectangular frame (no text or symbols)

Illustration of a computer monitor with a hand holding a device and a crossed-out X (no text or symbols)

Simple line drawing of a window with a diagonal X mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with a cross mark (no text or symbols)

Computer monitor displaying three prohibition symbols: no text, a document, and a map (no readable text or labels)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol, no text or symbols present

Simple line drawing of a geometric structure with intersecting lines and a horizontal base (no text or symbols)

Illustration of a person running away from a computer monitor next to a circular object with a starburst (no text or symbols)

Warning symbol with crossed-out monitor and alarm lamp, indicating electrical hazard or noise

Architectural line drawing of a multi-level building structure with structural elements and a red triangular overlay (no text or symbols)

ПРИМИТКА

Technical diagram of a structural frame with internal components and directional arrows (no text or labels)

ПРИМИТКА

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and spray effects (no text labels)

ПРИМІТКА

Diagram showing three stages of a battery cell with internal components and an external wall (no text or symbols)

1. Потужність:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

АКСЕСУАРИ

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albanis Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Says to all your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Rasp start Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: ● Movies and TV shows from your favorite streaming apps ● Personalized Recommendations ● Google Accessories Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account I I Forgot email? Create account Next

Blank white image with a thin horizontal line at the bottom of a rectangular frame (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and warning symbol (no text or labels)

Simple line drawing of a window with a diagonal X mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with no text or symbols

Computer monitor displaying three prohibition symbols: a crossed-out circle with no text, a document icon, and a checkmark (no readable text or labels)

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a vertical line (no text or symbols)

Illustration of a person running away from a computer screen next to a circular object with a sun (no text or symbols)

Simple line drawing of a monitor with a crossed-out X mark and a warning light emitting smoke (no text or symbols)

Technical diagram of a structural frame with labeled dimensions and support points

ПРИМЕЧАНИЕ

Technical diagram of a structural frame with internal components and directional arrows (no text or labels)

ПРИМЕЧАНИЕ

Diagram illustrating a lighting experiment setup with a speaker, screen, and light sources labeled with X marks

ПРИМЕЧАНИЕ

Diagram showing three stages of a battery or sensor device with internal components, no text or symbols present.

1. Питание.

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

1. Включите телевизор:

Diagram showing a monitor setup with an electrical switch and power button, illustrating the circuit connection.

АКСЕССУАРЫ

Пульт ДУ — 1 шт.

To enable Google Assistant mic on your remote control press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Tips in all your Google account to get: • Movies and TV shows from your favorite messaging apps • Personalized Information apps • Google Assistant: Google and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shows from your favorite stretching app • Personalized Recommendations • Google Assistors Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Email: yhise 1 Target email? Create account Next

Front view of a blank whiteboard with a thin wireframe border and a small support structure at the bottom (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing electrical hazard (no text or symbols present)

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Simple line drawing of a computer monitor with a cross symbol and stars (no text or labels)

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Simple line drawing of a flat-screen monitor mounted on a stand with no text or symbols

Computer monitor displaying three prohibition symbols: a crossed-out document, a crossed-out book, and a crossed-out envelope.

Cartoon illustration of a person on a computer monitor with a crossed-out X symbol (no text or symbols present)

Simple line drawing of a geometric shape with intersecting lines and a horizontal base, no text or symbols present.

Illustration of a person running away from a computer screen next to a circular object with a small symbol (no text or labels)

Simple line drawing of a monitor with a cross mark and a warning light (no text or symbols)

Technical diagram of a structural frame with labeled dimensions and components

NOTĂ

Technical diagram of a structural frame with internal components and directional arrows (no text or labels)

NOTĂ

Diagram illustrating a lighting experiment setup with a speaker, screen, lamp, and scattered light sources.

NOTĂ

Diagram showing three stages of a battery stack: top, side, and bottom (no text or symbols)

1. Pornire:

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

1. Porniti televizorul.

Diagram showing a monitor setup with an open panel and a power button, illustrating the process of battery charging.

ACCESORII

To enable Google Assistant mic on your remote control, press and hold Combined buttons simultaneously for 5 seconds.

Select your region or country Albania Algeria Angola Aruba Australia Austria

LiveTV* Google TV The entertainment you love Sign in this year: Google accounts to get • Movies and TV shows from your favorite streaming apps • Refreshable recommendations • Google's alert: Search and control your TV with your voice Set up Google TV

Set up Google TV to use apps Sign in with your Google account to get: • Movies and TV shown from your favorite streaming apps • Personalized Recommendations • Google Assistant: Search and control your TV with your voice Set up Google TV Cancel

Google Sign in Use your Google Account Enter/choose 1 Forget email * Create account Next
