CONSIGNES DE SÉCURITÉ:

Warning sign depicting a flame symbol in yellow and black on white background

Technical diagram of a device with numbered parts for identification

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Read all instructions before using and keep it.

• Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
• Before using the Ice maker for the first time, please wait 2 hours after positioning it, and keep the transparent lid open for at least 2 hours.
• Ensure the voltage is compliant with the voltage range stated on the rating label and ensure the earthing of the socket is in good condition.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Do not upend this product or incline it over a 45^ C angle.

• To protect against risk of electric shock, do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid.

• Unplug the appliance after using or before cleaning.
• Keep the appliance 8cm from other objects to ensure the heat releasing.
• Do not use the accessories which are not recommended by manufacturer.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
• Do not use the appliance close by flames, hot plates or stoves.
• Do not switch on the power button frequently (ensure 5 minutes interval at least) to avoid the damage of compressor.
• Metal sheet or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
• Do not use outdoors.
• Never clean with scouring powders or hard implements.
• This appliance is intended to be used in household and similar applications such as

–staff kitchen areas in shops, offices and other working environments;

—farm houses and by clients in hotels, motels and other sidential type environments;

—bed and breakfast type environments;

–catering and similar non-retail applications

1. To avoid contamination of food, please respect the following instructions:

2. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

3. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance

Warning sign depicting a flame symbol in yellow and black on a white background

Symbol ISO 7010 W021

Danger : fire hazard / flammable material;

1. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
2. Refrigerants and insulating materials are flammable and can only be disposed of in an approved waste disposal site. Do not expose to flame.

SPECIFICATIONS

Model Number: ICM-1238

Voltage: 220-240V\~ 50Hz

Rated Power: 120 W

Daily Ice Output: 12kg/24 hours

Ice Storage Capacity: 1.5L/600g

Water Tank Capacity: 1.5L

N.W: 7.7kg

G.W: 8.7kg

Compression-type refrigeration: 220-240V\~50Hz

Cooling Agent: R600a environmental friendly refrigerant

Max overall dimensions (W X D X H): 228 X 320 X 297 mm

Packing dimensions (L X W X H): 362 X 276 X 344 mm

DESCRIPTION

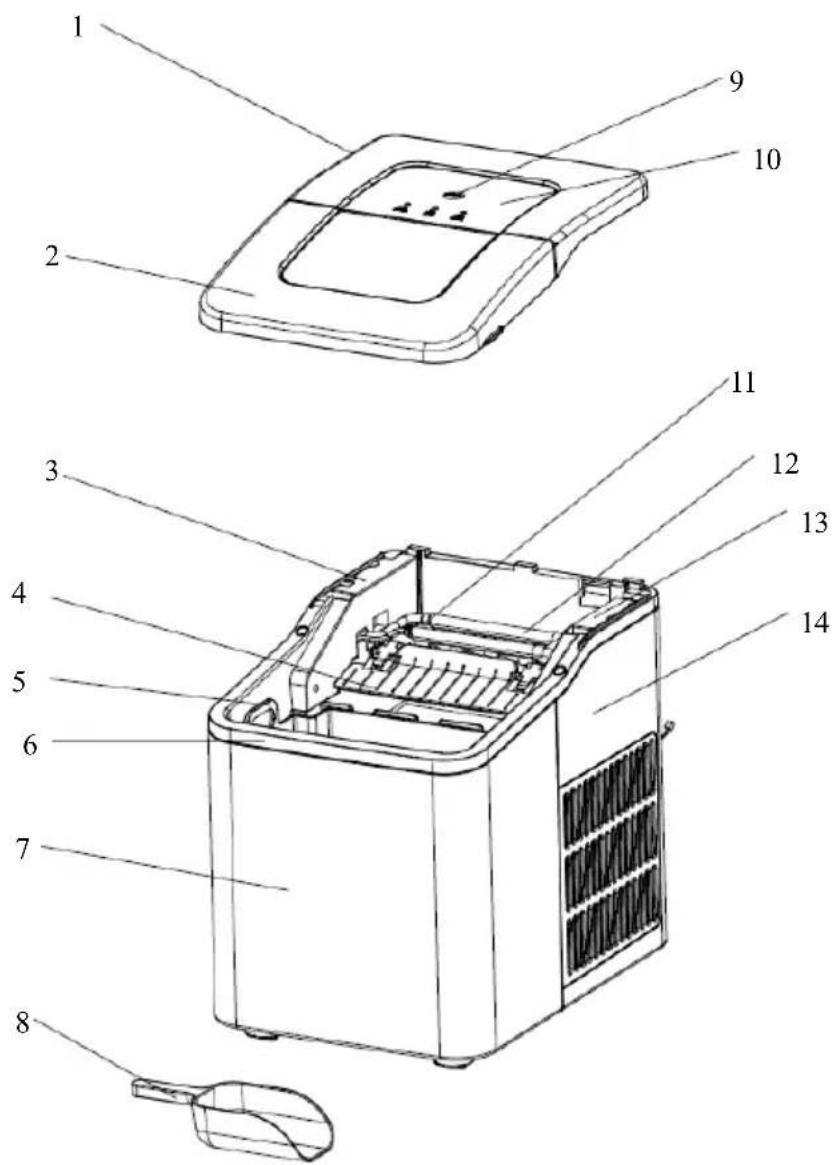

Technical diagram of a device with numbered parts for identification

1. Top lid
2. Transparent lid
3. Micro switch support
4. Ice shovel board
5. Ice collecting tray
6. Inner
7. Front housing

8. Ice shovel

9. Buttons

10. Control panel
11. Water box
12. Bullet evaporator
13. Motor Mount
14. Rear housing

FEATURE

✨ Rapid ice making
✨ Prompt when the ice is full and water is insufficient
✨ Bullet ice
✨ 9 pcs ice cubes can be made in eight minutes
✨ Self cleaning function

WARNING

1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient ventilation, the distance of the back of ice maker to the wall should be at least 150mm, it should be away from the oven, radiator or other heat source.
4. Before using the machine for the first time, place the machine and leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.

POWER ADD WATER ICE FULL ICE MAKER

: ON-OFF switch

: Ice making indicator light

: Ice full alarm indicator light

: Water shortage alarm indicator light

1). Plug in power, the 🎨 indicator light flashes, and the machine will start the deicing function. Press the ⏻ button, the 🎨 indicator light is always on and then the ice cubes will be made automatically. After the ice making is completed, the deicing will be carried out, and then the ice shoveling function will be entered, and so on.

2). : water shortage alarm

When the indicator light turns red, it means that there is water

shortage in the water tank. You need to add water and press the

button to restart the machine.

3). : Ice full alarm

When the ice reaches the maximum capacity of the ice storage container, the indicator light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine will restart automatically.

4)

Plug in power, press 🎨 button for 3 seconds. The product cleaning function starts. The 🎩 indicator light stays on. The 🎪 indicator light and the 🔒 indicator light flash alternately. The machine first de icing once and then starts cleaning. Each cleaning work has 5 cycles (pump water - pour water), and each cycle is about 90 seconds. Do not disconnect the power supply during cleaning. After cleaning, the machine enters the standby mode automatically.

OPERATING INSTRUCTIONS

Step 1

Open the lid and take out the basket and add water to the reservoir.

Note: There is a maximum scale MAX in the reservoir. The water should not exceed the MAX position. If the water exceeds the maximum scale MAX, you need to open the bottom drain plug, release the excess water, and cover with a transparent cover.

Step 2

Plug in power and press the ⏻ button to start the machine.

CAUTION

1. The three cycles used for the first time, the ice produced is small and irregular.
2. When the ice collecting tray is full, please take out the ice immediately, do not let the ice overflow the ice collecting tray.

CLEANING & USE GUIDANCE

1. C lean the inner liner, ice collecting tray, water box, ice shovel and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the ice maker. Do not spray ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may not have enough water to pump for air blockage. In this case, the water shortage indicator light will light up. Just repress button to restart the ice maker.
4. To ensure the cleanness of ice, please change water for water reservoir at least once one day. If do not use for a long time, please drain the water out and clean it up.
5. If the compressor takes a strike action for shortage water, fully water or interruption of power supply, it will delay for 3 minutes to start up after restarted.
6. Always use fresh water before starting ice production either at initial installation or after a long shut-off period.

TROUBLESHOOTING

1. Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel can not remove the ice to ice basket. If not, please push the ice shovel gently by finger, then press POWER button to restart.

PROBLEM	POSSIBLE CAUSE	SUGGESTED SOLUTIONS
The compressor works abnormally with a buzzing noise	The voltage is lower than recommended	Stop the ice maker and do not restart until the voltage is normal.
Water shortage indicator light is on	1.There is no water2.The pump is full of air	1.Add some water until it reaches to MAX position2.Press POWER button to restart the machine
Indicator lights on control panel are not on	Blown fuse/ No power	Replace fuse / Turn power on
The ice made is too large and with pieces sticking together	Ice of previous cycles left in the water tray	Take out the ice under the standby state
The ice making process was correct, but no ice came out?	4. The compressor has no refrigerant5. Compressor damaged6. Fan motor damaged	Call the service hotline
All indicators twinkle simultaneously	1. The water box is blocked by ice.2. The motor is stuck, or the motor falls off, or the motor is damaged3. Micro switch damaged	1. Unplug the power to take out the ice which under the ice shovel, then plug in power again, and press the POWER button. After 3 minutes, the machine will restart automatically.2. Call the service hotline
The machine has been working, but the water has been warming	Solenoid broke down	Replace the solenoid valve
When the ice is full, the machine does not display the ICE FULL Icon	1. Ice full sensor damaged2. Sunlight interference	4. Replace the ice full sensor5. Making ice indoor6. Call the service hotline

WARNING

1. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach temperatures between 70^ C and 90^ C during operation and surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may opaque. This is air trapped in the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Do not immerse in water.

Correct Disposal of this product

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
