USER MANUAL BEEDREAM760-FC AFX

WITH RING EFFECT 7 X 60W RGBW LED

IN A FLIGHT CASE

LYRE BEE EYE WASH ZOOM AVEC EFFET AN-NEAUX 7 LED 60W RGBW DANS UN FLIGHT CASE

D - BEE EYE WASH ZOOM MOVING HEAD MIT RING EFFEKT 7 X 60W RGBW LED IN EINEM FLIGHTCASE

NL - BEE EYE WASH ZOOM MOVING HEAD MET RING EFFECT 7 X 60W RGBW LED IN EEN FLIGHT CASE

E - CABEZA BEE EYE WASH ZOOM CON EFECTO ANILLO 7 LED

60W RGBW CON UN FLIGHT CASE

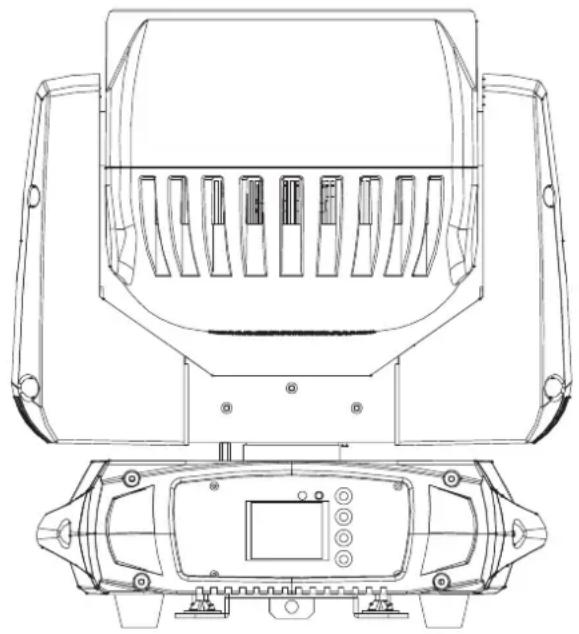

AFX BEEDREAM760-FC - 1

natural_image Technical line drawing of a mechanical device with top and side views (no text or symbols)

DMX Channels - p. 2

GB - User Manual - p. 9

Mode/ChannelValueFunction
66CH38CH26CH
111Pan
0..255PAN Movement
222Pan-fine
0..255Fine control of Pan movement
333Tilt
0..255Tilt Movement
444Tile-fine
0..255Fine control of Tilt movement
555Speed pan/tile
0..225max to min speed
226..235blackout by movement
236..255no function
666Dimmer
0..255Dimmer 0%...100%
777Shutter
0..31Shutter closed
32..63shutter open
64..95Strobe effect slow to fast
96..127shutter open
128..159Pulse-effect in sequences slow to fast
160..191shutter open
192..223Random strobe effect slow to fast
224..255shutter open
888Red
0..2550-100% Red dimmer from dark to bright
999Green
0..2550-100% Green dimmer from dark to bright
101010Blue
0..2550-100% Blue dimmer from dark to bright
111111White
0..2550-100% White dimmer from dark to bright
121212Zoom
0..255In(near) to out(far)
131313Zoom Rotation
0..15Zoom rotation stop
16..63shake slow to fast(width by Zoom Angle)
64..156Forwards rotation from fast to slow
157..162Zoom rotation stop
163..255Backwards rotation from slow to fast
141414Zoom Angle
0..255Zoom Angle(0°~60°)
151515Virtual color
0..0No Function
1..13Red
14..27Green
28..41Blue
42..55White
56..69Red+White

DMX CHANNELS

15151570..83Green+White
84..97Blue+White
98..111Green+Blue
112..125Red+Blue
126..139Red+Green
140..153Green+Blue+White
154..167Red+Blue+White
168..181Red+Green+White
182..195Red+Blue+Green+White
196..2022700K
203..2093200K
210..2163500K
217..2235000K
224..2305500K
231..2376000K
238..2446500K
245..2517000K
252..2558000K
161616Color Temp
0..15No Function
16..45Below 3200K
46..753200K - 3500K
76..1053500K - 5000K
106..1355000K - 5500K
136..1655500K - 6000K
166..1956000K - 6500K
196..2256500K - 7000K
226..2557000K - 8000K
171717Visual Tungsten Lamp
0..15No Function
16..255Tungsten lamp effect is gradually enhanced
1818Foreground color for patterns
0..0No Function
1..13Red
14..27Green
28..41Blue
42..55White
56..69Red+White
70..83Green+White
84..97Blue+White
181898..111Green+Blue
112..125Red+Blue
126..139Red+Green
140..153Green+Blue+White
154..167Red+Blue+White
168..181Red+ Green+White
182..195Red+Blue+Green+White
196..2022700K
203..2093200K
210..2163500K
217..2235000K.
224..2305500K
231..2376000K
238..2446500K
245..2517000K
252..2558000K

DMX CHANNELS

2020Background color for patterns
0..0No Function
1..13Red
14..27Green
28..41Blue
42..55White
56..69Red+White
70..83Green+White
84..97Blue+White
98..111Green+Blue
112..125Red+Blue
126..139Red+Green
140..153Green+Blue+White
154..167Red+Blue+White
168..181Red+Green+White
182..195Red+Blue+Green+White
196..2022700K
203..2093200K
210..2163500K
217..2235000K
224..2305500K
231..2376000K
238..2446500K
245..2517000K
252..2558000K
2121Background dimmer
000..255Background dimmer 0 – 100%.
2222Patterns
000..015No function
016..031Static patterns
032..043Dynamic Scene1
44.055Dynamic Scene2
056..067Dynamic Scene3
068..079Dynamic Scene4
080..091Dynamic Scene5
092..103Dynamic Scene6
104..115Dynamic Scene7
116..127Dynamic Scene8
128..139Dynamic Scene9
140..151Dynamic Scene10
152..163Dynamic Scene11
164..175Dynamic Scene12
176..187Dynamic Scene13
188..199Dynamic Scene14
200..211Dynamic Scene15
212..223Dynamic Scene16
224..235Dynamic Scene17
236..247Dynamic Scene18
248..255Dynamic Scene19
2323Static patterns or patterns speed
Static Patterns(If channel Patterns is in the interval 016 – 031)
000..007static scene1
008..015static scene2
016..023static scene3

DMX CHANNELS

2323024..031static scene4
032..039static scene5
040..047static scene6
048..055static scene7
056..063static scene8
064..071static scene9
072..079static scene10
080..087static scene11
088..095static scene12
096..103static scene13
104..111static scene14
112..119static scene15
120..127static scene16
128..135static scene17
136..143static scene18
144..151static scene19
152..159static scene20
160..167static scene21
168..175static scene22
176..183static scene23
184..191static scene24
192..199static scene25
200..207static scene26
208..215static scene27
216..223static scene28
224..231static scene29
232..239static scene30
240..247static scene31
248..255static scene32
Dynamic Patterns (If channel Patterns is in the interval 032 – 255)
000..023No function
024..137Forward speed from zero speed to fast speed
138..141Stop movement
142..255Reverse speed from zero speed to fast speed
242418Pix_Dimmer
0..255Pix_Dimmer 0%...100%
252519Pix_Strobe
0..255Pix_Strobe Speed 0%...100%
262620Pix_Red
0..2550-100% Pix_Red dimmer from dark to bright
272721Pix_Green
0..2550-100% Pix_Green dimmer from dark to bright
282822Pix_Blue
0..2550-100% Pix_Blue dimmer from dark to bright
292923Pix_color
0..0No Function
1..15Red
16..31Green
32..47Blue
48..63Red+Blue
64..79Red+Green

DMX CHANNELS

29292380..95Green+Blue
96..111Red+Blue+Green
112..1272700K
128..1433200K
144..1593500K
160..1755000K
176..1915500K
192..2076000K
208..2236500K
224..2397000K
240..2558000K
303024Pix_Macro
0..15No Function
16..29Pix Dynamic Scene1
30..43Pix Dynamic Scene2
44..57Pix Dynamic Scene3
58..71Pix Dynamic Scene4
72..85Pix Dynamic Scene5
86..99Pix Dynamic Scene6
100..113Pix Dynamic Scene7
114..127Pix Dynamic Scene8
128..143Pix Dynamic Scene9
142..155Pix Dynamic Scene10
156..169Pix Dynamic Scene11
170..183Pix Dynamic Scene12
184..197Pix Dynamic Scene13
198..211Pix Dynamic Scene14
212..225Pix Dynamic Scene15
226..239Pix Dynamic Scene16
240..255Pix Dynamic Scene17
313125Pix_Macro_Speed
0..255Slow to Fast
3232Expand Patterns
0..15No Function
16..29Pix Dynamic Scene1
30..43Pix Dynamic Scene2
44..57Pix Dynamic Scene3
58..71Pix Dynamic Scene4
72..85Pix Dynamic Scene5
100..113Pix Dynamic Scene6
114..127Pix Dynamic Scene7
128..143Pix Dynamic Scene8
142..155Pix Dynamic Scene9
156..169Pix Dynamic Scene10
170..183Pix Dynamic Scene11
184..197Pix Dynamic Scene12
198..211Pix Dynamic Scene13
212..225Pix Dynamic Scene14
226..239Pix Dynamic Scene15
240..255Pix Dynamic Scene16
3333Pix_Foreground dimmer
0..255Pix_Expand Patterns Foreground dimmer 0 – 100%. (Foreground Color Share with "Pix_Macro"Channel)

DMX CHANNELS

3434Pix_Background dimmer
0..255Pix_Expand Patterns Background dimmer 0 – 100%.
3535Pix_Background Red
0..255Pix_Expand Patterns Background Red 0 – 100%.
3636Pix_Background Green
0..255Pix_Expand Patterns Background Green 0 – 100%.
3737Pix_Background Blue
0..255Pix_Expand Patterns Background Blue 0 – 100%.
38Red in Pixel 1
0..255Red in pixel 1 saturation control (0-100%)
39Green in Pixel 1
0..255Green in pixel 1 saturation control (0-100%)
40Blue in Pixel 1
0..255Blue in pixel 1 saturation control(0-100%)
41White in pixel 1
0..255White in pixel 1 saturation control(0-100%)
42Red in pixel 2
0..255Red in pixel 2 saturation control(0-100%)
43Green in pixel 2
0..255Green in pixel 2 saturation control(0-100%)
44Blue in pixel 2
0..255Blue in pixel 2 saturation control(0-100%)
45White in pixel 2
0..255White in pixel 2 saturation control(0-100%)
46Red in Pixel 3
0..255Red in pixel 3 saturation control (0-100%)
47Green in pixel 3
0..255Green in pixel 3 saturation control(0-100%
48Blue in pixel 3
0..255Blue in pixel 3 saturation control(0-100%)
49White in pixel 3
0..255White in pixel 3 saturation control(0-100%)
50Red in Pixel 4
0..255Red in pixel 4 saturation control (0-100%)
51Green in pixel 4
0..255Green in pixel 4 saturation control(0-100%)
52Blue in pixel 4
0..255Blue in pixel 4 saturation control(0-100%)
53White in pixel 4
0..255White in pixel 4 saturation control(0-100%)
54Red in Pixel 5
0..255White in pixel 5 saturation control (0-100%)
55Green in pixel 5
0..255Green in pixel 5 saturation control(0-100%)
56Blue in pixel 5
0..255Blue in pixel 5 saturation control(0-100%)
57White in pixel 5
0..255White in pixel 5 saturation control(0-100%)

DMX CHANNELS

58Red in Pixel 6
0..255White in pixel 6 saturation control (0-100%)
59Green in pixel 6
0..255Green in pixel 6 saturation control(0-100%)
60Blue in pixel 6
0..255Blue in pixel 6 saturation control(0-100%)
61White in pixel 6
0..255White in pixel 6 saturation control(0-100%)
62Red in Pixel 7
0..255White in pixel 7 saturation control (0-100%)
63Green in pixel 7
0..255Green in pixel 7 saturation control(0-100%)
64Blue in pixel 7
0..255Blue in pixel 7 saturation control(0-100%)
65White in pixel 7
0..255White in pixel 7 saturation control(0-100%)
663826Special function
0..19No function
20..29No function
30..39No function
40..79No function
80..89All Motor reset
90..94SCAN Motor Reset
95..99ZOOM Motor Reset
100..119Internal program 1
120..139Internal program 2
140..159Internal program 3
160..179Internal program 4
180..199Internal program 5
200..219Internal program 6
220..239Internal program 7
240..255Internal Sound program 1

USER MANUAL

UNPACKING INSTRUCTIONS

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mishandling. Keep the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

CONTENTS OF THE CARTON

• 1 pc. BEEDREAM760
- 1 pc. power cable
- 1 pc. signal cable
• 1 pc. user manual

EXPLANATION OF SYMBOLS ON THE SILKSCREEN

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.
Class I, must be connected to an earthed mains outlet

UK CA The unit complies with UK standards

For indoor use only

Minimum distance between the appliance and other objects

Do not stare into the light beam

AFX BEEDREAM760-FC - EXPLANATION OF SYMBOLS ON THE SILKSCREEN - 1

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

AFX BEEDREAM760-FC - CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD - 1

Please read this manual carefully before operating this product.

SAFETY RECOMMENDATIONS

  • Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
  • Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
  • Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the bottom of the fixture.
  • The appliance is part of class I and must exclusively connected to an earthed mains outlet.
  • To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
  • The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
  • For indoor use only
  • The minimum distance luminaire from that part of the luminaire or lamp to the lighted object is 0.5m.
  • The max. ambient temperature (Ta) is 40^ . Don't operate the fixture at higher temperatures.
  • In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.

  • Make sure the power cord is never crimped or damaged.
  • Never disconnect the power cord by pulling or tugging on the cord.
  • Avoid direct eye exposure to the light source while it is on as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!
  • The product is for decorative purposes only and not suitable as a household room illumination.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
  • The lenses, housing or ultraviolet filter must be replaced if they are visibly damaged.
  • The light source is not replaceable. It it is faulty, the product must be discarded.

DISCONNECT DEVICE

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

INSTALLATION

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit's weight.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope.

Never stand directly below the device when mounting, removing or servicing the fixture.

DMX CONNECTION

Connect an XLR cable to the male 3-pin XLR output of your controller and the other side to the female 3-pin XLR input of the light. You can chain multiple lights together through serial linking

The cable needed should be two core, screened cable with XLR input and output connectors.

CABLE CONNECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

Termination reduces signal errors. To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator.

AFX BEEDREAM760-FC - CABLE CONNECTORS - 1

text_image DMX IN POWER IN

AFX BEEDREAM760-FC - CABLE CONNECTORS - 2

text_image Signal (-) Signal (+) DMX512 OUT Ground DMX512 IN Signal (-) Signal (+) 120 Ω

AFX BEEDREAM760-FC - CABLE CONNECTORS - 3

CAUTION

Do not allow contact between the common and the fixture's chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to check correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

CONTROL PANEL

The control panel is the mechanism for configuring the settings. It has a small LCD screen and four buttons, which are described hereafter.

AFX BEEDREAM760-FC - CONTROL PANEL - 1

text_image LCD DISPLAY MENU UP DOWN ENTER

Button Function

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : AFX

Model : BEEDREAM760-FC

Category : Lighting
