CONSIGNESDESÉCURITÉ

IMPORTANT-ÀLIREETÀRESPECTER

DÉCLARATIONDECONFORMITÉ

Pure electrical circuit lines without any symbols

Technical line drawing of a coiled pipe fitting (no text or symbols)

Diagram of a cylindrical device with a coiled cable, showing internal components and no visible text or symbols.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a circular component and a curved component.

Diagram of an air conditioning unit with labeled components including a control panel and fan array

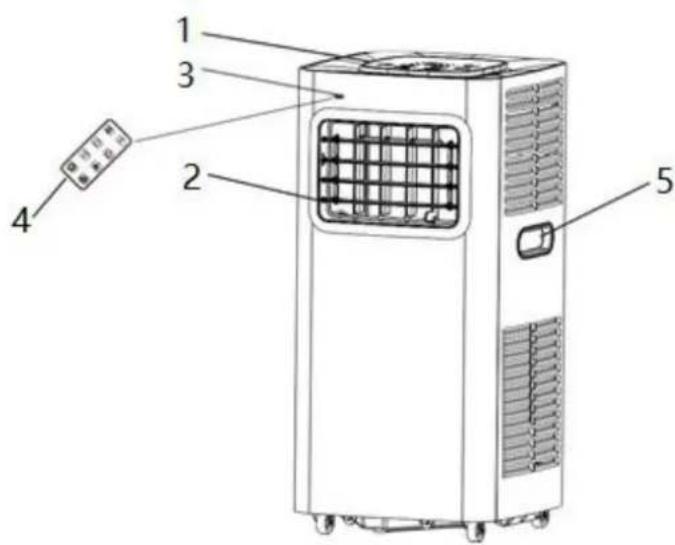

AvantArrière

1

Panneaudecontrôle

2

Sortied'airfroid

3

Récepteurdusignal

4

Télécommande

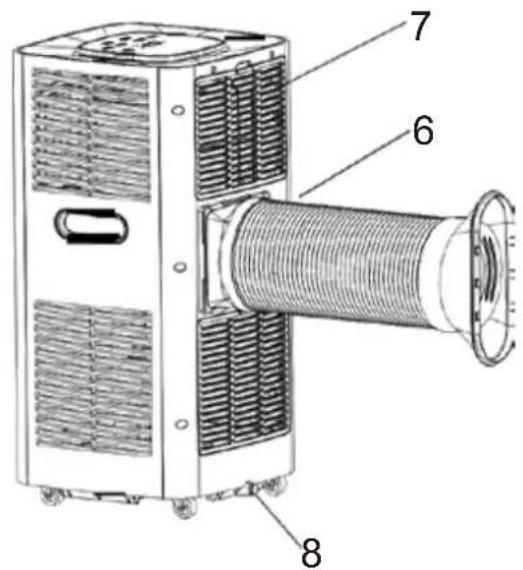

Technical diagram of an air conditioning unit with numbered components labeled 6, 7, and 8

5

Poignéedetransport

6

Tuyaudesorted'air

7

Entréed'air

8

Vidangeprincipale

Lesaccessoires

Diagram of a coiled tube with internal ridges and a labeled point (1), no text or symbols present.

Simple line drawing of a rectangular object with a curved cutout and a numbered label (⑤) pointing to its edge.

1

Tuyaudesortied'air

2

Connecteurdu

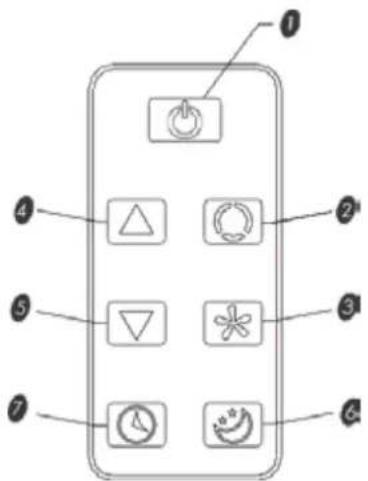

Control panel interface with icons for heating, cooling, and automation buttons

Marche / Arrêt

Minuteur

Mode Veille

Vitesse de ventilation Vitesse basse/rapide

Mode

Diagram of a mobile phone control panel with labeled buttons and icons for function keys

signal receptor

Diagram of a white electronic device with ventilation slots and two separate black panels, no text or symbols present.

Vidangedel'eau

Exterior view of a mechanical air conditioning unit with coiled tubing and ventilation grilles (no text or symbols visible)

2.Evacuationmanuelle

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

PROTECTIONDEL'ENVIRONNEMENT-DIRECTIVE2012/19/UE

• Before using the appliance, read these safety instructions. Keep them nearby for future reference.
• These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

The appliance uses flammable refrigerant (R290), the maximum refrigerant charged amount is 135g. The appliance shall be installed, operated and stored in a room with a floor area larger than 4 m ^2 . And the room should higher than 2.2 m.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

⚠ The appliance shall be stored so as to prevent mechanical damage from occurring.

⚠ Do not use the drained water for humans or pets.

PERMITTEDUSE

CAUTION: the appliance is intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: hotels and working offices.

This appliance is not for professional use. Do not use the appliance outdoors.

⚠ Do not use the appliance in environments with ambient temperature below 0^ C, as this could cause the water in the hoses to freeze and damage the appliance.

⚠ Ensure that the water bucket is empty before moving the unit. - Risk of electric shock or fire during a thunder/lightning storm.

⚠ Always turn off the air conditioner by power button on product panel first. Do not use the power supply circuit breaker or pull off the plug to turn it off. Disconnect the air conditioner from the power supply if it is to be left unused for a long period of time or during a thunder/lightning storm.

⚠️ Never insert obstacle in the air outlet (risk of injury). Keep ventilation openings clear of any obstruction.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.
⚠️ Installation, including electrical connections, and repairs must be carried out by a qualified technician according to national wiring rules.
Do not repair or replace any part of the appliance unless specifically stated in the user manual.
Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport.
In the event of problems, contact the dealer or your nearest After-sales Service.
Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation.
The appliance must be disconnected from all remote power supply before any installation operation - risk of electric shock.
During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.
Always leave a 20 cm gap around the appliance and a 50 cm gap above it. Insufficient ventilation may cause overheating or fire.
To avoid potential fire hazards, ensure that the filter is installed before operating the appliance.
Do not place the appliance near a heat source (risk of fire).
Avoid keeping flammable materials, such as alcohol, petrol or aerosols, near the appliance (risk of explosion or fire).
Operate the appliance only on a level and stable surf ace. Disconnect power cord before moving the appliance.

ELECTRICALWARNINGS

The power supply must be of rated voltage with special circuitry for the appliance. The diameter of the power cord must comply with requirements.
It must be possible to disconnect the appliance from the power supply by unplugging. The appliance must be earthed in conformity with national electrical safety standards.
The use of a time-delay fuse or time-delay circuit breaker is recommended. All wiring must comply with local and national electrical regulations and be installed by a qualified electrician.
Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
⚠️ If the supply cord is damaged, it must be replaced with an identical one by the

SAFETYINSTRUCTIONS

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard risk of electrical shock.

⚠ Ensure safe grounding and a grounding wire connected with the special grounding system of the building, installed by professionals. The appliance must be fitted with electrical leakage protection switch and an auxiliary circuit breaker with sufficient capacity. The circuit breaker must also have a magnetic and a thermal tripping function to ensure protection in case of short-circuit and overload.

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation; without continuously operating ignition sources (such as: open flames, an operating gas appliance or an operating electric heater).

Do not pierce or burn. Be aware that the refrigerants may not contain an odor. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 . The installation of pipe-work shall be kept to a room with a floor area larger than 4m^2 .

The pipe-work shall be compliance with national gas regulations. The maximum refrigerant charge amount is 135g.

When flared joints are reused, the flare part shall be refabricated.

1. Transport of equipment containing flammable refrigerants shall be compliant with the transport regulations.

2. Marking of equipment using signs shall be compliant with local regulations.

3. Disposal of equipment using flammable refrigerants shall be compliant with national Regulations.

4. The storage of equipment / appliances should be in accordance with the manufacturer's instructions.

5. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be by local regulations.

6. Information on servicing.

6-1 Checks to the area

Prior to beginning work on system containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to

SAFETYINSTRUCTIONS

the refrigerating system the following precautions shall be complied with prior to conducting work on the system.

6-2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of flammable gas or vapour being present while the work is being performed.

6-3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confied spaces shall be avoided.

6-4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking adequately sealed or intrinsically safe.

6-5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigerating equipment or any associated parts appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

6-6 No ignition sources

No person carrying out work in relation to a refrigerating system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.

All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

6-7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

6-8 Checks to the refrigerating equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

SAFETYINSTRUCTIONS

- The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed;

- The ventilation machinery and outlets are operating adequately and are not obstructed:

- If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant:

- Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

- Refrigerating pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

6-9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactory dealt with. if the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parts are advised. Initial safety checks shall include:

- That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;

- That there no live electrical components and wiring are exposed while charging, recovering or purging the system;

- That there is continuity of earth bonding.

7. Repairs to sealed components

During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

Particular attention shall be paid to the following to ensure that by working on coelectrical components. The casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminal sealing materials not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely.

Ensure that seals or sealing material shave not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.

Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE:

The use of silicon sealant may inhibit the effectiveness of some types of leak

SAFETYINSTRUCTIONS

detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

1. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant atmosphere from a leak.

1. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

1. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

1. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants:

- Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.

- Leak detection fluids are also suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

- If a leak is suspected, all naked flames shall be removed/ extinguished.

- If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

1. Removal and evacuation

When breaking into the refrigerant circuit to make repairs - or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration.

The following procedure shall be adhered to:

• Remove refrigerant;
• Purge the circuit with inert gas;
• Evacuate;
• Purge with inert gas;
• Open the circuit by cutting orbrazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed:

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept in an appropriate position according to the instructions.
• Ensure that the refrigerating system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigerating system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

14. Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task is commenced.

a. Become familiar with the equipment and its operation.
b. Isolate system electrically.

c. Before attempting the procedure ensure that:

- Mechanical handling equipment is available, if required, for handling refrigerant cylinders:

- All personal protective equipment is available and being used correctly;

- The recovery process is supervised at all times by a competent person;

- Recovery equipment and cylinders conform to the appropriate standards.

d. Pump down refrigerant system, if possible.

e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f. Make sure that cylinder is situated on the scales before recovery takes place.

g. Start the recovery machine and operate in accordance with instructions.

h. Do not overfill cylinders. (No more than 80 % volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even temporarily.

j. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k. Recovered refrigerant shall not be charged into another refrigerating system unless it has been cleaned and checked.

15. Labeling

Equipment shall be labeled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable ref rigerant.

16. Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labeled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shutoff valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that

SAFETYINSTRUCTIONS

flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers.

Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely. When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit. Do not place any other electrical products or household belongings under indoor unit or outdoor unit. Condensation dripping from the unit might get them wet, and may cause damage or malfunction of your property. To keep ventilation openings clear of obstruction. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater). Reusable mechanical connectors and flared joints are not allowed.

CLEANINGANDMAINTENANCE

⚠ WARNING : Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

DISPOSALOFPACKAGINGMATERIALS

- The packaging material is 100% recyclable and is marked with the recycle symbol 📋. The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DECLARATIONOFCONFORMITY

• The refrigerant gas being in a hermetically sealed system (R290, GWP 3).

Explanationofsymbolsdisplayedunit.

Caution, risk of tire	WARNING	This symbol shows that this appliance uses a flammable refrigerant.If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire
	CAUTION	This symbol shows that the operation manual should be read carefully
	CAUTION	This symbol shows that a service personnel should be handlingthisequipment with reference to theinstallation manual
	CAUTION	This symbol shows that information is available such as the operating manual or installationmanual

SAFETYINSTRUCTIONSFORSERVICINGAPPLIANCEWITHSPESIFIC REFRIGERAN

A. Disposal of packaging materials

Packaging carton and paper can be recycled. Those have to be placed in suitable collection bins.

Materials with the symbol are recyclable.

➢ PE => polyethylene
PS => polystyrene
➢ PP => polypropylene

This means they can be recycled by putting them in suitable collection bins.

Other packaging items (adhesives, fasteners, etc.) must be put in the domestic waste.

B.Locationandinstallationoftheaccessories

• The mobile aircon must be placed beside a window, a door or a window.
• To avoid over-heating of your appliance, a minimum distance of 60cm must be kept between the back of the appliance and the wall, or any bulky object.

Adviceforwaterdrainageset-up

Water is produced during cooling and dehumidifying.

Therefore, you need to set up a drainage system. You can either choose to set up an automatic (continuous) drainage system or drain the water manually.

a.AutomaticDrainage

Water drainage is continuous if you use the upper drainage port (secondary drainage port) with a drainage pipe. For instructions on set-up, please refer to MAINTENANCE AND CLEANING).

b.ManualDrainage

Water fills up an internal recycling tank during operation, and when the tank is full, the alarm will sound and the compressor will stop working, indicating that the water tank should be emptied.

For how to manually empty water from the tank to resume operation, please refer to MAINTENANCE AND CLEANING.

C. Installation of the exhaustose and the adapter

1. Extend the air exhaust duct by drawing out the two ends of the duct.

Pure electrical circuit lines without any symbols

1. Screw the air exhaust duct into the connector of the air exhaust duct.

Technical line drawing of a coiled pipe or hose with threaded ends and flanges (no text or symbols)

1. Connect the exhaust duct to the unit.

Technical illustration of a mechanical device with a coiled cylindrical component and a directional arrow (no text or symbols)

Never obstruct the air outlet.

D. Installation of the battery

-Compatible with a CR2025(3V lithium battery)

a. Slide the cover to open the compartment

Technical line drawing of a mechanical component with labeled parts (no text or symbols present)

b. Place the battery in the slot respecting the poles (anode and cathode)
c. Put the cover back

If you do not use the remote control for prolonged period of time, remove the battery from the remote control.

Identificationoftheparts

1 2 3 4 5

Technical diagram of an air conditioning unit with numbered components labeled 6, 7, and 8

FrontBack

1 Controlpanel
2 Coldairoutlet
3 Signalreceptor
4 Remotecontrol

5 Transporthandle
6 Airoutlethose
7 Evaporatorairintake
8 Primarydrainport

Accessoires

Diagram of a coiled tube with internal ridges, labeled with number 1 (no text or symbols on the tube itself)

Technical line drawing of a mechanical part with a labeled section (no text or symbols present)

④

1 Air exhaust duct
2 Connectorofaireexhaust duct
3 Windowexhaustadapter

4 Remotecontrol
5 Baffleplate

A. Control panel

Control panel interface with icons for air, temperature, and power indicators including 'Auto' button

ON/OFF Fan speed

Increase of Temperature or Timer

Timer Slow/fast sp

Decrease of Temperature or Timer

Sleep mode

Mode choices :

Automatic, Cool, Fan, Dehumidifier

B. Remotecontrol

Diagram of a mobile phone control panel with labeled buttons and icons for function keys

1 - The appliance will start or stop by pressing this button.
2 - Allows you to select the operation mode: Automatic, Cool, Dehumidifier or Fan mode..
3 - Allows you to select the speed of fan (Slow or Fast).
4&5 - BUTTON OF SETTING allow you to change the temperature and the timer.
6 - Allows you to activate or cancel Sleep Mode.
7 - Allows you to set the automatic switch-on or switch-off by the timer.

A.Useofthecontrolpanel

1. Putting on the appliance and mode choice: To put the appliance into operation, connect the electrical cable to a wall outlet. The appliance will then emit a beep sound.

Press on the button ⏻ to turn on the device, which another deep sound will be emitted, then pres the button

to choose your operation mode from the available ones:

A touch on the button Ⓜ allows you to change from one mode to another.

1. Setting of the temperature: The temperature can be

adjusted, each time by 1°C by pressing the or button, to go between the range of 15°C to 31°C.

Press the △ or button to increase or decrease the temperature by 1°C. The LED display shows the set temperature for 5 seconds, then displays the room temperature.

1. Settingthespeedofthe fan: Press the button to select the fan speed from the available (slow or fast)

1. Activitating the sleep function: When you press the button ⏻ again, the device beeps and turns off.

B. Operationprinciplesofeach mode

1. Automatic mode ▲: When the Automatic mode is selected, the temperature sensor automatically operates

and selects the operation mode Cool ✿ or Fan ≈ depending on the room temperature.

- If the room temperature is the same as or above 24 °C, the appliance will run in Cool mode ❖.

- If the room temperattrue is under24 °C, the appliance will run in Fan mode ≈.

1. Coolmode ✦: When the room temperature is higher than the set temperature, the compressor will start to run. When the room temperattrue is lower than the set temperature, the compressor will stop.

2. Fanmode ≈: In this operation mode, the selection of temperature is disabled. The fan functions at the preset temperature. The compressor will not function.

3. Dehumidifier mode ⚙: the compressor will work for 8 minutes then stop for 6 minutes. They will resume functioning automatically afterwards and repeat the cycle.

Remarks:

• The fan above will work at a slow speed in Dehumidifier mode (slow by default). Fast speed are not supported in this mode.

• The setting of temperature is not supported in this operation mode.

• Sleepfunction ⚙: The appliance can be put to Sleep function only when it is Cool mode ✦. Press the button ⚑ to activate this function. The upper fan will function in slow speed. The set temperature will increase by 1°C after one hour of functioning, by 2°C after two hours. After six hours, the appliance stops.

Remarks:

- The main control board has a memory function. The main control board records the previous operation mode before the appliance is put to Sleep function. Consequently, as you restart the appliance, it will work in the previous operation mode. It needs not to be reprogrammed. This function is not available if the

previous operation mode is ▲.

- The air conditioner should be used, while under COOL mode or DEHUMIDIFER function, in locations where windows are closed. Otherwise the water tank will fill up quickly.

1. Timer Ⓤ: The timer can be set between 1 to 24

hours. Press the button △ or ▽ to increase or decrease the duration. Each press increases or decreases the time by one hour.

- Automatic OFF: when the appliance is running, press the ⏻ button and set the desired duration after which the appliance will be switched off. Allow the number of hours on the LED flashes for a few seconds until the timer indicator light on the left illuminates. Afterwards, the LED will resume displaying the set temperature.

- AutomaticON: when the appliance is connected to electricity but not turned on, press the button ⏻, set the desired duration after which the appliance will be turned on. Allow the number of hours on the LED flashes for a few seconds until the LED goes off, and the timer indicator light on the left remains illuminating.

C. Useofremotecontrol

To operate the air conditioner with the remote control, point the remote control at the signal receptor located at the front of your appliance.

signal receptor

The remote control operates the mobile aircon only if it is used within 5 meters.

D. Emergencystopandprotection:

The appliance is equipped with a protection device to stop the appliance from running in case of emergency. The device can be triggered in the following cases:

- InCOOLmodeif

- room temperature is above43°C.

- room temperature is below15°C.

• InDEHUMIDIFIERmodeif

- room temperature is below 15°C.

Remarks:

- 3 minutes should be allowed for before the appliance is restarted, or before operation mode is changed from one to another.

- The appliance will be put to original operation mode after replugging. Timer will need to be reset.

RECOMMENDATIONS IN CASE THE APPLIANCEISNOTUSED

1. If the unit is not used for prolonged periods, make sure that it is safely unplugged. Otherwise electric shock or fire may occur.

2. Drain out all the water and use a soft cloth to clean the water bucket.

3. Clean the air filter.

4. Cover the unit to prevent dust build-up. Store the unit vertically in a cool and dry place.

CLEANINGANDMAINTENANCE

Caution: turn off the appliance first before disconnecting from power supply

Appliancemaintenance

• Cut off the power supply.
• Wipe the appliance with a soft and dry cloth. Use lukewarm water to clean if the appliance is very dirty.
• Never use volatile substances such as gasoline or polishing powder to clean the appliance.
• Never sprinkle or pour water directly into the main unit

Airfiltermaintenance

It is necessary to clean the air filter after using it for about 100 hours. Clean it as follows:

• Switch off the appliance and remove the air filter located at the back of the air conditioner.
• Clean and reinstall the air filter in the dedicated compartment.

If it is really dirty, wash the appliance with a solution of detergent in lukewarm water. After cleaning, dry it in a shaded and cool place, then reinstall it.

Clean the air filter every two weeks if the air conditioner operates in an extremely dusty environment.

Illustration of a white industrial machine with black ventilation slots and a side panel (no text or symbols)

WaterDrainage

During the cooling and dehumidifying process, the appliance extracts humidity from the atmosphere and keeps the condensed water in an internal recycling tank inside the appliance. When the water tank is full, the appliance will:

• display an "E4" code
• stop operating until the water is emptied from the appliance

Water can be drained in this ways:

1. Automaticdrainage

This allows water to continuously drain out while the appliance is operating. There is no need to turn it off in order to drain. But the following connection work should be performed at installation, before the appliance is turned on.

• Please remove the plug of the drainage port.
• Connect the opening to a 10mm diametered drainage pipe (not provided)
• Extend the pipe to a bucket or a drainage ditch
• Switch the appliance on

With this setup in place, all water produced during operation will be drained out continuously. No manual drainage work is needed after use.

If automatic drainage is not employed, please ensure to secure the secondary drainage port with the plug provided.

2. Manualdrainagevia(primarydrainageport)

This manual procedure is needed if automatic drainage detailed above is not employed.

• Place the appliance near a drainage ditch
• Remove the plug of the primary drainage port
• Tilt the appliance slightly to pour water out
• Re-plug the primary drainage port after drainage

Illustration of a mechanical air conditioning unit with coiled tubing and ventilation grilles (no text or symbols visible)

Appliancenotinuse

• Perform water drainage as instructed above.
• Turn on the fan for a few hours to dry the inside of the appliance. It dehumidifies the inside of the appliance, and thus prevents the formation of any mould.
• Stop the appliance and take the power supply plug out. Then take out the battery of the remote control and store the appliance properly.
• Clean the air filter and reinstall it.
• Remove the air hoses, store them properly, and cover the holes tightly.

Warning:

Keep the appliance at least 1 meter away from your television or radios to avoid electromagnetic interference.

Do not expose the unit under direct sunlight to avoid surface colour fading. Do not tilt the unit for more than 35^ or put it upside-down during transportation. Place the unit on a flat surface with less than 5^ inclination.

Empty the condensation drainage pan before putting the unit in storage at the end of the season, to prolong the unit lifetime.

Do not use chemic al solvents (e.g. Benzene, alcohol-glazer) to clean the unit to avoid scratching or damaging the surface.

Make sure to cut off the power before disassembling or installing the air-inlet fence.

Please empty the water from the water tank if you want to move the machine. The battery must be removed from the appliance before it is disposed of.

The battery is to be disposed of safely.

The plug must be removed before cleaning, maintaining or filling the appliance.

Reference : OCEALIM700W1
Model: FDP20-1060R5-1
Cooling capacity : 2000W
Rated voltage / frequency :		220-240V~ 50Hz
Cooling input power / current :		750W / 3.4A
Refrigerant : R290 / 135g
Discharge Side Pressure : 2.5MPa
Suction Side Pressure : 1.2MPa
Sound Power Level : 65dB(A)
Net Weight : 19.5Kg
Rated EER : 2.6
Energy Class : A
Applying Space (m2) :		10-20 m2
Fuse : 3.15A, 250VAC
Dimensions W x D x H	Body (mm) 310 x 3	10 x 640mm
	Package (mm)	372 x 372 x 850mm
Global Warming Potential (GWP) :		3
Refrigerant leakage contributes to climate change. Refrigerant with lower global warming potencial (GWP) would contribute less to global warming than a refrigerant with higher GWP, if leaked to the atmosphere. This appliance contains a refrigerant fluid with a GW equal to 3. This means that if 1 Kg of this refrigerant fluid would be leaked to the atmosphere, the impact on global warming would be 3 times higher than 1 Kg of CO2, over a period of 100 years. Never try to interfere with the refrigerant circuit yourself or disassemble the product yourself and always ask a professional.

ENERG Y UA oceanic OCEACLIM700W1 (FDP20-1060R5-1) EER A"" A" A' A B C D 2,0 kW 2,6 EER 65dB 0,8 kWh/60min* ENERGIA: eerprima - evelpytia ENERGIA - ENERGY - ENERGIC energy * Mueyta per - Farid 626 / 2011

Energy consumption 0.8 kW/h for 60 minutes, based on the results of standard tests, the actual energy consumption will depend on the mode of production of the device and its location.

When your air conditioner seems to be out-of-order, please check the suggestions below before contacting after-sales service.

Problems Possible causes Solutions
The appliance does not work.	- Verify if the appliance is plugged in properly.
	- Verify if the power cord or socket is damaged.
	- Contact an electrician for its replacement.
	- Verify if the fuse is broken.
	- If you are using a remote control, verify if the battery is exhausted.
	- Replace the battery of the remote control by a new one.
	- The appliance has entered security mode.
The appliance works only for a while and then it stops automatically.	- Verify if the air outlet is blocked by any bulky object.
	- Remove the obstacle.
	- The timer has been activated.

Problems Possible causes	Solutions
The appliance works but does not cool the temperature down.	- Verify if the set temperature is higher than the room temperature.	- Lower the set temperature. (Please refer to section Use.)
	- Verify if a window or a door is closed.	- Close the window or door to stop hot air from entering
	- Verify if any heater or lamp is producing heat.	- Switch the(se) appliance(s) off.
	- Verify if the air filter is dirty.	- Clean the filter. (Please refer to section Maintenance and cleaning.)
	- Verify if the air outlet is blocked by any bulky object.	- Remove the obstacles.
Water leaks out during transport.	-- The water tank is full.	Drain the tank.
	-The appliance is lying down or the ground is not level.	- Always move the device horizontally.
Error code "E2" is displayed on LED screen.	- The room temperature sensor does not work or is damaged.	- Replace the room temperature sensor.
Error code "E3" is displayed on LED screen.	- The evaporator oil pipe sensor may be damaged. Please contact your aftersales service.	- Replace the evaporator oil pipe sensor.
Error code "E4" is displayed on LED screen.	- Water-tank-full warning.	Drain the water tank.

This warranty does not cover

• Damage or problems resulting from transport, improper use or negligence.
• Replacement of any bulbs or removable parts made of plastic or glass.
• Equipment declared to be used in a commercial environment, plus those that are subject to rental.
• The worn parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with food or liquids and corrosion caused by rust;
(3) any unauthorised incident, abuse, misuse, modification, disassembly or repair;
(4) improper maintenance, improper use of the product or incorrect voltage connection;
(5) any use of accessories not provided or approved by Oceanic.

The guarantee will be cancelled if the rating label and / or serial number of the product are removed.

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a black rectangle below (no readable text or symbols)

ENVIRONMENTAL PROTECTION-DIRECTIVE2012/19/EU

This appliance carries the symbol for selective sorting, related to the Waste Electrical and Electronic Equipment Directive (WEEE Directive). This means that this appliance has to be handled by a system of selective sorting as required by the European directive 2012/19/EU in order to be either recycled or dismantled, so that impact on environment can be reduced.

For more information, you can contact your local or regional administration. Electronic products that have not been selectively sorted are potentially a human health and/or an environment hazard due to the presence of dangerous substances.

Fluorinatedrefrigerants:

This device contains R290. It is a mixture of flammable fluorinated gases that has an impact on global warming in the event of a leak.

Never attempt to open the appliance or pierce the cooling circuit. Any intervention must be performed by a qualified technician.

At the end of the life of the appliance, it must be disposed of in an appropriate place, capable of recycling appliances containing refrigerants. For this contact the town hall of your home.

Undernocircumstances should youth grow this unit on public roads.

OCEANIC

120-126 Quai de Bacalan

CS 11584

33000 Bordeaux

IMPORTEDBY :

A.M.C.

123, QUAI JULES GUESDE

94400 VITRY SUR SEINE

France

oceanic

www.oceanic.eu

CE
