USER MANUAL Aquaspeed FV5353 TEFAL

Black and white photo of a Tefal iron iron with visible branding (no text or symbols on the iron itself)

Diagram illustrating electrochemical processes with labeled components: electron transfer, photoexcitation, and electrostatic potential.

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

Diagram illustrating a hand holding a cable with no text, showing mechanical components and safety instructions.

fig.2
fig.3

fig.1

100% 50% 20% 70% 30% 100% -

fig.4

Circular grayscale illustration of a tunnel entrance with lightning bolts indicating illumination (no text or symbols)

fig.5

fig.3 fig.6

fig.6

WALOZ KON ng.4 zone

max Fig.5

fig.8

Illustration of a person using an iron to burn their hair, showing steam and hair movement (no text or symbols)

fig.9

auto-stop fig.7

fig.10*

Circular diagram showing a hand inserting a small object into a car, with a black arrow indicating the direction (no text or symbols present)

fig.11 fig.12

Mechanical assembly diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

EN Please refer to safety booklet before using your appliance.
DE Bitte lesen Sie sich vor der Benutzung Ihres Geräts die Sicherheitshinweise der Broschüre durch.
FR Merci de lire les recommandations de sécurité avant toute utilisation du produit.
NL Raadpleeg het veiligheidsboekje vóór het gebruik van uw apparaat.
ES Por favor, consulte el folleto de seguridad antes de usar su aparato
PT Queira consultar o folheto de segurança antes de utilizar o aparelho.
IT Consultare il libretto di istruzioni prima di utilizzare l'apparecchio.
DA Læs venligst sikkerhedsbrochuren, før apparatet tages i anvendelse.
SV Läs igenom häftet om säkerhet innan du använder apparaten.
NO Se sikkerhetsheftet før du begynner å bruke apparatet.
FI Lue turvaohjevihko ennen laitteen käyttöä.
EL Ανατρέξτε στο εγχειρίδιο ασφαλείας πριν να χρησιμοποιήσετε τη συσκευή σας.
HU Kérjük, hogy a készülék használatát megelőzően olvassa el a biztonsági tájékoztatót.
CS Předtím, než budete zařízení používat, si přečtěte bezpečnostní brožuru.
SK Pred použitím prístroja si prečítajte brožúru o bezpečnosti.
SL Prosimo vas, da pred uporabo naprave preberete varnostna navodila.
SR Molimo vas da pre upotrebe aparata pročitate brošuricu o sigurnosti.
HR Molimo pogledajte knjižicu o sigurnosti prije uporabe aparata.
RO Vă rugăm să consultați manualul de instrucțiuni înainte de a folosi aparatul.
BG Моля, направете справка с брошурата за безопасност преди да използвате уреда.
TR Lütfen, kullanmadan önce güvenlik bilgileri kitapçığına bkz.
UK Перед використанням пристрою ознайомтесь із довідником із техніки безпеки.
RU Перед использованием устройства обратитесь к руководству по технике безопасности.
PL Przed rozpoczęciem użytkowania urządzenia prosimy przeczytać informacje dotyczące bezpieczeństwa.
ET Enne oma seadme kasutamist tutvuge palun ohutusjuhistega.
LV Pirms ierīces izmantošanas, lūdzu, skatiet drošības bukletu.
LT Prieš naudojantis prietaisu prašome perskaityti saugos instrukcijas.

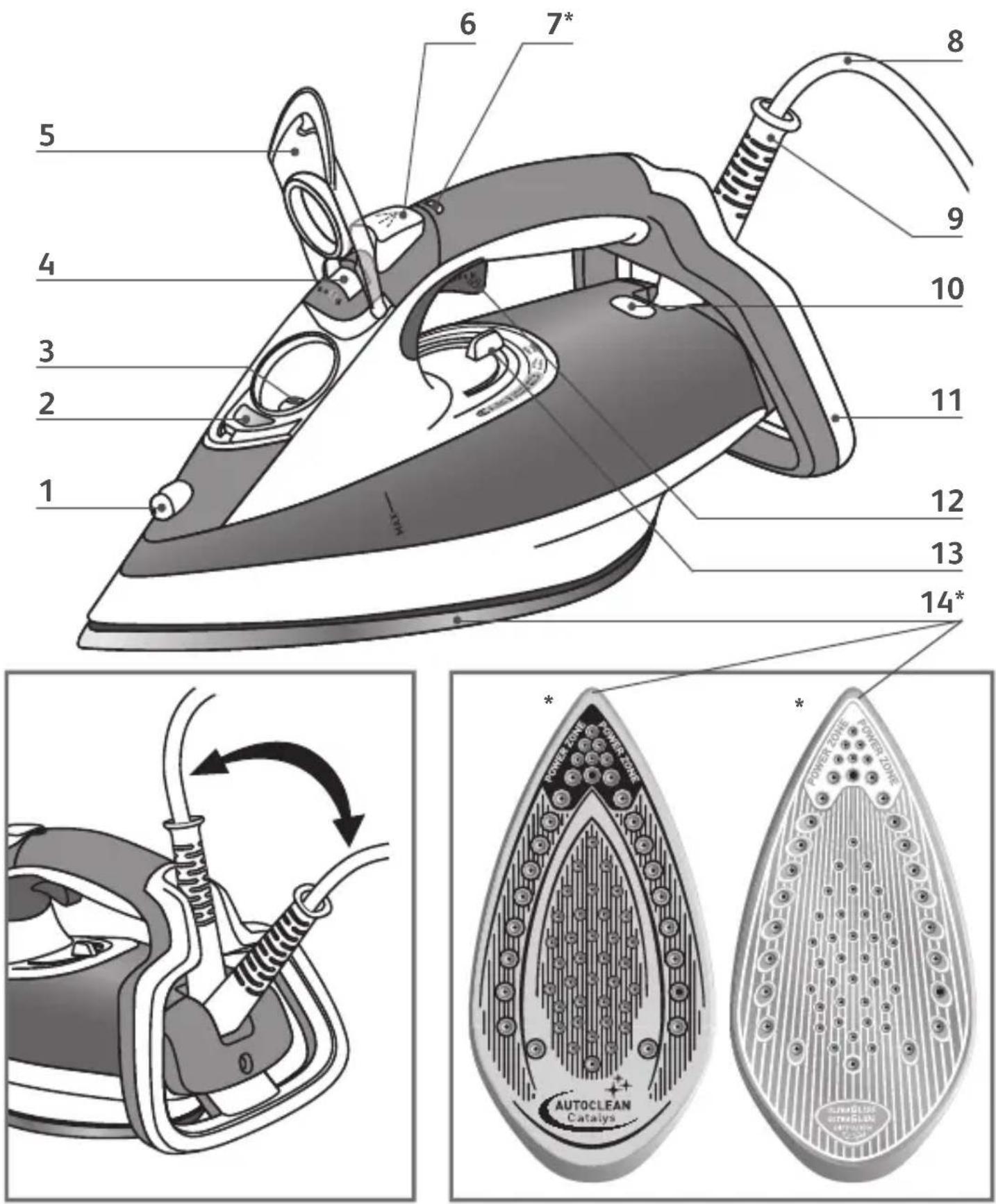

Description

1. Spray nozzle
2. Anti-scale valve release button
3. Anti-scale valve
4. Steam control
5. Water tank filler flap
6. Spray Button

7. Auto-Stop safety light (depending on model)

8. Electric power cord

9. Easycord system
10. Thermostat indicator light
11. Extra Stable heel
12. Power zone trigger
13. Thermostat control
14. Autoclean Catalys ^ Soleplate (depending on model)

Before first use

Please read these instructions carefully. Remove any labels from the sole-plate before heating up the iron.

• Before using your iron with the steam function for the first time, we recommend that you operate it in a horizontal position for a few moments, away from your linen. Operate the Power zone trigger several times under the same conditions.
• There may be a release of smoke, a harmless odour and a light spray of particles when you use your appliance for the first time. This has no effect on the use of the iron and will disappear quickly.

Preparation

What water to use?

• Your appliance has been designed to operate using untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber.
• Never use water containing additives (starch, scents, softeners, etc.), or water produced by condensation (e.g. water from tumble-driers, refrigerators, air conditioners, rain water). The types of water contain organic waste or mineral elements that can cause spitting, brown staining, or premature wear of the appliance.

If your water is very hard, it is possible to mix tap water with store-bought distilled or demineralised water in the following proportions: - 50% tap water, - 50% distilled or demineralised water.

Filling the water tank

Fill the tank up to the "MAX". Never fill the appliance by holding it directly under the tap. Do not remove the anti-scale valve to fill the water tank.

• Unplug your iron before filling it.
• Set the steam control to Fig.1.
  • Take the iron in one hand and tilt it slightly, with the point uppermost.

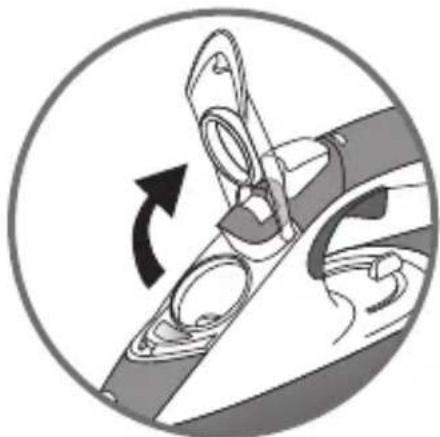

• Open the water tank lid – fig.2.

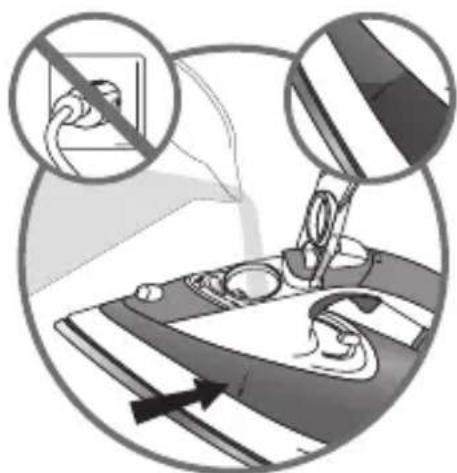

• Fill the tank up to the "MAX" line – fig.3.
• Close the flap of the water tank.

Use

Adjust the temperature and the steam

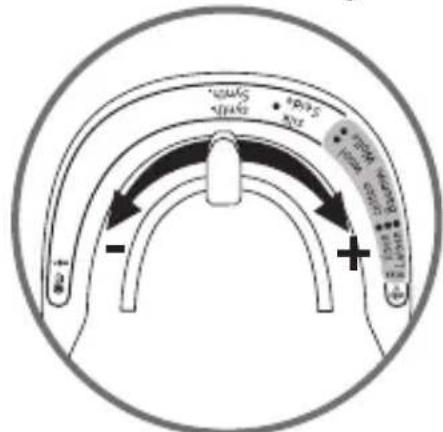

• Set the thermostat control – fig.4, referring to the table below.

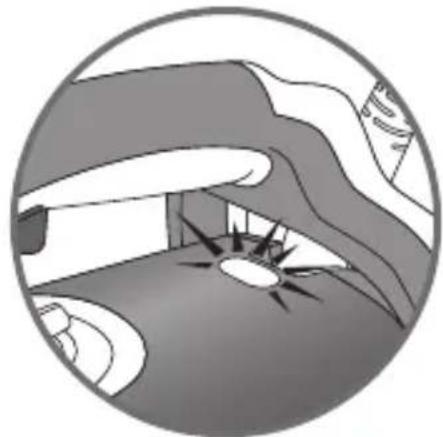

• The thermostat light comes on. It will go out when the soleplate is hot enough – fig.5.

RECOMMENDATIONS

• Select setting and save 20% energy compare with the maximum position.
• Your iron heats up quickly: so begin by ironing fabrics that are ironed at low temperatures first, then go on to those requiring a higher temperature,
• If you turn down the thermostat, wait until the thermostat light comes back on before beginning to iron again,
• When ironing fabrics with mixed fibres, set the ironing temperature for the most delicate fibre. For delicate fabrics we recommend testing the fabric first on an inconspicious place eg (inside the hem).

FABRIC	POSITION OF THERMOSTAT CURSOR	STEAM SETTING POSITION
LINEN	MAX
COTTON	●●●	eco
WOOL	●●
SILK / SYNTHETIC (Polyester, Acetate, Acrylic, Nylon)	●	※

= STEAM ZONE

In order to avoid water dripping from the iron onto the linen:

• Turn off the steam when ironing silk or synthetic fabrics.
• Set it at the minimum position for wool.

Spray Function (spray)

Make sure that there is water in the tank before using this button.

- Whether steam or dry ironing, you are able to use the spray button to dampen laundry to remove stubborn creases – fig.6.

Obtain more steam

• Turn the thermostat to "MAX" or "●●●".

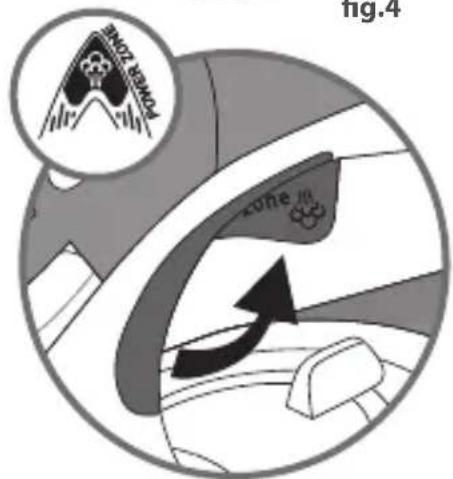

• Operate the Power zone trigger from time to time – fig.7.
• To avoid drips, leave an interval of a few seconds between operations.

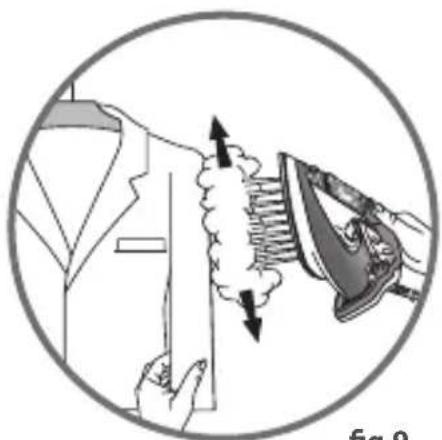

Hold the iron a few centimetres from the fabric to avoid burning delicate fabrics. Every five pulses return the iron to a horizontal position.

• Hang the garment on a hanger and hold the fabric slightly taut with one hand. The steam is very hot, so you should always do this with the garment on a hanger – never iron clothes which someone is wearing.

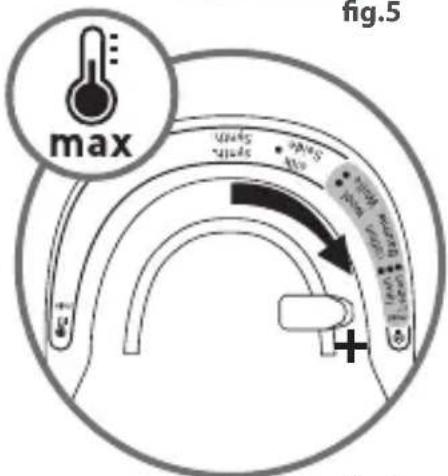

• Set the thermostat control to "MAX" – fig.8.
• Operate the Power zone 🎨 trigger by pulsing – fig.7 moving the iron from top to bottom – fig.9.

Dry ironing

• Set the temperature for the fabric to be ironed.
• Set the steam control to Fig.1.
• You may start ironing when the thermostat light goes out.

Extra Functions

Autoclean Catalys® Soleplate (depending on model)

• Your iron is equipped with a self-cleaning soleplate which works by catalysis.
• Its exclusive coating helps eliminate all the impurities generated by normal use.
• It is recommended that you always stand your iron on his heel to preserve its self-cleaning coating.

Integral anti-scale system

Your iron is equipped with an integral anti-scale system. This system will help to provide:

- a better ironing quality with a constant flow of steam,

- lasting performance from your appliance.

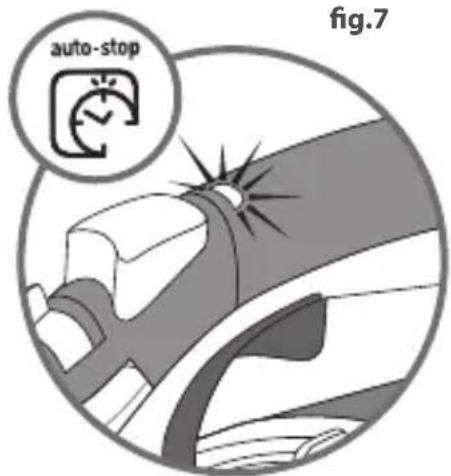

Auto-Stop safety feature (depending on model)

The auto-stop light will be lit during normal use!

• The electronic system cuts off the electric power and the Auto-Stop warning light flashes if the iron is left vertically on its heel for more than 8 minutes, or in a horizontal position for more than 30 seconds – fig.10.
• To restart the iron, just move it gently until the warning light stops flashing.

Anti-drip function (depending on model)

- When the iron is no longer hot enough to produce steam, the water feed will stop automatically to avoid dripping.

Maintenance and cleaning

Cleaning the anti-scale valve (once a month)

• Unplug your iron and empty the water tank.
• Adjust the steam setting to "Eco".
• To remove the anti-scale valve, open the water tank lid and press the release button – fig.11 and then pull the valve upwards – fig.12.
• Soak the valve in a cup of white spirit vinegar or plain lemon juice for 4 hours – fig.14.
• Rinse the valve under running water.

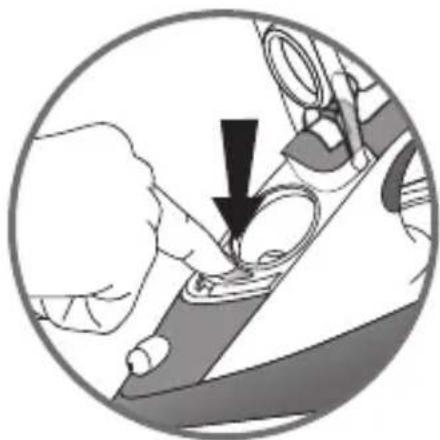

• Replace the anti-scale valve; press until it clicks in to place – fig.15.

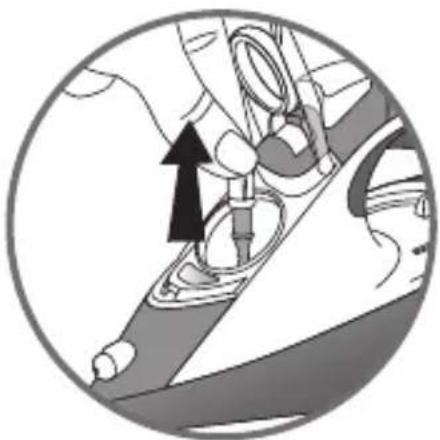

• fig.11 and then pull the valve upwards -

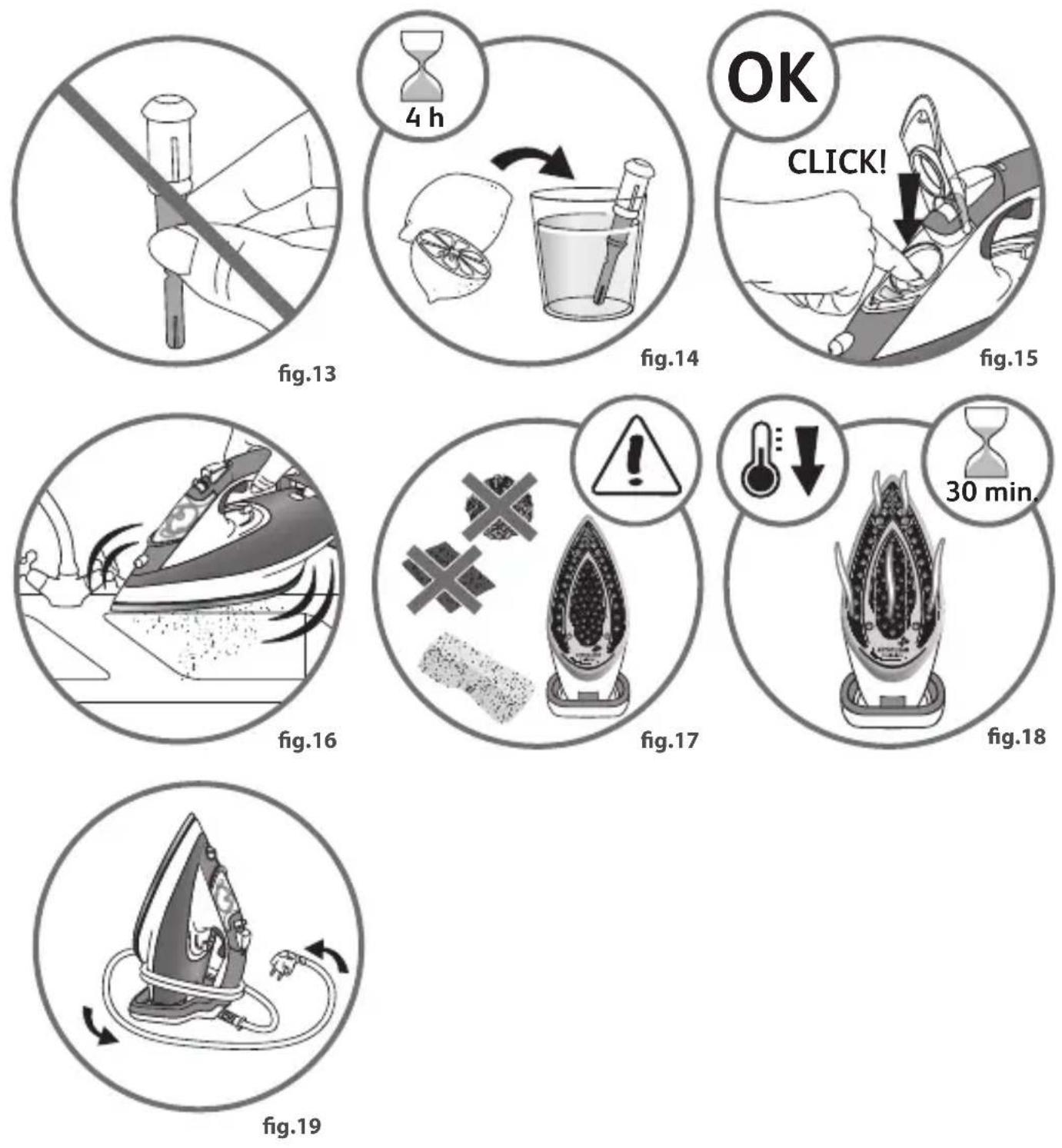

  Be careful! - Never touch the end of the valve – fig.13.
• The iron will not function without the anti-scale valve.

Self-cleaning

The self-cleaning function helps to slow down scaling in your iron. In order to extend the life of your iron, use the Self-Cleaning function once a month.

• Fill the tank of your iron with untreated tap water. Stand the iron on it's heel with the thermostat set to "Max" and heat it up.
• When the thermostat light goes out, unplug the iron and hold it in a horizontal position, over a sink. Remove the anti-scale valve – fig.11-12 (see previous chapter).

- Shake the iron gently, over the sink, until some of the water in the water tank (with the impurities) has flowed out through the soleplate – fig.16.

- At the end of the operation, replace the anti-scale valve; press it in until it clicks – fig.15.

- Plug the iron back in and leave it resting on its heel for two minutes to dry the soleplate.

- Clean the soleplate with a damp, non-metallic cloth while it is still warm.

Cleaning the soleplate

Your steam iron is fitted with a self-cleaning soleplate (depending on model):

Attention! The use of a scouring pad will cause damage to your soleplate's self-cleaning (depending on model) coating – fig.17.

• The exclusive active coating helps eliminate all the impurities generated by the normal day-to-day use of the iron.
• However, if you iron using an unsuitable programme, some traces may be left which require manual cleaning. In this case, it is recommended that you use a soft damp cloth on the warm soleplate, in order not to damage the surface.

Your steam iron is fitted with an Ultraglide soleplate (depending on model):

- Clean the soleplate with a damp, non-metallic cloth while it is still warm.

Storing your iron

• Unplug the iron and wait for the soleplate to cool down – fig.18.
• Empty the water tank and set the steam control to a little water may remain in the tank.
• Wind the cord around the heel at the back of the iron. Store the iron on its heel – fig.19.

Never use aggressive or abrasive products.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

If there is a problem

PROBLEM POSSIBLE	CAUSES SOLUTIONS
Water drips from the holes in the soleplate.	The chosen temperature is too low and does not allow for the formation of steam.	Position the thermostat in the steam range (from •• to MAX).
	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.
	You are using the Power zone trigger too often.	Wait a few seconds between each use of the Power zone button.
	There is too much steam. Reduce the steam.
	You have stored the iron horizontally, without emptying it and without setting it to 🎩	See the section "Storing your iron".
	The anti-scale valve is not fully inserted. Replace the anti-scale valve: press down until it clicks into place.
Brown streaks come through the holes in the soleplate and stain the linen.	You are using chemical descaling agents. Do not add any descaling agents to the water in the water tank.
	You are not using the right type of water. Perform a self-cleaning operation and consult the section "What water to use?"
	Fabric fibres have accumulated in the holes of the soleplate and are burning.	Perform the self-cleaning operation and clean the soleplate with a damp sponge. Vacuum the holes of the soleplate from time to time.
The soleplate is dirty or brown and can stain the linen.	You are ironing with an inappropriate setting (temperature too high).	Clean the soleplate as indicated above. Select the appropriate setting.
	Your linen has not been rinsed sufficiently or you are using starch.	Clean the soleplate as indicated above. Always spray starch onto the reverse side of the fabric to be ironed.
There is little or no steam.	The water tank is empty. Fill the water tank.
	The anti-scale valve is dirty. Clean the anti-scale valve.
	Your iron has a build-up of scale. Clean the anti-scale valve and carry out a selfclean.
	Your iron has been used dry for too long.	Carry out a self-clean.
The soleplate is scratched or damaged.	You have placed your iron flat on a metallic rest-plate or ironed over a zip. You have cleaned your soleplate with an abrasive or metal pad.	Always set your iron on its heel. Try to avoid ironing over zips. Refer to the chapter "Clean the soleplate".
Your soleplate is releasing particles.	Scale is building up on the soleplate.	Carry out a self-clean operation.
Water is running out of the water tank flap.	You have not closed the water tank flap properly.	Check that the water tank flap is locked properly.
Steam or water leak from the iron as you finish filling the tank.	The steam control is not set to the position.	Check that the steam control is set to the position.
The spray does not spray.	There is not enough water in the water tank.	Fill up the water tank.

If you have any problem or queries, please contact our Helpline: 0845 602 1454 - UK / [phone] - ROI or consult our website - www.tefal.co.uk
