USER MANUAL Indra FaceShield BHE-56F BBB

Illustration of hands performing a finger manipulation or massage technique (no text or symbols present)

Side profile illustration of a person wearing a helmet and climbing gear (no text or symbols)

Profile view of a person wearing a helmet with a diagonal line crossing through the head (no text or symbols)

Illustration of hands performing a finger manipulation technique (no text or symbols)

Side profile illustration of a person wearing a helmet with motion arrows indicating rotation (no text or symbols)

Side profile illustration of a person wearing a helmet and safety gear (no text or symbols)

Symmetrical abstract floral or flame-like pattern with a downward arrow at the base (no text or symbols)

WARNING

Be sure to read and understand the safety information that comes with this product or download the safety information from our website. If you have any doubts, questions or concerns regarding this helmet, contact your local BBB dealer.

• This helmet is specifically designed and developed for Speed Pedelec cyclists (NTA8776). Apart from that, this helmet can also be used for regular cycling, skateboarding and rollerskating. It is not intended for use in motor sports or by motor cyclists
• This helmet has been designed to be retained by a strap under the lower jaw
• This helmet should not be used by children while climbing or doing other activities when there is a risk of strangling/hanging if the child gets trapped with the helmet
• Helmets cannot fully protect the wearer against all possible impacts. Even a low speed accident can result in a serious personal injury or death. This helmet doesn't protect the neck and other areas of the head, which it does not cover.
• Do not modify or remove any original parts of the helmet, unless it has been designed to be removable
• All BBB helmets have been designed to absorb

shocks/impacts by partial destruction of the helmet shell and liner. This damage may not always be visible. Protection may not be adequate in future impacts. We therefore strongly recommend having your helmet replaced after an impact. Any helmet you replace for safety reasons, must be destroyed

• Do not apply decals, stickers, paint, petroleum, hydro carbides, solvents or detergents on the helmet. The helmet may be damaged by these products while it appears undamaged
• The helmet liner is made of EPS foam. The outer shell is made of PC, PVC or ABS. It may be penetrated by sharp objects
• A cap, hat, scarf, headphones, barrettes or anything else which is under the helmet while wearing the helmet will reduce the protections against impacts

FITTING

Almost all BBB helmets are available in different sizes. Select the size, which fits you best. A correctly fitted helmet should be comfortable and nor move forwards to obscure vision, neither move backwards to expose the forehead.

1. Position the helmet on your head as illustrated

EN

(Fig. 1). Make sure the helmet is positioned in horizontal position to protect the forehead. Never wear a helmet tipped back to expose your forehead.

1. Turn the wheel clockwise till you reach the right fit. Loosen the helmet by turning the retention system counter clockwise. (Fig. 2) In some BBB helmets you can also reach the right fit by changing the position of the retention system on the inside of both sides of the helmets.

2. Open the Cam-Lock adjusters (Fig. 3a). Slide the straps through the adjusters until it is located slightly below the ears. Make sure there is no slack in the straps. Make sure the straps do not run over the ears and close the Cam-Lock adjusters after you've reached the right fit. (Fig. 3b)

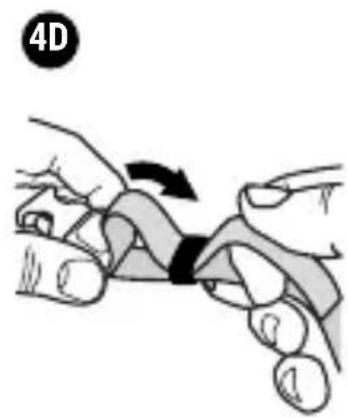

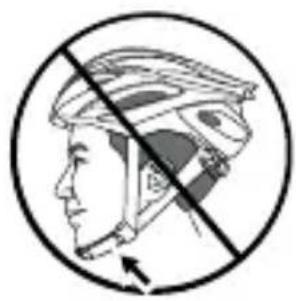

3. Adjust the chin buckles so the system can be buckled. (Fig. 4a) After riding the buckle can easily be released (Fig. 4b) Always make sure the chin strap is placed against the throat. Never position the chin strap on the point of the chin. (Fig. 4c) Make sure the loose ends of the strap runs through the rubber ring. (Fig. 4d)

4. Once the helmet is adjusted, shake your head. If the helmet size is correct and the retention system and straps are set correctly, the helmet should not move too much on the head. If the helmets

moves, reset the retention system and straps or try a smaller sized BBB helmet. (Fig. 5)

1. Before using the helmet, make sure it fits correctly and the chin buckle is buckled. (Fig. 6)

VISOR

If a removable visor is provided with the helmet, place it in front of the helmet and fasten it with the "click-in" pins. To remove the visor, pull the ends of the visor loose from the helmet and then lift away from the helmet. (Fig. 7)

MAINTENANCE

When cleaning your helmet only use cold water and mild soap and only wash the outer shell. or the longest life-span we recommend having your padding hand washed.

STORAGE

• After each ride allow your helmet to air dry. When the helmet is dry, store it in a dry and cool place

- When not in use, keep your helmet away from exposure in the sun and away from heat sources. Helmets with heat damage are recognizable by their uneven or bubbly surface

LIFETIME

Due to heavy use, exposure to sunlight and rough handling and storage which results in dents or cuts all helmets have a limited lifespan of five years. The helmet should be replaced if it shows signs of wear. We strongly advise you to check you helmet on a regular basis.

WARRANTY

• BBB helmets are warranted to be free from defects in material and workmanship for a period of 2 years from the original purchase date
• A replacement can be obtained at your local BBB dealer where the helmet was purchased

DAMAGES NOT COVERED UNDER WARRANTY:

• Normal wear and tear
- Damages created by the addition of stickers/paint
- Cleaning with fluids other than cold water/mild soap
- Damages caused by accidents/incorrect fitting/abuse or poor maintenance
- Damages caused by use other than their intended use
- Exposure to the sun or heat source.
- Damages caused by adding or removing parts of the helmet

CRASH REPLACEMENT\*

Ask your local BBB dealer about the terms of the crash replacement program.

* This service is not available in all countries.

All BBB helmets distributed in the USA comply with the U.S. CPSC Safety Standard for Bicycle Helmets for persons age 5 and older.

WARNUNG

CRASH REPLACEMENT \*

REPLACEMENT EN CAS DE CHOC \*

PROGRAMMA "CRASH REPLACEMENT" \*

This helmet complies with

NTA 8776

&

EN 1078

BBB CYCLING.COM

ROOSEVELTSTRAAT 46, 2321 BM

LEIDEN. THE NETHERLANDS
