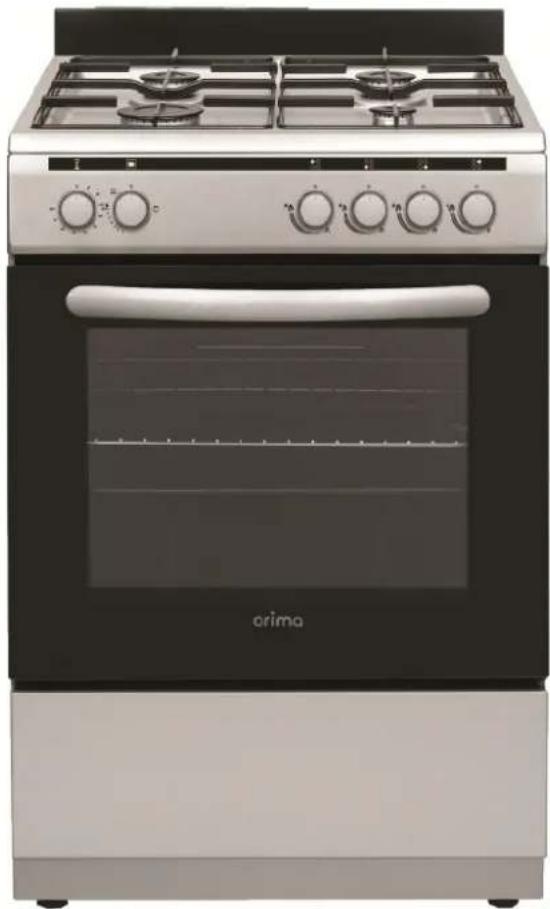

Exterior view of a modern office oven with four gas stove units and control knobs (no visible text or symbols)

MMA

MÁRIO MIRANDA DE ALMEIDA

FOGÃO

Cooker | Estufa | Cuisinière

OR-660-X

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone] E: [e-mail]

Serviço Pós Venda:

Tel.: [phone] E: [e-mail]

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Line drawing of a simple kitchen oven with four handles and front panel (no text or symbols)

OR660X

Warning symbol depicting a person pulling a large block inside a triangle (no text or numbers)

Simple black-and-white diagram of a mechanical or electrical component with directional arrows, enclosed in a circle (no text or symbols)

No sign depicting a crossed-out hammer and fulcrum against a circular background (no text or symbols)

Simple line drawing of a mechanical component with two circular parts and a dashed line indicating motion (no text or symbols)

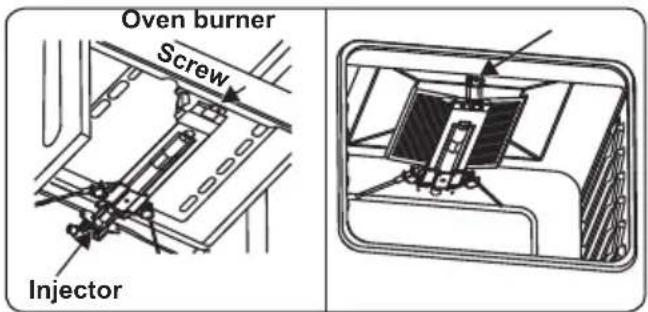

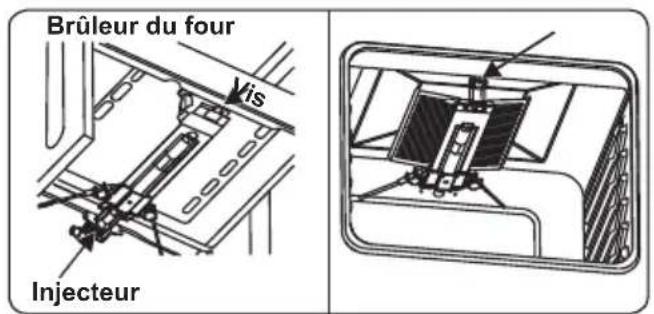

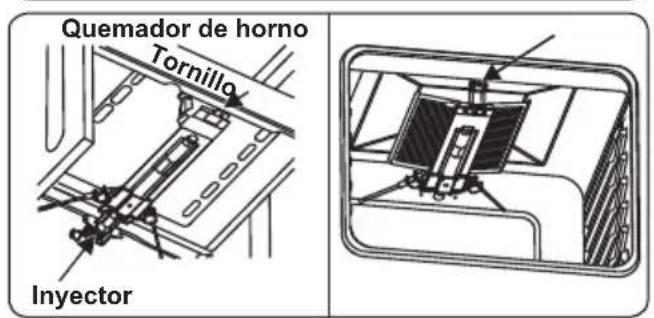

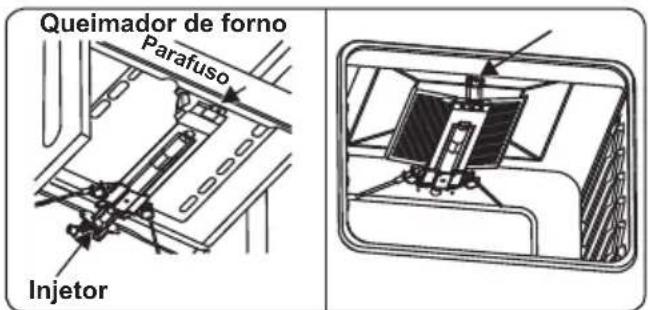

Queimador de forno Parafuso Injector

Diagram of a mechanical assembly with a spring and rotating arrow (no text or symbols)

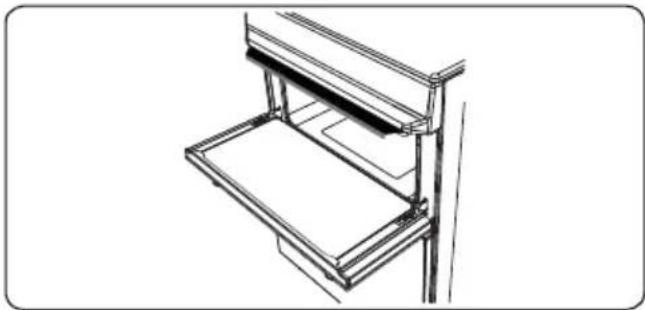

3. CARACTERÍSTICAS DO PRODUTO

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Line drawing of hands using a tool to lift or install a tray (no text or symbols)

Line drawing of a mechanical device with a handle and frame (no text or symbols)

Technical line drawing of a mechanical assembly or lifting device (no text or symbols)

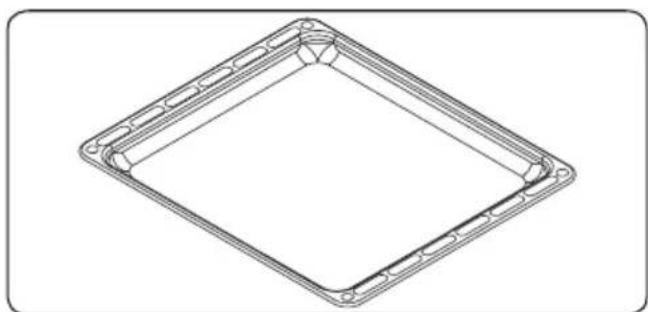

Tabuleiro Raso

Technical line drawing of a square frame with bolt holes, no text or symbols present

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

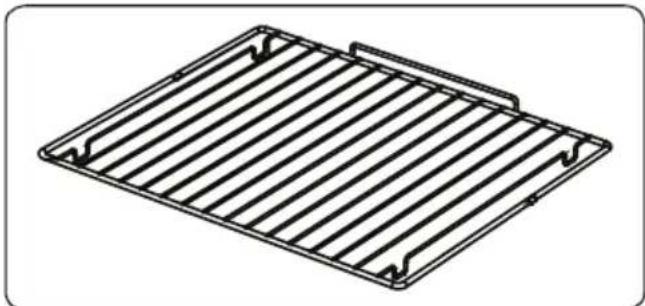

Rede de Arame

Technical line drawing of a rectangular metal grate or rack with evenly spaced slats (no text or symbols)

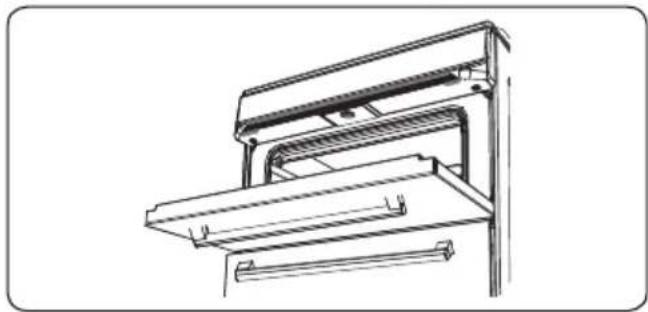

AVISO

Technical line drawing of a metal rack with a curved top panel and an arrow indicating direction (no text or symbols)

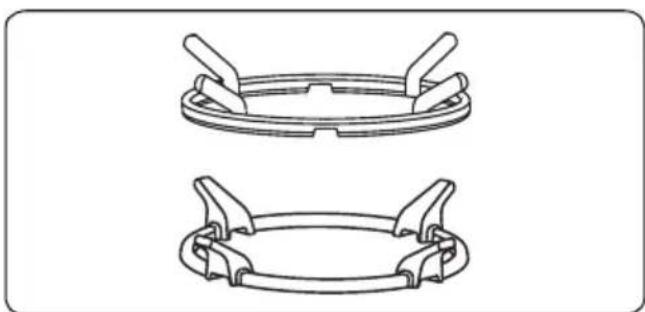

Adaptador de Wok

Technical line drawing of two mechanical components with flanges and brackets (no text or symbols)

CORRETO INCORRETO

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Limpeza da Placa de Gás

Limpar as Partes de Vidro

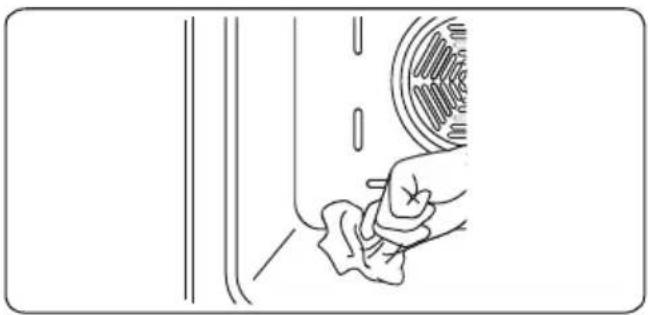

Limpar as Partes Esmaltadas

Technical line drawing of a mechanical assembly with a curved component and an arrow indicating rotation (no text or symbols)

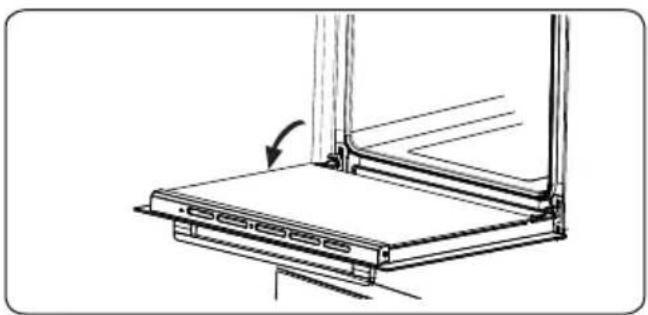

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

5.2. MANUTENÇÃO

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....4
1.1 General Safety Warnings ...... 4
1.2 Installation Warnings .... 7
1.3 During Use....8
1.4 During Cleaning and Maintenance 10
2.INSTALLATION AND PREPARATION FOR USE.... 12
2.1 Instructions for the Installer 12
2.2 Installation of the Cooker.... 13
2.3 Gas Connection.... 13

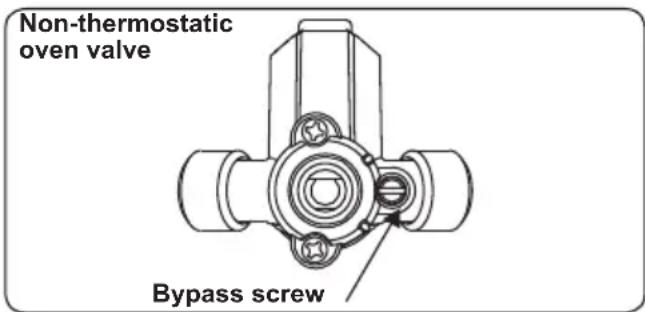

2.4 Gas Conversion (if available) 14
2.5 Electrical Connection and Safety (if available) 16

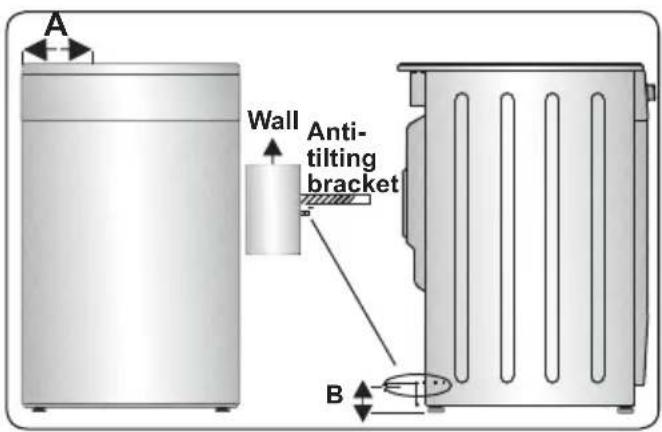

2.6 Anti-tilting kit 17

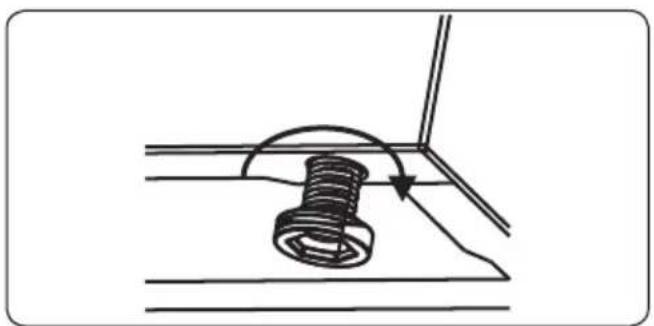

2.7 Adjusting the feet 17
3.PRODUCT FEATURES....18
4. USE OF PRODUCT 19
4.1 Use of gas burners 19
4.2 Hob Controls.... 19
4.3 Oven Controls....20
4.4 Use of the Mechanical Minute Minder Timer 22
4.5 Accessories 23
5.CLEANING AND MAINTENANCE....24
5.1 Cleaning 24
5.2 Maintenance 26
6.TROUBLESHOOTING&TRANSPORT 27
6.1 Troubleshooting....27
6.2 Transport 28
7.TECHNICAL SPECIFICATIONS....29
7.1 Injector Table 29

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish such a fire with water, but switch off the appliance and cover the flame with a lid or a fire blanket.

⚠️ CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously

WARNING: Danger of fire: Do not store items on the cooking surfaces.
⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
• Do not operate the appliance with an external timer or separate remote-control system.

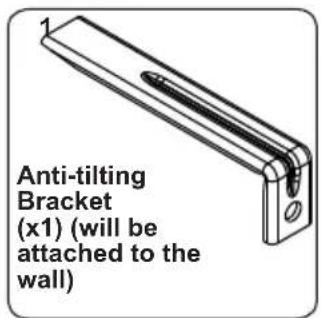

WARNING: To prevent the appliance tipping, the stabilising brackets must be installed. (For detailed information refer to the anti-tilting kit set guide.)

Warning symbol depicting a person pulling a large object inside a triangle (no text or numbers)

Simple black-and-white icon of a building inside a circle, with arrows indicating direction (no text or symbols)

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.
• Handles may become hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean oven surfaces. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners to clean the appliance.

⚠️ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

- Do not use the oven door handles to lift or move the appliance.

- This appliance is not connected to a ventilation device. It should be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

- If the burner has not lit after 15 seconds, stop operating the device and open the compartment door. Wait at least 1 minute before attempting to ignite the burner again.

• These instructions are only valid if the correct country symbol appears on the appliance. If the

symbol does not appear on the appliance, refer to the technical instructions which describe how to modify the appliance to match the conditions of use of the country.

• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• If your appliance is provided with a cooking hotplate made of glass or glass ceramic:

CAUTION: "In case of hotplate glass breakage": - immediately shut off all burners and any electrical heating element and isolate the appliance from the power supply

- do not touch the appliance surface - do not use the appliance.

- Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that

it is has not been damaged during transportation. In the case of a defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to sun, rain, snow, dust or excessive humidity.
• Materials around the appliance (i.e. cabinets) must be able to withstand a minimum temperature of 100°C.
• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
  • Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
  • Always use oven gloves to remove and replace food in the oven.
  • Under no circumstances should the oven be lined

with aluminium foil as overheating may occur.

- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the cooker unattended when cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.

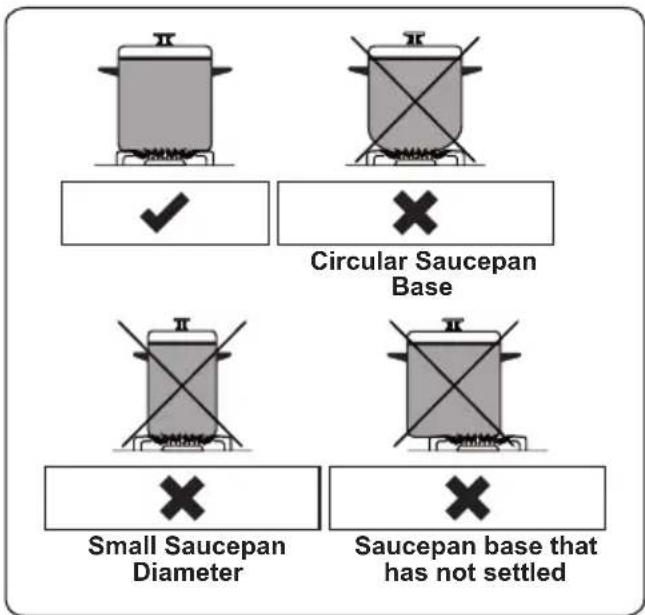

• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked.
• If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when gas appliances are not in use.
• Make sure the appliance control knobs are always in the “0” (stop) position when the appliance is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the oven.

⚠️ CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use, keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

- Prolonged intensive use of the appliance may call for additional ventilation, such as opening a window, or for more effective ventilation, for example by increasing the level of mechanical ventilation where present.

- While using the grill burner, keep the oven door open and always use the grill deflector shield supplied with the product. Never use the grill burner with the oven door closed.

⚠️ CAUTION: Glass lids may shatter when heated. Turn off all the burners and allow the hob surface to cool before closing the lid.

Prohibition sign depicting a diagonal slash over a pile of wood, enclosed in a circle (no text or symbols)

• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not place heavy or flammable items (e.g. nylon, plastic bags, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).

⚠️ CAUTION: The inside surface of the storage compartment may get hot when the appliance is in use. Avoid touching the inside surface.

- Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency and/or nature of the gas and gas pressure) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).
• If the product contains removable shelf guides (wire racks) and the user manual includes recipes like yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

2.1 INSTRUCTIONS FOR THE INSTALLER Ventilation requirements

• For rooms with a volume of less than 5 m ^3 , permanent ventilation of 100 cm ^2 free area is required.
• For rooms with a volume of between 5 m ^3 and 10 m ^3 , permanent ventilation of 50 cm _2 free area will be required, unless the room has a door which opens directly to outside air in which case no permanent ventilation is required.
• For rooms with a volume greater than 10 m ^3 , no permanent ventilation is required.

Important: Regardless of room size, all rooms containing the appliance must have direct access to outside air in openable window or equivalent.

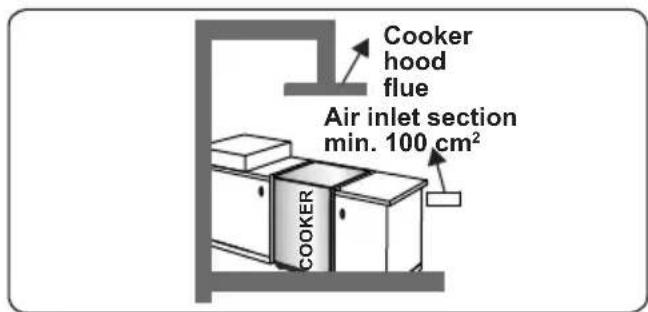

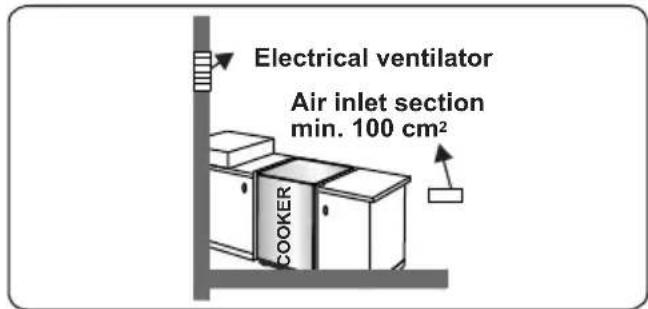

Emptying of burned gases from the environment

Gas appliances expel burned gas waste to the outside air, either directly or via a cooker hood with a chimney. If it is not possible to install a cooker hood, install a fan on the window or wall that has access to fresh air. The fan must have the capacity to change the volume of air in the kitchen a minimum of 4-5 times per hour.

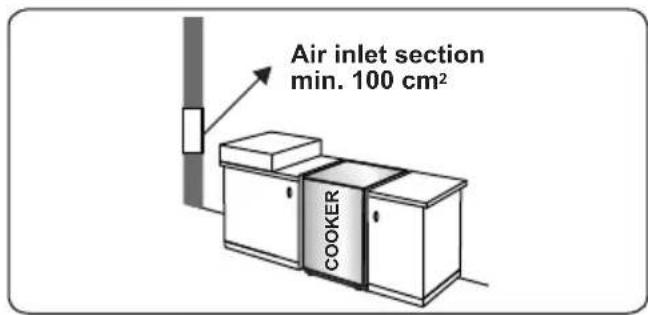

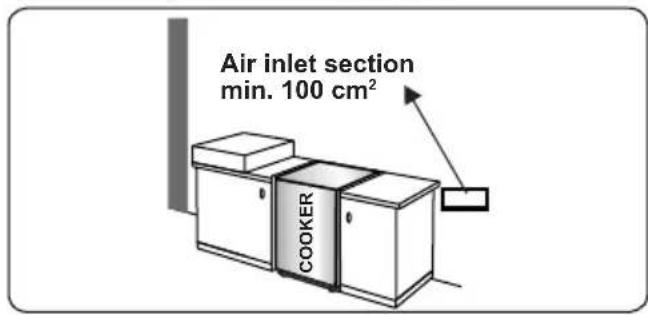

Air inlet section min. 100 cm² COOKER

Air inlet section min. 100 cm² COOKER

Cooker hood flue Air inlet section min. 100 cm² COOKER

Electrical ventilator Air inlet section min. 100 cm² COOKER

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed next to a dishwasher, fridge, freezer, washing machine or clothes dryer.
- The appliance can be placed close to other furniture on condition that in the area where the appliance is set up, the furniture's height does not exceed the height of the cooktop.

2.2 INSTALLATION OF THE COOKER

• If the kitchen furniture is higher than the cooktop, the kitchen furniture must be

at least 10 cm away from the sides of appliance for air circulation.

• There should be a minimum 2cm blank space around the appliance for air circulation.
• If a cooker hood or any cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard/cooker hood should be as shown below.

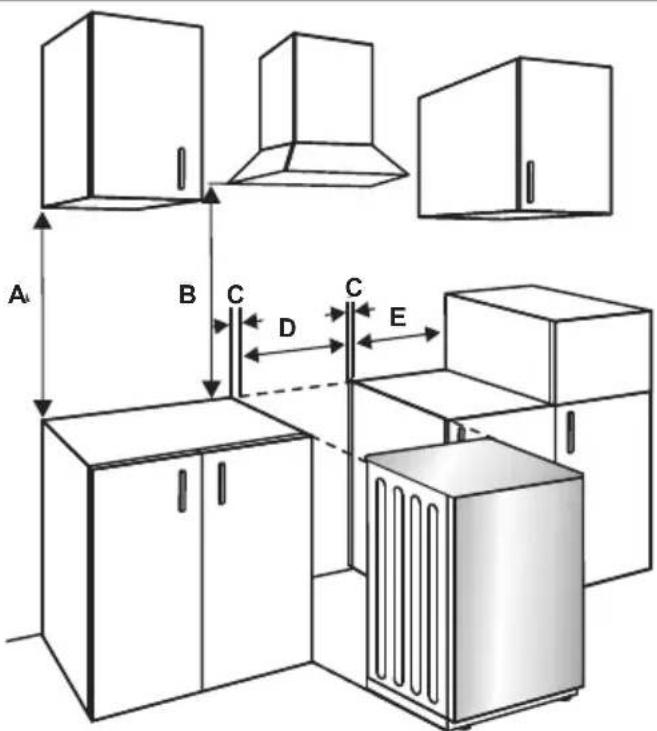

A (mm) Cupboard 420
B (mm) Cooker Hood 650/700
C (mm) 20
D (mm) Product Width
E (mm) 100

A B C D E

2.3 GAS CONNECTION

Assembly of gas supply and leakage check

Connect the appliance in accordance with applicable local and international standards and regulations. First, check what type of gas is installed on the cooker. This information is available on a sticker on the back of the cooker. You can find the information related to appropriate gas types and appropriate gas injectors in the technical data table. Check that the feeding gas pressure matches the values

on the technical data table, to be able to get the most efficient use and to ensure the minimum gas consumption. If the pressure of used gas is different than the values stated or is not stable in your area, it may be necessary to assemble an available pressure regulator on the gas inlet. You should contact an authorised service centre to make these adjustments.

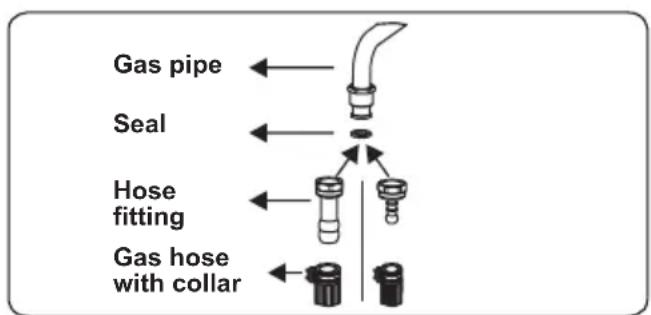

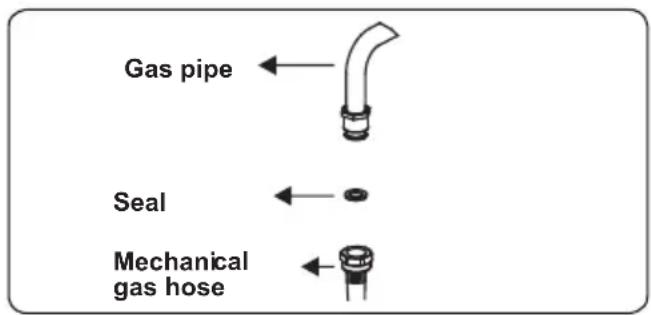

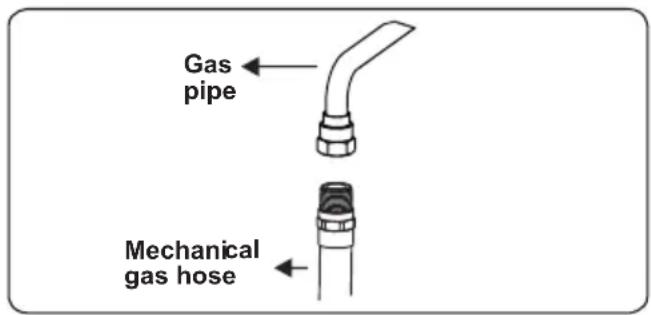

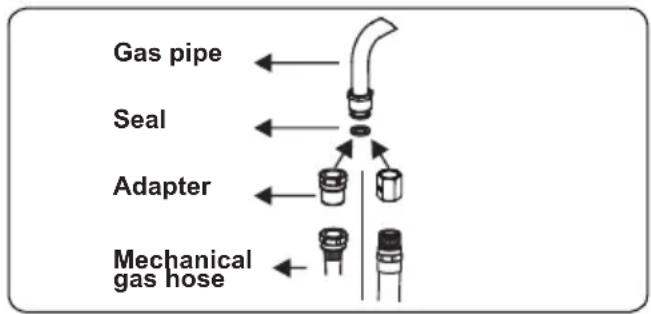

Points that must be checked during flexible hose assembly

- If the gas connection is made by a flexible hose fixed onto the gas inlet of

the hob, it must be fixed on by a pipe collar.

• Connect your appliance with a short and durable hose that is as close as possible to the gas source.
• The permitted maximum length of the hose is 1.5 m.
• The device should be connected in line with the relevant local gas standards.
• The hose must be kept clear of areas that may heat up to temperatures of more than 90°C.
• The hose must not be cracked, torn, bent or folded.
• Keep the hose clear of sharp corners and objects that could move.
• Before you assemble the connection, you must make sure the hose is not damaged. Use bubbly water or leakage fluids to perform the check. Do not use a naked flame to check for gas leakage.
• All metal items that are used during gas connection must be free from rust. Check the expiry date of any components used for connection.

Points that must be checked during fixed gas connection assembly

The method used to assemble a fixed gas connection (gas connection made by threads, e.g. a nut) varies according to the country you are in. The most common parts for your country will be supplied with your appliance. Any other parts required can be supplied as spare parts.

During connection, always keep the nut on the gas manifold fixed while rotating the counter-part. Use appropriately-sized spanners for a safe connection. For surfaces between different components always use the seals provided in the gas conversion kit.

The seals used during connection should also be approved to be used in gas connections. Do not use plumbing seals for gas connections.

Remember that this appliance is ready to be connected to the gas supply in the country for which it has been produced. The main country of destination is marked on the rear cover of the appliance. If you need to use it in another country, any of the connections in the figure below may be required. In such a case, contact

local authorities to learn the correct gas connection.

Gas pipe Seal Hose fitting Gas hose with collar

Gas pipe Seal Adapter Mechanical gas hose

Gas pipe Seal Mechanical gas hose

Gas pipe Mechanical gas hose

The Cooker must be installed and maintained by a suitably qualified gas registered technician in accordance with current safety legislation.

WARNING: Do not use a naked flame to check for gas leaks.

2.4 GAS CONVERSION (IF AVAILABLE)

Your appliance is designed to be operated with LPG/NG gas. The gas burners can be adapted to different types of gas, by replacing the corresponding injectors and adjusting the minimum flame length suitable to the gas in use. For this purpose, the following steps should be performed.

Changing injectors

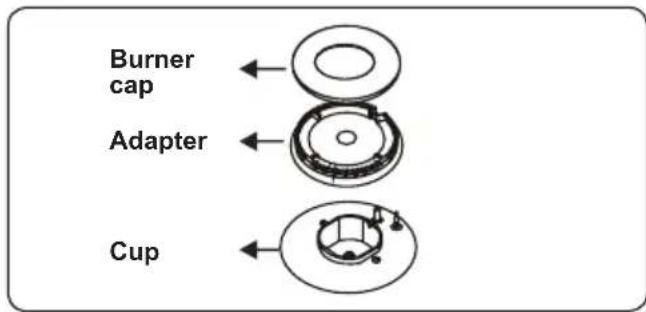

Hob burners

• Cut off the main gas supply and unplug the appliance from the mains electrical supply.
• Remove the burner caps and the adapters.

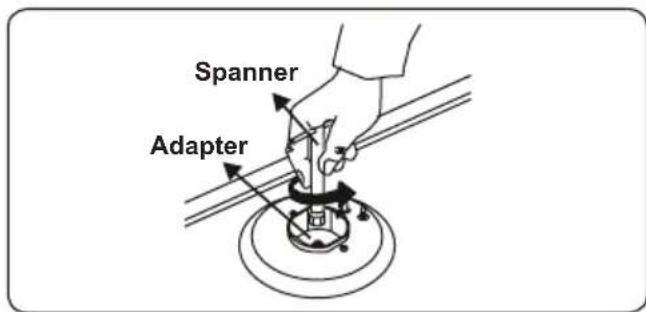

• Use a 7 mm spanner to unscrew the injectors.
• Replace the injector with the ones from the gas conversion kit, with the correct diameters for the type of gas that is going to be used, according to the gas injector table.

Burner cap Adapter Cup

Spanner Adapter

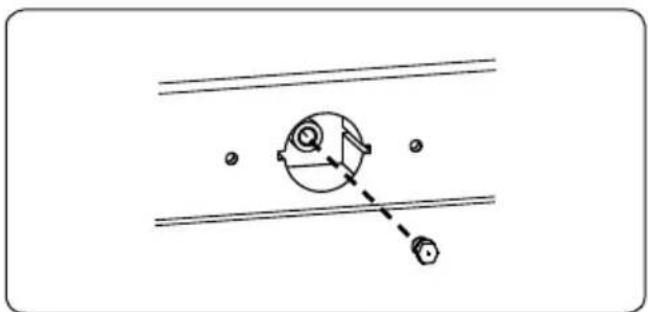

Oven/Grill (if available) Injectors

The oven and grill injectors are held in position by a single screw on the tip of the burner.

For oven burners, open the drawer compartment and locate the assembly screw below the burner. Remove the screw, move the burner diagonally and the injector will be revealed on the rear side of the burner box.

For grill burners, the screw is already visible. Remove the screw, pull the grill burner towards you and the injector will be visible on the rear surface of the oven cavity.

Simple line drawing of a mechanical component with two circular parts and a dashed alignment line (no text or symbols)

Oven burner Screw Injector

Remove the injectors using a 7mm spanner and replace the injector with the ones from the spare set. Make sure you use corresponding diameters suitable to the type of gas that is going to be used, according to the information chart (which is also supplied in the gas conversion kit).

Adjusting the minimum flame position

First of all, make sure that the appliance is unplugged from the mains electrical supply and that the gas feed is open. The minimum flame position is adjusted with a flat screw located on the valve. As shown in the figures below; for valves with a flame failure safety device, the screw is located on the side of the valve spindle and for valves without a flame failure safety device, the screw is located inside the valve spindle. To make adjusting the flame position easier, we recommend that you remove the control panel (and the micro switch if your model has one) during the alteration. The bypass screw must be loosened for conversion from LPG to natural gas. For conversion from natural gas to LPG, the bypass screw must be tightened.

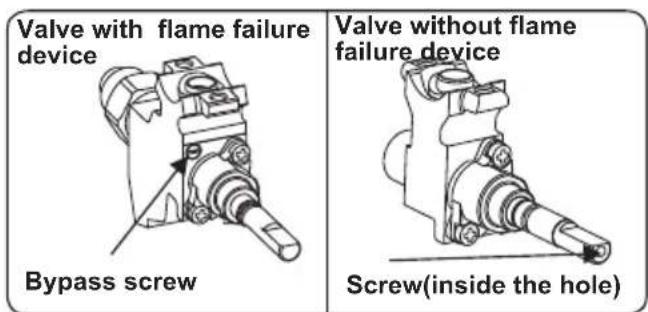

Valve with flame failure device Bypass screw Valve without flame failure device Screw(inside the hole)

Determining the minimum flame position

To determine the minimum position, ignite the burners and leave them on in the minimum position. Remove the knobs to gain access to the screws. With the help of a small screwdriver, fasten or loosen the bypass screw by around 90 degrees. When the flame has a length of at least 4mm, the gas is well distributed. Make sure that the flame does not die out when passing from the maximum position to the minimum position. Create an artificial wind with your hand towards the flame to see if the flames are stable. For the oven burner, operate the oven burner at the minimum position for 5 minutes, then open and close the oven door 2-3 times to check the flame stability of the burner.

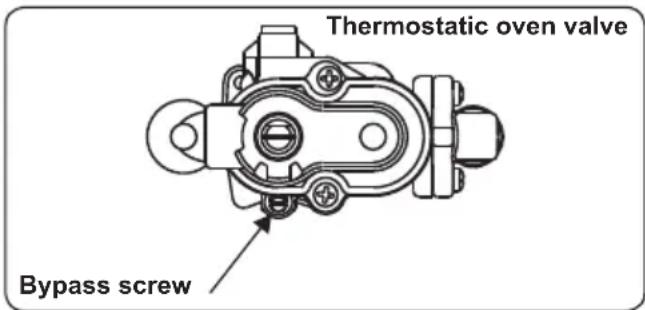

Thermostatic oven valve Bypass screw

Non-thermostatic oven valve Bypass screw

Changing the gas inlet

For some countries, the gas inlet type can be different for NG/LPG gases. In this case, remove the current connection components and nuts (if any) and connect the new gas supply accordingly. In all conditions, all components used in gas connections should be approved by local and/or international authorities. In all gas connections, refer to the “Assembly of gas supply and leakage check” clause explained above.

2.5 ELECTRICAL CONNECTION AND SAFETY (IF AVAILABLE)

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified person.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240 V\~. If your supply is different, contact the authorized service personnel or qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance.
• The fused switch must be easily accessible once the appliance has been installed.
• Ensure all connections are adequately tightened.
• Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

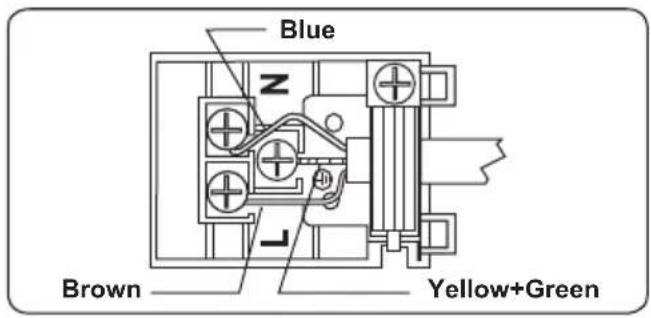

Blue Brown Yellow+Green

2.6 ANTI-TILTING KIT

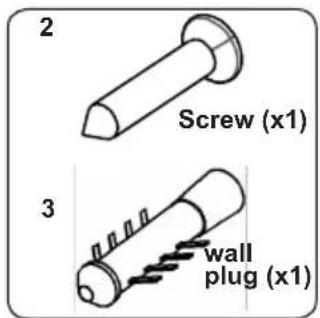

Anti-tilting Bracket (x1) (will be attached to the wall)

2 Screw (x1) 3 wall plug (x1)

The document bag contains an anti-tilting kit. Loosely attach the anti-tilting bracket (1) to the wall using the screw (2) and wall plug (3), following the measurements shown in the figure and table below. Adjust the height of the anti-tilting bracket so that it lines up with the slot on the cooker and tighten the screw. Push the appliance towards the wall making sure that the anti-tilting bracket is inserted into the slot on the rear of the appliance.

A Wall Anti- tilting bracket B

Product Dimensions(Width X Depth X Height) (Cm)	A (mm) B (mm)
60x60x90 (Double Oven) 297.5 52
50x60x90 (Double Oven) 247.5 52
90x60x85 430 107
60x60x90 309.5 112
60x60x85 309.5 64
50x60x90 247.5 112
50x60x85 247.5 64
50x50x90 247.5 112
50x50x85 247.5 64

2.7 ADJUSTING THE FEET

Your product stands on four adjustable feet. For safe operation, it is important that your appliance is correctly balanced. Make sure the appliance is level prior to cooking. To increase the height of the appliance, turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise.

It is possible to raise the height of the appliance up to 30 mm by adjusting the feet. The appliance is heavy and we recommend that a minimum of 2 people lift it. Never drag the appliance.

Diagram of a screw fastening mechanism with a curved arrow indicating rotation (no text or labels)

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

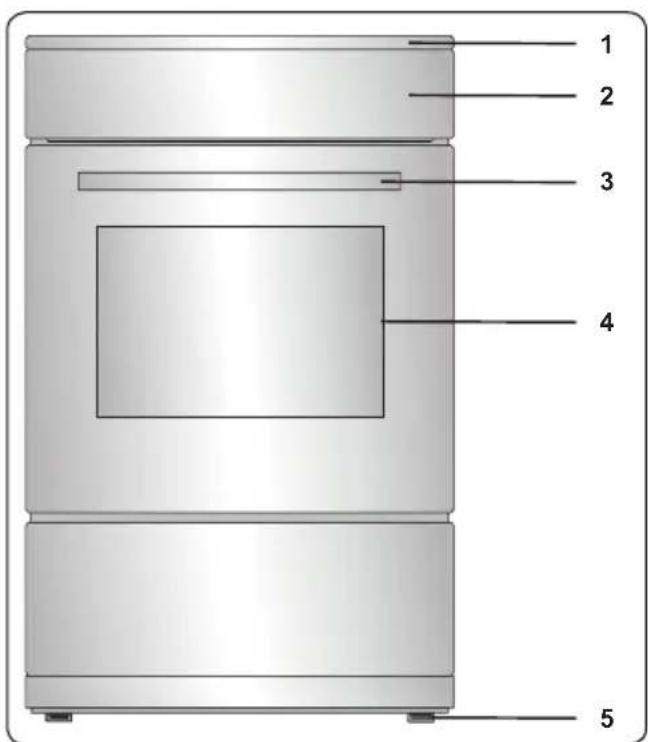

List of Components

1 2 3 4 5

1. Cooktop
2. Control Panel
3. Oven Door Handle
4. Oven Door
5. Adjustable Feet

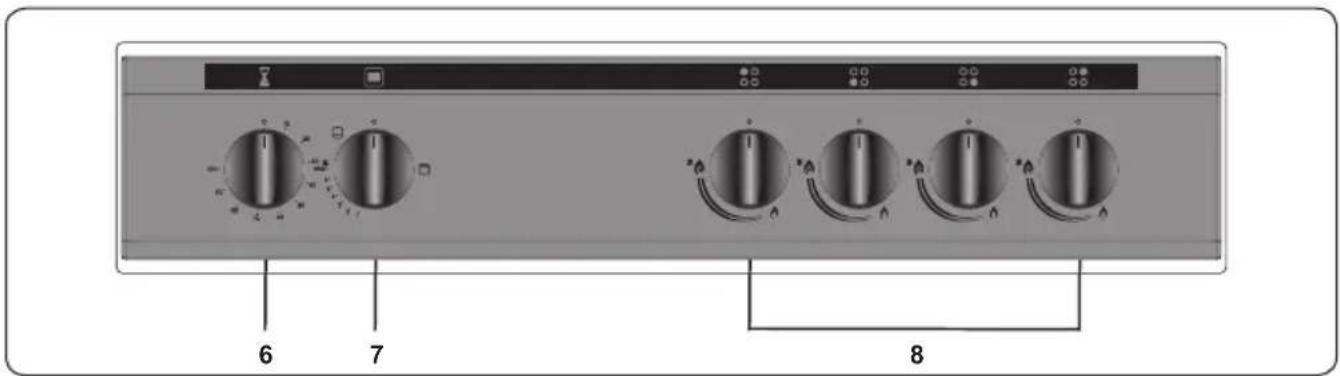

Control Panel

6 7 8

1. Timer
2. Oven Control Knob
3. Hob Control Knob

4. USE OF PRODUCT

Ignition of the burners

The position symbol above each control knob indicates the burner that the knob controls.

Manual Ignition of the Gas Burners

If your appliance is not equipped with an ignition aid, or in case there is a failure in the electric network, follow the procedures listed below.

For Hob Burners: Push in the knob of the burner you wish to ignite and keep it pressed while turning it anti-clockwise until the knob is in the 'maximum' position. Continue pressing the knob and hold a lit match, taper or other manual aid to the upper circumference of the burner. Move the ignition source away from the burner as soon as you see a stable flame.

For Oven Burner: Push in and turn the oven control knob anti-clockwise until the knob is in the ‘maximum’ position. Hold a lit match, taper or other manual aid to the ignition hole that is located on the front left corner of the burner. Move the ignition source away as soon as you see a stable flame.

For Grill Burner: Push in and turn the grill control knob clockwise until the marker on the knob points at the grill sign. Continue pressing the knob and hold a lit match, taper or other manual aid to the holes on the burner. Move the ignition source away from the burner as soon as you see a stable flame.

Flame safety device

Hob burners

Hobs equipped with a flame failure device provide security in case of an accidentally extinguished flame. For this reason, during ignition, keep the knob pressed until you see stable flames.

Hold down the control for approximately 10 to 15 seconds after the burner has lit. Releasing the control too soon will extinguish the flame.

If such a case occurs, the device will block the burners gas lines and will avoid any accumulation of unburned gas. Wait 90 seconds before re-igniting an extinguished gas burner.

Oven / Grill (If available) Burners

Regardless of the model of your appliance, all oven burners are equipped with a gas safety device. For this reason, during ignition, keep the oven knob pressed until you see stable flames.

Hold down the control for approximately 10 to 15 seconds after the burner has lit. Releasing the control too soon will extinguish the flame.

If the flames are cut out after you release the knob, repeat the ignition procedure. If the oven burner does not ignite after you keep the burner knob pressed for 30 seconds, open the oven door and do not attempt re-ignition for at least 90 seconds. If the oven flames go out accidentally, repeat the same procedure.

4.2 HOB CONTROLS

Hob burner

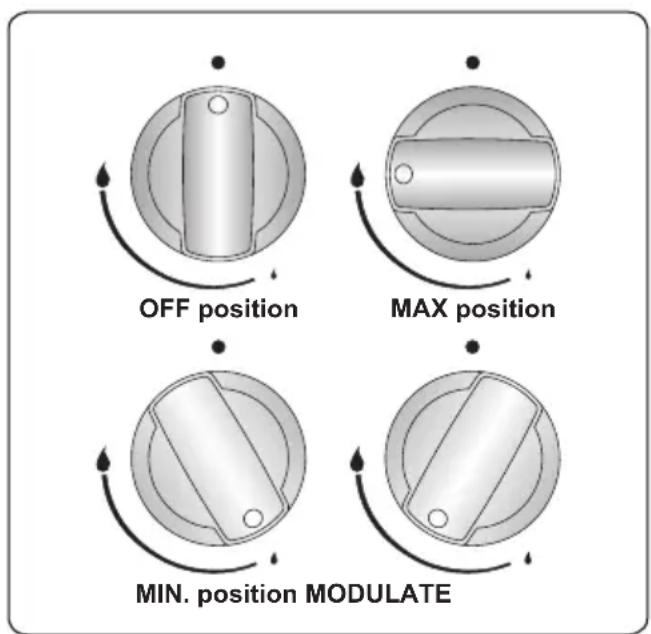

The knob has 3 positions: off (0), maximum (big flame symbol) and minimum (small flame symbol). Ignite the burner with the knob in the 'maximum' position; you can then adjust the flame length between the 'maximum' and 'minimum' positions. Do not operate the burners when the knob is between the 'maximum' and 'off' positions.

OFF position MAX position MIN. position MODULATE

After ignition, visually check the flames. If you see a yellow tip, lifted or unstable flame, switch the gas flow off, then check the assembly of burner caps and crowns once they have cooled. Make sure there is no liquid in the burner caps. If the burner flames go out accidentally, switch the burners off, ventilate the kitchen with fresh

air and wait at least 90 seconds before attempting re-ignition.

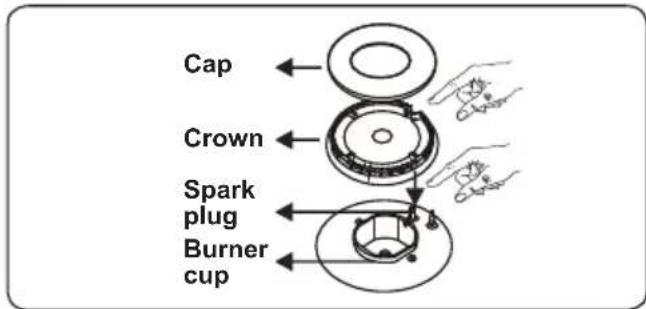

Cap Crown Spark plug Burner cup

To switch the hob burners off, turn the hob burner knob clockwise to the '0' position or so that the marker on the hob burner knob points upwards.

Your hob has burners of different diameters. You will find that the most economical way of using gas is to choose the correct size gas burner for your cooking pan size and to bring the flame to the 'minimum' position once boiling point is reached. We recommend that you always cover your cooking pan to avoid heat loss.

To obtain maximum performance from the main burners, we suggest you use pots with the following flat bottom diameters. Using pots smaller than the minimum dimensions shown below will cause energy loss.

Rapid / Wok Burner 22-26 cm
Semi-rapid Burner 14-22 cm
Auxiliary Burner 12-18 cm

Make sure that the tips of the flames do not spread out from the outer circumference of the pan, as this may harm plastic accessories, such as handles.

Switch the main gas control valve off when the burners are not in use for prolonged periods of time.

WARNING:

- Only use flat-bottomed pans with thick bases.

• Make sure the bottom of the pan is dry before placing it on the burner.

- The temperature of accessible parts may become high while the appliance is operating. It is imperative that children and animals are kept well away from the burners during and after cooking.

• After use, the hob remains very hot for a prolonged period of time. Do not touch it and do not place any object on top of it.

• Never place knives, forks, spoons and lids on the hob as they will get hot and could cause serious burns.
• Do not allow pan handles or any other cooking utensils to project over the edge of the cooker top.

Circular Saucepan Base Small Saucepan Diameter Saucepan base that has not settled

4.3 OVEN CONTROLS

Oven Burner CONTROLS

After you ignite the oven burner, you can adjust the temperature inside the oven, as required, using the numbers on the control panel or knob. The higher numbers provide higher temperatures, while smaller numbers provide lower temperatures.

Function Description
Max. 6 5 4 3 2 1	Turn the control anti-clockwise to set to the Gas Mark as required.

Do not operate the appliance between the "Off" position and the first temperature marker in the anti-clockwise direction. Always use the oven between the maximum and minimum settings. When switching the oven off, turn the knob in the clockwise direction to the "0" position.

Preheating

We recommend you preheat your oven for 10 minutes. For recipes needing high temperatures, such as bread, pastries, scones or soufflés, the best results are achieved if the oven is preheated first. For best results when cooking from frozen

or cooking chilled ready meals, always preheat the oven first.

Cooking

• Ensure that food is placed centrally on the shelf and that there is sufficient room around the baking tray / dish to allow for maximum circulation.
• Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce the amount of cleaning required.
• The material and finish of the baking tray and dishes used will affect base browning. Enamel, dark, heavy or nonstick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and reduce base browning.
• When cooking more than one dish in the oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.
• If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays during cooking or remove the top tray when the food on it is cooked and move the lower tray to the higher shelf to finish cooking.
• Do not place baking trays directly on the oven base as it interferes with the oven air circulation and can lead to base burning. Use the lower shelf position.

Grill Burner Controls

Function Description
	Turn the control clockwise to set the Grill.

CAUTION: Accessible parts may become hot while the grill is in use.

Young children should be kept away.

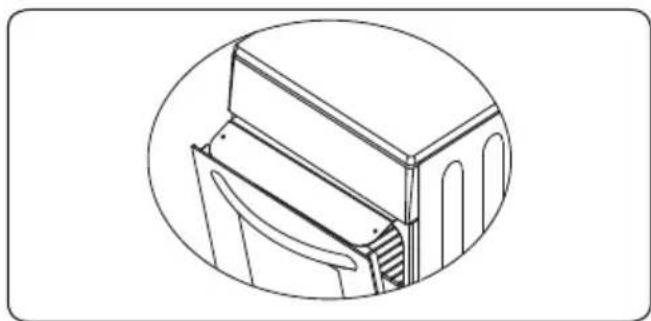

As soon as you ignite the burner, place the grill heat shield under the control panel. Then lift the oven door up slowly until it stops at the semi-open position (approximately 30°) and touches the heat shield.

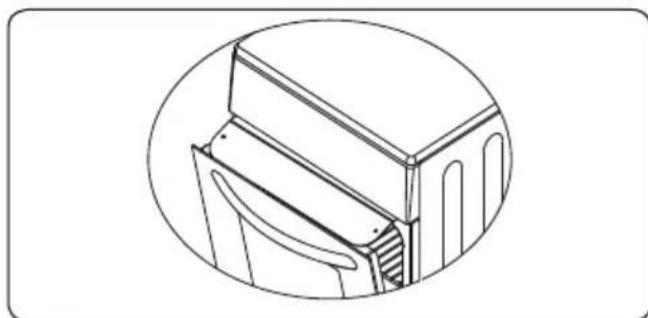

Assembling the grill heat shield (if available)

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

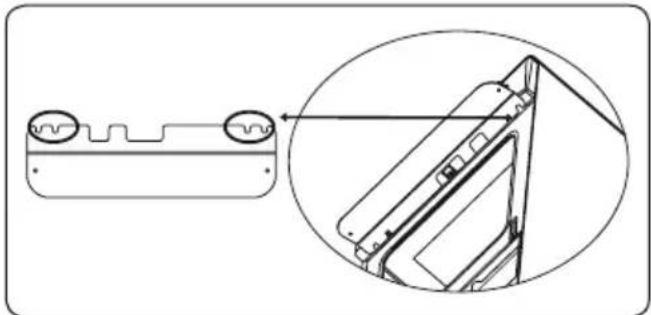

Hold the heat shield with the warnings facing upwards. There are two small slots on the right and left side of the rear edge of the shield, as shown in the figure.

There are two screws equipped with bushes under the oven control panel. Align the bushes with the assembly slots so that the shield is located between the control panel and the bush. Push the shield towards the appliance until it is firmly in its place.

Cooking

• The grill burner creates a constant source of heat and cannot be adjusted between the maximum and minimum positions. When switching the grill burner off, turn the knob in a clockwise direction to the "0" position.
• Place a tray on the shelf below the grid in order to collect any dripping fat or oil during grilling.
• Place the wire grid on the topmost shelf, provided that the food does not touch the grill burner.
• Preheat the grill on a full setting for a few minutes before sealing steaks or toasting. Food should be turned, as required, during cooking.
• Food should be thoroughly dried before grilling to minimize splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.
• Food should be placed in the centre of

the grid to allow for maximum circulation of air.

• Never cover the grill pan or grid with foil as this can lead to grill fires.
• If your appliance has a grill pan and handle set as an accessory, refer to the accessories section for its usage.

WARNING: Ensure that the grill is switched off before closing the door.

According to the grill type (gas or electric) in your appliances, please select proper cooking table

Function	Dishes
Gas Grill	Steak (~2 cm thickness)	4 Max	40-50
	Chichen Legs 4	Max 45-55
	Spit Roast* 3	Max 110-120
	Whole Fish (~0,5-0,7 kg)	4 Max	15-25
	Fish Pieces 4	Max 20-30
	Sausages 4	Max 20-30
	Slices of Toasting Bread	4 Max	4-5
	Bread Slices with Toppings	4 Max	6-7
Electric Grill	Steak (~2 cm thickness)	5 Max	35-45
	Whole Chichen (~1,5 kg)	3 Max	60-70
	Chichen Legs 4	Max 40-50
	Spit Roast* 3	Max 110-120
	Whole Fish (~0,5-0,7 kg)	4 Max	25-35
	Fish Pieces 4	Max 20-30
	Sausages 4	Max 15-25
	Slices of Toasting Bread	5 Max	3-4
	Bread Slices with Toppings	5 Max	5-6

• Preheat for 5 minutes before using the grill function.
  • The size of the meat/fish/poultry will

affect the cooking time.

• After approximately 1/2 to 2/3 of tte recommended time for meat/fish/poultry, turn it over.
• If you are using a wire rack when frying, place an empty tray under the grill to collect any oil/juice that may leak from the food.

*Spring Roast feature varies by product model. It may not be available on your product.

4.4 USE OF THE MECHANICAL MINUTE MINDER TIMER

Function Description
0......100	Operating by adjusting the timer

Turn the Timer knob clockwise to set the desired cooking time. When the timer reaches zero, an audible warning will sound. The oven will remain switched on until the oven control is switched off.

4.5 ACCESSORIES

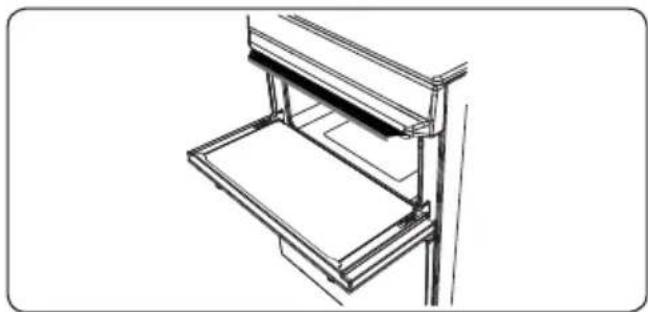

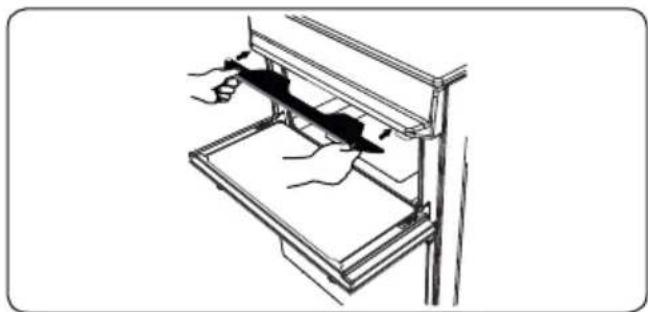

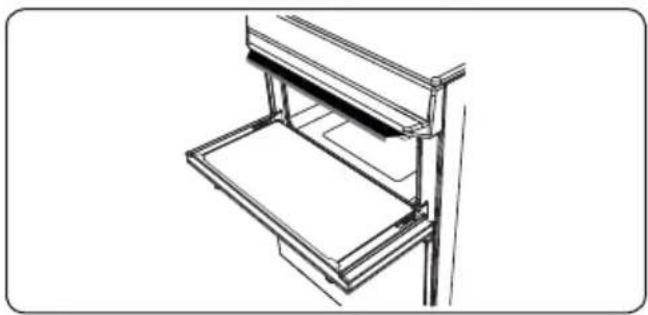

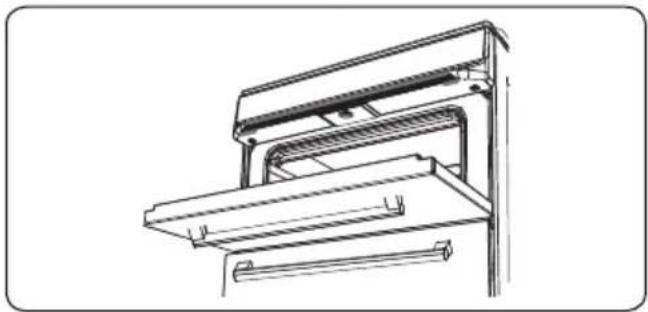

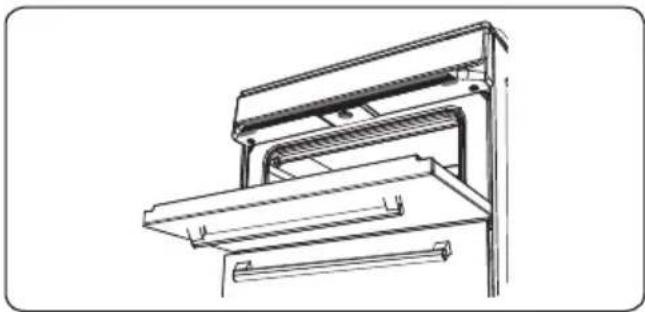

The Grill Heat Shield

WARNING

When the grill is in use for longer than 15 minutes, always fit the heat shield provided to prevent the control knobs from overheating. Take care to avoid touching the heat shield when closing the oven door. Allow the heat shield to cool before removing.

Line drawing of hands using a tool to lift or install a tray (no text or symbols)

Technical line drawing of a mechanical assembly or frame structure (no text or symbols)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

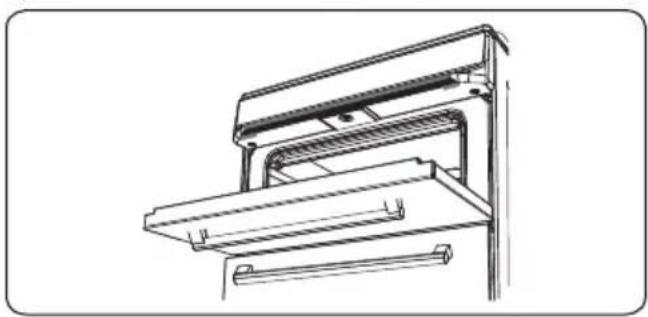

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

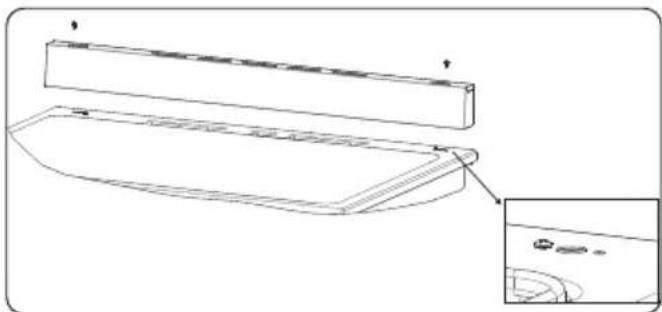

The Splashback

The splashback is attached to the cooktop with two screws.

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

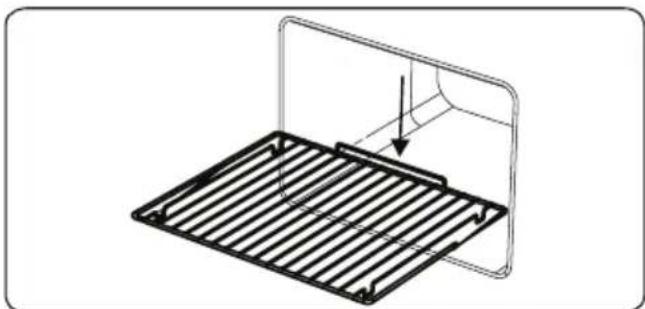

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal rack with an arrow indicating force or direction (no text or symbols)

The Wok Adaptor

The wok adaptor should be placed on the pan support of the wok burner.

Technical line drawing of two mechanical clamping components (no text or symbols)

WARNING: Using wok pans without the wok adaptor may cause the burner to malfunction.

Do not use the wok adaptor with flat-bottomed saucepans. Do not use convex-bottomed saucepans without vok adaptor.

CORRECT INCORRECT

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles, as they may scratch the glass, enamelled and/or painted parts ur appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet

cloth and dry it.

- You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Cleaning the Gas Hob

• Clean the gas hob on a regular basis.
  • Take off the pan supports, caps and crowns of the hob burners.
• Wipe the hob surface with a soft cloth soaked in soapy water. Then, wipe the hob surface over again with a wet cloth and dry it.
• Wash and rinse the hob-burner caps. Do not leave them wet. Dry them immediately with a dry cloth.
  • Make sure you re-assemble all parts correctly after cleaning.
• The surfaces of the pan supports may become scratched over time due to use. This is not a production fault.

Do not use a metal sponge for cleaning any part of the hob.

Make sure no water gets into the burners as this may block the injectors.

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Enamelled Parts

• Clean the enamelled parts of your appliance on a regular basis.
• Wipe the enamelled parts with a soft cloth soaked in soapy water. Then, wipe them over again with a wet cloth and dry them.

Do not clean the enamelled parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for a long time.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

x A B

To replace the inner glass:

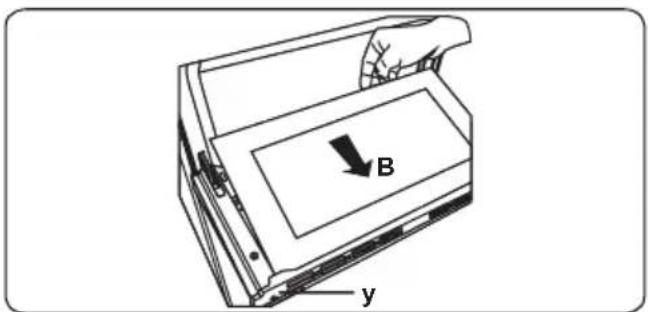

1. Push the glass towards and under the location bracket (y), in the direction of B.

B y

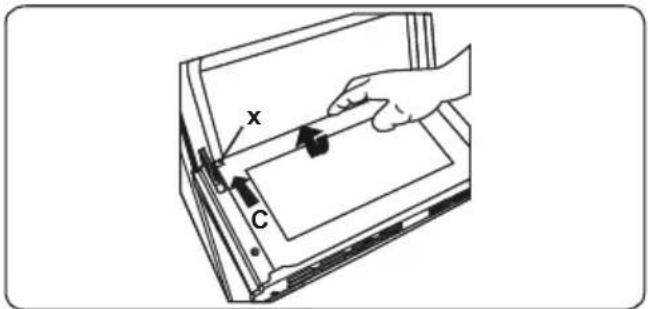

1. Place the glass under the location bracket (x) in the direction of C.

x C

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second's layer.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

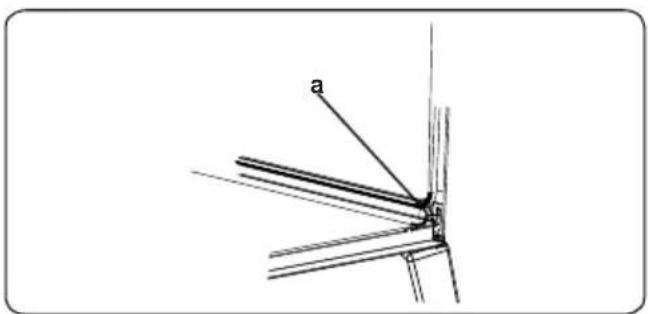

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

a a

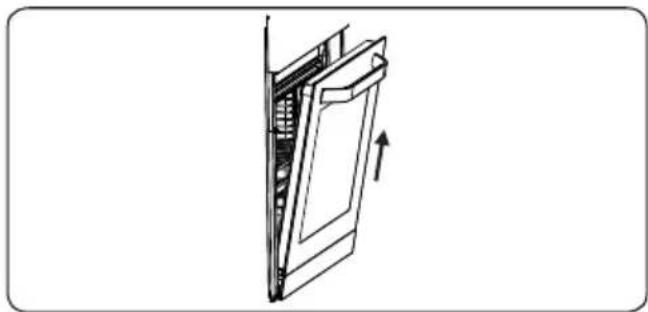

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified

technician only.

Other Controls

• Periodically check expiration date of the gas connection pipe.
• Periodically check the gas connection pipe. If a defect is found, contact an authorised service provider to have it changed.
- If a defect is found while operating the control knobs of the appliance, contact an authorised service provider.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven and/or grill (if available) do not work.	The oven and/or grill may be in the 'off' position. Supply gas pressure may not be correct. Power (if the appliance has an electric connection) is switched off. The feet have not been assembled. The battery (if applicable) may be depleted.	Check the position of the control knob. Check the gas supply and gas pressure. Check whether there is power supplied. Also check that other kitchen appliances are working. Make sure that there is no block at the bottom of the appliance. The battery may need replacing.
Oven is not cooking evenly.	Wrong shelf position being used. Your appliance has been installed by an unauthorised technician. Fan (if applicable) may be in the 'off' position.	Check the shelf positions, cooking period and heat values according to the manual. Check that the appliance is correctly installed. Ensure that the fan is working.
Oven temperature is too high or too low.	Wrong shelf position or wrong heat setting being used. Supply gas pressure may be improper.	Check that the recommended temperatures and shelf positions are being used. Be prepared to adjust the temperature up or down slightly to achieve the results you want. Check the gas supply and gas pressure.
Hob burners do not light.	Burner cap and crown are not assembled correctly. Supply gas pressure may not be correct. LPG cylinder (if applicable) may be depleted. Power (if the appliance has an electric connection) is switched off. The battery (if applicable) may be depleted.	Ensure the burner parts have been placed correctly. Check the gas supply and gas pressure. LPG cylinder may need replacing. Check whether there is power supplied. Also check that other kitchen appliances are working. The battery may need replacing.
Flame colour is orange/yellow.	Burner cap and crown are not assembled correctly. Different gas compositions.	Ensure the burner parts have been placed correctly. Due to the design of the burner, the flame can appear to be orange/yellow in certain areas of the burner. If you operate the appliance with natural gas, city natural gas may have different compositions. Do not operate the appliance for a couple of hours.
Burner is not igniting or only partially lighting.	Burner parts may not be clean or dry.	Ensure that parts of the appliance are dry and clean.
Burner sounds noisy.	-	This is normal. The noise may reduce as they heat up.
Noise -		It is normal for some metal parts on the cooker to produce noise when in use.
Oven light (if available) does not operate.	Lamp has failed. Electrical supply is disconnected or switched off.	Replace lamp according to the instructions. Make sure the electrical supply is switched on at the wall socket outlet.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7. TECHNICAL SPECIFICATIONS

7.1 INJECTOR TABLE

G30 28-30 mbar 11,10 kW 807,1 g/hII2H3+ PT Class:1	NGG20 20 mbar	LPGG30/G3128-30/37 mbar
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166,7 l/h 127,2 g/h
MEDIUM BURNER
DIA. of INJECTOR (1/100mm) 97 65
NOMINAL RATING (KW) 1,75 1,75
CONSUMPTION 166,7 l/h 127,2 g/h
SMALL BURNER
DIA. of INJECTOR (1/100mm) 72 50
NOMINAL RATING (KW) 1 1
CONSUMPTION 95,2 l/h 72,7 g/h
WOK BURNER
DIA. of INJECTOR (1/100mm) 135 98
NOMINAL RATING (KW)	3,8 3,8
CONSUMPTION 361,9 l/h 276,3 g/h
OVEN BURNER
DIA. of INJECTOR (1/100mm) 120 76
NOMINAL RATING (KW)	2,8 2,8
CONSUMPTION 266,7 l/h 203,6 g/h
GRILL BURNER
DIA. of INJECTOR (1/100mm)	110	68
NOMINAL RATING (KW)	2,2 2,2
CONSUMPTION 209,5 l/h 159.9 g/h

Warning symbol depicting a person pulling a large object into a triangle (no text or numbers present)

Simple black-and-white icon of a building with arrows indicating direction, enclosed in a circle (no text or symbols)

Symbol of a crossed-out hammer in a circle, indicating no movement or force (no text present)

A B C D E C E

Simple line drawing of a mechanical component with two circular parts and dashed alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical assembly with a spring and rotating arrow (no text or symbols)

3. CARACTERÍSTICAS DEL PRODUCTO

Simple diagram of a knob with a central shaft and surrounding circular housing, no text or symbols present.

Posición apagado

Pure diagram of a mechanical component with no text, numbers, or symbols

Posición máx.

Simple diagram of a circular object with internal diagonal lines and arrows, no text or symbols present.

Simple diagram of a circular device with a diagonal stripe and curved arrow, no text or symbols present.

Diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Technical line drawing of a mechanical component with two circular features, shown in an inset view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a hand holding a tool over a tray with a ruler, no text or symbols present

Line drawing of a staircase with an open shelf and metal frame (no text or symbols)

Technical line drawing of a mechanical assembly or lifting device (no text or symbols)

La bandeja llana

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

Parrilla

Line drawing of a rectangular metal grate with slats and rivets (no text or symbols)

ADVERTENCIA

Technical line drawing of a metal rack with a curved cover and an arrow indicating direction (no text or symbols)

Base para woks

Two technical line drawings of mechanical components with flanges and brackets (no text or symbols)

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Pure technical line drawing of a mechanical joint or bracket assembly without any text, numbers, or symbols

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

5.2. MANTENIMIENTO

Warning sign depicting a person pulling a large object into a triangle (no text or symbols)

Simple black-and-white icon of a machine with directional arrows, enclosed in a circle (no text or symbols)

Prohibition sign showing a crossed-out hammer and fulcrum over a pile of wood, enclosed in a circle (no text)

Simple line drawing of a mechanical component with two holes and a dashed alignment line (no text or symbols)

Diagram of a mechanical assembly with a spring and rotating arrow (no text or symbols)

3. CARACTÉRISTIQUES DU PRODUIT

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a mechanical device with hands operating it, no text or symbols present

Line drawing of a mechanical device with a rectangular frame and a horizontal panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Plateau peu profond

Technical line drawing of a square frame with bolt holes and central hole (no text or symbols)

Crédence

Technical line drawing of a mechanical component with an inset detail view (no text or symbols)

Grillage métallique

Diagram of a metal rack with a curved panel and directional arrow indicating rotation (no text or symbols)

AVERTISSEMENT

Technical line drawing of a metal grate or rack structure with no text or symbols

Technical line drawing of two mechanical clamping components (no text or symbols)

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

5.2. ENTRETIEN
