Kappa 6125M - Loudspeaker INFINITY - Free user manual and instructions

Product Type	2-way Marine Speaker
Brand	INFINITY
Model	Kappa 6125M
Continuous Power Handling	100 W
Peak Power Handling	300 W
Frequency Response	40 Hz - 25 kHz
Nominal Impedance	3 ohms
Sensitivity	92 dB
Outside Diameter	189.4 mm
Mounting Cutout Diameter	144.8 mm
Overall Depth	92.5 mm
Mounting Depth	65 mm
LED Power Supply	12 V DC
Number of LED Colors	7
Main Features	Swiveling tweeter, foam gasket, RGB lighting
Maintenance and Cleaning	Clean with a soft, damp cloth
Safety	Do not wire two or more speakers in parallel
Spare Parts and Repairability	Foam gasket, screws, tweeter removal tool included
General Information	Marine use, professional installation recommended

Frequently Asked Questions - Kappa 6125M INFINITY

How to install the Kappa 6125M speaker?

Installation requires qualified experience. Apply the self-adhesive foam gasket onto the structure, mount the speaker into the opening using the included screws, then connect the positive and negative wires to the amplifier outputs respecting polarity.

How to connect the RGB LEDs?

Connect the 0.205 mm² LED wires (black +, blue, green, red) into the included female connector. Connect the connector to a 12 V power supply or compatible lighting controller. For direct wiring, connect the black wire to the positive terminal (+) and the individual R, G and/or B wires to the negative terminal (-) to obtain 7 different colors.

What is the impedance of the speaker?

The nominal impedance is 3 ohms. Due to this low impedance, it is not recommended to wire two or more speakers in parallel to avoid amplifier overheating.

Can I use this speaker outdoors or in a marine environment?

Yes, the Kappa 6125M is a marine speaker designed to withstand outdoor conditions. It comes with a foam gasket for water protection and acoustic sealing.

How to remove the tweeter?

Use the included 2-pin tool. Place the pins into the holes of the tweeter grille and turn 45 degrees clockwise to loosen and remove it.

What amplifier power is recommended?

The continuous power handling is 100 W and peak power is 300 W. An amplifier delivering between 50 and 200 W RMS per channel is ideal to exploit performance without risk of damage.

Can I connect multiple speakers in parallel?

No, due to the 3 ohm impedance, connecting two or more speakers in parallel would reduce the impedance to a very low level (1.5 ohms or less), which can cause overheating and damage to the amplifier. Use a series configuration or a multi-channel amplifier.

How to clean the speaker?

Use a soft, damp cloth to clean the surface. Avoid abrasive products or solvents. Ensure water does not penetrate internal components.

What tools are needed for installation?

Included tools: a 2-pin tool for tweeter removal, mounting screws, quick connectors, and a self-adhesive foam gasket. You will also need a screwdriver and possibly a drill to make the mounting hole.

Where to find the complete user manual?

The user manual is available for free in PDF format on notice-facile.com for the Kappa 6125M INFINITY model. You can download it or request a translation in your language.

USER MANUAL Kappa 6125M INFINITY

Infinity Kappa 6, Kappa 8, and Kappa 10 marine speaker - Owner's Manual

Your Infinity product has been designed to provide you with the performance and ease of operation you would expect from Infinity.

ABOUT THE MANUAL

This manual describes general installation guidelines. However, please note that proper installation of marine audio components requires qualified experience. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized Infinity dealer about your installation options. Keep all instructions and sales receipts for reference.

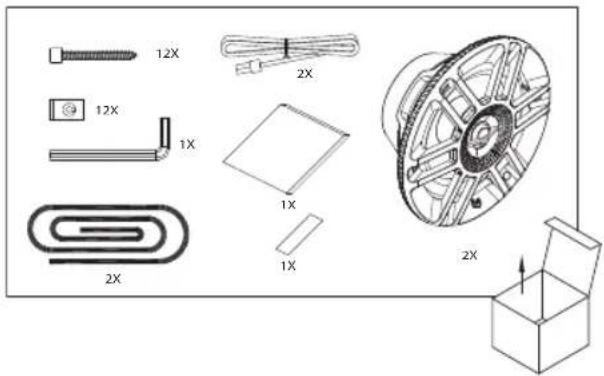

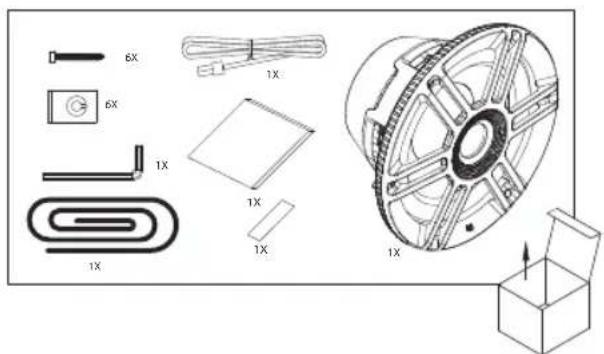

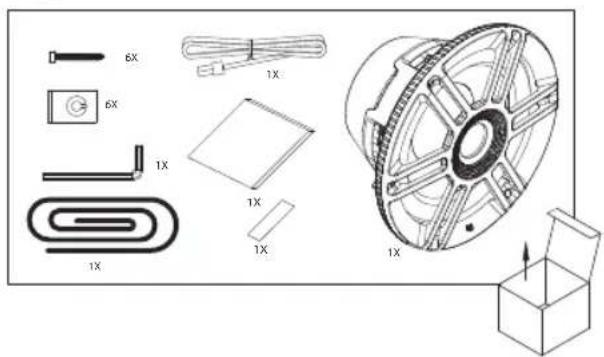

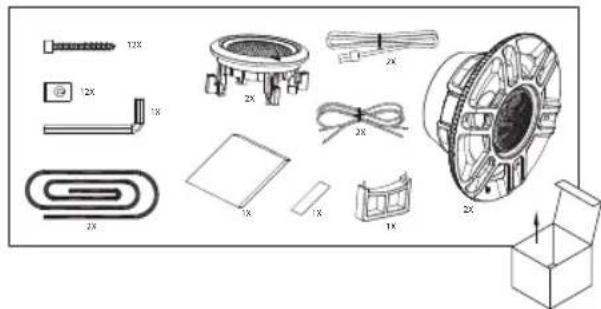

WHAT'S IN THE BOX

Kappa 6

Kappa 8

Kappa 10

EN

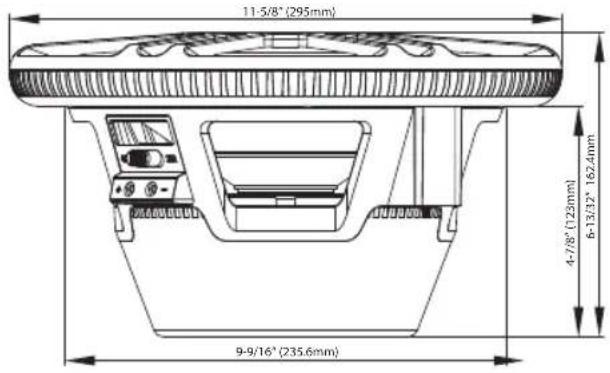

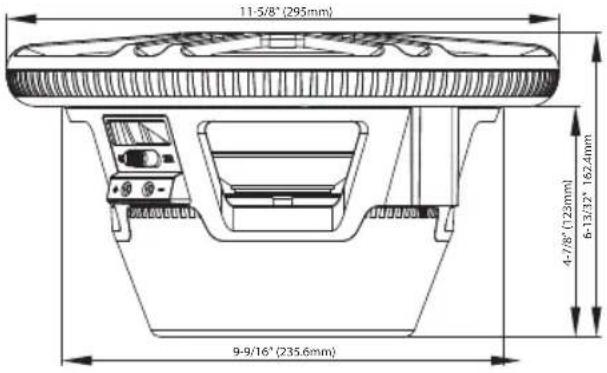

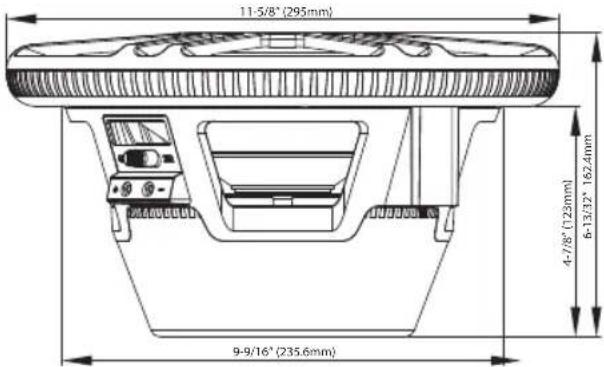

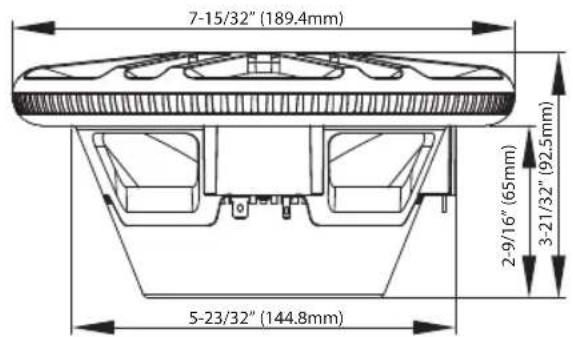

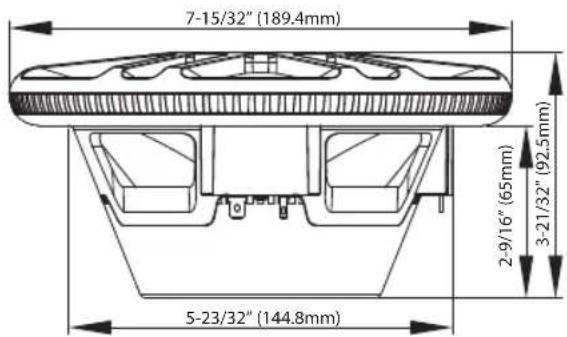

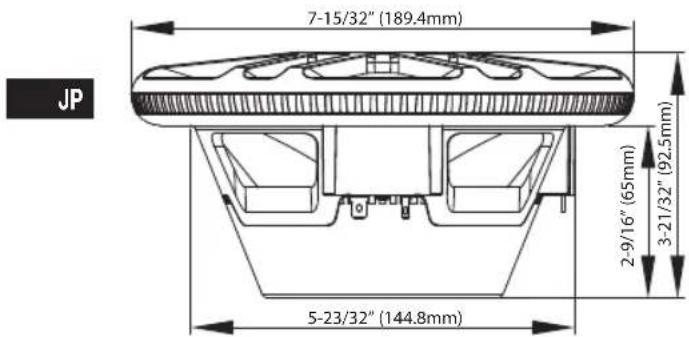

DIMENSIONS

Kappa 6

Kappa 8

Kappa 10

SPEAKER SIGNAL WIRING

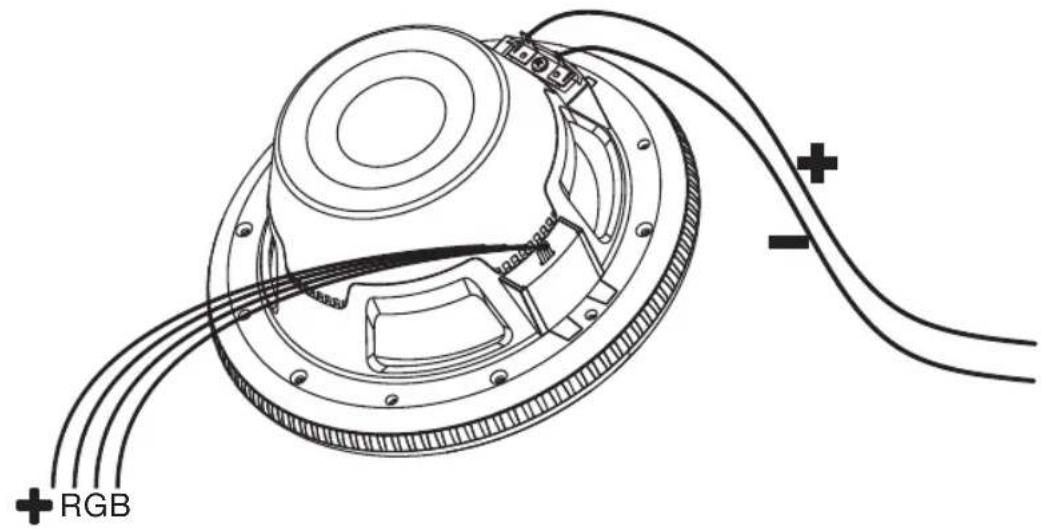

To send signal to the Infinity marine speaker, connect the positive (+) and negative (-) speaker wires to the appropriate speaker outputs of your source unit or amplifier. Be sure to observe proper polarity.

SPEAKER LED WIRING

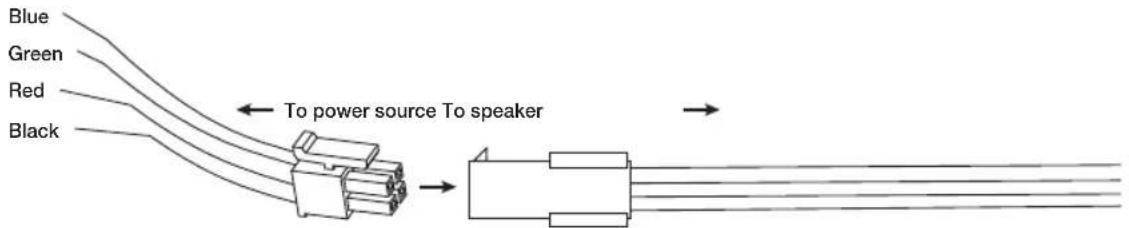

To provide power for the LEDs, plug the 24-gauge black (+), blue, green, and red LED wires from the speaker into the included female connector, then run the wires from the female connector to your compatible 12-volt power source or light controller (sold separately). If using a separate controller, be sure to connect each wire to the proper output.

If hardwiring the LEDs directly to your power source, you can choose the color of the LEDs by connecting the black wire to the positive (+) terminal, and the appropriate R, G, and/or B single wire or combination of wires to the negative (-) terminal.

There are 7 possible colors, depending on the wiring configuration you choose:

Wire connected to positive (+12V) terminal	Wire connected to negative (-) terminal	Color produced
Black	Red Red
	Green Green
	Blue Blue
	Red + Green Yellow
	Red + Blue Purple
	Blue + Green Aquamarine
	Red + Blue + Green White

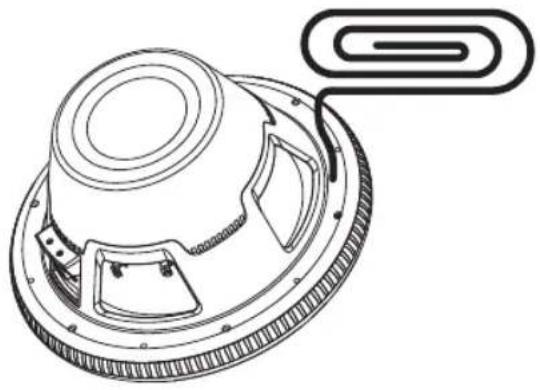

APPLYING FOAM SEAL

To help seal your installation against water, and to provide an airtight acoustic seal, apply the self-adhesive foam seal to the speaker frame.

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

EN

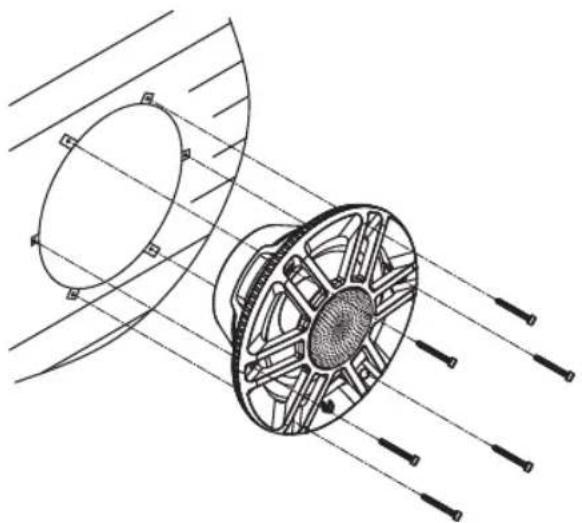

MOUNTING THE SPEAKER

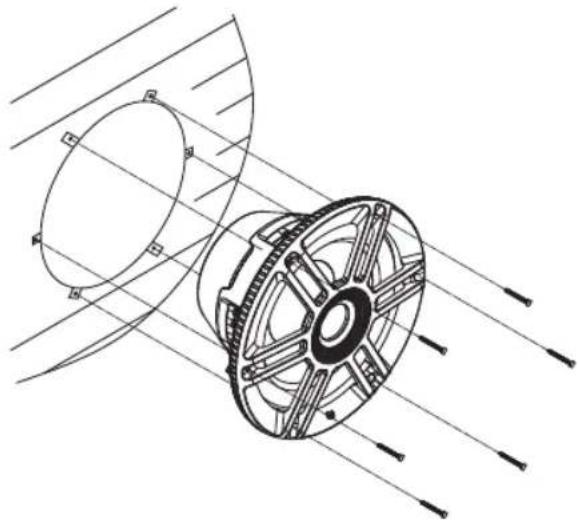

Use the included screws to mount the speaker to the location. Use the included speed clips if necessary to provide a secure mount.

NOTE: Use caution when cutting and using screws with fiberglass to prevent scratches and cracks.

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

REMOVING THE TWEETER FOR SEPARATE MOUNTING (KAPPA 8 ONLY)

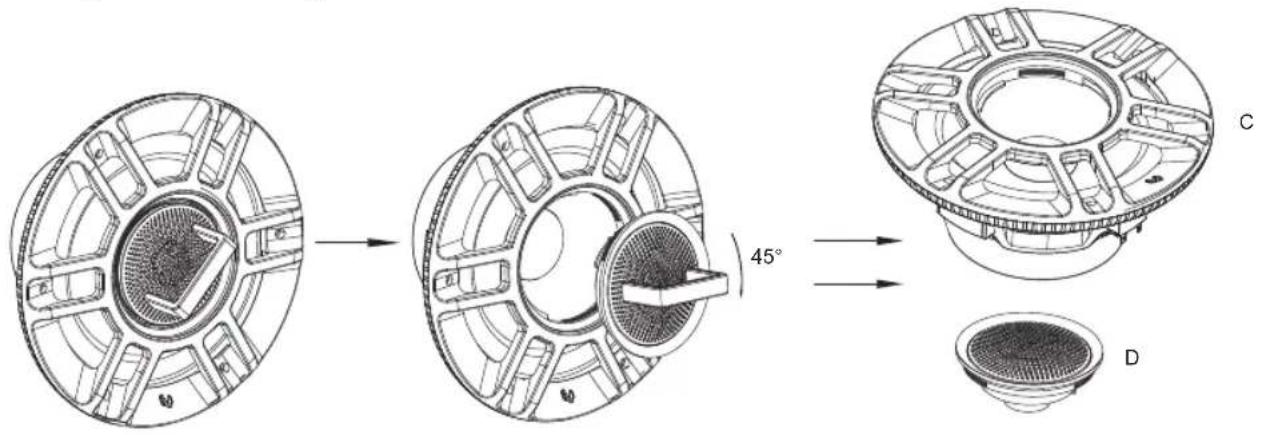

Use the included 2-pin tool to remove the tweeter from the woofer housing. Place the pins of the tool in the holes of the tweeter grille and rotate 45 degrees clockwise to loosen and remove.

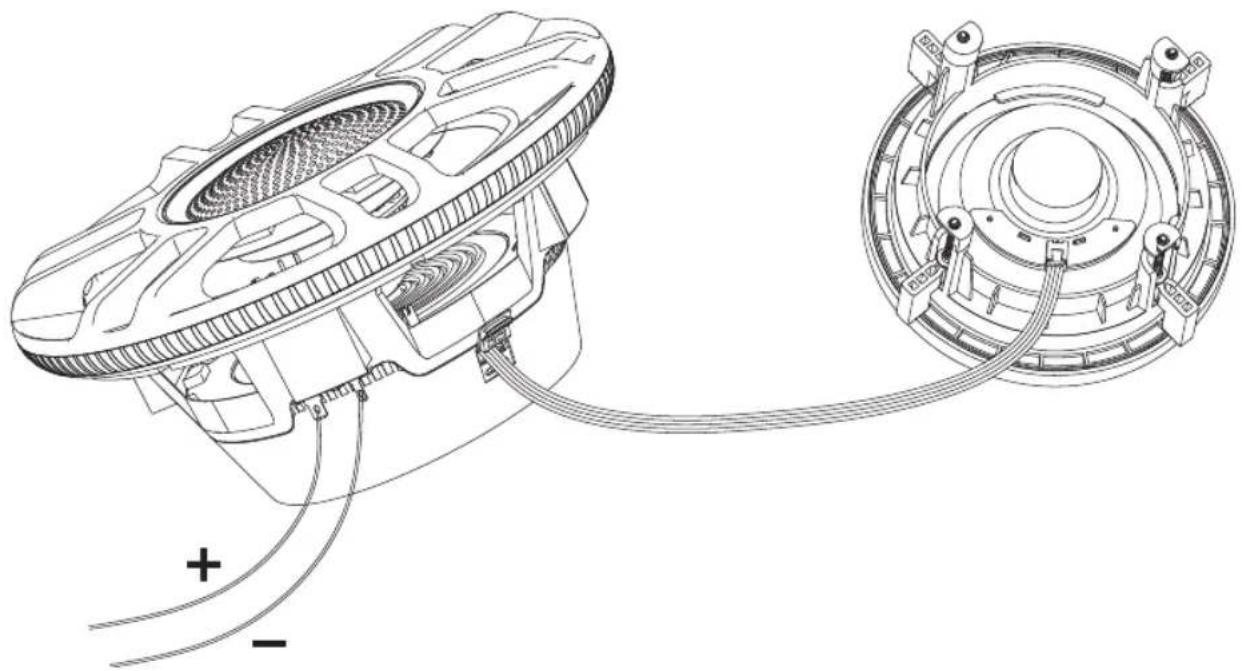

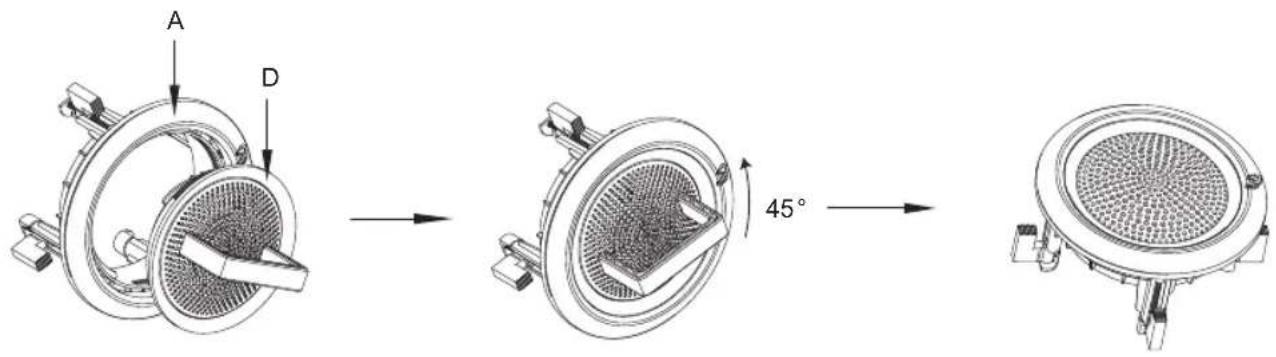

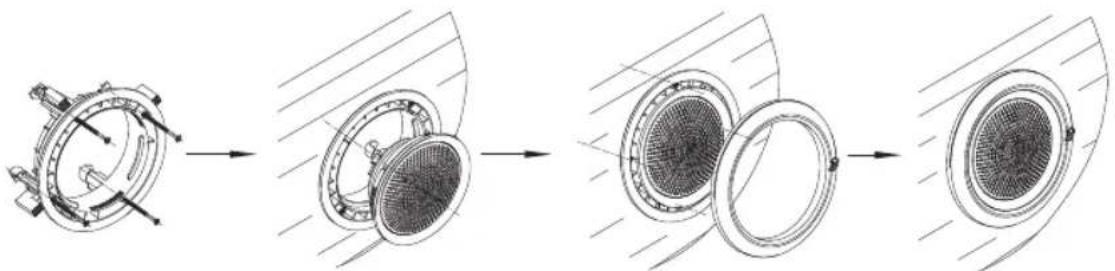

FLUSH-MOUNTING THE TWEETER

Place the tweeter in the mounting bracket and use the tool to secure by turning 45 degrees counter-clockwise.

To transmit audio signal to the tweeter, make sure the woofer and tweeter are connected with the included cable.

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Place the tweeter in the mounting location, then turn each setscrew clockwise to tighten mounting brackets. Use caution so as not to overtighten. Snap the included outer ring over the mounting bracket to hide the setscrews.

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Specifications	Kappa 6 Kappa	8 Kappa 10
Continuous power handling	100W 200W 300W
Peak power handling 300W	500W 900W
Frequency response 40Hz –	25kHz 30Hz – 22kHz 20Hz – 2kHz
Nominal impedance 3 Ohms*	3 Ohms* 2 or 4 Ohms (use		switch to select)
Sensitivity 92dB 92dB 89dB
External diameter	7-15/32" (189.4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Mounting cutout diameter	5-23/32" (144.8mm)	Woofer: 7" (177.4mm)Tweeter bracket: 4-9/16"(115.9mm)	9-9/16" (235.6mm)
Total depth	3-21/32" (92.5mm)	4-9/32" (108.1mm)	6-13/32"(162.4mm)
Mounting depth	2-9/16" (65mm)	3-3/16" (80.5mm)	4-7/8" (123mm)

EN

*NOTE: Because of the woofer's low impedance, do not wire two or more in parallel to an amplifier; doing so can result in overheating and damage to the amplifier.

MERCI POUR VOTRE ACHAT ...

Kappa 10

DIMENSIONS

Kappa 6

Kappa 8

Kappa 10

CÂBLAGE DU SIGNAL DU HAUT-PARLEUR

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

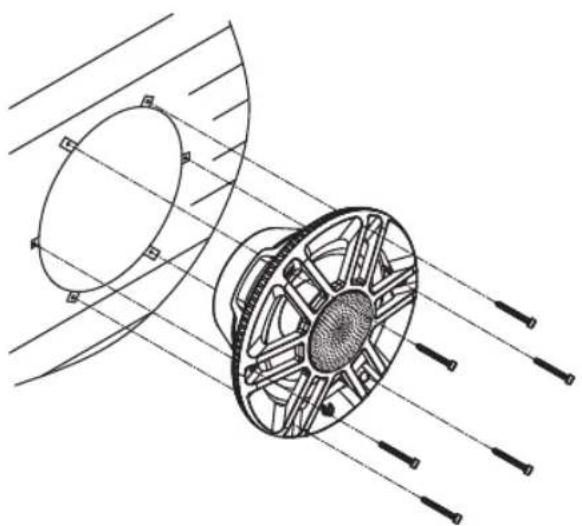

MONTAGE DU HAUT-PARLEUR

Kappa 6 and Kappa 8
Kappa 10

Technical line drawing of a mechanical component with internal gear and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

DÉPOSE DU TWEETER POUR UN MONTAGE SÉPARÉ (KAPPA 8 UNIQUEMENT)

MONTAGE AFFLEURANT DU TWEETER

Technical line drawing of a mechanical device with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Kappa 10

DIMENSIONES

Kappa 6

Kappa 8

Kappa 10

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

MONTAJE DEL ALTAVOZ

Technical line drawing of a mechanical component with internal gear and external force arrows (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

RETIRADA EL ALTAVOZ DE AGUDOS PARA SU MONTAJE SEPARADO (SOLO KAPPA 8)

MONTAJE DEL ALTAVOZ DE AGUDOS EMPOTRADO

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Kappa 10

尺寸

Kappa 6

Kappa 8

Kappa 10

扬声器信号设置

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

安装扬声器

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

嵌装高音扬声器

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.

规格	Kappa 6 Kappa	8 Kappa 10
连续功率承受能力	100W 200W 300W
峰值功率承受能力	300W 500W 900W
频率响应	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
标称阻抗	3 Ohms* 3 Ohms* 2 或 4 Ohms		(使用开关选择)
灵敏度	92dB 92dB 89dB
外径	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安装切口直径	5-23/32” (144.8mm)	低音扬声器:7” (177.4mm)高音扬声器支架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
总深度	3-21/32” (92.5mm)	高音扬声器支架:4-9/16” (115.9mm)	6-13/32”(162.4mm)
安装深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Kappa 10

CHT

尺寸

Kappa 6

Kappa 8

Kappa 10

喇叭訊號接線

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

安装喇叭

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and motion lines (no text or symbols)

嵌装高音喇叭

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Diagram showing a mechanical assembly process with four sequential steps, no text or symbols present.

規格	Kappa 6 Kappa	8 Kappa 10
連續的功率處理	100W 200W 300W
峰值的功率處理	300W 500W 900W
頻率回應	40Hz - 25kHz 30Hz	-22kHz 20Hz - 2kHz
標稱阻抗	3 歐姆* 3 歐姆*	2 或 4 歐姆	(使用開關選擇)
靈敏度	92dB 92dB 89dB
外徑	7-15/32” (189.4mm)	9-1/2” (241mm) 11-5/8” (295mm)
安裝開孔直徑	5-23/32” (144.8mm)	低音喇叭:7” (177.4mm)高音喇叭托架:4-9/16” (115.9mm)	9-9/16” (235.6mm)
總深度	3-21/32” (92.5mm)	4-9/32” (108.1mm)	6 - 1 3 / 3 2 ”(1 6 2 . 4 mm)
安裝深度	2-9/16” (65mm)	3-3/16” (80.5mm)	4-7/8” (123mm)

Kappa 10

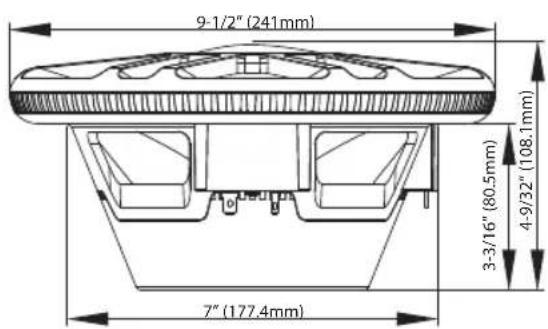

DIMENSI

Kappa 6

Kappa 8

Kappa 10

PEMASANGAN KABEL SINYAL SPEAKER

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

MEMASANG SPEAKER

Technical line drawing of a mechanical component with internal gear and external guide rails (no text or symbols)

Technical line drawing of a mechanical component with internal gears and shafts, no text or symbols present

MELEPAS TWEETER UNTUK PEMASANGAN TERPISAH (KAPPA 8 SAJA)

MEMASANG-BENAMKAN TWEETER

Technical line drawing of a speaker assembly with labeled components (ID and +/-), showing internal structure and wiring connections (no text or symbols beyond labels)

Diagram showing a mechanical assembly process with four sequential stages of a circular component, no text or symbols present.

Spesifikasi	Kappa 6 Kappa	8 Kappa 10
Penanganan daya kontinu 1	100W 200W 300W
Penanganan daya puncak 3	300W 500W 900W
Respon frekuensi 40Hz – 25kHz 30Hz – 22kHz 20Hz – 2kHz
Impedansi nominal 3 Ohm* 3 Ohm* 2 or 4 Ohms (use switch to select)
Sensitivitas 92dB 92dB 89dB
Diameter eksternal	7-15/32" (189,4mm)	9-1/2" (241mm)	11-5/8" (295mm)
Diameter potongan dudukan	5-23/32" (144,8mm)	Woofer: 7" (177,4mm)Braket tweeter: 4-9/16"(115,9mm)	9-9/16" (235,6mm)
Kedalaman total	3-21/32" (92,5mm)	4-9/32" (108,1mm)	6-13/32"(162,4mm)
kedalaman dudukan	2-9/16" (65mm)	3-3/16" (80,5mm)	4-7/8" (123mm)

Kappa 10

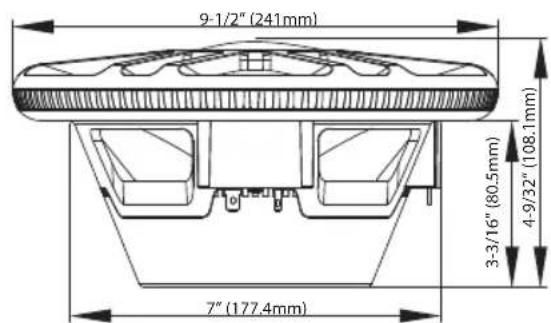

寸法

Kappa 6

Kappa 8

Kappa 10

スピーカーの信号配線

Technical line drawing of a mechanical component with a curved handle and circular base (no text or symbols)

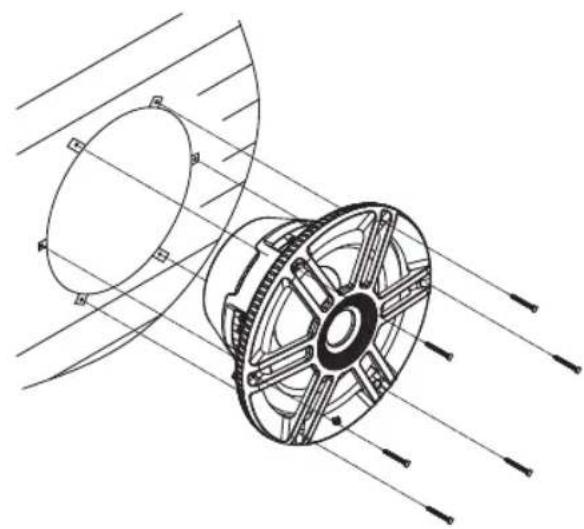

スピーカーの取り付け

Technical line drawing of a mechanical component with internal structure and projection lines (no text or symbols)

Kappa 10

Technical line drawing of a mechanical component with internal gear and shafts, no text or symbols present

ツイーターの埋込取り付け

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.

Kappa 10

치수

Kappa 6

Kappa 8

Kappa 10

스피커 신호 배선

Technical line drawing of a mechanical component with a curved spring-like extension (no text or symbols)

스피커 장착

Technical line drawing of a mechanical component with internal structure and alignment lines (no text or symbols)

Technical line drawing of a mechanical component with internal gears and directional arrows (no text or symbols)

Technical illustration of a mechanical component showing three stages: top, side, and close-up views with 45° angle标注 (no text or symbols present)

트워터 수평 장착

Technical line drawing of a mechanical component with coiled cable and housing (no text or symbols)

Four-step diagram showing a mechanical assembly or assembly process, with no visible text, numbers, or symbols.
