USER MANUAL SAS 7.4 LI D3 SILVERCREST

HAND-HELD WET & DRY VACUUM CLEANER HANDSTAUBSAUGER ASPIRATEUR À MAIN SAS 7.4 LI D3

GB IE

HAND-HELD WET & DRY VACUUM CLEANER

Operating instructions and safety instructions

FR BE

ASPIRATEUR À MAIN

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB / IE Operating instructions and safety instructions Page 1

SHUKING CUSTE WET + DRY ⑪

Simple 3D illustration of a white plastic container with a black number 1 pointing to the top (no text or symbols on the container itself)

Plain white rectangular object with a black circular marker labeled '2' pointing to the top edge (no text or symbols on the object itself)

⑩ ⑨

White plastic mechanical component with mounting holes and a numbered arrow pointing to a feature (no text or symbols)

Labeled diagram of a white plastic device with numbered parts 6, 7, and 8 marked on its surface.

Close-up of a black electric guitar with two pins, connected to a coiled cable and a terminal plug (no text or symbols visible)

Contents

Introduction 2

Intended use....2

Package contents and transport inspection .... 2

Description of the appliance .... 3

Technical data 3

Important safety instructions....5

Prior to first use 8

Information about the batteries 8

Information on the charge indicator lamp 8

Installation of the wall bracket....9

Charging 9

Operation 10

Cleaning 12

Disposal....13

Kompernass Handels GmbH warranty 14

Service 15

Importer 15

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Intended use

This handheld vacuum cleaner may only be used to vacuum dry or wet surfaces, or dry or wet materials and liquids. Do not vacuum people or animals with this appliance. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no liability for damages that result from improper use of the appliance or are caused by the incorrect operation of it. The appliance is not intended for commercial use.

Package contents and transport inspection

1) Remove all parts of the appliance and the operating instructions from the carton.

2) Remove all packaging materials and any films and labels.

The package contents include the following components (see fold-out page for illustrations):

• Hand-Held Wet & Dry Vacuum Cleaner
- Crevice tool
• Wet suction nozzle
- Wall bracket
- Mounting kit
- Mains adapter
- Operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the service hotline (see section "Service").

Description of the appliance

① Wet suction nozzle
② Crevice nozzle
3 Wall bracket

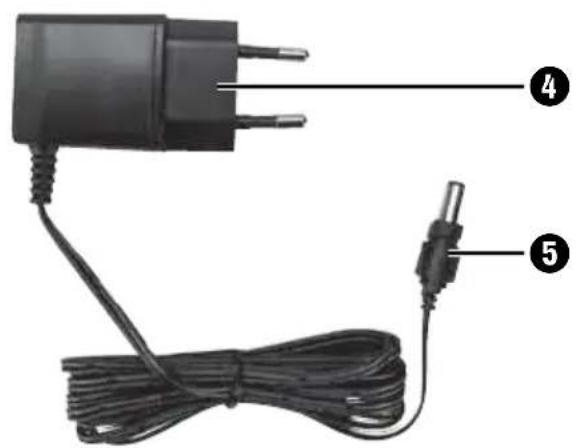

4 Mains adapter
⑤ Barrel plug

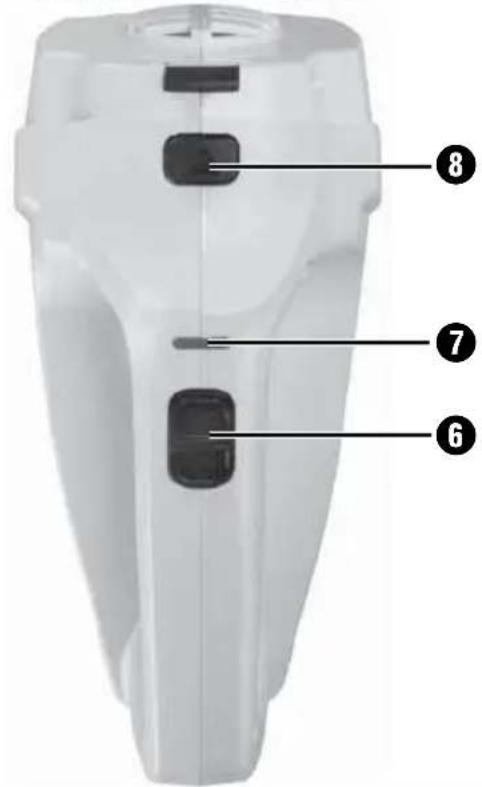

6 On/off switch
⑦ Charge indicator lamp (red/green)
8 Release button
9 Dust filter bag
10 Dust filter
11 Dirt container

NOTE

This appliance is supplied with non-charged batteries. The batteries must be charged before first use.

Technical data

Appliance
Input voltage/current 9.6 V (DC) / 0.5 A	===
Polarity	(positive inside, negative outside)

Rechargeable batteries
Capacity 2200 mAh
Rechargeable battery	7.4 V === (DC)(2 x 3.7 V Lithium-ion rechargeable batteries)
Mains adapter
Manufacturers	Zhejiang Mootree Electronic Technology Co., Ltd.No. 36-1 Tongji Street, Nanmingshan Street,Liandu District, 323000 Lishui City,Zhejiang, ChinaCommercial register number:91331127MA2E1A6T1D
	Importer:KOMPERNASS HANDELS GMBH,BURGSTRASSE 21, 44867 BOCHUM,GERMANY,Register court: AG BochumRegister number: HRB 4598
Model SEU006A-096050
Input voltage	100 - 240 V ~ (AC)
Input AC frequency 50/60 Hz
Output voltage 9.6 V	--- (DC)
Output current 0.5 A
Output power 4.8 W
Average operating efficiency 79.6 %
No-load power consumption 0.05 W
Current consumption 0.2 A
Polarity	○—●⊕
Protection class	II / □ (double insulation)
Efficiency class 6	VI
Protection type	IP20: Protection against solid objects witha diameter of more than 12.5 mm

NOTE

▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Important safety instructions

DANGER - ELECTRIC SHOCK!

not charge or use the appliance outdoors.

▶ Never use the handheld vacuum cleaner if the cable, plug or casing are damaged.
To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist, or our Customer Service or a similarly qualified person.
▶ Have all repairs carried out by a specialist workshop. Under no circumstances should you open the appliance yourself. Repairs that are not carried out by a specialist workshop could lead to physical injuries.
Before switching on the appliance, make sure that the mains voltage corresponds to the voltage indicated in the technical data for the appliance.
▶ Never touch the mains adapter or the appliance with wet or damp hands.
▶ Do not use the mains adapter with an extension cable; connect the mains adapter directly to a power socket.

WARNING! RISK OF INJURY!

▶ Do not change any accessories while the appliance is switched on.
▶ Do not use the handheld vacuum cleaner for vacuuming up sharp objects or glass shards.
▶ Never vacuum up burning matches, glowing ashes or cigarettebutts.
▶ Do not use the handheld vacuum cleaner for vacuuming up chemical products, stone dust, gypsum, cement or similar particles.

⚠ WARNING! RISK OF INJURY!

This appliance is not suitable for use with inflammable and explosive substances or chemical and aggressive liquids.

▶ Always store the appliance indoors. To prevent accidents, keep the appliance in a dry location when not in use.

▶ Under extreme conditions, leaks in the battery cells may occur. In the event that battery fluid comes into contact with skin or eyes, the affected area must be rinsed off with water immediately. Contact a physician.

▶ Children must not use the appliance as a plaything.

- Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

▶ Take special care when using the handheld vacuum cleaner on stairs.

⚠️ CAUTION! PROPERTY DAMAGE!

▶ Use only accessories recommended by the manufacturer.

The mains adapter may not be used for other purposes. Never carry the wall bracket or the mains adapter by the cable. Do not pull on the cable when you want to move the appliance.

▶ Always grip the power plug to disconnect the appliance from the power supply.

▶ Always be sure to keep the handheld vacuum cleaner away from heating elements, ovens or other heated appliances and surfaces.

▶ Make sure that the ventilation slits are never obstructed. A blocked ventilation circuit can result in overheating and damage to the appliance.

The appliance is not protected against splashes. You should therefore only vacuum liquid up until the dirt container is filled to the MAX mark!

UN 34811 Tel. [phone]

The appliance is equipped with or supplied with a lithium-ion battery. Do not throw the batteries into a fire and do not subject them to high temperatures. There is a risk of explosion!

▶ Do not use the handheld vacuum cleaner without the dust filter inserted.

- Do not use the mains adapter for a different product and do not attempt to charge this appliance with a different mains adapter. Use only the mains adapter supplied with this appliance.

▶ Never attempt to recharge non-rechargeable batteries.

The batteries in this appliance cannot be replaced.

Prior to first use

1) Remove all packaging materials from the appliance.

2) Press the dust filter bag ⑨ and the dust filter ⑩ a little way into the dirt container ⑪. They might have loosened during transport and thus not be positioned correctly inside the dirt container ⑪.

3) Place the dirt container ⑪ on the motor unit:

• Push the plastic tab on the underside of the handheld vacuum cleaner into the recess on the dirt container ⑪.
• Press the release button ⑧ and push the dirt container ⑪ onto the motor unit at the same time.
• Let go of the release button ⑧ so that the restraint engages in the recess. The dirt container ⑪ is now firmly seated on the motor unit.

Information about the batteries

This handheld vacuum cleaner is powered by rechargeable lithium-ion batteries. The batteries must be charged for around 5 hours before using the handheld vacuum cleaner for the first time.

For care of the batteries, we recommend the following: Once the batteries have been charged, disconnect the mains adapter ④ from the mains socket. Do not plug the mains adapter ④ back into the mains socket until the vacuuming performance drops noticeably and the charge indicator lamp ⑦ flashes green.

When the batteries are completely discharged, the appliance switches off and the charge indicator lamp ⑦ flashes green/red alternately for approx. 60 seconds. Start charging the appliance.

Information on the charge indicator lamp

The charge indicator lamp ⑦ supplies the following information:

The charge indicator light 7...	Meaning
Lights up red the batteries are charging.
Flashing green	the batteries are low and should be charged soon.
Flashing alternately green/red	the batteries are completely discharged and should be charged.
Lights up green	the batteries are fully charged.
	the appliance is in operation.

Installation of the wall bracket

DANGER - ELECTRIC SHOCK!

▶ Ensure that there are no power cables or other conduits or pipes in the wall at the location where you intend to bore the holes for the wall bracket ③. Drilling into a current-carrying electric cable can be potentially fatal!

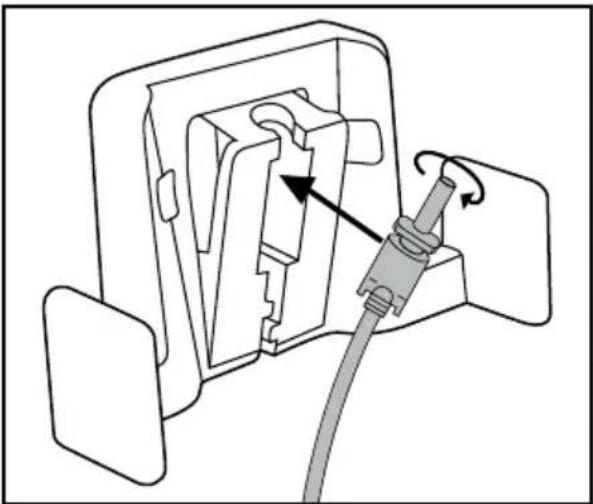

1) Insert the barrel plug ⑤ on the mains adapter ④ into the wall bracket ③ as shown in the following diagram: First, feed the cable through the cable routing and then push the barrel plug ⑤ into the opening in the wall bracket ③ so that it is firmly in place. Secure the barrel plug ⑤ by turning it.

Diagram of a plug inserted into a housing component, showing internal structure and cable connection (no text or symbols)

2) Select a suitable installation location for the wall bracket ③: It must be possible to remove the handheld vacuum cleaner easily and there must be an accessible mains power socket for the mains adapter ④.
3) Drill two holes about 60 mm apart. Use the wall bracket ③ to mark the holes, to ensure the correct spacing. The drill holes must be suitable for 6 mm wall plugs.
4) Push the wall plugs into the holes and then screw the wall bracket ③ firmly into place using the screws.
5) You can place the nozzles on the accessories holder on the side.
6) Connect the mains adapter ④ to a mains power socket.

Charging

NOTE

▶ Check to ensure that the on/off switch⑥ has been pushed back (to the position "0") before starting the charging process.

Place the handheld vacuum cleaner from above into the wall bracket ③ so that the barrel plug ⑤ slips into the socket on the handheld vacuum cleaner. The charge indicator lamp ⑦ lights up red and the charging process begins.

Important: The charge indicator lamp ⑦ lights up green once the handheld vacuum cleaner is charged enough to vacuum again. This does not mean that all the batteries are completely charged. When the charge indicator lamp ⑦ lights up green, the batteries are charged to around 80%.

When charging is complete, which can take around 5 hours with fully discharged batteries, the appliance automatically switches to a trickle charge (maintenance function). Nevertheless, in order to avoid possible damage to the batteries, do not leave the appliance permanently connected to the mains adapter 4.

Do not recharge the batteries again until the handheld vacuum cleaner's suction power becomes appreciably weaker and the charge indicator lamp ⑦ flashes green.

NOTE

▶ If the battery is completely discharged, the appliance switches off and the charge indicator lamp ⑦ flashes green/red alternately for approx. 60 seconds. Start charging the appliance.
The handheld vacuum cleaner can also be charged directly via the mains adapter ④. To do this, remove the barrel plug ⑤ with a slight twist from the wall bracket ③ and the cable from the cable routing. Insert the barrel plug ⑤ into the socket on the handheld vacuum cleaner.

Operation

CAUTION!

The suction opening must always be open and may not be blocked. Blockages lead to overheating and damage to the motor.
The appliance is not protected against splashes. You should therefore only vacuum liquid up until the dirt container ⑪ is filled to the MAX mark!

NOTICES

▶ Make certain that the dust filter ^10 is always inserted before using the appliance.

1) Remove the handheld vacuum cleaner from the wall bracket ③ or, if you are not using the wall bracket ③ remove the barrel plug ⑤ from the socket.

2) If required, place the appropriate nozzle in the suction opening: - the crevice nozzle ②, to clean narrow and difficult to reach locations. - the wet suction nozzle ① to vacuum up liquids.

NOTE

▶ After you have vacuumed up liquids, immediately clean the dirt container ^11 . Otherwise, bacteria or mould will build up inside! Ensure that the dust filter bag ⑨ is completely dry before using the appliance again.

3) To switch the appliance on, slide the on/off switch ⑥ forwards. The charge indicator lamp ⑦ lights up green.

4) When you have finished using the appliance, slide the on/off switch ⑥ to the rear.

NOTE

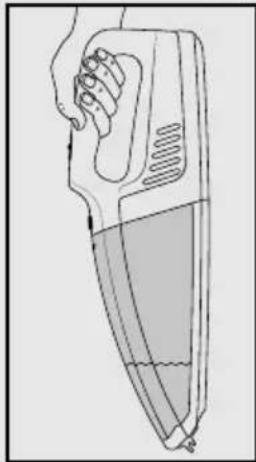

▶ If you have vacuumed liquids, always carry the appliance with the wet suction nozzle ① pointing downwards:

Line drawing of a hand holding a handheld device with a curved handle and ventilation grille (no text or symbols)

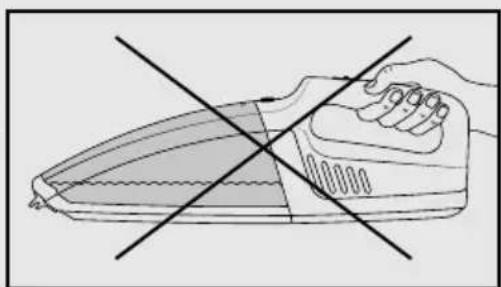

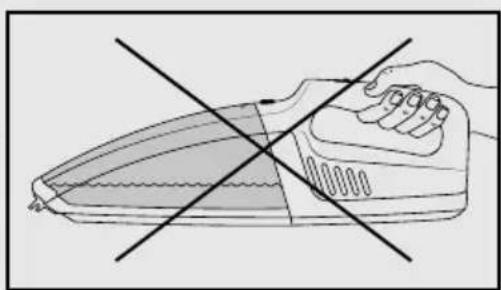

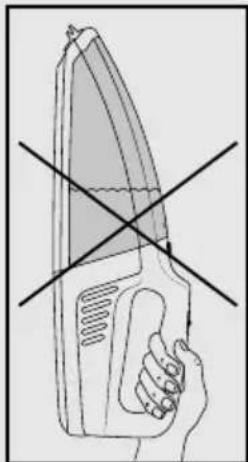

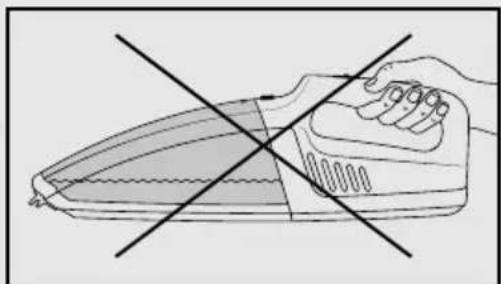

If you carry the appliance horizontally or with the wet suction nozzle pointing upwards, it is possible that liquid can leak out:

Line drawing of a hand holding a device with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using an iron iron to cut a surface, crossed by two diagonal lines (no text or symbols)

NOTE

Place the handheld vacuum cleaner in the wall bracket ③ and start the charging process once the vacuum power has become noticeably weaker and the charge indicator lamp ⑦ flashes green.

Cleaning

To achieve the best results, empty the dirt container ⑪ and clean the dust filter ⑩ after every use.

CAUTION! MATERIAL DAMAGE!

▶ Do not use aggressive, chemical or abrasive cleaning agents. These could damage the outer surfaces of the appliance.

1) To open the dirt container ⑪, press the release button ⑧ and remove the dirt container ⑪.

2) Remove the dust filter ⑩ from the dirt container ⑪.

3) Empty the dirt container ⑪.

4) Pull the dust filter bag ⑨ with its holder out of the dust filter ⑩.

5) Rinse the dust filter bag ⑨ out in cold water and wait until it is completely dry before reinserting it into the dust filter ⑩. Do not dry it with hot air.

6) Reinsert the dust filter 10 into the dirt container 11. When doing so, ensure that the dust filter 10 is seated squarely and that the rubber lip seals the dirt container 11.

7) Replace the dirt container ⑪ on the motor unit again:

• Push the plastic tab on the underside of the handheld vacuum cleaner into the recess on the dirt container ⑪.
  -Press the release button⑧ and push the dirt container ⑪ onto the motor unit at the same time.
• Let go of the release button ⑧ so that the restraint engages in the recess. The dirt container ⑪ is now firmly seated on the motor unit.

8) Clean the housing and both nozzles with a lightly moistened cloth. For stubborn soiling use a mild detergent on the cloth.

9) Dry all parts thoroughly before using the appliance again or storing it.

Disposal

NOTE

The appliance contains batteries that cannot be removed by the user. To prevent risks, the removal or replacement of the batteries may only be carried out by the manufacturer, the manufacturer's customer service department or a similarly qualified person. When disposing of the appliance, indicate that the appliance contains batteries.

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal facility or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Do not dispose of the mains adapter in your normal domestic waste. This mains adapter is subject to the provisions of European Directive 2012/19/EU WEEE (Waste Electrical and Electronic Equipment).

Dispose of the mains adapter at an approved disposal centre or your community waste facility. Please comply with all applicable regulations. Please contact your local waste disposal facility if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,

20-22: Paper and cardboard,

80-98: Composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 373895_2104 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373895_2104.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE

Servicelreland

Tel.: [phone]

(0,08 EUR / Min., (peak))

(0,06 EUR / Min., (off peak))

E-Mail: [e-mail]

IAN 373895_2104

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 18

Diagram of a plug inserted into a socket, showing internal components and a cable being inserted (no text or labels)

Line drawing of a hand holding a handheld device with a handle and ventilation grille (no text or symbols)

Line drawing of a hand holding a flat iron with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using a power iron to cut the surface of a shoe, with no text or symbols present.

HINWEIS

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 34

Informations relatives aux batteries....40

Informations relatives aux batteries

Diagram of a plug inserted into a socket, showing internal components and a cable being inserted (no text or symbols present)

Line drawing of a hand holding a handheld device with a handle and ventilation grille (no text or symbols)

Line drawing of a hand holding a flat iron with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using a power iron to cut the surface of a shoe, with no text or symbols present.

REMARQUE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 54

WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Diagram of a plug inserted into a housing component, showing internal structure and cable insertion (no text or symbols)

Line drawing of a hand holding a handheld device with a curved handle and screen (no text or symbols)

Line drawing of a hand holding an electric iron with a crossed diagonal line crossing through it (no text or symbols)

Line drawing of a hand using an iron iron to cut a shoe with a diagonal line crossing through it (no text or symbols)

OPMERKING

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....70

Diagram of a plug inserted into a housing component, showing internal structure and cable connection (no text or symbols)

Line drawing of a hand holding a handheld vacuum cleaner (no text or symbols)

Line drawing of a hand holding a device with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using an iron iron to mark the cutting edge (no text or symbols)

UPOZORNĚNÍ

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 86

Diagram of a plug inserted into a socket, showing internal components and a cable being inserted (no text or symbols present)

Line drawing of a hand holding a handheld device with a handle and ventilation grille (no text or symbols)

Line drawing of a hand holding a flat iron with crossed lines indicating diagonal lines (no text or symbols)

Line drawing of a hand using a power iron to cut the surface of a shoe, with no text or symbols present.

WSKAZÓWKA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....102

Diagram of a plug inserted into a socket, showing internal components and a cable being inserted (no text or symbols present)

Line drawing of a hand holding a handheld device with a handle and ventilation grille (no text or symbols)

Line drawing of a hand holding a device with a crossed-out line (no text or symbols)

Line drawing of a hand using a power iron to mark the intersection of two crossed lines (no text or symbols)

UPOZORNENIE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Diagram of a plug inserted into a housing component, showing internal structure and cable insertion (no text or symbols)

Line drawing of a hand holding a handheld device with a handle and ventilation grille (no text or symbols)

Line drawing of a hand holding a tool with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using a power iron to cut the surface of a shoe, with no text or symbols present.

INDICACIÓN

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....134

Anvendelsesområde 134

Pakkens indhold og transporteftersyn....134

Diagram of a plug inserted into a housing component, showing internal structure and cable insertion (no text or symbols)

Line drawing of a hand holding a handheld device with a handle and control panel (no text or symbols)

Line drawing of a hand holding a device with a diagonal line crossing through it (no text or symbols)

Line drawing of a hand using an iron iron to mark the crossed surface (no text or symbols)

BEMARK

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie

Stav informaci · Stan informacji · Stav informacií · Estado de las informaciones · Tilstand af information:

06 / 2021 · Ident.-No.: SAS7.4LID3-052021-1
