USER MANUAL ACP625 PHILIPS

Three different PAPERS standing fan models with black and white stands, no visible text or labels

-1

-1

1_

1

English 4

Français 13

23 العربية

4 English

Important

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

- Do not let any liquid or flammable detergent enter the appliance, to avoid electric shock and/or a fire hazard.

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safeway and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Take care that curtains or other objects are not sucked into the fan during operation.
• Do not insert fingers, sticks or other objects into the machine, in order to avoid electric shocks, physical injury or fire.
• Do not use the appliance near gas appliances, fireplaces.
• Do not spray any flammable materials such as insecticides or fragrance around the appliance.
• If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.

Caution

• Always place and use the appliance on a dry, stable, and horizontal surface.
• Do not use the appliance in surroundings with high humidity such as the bathroom, toilet, kitchen, swimming pool, or any outdoor environment.
• Always unplug the appliance when you want to move, clean appliance, or carry out other maintenance. After assembly, do not remove the guards during use or cleaning.
• The appliance is only intended for household use under normal operating conditions.
• Keep product away from fire and do not expose them to direct sunlight or high temperatures.
• Wear gloves when assembly or maintenance.

- Be careful not to blow the fan wind directly toward body for a long time especially for patient, infants and the elderly.

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

6 English

Your pedestal fan

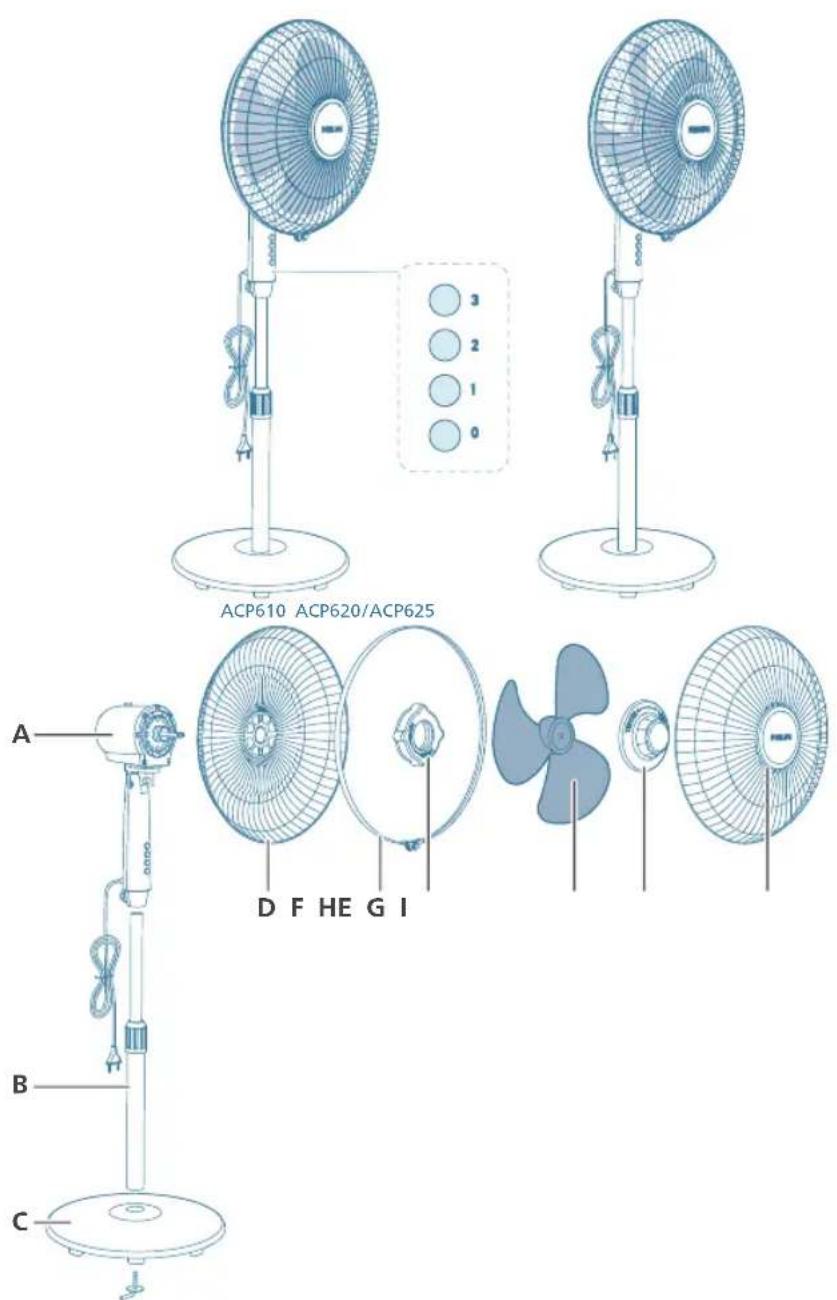

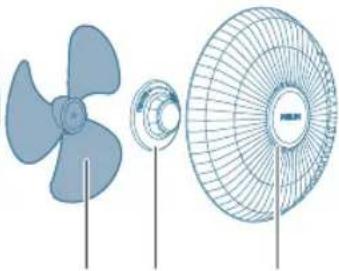

Product overview

ACP610 ACP620/ACP625 A B C D F HE G I

A Motor&upper pillar F Plastic nut
B Lower pillar G Fan blade
C Base H Spinner

D Rear grill | Front grill

E Plastic ring

Controls overview

3 2 1 0

0 Power off button 1 Fan speed 1 button

2 Fan speed 2 button 3 Fan speed 3 button

Getting started

Installing the fan

Remove all packaging of the fan before first use.

Make sure all components of the fan are correctly installed and fastened.

Diagram illustrating a medical procedure with labeled steps 1 and 2, showing a device being performed or moving a component.

1 Turn the base screw clockwise to unscrew it from the lower pillar, and insert the lower pillar into the base.

8 English

Diagram of a mechanical device with a rotating lever and directional arrows indicating motion (no text or symbols)

2 Insert the base screw, connect the base and lower pillar by turning the base screw counterclockwise.

Diagram showing a pump system with labeled components and directional arrows indicating flow or movement.

3 Rotate the spinner in a clockwise direction to fasten the motor.

Diagram of a wind turbine with labeled components and a magnified inset showing rotational direction

4 Rotate the spinner in a clockwise direction to detach it from the motor.

Diagram showing a mechanical device with force application and a magnified inset highlighting the gear shift labeled 'F'

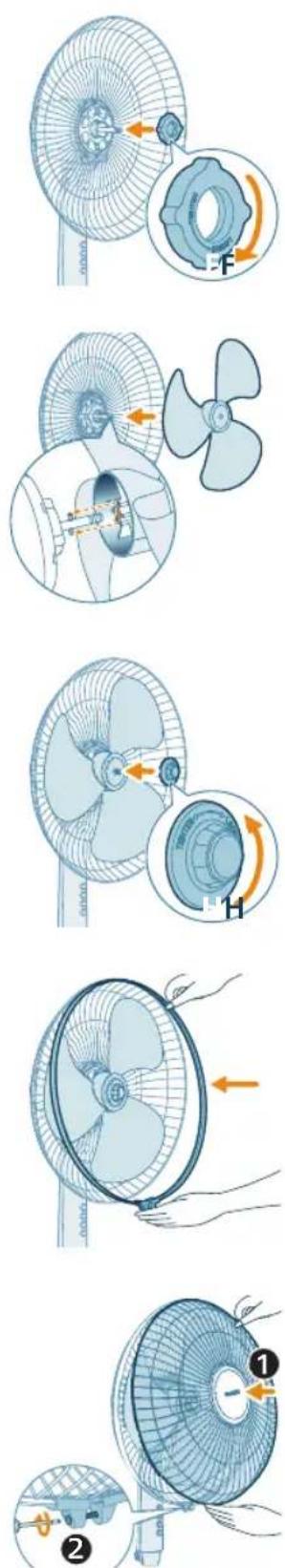

5 Turn the plastic nut counterclockwise to detach it from the motor.

Diagram of a fan assembly with motor, fan blade, and fan blade (no text or labels)

6 Secure the rear grill to the motor by aligning the mounting hole on the rear grill with the bolt on the motor.

7 Turn the plastic nut clockwise to secure the rear grill.

8 Install the fan blade as indicated in the illustration.

9 Rotate the spinner in a counterclockwise direction to secure the fan blade.

10 Install the plastic ring around the rear grill.

11 Install the front grill, make sure the plastic ring is well installed around the front grill. Align the bottom buckle on the grill and use a screw driver to securely fasten the rear and front grill together.

Using your pedestal fan

Turning on and off

Diagram of a medical or electrical device with a plug, cable, and tubing (no text or symbols)

1 Put the plug in the power socket.

Illustration of a fan with a cooling fan emitting heat, connected to a control panel with three buttons labeled 1, 2, and 3 (no text or symbols on the fan or panel)

2 Press the 1/2/3 button to switch on the fan. The appliance beeps once.

Illustration of a fan connected to a control panel with a hand holding the pointer (no text or symbols present)

3 Press the 0 button again to switch off the fan.

Changing the fan speed

2 1 2 3

- You can choose the fan speed 1, fan speed 2 or fan speed 3 by pressing the 1/2/3 button.

Oscillation

Diagram illustrating fan blade positioning with 80° angle and directional arrow, showing structural components and motion direction

Horizontal oscillation

Use the switch to turn on/off oscillation function. The fan can oscillate horizontally up to 80 degrees.

30°

Vertical oscillation

You can manually adjust the fan to oscillate up to 30 degrees vertically.

Cleaning and maintenance

Always unplug the appliance before you clean it.

Never immerse the appliance in water or any other liquid.

Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.

Illustration of a hand holding a fan with a power cord, no text or symbols present

Regularly clean the outside of the fan to prevent dust from collecting.

- Use a soft, dry cloth to clean both the exterior of the appliance and the air outlet.

Storage

1 Turn off the appliance and unplug from the power socket.
2 Clean the appliance.
3 Store the appliance in a cool, dry location.

12 English

4 Always thoroughly wash hands after cleaning.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country.

Problem Possible solution

My fan fails to turn on or off. If the appliance can't be turned on, please ensure the power plug is plugged in properly or try another power socket.
	If the appliance still doesn't work, contact the Consumer Care Center in your country.
My fan is not producing sufficient amount of air or very weak.	Ensure the appliance is set to the highest fan speed for maximum air circulation. Allow the appliance to fully circulate the air throughout the room, this may take few minutes.
	Ensure all the air inlet and outlet grilles are unobstructed.
The fan produces a strange/burnt smell. The first few times you use the appliance, it may produce a plastic smell. This is normal on new appliance. However, if the appliance produces a burnt smell, turn off the appliance and unplug immediately, then contact the Consumer Care Center in your country.
My fan is too loud. The higher the fan speed setting of the appliance, the louder the noise will be. Set to lower fan speed, the noise will be reduced.
	If anything drops into air outlet, it may also cause abnormal loud sound.Immediately turn off appliance, and get the foregin objects out of the appliance.
	If there is abnormal sound, contact the Consumer Care Center in your country.
The fan base is wobbly or vibrating. Check if the appliance is placed on the flat floor or surface.
	Check if any foreign objects beneath the appliance.
	Check if the base of the appliance is properly assembled.
	Check the chapter "Installing the fan".

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.philips.com/support.

Important

Diagram illustrating a medical procedure with labeled steps 1 and 2, showing fluid flow and mechanical components.

Français

Diagram of a mechanical device with a rotating lever and directional arrows indicating motion (no text or symbols)

Diagram showing a pump system with labeled components and directional arrows indicating flow or movement.

Diagram of a wind turbine with labeled components and a magnified inset showing rotational direction

Diagram showing a mechanical component with force application and rotation indicator labeled '-F'

Diagram of a medical or electrical device with a plug, cable, and tubing (no text or symbols)

Illustration of a fan with a hand pointing at a control panel (no text or symbols present)

Illustration of a fan connected to a control panel with a hand holding the pointer (no text or symbols present)

Diagram illustrating fan blade positioning and 80° angle measurement, showing structural change and directional shift.

Oscillation horizontale

Oscillation verticale

Line drawing of a hand holding a fan with a minus sign, next to a vertical tube (no text or symbols)

Rangement

Line drawing of a standard outdoor fan with a stand and attached cable, showing color-coded circular indicators (0 to 3) for size reference.

Line drawing of a standard outdoor fan with a stand and cord, no text or symbols present

ACP610 ACP620/ACP625

A B C

Technical line drawing of a fan with mesh blades and a central hub (no text or symbols)

Illustration of a three-blade fan and its side fan with internal grid structure (no text or symbols)

D F HE G I

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device being inserted into a container.

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or rotation.

Diagram of a wind turbine with labeled components and directional arrows indicating rotation or operation

Technical diagram showing a mechanical component with an inset view of a gear shift labeled 'F'

غلية في القاعدة.1.

Illustration of a fan with labeled parts, showing internal structure and mechanical components (no text or symbols)

بمحاناة المッチك 11

Diagram of a medical or electrical device with a power outlet, cable, and tubing (no text or symbols)

Illustration of a fan with airflow and a control panel showing three buttons (no text or symbols)

1. تية مرة واحدة

Illustration of a fan connected to a wall-mounted control panel (no text or symbols)

شفيل المروحة.3.

تغيير سرعة المروحة

Diagram illustrating fan blade positioning and 80° angle measurement, with magnified view of blade structure

30°

الأرجح

التأرجح الأفقي

Illustration of a hand holding a fan with a power cord, no text or symbols present

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2024 © Versuni Holding B.V.
