USER MANUAL RAT24AMAASR Dacor

Installation Instructions

Undercounter Refrigeration

DRW24G7500** / DRR24G7400**

Contents

Before You Begin 4

Important

4

Important Safety Instructions 5

State of California Proposition 65 Warning (US only) 5

General Safety Precautions 6

Safety and Warning Information 10

Installation Safety 10

Installation Specifications 12

Installation Options 13

Product Specifications 14

Handle Specifications 16

Installation 17

Installation Requirements 18

Grounding the Under Counter Refrigeration 18

Installation Specifications for Built-in Purposes 19

English2

Installation Instructions 21

Moving the Under Counter Refrigeration 21

Installation Preparation 22

Handle Installation 22

Product Built-in Installation 23

Kitchen Cabinet Built-in Size Suggestion 26

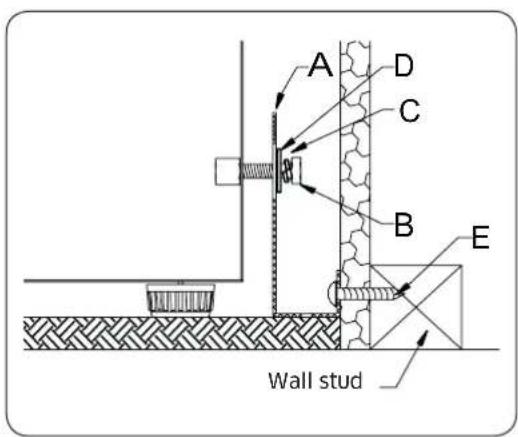

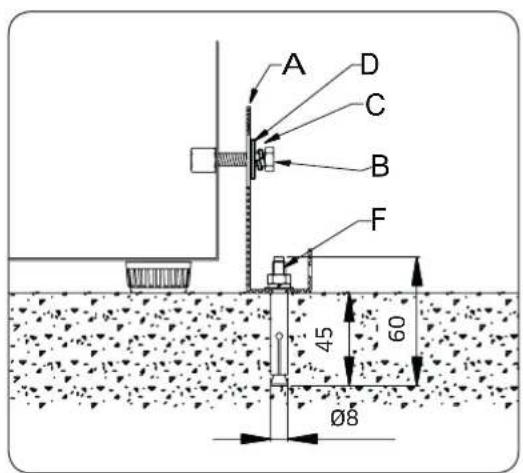

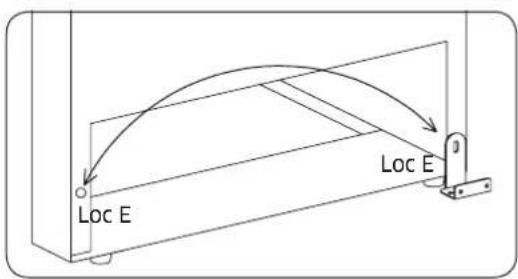

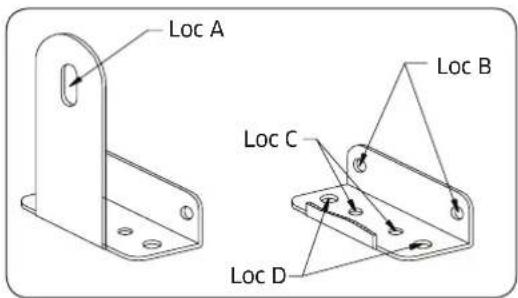

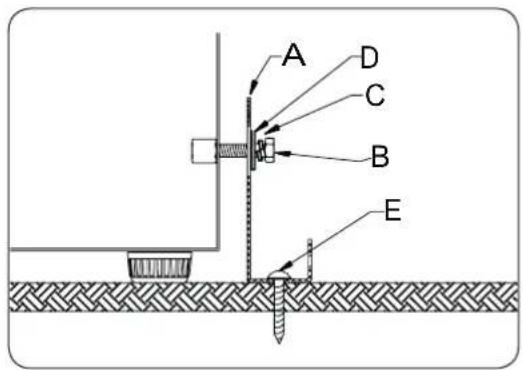

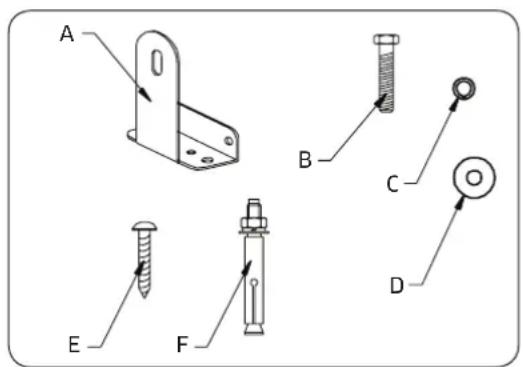

Installing the Anti-Tip Bracket for Free Standing 29

Integrated Panel 32

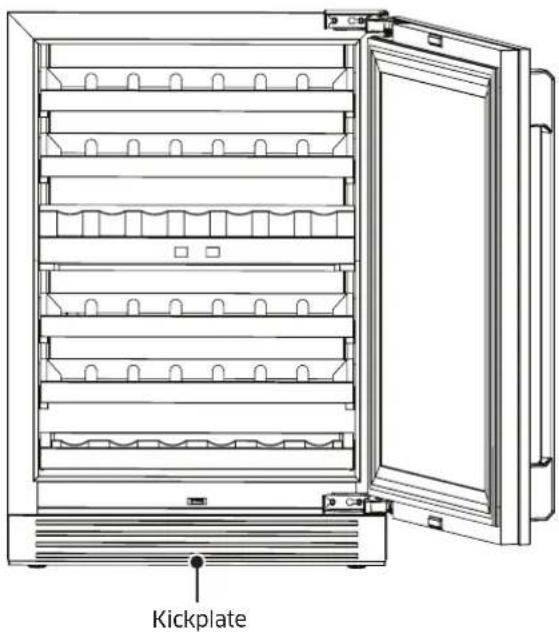

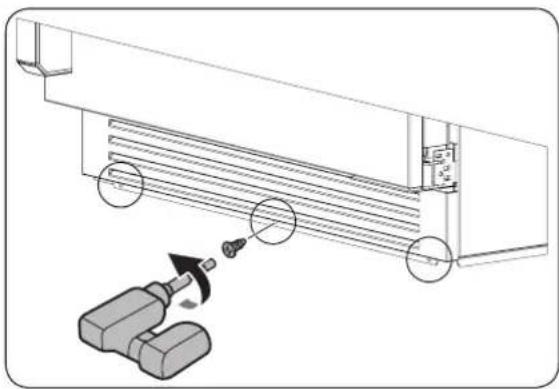

Kickplate 34

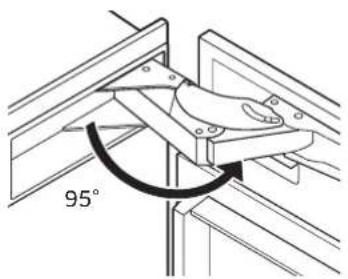

Adjusting the door Opening Angle 36

Cleaning 36

Installation Checklist 37

Before You Begin

Important

DRW24G7500** DRR24G7400**

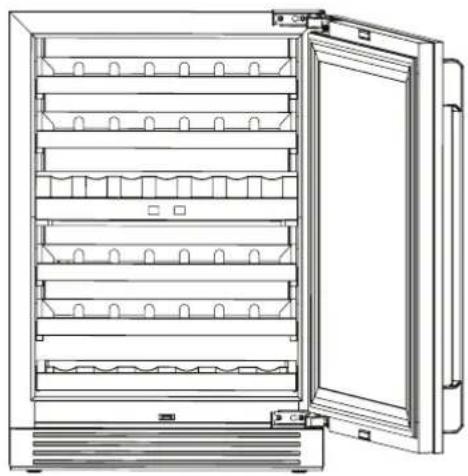

Line drawing of a refrigerator with multiple compartments and one door open (no text or symbols)

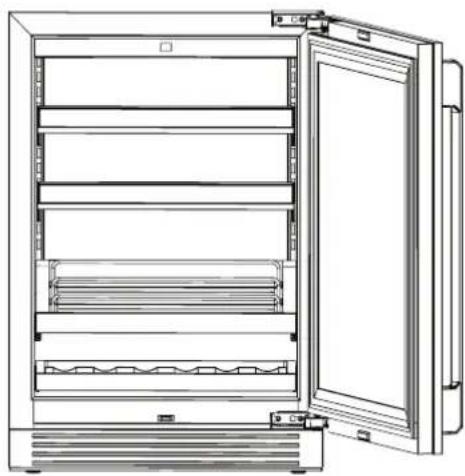

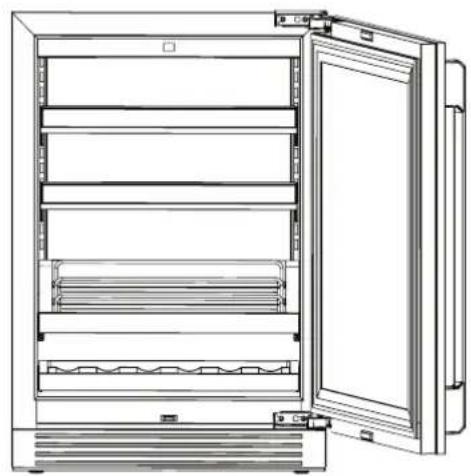

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Installer

• To promote safety and minimize problems, read this manual thoroughly before starting the installation. Leave this manual with the user.
• Write the appliance's model/serial numbers in this manual for service/maintenance reference.
• Model/serial numbers are on the data label in the Under Counter Refrigeration compartment.

User

- Keep this manual for personal reference and for that of inspectors, service personnel, etc.

NOTE

The overall design and/or accessories may differ with the model.

SAVE THESE INSTRUCTIONS

English4

Important Safety Instructions

The Important safety instructions and warnings in these instructions are not meant to cover all possible problems and conditions that can occur.

Use common sense and caution when installing, maintaining, or operating this or any other appliance.

Always contact the Dacor Customer Assurance Team about problems and conditions that you don't understand.

Safety symbols and labels

These alerts are meant to bring attention to important areas in the manual.

Whenever you see these symbols or labels, read the message carefully before continuing.

DANGER

Immediate hazards that WILL cause severe personal injury or death.

WARNING

Hazards or unsafe practices that MAY cause in severe personal injury or death.

CAUTION

Hazards or unsafe practices that MAY cause in minor personal injury or property damage.

State of California Proposition 65 Warning (US only)

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

English 5

Important Safety Instructions

⚠ WARNING - R600a Refrigerant

This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental compatibility; however, it is also flammable. Please adhere to the warnings below

• When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
• Servicing shall be performed by manufacture-authorized service personnel and component parts shall be replaced with manufacturer-authorized replacement components.
• Refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal.
• Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft ^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and avoid placing near any electric appliances or heat source, e.g. stove, cooktop, oven, or radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Do not use mechanical devices or other means to accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartment of the appliance.

General Safety Precautions

! DANGER

IMPORTANT:

To prevent child entrapment and suffocation when discarding an old appliance:

• Take off the door(s).
- Leave the racks in place so children cannot easily climb inside.
- Cut the prongs off the power plug and discard them.
- Cut the power cable off and discard it separately from the old appliance.

SAVE THESE INSTRUCTIONS

English6

To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas.

WARNING

IMPORTANT: This appliance is equipped with a three-prong grounding electric plug for protection against possible electric shock hazards. It must be plugged into a dedicated, grounded, electrical outlet. If only a two-prong electrical outlet is available, it is the responsibility of the customer to have it replaced with a dedicated, properly grounded three-prong electrical outlet.

• Do not kink or pinch the power supply cord of the appliance.
• Never unplug the appliance by pulling on the power cord.
  • Always grip the plug firmly and pull straight out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it.

- A qualified service technician should perform all other services.

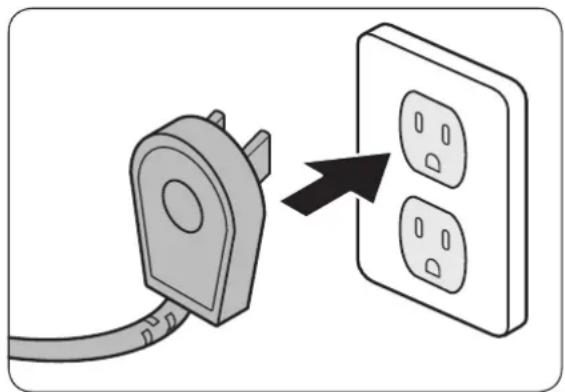

Illustration of a plug connected to a wall socket with three socket slots, showing an arrow pointing to the socket (no text or symbols present)

DO NOT cut or remove the third (ground) prong from the power cord.

DO NOT use an adapter plug.

DO NOT use a power cord that is frayed or damaged.

DO NOT connect the appliance to an extension cord. Keep the power cord away from heated surfaces.

NOTE

• Use of an electrical outlet with a ground.
• Use of an electrical outlet with a ground fault interrupter (GFI) is not recommended.

SAVE THESE INSTRUCTIONS

English 7

Important Safety Instructions

WARNING

• To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:
• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance.
• Make sure that this appliance has been properly installed according to these installation instructions.
• Make sure to install in outlet locations according to electric supply location.
• Refrigeration equipment and refrigerants must be properly disposed of in a professional and appropriate way, in accordance with the current local regulations and laws which protect the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life. DO NOT dispose of the appliance in a landfill or with urban waste. Contact local waste disposal centers for information on how to dispose of recyclable waste.
  • Take care when handling, moving, using or disposing of the appliance to avoid damaging the refrigeration system.
• Do not install or use outdoors or in wet conditions. This appliance is not designed for installation in a recreational vehicle or boat.
• Keep packaging materials away from children. Plastic sheets and bags can cause suffocation.
• Connect this appliance to a 115 V, 15 A. circuit that is controlled by a circuit breaker or fuse. This appliance should have its own separate grounded circuit.
• Do not kink or pinch the power supply cord of the appliance. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other services.
• Before performing any type of service, switch power off at the circuit breaker panel.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory abilities, or lack of experience and knowledge, unless they are properly supervised by a person responsible for their safety. Children must be supervised for their safety.
• Never allow anyone, including children to sit, stand or climb on any part of the appliance, including the door. Doing so may cause damage, serious injury or death.

SAVE THESE INSTRUCTIONS

English8

• If the power cord is damaged, it must be replaced by the manufacturer or a qualified service technician in order to avoid a safety hazard. Do not tamper with the controls.
• Clean this appliance regularly as instructed in the Care and Cleaning section of the User manual. Clean the ice bucket or drawer regularly.
• When the freezer is functioning, do not touch the inner stainless steel surfaces with wet or damp hands, since skin may stick to the very cold surfaces.
• Do not use any type of electrical equipment inside the under counter refrigeration compartments.
• Do not obstruct any of the vents or openings on the appliance.
• To avoid risk of the appliance tipping over it is mandatory to secure the appliance to the wall by means of the two supplied anti-tip brackets.
• Use this appliance only for its intended purpose: the storage of food and beverages. It is not intended for commercial or industrial use.
• Be careful when installing electrical component box is damaged or not by the shock departure.
• Hold the handle when opening and closing the door.
• When you open and close the door, be careful not to put your hands in the doorway.

SAVE THESE INSTRUCTIONS

English 9

Safety and Warning Information

Installation Safety

WARNING

• Before installing the under counter refrigeration, connect it to a power outlet and turn the under counter refrigeration ON to make sure the under counter refrigeration is working.
• Choose a location away from a heater, boiler, or direct sunlight.
  • Install the unit where air flows freely and where the under counter refrigeration is well ventilated.
  • Install the unit so that air flows unobstructed through the front air grill. If the air circulation is not ensured, it may interfere with the normal functioning of the product.
• Outside animals (rodents) can chew on the power cord and cause a fire; therefore, install the unit where there is no access to animals.
• If the cabinet is made of soft material (ex: plaster, etc.), it can have a weak structure and be damaged. Therefore, use a cabinet made of sturdy, strong material.
  • Install the under counter refrigeration with a team of at least 2 people.
• Refer to the dimensions of the cabinet and prepare the cabinet with good air circulation.
• Use cabinet that will not warp from product heat emissions or humidity from the opening and closing of the under counter refrigeration.

NOTE

This under counter refrigeration is a “built-in” style under counter refrigeration, meaning that the under counter refrigeration requires installation inside a recess in existing kitchen cabinetry.

Before moving the under counter refrigeration, clear the route to the location where it will be installed.

Check all product dimensions and the tipping radius with any doorways, hallways, stairs, corners, etc., to ensure a clear passageway.

English10

WARNING

Tip Hazard

This appliance is relatively heavy on the top and prone to tip over when not securely installed.

Keep doors taped closed until under counter refrigeration is in its final position and ready to be secured in place.

Use two or more people to move and install under counter refrigeration.

Failure to do so can result in death or serious injury.

DANGER

Three identical black spiky spikes on a white background, no text or symbols present

Explosion Risk

Keep flammable materials and vapors - such as gasoline - away from the under counter refrigeration.

Failure to do so can result in death, explosion, or fire.

Installation Specifications

⚠ WARNING

Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information.

⚠ WARNING

Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes.

This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only.

The appliance features a lighting system with high intensity LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.

English12

Installation Options

There are many different installation options.

These are limited only by the design of the kitchen.

Individual appliance

OK OK X

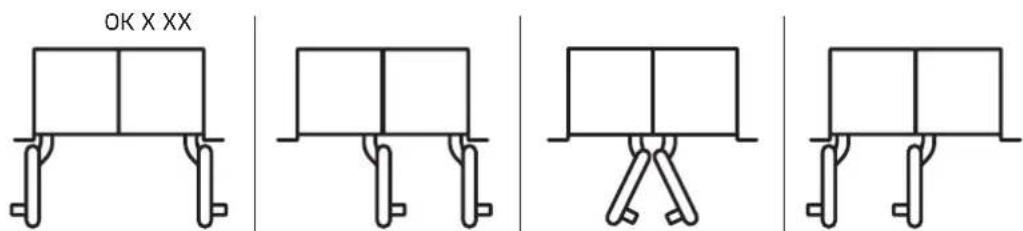

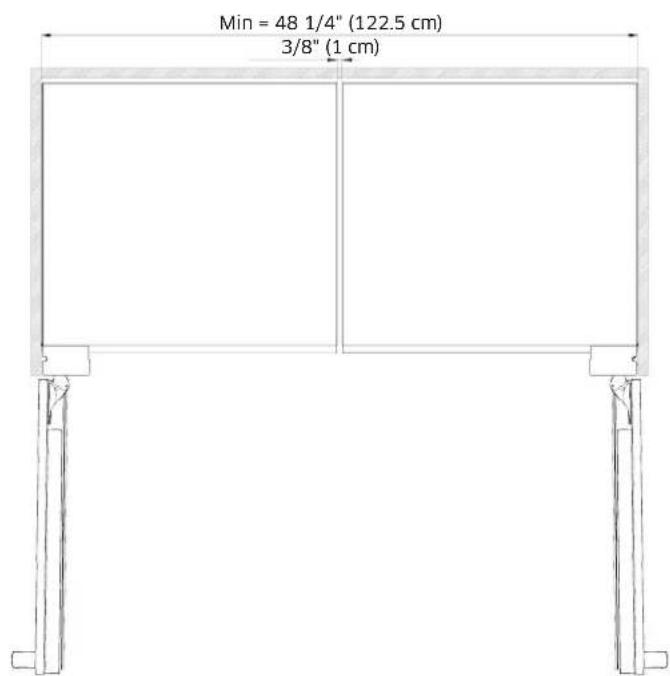

Side-by-Side (Pair)

OK X XX

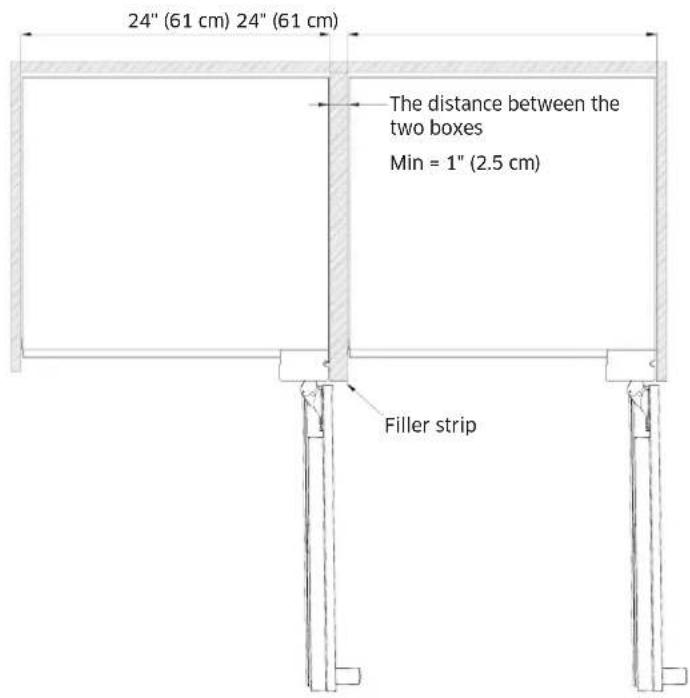

Individual appliances with partition

1" (2.5 cm) 1" (2.5 cm) OK OK

Case 1

NOTE

• The minimum thickness of the partition is 1" (2.5 cm).
- At more than 1" (2.5 cm), the door swing can open same direction and door open angle is 90 degree as case 1.
- Partition thickness is dependent on handle depth. Dimension above is acceptable for Dacor handles.

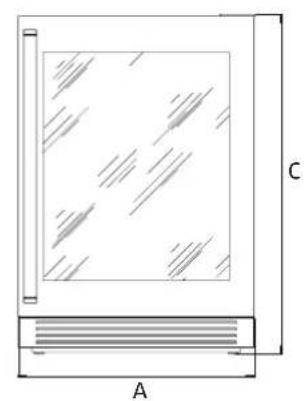

Product Specifications

B1 B

Technical line drawing of a rectangular frame with diagonal hatching pattern and labeled dimensions A and C (no text or symbols beyond labels)

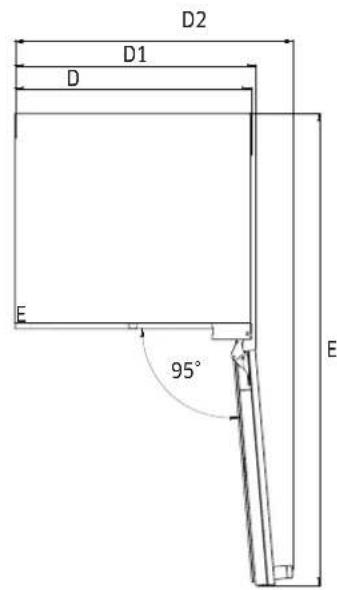

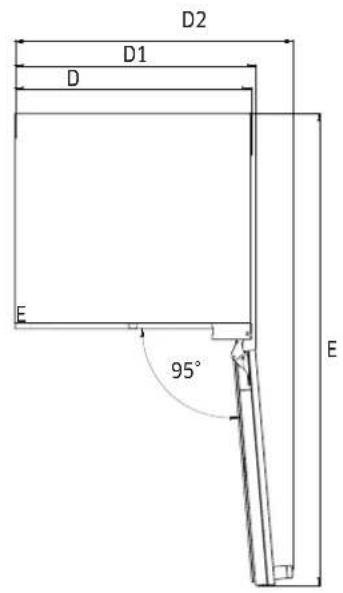

D2 D1 D E 95° E

Callout
A 23 3/4" (603 mm)
B (With Panel)	23 5/8" (600 mm)
B1 (Without Panel) 22 7/8" (581 mm)
C	34 3/16"-34 3/8"(868mm-873 mm)
D	23 13/16" (605 mm)
D1 24 5/16" (617.5 mm)
D2 28" (712.5 mm)
E 50 13/16" (1290 5 mm)

English14

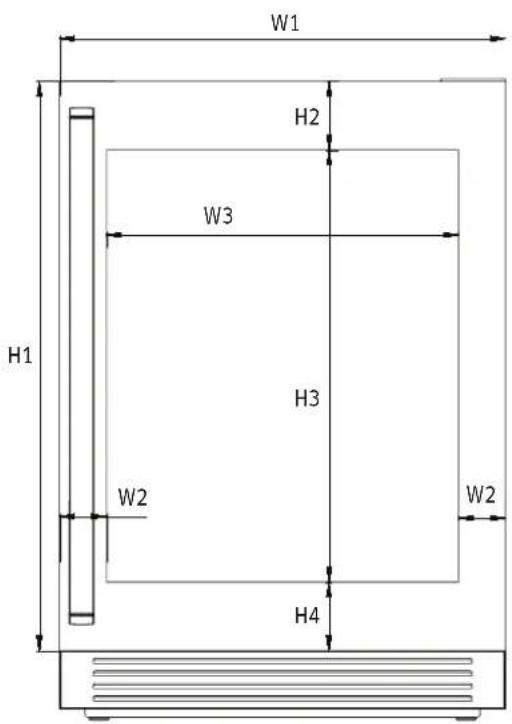

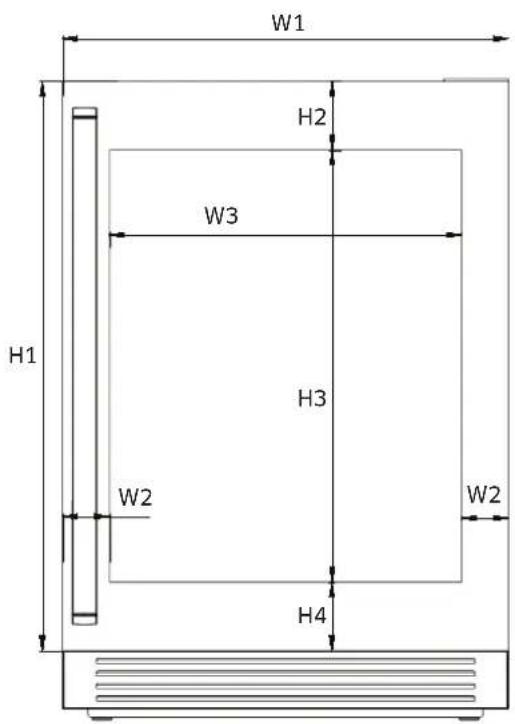

W1 H2 W3 H1 H3 W2 W2 H4

Callout
W1	23 3/4" (603 mm)
W2	2 3/8" (60 mm)
W3	18 11/16" (477 mm)
H1	30 3/8" (771 mm)
H2	3 3/8" (86 mm)
H3	23 9/16" (598 mm)
H4	3 3/8" (86 mm)
Panel Thickness	3/4" (19 mm)
Custom Panel	23/32"-25/32"(18mm-20mm)
Max Weight	22.0 lb (10 kg)

Product Specifications

Handle Specifications

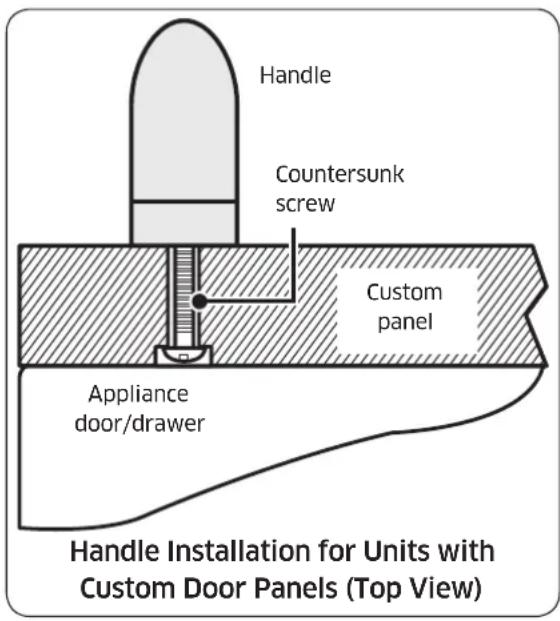

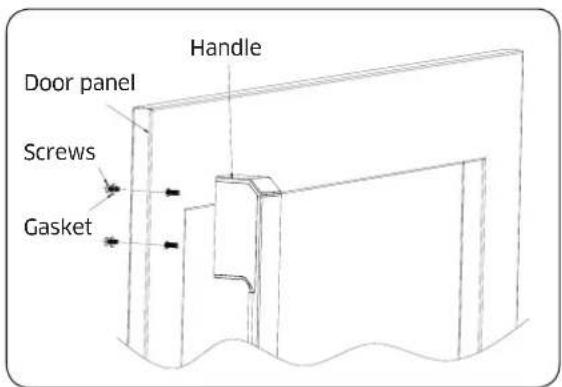

Handle Countersunk screw Custom panel Appliance door/drawer Handle Installation for Units with Custom Door Panels (Top View)

Before installing the custom panels, you must first install the door/drawer handles. With custom panel models, you have the advantage of being able to select a handle style that meets your own personal taste. Handles are not provided with custom panel models. Selected handle kits are available through your Dacor dealer. Dacor does not advise the use of single pull knobs.

The panel craftsman needs to select and purchase the required fasteners for the installation. The screw heads must be countersunk into the panel to prevent interference during depth adjustment.

CAUTION

We recommend installing a handle for a custom panel. Without the handle, you may catch your fingers in the door when opening or closing the door.

English16

Installation

WARNING

Do not install the appliance:

• outdoors,
  • in an environment with dripping water.

Appliance is very heavy :

Under Counter Refrigeration 24" approx. 154 lb / 70 kg

Installation room

The appliance should be installed in a dry, ventilated room.

Secure installation

The appliance is very heavy and has a tendency to tilt forwards when the appliance door is opened.

Do not open the door until there is no possibility of the appliance tipping over.

The most secure way to install the appliance is to use the supplied anti-tipping devices.

Floor

The subsurface must be level and even in order to ensure that the appliance is securely installed and works correctly.

The subsurface must be made from a hard, non-flexible material to cover the weight of appliance.

Aligning the appliance

To ensure that the appliance functions correctly, it must be levelled properly.

Glass door

When moving or installing the appliance, be careful not to damage the glass door.

Installation Requirements

Grounding the Under Counter Refrigeration

CAUTION

Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes.

This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only.

Illustration of a plug connected to an electrical outlet with three socket slots (no text or symbols)

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD. DO NOT USE AN ADAPTER PLUG TO CONNECT THE UNDER COUNTER REFRIGERATION TO A 2-PRONG OUTLET. DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.

WARNING

Electric Shock Hazard

Plug into a grounded, dedicated 3-prong outlet.

Do not remove the ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electric shock.

English18

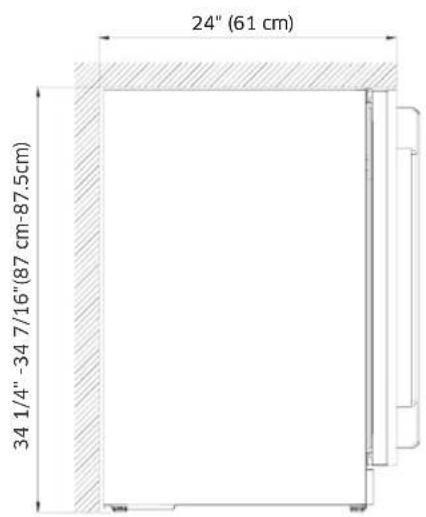

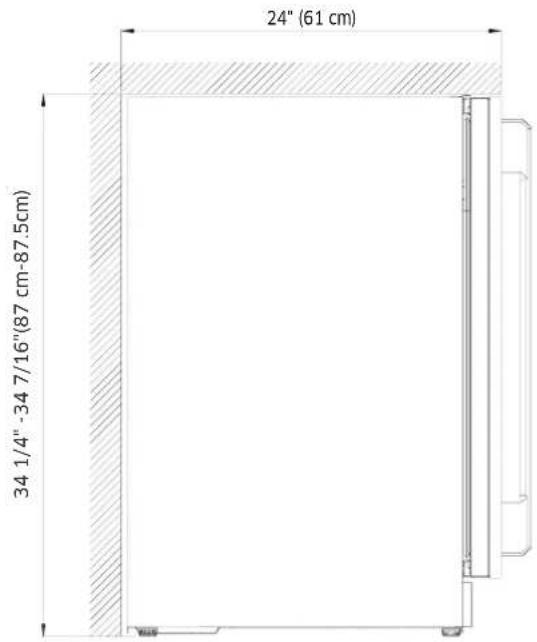

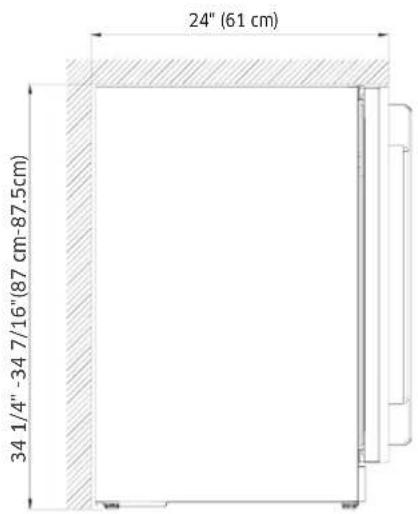

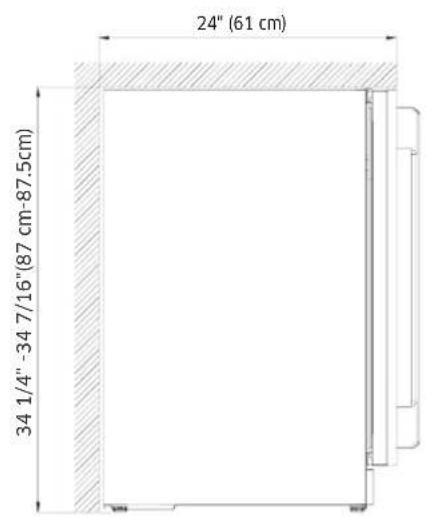

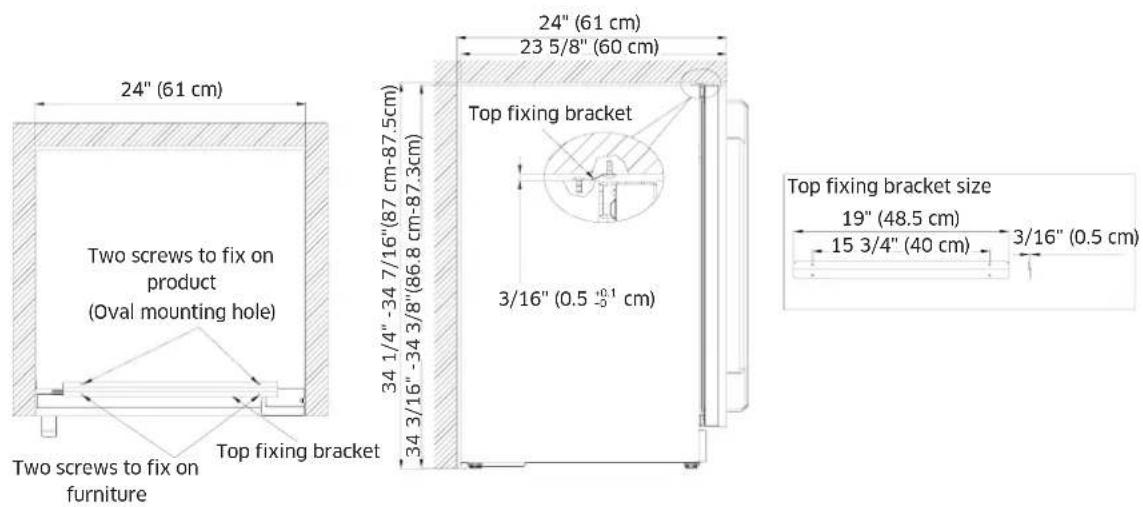

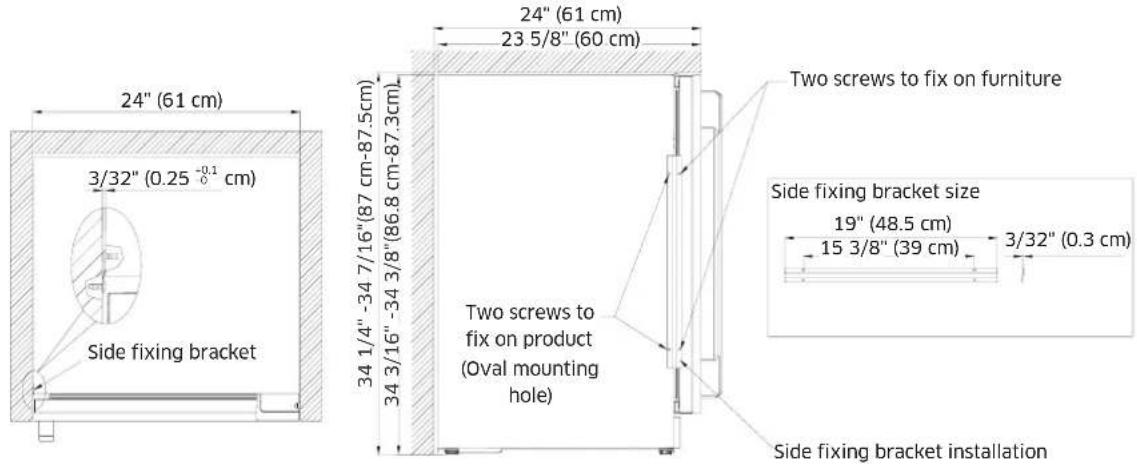

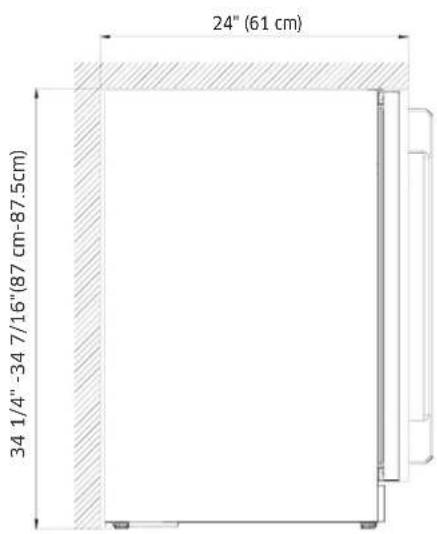

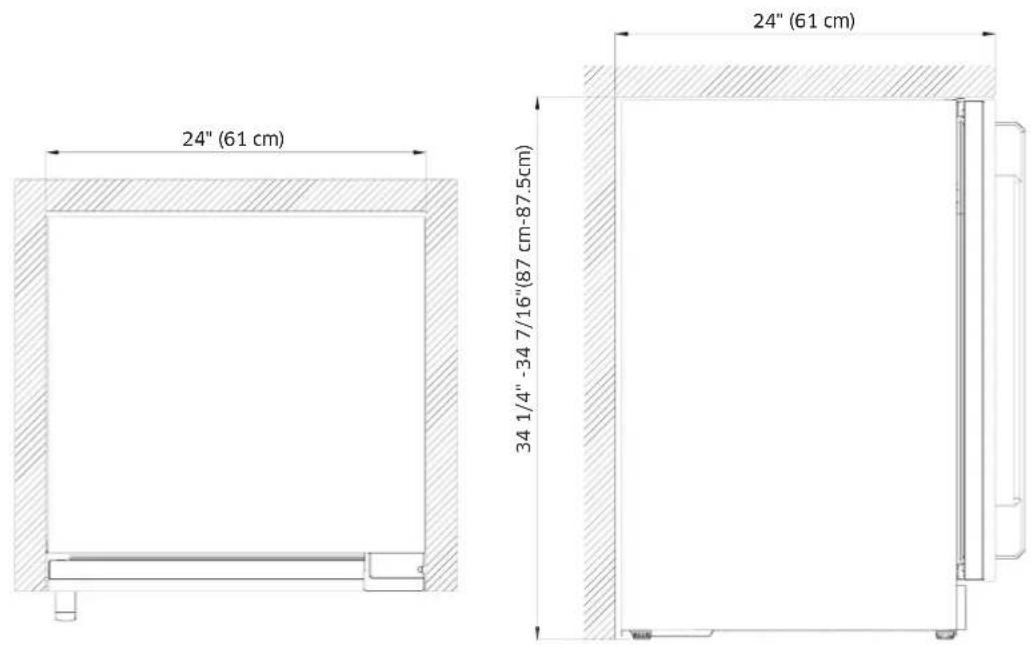

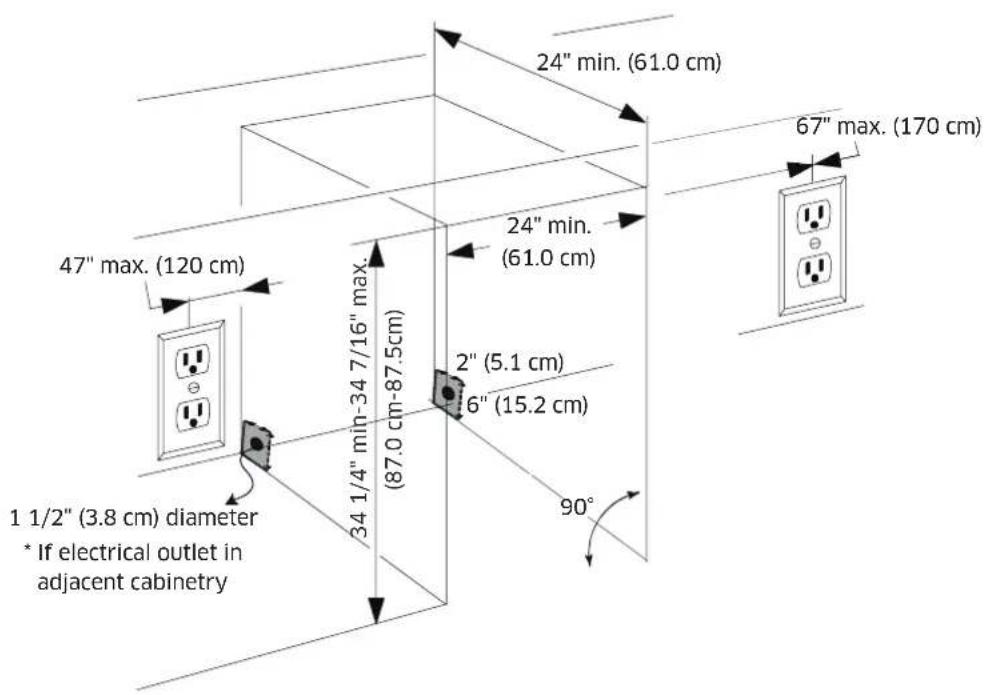

Installation Specifications for Built-in Purposes

24" min. (61.0 cm) 47" max. (120 cm) 34 1/4" min-34 7/16" max. (87.0 cm-87.5cm) 24" min. (61.0 cm) 2" (5.1 cm) 6" (15.2 cm) 90° 67" max. (170 cm) 1 1/2" (3.8 cm) diameter * If electrical outlet in adjacent cabinetry

Preparing the enclosure

Gloves and safety goggles should be worn during installation.

It is not recommended to install the appliance into a corner or directly beside a wall.

The door will need to be opened more than 90° to allow full extension of the shelves.

If it is necessary to place the unit next to a wall or in a corner, leave at least 4 inches

(10 cm) of space between the wall and the appliance to allow for the door opening.

The cabinet opening must be at least 24 inches (61 cm) wide by 34.3 inches (87 cm) high by 24 inches (61 cm) deep.

NOTE

The listed depth requirement is assuming that the electrical outlet is located in the adjacent cabinetry or flush mounted in the rear wall, not surface mounted inside the enclosure.

If the electrical outlet is located inside adjacent cabinetry, cut a 1.5 inch (3.8 cm) diameter hole to admit the power cord. If the cabinet wall is metal, the hole edge must be covered with a bushing or grommet.

If the electrical outlet is in the same opening as the rear wall, a 1 11/16inch (43 cm) gap is needed. The minimum depth of the opening is 643mm.

Installation Requirements

Required tools

Line drawing of a pair of safety glasses (no text or symbols)

Line drawing of a measuring tape (no text or symbols)

L-shaped ruler with measurement markings, no text or symbols present

Safety goggles Tape measure Carpenter square

Line drawing of two hands clasped together, no text or symbols present

Line drawing of a drill bit with a separate power plug (no text or symbols)

Line drawing of a flashlight with a bulb and handle (no text or symbols)

Gloves Electric drill with hole bit Flashlight

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Level

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

English20

Installation Instructions

Moving the Under Counter Refrigeration

WARNING

The appliance is very heavy. When moving the under counter refrigeration, all personnel must take care not to injure themselves or the appliance.

1. Secure the under counter refrigeration to a suitable means of transport (preferably an appliance dolly), and move the under counter refrigeration near its installation cabinet.
2. Move and install with a minimum of two persons.
3. Be very careful to avoid floor damage. Delicate flooring should be protected with plywood, hard cardboard, or similar material.
4. Before moving the under counter refrigeration, verify that it will fit through all door openings, stairwells, and overhead obstructions.

- TIPPING HAZARD: The under counter refrigeration is large, heavy, and tips easily when not secured. Always move the under counter refrigeration in an upright position if possible. If not, move the under counter refrigeration on its back. Secure the doors shut during transport.

WARNING

Be careful that electrical component box is not damaged when installing.

OK (Recommended)

Installation Instructions

Installation Preparation

Unpack installation materials and accessories. See the Installation preparation section on Installation Requirement chapter.

Handle Installation

Handle Door panel Screws Gasket

Before attaching the door panel to the door, install the handle onto the panel. Fasten the handle with four screws using a screwdriver.

English22

Product Built-in Installation

NOTE

This product can be installed as Bulit in or Free Standing.

Need to select at least one of the following installation methods to install the product. These screws will keep the product secure and help prevent it moving when in use.

Fixing the Side Fixing Bracket

1. Take out 1 piece of bracket and screws from spare part plastic bag;
2. Use two screws to fix bracket on product's handle side, and push in product into kitchen cabinet;
3. Use two screws to fix bracket on kitchen cabinet.

24" (61 cm) 23 5/8" (60 cm) 3/32" (0.25 -0.1 cm) Side fixing bracket 24" (61 cm) 34 1/4" -34 7/16" (87 cm-87.5cm) 34 3/16" -34 3/8" (86.8 cm-87.3cm) 34 1/4" -34 7/16" (87 cm-87.5cm) 34 3/16" -34 3/8" (86.8 cm-87.3cm) Two screws to fix on furniture Two screws to fix on product (Oval mounting hole) Side fixing bracket size 19" (48.5 cm) 15 3/8" (39 cm) 3/32" (0.3 cm) Side fixing bracket installation

Installation Instructions

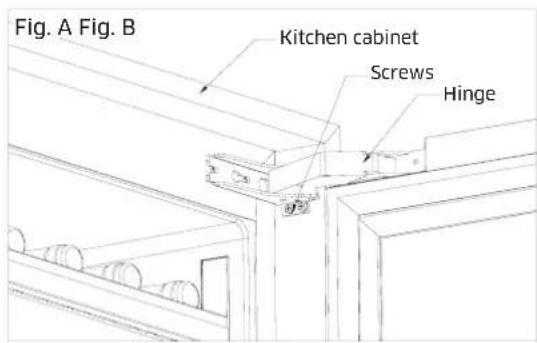

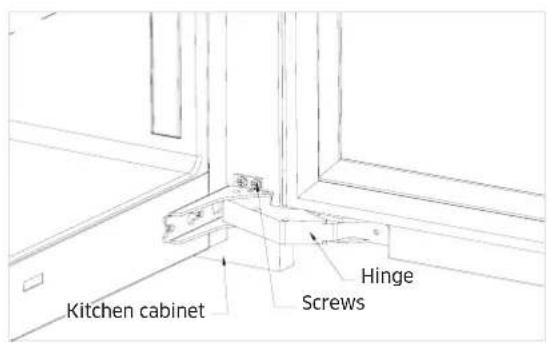

Fixing the Hinges

On the hinge side of the products, the hinges include screw holes that allow you to secure the cabinet to the hinge side of the kitchen cabinet. Locate these holes as below drawings.

1. Take out 4 piece of screws from spare part plastic bag;
2. Push in under counter refrigeration into kitchen cabinet;
3. Use screws to fix product on kitchen cabinet by hinge as below drawing.

Fig. A Fig. B Kitchen cabinet Screws Hinge

Kitchen cabinet Hinge Screws

English24

Fixing the Top Side Bracket

1. Take out 1 piece of bracket and screws from spare part plastic bag;
2. Use two screws to fix bracket on product's top side, and push in product into kitchen cabinet;
3. Use two screws to fix bracket on kitchen cabinet.

24" (61 cm) 23 5/8" (60 cm) 24" (61 cm) Top fixing bracket 3/16" (0.5 -0.1 cm) 34 1/4" -34 7/16"(87 cm-87.5cm) 34 3/16" -34 3/8"(86.8 cm-87.3cm) Top fixing bracket Two screws to fix on product (Oval mounting hole) Two screws to fix on furniture Top fixing bracket Top fixing bracket size 19" (48.5 cm) 15 3/4" (40 cm) 3/16" (0.5 cm)

NOTE

The above fixing methods are suitable for wooden kitchen countertop. If it is marble kitchen, it is necessary to drill holes on the marble cabinet first and add expansion rubber plugs.

1. Choose at least one of the above fixing methods. If use bracket to fix, need to install bracket on the product first;
2. Push the product into the kitchen cabinet and adjust it to a suitable position. Then use a pen to mark the position of the bracket screw holes that needs to be drilled.
3. Drill a hole in the marked position of marble kitchen countertop and insert an expansion rubber plug.
4. Use screws to fix bracket/hinges on marble kitchen countertop.

Installation Instructions

Kitchen Cabinet Built-in Size Suggestion

Single Product Built-in

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm) 24" (61 cm)

Leveling the refrigerator

Pure diagram of a rotating mechanical component with bidirectional arrows indicating rotation (no text or symbols)

1. Using adjuster shown below, adjust each of the refrigerator's adjuster shafts in turn, and level therefrigerator. (CW ↓, CCW ↑)
2. Adjust the gap between the furniture and Refrigerator top cover to 1/8 in.(3 mm).

CAUTION

• The front and rear leveling legs have a maximum height adjustment of 19/32" (15mm).
• To further raise the refrigerator, put the refrigerator on top of a sheet of plywood orrunners.

English26

Side By Side Built-in Installation - Door open to different side

Min = 48 1/4" (122.5 cm) 3/8" (1 cm)

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm)

Installation Instructions

Side By Side Built-in Installation - Door open to same side

24" (61 cm) 24" (61 cm) The distance between the two boxes Min = 1" (2.5 cm) Filler strip

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm)

English28

Installing the Anti-Tip Bracket for Free Standing

WARNING

This appliance may tip when shelves are extended, causing damage or injury. If this appliance is used free-standing, the anti-tip bracket must be installed according to these instructions!

Anti-tip bracket parts list:

A B C D E F

A	Anti-tip bracket (1pc)
B	Hexagon bolt (1pc)1/4" x 3/4" (6 mm x 20 mm)
C	Lock washer (1pc) (6)
D	Flat washer (1pc) (6)
E	Screw (2pcs) (ST4x35)
F	Expansion screw (1 pc)1/4" x 2.4" (6 mm x 60 mm)

Secure the bracket with the screws provided.

Anti-tip bracket installation

The bracket can be installed at the bottom left or bottom right of the back of the unit, whichever is convenient for you.

Installation Instructions

Anti-tip bracket mounting hole instructions

Loc A Loc B Loc C Loc D

Loc E Loc E

Location A	Fixed mounting hole for unit
Location B	Fixed mounting holes for drywall
Location C	Fixed mounting holes for wood floor
Location D	Fixed mounting holes for concrete floor
Location E	Mounting hole on the back unit

NOTE

Determine the final location of the appliance before attempting to install the bracket. You will need to choose one of the three installation methods below.

Drywall installation:

A D C B E Wall stud

1 After you have chosen the installation location, place the bracket on the floor with Loc B against the wall and use screws (E) (2pcs) to secure the bracket to the wall.
Ensure at least one screw is secured into a stud.
2. Move the unit to align Loc E with bracket Loc A, and secure it with the bolt (B), lock washer (C), and flat washer using the wrench.

NOTE

The screws must enter into a wood stud. If the wall contains metal studs or similar materials, then floor installation must be used

English30

Wood floor installation:

A D C B E

Concrete floor Installation:

A D C B F 45 60 Ø8

1. After you have chosen the installation location, place the bracket on the wood floor and use screws (E) (2pcs) to align Loc C and secure the bracket into the wood floor.

2. Move the unit to align Loc E with bracket Loc A and secure with the bolt (B), lock washer (C) and flat washer (D).

3. After you have chosen the installation location, choose any hole in Loc D to secure the bracket into the concrete floor.

4. Using a concrete bit, drill an 3/8" (8 mm) pilot hole 1.7"-2" (45-55 mm) deep. Remove the nut, spring washer and washer for the expansion screw.

5. Carefully tap the expansion screw into the concrete using a hammer or mallet.

6. Align Loc D and secure the nut, spring washer and washer tightly back onto the expansion screw and affix it to the concrete floor.

7. Move the unit to align Loc E to bracket Loc A and secure with the bolt (B), lock washer (C) and flat washer (D).

CAUTION

Check the bracket: After installing the bracket, try using light force to tip the unit. If the unit does not tip, then the brackets are mounted securely. If the unit does tip, the bracket must be reinstalled according to these instructions.

Installation Instructions

Integrated Panel

Dimensions

NOTE

• Due to differences in surrounding cabinetry, the panel may not perfectly align with the door. The procedure below is designed to provide a finished integrated panel that seamlessly integrates with surrounding cabinetry.
• Panel Preparation: a full integrated door panel completely covers the door frame so it appears built-in.

• The door panel must not weigh more than 22 lbs (10 kg). It is important to ensure that all holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.

• Cut the panels to the dimensions listed in the diagram below.

• Optional: Stain or finish the panel to your desired stain or color. Be sure to closely follow the instructions provided by the manufacturer.

• Optional: Install handles and hardware.

Door base Door panel

23 11/16" (60.1 cm) 23 3/4" (60.3 cm) 6 3/8" (16.1 cm) 6 3/8" (16.1 cm) (22.1 cm) 8 11/16" (22.1 cm) 4 5/16" (10.9 cm) 4 5/16" (10.9 cm) 3/4" (1.9 cm) 3/4" (1.9 cm) 30 5/16" (67.9 cm) 1 9/16" (3.95 cm) 15 11/16" (40 cm) Ø11/16" (0.7 cm) 2 3/16" (5.5 cm) 2 3/8" (6.0 cm) 3 3/8" (8.5 cm) 30 3/8" (77.1 cm) 1 9/16" (3.95 cm) 15 11/16" (40 cm) Ø1/4" (0.2 cm) 3 3/8" (8.6 cm) 3/4" (1.9 cm)

NOTE

• The appliance will need up to (870 mm) below the underside of the counter to leave room for leveling adjustments.
• When applying an integrated frame to a unit, ensure that both sides are finished in order to prevent warping. In some frame installations, the panel may be visible through the glass while the door is open.

English32

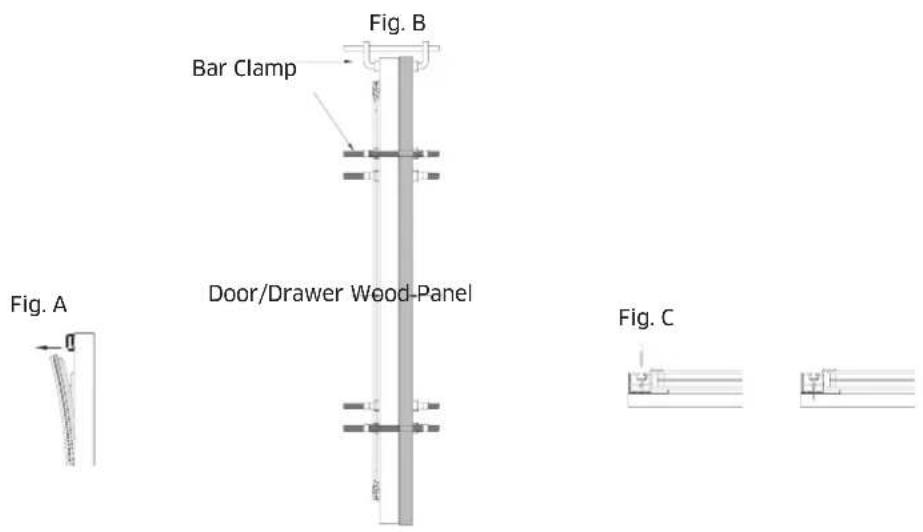

How to install the integrated panel

1. Fully open the door.
2. Starting at the corner, pull the gasket away from door as in Fig A.
3. Continue to pull the gasket free from the gasket channel.
4. Upon removal, lay the gasket down on a flat surface.
5. Secure the integrated panel to the door using clamps as in Fig. B. Durable tape may also be used. Bar clamps may be used to secure the panel to the door. If using tape, be certain the tape will not damage panel finish upon removal.
6. Using a 7/64" (3 mm) drill bit, drill 6 pilot holes 1/2" (12 mm) deep into the wood panel using the holes in the door frame as a guide.

NOTE

It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardwood is installed.

1. Locate 6 of the M4x34 mm screws provided with your unit.
2. Using a Phillips screwdriver, place one screw into each of the 6 pilot holes and screw down as in Fig. C. Do not overtighten screws.
3. Ensure the screws sit flush against the bottom of the channel. Remove the clamps from the door.

NOTE

If a panel requires additional adjustment after removing clamps, slightly loosen each screw and adjust the panel as necessary. Tighten screws upon completion.

1. Starting at the corners, re-install the gasket into the gasket channel in the frame. Make sure the gasket is fully seated.

Fig. B Bar Clamp Door/Drawer Wood-Panel Fig. A Fig. C

Installation Instructions

Kickplate

Removing 3 screws and lifting up from the bottom side, you can easily disassemble the Kickplate.

Line drawing of a refrigerator with an open door and labeled kickplate (no text or symbols on the diagram itself)

Kickplate M4x8 3 ea

English34

Removing Kickplate

Technical line drawing of a vehicle chassis with wheels and a disassembled component below (no text or symbols)

Remove the bottom three screws, and remove the kickplate.

WARNING

Do not use impact drill. Can cause damage.

Installation Instructions

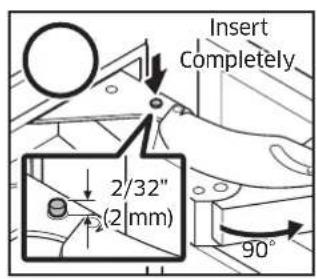

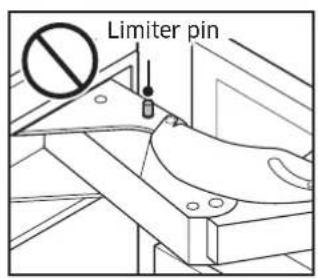

Adjusting the door Opening Angle

By factory default, the door opens by 95 degrees. You can use the limiter pin to adjust the opening angle down to 90 degrees, depending on the installation conditions.

• Open the door to less than 90 degrees, and then completely insert the limiter pin through the top and bottom holes of the top hinge as shown in illustrations (1) and (2).
• Close the door and make sure the limiter pin does not interfere with the hinge cover.

CAUTION

• Insert the limiter pin before putting the under counter refrigeration into the cabinet.
• If the limiter pin is not inserted completely, the hinge and the hinge cover may get damaged.

95°

Factory default 95°

Limiter pin

With limiter pin 90°

Insert Completely 2/32" (2 mm) 90°

Cleaning

• Remove the protective vinyl.
• Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth.
• Wring excess water out of the sponge or cloth when cleaning around the controls or any electrical parts.

English36

Installation Checklist

Ensure the Rack & Shelf functions properly and that the custom door panel aligns with the surrounding cabinetry.

WARNING

• The following checklist should be completed by the installer to ensure that the Rack & Shelf is safely and correctly installed, functions properly, and that no part of the installation has been overlooked.
• Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor appliance cannot be overemphasized.

Installation Checklist

☐ Has the unit been inspected for cosmetic damage?
☐ Is the unit properly aligned with the adjacent cabinets?
☐ Do all doors, drawers and shelves operate smoothly, without interference?
□ Has all packaging, tape, and literature been removed from inside and outside of the appliance?
☐ Is the power cable connected to a three-prong grounded electrical outlet that meets the electrical specifications?
□ Has the unit been properly leveled?
☐ Is the gap between the glass door and the panel appropriate? (Please refer to page 32.)
☐ Has the anti-tip bracket been properly installed?
☐ Do all under counter refrigeration components function properly?
□ Has the warranty been activated on-line or the warranty card filled out and mailed?
□ Is the appliance level?
□ Is the Rack & Shelf firmly fixed?
□ Have you demonstrated to the user how to assemble and disassemble the Rack & Shelf according to the user manual?

Memo

Memo

dacor®

Line drawing of a refrigerator with open door and side panels (no text or symbols)

Line drawing of an open refrigerator with multiple shelves and a door open (no text or symbols)

Instalador

Illustration of a plug connected to an electrical outlet with three socket slots (no text or symbols)

Three identical black spiky spikes on a white background, no text or symbols present

Riesgo de explosión

1" (2.5 cm) 1" (2.5 cm) OK OK

Caso 1

NOTA

Technical line drawing of a rectangular frame with internal diagonal hatching and labeled dimensions A and C (no text or symbols beyond labels)

D2 D1 D E 95° E

Leyenda
A 23 3/4" (603 mm)
B (con panel) 23 5/8" (600 mm)
B1 (sin panel) 22 7/8" (581 mm)
C	34 3/16"-34 3/8"(868mm-873 mm)
D 23 13/16" (605 mm)
D1 24 5/16" (617.5 mm)
D2 28" (712.5 mm)
E 50 13/16" (1290.5 mm)

Español14

W1 H2 W3 H1 H3 W2 W2 H4

Leyenda
W1	23 3/4" (603 mm)
W2	2 3/8" (60 mm)
W3	18 11/16" (477 mm)
H1	30 3/8" (771 mm)
H2	3 3/8" (86 mm)
H3	23 9/16" (598 mm)
H4	3 3/8" (86 mm)
Grosor del panel	3/4" (19 mm)
Panel personalizado	23/32"-25/32"(18mm-20mm)
Peso máximo	22.0 lb (10 kg)

Illustration of a plug connected to an electrical outlet with three socket slots (no text or symbols)

Line drawing of a pair of safety glasses (no text or symbols)

Line drawing of a measuring tool with a square head and handle (no text or symbols)

L-shaped ruler with measurement markings, no text or symbols present

Simple line drawing of two hands clasped together (no text or symbols)

Line drawing of a drill bit and plug assembly (no text or symbols)

Line drawing of a flashlight with a bulb and handle (no text or symbols)

Simple line drawing of a rectangular object with three circular holes, no text or symbols present.

Nivel

Line drawing of an adjustable wrench (no text or symbols)

Llave ajustable

Español20

Pure diagram of a rotating mechanical component with two curved arrows indicating rotation direction (no text or symbols)

Min. = 48 1/4" (122.5 cm) 3/8" (1 cm)

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm)

Base de la puerta Panel de la puerta 23 11/16" (60.1 cm) 23 3/4" (60.3 cm) 6 3/8" (16.1 cm) 6 3/8" (16.1 cm) 6" (22.1 cm) 8 11/16" (22.1 cm) 4 5/16" (10.9 cm) 4 5/16" (10.9 cm) 3/4" (1.9 cm) 3/4" (1.9 cm) 30 5/16" (67.9 cm) 1 9/16" (3.95 cm) 15 11/16" (40 cm) Ø11/16" (0.7 cm) 2 3/16" (5.5 cm) 2 3/8" (6.0 cm) 3 3/8" (8.5 cm) 30 3/8" (77.1 cm) 1 9/16" (3.95 cm) 15 11/16" (40 cm) Ø1/4" (0.2 cm) 3 3/8" (8.6 cm) 3/4" (1.9 cm)

NOTA

Line drawing of an open refrigerator with multiple compartments and ventilation slots (no text or symbols)

Placa de protección

Diagram of a vehicle chassis with wheels and a tool inserted into it, showing mechanical components (no text or symbols)

Line drawing of a refrigerator with open door and side panels (no text or symbols)

Line drawing of an open refrigerator with multiple shelves and a door open (no text or symbols)

Installateur

Illustration of a plug connected to a wall socket with three socket holes (no text or symbols)

Technical drawing of a rectangular frame with internal diagonal hatching and labeled dimensions A and C (no text or symbols beyond labels)

D2 D1 D E 95° E

Désignation
A 23 3/4" (603 mm)
B (avec panneau) 23 5/8" (600 mm)
B1 (sans panneau) 22 7/8" (581 mm)
C	34 3/16"-34 3/8"(868mm-873 mm)
D 23 13/16" (605 mm)
D1 24 5/16" (617,5 mm)
D2 28" (712,5 mm)
E 50 13/16" (1290,5 mm)

Français14

W1 H2 W3 H1 H3 W2 W2 H4

Désignation
W1	23 3/4" (603 mm)
W2	2 3/8" (60 mm)
W3	18 11/16" (477 mm)
H1	30 3/8" (771 mm)
H2	3 3/8" (86 mm)
H3	23 9/16" (598 mm)
H4	3 3/8" (86 mm)
Épaisseur du panneau	3/4" (19 mm)
Panneau personnalisé	23/32"-25/32"(18mm-20mm)
Hauteur maximale	22.0 lb (10 kg)

Illustration of a plug connected to an electrical outlet with three socket covers (no text or symbols)

NE COUPEZ ET NE RETIREZ JAMAIS LA TROISIÈME BROCHE (MISE À LA TERRE) DU CORDON D'ALIMENTATION.

N'UTILISEZ PAS UN ADAPTATEUR POUR BRANCHER L'APPAREIL DE RÉFRIGÉRATION SOUS PLAN À UNE PRISE 2 BROCHES.

N'UTILISEZ PAS DE RALLONGE AVEC CET APPAREIL.

⚠ AVERTISSEMENT

Line drawing of a pair of safety glasses (no text or symbols)

Line drawing of a measuring tool with a square head and handle (no text or symbols)

L-shaped ruler with measurement markings, no text or symbols present

Simple line drawing of two hands clasped together (no text or symbols)

Line drawing of a drill bit and plug assembly (no text or symbols)

Line drawing of a flashlight with a pointed tip and handle (no text or symbols)

Simple line drawing of a rectangular tray with three circular cutouts (no text or symbols)

Niveau

Line drawing of an adjustable wrench (no text or symbols)

Clé à molette

Français20

24" (61 cm)

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm)

Minimum = 48 1/4" (122,5 cm) 3/8" (1 cm)

24" (61 cm) 34 1/4"-34 7/16"(87 cm-87.5cm)

Line drawing of a refrigerator with multiple compartments and an open door, labeled 'Plinthe' at the bottom (no other text or symbols)

Diagram of a vehicle chassis with wheels and a mechanical component, showing a disassembly or disassembly process (no text or symbols present)
